GE

Model Number

PSB9240DF1BB

Description

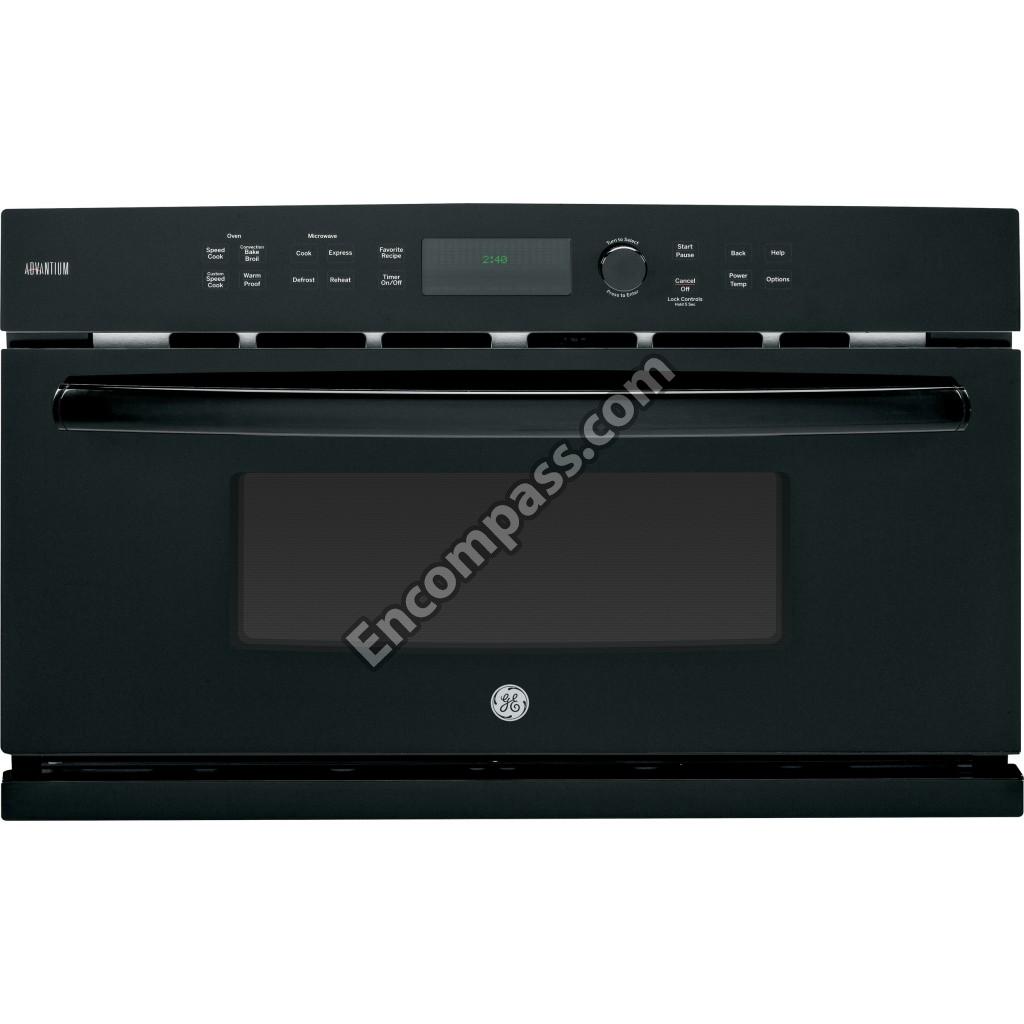

Ge Profile Series 30 In. Single Wall Oven With Adv

Interactive Exploded View
Exploded View

Parts List

Part Number Description

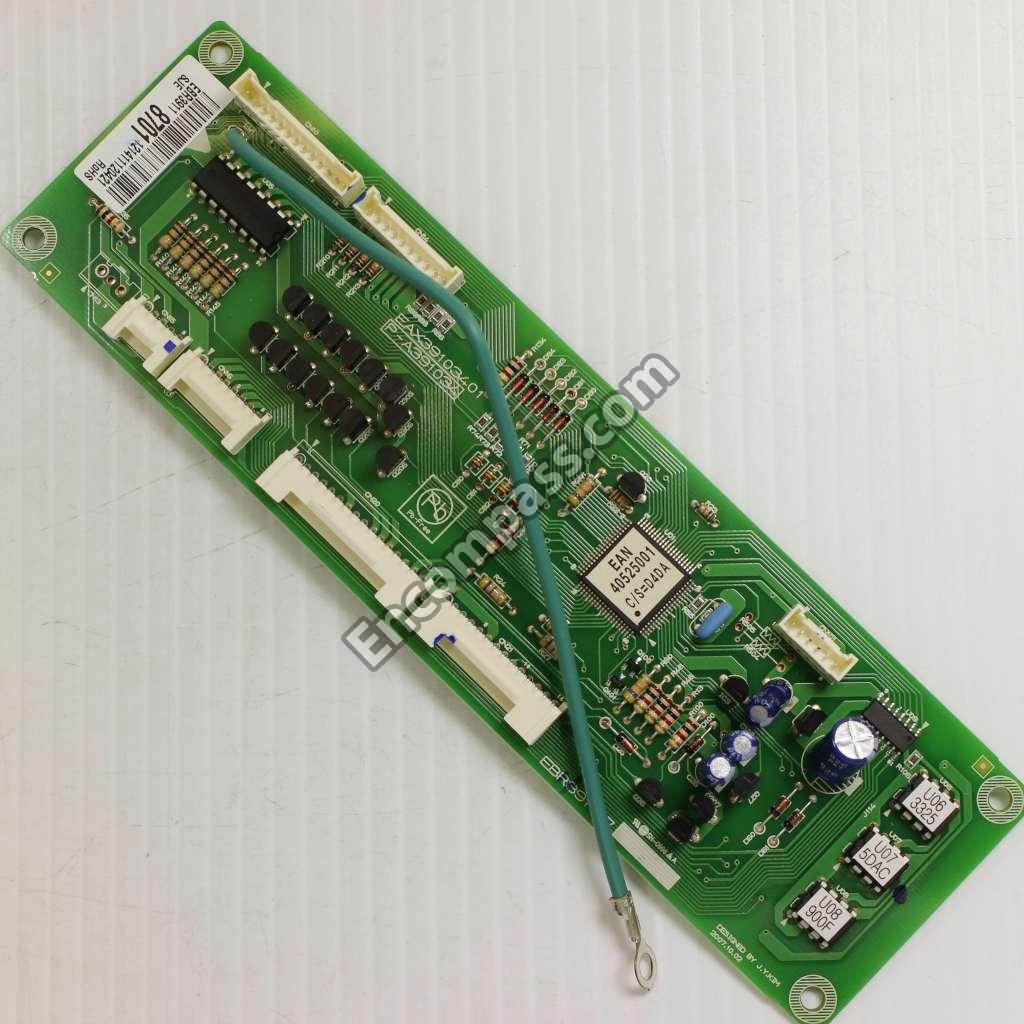

WB27X33045 WB27X33045 "BOARD, RELAY"
WB18X33767 WB18X33767 "HARNESS, SINGLE"
WB25X10019 WB25X10019 120V MICROWAVE HALOGEN BULB; 20W
WB26X10211 WB26X10211 AC FAN MOTOR

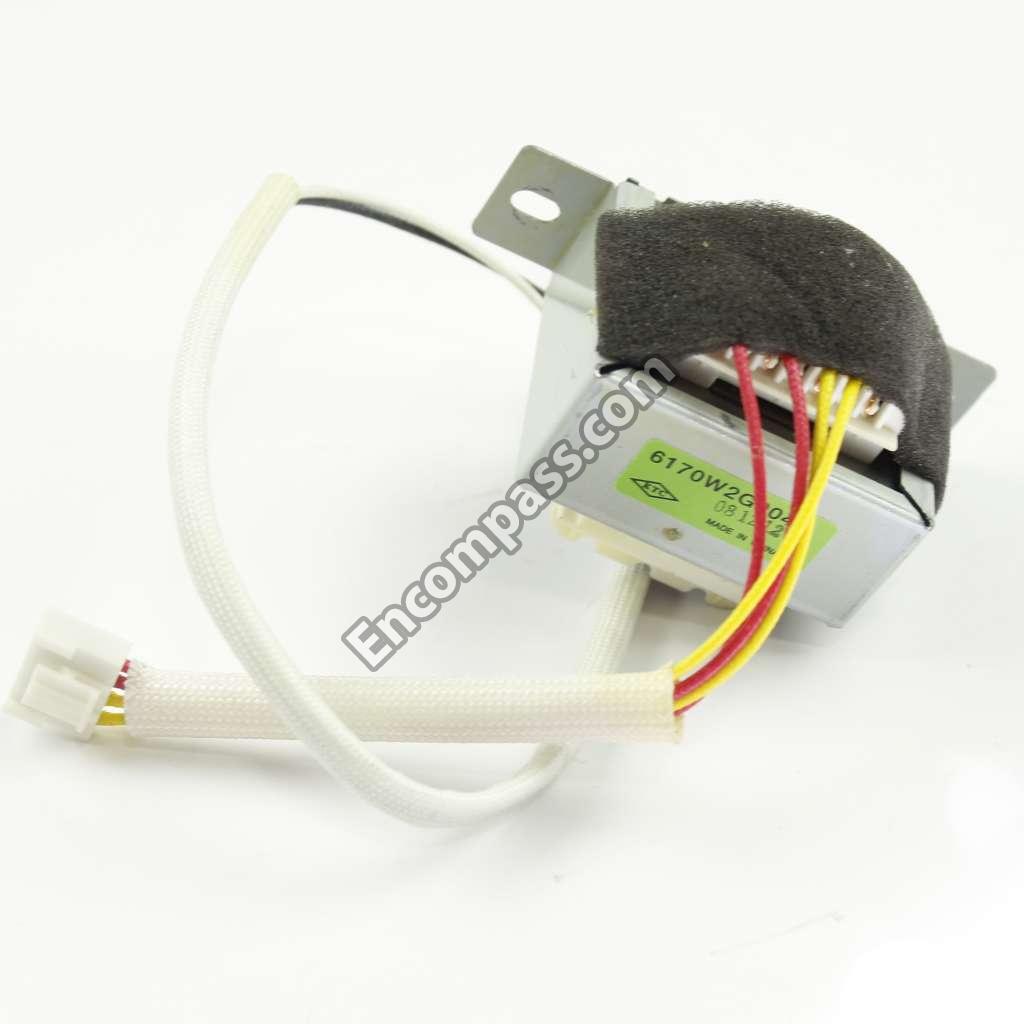

WB27X11015 WB27X11015 ADVANTIUM LOW VOLTAGE TRANSFORMER
WB02X11215 WB02X11215 BARRIER
WB63X21383 WB63X21383 BASE PLATE
WB6X475 WB6X475 BLADE MTR CL
WB02X32634 WB02X32634 BOARD SUPPORTER
WB07X11174 WB07X11174 BOTTOM TRIM
WB02X32932 WB02X32932 BRACKET
WB02X32593 WB02X32593 BRACKET CAPACITOR
WB18X32990 WB18X32990 CERAMIC HEATER ASSEMBLY
WB06X10642 WB06X10642 CHAMBER
WB07X21263 WB07X21263 CONTROLLER ASSEMBLY
49-40579 49-40579 COOKBOOK
WB19X42246 WB19X42246 DAMPER ASM
WB27X41746 WB27X41746 DISPLAY BOARD
WB56X32649 WB56X32649 DOOR ASSEMBLY AND REMOVAL TOOL
WB01X34910 WB01X34910 DOOR REMOVAL TOOL
WB34X32584 WB34X32584 DOOR SWITCH ACCESS COVER
WB27X32632 WB27X32632 ENCODER BOARD
WB06X0475 WB06X0475 FAN BLADE
WB56X10840 WB56X10840 FLAT CASE
WB06X10650 WB06X10650 GLASS WOOL
WB18X32993 WB18X32993 HALOGEN HEATER ASSEMBLY
WB18X33008 WB18X33008 HARNESS SINGLE
WB18X33006 WB18X33006 HARNESS SINGLE
WB18X33001 WB18X33001 HARNESS SINGLE
WB18X32769 WB18X32769 HARNESS SINGLE
WB18X33007 WB18X33007 HARNESS SINGLE
WB44X10050 WB44X10050 HEATER SHEATH
WB17X10030 WB17X10030 HIGH VOLTAGE TRANSFORMER
WB02X32605 WB02X32605 HOLDER - HEATER
WB02X32855 WB02X32855 HOLDER DISPLAY
WB02X11233 WB02X11233 HOLDER WIRE
WB01X32574 WB01X32574 INSTALLATION HARDWARE
WB35X32998 WB35X32998 INSULATION FORM KIT
WB03X10131 WB03X10131 KNOB BLACK

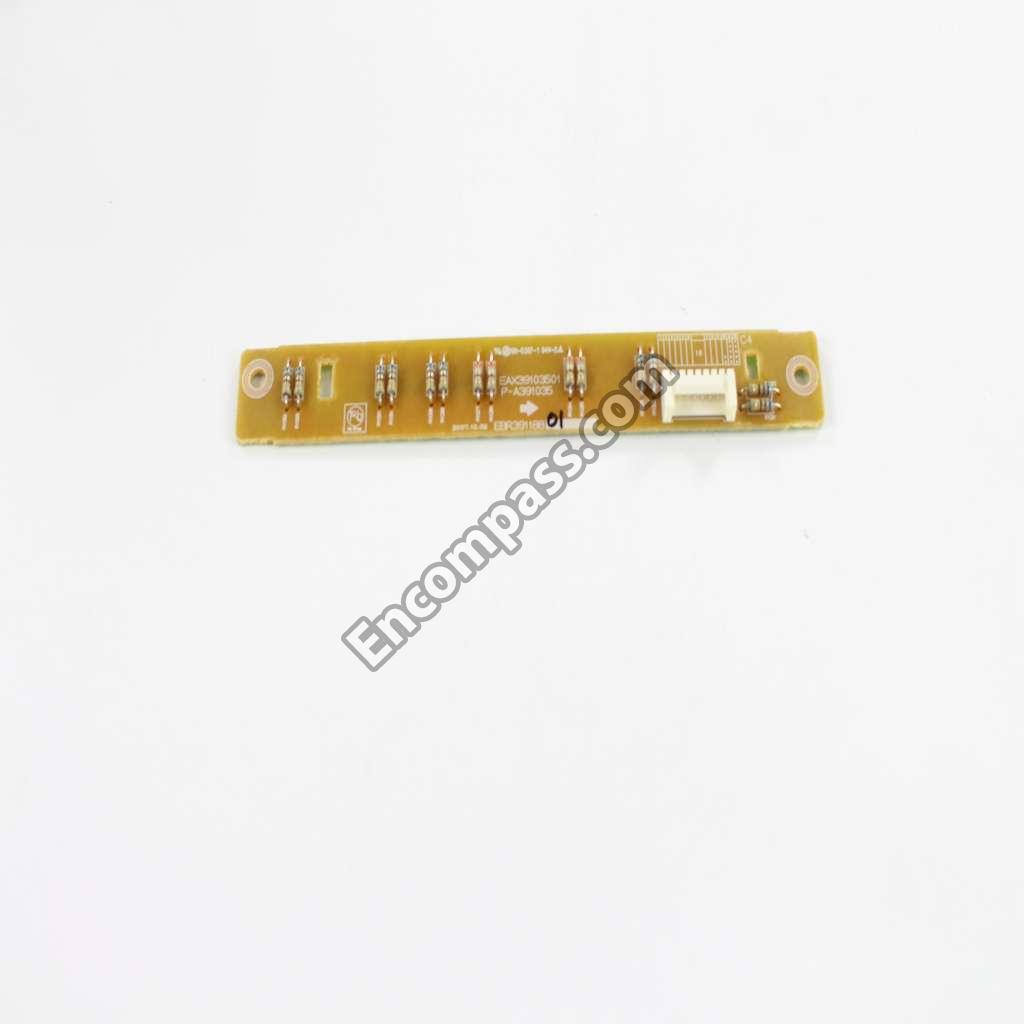

WB27X11020 WB27X11020 LED BOARD
WB07X11167 WB07X11167 LEFT TRIM
WB34X32583 WB34X32583 LIGHT COVER
WB26X32629 WB26X32629 MAGNETRON
WB06X10828 WB06X10828 MICA COVER
WB24X10172 WB24X10172 MICRO SWITCH
WB06X10641 WB06X10641 MICROWAVE BOTTOM PANEL
WB06X10570 WB06X10570 MICROWAVE BRACKET
WB02X11225 WB02X11225 MICROWAVE BRACKET
WB02X32591 WB02X32591 MICROWAVE BRACKET
WB27X11033 WB27X11033 MICROWAVE CAPACITOR
WB02X11320 WB02X11320 MICROWAVE CONTROL PANEL BRACKET
WB27X10037 WB27X10037 MICROWAVE DIODE CABLE
WB06X10773 WB06X10773 MICROWAVE DOOR GLASS
WB34X32594 WB34X32594 MICROWAVE DUCT ASSEMBLY
WB26X32609 WB26X32609 MICROWAVE FAN MOTOR
WB06X10646 WB06X10646 MICROWAVE HOLDER ASSEMBLY
WB10X32573 WB10X32573 MICROWAVE LATCH BODY - LEFT
WB10X32577 WB10X32577 MICROWAVE LATCH BODY - RT
WB02X32588 WB02X32588 MICROWAVE LEVER
WB06X10786 WB06X10786 MICROWAVE LIGHT SOCKET HOLDER
WB27X10928 WB27X10928 MICROWAVE LINE FUSE
WB02X35865 WB02X35865 MICROWAVE NOISE FILTER
WB06X10776 WB06X10776 MICROWAVE RACK HOLDER
WB21X10148 WB21X10148 MICROWAVE THERMOSTAT
WB20X10048 WB20X10048 MICROWAVE THERMOSTAT
49-40695 49-40695 MINI MANUAL
WB26X10182 WB26X10182 MOTOR(CIRC) CIRCULATION
WB34X32596 WB34X32596 MOUNT
WB02X32599 WB02X32599 MOUNT
WB49X10243 WB49X10243 NONSTIC TRAY-METAL GRILL
WB49X10242 WB49X10242 NONSTICK TRAY-METAL FLAT
WB02X40028 WB02X40028 PCB TO DIAL PCB HARNESS
WB18X10412 WB18X10412 PCB TO LED PCB HARNESS
WB18X32992 WB18X32992 PCB TO VFD HARNESS
49-40693 49-40693 PM COOKING GUIDE
49-40690 49-40690 PM INSTALL INSTRUCTIONS
49-40686 49-40686 PM OWNERS MANUAL

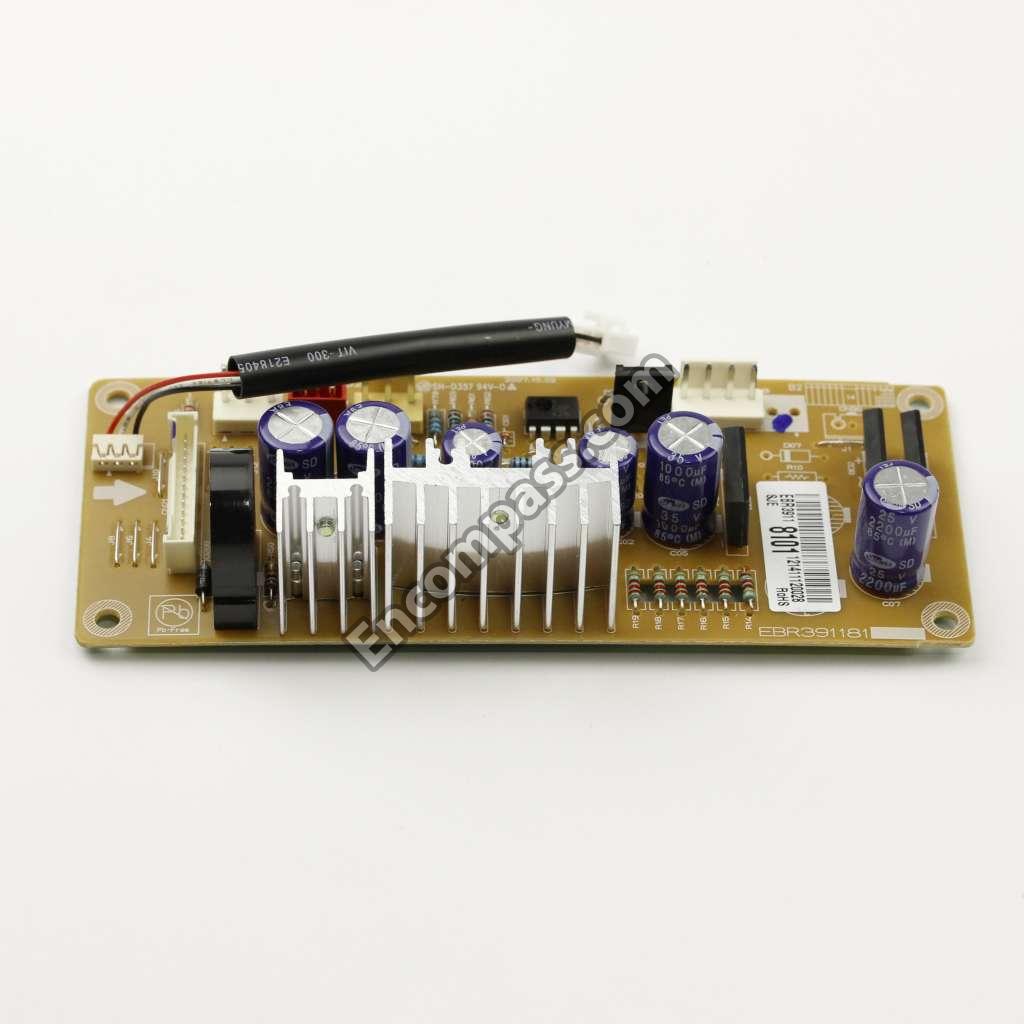

WB27X11018 WB27X11018 POWER BOARD
WB18X21264 WB18X21264 POWER CORD ASSEMBLY
WB49X10202 WB49X10202 RACK
WB06X32995 WB06X32995 RANGE LATCH BRACKET
WB02X10542 WB02X10542 RANGE MOTOR BRACKET
WB07X11166 WB07X11166 RIGHT TRIM
WB06X10775 WB06X10775 RING ASSEMBLY
WB1X1518 WB1X1518 RING SHAFT
WB01X1504 WB01X1504 SCREW - HEATER SHEATH
WB1X1504 WB1X1504 SCREW TRUSS
WB27X10857 WB27X10857 SENSOR ASSEMBLY
WB27X11019 WB27X11019 SMART BOARD
WB01X1518 WB01X1518 SPACER
WB02X32604 WB02X32604 SUPPORT

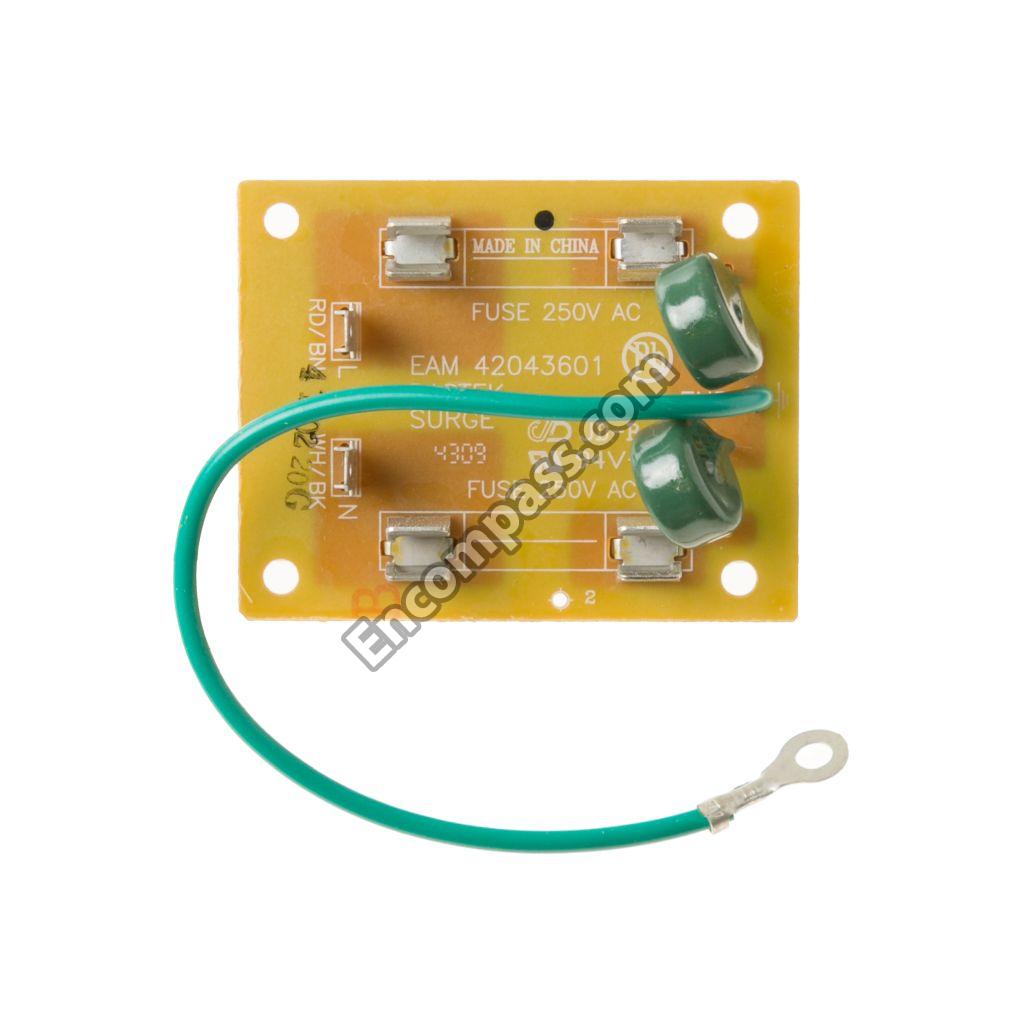

WB07X11156 WB07X11156 SURGE BOARD
WB27X44926 WB27X44926 SURGE FILTER BOARD
WB24X25397 WB24X25397 SWITCH MICRO
WB24X10047 WB24X10047 SWITCH MICRO
WB18X10287 WB18X10287 THERMISTOR NTC
WB27X43590 WB27X43590 TRAY GLASS
WB26X32994 WB26X32994 TT MOTOR W/ GASKET
WB02X11360 WB02X11360 TURNTABLE SHAFT
WB36X10129 WB36X10129 UPPER GLASS COVER
WB27X11017 WB27X11017 VENTILATION FAN MOTOR
WB01X1522 WB01X1522 WASHER COMMON
WB1X1521 WB1X1521 WASHER PLAIN
WB1X1522 WB1X1522 WASHER SPLK
WB01X1521 WB01X1521 WASHER- PLAIN
