Model Image
Manufacturer

GE

Model Number

PSB9240DF1WW

Description

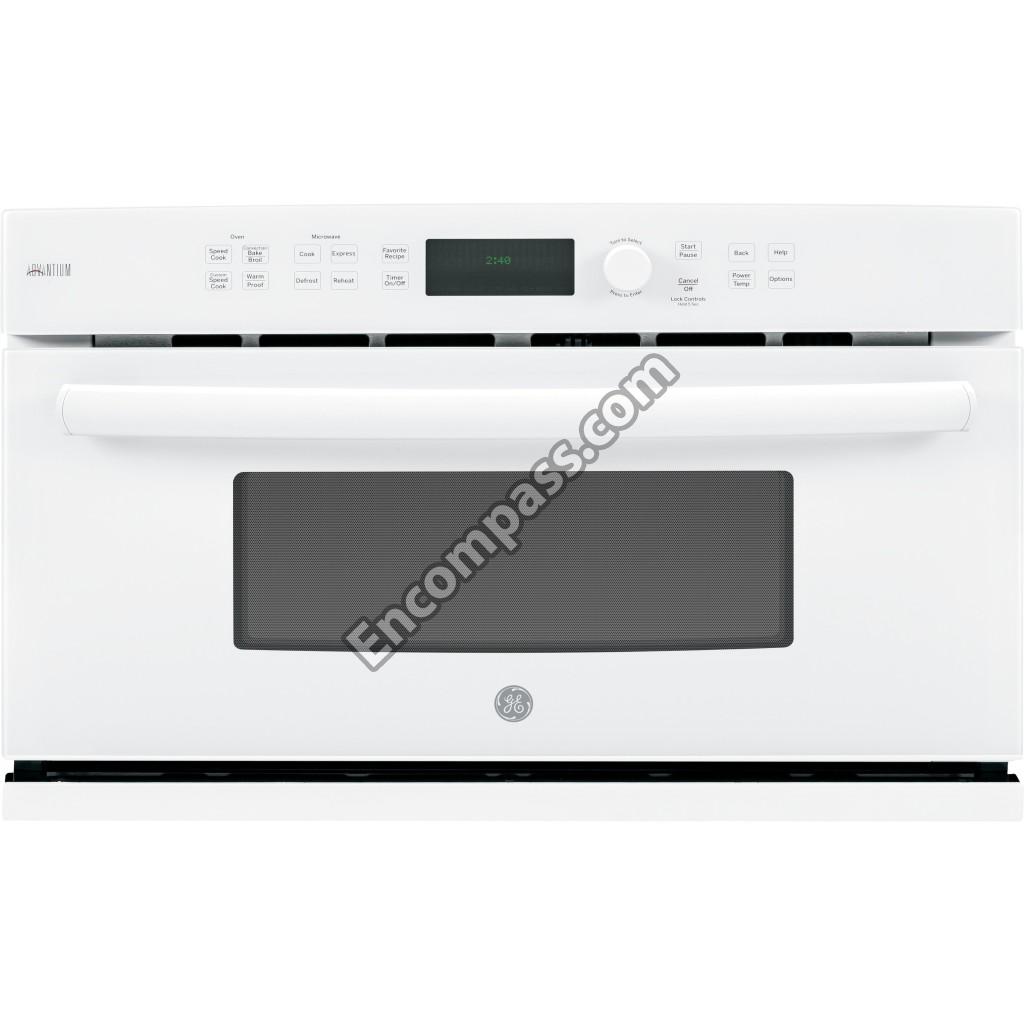

Ge Profile Series 30 In. Single Wall Oven With Adv

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB27X33045 WB27X33045 GE "BOARD, RELAY"
WB18X33767 WB18X33767 GE "HARNESS, SINGLE"
WB07X33003 WB07X33003 GE "TRIM, RIGHT"
WB25X10019 WB25X10019 GE 120V MICROWAVE HALOGEN BULB; 20W
WB26X10211 WB26X10211 GE AC FAN MOTOR
WB27X11015 WB27X11015 GE ADVANTIUM LOW VOLTAGE TRANSFORMER
WB02X11215 WB02X11215 GE BARRIER
WB63X21383 WB63X21383 GE BASE PLATE
WB6X475 WB6X475 GE BLADE MTR CL
WB02X32634 WB02X32634 GE BOARD SUPPORTER
WB07X11173 WB07X11173 GE BOTTOM TRIM
WB02X32932 WB02X32932 GE BRACKET
WB02X32593 WB02X32593 GE BRACKET CAPACITOR
WB18X32990 WB18X32990 GE CERAMIC HEATER ASSEMBLY
WB06X10642 WB06X10642 GE CHAMBER
WB07X21266 WB07X21266 GE CONTROLLER ASSEMBLY
49-40579 49-40579 GE COOKBOOK
WB19X42246 WB19X42246 GE DAMPER ASM
WB27X41746 WB27X41746 GE DISPLAY BOARD
WB56X10843 WB56X10843 GE DOOR ASM W/4 DR TOOL
WB56X21256 WB56X21256 GE DOOR ASSEMBLY AND REMOVAL TOOL
WB01X34910 WB01X34910 GE DOOR REMOVAL TOOL
WB34X32584 WB34X32584 GE DOOR SWITCH ACCESS COVER
WB27X32632 WB27X32632 GE ENCODER BOARD
WB06X0475 WB06X0475 GE FAN BLADE
WB56X10840 WB56X10840 GE FLAT CASE
WB06X10650 WB06X10650 GE GLASS WOOL
WB18X32993 WB18X32993 GE HALOGEN HEATER ASSEMBLY
WB18X33006 WB18X33006 GE HARNESS SINGLE
WB18X32769 WB18X32769 GE HARNESS SINGLE
WB18X33008 WB18X33008 GE HARNESS SINGLE
WB18X33001 WB18X33001 GE HARNESS SINGLE
WB18X33007 WB18X33007 GE HARNESS SINGLE
WB44X10050 WB44X10050 GE HEATER SHEATH
WB17X10030 WB17X10030 GE HIGH VOLTAGE TRANSFORMER
WB02X32605 WB02X32605 GE HOLDER - HEATER
WB02X32855 WB02X32855 GE HOLDER DISPLAY
WB02X11233 WB02X11233 GE HOLDER WIRE
WB01X32574 WB01X32574 GE INSTALLATION HARDWARE
WB35X32998 WB35X32998 GE INSULATION FORM KIT
WB27X11020 WB27X11020 GE LED BOARD
WB34X32583 WB34X32583 GE LIGHT COVER
WB26X32629 WB26X32629 GE MAGNETRON
WB06X10828 WB06X10828 GE MICA COVER
WB24X10172 WB24X10172 GE MICRO SWITCH
WB06X10641 WB06X10641 GE MICROWAVE BOTTOM PANEL
WB06X10570 WB06X10570 GE MICROWAVE BRACKET
WB02X11225 WB02X11225 GE MICROWAVE BRACKET
WB02X32591 WB02X32591 GE MICROWAVE BRACKET
WB27X11033 WB27X11033 GE MICROWAVE CAPACITOR
WB02X11320 WB02X11320 GE MICROWAVE CONTROL PANEL BRACKET
WB27X10037 WB27X10037 GE MICROWAVE DIODE CABLE
WB06X10773 WB06X10773 GE MICROWAVE DOOR GLASS
WB34X32594 WB34X32594 GE MICROWAVE DUCT ASSEMBLY
WB26X32609 WB26X32609 GE MICROWAVE FAN MOTOR
WB06X10646 WB06X10646 GE MICROWAVE HOLDER ASSEMBLY
WB03X10129 WB03X10129 GE MICROWAVE KNOB - WHITE
WB10X32573 WB10X32573 GE MICROWAVE LATCH BODY - LEFT
WB10X32577 WB10X32577 GE MICROWAVE LATCH BODY - RT
WB02X32588 WB02X32588 GE MICROWAVE LEVER
WB06X10786 WB06X10786 GE MICROWAVE LIGHT SOCKET HOLDER
WB27X10928 WB27X10928 GE MICROWAVE LINE FUSE
WB02X35865 WB02X35865 GE MICROWAVE NOISE FILTER
WB06X10776 WB06X10776 GE MICROWAVE RACK HOLDER
WB21X10148 WB21X10148 GE MICROWAVE THERMOSTAT
WB20X10048 WB20X10048 GE MICROWAVE THERMOSTAT
WB07X33009 WB07X33009 GE MICROWAVE TRIM - LEFT - STAINLESS STEEL
49-40695 49-40695 GE MINI MANUAL
WB26X10182 WB26X10182 GE MOTOR(CIRC) CIRCULATION
WB34X32596 WB34X32596 GE MOUNT
WB02X32599 WB02X32599 GE MOUNT
WB49X10243 WB49X10243 GE NONSTIC TRAY-METAL GRILL
WB49X10242 WB49X10242 GE NONSTICK TRAY-METAL FLAT
WB02X40028 WB02X40028 GE PCB TO DIAL PCB HARNESS
WB18X10412 WB18X10412 GE PCB TO LED PCB HARNESS
WB18X32992 WB18X32992 GE PCB TO VFD HARNESS
49-40693 49-40693 GE PM COOKING GUIDE
49-40690 49-40690 GE PM INSTALL INSTRUCTIONS
49-40686 49-40686 GE PM OWNERS MANUAL
WB27X11018 WB27X11018 GE POWER BOARD
WB18X21264 WB18X21264 GE POWER CORD ASSEMBLY
WB49X10202 WB49X10202 GE RACK
WB06X32995 WB06X32995 GE RANGE LATCH BRACKET
WB02X10542 WB02X10542 GE RANGE MOTOR BRACKET
WB06X10775 WB06X10775 GE RING ASSEMBLY
WB1X1518 WB1X1518 GE RING SHAFT
WB01X1504 WB01X1504 GE SCREW - HEATER SHEATH
WB1X1504 WB1X1504 GE SCREW TRUSS
WB27X10857 WB27X10857 GE SENSOR ASSEMBLY
WB27X11019 WB27X11019 GE SMART BOARD
WB01X1518 WB01X1518 GE SPACER
WB02X32604 WB02X32604 GE SUPPORT
WB07X11156 WB07X11156 GE SURGE BOARD
WB27X44926 WB27X44926 GE SURGE FILTER BOARD
WB24X25397 WB24X25397 GE SWITCH MICRO
WB24X10047 WB24X10047 GE SWITCH MICRO
WB18X10287 WB18X10287 GE THERMISTOR NTC
WB27X43590 WB27X43590 GE TRAY GLASS
WB26X32994 WB26X32994 GE TT MOTOR W/ GASKET
WB02X11360 WB02X11360 GE TURNTABLE SHAFT
WB36X10129 WB36X10129 GE UPPER GLASS COVER
WB27X11017 WB27X11017 GE VENTILATION FAN MOTOR
WB01X1522 WB01X1522 GE WASHER COMMON
WB1X1521 WB1X1521 GE WASHER PLAIN
WB1X1522 WB1X1522 GE WASHER SPLK
WB01X1521 WB01X1521 GE WASHER- PLAIN
