Model Image
Manufacturer

GE

Model Number

PSB9240EF4ES

Description

Built-in Microwave

Interactive Exploded View
Exploded View

Parts List

Part Number Description

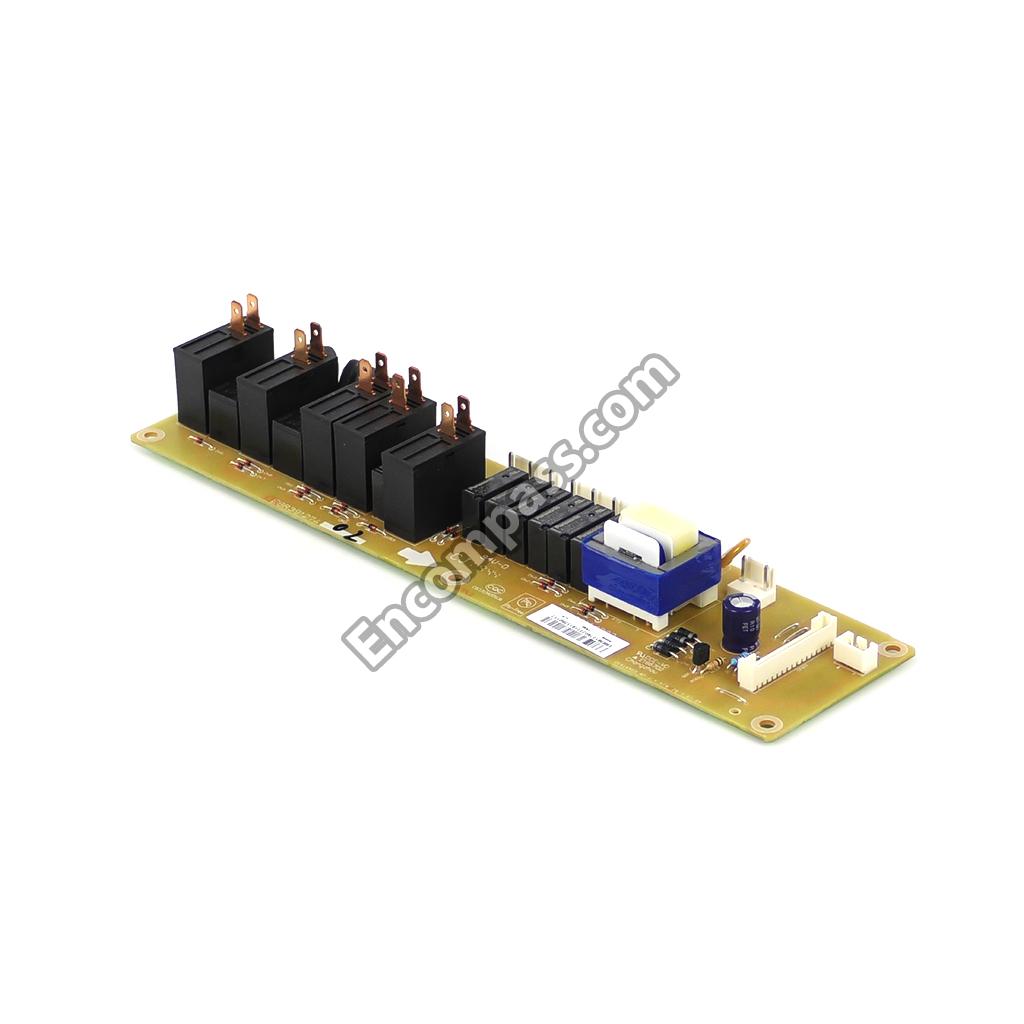

WB27X33045 WB27X33045 "BOARD, RELAY"
WB18X33767 WB18X33767 "HARNESS, SINGLE"
WB26X10211 WB26X10211 AC FAN MOTOR
WB49X10187 WB49X10187 ADVANTIUM METAL COOKING TRAY
WB02X32590 WB02X32590 BARRIER BRACKET
WB63X21383 WB63X21383 BASE PLATE
WB6X475 WB6X475 BLADE MTR CL
WB02X32634 WB02X32634 BOARD SUPPORTER
WB56X32579 WB56X32579 BOTTOM PANEL
WB07X37266 WB07X37266 BOTTOM SLATE TRIM
WB02X32932 WB02X32932 BRACKET
WB02X32587 WB02X32587 BRACKET
WB02X32591 WB02X32591 BRACKET
WB02X32593 WB02X32593 BRACKET CAPACITOR
WB18X32990 WB18X32990 CERAMIC HEATER ASSEMBLY
WB06X10642 WB06X10642 CHAMBER
WB02X32630 WB02X32630 CONTROL BOARD BRACKET
WB27X41746 WB27X41746 DISPLAY BOARD
WB34X32584 WB34X32584 DOOR SWITCH ACCESS COVER
WB34X32608 WB34X32608 DUCT ASSEMBLY
WB27X32632 WB27X32632 ENCODER BOARD
WB06X0475 WB06X0475 FAN BLADE
WB56X10840 WB56X10840 FLAT CASE
WB06X10650 WB06X10650 GLASS WOOL
WB02X35488 WB02X35488 HALOGEN BULB 130V/50W
WB18X32993 WB18X32993 HALOGEN HEATER ASSEMBLY
WB18X33005 WB18X33005 HARNESS SINGLE
WB18X33007 WB18X33007 HARNESS SINGLE
WB18X33006 WB18X33006 HARNESS SINGLE
WB18X33001 WB18X33001 HARNESS SINGLE
WB18X32769 WB18X32769 HARNESS SINGLE
WB18X33008 WB18X33008 HARNESS SINGLE
WB02X32605 WB02X32605 HEATER HOLDER
WB44X10050 WB44X10050 HEATER SHEATH
WB17X10030 WB17X10030 HIGH VOLTAGE TRANSFORMER
WB02X32855 WB02X32855 HOLDER DISPLAY
WB02X11233 WB02X11233 HOLDER WIRE
WB01X32574 WB01X32574 INSTALLATION HARDWARE
WB35X32998 WB35X32998 INSULATION FORM KIT
WB27X33004 WB27X33004 LED BOARD
WB34X32583 WB34X32583 LIGHT COVER
WB26X32629 WB26X32629 MAGNETRON
WB27X33046 WB27X33046 MAIN CONTROL BOARD
WB49X47646 WB49X47646 METAL BB TRAY
WB06X10828 WB06X10828 MICA COVER
WB24X10172 WB24X10172 MICRO SWITCH
WB06X10641 WB06X10641 MICROWAVE BOTTOM PANEL
WB06X10570 WB06X10570 MICROWAVE BRACKET
WB02X11225 WB02X11225 MICROWAVE BRACKET
WB27X11033 WB27X11033 MICROWAVE CAPACITOR
WB27X10037 WB27X10037 MICROWAVE DIODE CABLE
WB06X10773 WB06X10773 MICROWAVE DOOR GLASS
WB34X32594 WB34X32594 MICROWAVE DUCT ASSEMBLY
WB26X32609 WB26X32609 MICROWAVE FAN MOTOR
WB06X10646 WB06X10646 MICROWAVE HOLDER ASSEMBLY
WB10X32573 WB10X32573 MICROWAVE LATCH BODY - LEFT
WB10X32577 WB10X32577 MICROWAVE LATCH BODY - RT
WB02X32588 WB02X32588 MICROWAVE LEVER
WB06X10786 WB06X10786 MICROWAVE LIGHT SOCKET HOLDER
WB27X10928 WB27X10928 MICROWAVE LINE FUSE
WB24X25397 WB24X25397 MICROWAVE MONITOR SWITCH
WB02X35865 WB02X35865 MICROWAVE NOISE FILTER
WB06X10776 WB06X10776 MICROWAVE RACK HOLDER
WB07X32622 WB07X32622 MICROWAVE TRIM - RIGHT
WB34X32628 WB34X32628 MOTOR BRACKET
WB26X10182 WB26X10182 MOTOR(CIRC) CIRCULATION
WB34X32596 WB34X32596 MOUNT
WB02X32599 WB02X32599 MOUNT
WB56X32575 WB56X32575 PANEL
WB02X40028 WB02X40028 PCB TO DIAL PCB HARNESS
WB18X10412 WB18X10412 PCB TO LED PCB HARNESS
WB18X32992 WB18X32992 PCB TO VFD HARNESS
WB26X32954 WB26X32954 PCB WIRE CONNECTOR
31-30805 31-30805 PM MINI MANUAL

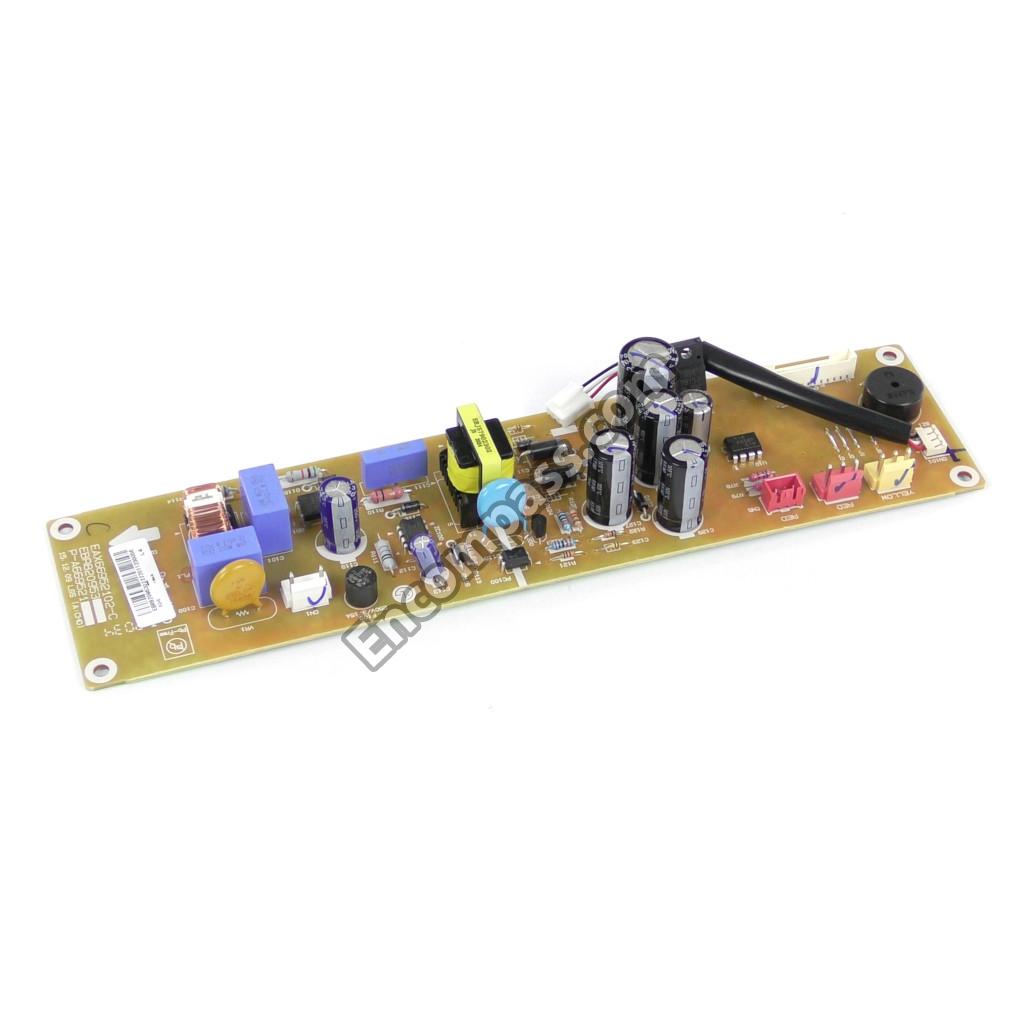

WB27X33044 WB27X33044 POWER BOARD
WB18X21264 WB18X21264 POWER CORD ASSEMBLY
WB49X10202 WB49X10202 RACK
WB02X10542 WB02X10542 RANGE MOTOR BRACKET
WB1X1518 WB1X1518 RING SHAFT
WB02X32600 WB02X32600 ROTATING RING ASSEMBLY
WB01X1504 WB01X1504 SCREW - HEATER SHEATH
WB1X1504 WB1X1504 SCREW TRUSS
WB27X10857 WB27X10857 SENSOR ASSEMBLY
WB56X37191 WB56X37191 SLATE CONTROLLER ASSEMBLY
WB56X37198 WB56X37198 SLATE DOOR ASSEMBLY
WB01X1518 WB01X1518 SPACER
WB03X35392 WB03X35392 STAINLESS STEEL KNOB
WB02X32604 WB02X32604 SUPPORT
WB27X44926 WB27X44926 SURGE FILTER BOARD
WB24X10047 WB24X10047 SWITCH MICRO
WB18X10287 WB18X10287 THERMISTOR NTC
WB20X10048 WB20X10048 THERMOSTAT
WB27X43590 WB27X43590 TRAY GLASS
WB07X32627 WB07X32627 TRIM LH
WB26X32994 WB26X32994 TT MOTOR W/ GASKET
WB02X11360 WB02X11360 TURNTABLE SHAFT
WB36X10129 WB36X10129 UPPER GLASS COVER
WB27X11017 WB27X11017 VENTILATION FAN MOTOR
WB01X1522 WB01X1522 WASHER COMMON
WB1X1521 WB1X1521 WASHER PLAIN
WB1X1522 WB1X1522 WASHER SPLK
WB01X1521 WB01X1521 WASHER- PLAIN
WB06X32999 WB06X32999 WINDOW GLASS
