Manufacturer
GE
Model Number
PSE25KBLNHTS
Description

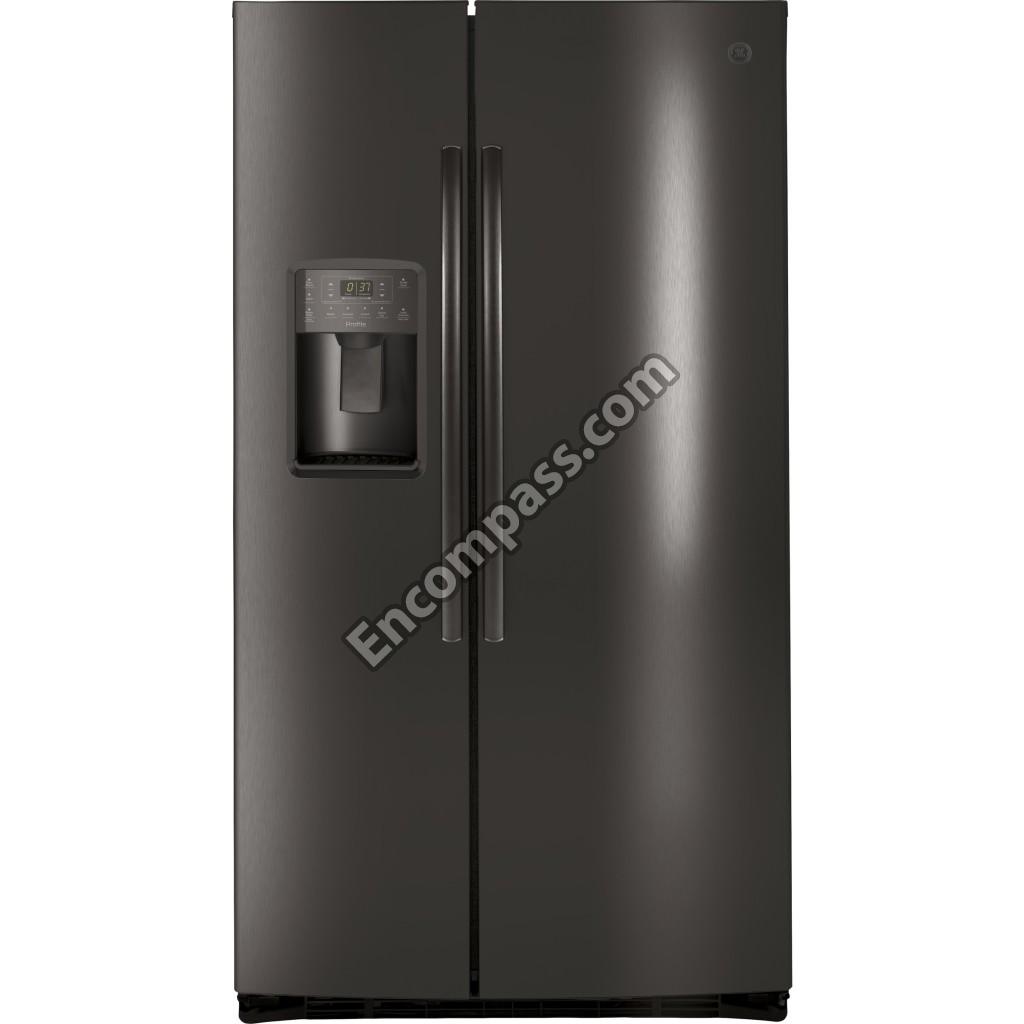

Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
238C1160P007 |
|
|
BAFFLE COND AIR |
|
|
BASKET WIRE FZ |
|
|
BASKET WIRE FZ SHORT. |
|
|
BLACK GE BADGE |
|
|
BLACK STAINLESS DOOR H AND LE |
|
|
BLADE CONF FAN ASSEMBLY |
|
|
BOARD ASM MAIN CONTROL |
|
|
BOARD ASSEMBLY DISPLAY LIGHTING |
|
|
BOTTOM BRACKET EVAP |
|
|
BRACKET COND FAN (MTG) |
|
|
BRACKET CONDENSER BAR |
|
|
BRACKET FZ TOWER LOWER |
|
|
BRACKET FZ TOWER UPPER |
|
|
BUCKET & AUGER ASM |
|
|
BUMPER |
|
|
BYPASS FILTER PLUG |
|
|
CAM CLOSURE FF BLACK |
|
|
CAM CLOSURE FZ BLACK |
|
|
CAP CORNER OC |
|
|
CAP DUST |
|
|
CLAMP TUBE |
|
|
CLIP COND |
|
|
CLIP EVAP THERMISTOR |
|
|
CLIP RETAINER COMBO |
|
|
COMPARTMENT DAIRY |
|
|
COMPRESSOR EMBRACO |
|
|
COND ASSEMBLY FORMED |
|
|
COVER ACCESS ASSEMBLY |
|
|
COVER ASSEMBLY FF INLET |
|
|
COVER AUGER MOTOR |
|
|
COVER BOTTOM PAN |
|
|
COVER EVAPORATORORATOR FRONT |
|
|
COVER FF INLET |
|
|
COVER INLET DISCHARGE |
|
|
COVER LED |
|
|
COVER MOTOR BACK |
|
|
COVER PAN GLASS |
|
|
COVER PAN GLASS |
|
|
COVER TOP PAN ASSEMBLY |
|
|
COVER WATER LINE |
|
|
CRANK DOOR RECESS |
|
|
CUP FILL IM |
|
|
DISPENSER ICE FUNNEL |
|
|
DISPENSER INTERFACE AND BOARD DORIAN GRAY |
|
|
DISPENSER PADDLE DORIAN GRAY |
|
|
DIVERTER AIR |
|
|
DOOR DAIRY CLEAR |
|
|
DOOR STOP BLACK |
|
|
DRIVE AUGER DISP |
|
|
DUCT ASSEMBLY FF TRANSITION |
|
|
ELECTRONIC IM DOMESTIC |
|
|
EVAPORATOR FAN BLADE |
|
|
FILTER AND DRYER ASSEMBLY |
|
|
FOAM STRIP |
|
|
FRESH FOOD DOOR STOP BLACK |
|
|
GASKET |
|
|
GASKET DOOR FZ DG |
|
|
GASKET EVAPORATOR COVER |
|
|
GASKET PAN CRV FRONT |
|
|
GASKET PAN CRV REAR |
|
|
GLIDE BUCKET LH DISP |
|
|
GLIDE BUCKET RH DISP |
|
|
GRILLE AIR RETURN |
|
|
GRILLE BASE |
|
|
GRILLE SENSOR |
|
|
GROMMET |
|
|
GROMMET |
|
|
GROMMET AND TUBE ASSEMBLY |
|
|
GROMMET BASE GRILL |
|
|
GROMMET EVAPORATOR FAN |
|
|
GROMMET EVAPORATOR FAN |
|
|
HANDLE |
|
|
HANDLE |
|
|
HARNESS AC FZ INTERMEDIA |
|
|
HARNESS CAB LOWER |
|
|
HARNESS MOTOR DISP |
|
|
HARNESS RECESS DISPENSOR |
|
|
HINGE BTM AND PIN ASSEMBLY |
|
|
HINGE BTM BLACK |
|
|
HINGE TOP AND PIN ASSEMBLY |
|
|
HINGE TOP AND PIN ASSEMBLY |
|
|
HOUSING SHIELD DISP |
|
|
HUMIDITY CONTROL |
|
|
INSERT PLENUM |
|
|
INSUL TUBE FOAM |
|
|
INSULATION TANK FOAM |
|
|
KIT CAPACITOR 12 UF |
|
|
LEVER ASSEMBLY FF SIDE BLACK |
|
|
LEVER ASSEMBLY FZ BLACK |
|
|
MOBILITY FRONT ASSEMBLY |
|
|
MOBILITY WHEEL S KIT ASSEMBLY |
|
|
MODULE SHELF FF |
|
|
MODULE SHELF FF |
|
|
MODULE SHELF FZ |
|
|
MOTOR CRUSHER DISP |
|
|
MOTOR DC EVAPORATOR FAN ASSEMBLY |
|
|
ORIFICE FAN ASSEMBLY |
|
|
PAN ASM MD |
|
|
PAN BOTTOM ASSEMBLY |
|
|
PAN TOP ASSEMBLY |
|
|
PIN HINGE BTM ADJ HOLLOW |
|
|
PIN SPIRAL |
|
|
PIN SPIRAL |
|
|
PM MINI MANUAL AND WIRING |
|
|
PM QUICK USE & CARE CAFE |
|
|
RECESS GRILL DORIAN GRAY |
|
|
REFER CONNCTR PLSTC H20 LINE 5/16-INCH-5/16-INCH |
|
|
REFRIGERATION WATER FILTER |
|
|
REFRIGERATOR - FREEZER DOOR BLACK STAINL |
|
|
REFRIGERATOR - FRESH FOOD DOOR BLACK STA |
|
|
REFRIGERATOR CLIP |
|
|
REFRIGERATOR CONDENSER FAN BRACKET |
|
|
REFRIGERATOR CONDENSER FAN MOTOR |
|
|
REFRIGERATOR DAIRY COMPARTMENT TRIM |
|
|
REFRIGERATOR DEFROST HEATER ASSEMBLY |
|
|
REFRIGERATOR DISPENSER DOOR FLAP - BLACK |
|
|
REFRIGERATOR DISPENSER SOLENOID ASSEMBLY |
|
|
REFRIGERATOR DOOR HANDLE FASTENER |
|
|
REFRIGERATOR DOOR LIGHT SWITCH |
|
|
REFRIGERATOR EVAPORATOR REPLACEMENT KIT |
|
|
REFRIGERATOR FREEZER PLENUM EXTENSION |
|
|
REFRIGERATOR FREEZER SHELF |
|
|
REFRIGERATOR GLASS SHELF |
|
|
REFRIGERATOR LED LIGHT BOARD |
|
|
REFRIGERATOR MAIN BOARD ENCLOSURE |
|
|
REFRIGERATOR MAIN SHELF |
|
|
REFRIGERATOR MIDDLE PAN COVER |
|
|
REFRIGERATOR OVERLOAD |
|
|
REFRIGERATOR REAR GASKET COVER |
|
|
REFRIGERATOR SHELF INSERT MODULE |
|
|
REFRIGERATOR TEMPERATURE SENSOR |
|
|
REFRIGERATOR WATER TANK ASSEMBLY |
|
|
RETAINER RECESS DOOR |
|
|
RING COMPRESSION |
|
|
SCR 1/4-14 AB IHW 3/4 S |
|
|
SCR 10-16 |
|
|
SCR 10-16 |
|
|
SCR 10-18 HI/LO HXW 1/2 |
|
|
SCR 10-32 B IHXW 1/2 |
|
|
SCR 10-32 TR 1/2 |
|
|
SCR 12-24 TT HX 7/8 S |
|
|
SCR 4-10 PL PNP 3/4 SS |
|
|
SCR 8-18 AB IHXW 9/16 S |
|
|
SCR 8-18 AB PNP 5/8 S |
|
|
SCR 8-18 DG TRT20 5/8 S |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCR8-18 AB UFL 1 1/2 SS |
|
|
SCREW 10-32 TT HXW 5/16 S |
|
|
SCREW 8-18 AB IHW 5/8 S |
|
|
SCREW 818 BA POR 5/8 SS |
|
|
SCREW MOBILITY. |
|
|
SEPARATOR AIR HISIDE |
|
|
SET SCREW |
|
|
SHELF SLIDEOUT ASSEMBLY |
|
|
SHELF TUCKAWAY ASSEMBLY |
|
|
SHIELD ASSEMBLY TROUGH |
|
|
SHROUD CONDENSER |
|
|
SHUNT SENSOR |
|
|
SLIDE BASKET L H |
|
|
SLIDE BASKET R H |
|
|
SLIDE MIDDLE PAN COVER |
|
|
SOLENOID AND ARM ASSEMBLY |
|
|
SOUND DAMPER |
|
|
SOUND DAMPER |
|
|
SPRING CLOSU |
|
|
SPRING RECESS DOOR |
|
|
SPRING SOLENOID LINKAGE |
|
|
SPRING TORSION |
|
|
ST AND OFF |
|
|
STOP SHELF |
|
|
STRIPPER IM |
|
|
STUD MTG COMPR |
|
|
SUPPORT SHELF |
|
|
SWITCH |
|
|
SWITCH LIGHT |
|
|
THERMOSTAT DEF |
|
|
THIMBLE DOOR |
|
|
THIMBLE DOOR |
|
|
TOWER AIR FZ LOWER |
|
|
TUBE DRAIN |
|
|
TUBE LEAD |
|
|
TUBE PLASTIC |
|
|
TUBE PLASTIC |
|
|
VALVE ISOLATION ASSEMBLY |
|
|
WATER VALVE DIODE HARNESS JUMPER KIT |
|
|
WHEEL MOBILITY |
|
|
WHEEL PAN COVER |
|
|
XWF FILTER COVER |
|
|
XWF MANIFOLD AND TUBING |
