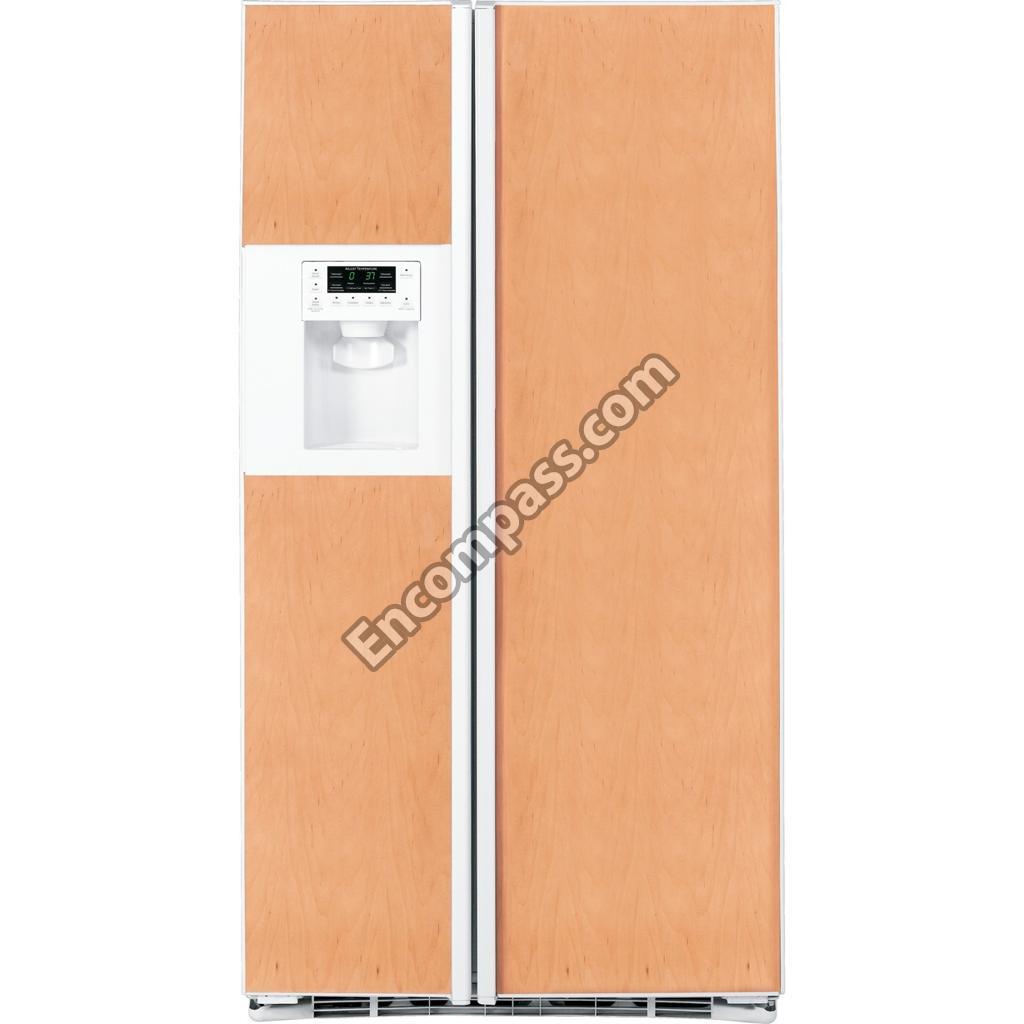

Model Image
Manufacturer

GE

Model Number

PSIC5RGXAFWV

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 GE 40A15 REVEAL 2 PACK BULBS
WR82X10103 WR82X10103 GE ACCESS COVER
WR17X11479 WR17X11479 GE AUGER HELIX DISP
WR17X13158 WR17X13158 GE BAFFLE COND AIR
WR21X10156 WR21X10156 GE BASKET
WR21X10041 WR21X10041 GE BASKET WIRE FZ
WR21X10110 WR21X10110 GE BASKET WIRE TILTOUT FZ
WR71X10595 WR71X10595 GE BEZEL LIGHT FF
WR60X24484 WR60X24484 GE BLADE CONF FAN ASSEMBLY
WR60X30922 WR60X30922 GE BLADE EVAP FAN ASM
WR17X1363 WR17X1363 GE BLADES MOVING DISPLAY
WR17X1362 WR17X1362 GE BLADES MOVING DISPLAY
WR17X1361 WR17X1361 GE BLADES MOVING DISPLAY
WR02X10669 WR02X10669 GE BLOCK EVAP SEAL
WR55X10899 WR55X10899 GE BOARD ASSEMBLY DISPLAY LIGHTING
WR55X10956 WR55X10956 GE BOARD ASSEMBLY MAIN CONTROL
WR02X11742 WR02X11742 GE BRACKET COND FAN
WR02X11863 WR02X11863 GE BRACKET COND FAN (MTG)
WR02X10593 WR02X10593 GE BRACKET COND FAN (REAR)
WR17X10763 WR17X10763 GE BRACKET CONDENSER BAR
WR02X10764 WR02X10764 GE BRACKET EVAP FAN BTM
WR02X10674 WR02X10674 GE BRACKET FZ TOWER LOWER
WR01X10211 WR01X10211 GE BRACKET FZ TOWER UPPER
WR02X10653 WR02X10653 GE BRACKET ORIFICE FAN
WR17X12079 WR17X12079 GE BUCKET AND AUGER ASM
WR30X10095 WR30X10095 GE BUCKET ICE DISP
WR02X10540 WR02X10540 GE BUMPER
WR02X10780 WR02X10780 GE CAM CLOSURE FF BLACK
WR02X10637 WR02X10637 GE CAM CLOSURE FF WHITE
WR02X10779 WR02X10779 GE CAM CLOSURE FZ BLACK
WR02X10638 WR02X10638 GE CAM CLOSURE FZ WHITE
WR02X10785 WR02X10785 GE CAP CORNER OC BISQUE
WR02X10781 WR02X10781 GE CAP CORNER OC BLACK
WR02X10640 WR02X10640 GE CAP CORNER OC WHITE
WR02X10322 WR02X10322 GE CAP DUST
WR02X12343 WR02X12343 GE CAP FILTER BYPASS
WR17X11280 WR17X11280 GE CAP TRIM BTM FF BK
WR17X11284 WR17X11284 GE CAP TRIM BTM FF BQ
WR17X11271 WR17X11271 GE CAP TRIM BTM FF WH
WR17X11281 WR17X11281 GE CAP TRIM BTM FZ BK
WR17X11285 WR17X11285 GE CAP TRIM BTM FZ BQ
WR17X11272 WR17X11272 GE CAP TRIM BTM FZ WH
WR01X10684 WR01X10684 GE CLAMP CABLE
WR1X5278 WR1X5278 GE CLAMP TUBE
WR02X8203 WR02X8203 GE CLIP COMPRESSOR MOUNT
WR02X10552 WR02X10552 GE CLIP EVAP THERMISTOR
WR01X10315 WR01X10315 GE COARSE THREAD AUGER NUT
WR22X10054 WR22X10054 GE COMPARTMENT DAIRY
WR84X10022 WR84X10022 GE COND ASSEMBLY FORMED
WR17X35527 WR17X35527 GE CONDENSER FAN SHROUD
WR02X12491 WR02X12491 GE COVER AUGER MOTOR
WR17X11478 WR17X11478 GE COVER BUCKET BOTTOM
WR17X11453 WR17X11453 GE COVER CRUSHER
WR17X11666 WR17X11666 GE COVER EVAPORATOR FRONT
WR32X26245 WR32X26245 GE COVER MIDDLE PAN
WR17X12323 WR17X12323 GE COVER MOTOR BACK
WR32X10446 WR32X10446 GE COVER PAN ASM
WR32X10200 WR32X10200 GE COVER PAN GLASS
WR17X12238 WR17X12238 GE COVER TANK WATER COIL AS
WR32X10579 WR32X10579 GE COVER TOP PAN ASM
WR17X12229 WR17X12229 GE COVER WATER FILTER
WR17X10796 WR17X10796 GE COVER WATER LINE
WR17X11710 WR17X11710 GE COVER WATER TANK
WR17X10706 WR17X10706 GE CRANK DOOR RECESS
WR17X11459 WR17X11459 GE CUP DRIVE
WR29X10092 WR29X10092 GE CUP FILL IM
WR29X10109 WR29X10109 GE CUP FILL IM
WR17X10703 WR17X10703 GE DEFLECTOR ICE DISPLAY
WR32X10154 WR32X10154 GE DIAL PAN CHILL
WR02X11852 WR02X11852 GE DISCHARGE PAN CHILL
WR22X10042 WR22X10042 GE DOOR DAIRY CLEAR
WR78X11812 WR78X11812 GE DOOR FOAM ASM FF FLAT
WR78X11215 WR78X11215 GE DOOR FOAM ASM FF FLAT
WR78X11213 WR78X11213 GE DOOR FOAM ASM FF FLAT
WR78X11543 WR78X11543 GE DOOR FOAM ASM FZ FLAT
WR78X11546 WR78X11546 GE DOOR FOAM ASM FZ FLAT
WR78X11584 WR78X11584 GE DOOR FOAM ASM FZ FLAT
WR17X11653 WR17X11653 GE DOOR RECESS ASM
WR02X13424 WR02X13424 GE DOOR STOP
WR02X11534 WR02X11534 GE DRIVE AUGER DISP
WR86X10030 WR86X10030 GE DRYER BIFURCATED HX9
WR30X10093 WR30X10093 GE ELECTRONIC IM DOMESTIC
WR02X11851 WR02X11851 GE EPS PAN CHILL
WR17X22075 WR17X22075 GE FILTER ASM AND TUBE
WR14X10068 WR14X10068 GE FOAM STRIP SE ADH
WR14X10069 WR14X10069 GE FOAM STRIP SE ADH
WR14X10067 WR14X10067 GE FOAM STRIP SE ADH
WR02X11853 WR02X11853 GE FOAM STRIP SE ADH
WR14X10053 WR14X10053 GE FOAM STRIP SE ADH
WR14X10193 WR14X10193 GE GASKET EVAP COVER
WR24X10264 WR24X10264 GE GASKET FF DOOR WH
WR24X10167 WR24X10167 GE GASKET FF DOOR WH
WR24X10168 WR24X10168 GE GASKET FZ DOOR WH
WR14X10059 WR14X10059 GE GASKET PAN CRV FRONT
WR14X10058 WR14X10058 GE GASKET PAN CRV REAR
WR14X10169 WR14X10169 GE GASKET PAN CVR FRONT
WR14X10194 WR14X10194 GE GASKET PLENUM
WR14X10195 WR14X10195 GE GASKET PLENUM
WR17X11805 WR17X11805 GE GASKET TOWER FF
WR72X10240 WR72X10240 GE GLIDE BUCKET LH
WR72X10241 WR72X10241 GE GLIDE BUCKET RH
WR74X10271 WR74X10271 GE GRILLE BASE
WR17X11655 WR17X11655 GE GRILLE RECESS BK
WR17X11656 WR17X11656 GE GRILLE RECESS BQ
WR17X11654 WR17X11654 GE GRILLE RECESS WH
WR02X10647 WR02X10647 GE GRILLE SENSOR
WR02X10678 WR02X10678 GE GROMMET
WR02X22869 WR02X22869 GE GROMMET
WR17X11168 WR17X11168 GE GROMMET AND TUBE ASSEMBLY
WR02X10689 WR02X10689 GE GROMMET BASE GRILL
WR02X12008 WR02X12008 GE GROMMET EVAP FAN
WR02X11331 WR02X11331 GE GROMMET EVAP FAN
WR74X10131 WR74X10131 GE GUARD WIRING
WR71X10633 WR71X10633 GE GUIDE ICE
WR12X10625 WR12X10625 GE HANDLE
WR12X10733 WR12X10733 GE HANDLE ASM TRIM FF
WR12X10735 WR12X10735 GE HANDLE ASM TRIM FF BQ
WR12X10737 WR12X10737 GE HANDLE ASM TRIM FF WH
WR12X10732 WR12X10732 GE HANDLE ASM TRIM FZ
WR12X10734 WR12X10734 GE HANDLE ASM TRIM FZ BQ
WR12X10736 WR12X10736 GE HANDLE ASM TRIM FZ WH
WR12X10974 WR12X10974 GE HANDLE SOFT TOUCH INSERT
WR23X10487 WR23X10487 GE HARNESS AC FZ INTERMEDIA
WR23X10484 WR23X10484 GE HARNESS CAB LOWER
WR23X10558 WR23X10558 GE HARNESS MOTOR DISP
WR23X10209 WR23X10209 GE HARNESS/TSTAT FF LT
WR51X10055 WR51X10055 GE HEATER & BRACKET ASSEMBLY
WR17X11457 WR17X11457 GE HELIX
WR13X10134 WR13X10134 GE HINGE BTM
WR13X10161 WR13X10161 GE HINGE BTM
WR13X10162 WR13X10162 GE HINGE BTM & PIN ASSEMBLY
WR13X10137 WR13X10137 GE HINGE BTM & PIN ASSEMBLY
WR13X10160 WR13X10160 GE HINGE BTM & PIN ASSEMBLY
WR13X10366 WR13X10366 GE HINGE TOP & PIN ASM
WR13X10368 WR13X10368 GE HINGE TOP & PIN ASM
WR13X10365 WR13X10365 GE HINGE TOP & PIN ASM
WR13X10367 WR13X10367 GE HINGE TOP & PIN ASM
WR13X10362 WR13X10362 GE HINGE TOP & PIN ASM FF
WR13X10361 WR13X10361 GE HINGE TOP & PIN ASM FZ
WR17X11505 WR17X11505 GE HOUSING CRUSHER DISPLAY
WR17X12036 WR17X12036 GE HOUSING SHIELD DISP
WR49X10228 WR49X10228 GE HOUSING SHIELD DISP
WR49X10227 WR49X10227 GE HOUSING SHIELD DISP
WR02X10821 WR02X10821 GE HUMIDITY CONTROL
WR17X12205 WR17X12205 GE INSULATION MANIFOLD
WR55X10782 WR55X10782 GE INTERFACE DISPENSER ASM
WR55X10784 WR55X10784 GE INTERFACE DISPENSER ASM
WR55X10783 WR55X10783 GE INTERFACE DISPENSER ASM
WR49X10283 WR49X10283 GE INVERTER ASSEMBLY COMP MOUNT
WR02X10666 WR02X10666 GE KNOB PAN CHILL
40A15-2PK 40A15-2PK GE LAMP
WR11X10007 WR11X10007 GE LEVER ASSEMBLY FF SIDE
WR11X10011 WR11X10011 GE LEVER ASSEMBLY FF SIDE BISQUE
WR11X10009 WR11X10009 GE LEVER ASSEMBLY FF SIDE BLACK
WR11X10010 WR11X10010 GE LEVER ASSEMBLY FZ BLACK
WR11X10008 WR11X10008 GE LEVER ASSEMBLY FZ SIDE BISQUE
WR17X11712 WR17X11712 GE LIGHT SHIELD
WR02X10665 WR02X10665 GE LINKAGE PAN CHILL
WR85X10102 WR85X10102 GE LOW SIDE ASM
WR85X10101 WR85X10101 GE LOW SIDE ASM
WR02X12025 WR02X12025 GE MAIN BOARD ENCLOSURE ASM
WR02X12000 WR02X12000 GE MOBILITY ASSEMBLY BACK-BIS
WR02X12274 WR02X12274 GE MOBILITY FRONT ASM
WR71X10632 WR71X10632 GE MODULE SHELF FF
WR71X10631 WR71X10631 GE MODULE SHELF FF
WR71X10630 WR71X10630 GE MODULE SHELF FF FIXED
WR71X11056 WR71X11056 GE MODULE SHELF FF FIXED
WR71X10629 WR71X10629 GE MODULE SHELF FZ FIXED
WR71X10764 WR71X10764 GE MODULE SHELF INSERT
WR71X10256 WR71X10256 GE MODULE SUPPORT FZ
WR60X10259 WR60X10259 GE MOTOR CRUSHER DISP
WR60X10307 WR60X10307 GE MOTOR DC EVAPORATOR FAN ASSEMBLY
WR17X22064 WR17X22064 GE MSWF BYPASS
WR01X10212 WR01X10212 GE NUT 8-32
WR17X10812 WR17X10812 GE ORIFICE FAN ASSEMBLY
WR71X38327 WR71X38327 GE PAN ASM
WR32X26218 WR32X26218 GE PAN ASM
WR32X26198 WR32X26198 GE PAN ASM TOP
WR32X10507 WR32X10507 GE PAN FRAME ASM
WR02X4143 WR02X4143 GE PIN DEFLECTOR DISP
WR02X12263 WR02X12263 GE PIN HINGE BTM ADJ HOLLOW
WR02X12780 WR02X12780 GE PIN HINGE BTM SUPPORT
WR2X4259 WR2X4259 GE PIN SPIRAL
WR02X4257 WR02X4257 GE PIN SPIRAL
WR62X26536 WR62X26536 GE PIN SPIRAL
WR2X4143 WR2X4143 GE PIVOT
WR17X11458 WR17X11458 GE PLATE HELIX LOCK
WR17X11895 WR17X11895 GE PLENUM FAN EVAPORATOR
49-60494 49-60494 GE PM GUIDE OWNERS
31-51707 31-51707 GE PM MINI WIRING MANUAL
WR02X12283 WR02X12283 GE REFLECTOR ASM MIDDLE
WR02X12282 WR02X12282 GE REFLECTOR ASM MIDDLE
WR2X8203 WR2X8203 GE REFRIGERATOR CLIP
WR17X12713 WR17X12713 GE REFRIGERATOR CONDENSER
WR2X9000 WR2X9000 GE REFRIGERATOR CONDENSER CLIP
WR60X10209 WR60X10209 GE REFRIGERATOR CONDENSER FAN MOTOR
WR23X31507 WR23X31507 GE REFRIGERATOR DOOR LIGHT SWITCH
WR17X12490 WR17X12490 GE REFRIGERATOR EVAPORATOR COVER ASSEMBLY
WR87X10111 WR87X10111 GE REFRIGERATOR VCC3 COMPRESSOR KIT
WR2X8818 WR2X8818 GE RETAINER RECESS DOOR
WR01X1367 WR01X1367 GE RETAINER RING E
WR02X10580 WR02X10580 GE RETAINER SPRING
WR1X1367D WR1X1367D GE RETRNG-PKG12
WR02X12149 WR02X12149 GE RING COMPRESSION
WR01X10617 WR01X10617 GE SCR 1/4-14 AB IHW 3/4 S
WR01X10611 WR01X10611 GE SCR 10-16
WR01X10615 WR01X10615 GE SCR 10-16
WR01X10619 WR01X10619 GE SCR 10-18 HI/LO HXW 1/2
WR01X10622 WR01X10622 GE SCR 10-32 B IHXW 1/2
WR01X10610 WR01X10610 GE SCR 10-32 GX PNT20 1 S L
WR01X10631 WR01X10631 GE SCR 12-24 TT OVT .900 S
WR01X10629 WR01X10629 GE SCR 8-18 AB HW 1/2 S
WR01X10588 WR01X10588 GE SCR 8-18 AB IHXW 9/16 S
WR01X10607 WR01X10607 GE SCR 8-18 AB PHR 1/2 S
WR01X10614 WR01X10614 GE SCR 8-18 AB PNT20 13/16
WR01X10613 WR01X10613 GE SCR 8-18 AB PNT20 7/16 S
WR01X10618 WR01X10618 GE SCR 8-18 TPT 1/4
WR1X1466 WR1X1466 GE SCR 8-32 T HXW 3/8 S
WZ5X158D WZ5X158D GE SCR 8-32 T HXW 3/8 S
WR01X10568 WR01X10568 GE SCR8-18 AB UFL 1 1/2 SS
WR1X1786 WR1X1786 GE SCREW
WR01X10065 WR01X10065 GE SCREW 10-32 GXTT FLP 595 S
WR01X10654 WR01X10654 GE SCREW 10-32 TT HXW 5/16 S
WR01X10652 WR01X10652 GE SCREW 8-18 AB IHW 5/8 S
WD02X0323 WD02X0323 GE SCREW 8-32 X 3/8 SPH
WR01X10314 WR01X10314 GE SCREW HANDLE MTG
WR01X10686 WR01X10686 GE SCREW LEVELING
WR02X12271 WR02X12271 GE SCREW MOBILITY
WR01X10210 WR01X10210 GE SCREW MOBILITY.
WD2X323D WD2X323D GE SCREW-PKG 12
WR14X10105 WR14X10105 GE SEAL FRONT CHILL
WR14X10159 WR14X10159 GE SEAL SIDES CHILL
WR55X10025 WR55X10025 GE SENSOR TEMP FF
WR17X12382 WR17X12382 GE SEPARATOR AIR HISIDE
WR71X10634 WR71X10634 GE SHELF ADJUSTABLE FZ
WR71X10498 WR71X10498 GE SHELF ADJUSTABLE FZ
WR71X10527 WR71X10527 GE SHELF FIXED FZ
WR71X10296 WR71X10296 GE SHELF SLIDEOUT ASSEMBLY
WR71X10615 WR71X10615 GE SHELF TUCKAWAY ASM
WR17X10811 WR17X10811 GE SHIELD ASSEMBLY TROUGH
WR17X11713 WR17X11713 GE SHIELD LIGHT FF
WR17X11446 WR17X11446 GE SHIELD LIGHT FZ
WR02X10668 WR02X10668 GE SHUNT SENSOR
WR02X10664 WR02X10664 GE SHUTTER PAN CHILL
WR72X10069 WR72X10069 GE SLIDE & BRACKET ASSEMBLY
WR72X10068 WR72X10068 GE SLIDE & BRACKET ASSEMBLY L H
WR72X10193 WR72X10193 GE SLIDE AND BRACKET ASM L
WR72X10194 WR72X10194 GE SLIDE AND BRACKET ASM R
WR72X10195 WR72X10195 GE SLIDE LINER
WR72X10070 WR72X10070 GE SLIDE LINER
WR02X10633 WR02X10633 GE SLIDE MIDDLE PAN COVER
WR02X10582 WR02X10582 GE SNUGGER MODULE
WR02X9391 WR02X9391 GE SOCKET & TERMINAL ASM
WR2X9391 WR2X9391 GE SOCKET AND TERM
WR02X10645 WR02X10645 GE SOCKET LAMP
WR62X23154 WR62X23154 GE SOLE/ARM ASSEMBLY
WR62X58 WR62X58 GE SOLENOID & ARM ASM
WR62X10055 WR62X10055 GE SOLENOID ASM
WR2X4139 WR2X4139 GE SPACER
WR2X4138 WR2X4138 GE SPACER
WR72X10239 WR72X10239 GE SPACER
WR17X10945 WR17X10945 GE SPACER
WR02X4139 WR02X4139 GE SPACER CRUSHER MIDDLE
WR02X4138 WR02X4138 GE SPACER CRUSHER STATIONAR
WR2X4561 WR2X4561 GE SPRING
WR1X2027 WR1X2027 GE SPRING CLOSU
WR02X11768 WR02X11768 GE SPRING DEFLECTOR INT.
WR02X4561 WR02X4561 GE SPRING ICE DEFLECTOR
WR02X10585 WR02X10585 GE SPRING RECESS DOOR
WR2X4258 WR2X4258 GE SPRING SOLENOID LINKAGE
WR49X10233 WR49X10233 GE SPRING TORSION FIT
WR02X10663 WR02X10663 GE STAND OFF
WR02X10691 WR02X10691 GE STATIONARY BLADES ASSEMBLY
WR02X13426 WR02X13426 GE STOP DOOR BISQUE
WR02X10662 WR02X10662 GE STOP SHELF
WR29X10085 WR29X10085 GE STRIPPER IM
WR1X1779 WR1X1779 GE STUD MTGCOMP
WR02X12188 WR02X12188 GE SUPPORT SHELF
WR72X10067 WR72X10067 GE SUPPORT SLIDE BASKET
WR72X10066 WR72X10066 GE SUPPORT SLIDE BASKET
WR23X10783 WR23X10783 GE SWITCH
WR23X23343 WR23X23343 GE SWITCH LIGHT
WR23X21444 WR23X21444 GE SWITCH LIGHT FZ
WR50X10065 WR50X10065 GE THERMOSTAT DEF
WR01X10235 WR01X10235 GE THIMBLE DOOR BOT BISQUE
WR01X10232 WR01X10232 GE THIMBLE DOOR BOT BLACK
WR01X10206 WR01X10206 GE THIMBLE DOOR BOT WHITE
WR01X10237 WR01X10237 GE THIMBLE DOOR BTM FZ BISQUE
WR01X10234 WR01X10234 GE THIMBLE DOOR BTM FZ BLACK
WR01X10208 WR01X10208 GE THIMBLE DOOR BTM FZ WHITE
WR01X10957 WR01X10957 GE THIMBLE DOOR TOP BISQUE
WR01X10956 WR01X10956 GE THIMBLE DOOR TOP BLACK
WR01X10955 WR01X10955 GE THIMBLE DOOR TOP WHITE
WR17X10899 WR17X10899 GE TOWER AIR FZ LOWER
WR22X10043 WR22X10043 GE TRIM DAIRY COMPARTMENT
WR17X10953 WR17X10953 GE TRIM DOOR BTM BLACK
WR17X10963 WR17X10963 GE TRIM DOOR BTM FF BISQUE
WR17X10954 WR17X10954 GE TRIM DOOR BTM FF BLACK
WR17X10973 WR17X10973 GE TRIM DOOR BTM FF WHITE
WR17X10962 WR17X10962 GE TRIM DOOR BTM FZ BISQUE
WR17X10972 WR17X10972 GE TRIM DOOR BTM FZ WHITE
WR17X11900 WR17X11900 GE TRIM DOOR SIDE FF BK
WR17X11904 WR17X11904 GE TRIM DOOR SIDE FF BQ
WR17X11908 WR17X11908 GE TRIM DOOR SIDE FF WH
WR17X11899 WR17X11899 GE TRIM DOOR SIDE FZ BK
WR17X11903 WR17X11903 GE TRIM DOOR SIDE FZ BQ
WR17X11907 WR17X11907 GE TRIM DOOR SIDE FZ WH
WR17X11898 WR17X11898 GE TRIM DOOR TOP FF BK
WR17X11902 WR17X11902 GE TRIM DOOR TOP FF BQ
WR17X11906 WR17X11906 GE TRIM DOOR TOP FF WH
WR17X11897 WR17X11897 GE TRIM DOOR TOP FZ BK
WR17X11901 WR17X11901 GE TRIM DOOR TOP FZ BQ
WR17X11905 WR17X11905 GE TRIM DOOR TOP FZ WH
WR38X10244 WR38X10244 GE TRIM RECESS BISQUE
WR38X10239 WR38X10239 GE TRIM RECESS BLACK
WR38X10245 WR38X10245 GE TRIM RECESS WHITE
WR38X10456 WR38X10456 GE TRIM SHELF FZ
WR17X11843 WR17X11843 GE TROUGH DRAIN ASM
WR02X11426 WR02X11426 GE TUBE DRAIN
WR17X11625 WR17X11625 GE TUBE PLASTIC
WR02X13342 WR02X13342 GE UNION CONNECTOR
WR57X10053 WR57X10053 GE VALVE ASM
WR01X1366 WR01X1366 GE WASHER
WR1X1366D WR1X1366D GE WASHR-PKG 12
MSWF MSWF GE WATER FILTER
WR57X10070 WR57X10070 GE WATER VALVE
WR01X10209 WR01X10209 GE WHEEL PAN COVER
WR17X12289 WR17X12289 GE WINE & BEVERAGE RACK
WR17X11486 WR17X11486 GE WIRE ACTUATOR DISP
WR02X11027 WR02X11027 GE WIRE TIE
Main Menu x
