Manufacturer
GE
Model Number

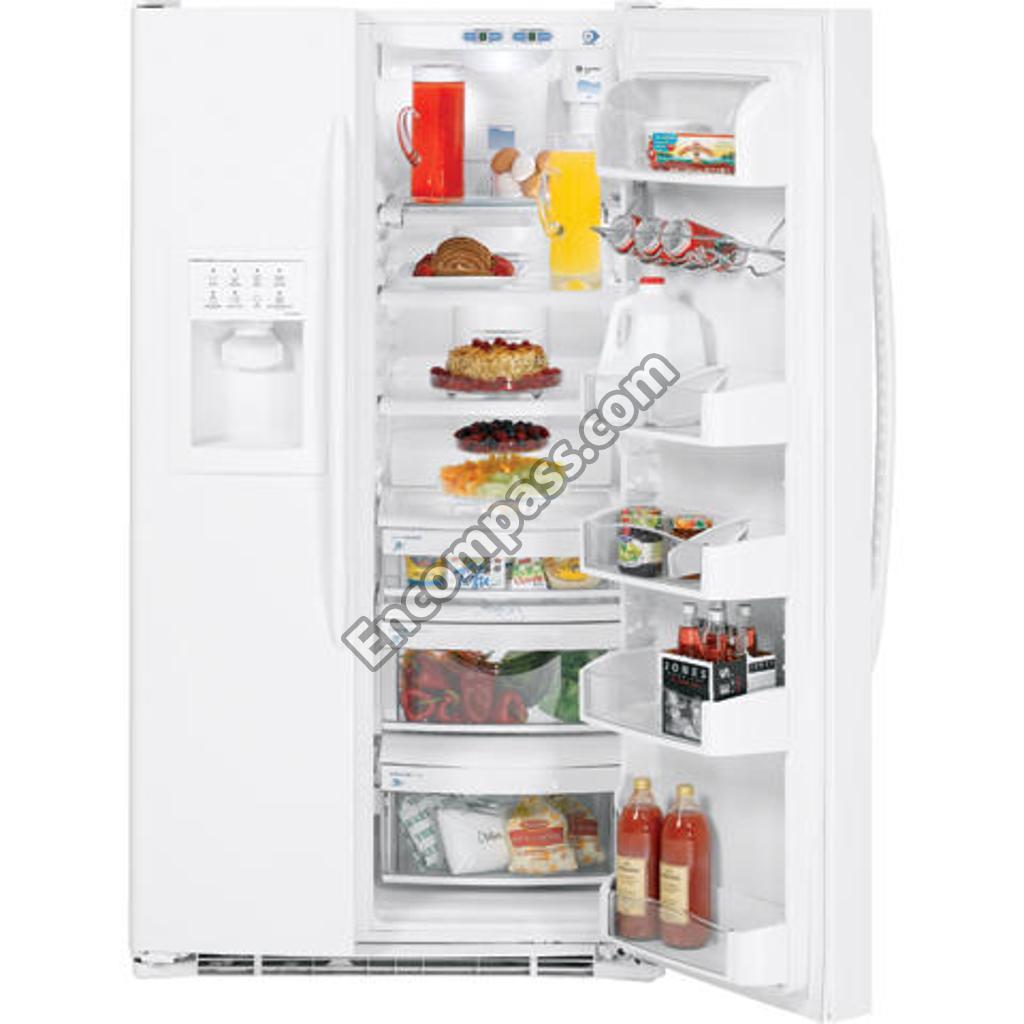

PSS26MGSCWW
Description
Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
60A - 2BULBS |
|
|
60A - 2BULBS |
|
|
A ASSEMBLY HI SIDE |
|
|
ACCESS COVER |
|
|
ACCESS COVER |
|
|
AUGER HELIX DISP |
|
|
BAFFLE COND AIR |
|
|
BASKET WIRE FZ |
|
|
BASKET WIRE FZ |
|
|
BASKET WIRE TILTOUT FZ |
|
|
BEZEL LIGHT FF |
|
|
BLADE COND FAN ASSEMBLY |
|
|
BLADES MOVING DISP |
|
|
BLADES MOVING DISP |
|
|
BLADES MOVING DISP |
|
|
BLOCK EVAP SEAL |
|
|
BOARD ASM MAIN CONTROL |
|
|
BOOT AUGER MOTOR INT |
|
|
BRACKET ANGLE |
|
|
BRACKET COND FAN |
|
|
BRACKET CONDENSER BAR |
|
|
BRACKET EVAP FAN BTM |
|
|
BRACKET FAN |
|
|
BRACKET HANDLE LOCK |
|
|
BRACKET ORIFICE FAN |
|
|
BUCKET AND AUGER ASM |
|
|
BUCKET ICE DISP |
|
|
BULB RECS 12V |
|
|
BULB RECS 12V |
|
|
BUMPER LID |
|
|
CABLE CLAMP |
|
|
CAM CLOSURE FF BK |
|
|
CAM CLOSURE FF WH |
|
|
CAM CLOSURE FZ BK |
|
|
CAM CLOSURE FZ WHITE |
|
|
CAP CORNER OC BISQUE |
|
|
CAP CORNER OC BLACK |
|
|
CAP CORNER OC WHITE |
|
|
CAP DUST |
|
|
CAP FILTER BYPASS |
|
|
CAPACITOR |
|
|
CAPACITOR |
|
|
CLAMP CABLE |
|
|
CLIP COMPRESSOR MOUNT |
|
|
CLIP EVAP THERMISTOR |
|
|
COLLAR SOLENOID DISP |
|
|
COMPARTMENT DAIRY |
|
|
COND ASSEMBLY FORMED |
|
|
COVER ASM FF INLET |
|
|
COVER BUCKET BOTTOM |
|
|
COVER CRUSHER |
|
|
COVER EVAPORATOR FRONT |
|
|
COVER FF TOWER |
|
|
COVER HINGE BISQUE |
|
|
COVER HINGE BISQUE |
|
|
COVER HINGE BLACK |
|
|
COVER HINGE BLACK |
|
|
COVER HINGE WHITE |
|
|
COVER HINGE WHITE |
|
|
COVER MIDDLE PAN |
|
|
COVER MTR & SOLENOID |
|
|
COVER PAN ASSEMBLY |
|
|
COVER RELAY SNAP (MEI) |
|
|
COVER TOP PAN ASSEMBLY |
|
|
COVER WATER FILTER |
|
|
COVER WATER LINE |
|
|
CRANK DOOR RECESS |
|
|
CUP DRIVE |
|
|
CUP FILL IM |
|
|
CUP FILL IM |
|
|
DEFLECTOR ICE DISP |
|
|
DEFROST THERMOSTAT |
|
|
DIAL PAN CHILL |
|
|
DISCHARGE PAN CHILL |
|
|
DIVERTER FF AIRFLOW |
|
|
DOOR ASM FF KIT BK |
|
|
DOOR ASM FF KIT WH |
|
|
DOOR ASM FZ KIT BK |
|
|
DOOR ASM FZ KIT BQ |
|
|
DOOR ASM FZ KIT WH |
|
|
DOOR DAIRY CLEAR |
|
|
DOOR RECESS ASM |
|
|
DRIVE AUGER DISP |
|
|
DUCT PAN CHILL |
|
|
EPS FF TOWER |
|
|
EVAPORATOR FAN BLADE |
|
|
FILTER ASM AND TUBE |
|
|
FILTER ASM AND TUBE |
|
|
FILTER ASM AND TUBE |
|
|
FILTER CANISTER, WATER |
|
|
FOAM STRIP SE ADH |
|
|
FOAM STRIP SE ADH |
|
|
FOAM STRIP SE ADH |
|
|
FOAM STRIP SE ADH |
|
|
FUNNEL ICE DISP |
|
|
FUNNEL ICE DISP |
|
|
GASKET DOOR FF BK |
|
|
GASKET DOOR FF WH |
|
|
GASKET DOOR FZ BK |
|
|
GASKET DOOR FZ WH |
|
|
GASKET EVAP COVER |
|
|
GASKET FF TOWER |
|
|
GASKET MOTOR COVER |
|
|
GASKET MOTOR COVER |
|
|
GASKET PAN CRV FRONT |
|
|
GASKET PAN CRV REAR |
|
|
GASKET PLENUM |
|
|
GASKET PLENUM |
|
|
GLASS PAN COVR |
|
|
GLIDE BUCKET LH |
|
|
GLIDE BUCKET RH |
|
|
GRILLE AIR RETURN |
|
|
GRILLE BASE |
|
|
GRILLE BASE WH |
|
|
GRILLE RECESS BK |
|
|
GRILLE RECESS BQ |
|
|
GRILLE RECESS WH |
|
|
GRILLE SENSOR |
|
|
GROMMET |
|
|
GROMMET |
|
|
GROMMET AND TUBE ASSEMBLY |
|
|
GROMMET BASE GRILL |
|
|
GROMMET EVAPORATOR FAN |
|
|
GUARD WIRING |
|
|
GUIDE ICE |
|
|
HANDLE |
|
|
HANDLE ASM SXS WH |
|
|
HANDLE DOOR SXS |
|
|
HARNESS AC FZ INTERMEDIA |
|
|
HARNESS BOARD INDIV |
|
|
HARNESS JUMPER DOOR |
|
|
HARNESS MOTOR & SOL |
|
|
HARNESS/TSTAT FF LT |
|
|
HEATER & BRACKET ASM |
|
|
HELIX |
|
|
HINGE BTM & PIN ASM BK |
|
|
HINGE BTM & PIN ASSEMBLY |
|
|
HINGE BTM & PIN ASSEMBLY |
|
|
HINGE BTM ADJ WHITE |
|
|
HINGE BTM BISQUE |
|
|
HINGE BTM BK |
|
|
HINGE BTM WHITE |
|
|
HINGE TOP & PIN ASM FZ |
|
|
HINGE TOP AND PIN ASSEMBLY FF. |
|
|
HOUSING CRUSHER DISPLAY |
|
|
HUMIDITY CONTROL |
|
|
ICEMAKER ASM |
|
|
INSUL TUBE FOAM |
|
|
INSULATION TANK FOAM |
|
|
INTERFACE CUSTOMER ASM |
|
|
INTERFACE DISP ASM BK |
|
|
INTERFACE DISP ASM BQ |
|
|
INTERFACE DISP ASM WH |
|
|
KNOB PAN CHILL |
|
|
LENS NAMEPLATE |
|
|
LEVER ASM FF SIDE BK |
|
|
LEVER ASM FF SIDE WH |
|
|
LEVER ASM FZ SIDE BK |
|
|
LEVER ASSEMBLY FF SIDE BISQUE |
|
|
LEVER ASSEMBLY FZ SIDE BISQUE |
|
|
LEVER LOCK HANDLE |
|
|
LIGHT SHIELD BTM FF |
|
|
LINKAGE PAN CHILL |
|
|
LOW SIDE ASM |
|
|
MAIN BOARD ENCLOSURE ASM |
|
|
MANUAL |
|
|
MICRO SWITCH |
|
|
MOBILITY FRONT ASSEMBLY |
|
|
MOBILITY WHEEL S KIT ASM |
|
|
MODULE FZ UPPER |
|
|
MODULE SHELF FF |
|
|
MODULE SHELF FF |
|
|
MODULE SHELF FZ FIXED |
|
|
MODULE SHELF INSERT |
|
|
MODULE SUPPORT FZ |
|
|
MOTOR CRUSHER DISP |
|
|
MOTOR DC EVAP FAN ASM |
|
|
MOTOR DC EVAPORATOR FAN ASSEMBLY |
|
|
NUT 6-32 UN |
|
|
NUT 8-32 |
|
|
NUT AUGER FRT DISP |
|
|
ORIFICE FAN ASSEMBLY |
|
|
OVERLOAD |
|
|
P/S DRYER KIT R134A |
|
|
P/S DRYER KIT R134A |
|
|
PAN ASM MD |
|
|
PAN ASM MD |
|
|
PAN ASM TOP |
|
|
PAN FRAME ASM |
|
|
PIN DEFLECTOR DISP |
|
|
PIN HINGE BTM ADJ HOLLOW |
|
|
PIN SPIRAL |
|
|
PIN SPIRAL |
|
|
PIVOT |
|
|
PLATE HELIX LOCK |
|
|
PM GUIDE OWNERS |
|
|
POWER CORD |
|
|
POWER CORD |
|
|
PROTECTOR CAP |
|
|
REFLECTOR LIGHT |
|
|
REFRIGERATOR CLIP |
|
|
REFRIGERATOR CONDENSER CLIP |
|
|
REFRIGERATOR CONDENSER FAN MOTOR |
|
|
REFRIGERATOR DISPENSER SOLENOID ASSEMBLY |
|
|
REFRIGERATOR DOOR LIGHT SWITCH |
|
|
REFRIGERATOR EVAPORTATOR FAN CASE |
|
|
REFRIGERATOR MAIN CONTROL BOARD |
|
|
REFRIGERATOR WATER VALVE ASSEMBLY |
|
|
RELAY START |
|
|
RETAINER RECESS DOOR |
|
|
RETAINER RING E |
|
|
RETAINER SPRING |
|
|
RETRNG-PKG12 |
|
|
RING COMPRESSION |
|
|
SADDLE SOLEN |
|
|
SADDLE SOLENOID |
|
|
SCR 1/4-14 X 3/4 |
|
|
SCR 10-18 HI/LO HXW 1/2 |
|
|
SCR 12-24 TT OVT .900 S |
|
|
SCR 8-18 AB HW 1/2 S |
|
|
SCR 8-18 AB IHXW 1/2 S |
|
|
SCR 8-18 AB OVP 7/8 SS |
|
|
SCR 8-18 AB PHR 1/2 S |
|
|
SCR 8-18 BA POR 5/8 SS |
|
|
SCR 8-18 BT PH |
|
|
SCR 8-18 TPT 1/4 |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCR8-18 AB UFL 1 1/2 SS |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW 10-16 PL PNP 5/8 SZN |
|
|
SCREW 10-32 TT HXW 5/16 S |
|
|
SCREW 10-32 TT HXW 5/16 S |
|
|
SCREW 8-18 AB IHW 5/8 S |
|
|
SCREW DOOR STOP T20 |
|
|
SCREW MOBILITY |
|
|
SEAT BUCKET |
|
|
SENSOR TEMPERATURE FF |
|
|
SEPARATOR AIR HISIDE |
|
|
SHELF FIXED FZ |
|
|
SHELF SLIDEOUT ASSEMBLY |
|
|
SHELF SLIDEOUT FZ |
|
|
SHELF TUCKAWAY ASM |
|
|
SHIELD ASSEMBLY TROUGH |
|
|
SHIELD LIGHT FF |
|
|
SHIELD LIGHT FZ |
|
|
SHOULDER SCR |
|
|
SHUNT SENSOR |
|
|
SHUTTER PAN CHILL |
|
|
SLIDE BRACKET ASSEMBLY KIT 7 IN |
|
|
SLIDE MIDDLE PAN COVER |
|
|
SNUGGER MODULE |
|
|
SOCKET & TERMINAL ASM |
|
|
SOCKET AND TERM |
|
|
SOCKET LAMP |
|
|
SOCKET LAMP |
|
|
SOLE/ARM ASSEMBLY |
|
|
SOLENOID & ARM ASM |
|
|
SPACER |
|
|
SPACER |
|
|
SPACER CRUSHER MIDDLE |
|
|
SPACER CRUSHER STATIONAR |
|
|
SPACER SLIDE |
|
|
SPRING |
|
|
SPRING CLOSU |
|
|
SPRING DEFLECTOR INT. |
|
|
SPRING FUNNEL |
|
|
SPRING ICE DEFLECTOR |
|
|
SPRING RECESS DOOR |
|
|
SPRING SOLENOID LINKAGE |
|
|
STAND OFF |
|
|
STATIONARY BLADES ASSEMBLY |
|
|
STOP DOOR BISQUE |
|
|
STOP DOOR BK |
|
|
STOP DOOR WHITE |
|
|
STOP SHELF |
|
|
STR RELIEF |
|
|
STRIPPER IM |
|
|
STUD MTGCOMP |
|
|
SUPPORT SHELF |
|
|
SWITCH |
|
|
SWITCH LIGHT |
|
|
SWITCH LIGHT FZ |
|
|
THIMBLE DOOR BOT BISQUE |
|
|
THIMBLE DOOR BOT WHITE |
|
|
THIMBLE DOOR BTM BK |
|
|
THIMBLE DOOR BTM FZ BISQUE |
|
|
THIMBLE DOOR BTM FZ BLACK |
|
|
THIMBLE DOOR BTM FZ WHITE |
|
|
THIMBLE DOOR TOP BISQUE |
|
|
THIMBLE DOOR TOP BK |
|
|
THIMBLE DOOR TOP WHITE |
|
|
TRIM DAIRY COMPARTMENT |
|
|
TRIM RECESS DISP BOW |
|
|
TRIM RECESS DISPLAY BOW |
|
|
TRIM SHELF FZ |
|
|
TUBE DRAIN |
|
|
TUBE PLASTIC |
|
|
TUBE PLASTIC |
|
|
UNION CONNECTOR |
|
|
WASHER |
|
|
WASHR-PKG 12 |
|
|
WATER TANK DISP ASM |
|
|
WATER VALVE ASSEMBLY W/O GUARD |
|
|
WHEEL PAN COVER |
|
|
WINE & BEVERAGE RACK |
|
|
WIRE ACTUATOR DISP |
|
|
WIRE TIE |
