Model Image
Manufacturer

GE

Model Number

PT7800SH5SS

Description

Electric Oven Microwave

Interactive Exploded View
Exploded View

Parts List

Part Number Description

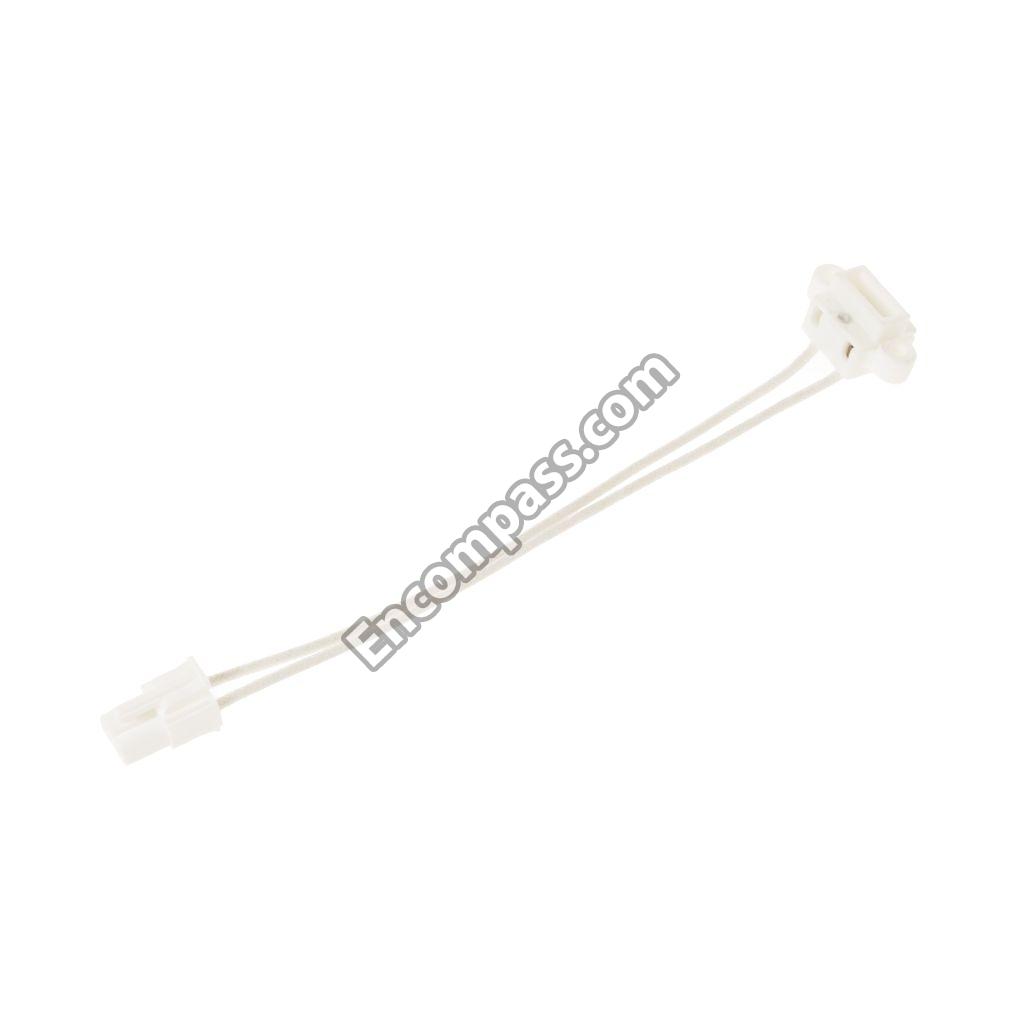

WB18X33767 WB18X33767 "HARNESS, SINGLE"

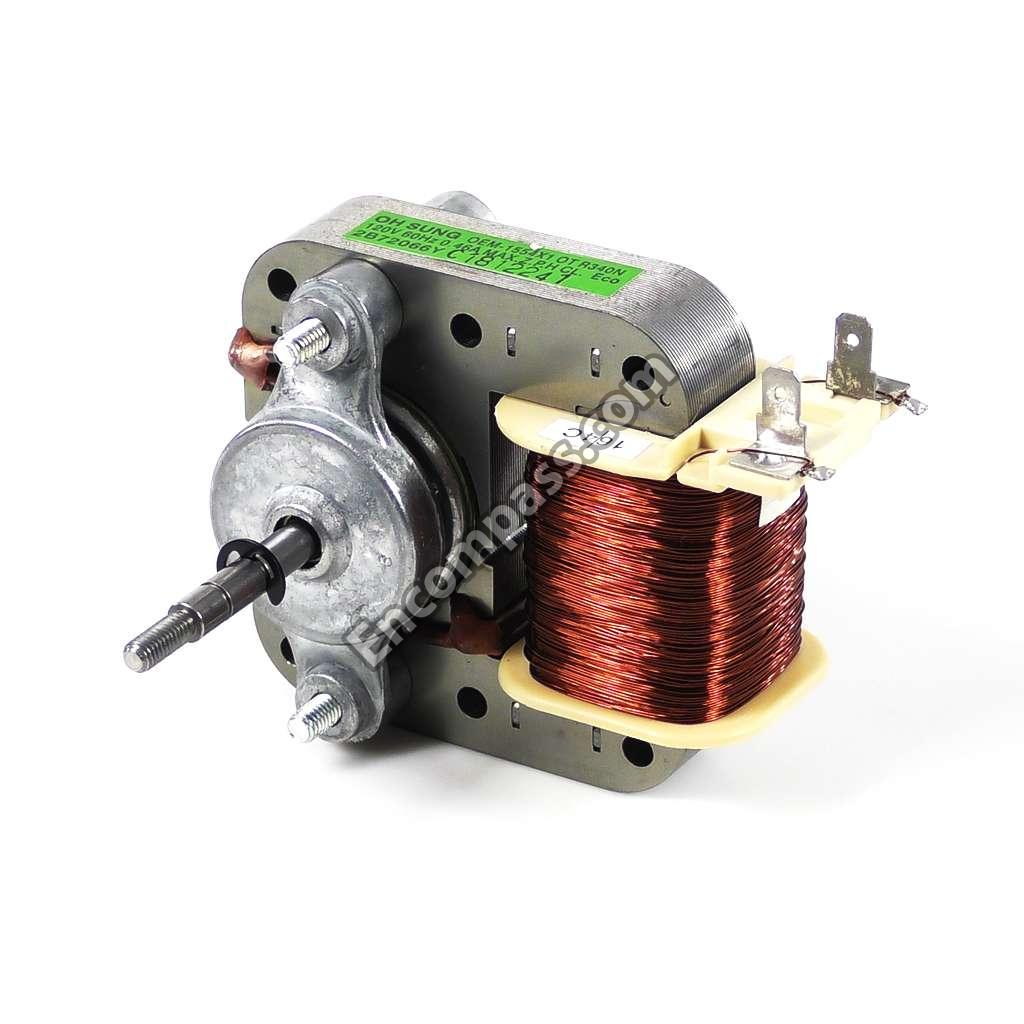

WB26X10211 WB26X10211 AC MOTOR FAN
WB34T10134 WB34T10134 AIR DIVIDER
WB34X32602 WB34X32602 AIR TUNNEL
WB02X32590 WB02X32590 BARRIER

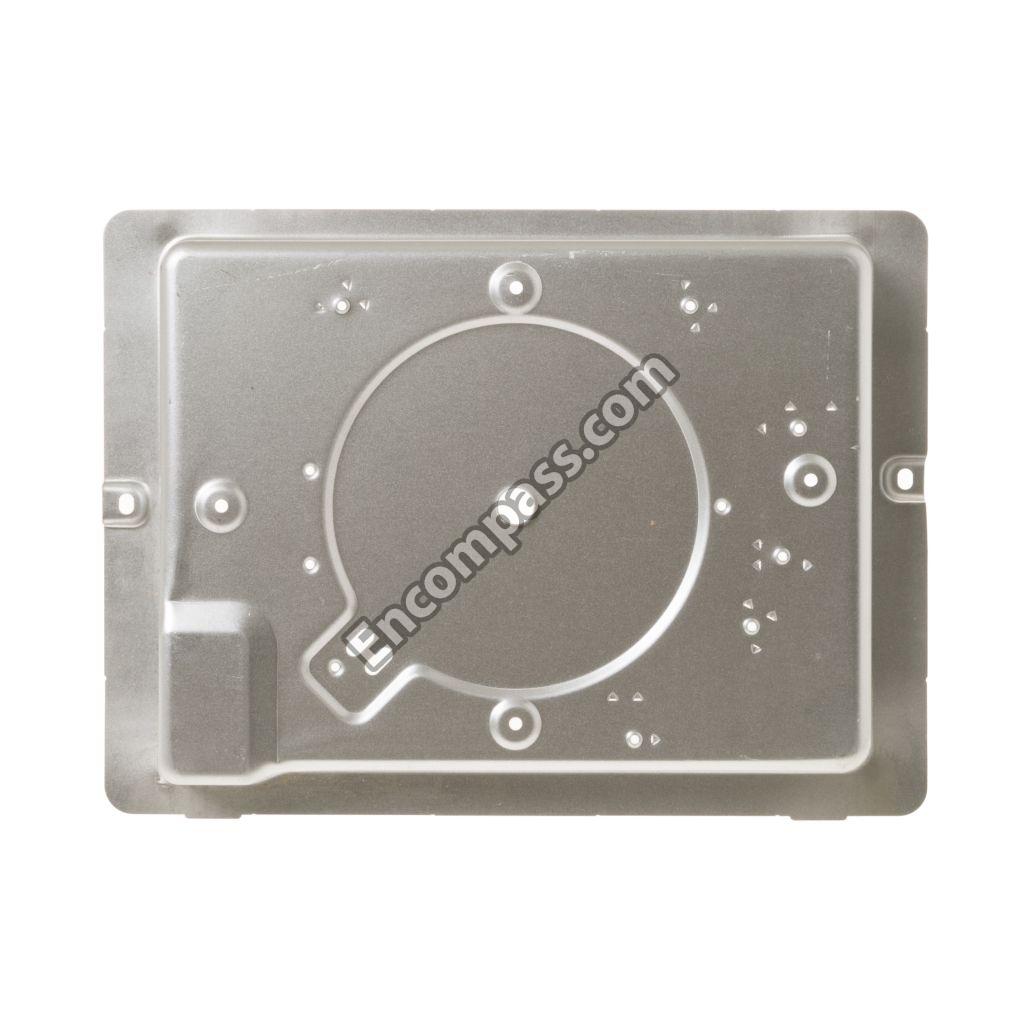

WB63X22091 WB63X22091 BASE PLATE
WB6X475 WB6X475 BLADE MOTOR
WB27X21904 WB27X21904 BOARD RJ45 C

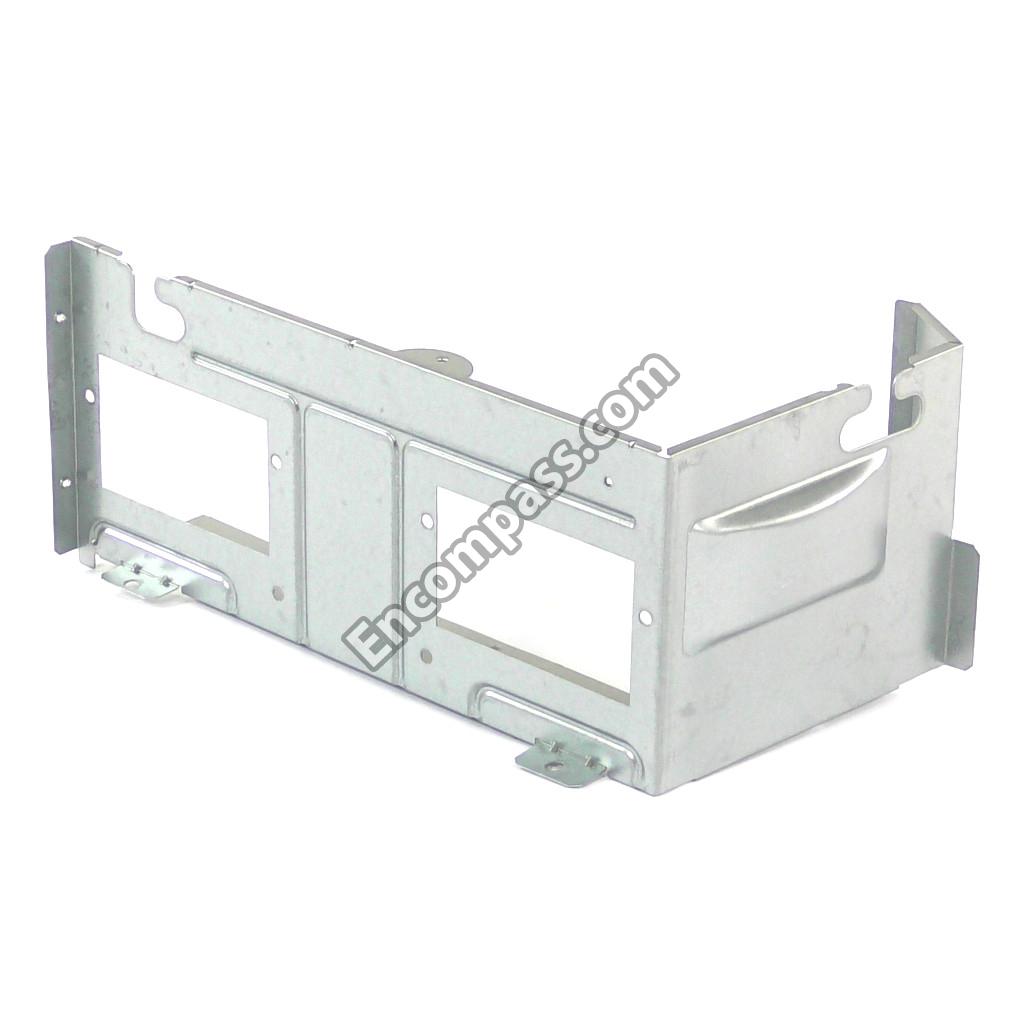

WB02X32634 WB02X32634 BOARD SUPPORTER
WB07T10754 WB07T10754 BRACE VERTIC
WB07X35692 WB07X35692 BRACE VERTICAL LEFT
WB06X10570 WB06X10570 BRACKET
WB02X11225 WB02X11225 BRACKET
WB02X32591 WB02X32591 BRACKET
WB02X32932 WB02X32932 BRACKET
WB02X40028 WB02X40028 BRACKET DAMPER
WB02X32680 WB02X32680 BRACKET HEATER
WB37T10026 WB37T10026 BRACKET UPPE
WB27X25692 WB27X25692 BRIDGE BOARD
WB06X10642 WB06X10642 CHAMBER
WB06X10641 WB06X10641 CHAMBER
WB34T10150 WB34T10150 CHANNEL UPPE

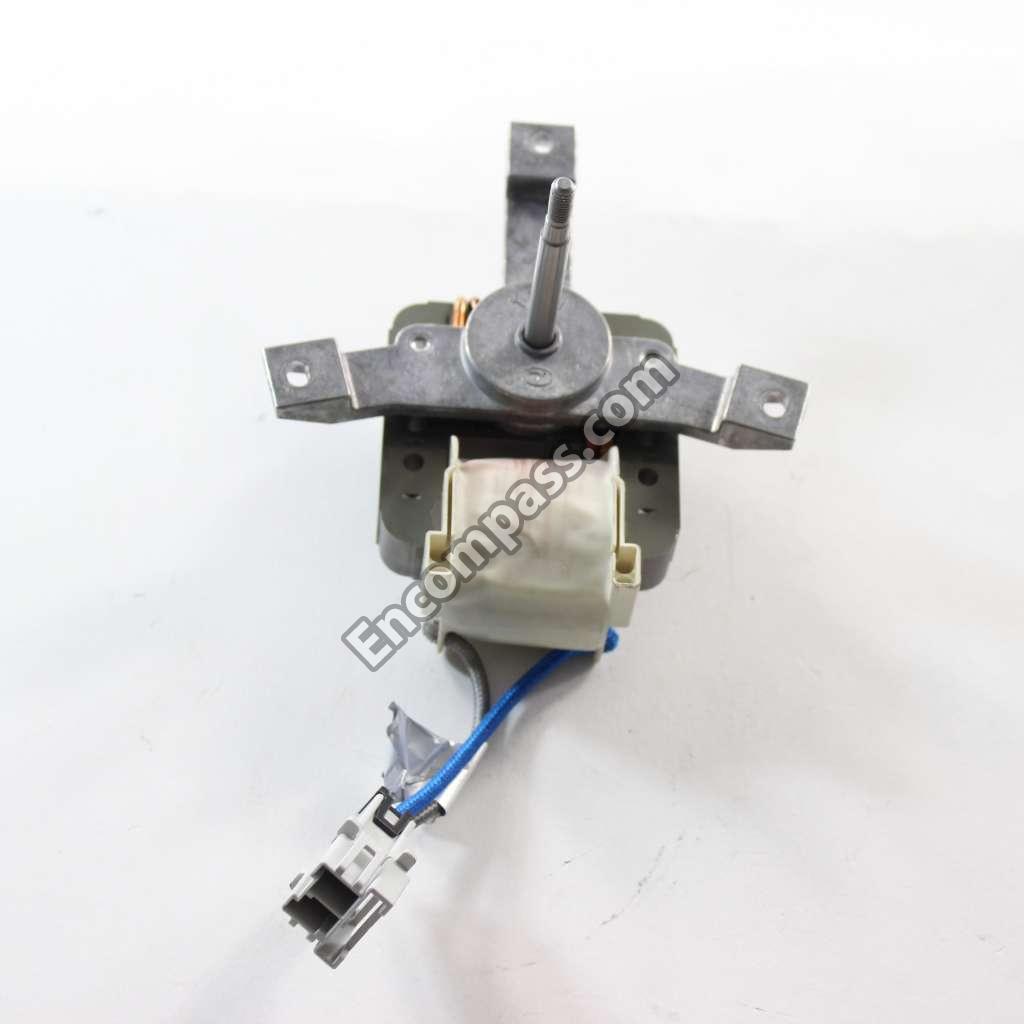

WB26X10182 WB26X10182 CIRCULATING MOTOR
WB18X32620 WB18X32620 COMM SIGNAL HARNESS

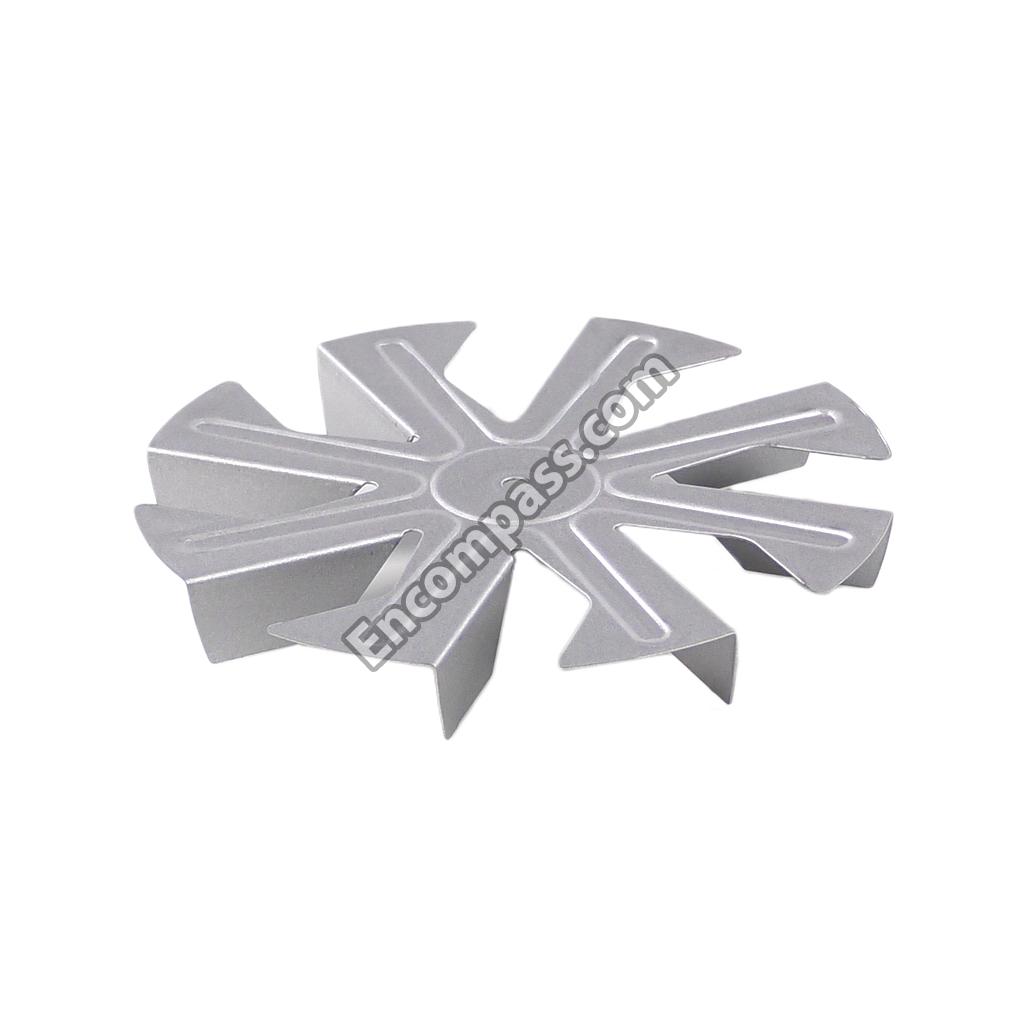

WB02T10598 WB02T10598 COMPLETE FAN BLADE
WB18X30613 WB18X30613 CONDUIT WIRE
WB01X0119 WB01X0119 CONTOURED WASHER

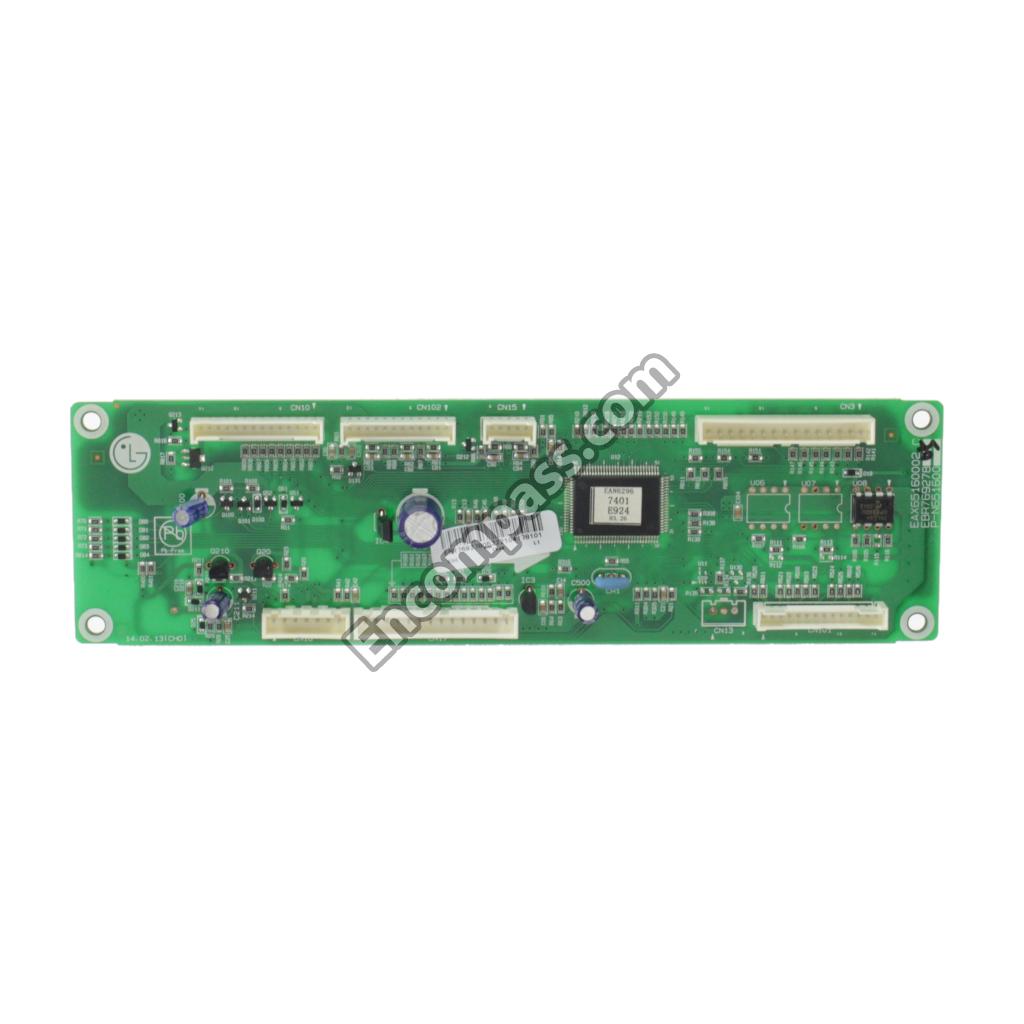

WB27X32685 WB27X32685 CONTROL BOAR
WB02X32630 WB02X32630 CONTROL BOARD

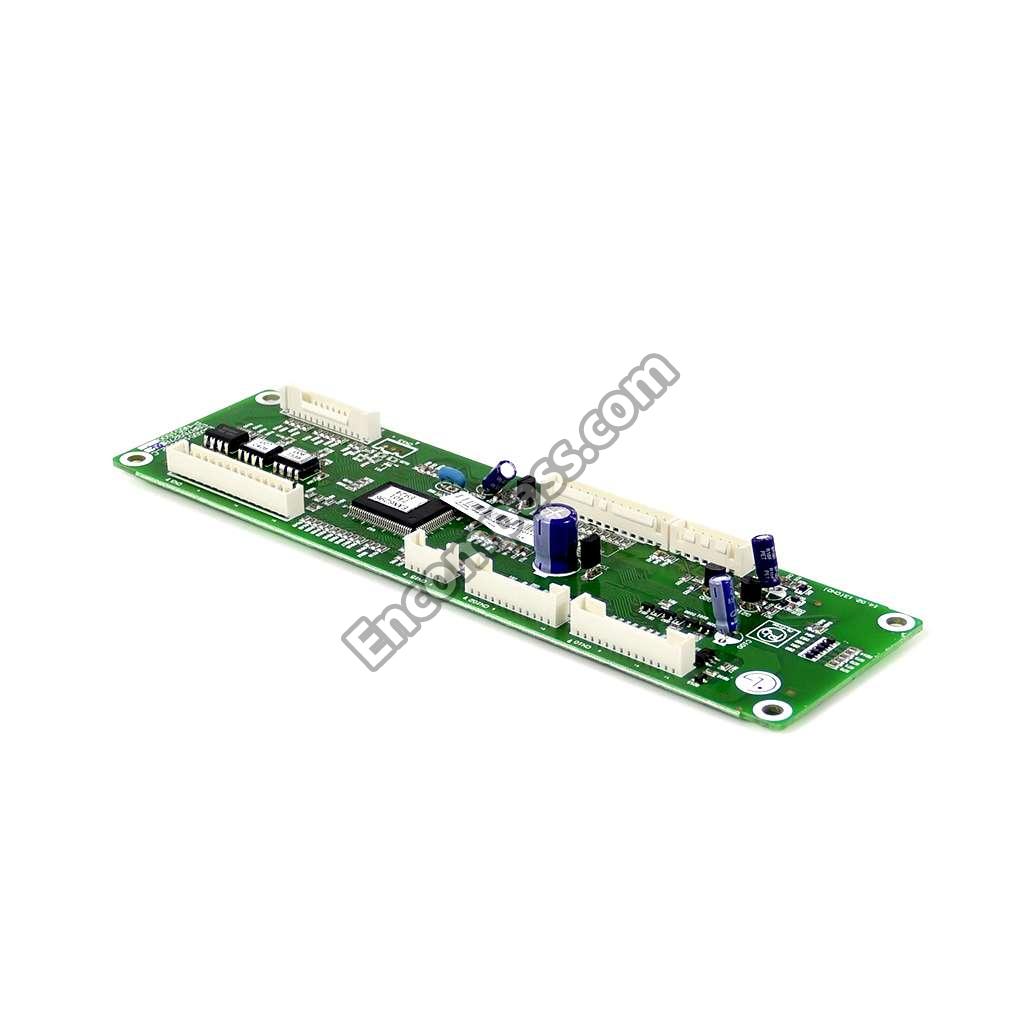

WB27X32633 WB27X32633 CONTROL BOARD
WB56X25674 WB56X25674 CONTROL PANEL
WB37T10021 WB37T10021 CONVECTION COVER

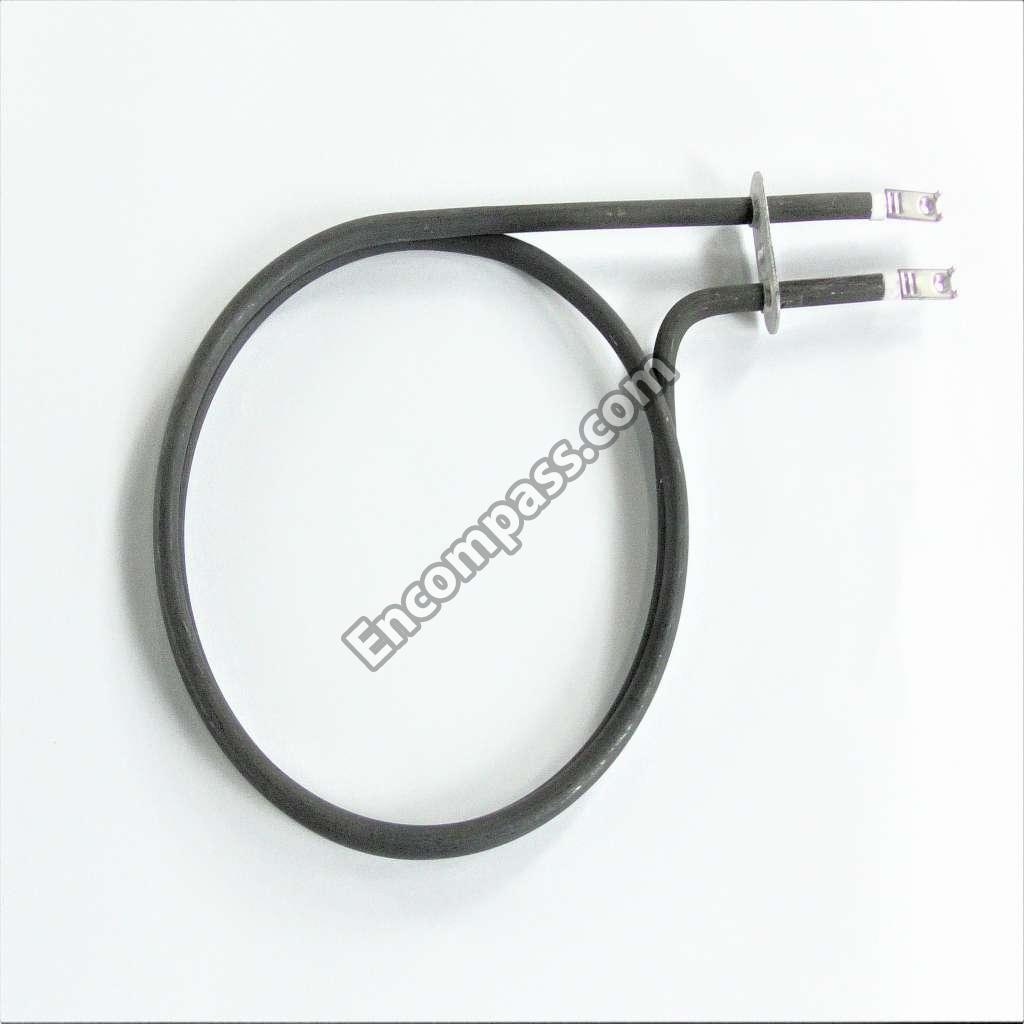

WB44X48668 WB44X48668 CONVERSION ELEMENT
WB01T10079 WB01T10079 CONVERSION GASKET
WB35T10259 WB35T10259 CONVEX INSULATION
WB26X23813 WB26X23813 CONVEX MOTOR

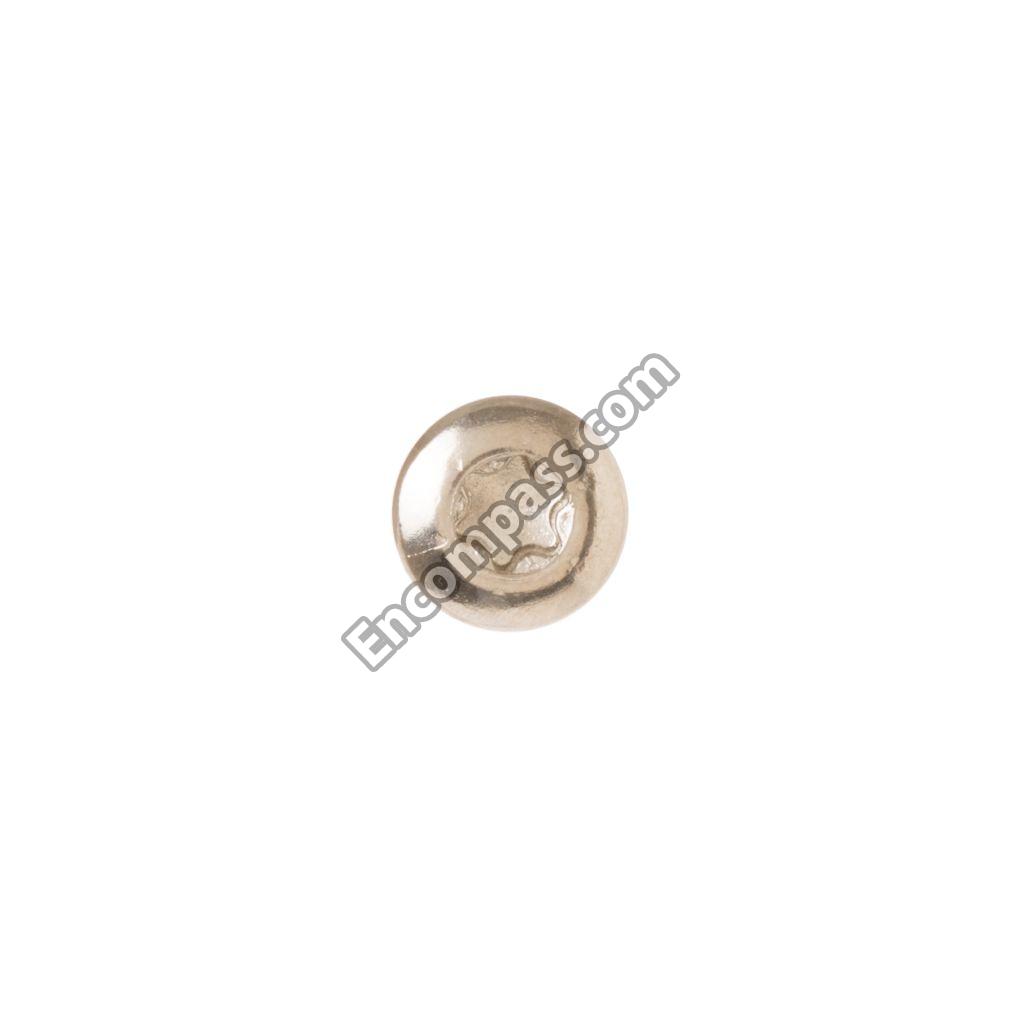

WB01T10008 WB01T10008 COOKING APPLIANCE SCREW, #10-32
WB26X24020 WB26X24020 COOLING FAN
WB56X43352 WB56X43352 COVER
WB34X21949 WB34X21949 COVER
WB56X32580 WB56X32580 COVER
WB34T10136 WB34T10136 COVER - UPPE
WB2X8309 WB2X8309 COVER PRO
WB02X32631 WB02X32631 DISPLAY HOLD

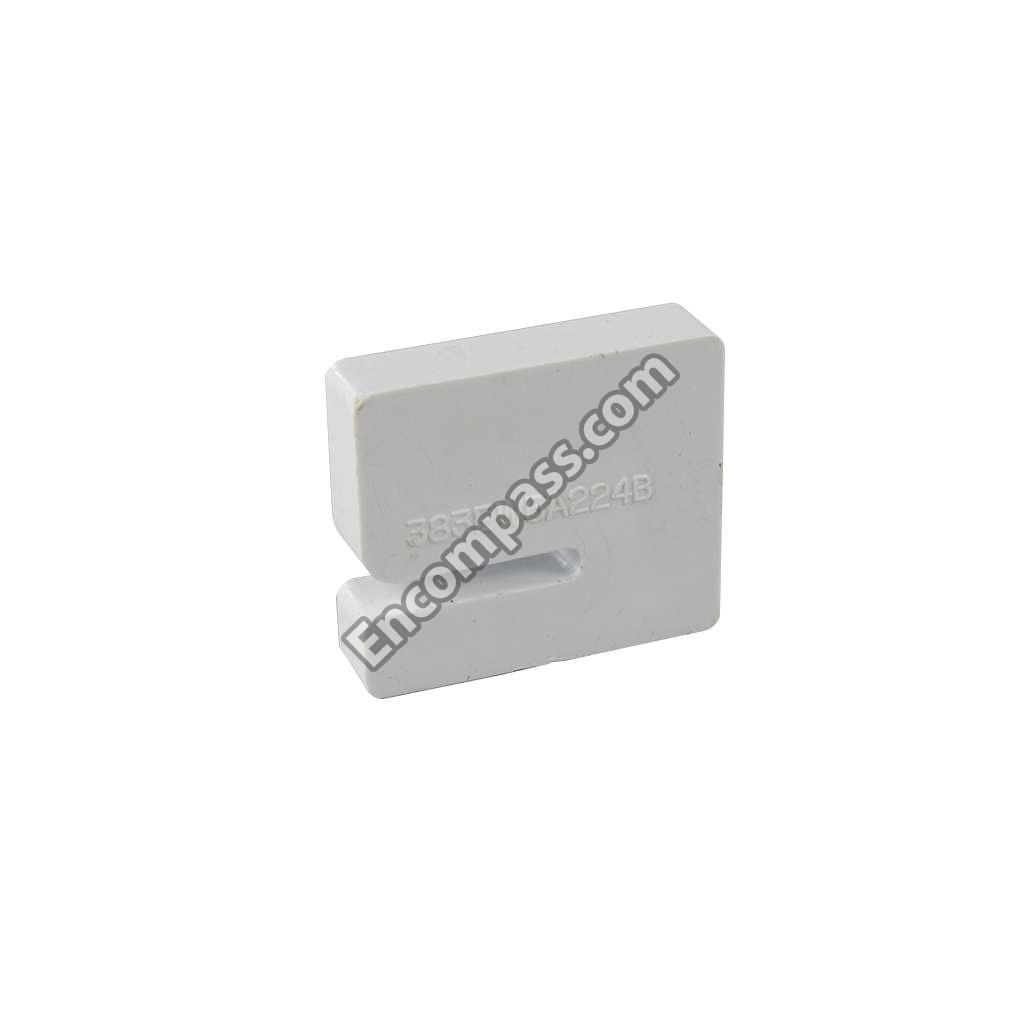

WB03T10341 WB03T10341 DOOR BUMPER
WB56X35473 WB56X35473 DOOR GLASS AND TRIM ASM

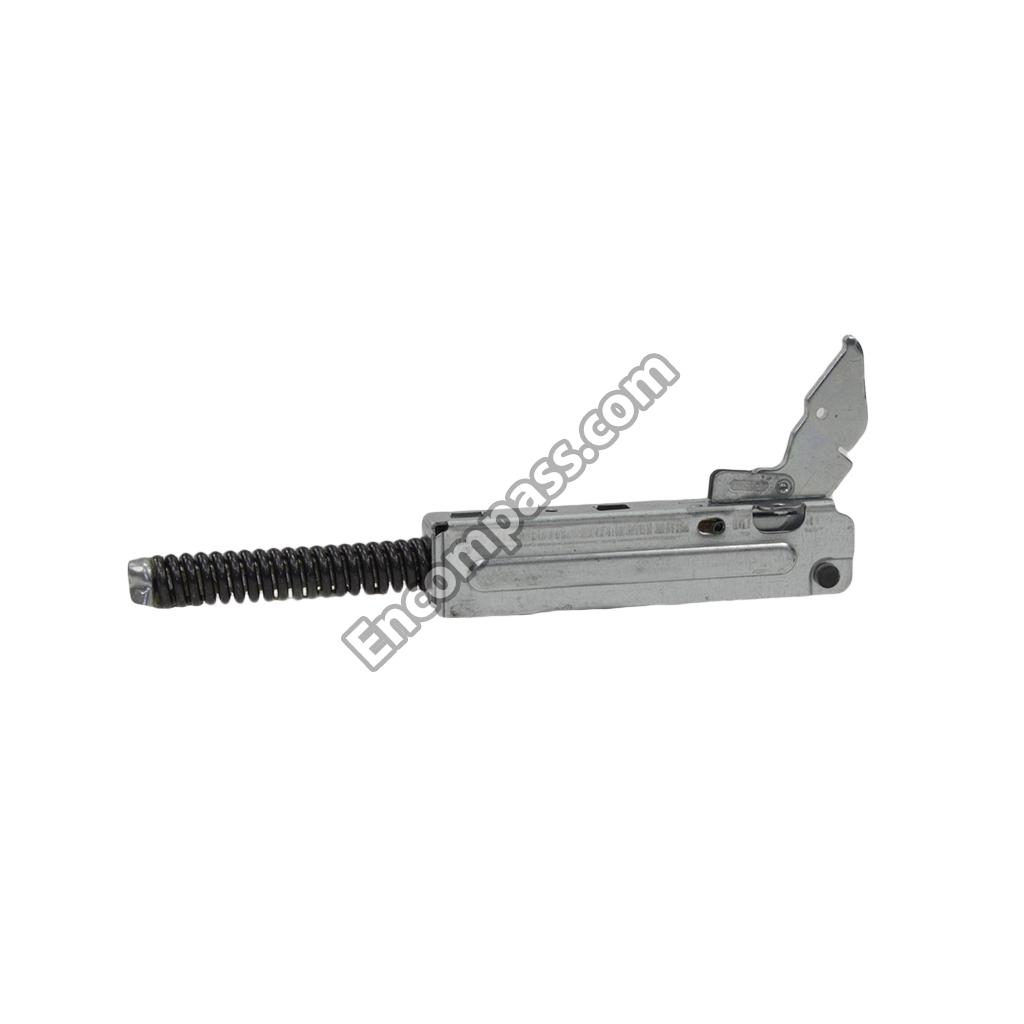

WB10X30580 WB10X30580 DOOR HINGE L
WB10X30579 WB10X30579 DOOR HINGE R
WB34X31516 WB34X31516 DOOR INSULATION RETAINER
WB01X34910 WB01X34910 DOOR SERVICE
WB35X31513 WB35X31513 DOOR SIDE INSULATION

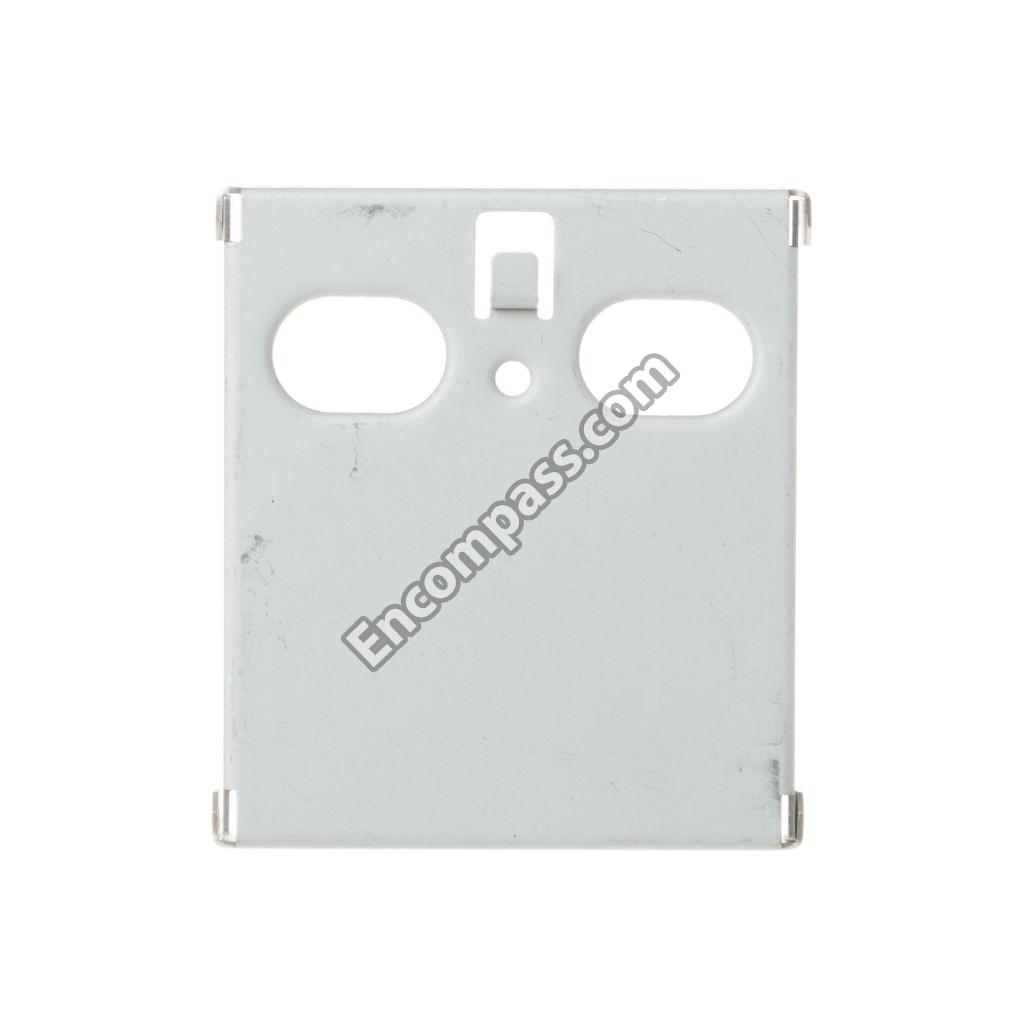

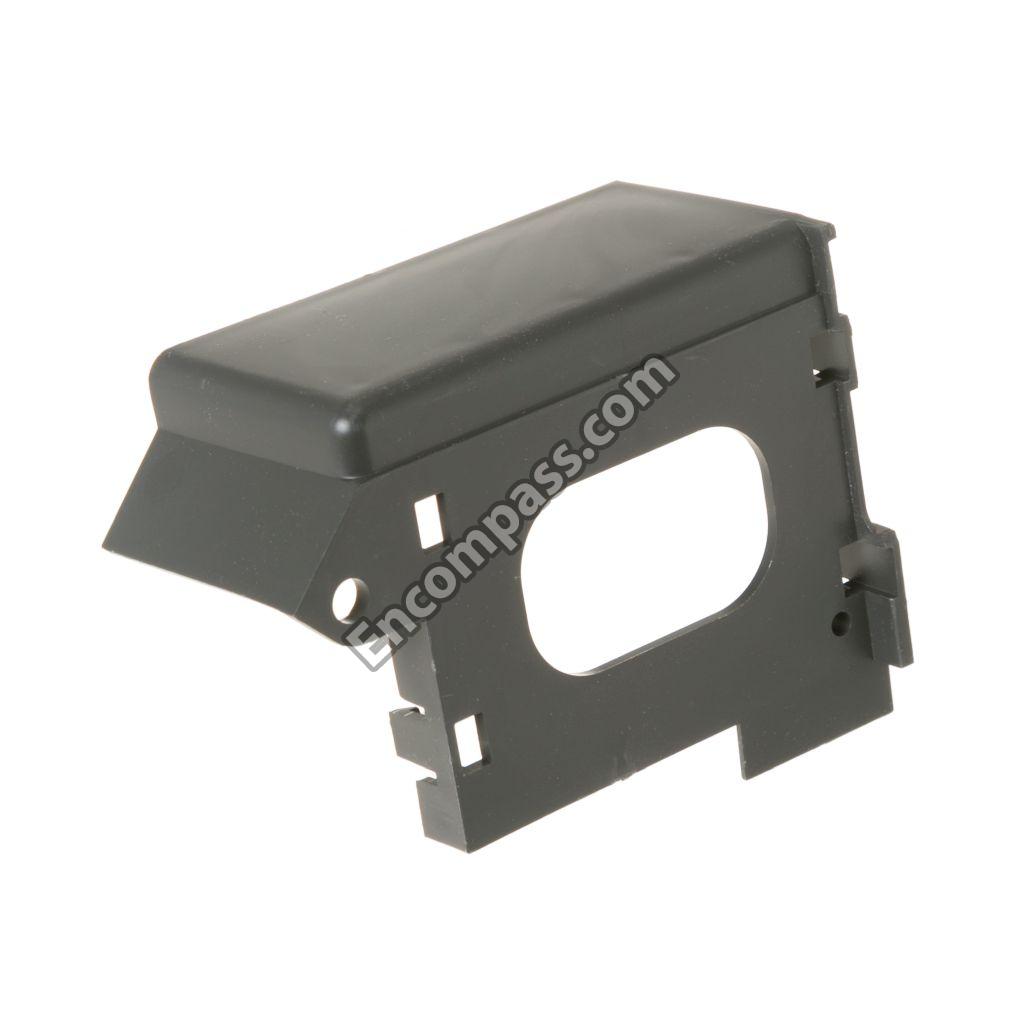

WB34X32584 WB34X32584 DOOR SWITCH ACCESS COVER
WH2X930 WH2X930 DRYER SCREW
WB34X32594 WB34X32594 DUCT
WB34X32607 WB34X32607 DUCT
WB34X32608 WB34X32608 DUCT ASM
WB37T10022 WB37T10022 DUCT CONVECT

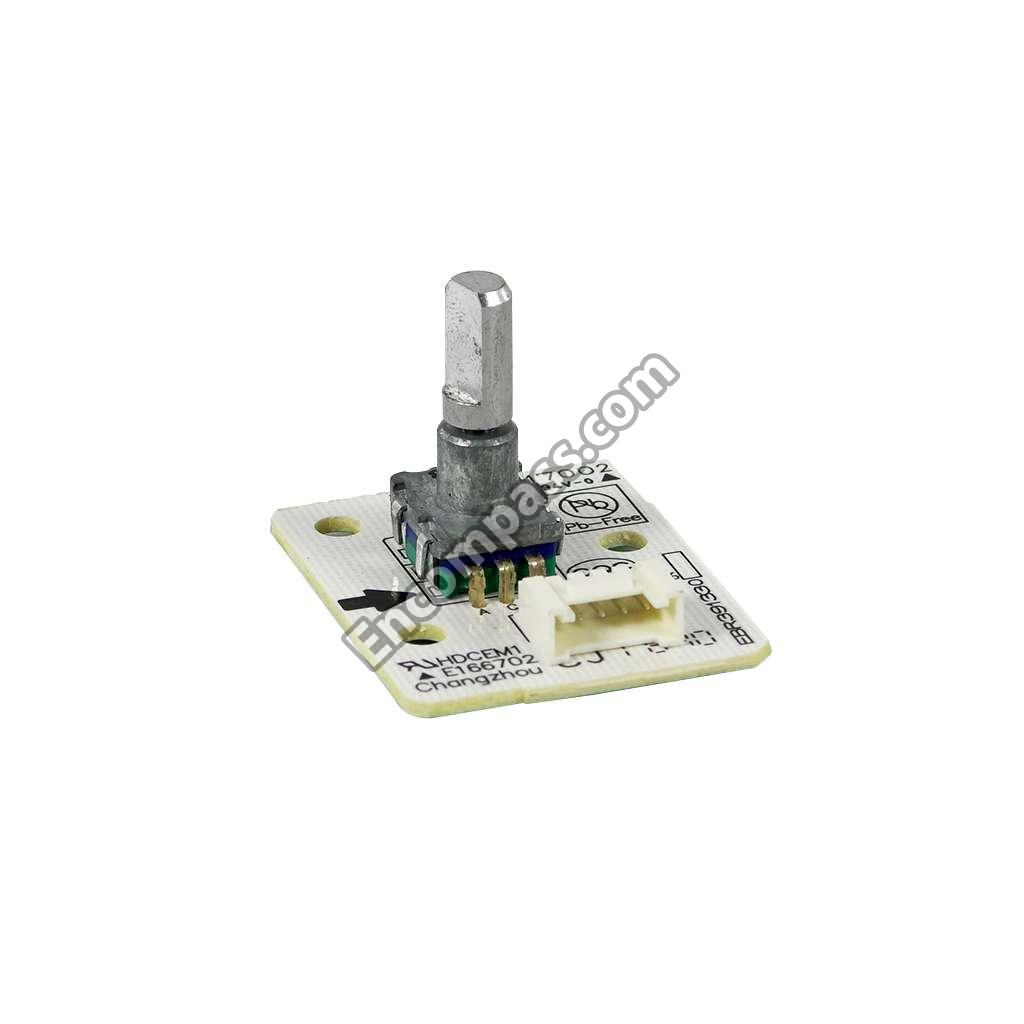

WB27X32632 WB27X32632 ENCODER BOAR
WB18X32616 WB18X32616 ENCODER SIGN

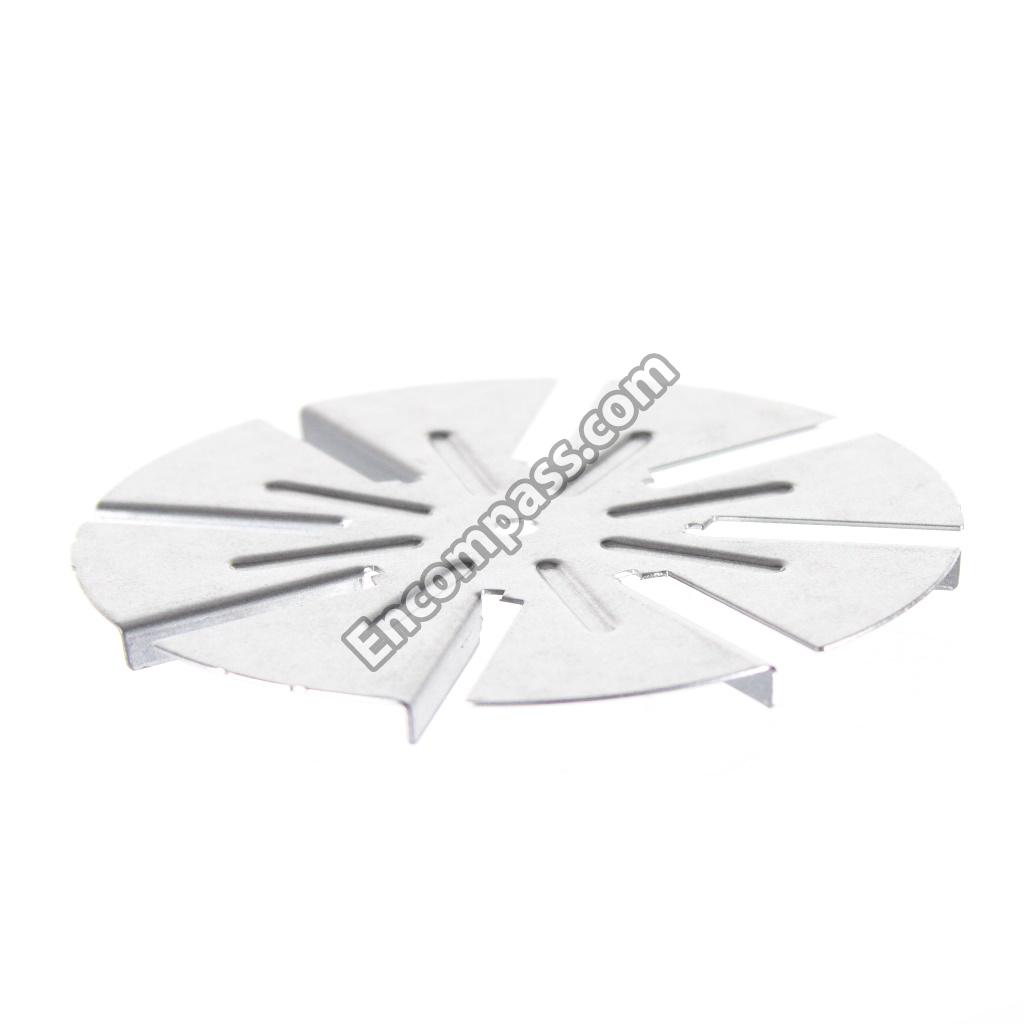

WB26X32609 WB26X32609 FAN STIRRER
WB02X21902 WB02X21902 FRAME BOARD
WB35X21972 WB35X21972 GASKET BROIL
WB35X32825 WB35X32825 GASKET OVEN DOOR
WB01T10128 WB01T10128 GROMMET
WB25T10102 WB25T10102 HALOGEN LAMP
WB25X31221 WB25X31221 HALOGEN LAMP ASM
WB25X31223 WB25X31223 HALOGEN LAMP ASSEMBLY
WB18X32611 WB18X32611 HARNESS SINGLE
WB18X32684 WB18X32684 HARNESS WIRE
WB18X32597 WB18X32597 HARNESS WIRE
WB02X11223 WB02X11223 HEAT BRACKET
WB02X32681 WB02X32681 HEAT BRACKET
WB02X32679 WB02X32679 HEAT BRACKET
WB21X10163 WB21X10163 HEATER MIRAC
WB44X10050 WB44X10050 HEATER SHEATH
WB01X1259 WB01X1259 HEX NUT
WB02X35585 WB02X35585 HEX NUT
WB1X1259 WB1X1259 HEX NUT
WB55T10197 WB55T10197 HIDDEN COVER
WB49X21652 WB49X21652 HINGE BRACKET
WB06X10646 WB06X10646 HOLDER
WB02X32605 WB02X32605 HOLDER - HEA
WB02X11233 WB02X11233 HOLDER WIRE
WB01X32574 WB01X32574 INSTALLATION HARDWARE
31-10882 31-10882 INSTRUCTION INSTALL
WB35X34930 WB35X34930 INSULATION D
WB35X33245 WB35X33245 INSULATION DOOR TOP 30-INCH
WB10X28391 WB10X28391 LATCH ASSEMBLY

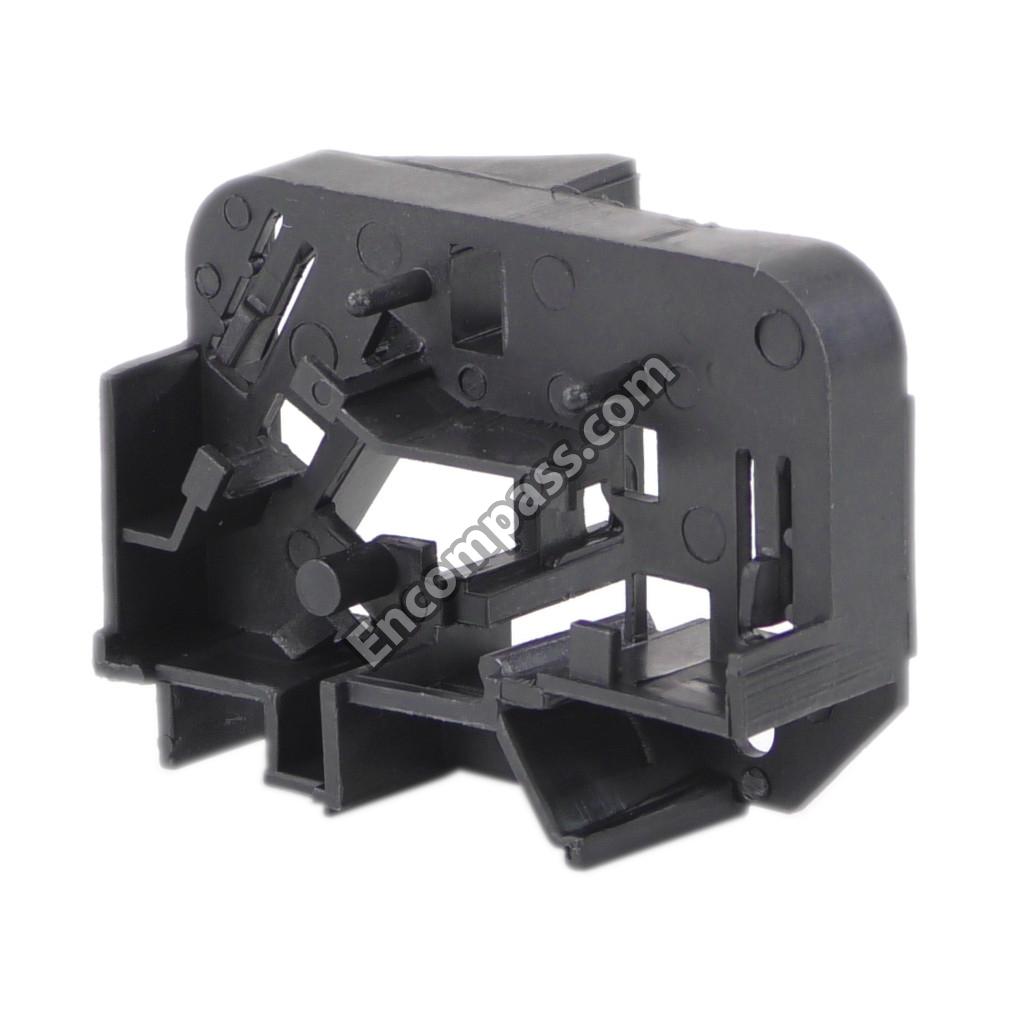

WB10X32573 WB10X32573 LATCH BOARD
WB10X32577 WB10X32577 LATCH BOARD RH
WB02X10726 WB02X10726 LEAD SCREW

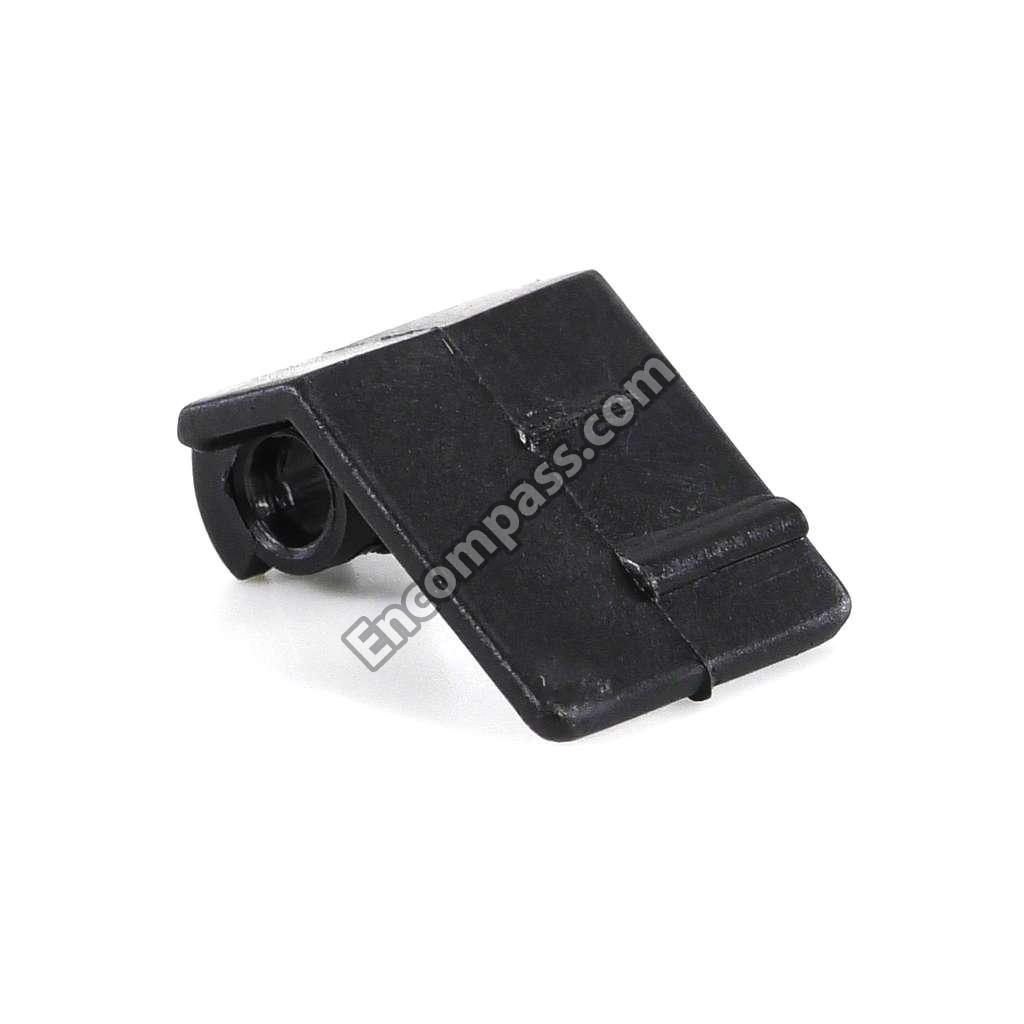

WB02X32588 WB02X32588 LEVER
WB34X32583 WB34X32583 LIGHT COVER
WB34X46746 WB34X46746 LINER SUPPORT
WB34T10151 WB34T10151 LOWER COVER
WB07X21187 WB07X21187 LOWER TRIM VENT
WB27X33487 WB27X33487 MACHINE CONTROL
49-80597 49-80597 MANUAL U&C TIP SHEET
WB18X23585 WB18X23585 MEAT PROBE

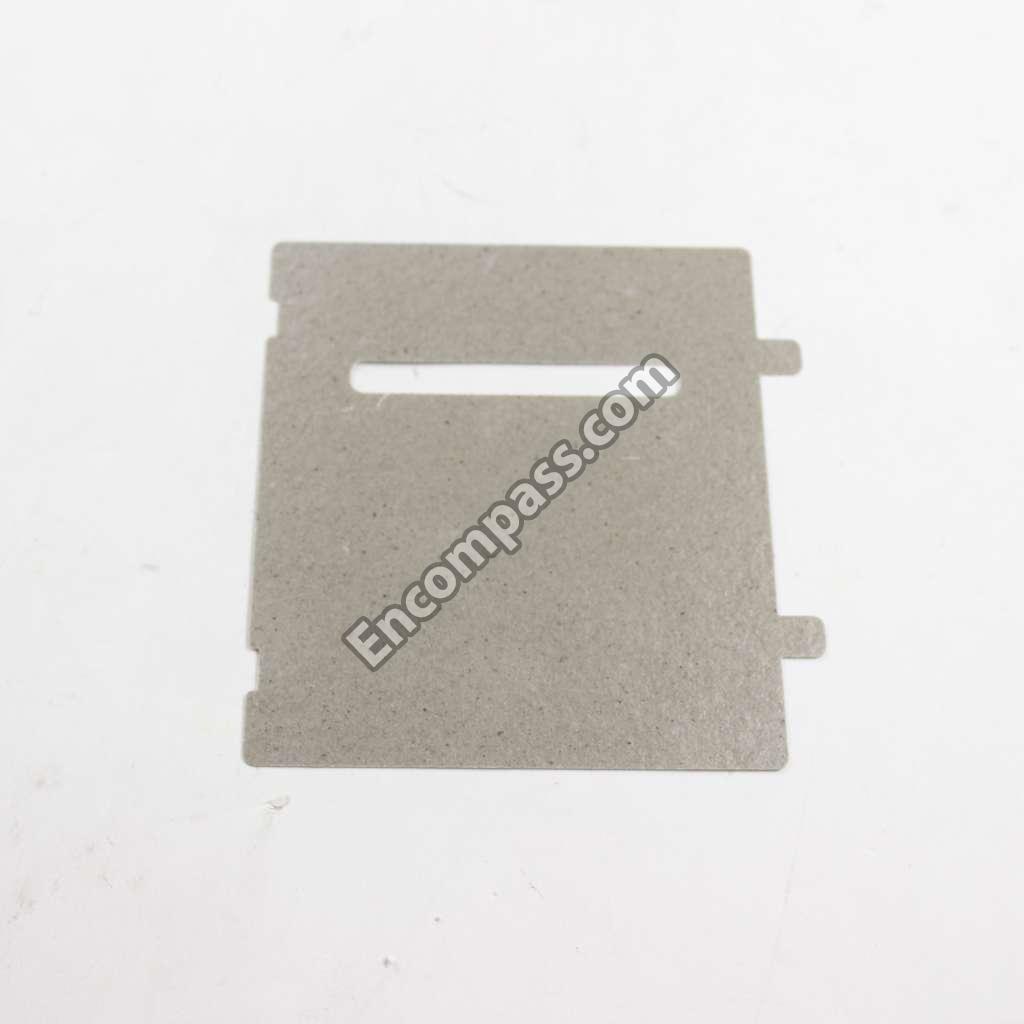

WB06X10638 WB06X10638 MICA CANOPY
WB56X32677 WB56X32677 MICROWAVE DOOR ASSEMBLY
WB24X25397 WB24X25397 MICROWAVE DOOR INTERLOCK SWITCH
WB24X10047 WB24X10047 MICROWAVE DOOR INTERLOCK SWITCH
WB27X10928 WB27X10928 MICROWAVE FUSE
WB27X43590 WB27X43590 MICROWAVE GLASS TURNTABLE TRAY
WB27X11033 WB27X11033 MICROWAVE HIGH-VOLTAGE CAPACITOR

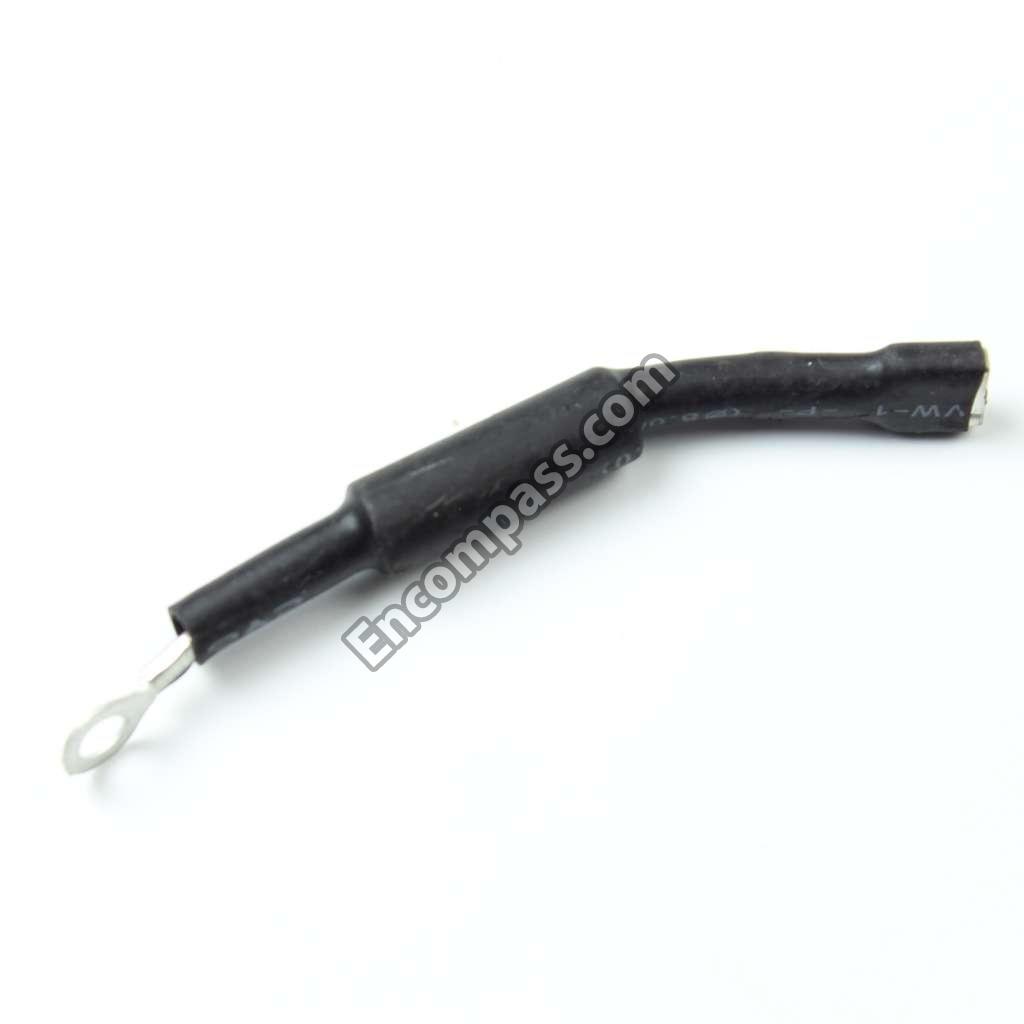

WB27X10037 WB27X10037 MICROWAVE HIGH-VOLTAGE DIODE

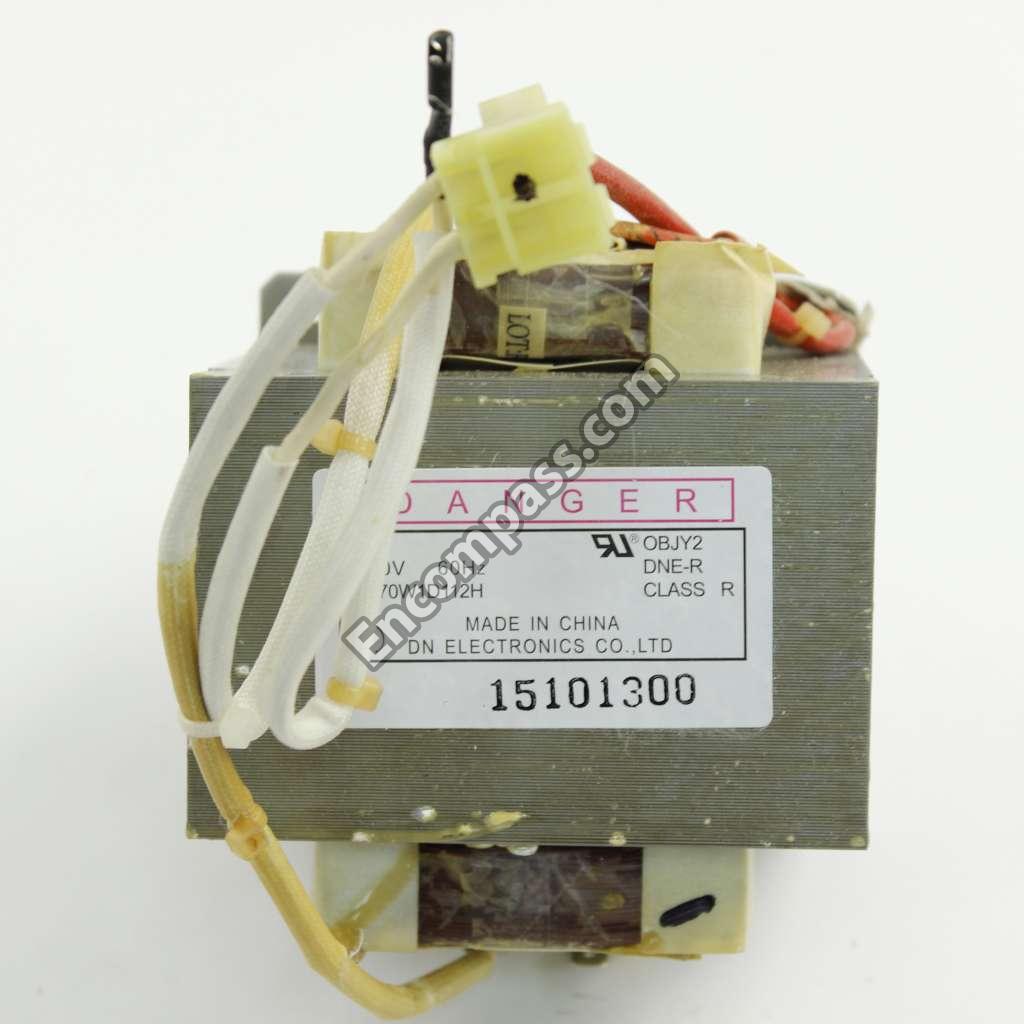

WB17X10030 WB17X10030 MICROWAVE HIGH-VOLTAGE TRANSFORMER
WB27X10857 WB27X10857 MICROWAVE HUMIDITY SENSOR
WB02X35488 WB02X35488 MICROWAVE LIGHT BULB
WB26X32629 WB26X32629 MICROWAVE MAGNETRON
WB34X32592 WB34X32592 MICROWAVE PROTECTOR
WB21X10149 WB21X10149 MICROWAVE THERMAL CUT-OFF

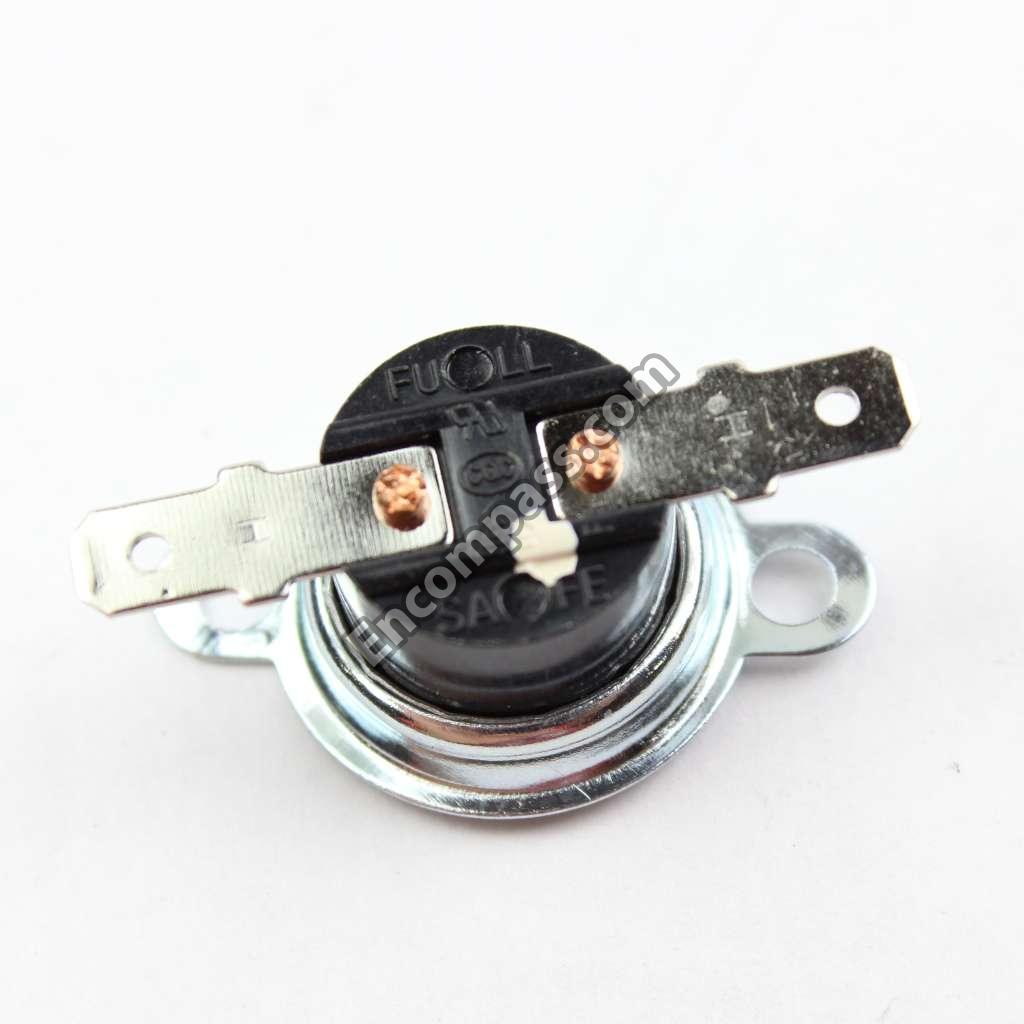

WB20X10048 WB20X10048 MICROWAVE THERMOSTAT
WB07X32622 WB07X32622 MICROWAVE TRIM - RIGHT

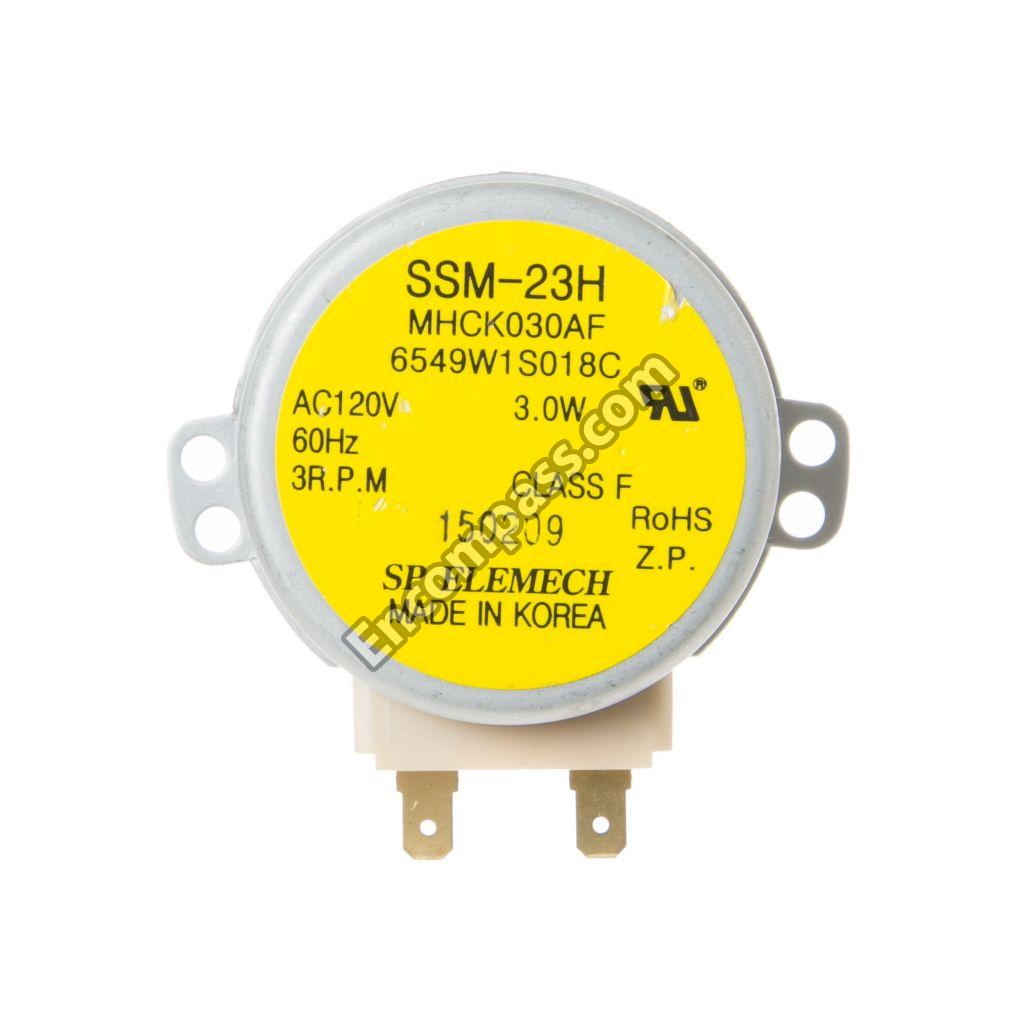

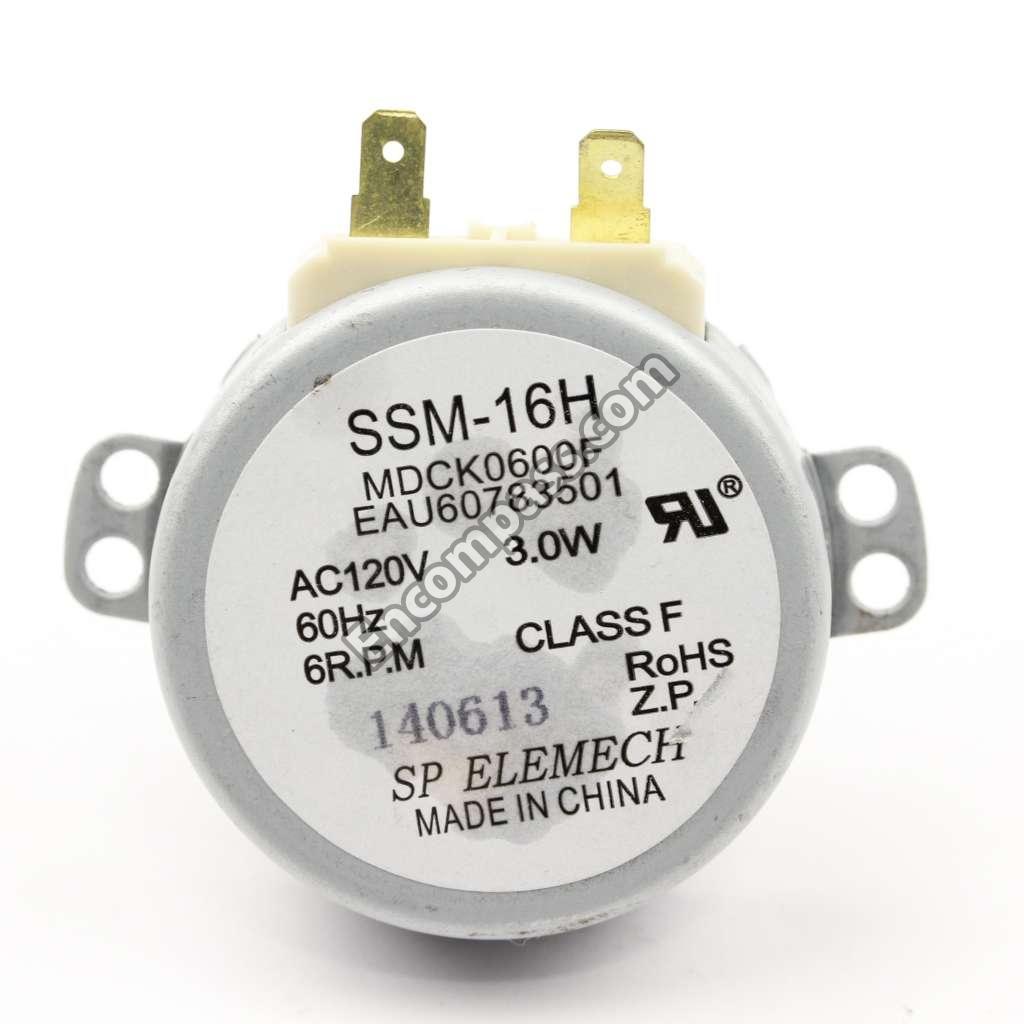

WB26X10193 WB26X10193 MICROWAVE TURNTABLE MOTOR

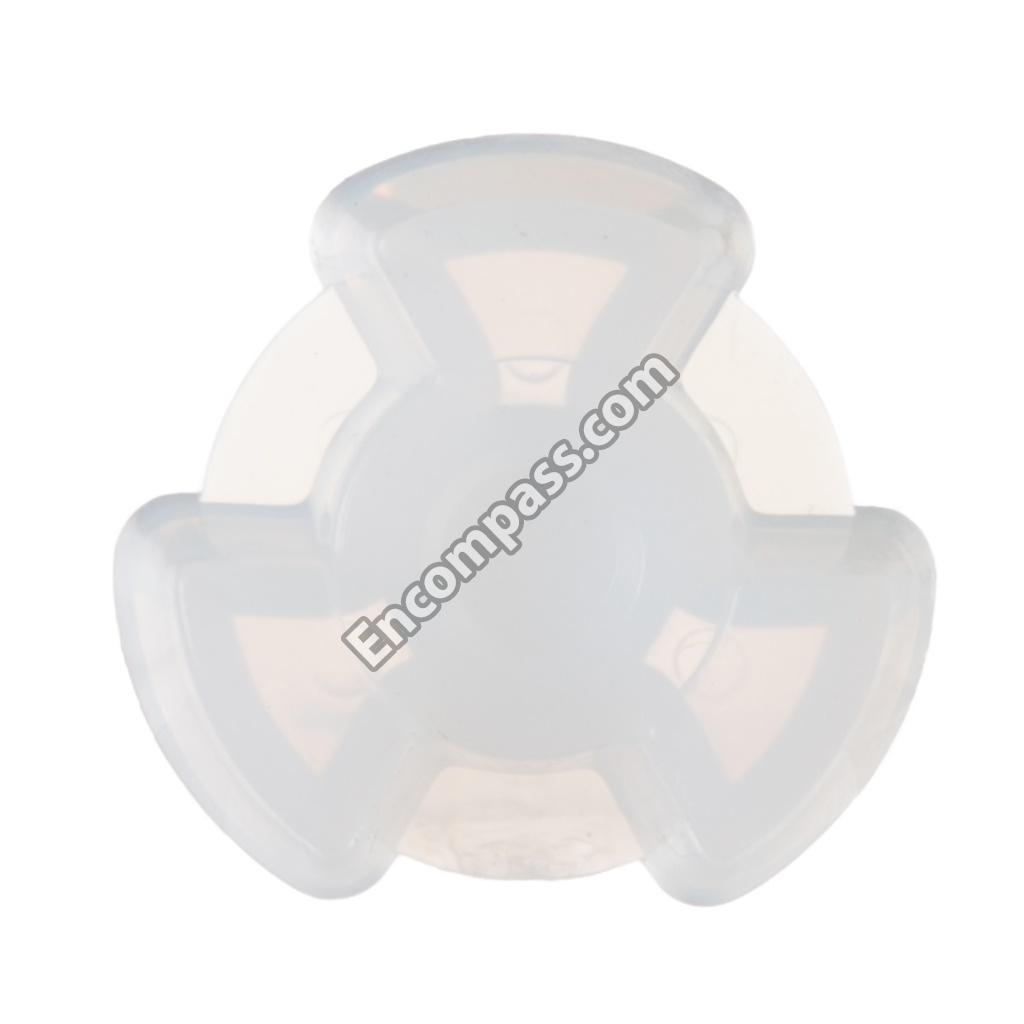

WB06X10693 WB06X10693 MICROWAVE TURNTABLE MOTOR COUPLER

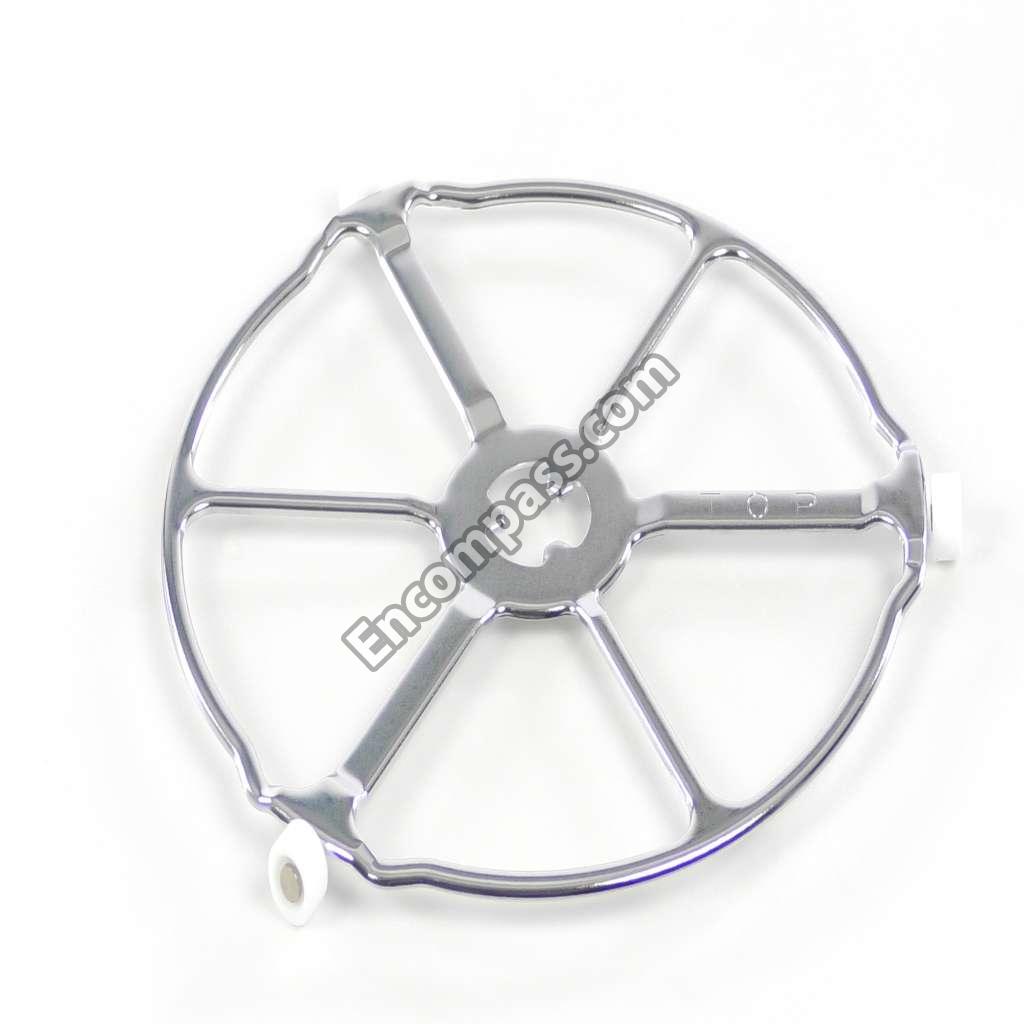

WB02X32600 WB02X32600 MICROWAVE TURNTABLE TRAY SUPPORT
WB26X10248 WB26X10248 MOTOR

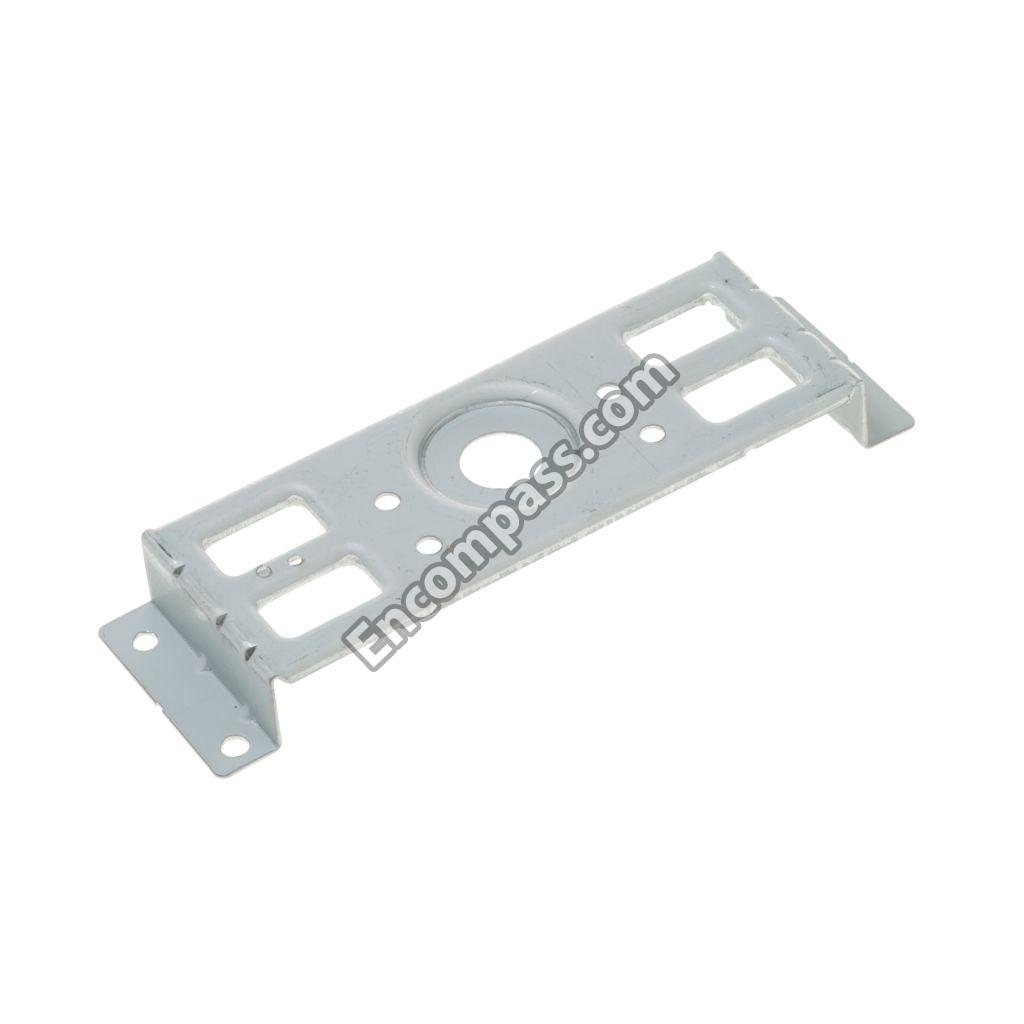

WB02X32599 WB02X32599 MOTOR BRACKE
WB34X32628 WB34X32628 MOTOR BRACKE
WB34X32596 WB34X32596 MOUNT
WB02X35865 WB02X35865 NOISE FILTER
WB1X5572 WB1X5572 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB18T10580 WB18T10580 OPTIONAL 6 F
WB56X32578 WB56X32578 OUTER CASE F
WB34T10142 WB34T10142 OVEN DEFLECTOR
WB06X10650 WB06X10650 OVEN GLASS
WB35X21737 WB35X21737 OVEN INSULATION

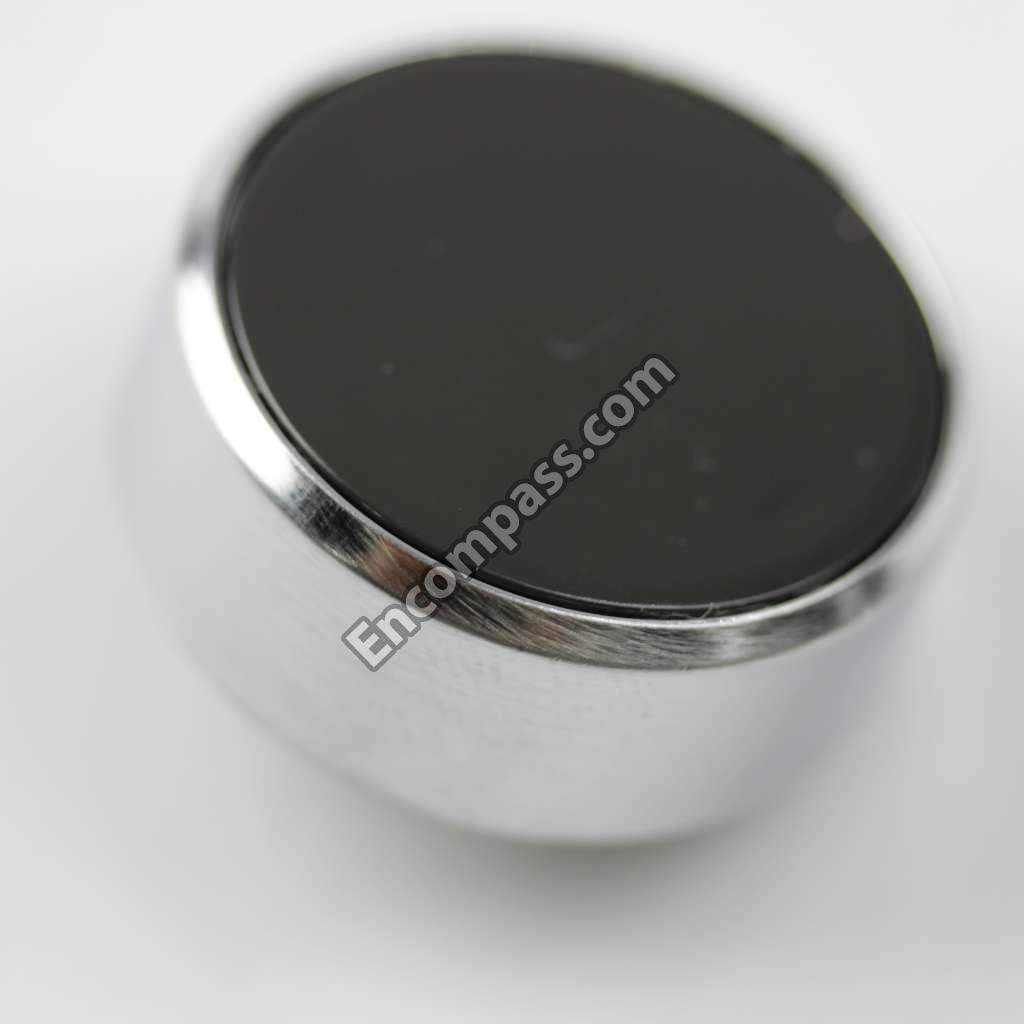

WB03X21244 WB03X21244 OVEN KNOB
WB34T10145 WB34T10145 OVEN LIGHT LENS

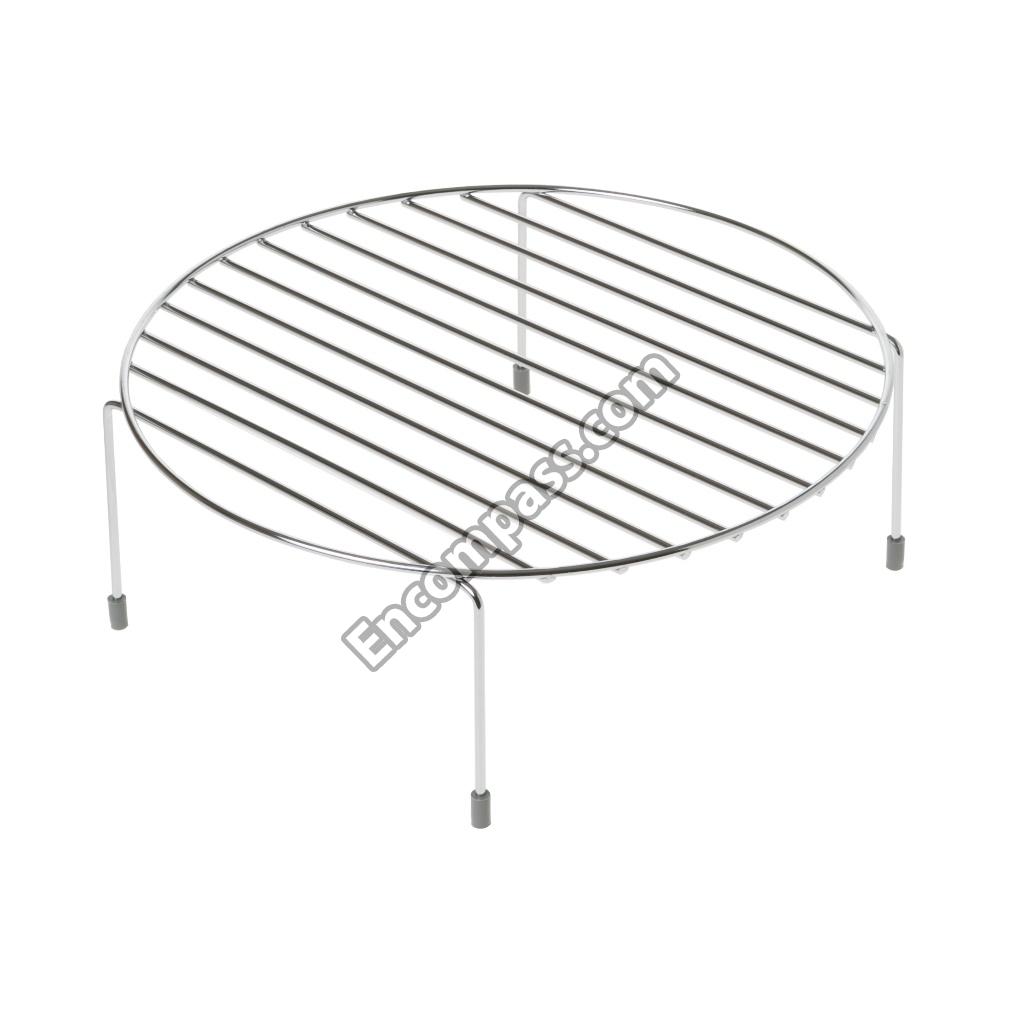

WB49X10213 WB49X10213 OVEN RACK
WB48X21765 WB48X21765 OVEN RACK GUIDE
31-10957 31-10957 PM INSTALL INSTRUCTIONS
31-10965 31-10965 PM INSTALL INSTRUCTIONS
31-17128 31-17128 PM MANUAL MINI & WD ASM
31-17239 31-17239 PM MANUAL MINI & WD ASM
49-80781 49-80781 PM OWNERS MANUAL

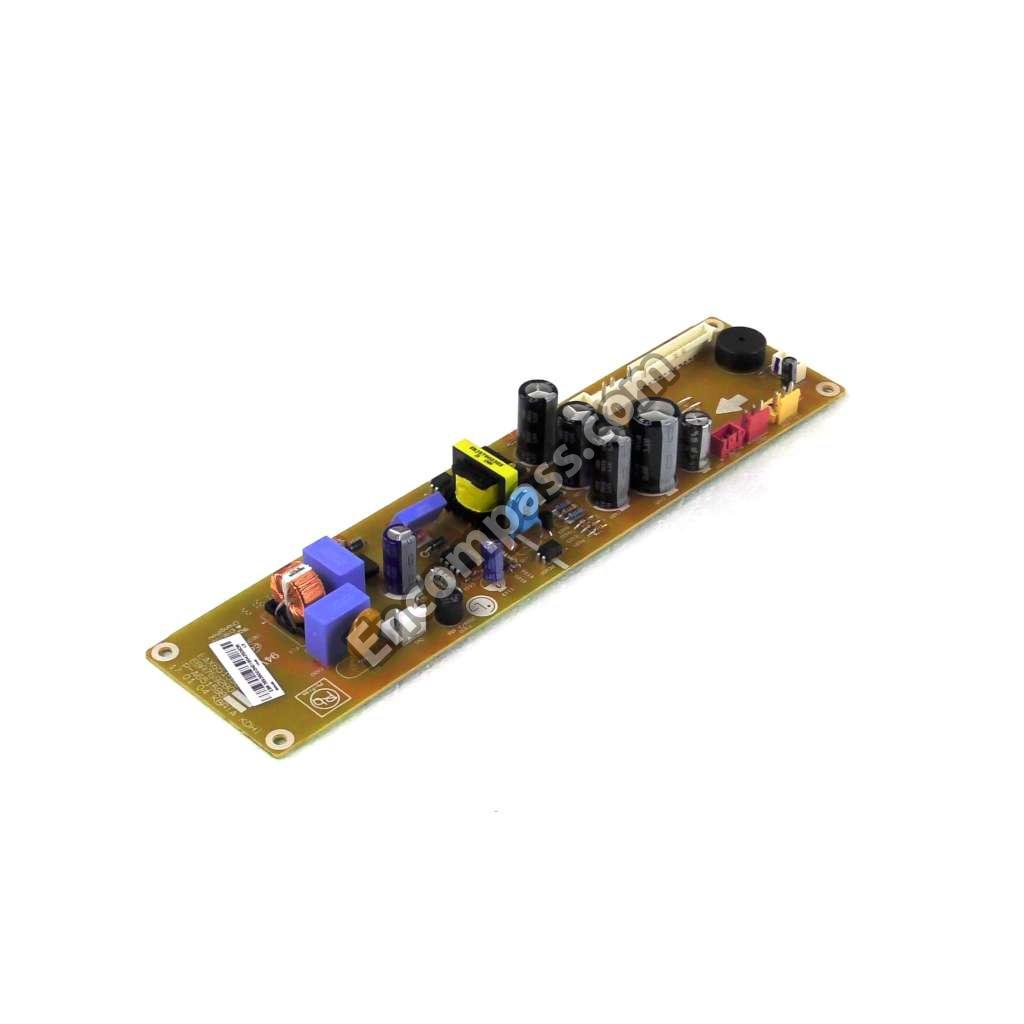

WB18X32615 WB18X32615 POWER BOARD
WB27X32626 WB27X32626 POWER BOARD
WB44X48680 WB44X48680 RANGE BROIL ELEMENT
WB24X46906 WB24X46906 RANGE HIGH-LIMIT THERMOSTAT
WB02X10542 WB02X10542 RANGE MOTOR BRACKET
WB20T10024 WB20T10024 RANGE OVEN MEAT PROBE SENSOR
WB48X21764 WB48X21764 RANGE OVEN RACK
WB48X23857 WB48X23857 RANGE OVEN RACK ASSEMBLY
WB01X21270 WB01X21270 RANGE RACK GUIDE NUT
WB1M1 WB1M1 RANGE SCREW
WB1K5173 WB1K5173 RANGE SCREW
WB1X5904 WB1X5904 RANGE SCREW
WB1K5072 WB1K5072 RANGE SCREW
WB1X119D WB1X119D RANGE WASHER, 12-PACK

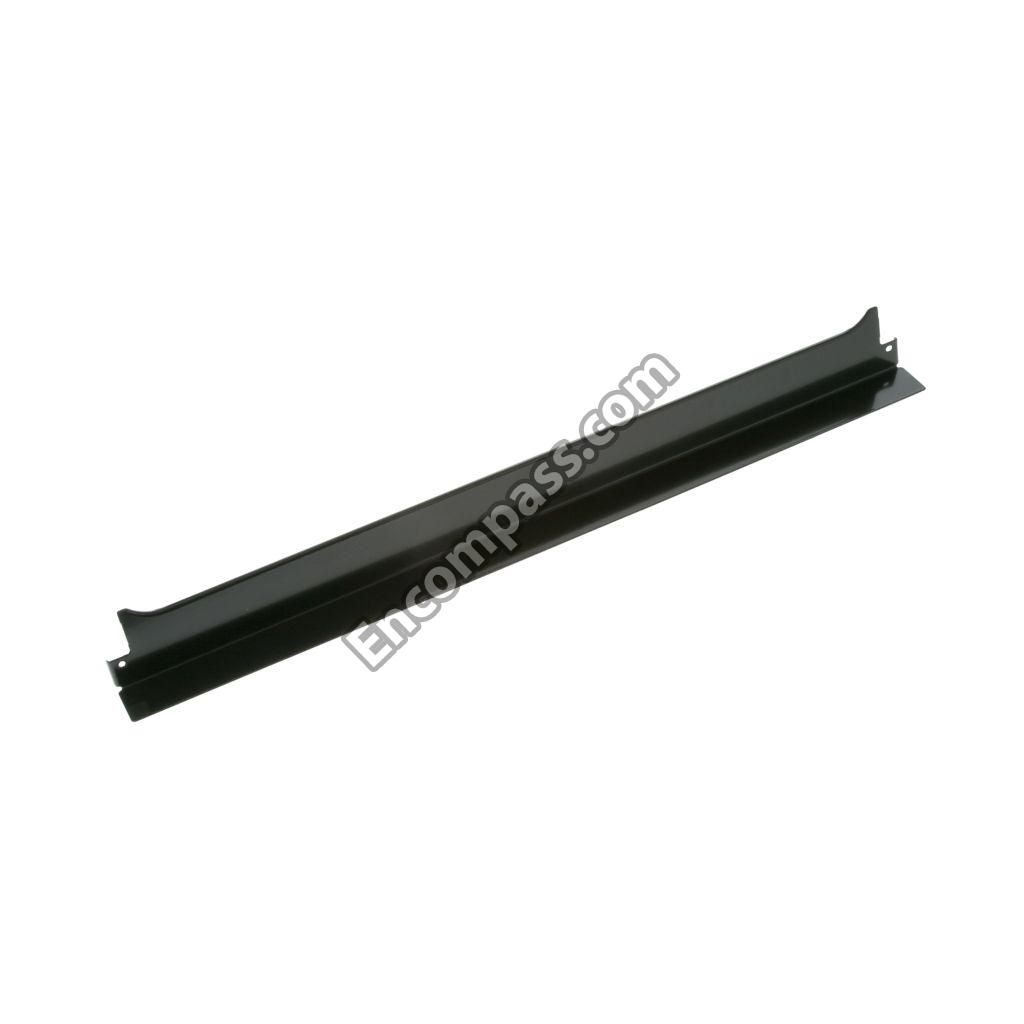

WB34X21912 WB34X21912 REAR CHANNEL
WB34X21910 WB34X21910 REAR CHANNEL
WB02X11318 WB02X11318 REFLECTOR

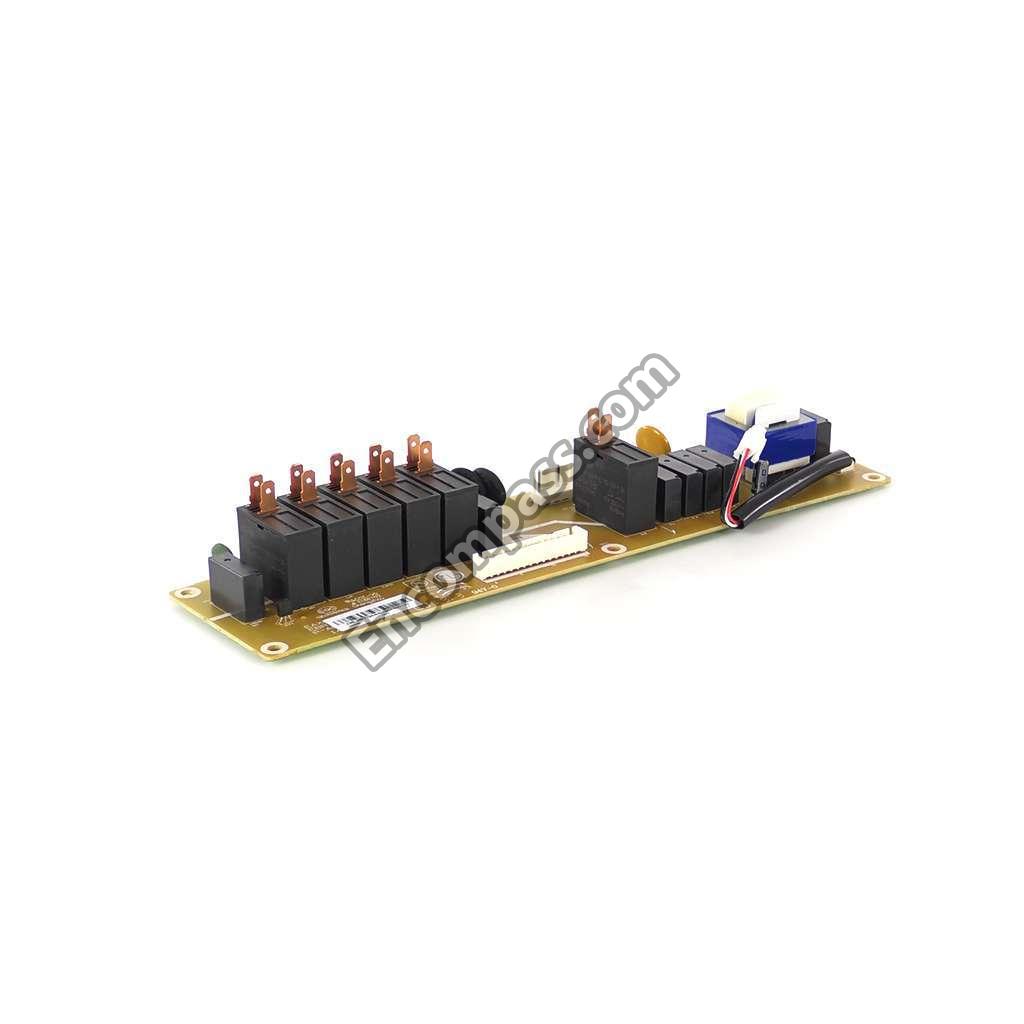

WB27X32625 WB27X32625 RELAY BOARD
WB18X32619 WB18X32619 RELAY SIGNAL
WB01T10107 WB01T10107 RETAINER BOLT
WB34X21913 WB34X21913 RETAINER INSERT
WB1X1518 WB1X1518 RING SHAFT
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01K5072 WB01K5072 SCREW
WB01X21742 WB01X21742 SCREW
WD02X10129 WD02X10129 SCREW
WB01X1504 WB01X1504 SCREW - HEATER SHEATH

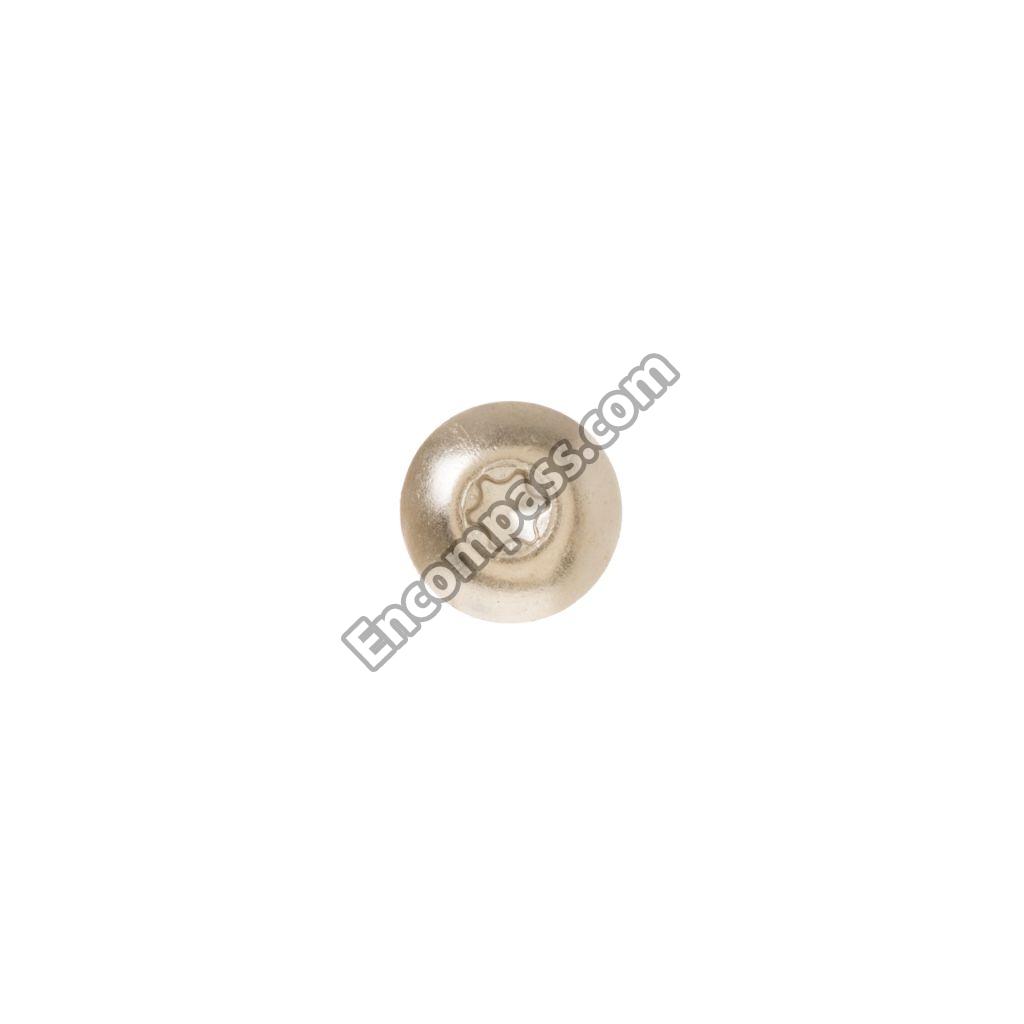

WB01T10130 WB01T10130 SCREW 7-19 1
WB01T10134 WB01T10134 SCREW 8-18 T
WB02X10745 WB02X10745 SCREW BIND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1504 WB1X1504 SCREW TRU
WB01T10132 WB01T10132 SCREW, #10-32
WB02X32576 WB02X32576 SEAL TAPE
WB21X10165 WB21X10165 SENSOR ASSEMBLY
WB34X21946 WB34X21946 SLIDE SUPPORT
WB34X21947 WB34X21947 SLIDE SUPPORT
WB02T10093 WB02T10093 STANDOFF PCB
WB34X24077 WB34X24077 SUPPORT
WB34X24076 WB34X24076 SUPPORT
WB02X32604 WB02X32604 SUPPORT
WB02X22095 WB02X22095 SUPPORTER
WB27X44926 WB27X44926 SURGE FILTER
WB17K10001 WB17K10001 TERMINAL BLOCK
WB18X10287 WB18X10287 THERMISTOR
WB18X32614 WB18X32614 TOUCH SIGNAL

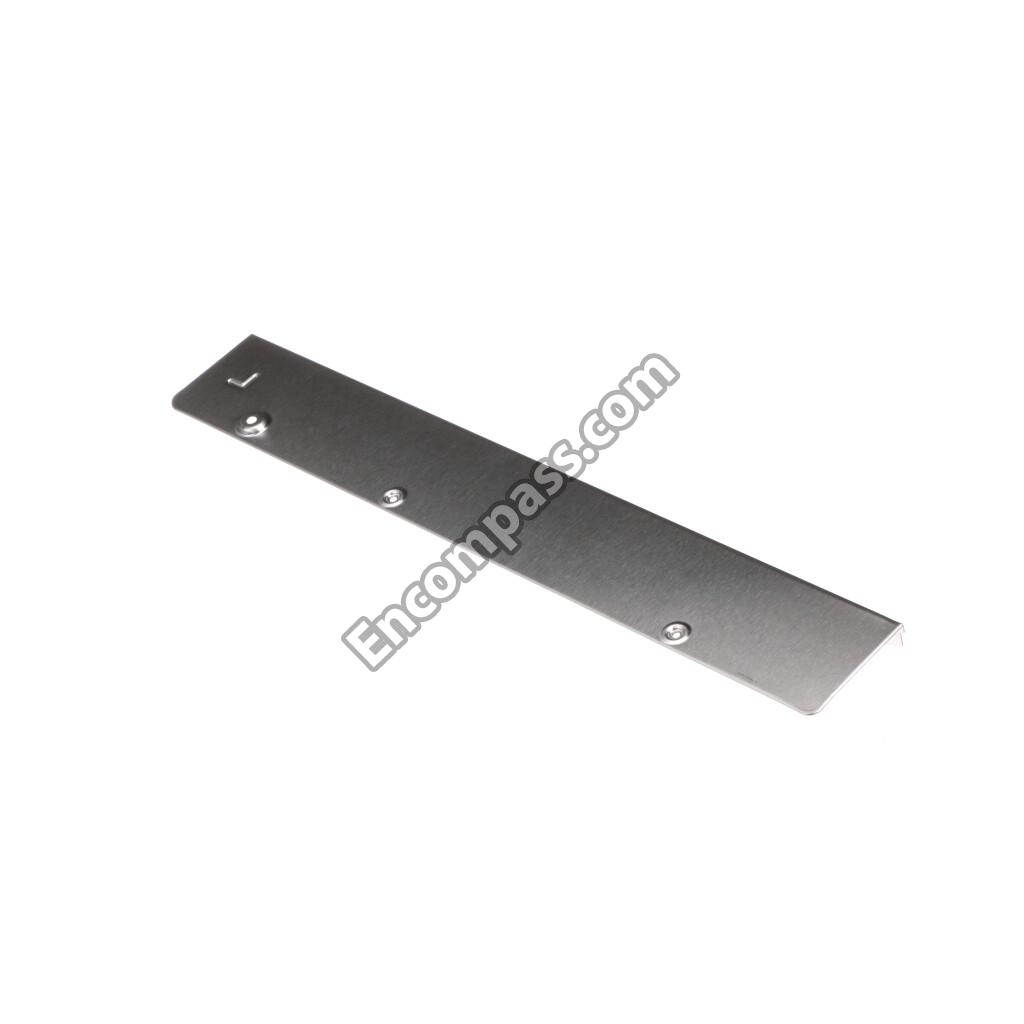

WB07X32627 WB07X32627 TRIM LH
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10732 WB07T10732 TRIM VERT SI
WB07X21942 WB07X21942 VENT TRIM
WB27X44086 WB27X44086 VF DISPLAY
WB27X50146 WB27X50146 VF DISPLAY
WB18X32613 WB18X32613 VFD SIGNAL H
WB44X21667 WB44X21667 WALL OVEN BAKE ELEMENT

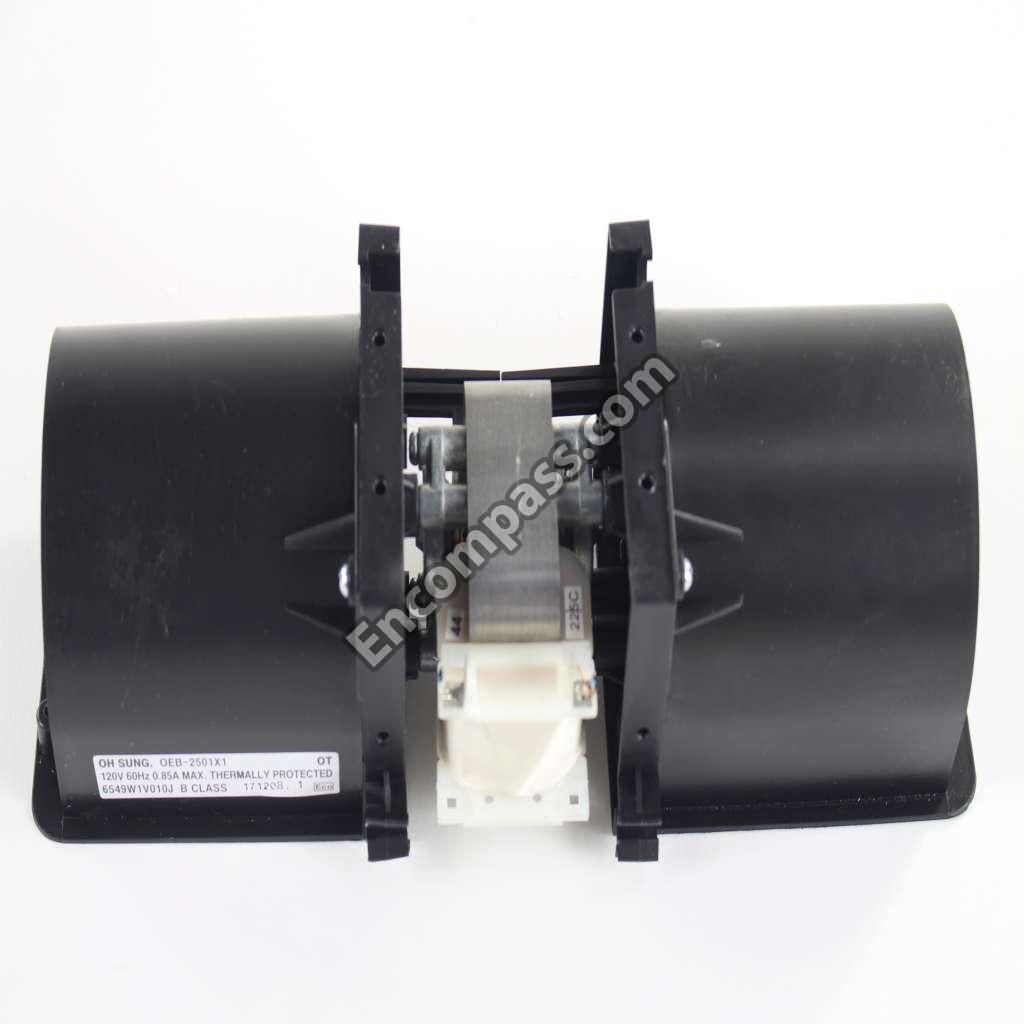

WB26X31060 WB26X31060 WALL OVEN COOLING FAN ASSEMBLY
WB27T11463 WB27T11463 WALL OVEN COOLING FAN SENSOR BOARD
WB15X27281 WB15X27281 WALL OVEN DOOR HANDLE
WB02T10603 WB02T10603 WALL OVEN DOOR HANDLE MOUNTING BRACKET
WB63X32818 WB63X32818 WALL OVEN DOOR LINER
WB56X27480 WB56X27480 WALL OVEN DOOR WINDOW ASSEMBLY
WB01T10127 WB01T10127 WALL OVEN LOCK NUT
WB02X32593 WB02X32593 WALL OVEN MICROWAVE CAPACITOR BRACKET
WB48X21766 WB48X21766 WALL OVEN RACK GUIDE, LEFT
WB01T10131 WB01T10131 WALL OVEN SCREW, #10-32 X 2-1/2-IN

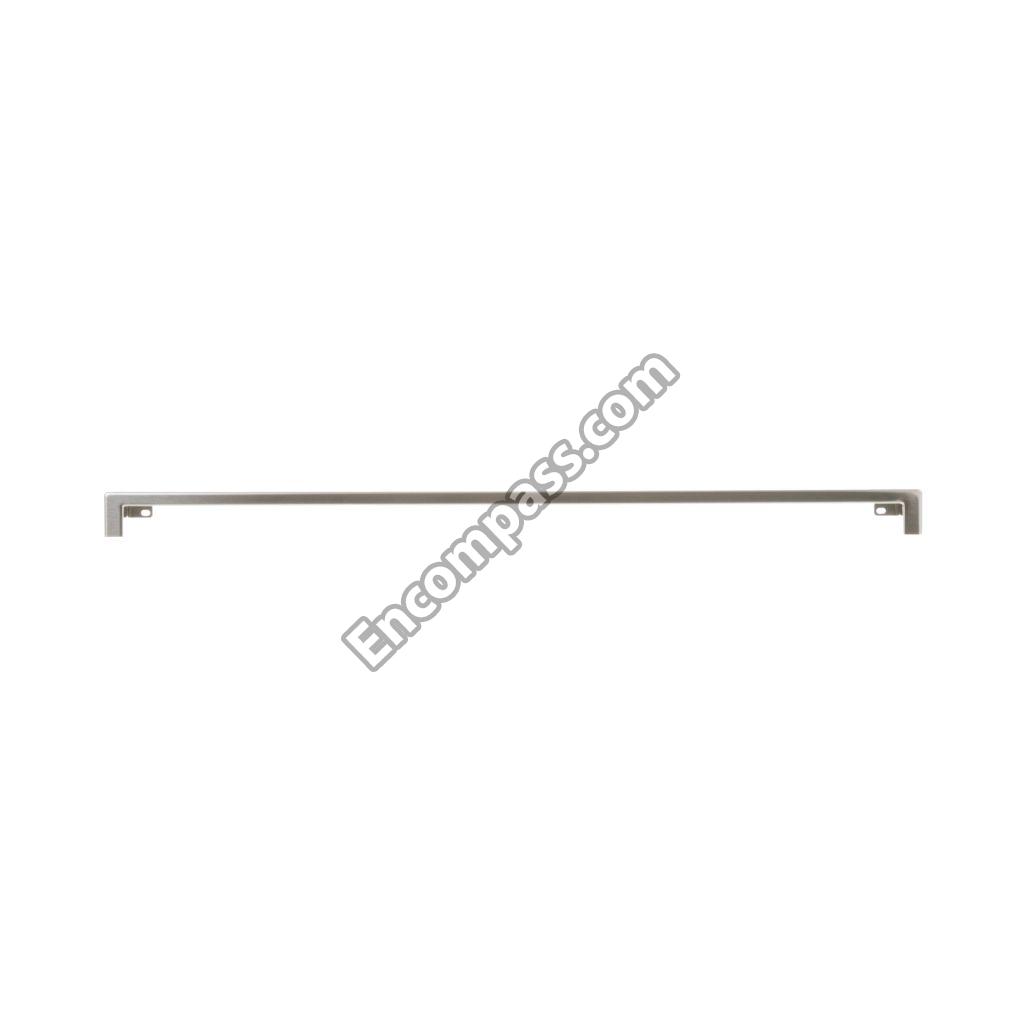

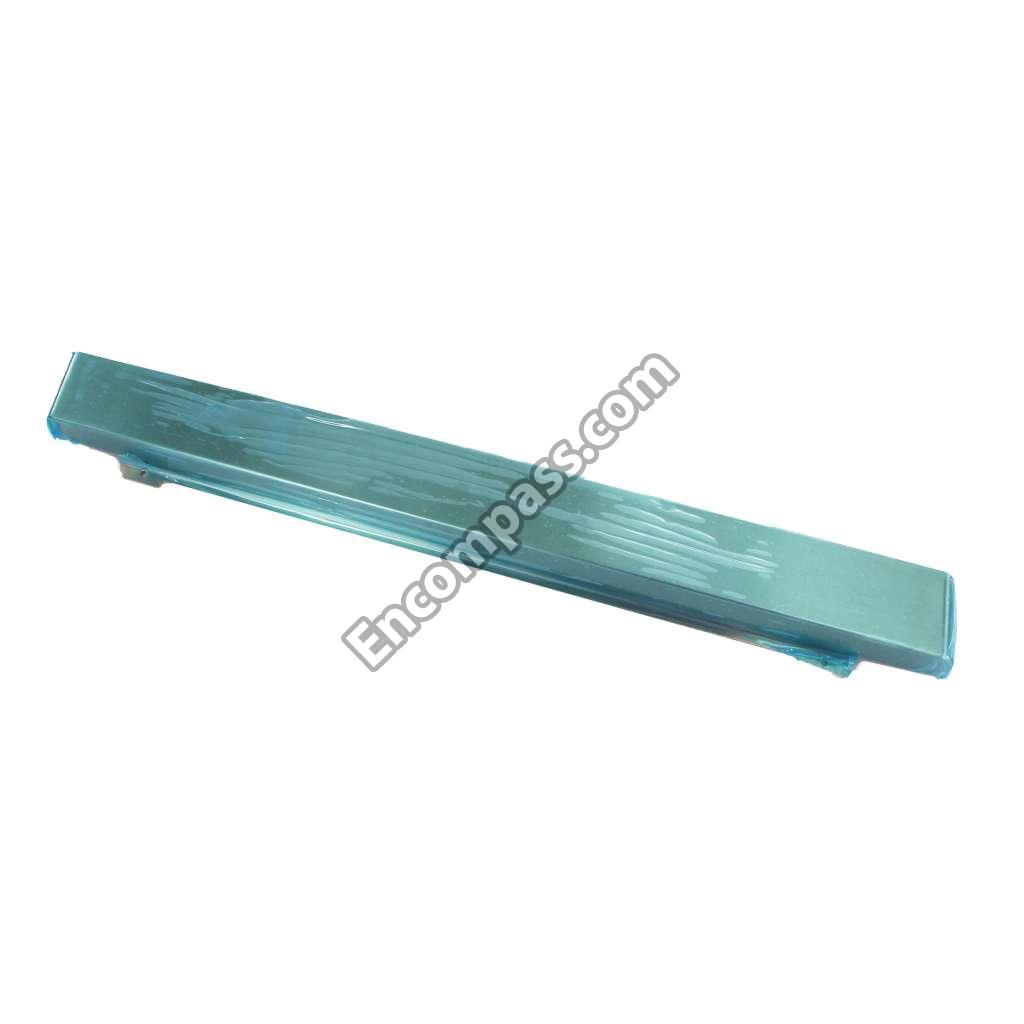

WB07T10786 WB07T10786 WALL OVEN TRIM, LOWER (STAINLESS)
WB07X21951 WB07X21951 WALL OVEN TRIM, LOWER (STAINLESS)
WB01X5573 WB01X5573 WASHER
WB1X5573 WB1X5573 WASHER
WB1X1521 WB1X1521 WASHER
WB1X1522 WB1X1522 WASHER
WB01X1522 WB01X1522 WASHER COMMON
WB02X32440 WB02X32440 WASHER CONTOURED
WB01X1521 WB01X1521 WASHER- PLAIN
WB34X21944 WB34X21944 WIRE COVER
WB18X24082 WB18X24082 WIRE HARNESS
WB18X24081 WB18X24081 WIRE HARNESS
