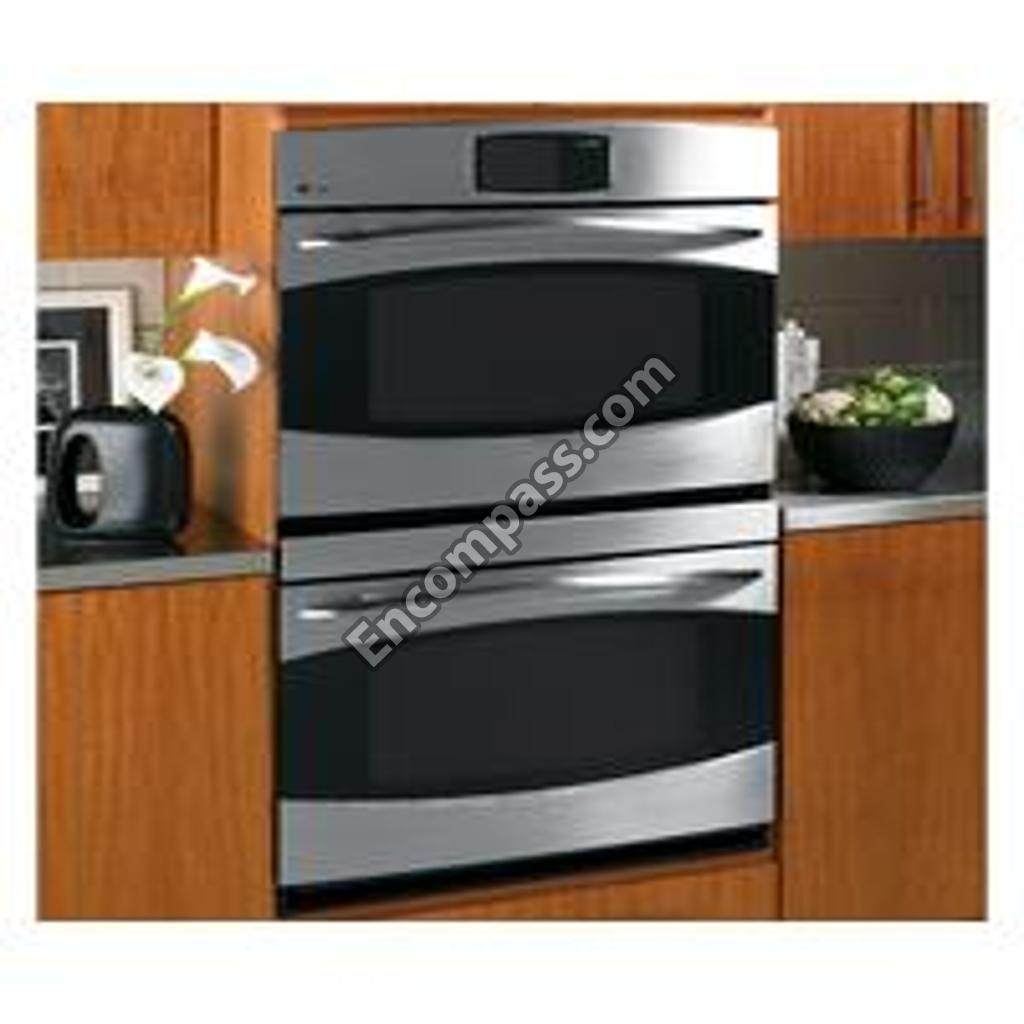

Model Image
Manufacturer

GE

Model Number

PT960SM2SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB15T10192 WB15T10192 30-INCH SS PROFILE H AND LE
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB26T10049 WB26T10049 BLOWER TANGENTIAL 60MM
WB27T11037 WB27T11037 BOARD ASSEMBLY POWER SUPPLY
WB27T11060 WB27T11060 BOARD ASSEMBLY RELAY
WB02T10400 WB02T10400 BRACKET BOARD SUPT
WB02T10409 WB02T10409 BRACKET BOARD SUPT
WB07T10583 WB07T10583 BUILT-IN WALL OVEN CABINET TRIM
WB27T10662 WB27T10662 CAPACITOR MOTOR
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10399 WB18T10399 CONDUIT WIRE ASSEMBLY
WB27T10997 WB27T10997 CONTROL FRAME ASSEMBLY
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB26T10058 WB26T10058 COVER FAN CONV
WB26T10051 WB26T10051 COVER FAN CONV
WB02T10396 WB02T10396 COVER FAN HOUSING
WB02T10374 WB02T10374 COVER TOP WIRE
WB02T10380 WB02T10380 COVER WIRE LWR
WB02T10373 WB02T10373 COVER WIRE UPR
WB01T10022 WB01T10022 DOOR BUMPER
WB56T10283 WB56T10283 DOOR OTR ASSEMBLY 30 (STAINLESS STEEL)
WB02T10422 WB02T10422 DUCT BTM AIR
WB02T10402 WB02T10402 DUCT OVN EXHAUST
WB02T10403 WB02T10403 DUCT OVN EXHAUST
WB44T10105 WB44T10105 ELEMENT BAKE ASSEMBLY (2100W)
WB44T10106 WB44T10106 ELEMENT BROIL ASSEMBLY
WB44T10086 WB44T10086 ELEMENT CONVX ASM
WB44X31764 WB44X31764 ELEMENT CONVX ASSEMBLY
WB07T10510 WB07T10510 EXTENSION FRONT
WB37T10009 WB37T10009 EXTENSION SIDE LEFT
WB37T10008 WB37T10008 EXTENSION SIDE RT
WB26X10264 WB26X10264 FAN KIT
WB02T10404 WB02T10404 FRAME FRONT
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB18T10416 WB18T10416 HARNESS WIRE GT LCD
WB18T10402 WB18T10402 HARNESS WIRE GT LCD
WB18T10397 WB18T10397 HARNESS WIRE PROBE
WB10T10109 WB10T10109 HINGE DOOR LEFT
WB10T10108 WB10T10108 HINGE DOOR RT
WB26T10047 WB26T10047 HOUSING FAN
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
31-10647 31-10647 INSTRUCTION INSTALL
31-10645 31-10645 INSTRUCTION INSTALL
WB35T10182 WB35T10182 INSULATION
WB35T10186 WB35T10186 INSULATION
WB35T10090 WB35T10090 INSULATION BACK AND BTM
WB35T10181 WB35T10181 INSULATION BTM
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10183 WB35T10183 INSULATION TOP
WB14T10071 WB14T10071 LATCH OVEN ASSEMBLY
WB27T11496 WB27T11496 LCD KIT
WB01K5046 WB01K5046 LOCKWASHER
31-14551 31-14551 MANUAL MINI & WD ASM
49-80431 49-80431 MANUAL USE & CARE
WB20T10024 WB20T10024 MEAT PROBE
WB02T10152 WB02T10152 MICROWAVE CAPACITOR MOTOR BRACKET
WB26T10043 WB26T10043 MOTOR PSC CONV
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB25T10002 WB25T10002 OVEN BULB LENS COVER-GLASS
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB56T10373 WB56T10373 OVEN DOOR RETAINER KIT
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB49T10019 WB49T10019 PAN REFLECTOR HDN BAKE
WB49T10018 WB49T10018 PAN REFLECTOR SIDE
WB02T10207 WB02T10207 PCB ST AND OFF
31-10662 31-10662 PM INSTALL INSTRUCTIONS
WB2X8309 WB2X8309 PR0BE COVER
WB02X8309 WB02X8309 PROBE COVER
WB48T10059 WB48T10059 RACK OVEN (GY)
WB02T10421 WB02T10421 RANGE AIR DIVIDER - BLACK
WB02X20948 WB02X20948 RANGE BACK INSULATION RETAINER
WB02T10375 WB02T10375 RANGE BRACKET REINFORCEMENT
WB02T10371 WB02T10371 RANGE INSULATION RETAINER
WB55T10169 WB55T10169 RANGE OVEN DOOR LINING
WB04T10050 WB04T10050 RANGE OVEN GASKET
WB08T10002 WB08T10002 RANGE OVEN LAMP ASSEMBLY
WB23T10015 WB23T10015 RANGE OVEN SENSOR
WB24T10060 WB24T10060 RANGE THERMAL FUSE
WB10T10083 WB10T10083 RECEIVER HINGE
WB02T10372 WB02T10372 RETAINER INSLN BTM
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10378 WB02T10378 RETAINER INSLN TOP
WR01X10655 WR01X10655 SCR 10-32 F HXW 3/4 S
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI.
WR01X1850 WR01X1850 SCR 7-19 HXW 1/2
WB01T10072 WB01T10072 SCR 8-32 1HW .312 NI
WB01M0001 WB01M0001 SCREW
WB01K5029 WB01K5029 SCREW
WB01X1137 WB01X1137 SCREW
WB01X0536 WB01X0536 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5049 WB01K5049 SCREW
WB1X536 WB1X536 SCREW
WR1X1850 WR1X1850 SCREW
WB1K5049 WB1K5049 SCREW
WB1K5029 WB1K5029 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WH2X930 WH2X930 SCREW
WB01T10066 WB01T10066 SCREW 10-16 X 1.000 HWH
WB01X1130 WB01X1130 SCREW 10-32
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1K5165 WB1K5165 SCREW-BLACK
WB01K5165 WB01K5165 SCREW-BLK
WZ4X245D WZ4X245D SCREW-PKG 12
WB02T10381 WB02T10381 SUPPORT FAN
WB26T10015 WB26T10015 SUPPORT OVEN CAVITY
WB24T10081 WB24T10081 SWITCH HIGH LMT OV BACK
WB24T10118 WB24T10118 SWITCH LIMIT BIMETAL
WB24T10127 WB24T10127 SWITCH LIMIT BIMETAL
WB01T10052 WB01T10052 TAPE FOAM
WB07T10610 WB07T10610 TRIM MDL ASSEMBLY (PRF-SS)
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10622 WB07T10622 TRIM VENT FAD ASSEMBLY
WB07T10580 WB07T10580 TRIM VENT INNER (BLACK).
WB07T10592 WB07T10592 TRIM VERT SDE ASSEMBLY LEFT
WB07T10591 WB07T10591 TRIM VERT SDE ASSEMBLY RT
WB28T10216 WB28T10216 TUBE ASSEMBLY VENT
WB28T10215 WB28T10215 TUBE VNT ASSEMBLY
WB01X5573 WB01X5573 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X5573 WB1X5573 WASHER
WB63T10129 WB63T10129 WRAPPER OVN CAV ASM
