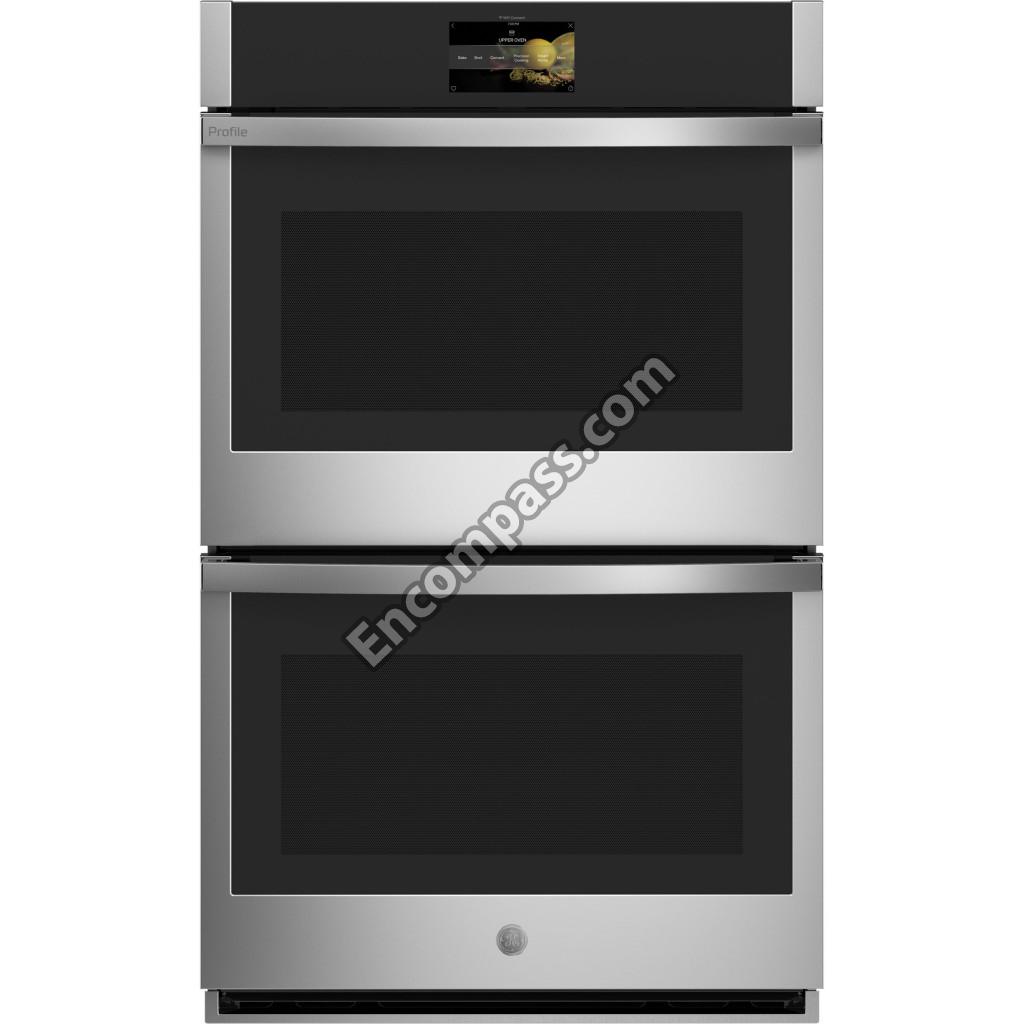

Model Image
Manufacturer

GE

Model Number

PTD7000SN3SS

Description

Double Electric Wall Oven

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB02X29479 WB02X29479 GE BADGE ASSEMBLY
WB02T10598 WB02T10598 GE BLADE FAN CONVECTION
WB17K10001 WB17K10001 GE BLOCK TERMINAL
WB27T11463 WB27T11463 GE BOARD FAN SENSOR
WB02X29179 WB02X29179 GE BOARD FRAME
WB27X28659 WB27X28659 GE BOARD SENSOR
WB07X32832 WB07X32832 GE BOTTOM TRIM
WB07X33039 WB07X33039 GE BOTTOM TRIM ASSEMBLY
WB37X35106 WB37X35106 GE BRACKET FAN MOUNTING LOWER
WB37T10026 WB37T10026 GE BRACKET UPPER FAN MOUNT
WB44X48669 WB44X48669 GE BROIL ELEMENT
WB03T10341 WB03T10341 GE BUMPER DOOR
WB27T10662 WB27T10662 GE CAPACITOR MOTOR
WB34T10160 WB34T10160 GE CHANNEL LOWER AIR
WB37T10029 WB37T10029 GE CHANNEL PEDESTAL LEFT
WB37T10028 WB37T10028 GE CHANNEL PEDESTAL RIGHT
WB34X35265 WB34X35265 GE CHANNEL REAR
WB55X10971 WB55X10971 GE CHANNEL REAR
WB34T10150 WB34T10150 GE CHANNEL UPPER AIR VENT
WB18X33486 WB18X33486 GE CONDUIT WIRE ASSEMBLY
WB27X43223 WB27X43223 GE CONTROL BOARD RC17
WB07X32471 WB07X32471 GE CONTROL PANEL MOUNTING BRACKET
WB26X35089 WB26X35089 GE COOLING FAN LOWER
WB34T10136 WB34T10136 GE COVER - UPPER REAR DUCT
WB56X43352 WB56X43352 GE COVER BOTTOM AIR DUCT
WB37T10021 WB37T10021 GE COVER CONVECTION FAN
WB37T10023 WB37T10023 GE COVER CONVECTION FAN
WB55T10197 WB55T10197 GE COVER HIDDEN BAKE
WB34X28390 WB34X28390 GE COVER HOUSING FRT
WB44T10126 WB44T10126 GE COVER TOP LEFT EDGE
WB24X32772 WB24X32772 GE COVER TOP REAR
WB34T10164 WB34T10164 GE COVER TOP RIGHT EDGE
WB35T10273 WB35T10273 GE COVER WIRE REAR
WD02X10129 WD02X10129 GE DISHWASHER 6-19X1/4 TORX PAN HEAD SCREW
WB34T10163 WB34T10163 GE DIVIDER AIR BOTTOM
WB34T10134 WB34T10134 GE DIVIDER AIR CENTER
WB34T10140 WB34T10140 GE DIVIDER AIR DOUBLE OVEN
WB34T10139 WB34T10139 GE DIVIDER AIR DUCT RIGHT
WB34X31516 WB34X31516 GE DOOR INSULATION RETAINER
WB02X32816 WB02X32816 GE DOOR LINER PLUG
WB35X31513 WB35X31513 GE DOOR SIDE INSULATION
WB37T10022 WB37T10022 GE DUCT CONVECTION FAN
WB34T10141 WB34T10141 GE DUCT LOWER REAR DUCT
WB44X40787 WB44X40787 GE ELEMENT BROIL
WB44X48686 WB44X48686 GE ELEMENT BROIL ASM
WB44X23640 WB44X23640 GE ELEMENT BROIL ASSEMBLY
WB44X48668 WB44X48668 GE ELEMENT CONVX
WB34X23621 WB34X23621 GE EXTENSION REAR
WB34T10146 WB34T10146 GE EXTENSION SIDE
WB26X31060 WB26X31060 GE FAN BLOWER
WB35X21972 WB35X21972 GE GASKET BROIL ELEMENT
WB01T10079 WB01T10079 GE GASKET CONV FAN
WB01T10128 WB01T10128 GE GROMMET
WB25X31222 WB25X31222 GE HALOGEN LAMP ASSEMBLY
WB25X31221 WB25X31221 GE HALOGEN LAMP ASSEMBLY
WB18X33150 WB18X33150 GE HARNESS WIRE COM
WB01X1259 WB01X1259 GE HEX NUT
WB44X21667 WB44X21667 GE HIDDEN BAKE ELEMENT KIT
WB10X35066 WB10X35066 GE HINGE DOOR LEFT
WB10X35065 WB10X35065 GE HINGE DOOR RT
31-10882 31-10882 GE INSTRUCTION INSTALL
WB35T10259 WB35T10259 GE INSULATION CONVECT FAN
WB35X33245 WB35X33245 GE INSULATION DOOR TOP 30-INCH
WB35X21737 WB35X21737 GE INSULATION DR TOP
WB18X30704 WB18X30704 GE JUMPER
WB25T10101 WB25T10101 GE LAMP HALOGEN BULB G9
WB25T10102 WB25T10102 GE LAMP HALOGEN BULB G9
WB10X28391 WB10X28391 GE LATCH ASSEMBLY
WB18X32872 WB18X32872 GE LATCH COM HARNESS WIRE
WB18X47031 WB18X47031 GE LATCH COM HARNESS WIRE
WB34X46746 WB34X46746 GE LINER SUPPORT
WB01T10127 WB01T10127 GE LOCK NUT
WB02T10303 WB02T10303 GE LUBRICANT CLEANER
WB49X35795 WB49X35795 GE MAIN HARNESS WIRE
49-80597 49-80597 GE MANUAL U&C TIP SHEET
WB18X23585 WB18X23585 GE MEAT PROBE AND HARNESS
WB26X23813 WB26X23813 GE MOTOR CONVX
WB26X44167 WB26X44167 GE MOTOR CONVX
WB02X35585 WB02X35585 GE NUT HEX
WB01T10133 WB01T10133 GE NUT HEX M4-.7 THREAD
WB01X5572 WB01X5572 GE NUT MEAT PROBE
WB18T10580 WB18T10580 GE OPTIONAL 6 FT CONDUIT
WB35X32825 WB35X32825 GE OVEN DOOR GASKET
WB63X32569 WB63X32569 GE OVEN DOOR LINER ASSEMBLY
WB34X31280 WB34X31280 GE OVEN LIGHT LENS
WB34X31317 WB34X31317 GE OVEN LIGHT LENS
WB48X31582 WB48X31582 GE OVEN RACK
WB63X33040 WB63X33040 GE PEDESTAL ASSEMBLY
WB37T10024 WB37T10024 GE PLATE - TOP OVEN
31-10957 31-10957 GE PM INSTALL INSTRUCTIONS
31-11161 31-11161 GE PM INSTALL INSTRUCTIONS
31-11129 31-11129 GE PM INSTALL INSTRUCTIONS
31-2000263 31-2000263 GE PM MINI MANUAL AND WIRING
49-2000375 49-2000375 GE PM OWNERS MANUAL
WB2X8309 WB2X8309 GE PR0BE COVER
WB20T10024 WB20T10024 GE PROBE THERMISTOR
WB34X40468 WB34X40468 GE REAR RETAINER INSULATION
WB02X32826 WB02X32826 GE REINFORCEMENT SPACER ASSEMBLY
WB34X21913 WB34X21913 GE RETAINER INSLN SDE
WB24X33028 WB24X33028 GE RJ45 BRACKET
WB01X21650 WB01X21650 GE SCR 8-18 AB TRT20NBS 5/8
WB01K5072 WB01K5072 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB01X21742 WB01X21742 GE SCREW
WH2X930 WH2X930 GE SCREW
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10130 WB01T10130 GE SCREW 7-19 1/4HEX 1/2IN
WB01X34726 WB01X34726 GE SCREW 8-18 AB PNT-20 1/2 S
WB01T10134 WB01T10134 GE SCREW 8-18 T20 3/8 IN
WB01X1261 WB01X1261 GE SCREW GROUND
WB01T10120 WB01T10120 GE SCREW ST 8-18X.750 (NI)
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB01X1174 WB01X1174 GE SCREW-NICKLE
WB21X10165 WB21X10165 GE SENSOR ASSEMBLY
WB48X38086 WB48X38086 GE SLIDING OVEN RACK ASSEMBLY
WB27X33354 WB27X33354 GE SPEAKER 70C 3W
WB56X40094 WB56X40094 GE STAINLESS CONTROL PANEL
WB56X46567 WB56X46567 GE STAINLESS OUTER DOOR W/ LOGO
WB56X46566 WB56X46566 GE STAINLESS OUTER DOOR W/O LOGO
WB15X41507 WB15X41507 GE STAINLESS STEEL HANDLE AND ENDCAP
WB15X41506 WB15X41506 GE STAINLESS STEEL HANDLE AND ENDCAP
WB07X34906 WB07X34906 GE STAINLESS TRIM VERT SIDE (DWO)
WB24X46906 WB24X46906 GE SWITCH HIGH LIMIT
WB24X46907 WB24X46907 GE SWITCH LIMIT
WB24X35587 WB24X35587 GE SWITCH LIMIT
WB07T10787 WB07T10787 GE TRIM BROIL ELEMENT (BLACK)
WB01K5173 WB01K5173 GE TRIM SCREW-BLK
WB07X21783 WB07X21783 GE TRIM VENT LWR
WB07T10799 WB07T10799 GE TRIM VENT MIDDLE
WB27X43222 WB27X43222 GE UPPER CONTROL BOARD RC17
WB27X33151 WB27X33151 GE UPPER OVEN CONTROL BOARD ASSEMBLY
WB07X32831 WB07X32831 GE UPPER VENT TRIM
WB01X5573 WB01X5573 GE WASHER
WB1X5573 WB1X5573 GE WASHER
WB01X36465 WB01X36465 GE WASHER SPRING
WB56X27480 WB56X27480 GE WINDOW PACK ASSEMBLY
WZ4X416 WZ4X416 GE WZ04X0408
