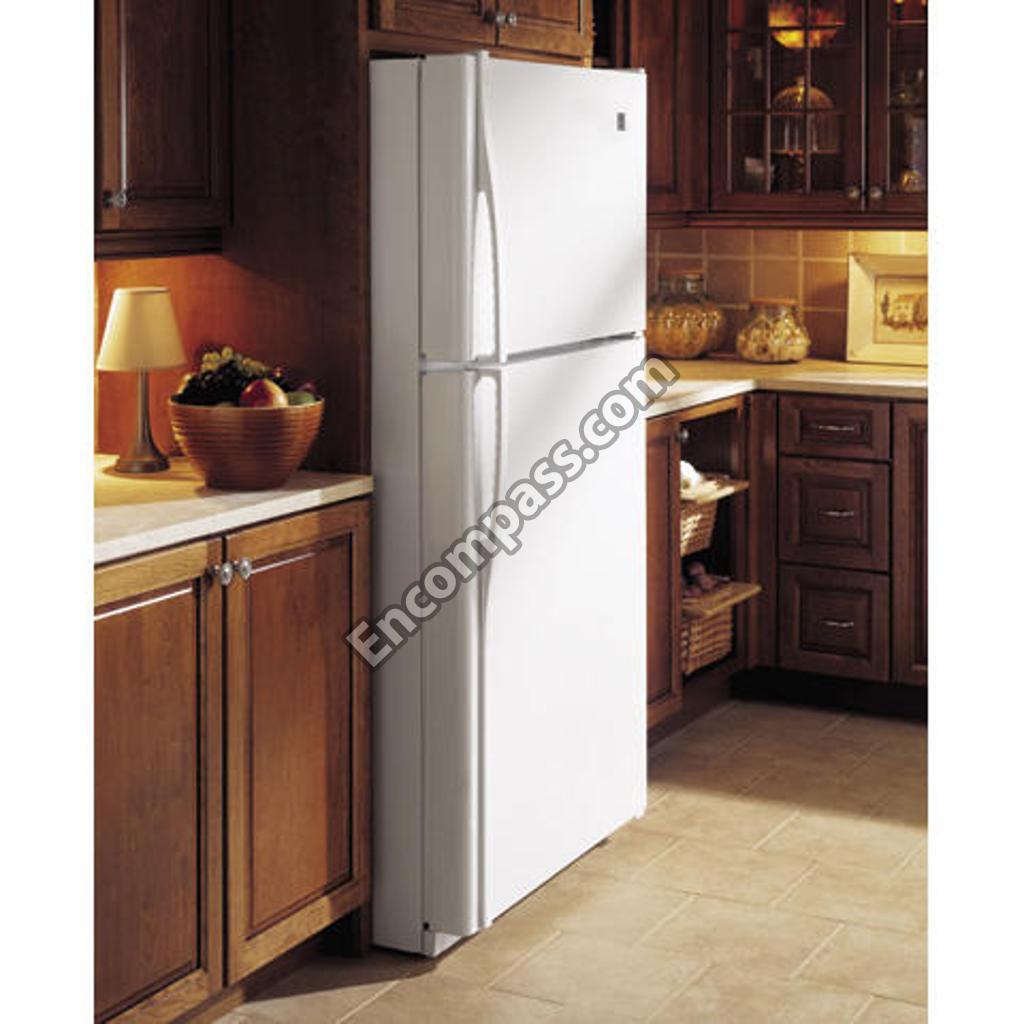

Model Image
Manufacturer

GE

Model Number

PTS22LBMARWW

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
40A15-2PK 40A15-2PK GE 60A - 2BULBS
40A15 40A15 GE 60A - 2BULBS
WR87X20798 WR87X20798 GE A ASSEMBLY HI SIDE
WR82X10103 WR82X10103 GE ACCESS COVER
WR17X13159 WR17X13159 GE BAFFLE COND AIR
WR17X12713 WR17X12713 GE BAFFLE CONDENSER
WR17X10971 WR17X10971 GE BAR REINFORCEMENT
WR02X10863 WR02X10863 GE BASE SENSOR
WR17X10966 WR17X10966 GE BASEPLATE HIGH SIDE
WR1X2048 WR1X2048 GE BEAR SLIDE
WR02X10864 WR02X10864 GE BEARING SLIDE CENTER
WR02X8693 WR02X8693 GE BEAUTY BUTTON-WHT
WR60X24484 WR60X24484 GE BLADE CONF FAN ASSEMBLY
WR60X10205 WR60X10205 GE BLADE EVAPORATOR FAN
WR55X10172 WR55X10172 GE BOARD ASSEMBLY TEMP CONTROL
WR55X10942 WR55X10942 GE BOARD MAIN ASM CONTROL
WR02X11863 WR02X11863 GE BRACKET COND FAN (MTG)
WR02X10593 WR02X10593 GE BRACKET COND FAN (REAR)
WR17X10763 WR17X10763 GE BRACKET CONDENSER BAR
WR02X10876 WR02X10876 GE BRACKET EVAP FAN
WR02X10764 WR02X10764 GE BRACKET EVAP FAN BTM
WR30X10027 WR30X10027 GE BUCKET ICE
WR02X10540 WR02X10540 GE BUMPER LID
WR2X7051 WR2X7051 GE BUTTON PLUG
WR1X5278 WR1X5278 GE CABLE CLAMP
WR02X10785 WR02X10785 GE CAP CORNER OC BISQUE
WR02X10781 WR02X10781 GE CAP CORNER OC BLACK
WR02X10640 WR02X10640 GE CAP CORNER OC WHITE
WR02X10901 WR02X10901 GE CAP CORNER TOP BISQUE
WR02X10902 WR02X10902 GE CAP CORNER TOP BISQUE
WR02X10899 WR02X10899 GE CAP CORNER TOP BISQUE
WR02X10900 WR02X10900 GE CAP CORNER TOP BISQUE
WR02X10926 WR02X10926 GE CAP CORNER TOP BLACK
WR02X10927 WR02X10927 GE CAP CORNER TOP BLACK
WR02X10925 WR02X10925 GE CAP CORNER TOP BLACK
WR02X10924 WR02X10924 GE CAP CORNER TOP BLACK
WR02X10868 WR02X10868 GE CAP CORNER TOP WHITE
WR02X10867 WR02X10867 GE CAP CORNER TOP WHITE
WR02X10865 WR02X10865 GE CAP CORNER TOP WHITE
WR02X10866 WR02X10866 GE CAP CORNER TOP WHITE
WR02X10904 WR02X10904 GE CAP DOOR BOTTOM BISQUE
WR02X10903 WR02X10903 GE CAP DOOR BOTTOM BISQUE
WR02X10929 WR02X10929 GE CAP DOOR BOTTOM BLACK
WR02X10928 WR02X10928 GE CAP DOOR BOTTOM BLACK
WR02X10869 WR02X10869 GE CAP DOOR BOTTOM WHITE
WR02X10870 WR02X10870 GE CAP DOOR BOTTOM WHITE
WR62X0079 WR62X0079 GE CAPACITOR
WR55X24064 WR55X24064 GE CAPACITOR
WR01X5278 WR01X5278 GE CLAMP CABLE
WR02X8203 WR02X8203 GE CLIP COMPRESSOR MOUNT
WR02X10879 WR02X10879 GE CLIP EVAP THERMISTOR
WR02X10738 WR02X10738 GE CLIP GRILLE
WR2X8976 WR2X8976 GE CLIP REL CVR
WR02X8976 WR02X8976 GE CLIP RELAY COVER
WR84X10022 WR84X10022 GE COND ASSEMBLY FORMED
WR17X35527 WR17X35527 GE CONDENSER FAN SHROUD
WR17X10967 WR17X10967 GE COVER DUCT FF
WR17X10968 WR17X10968 GE COVER EVAP ASSEMBLY
WR13X10207 WR13X10207 GE COVER HINGE BISQUE
WR13X10206 WR13X10206 GE COVER HINGE BLACK
WR13X10198 WR13X10198 GE COVER HINGE WHITE
WR02X10871 WR02X10871 GE COVER MAIN BOARD ASSEMBLY
WR02X10907 WR02X10907 GE COVER MULLION SCREW BISQUE
WR02X10933 WR02X10933 GE COVER MULLION SCREW BLACK
WR02X10873 WR02X10873 GE COVER MULLION SCREW WHITE
WR02X9169 WR02X9169 GE COVER RELAY
WR2X9169 WR2X9169 GE COVER RELAY
WR02X10872 WR02X10872 GE COVER SENSOR
WR02X10936 WR02X10936 GE DAMPER PAN DELI
WR17X10970 WR17X10970 GE DAMPER VP
WR17X10969 WR17X10969 GE DAMPER VP
WR19X10002 WR19X10002 GE DISH BUTTER
WR22X10028 WR22X10028 GE DOOR DAIRY CLEAR 22
WR78X10545 WR78X10545 GE DOOR FOAM ASSEMBLY FF 22 SS
WR78X10488 WR78X10488 GE DOOR FOAM ASSEMBLY FF BISQUE
WR78X10492 WR78X10492 GE DOOR FOAM ASSEMBLY FF BLACK
WR78X11827 WR78X11827 GE DOOR FOAM ASSEMBLY FF MOD 22
WR78X10546 WR78X10546 GE DOOR FOAM ASSEMBLY FZ 22 SS
WR78X10487 WR78X10487 GE DOOR FOAM ASSEMBLY FZ BISQUE
WR78X10491 WR78X10491 GE DOOR FOAM ASSEMBLY FZ BLACK
WR78X11826 WR78X11826 GE DOOR FOAM ASSEMBLY FZ WHITE
WR02X10874 WR02X10874 GE DUCT FF
WR02X10875 WR02X10875 GE DUCT FF LID
WR17X10994 WR17X10994 GE ELECTRONIC CONTROL H
WR17X10977 WR17X10977 GE END CAP
WR17X10978 WR17X10978 GE END CAP TILT ASSEMBLY
WR02X11569 WR02X11569 GE EVAP EPS BLOCK
WR02X11570 WR02X11570 GE EVAPORATOR EPS BLOCK
WR17X10979 WR17X10979 GE FAN EVAP HOUSING
WR02X10562 WR02X10562 GE FASTENER PUSH
WR14X10124 WR14X10124 GE FOAM STRIP SE ADH
WR14X10125 WR14X10125 GE FOAM STRIP SE ADH
WR14X10127 WR14X10127 GE FOAM STRIP SE ADH
WR14X10126 WR14X10126 GE FOAM STRIP SE ADH
WR14X10123 WR14X10123 GE FOAM STRIP SE ADH
WR14X10053 WR14X10053 GE FOAM STRIP SE ADH
WR32X10222 WR32X10222 GE FRAME COVER VP
WR14X10107 WR14X10107 GE GASKET CENTER VP
WR14X10108 WR14X10108 GE GASKET CVR PAN REAR
WR14X10112 WR14X10112 GE GASKET DELI PAN
WR14X10109 WR14X10109 GE GASKET FRONT VP
WR24X10079 WR24X10079 GE GASKET FZ DOOR BK
WR24X10077 WR24X10077 GE GASKET LTM FF DOOR WH
WR24X10080 WR24X10080 GE GASKET LTM FF DR BK
WR24X10076 WR24X10076 GE GASKET LTM FZ DOOR WH
WR74X10073 WR74X10073 GE GRILLE BASE BISQUE
WR74X10075 WR74X10075 GE GRILLE BASE BLACK
WR74X10072 WR74X10072 GE GRILLE BASE WHITE
WR02X10898 WR02X10898 GE GRILLE CAP BISQUE
WR02X10923 WR02X10923 GE GRILLE CAP BLACK
WR02X10880 WR02X10880 GE GRILLE CAP WHITE
WR72X10071 WR72X10071 GE GRILLE ICE SERVICE
WR02X22869 WR02X22869 GE GROMMET
WR02X12008 WR02X12008 GE GROMMET EVAPORATOR FAN
WR02X10520 WR02X10520 GE GROMMET FAN MOTOR
WR14X10055 WR14X10055 GE GROMMET TUBING SLIT
WR12X10460 WR12X10460 GE HANDLE DOOR ASSEMBLY FF
WR12X10484 WR12X10484 GE HANDLE DOOR ASSEMBLY FF BISQUE
WR12X10485 WR12X10485 GE HANDLE DOOR FZ ASSEMBLY BISQUE
WR17X10995 WR17X10995 GE HANDLE PAN DELI
WR23X10510 WR23X10510 GE HARNESS BOARD INDIV MOD
WR23X10212 WR23X10212 GE HARNESS CUST INTERFACE
WR51X10052 WR51X10052 GE HEATER CONDUCTION
WR51X10038 WR51X10038 GE HEATER DEF ASM
WR13X10180 WR13X10180 GE HINGE BTM & PIN ASSEMBLY BISQU
WR13X10186 WR13X10186 GE HINGE BTM & PIN ASSEMBLY BLACK
WR13X10176 WR13X10176 GE HINGE BTM & PIN ASSEMBLY WHITE
WR13X10182 WR13X10182 GE HINGE CENTER ASSEMBLY BISQUE
WR13X10188 WR13X10188 GE HINGE CENTER ASSEMBLY BLACK
WR13X10177 WR13X10177 GE HINGE CENTER ASSEMBLY WHITE
WR13X10181 WR13X10181 GE HINGE TOP AND PIN ASSEMBLY BIS
WR13X10187 WR13X10187 GE HINGE TOP AND PIN ASSEMBLY BLA
WR13X10178 WR13X10178 GE HINGE TOP AND PIN ASSEMBLY WHI
WR02X10518 WR02X10518 GE HOLDER ELEMENT
WR17X11171 WR17X11171 GE INSET AIR FZ
WR02X10882 WR02X10882 GE LATCH SLIDE CENTER
WR02X11180 WR02X11180 GE LENS FZ LIGHT
WR04X10080 WR04X10080 GE LENS NAMEPLATE WHITE
WR02X10937 WR02X10937 GE LEVER PAN DELI
WR02X10938 WR02X10938 GE LINKAGE PAN DELI
WR04X10097 WR04X10097 GE MEMBRANE SETPOINT CONTROL
WR02X12288 WR02X12288 GE MOBILITY BACK ASSEMBLY
WR02X12274 WR02X12274 GE MOBILITY FRONT ASSEMBLY
WR71X10318 WR71X10318 GE MOD SHELF FIXED ASSEMBLY FZ
WR71X10320 WR71X10320 GE MOD TILT AND INSERT FZ
WR71X10317 WR71X10317 GE MODULE SHELF FF
WR71X10316 WR71X10316 GE MODULE SHELF FIXED FF
WR71X10319 WR71X10319 GE MODULE SHELF INSERT
WR60X10209 WR60X10209 GE MOTOR DC COND FAN
WR04X10087 WR04X10087 GE NAMEPLATE BISQUE
WR04X10103 WR04X10103 GE NAMEPLATE REF BLACK
WR08X10015 WR08X10015 GE OVERLOAD
WR86X96 WR86X96 GE P/S DRYER KIT R134A
WR86X25269 WR86X25269 GE P/S DRYER KIT R134A
WR32X10228 WR32X10228 GE PAN ASSEMBLY VEG
WR32X10223 WR32X10223 GE PAN DELI
WR13X10179 WR13X10179 GE PIN HINGE CENTER
WR12X10486 WR12X10486 GE PK HANDLE LARGE ASSEMBLY
WR12X10827 WR12X10827 GE PK HANDLE LARGE ASSEMBLY BLACK
WR02X7148 WR02X7148 GE PLUG BUTTON
WR02X11760 WR02X11760 GE PLUG BUTTON
WR02X7051 WR02X7051 GE PLUG BUTTON
WR02X10977 WR02X10977 GE PLUG BUTTON BISQUE
WR02X10976 WR02X10976 GE PLUG BUTTON BLACK
WR12X10321 WR12X10321 GE PLUG BUTTON HANDLE BISQUE
WR12X10183 WR12X10183 GE PLUG BUTTON HANDLE BLACK
WR12X10175 WR12X10175 GE PLUG BUTTON HANDLE WHITE
WR02X10908 WR02X10908 GE PLUG BUTTON THIMBLE BISQUE
WR02X10934 WR02X10934 GE PLUG BUTTON THIMBLE BLACK
WR02X10886 WR02X10886 GE PLUG BUTTON THIMBLE WHITE
WR02X10975 WR02X10975 GE PLUG BUTTON WHITE
WR02X10693 WR02X10693 GE PLUG COVER AND GASKET ASSEMBLY
WR01X21159 WR01X21159 GE PLUG DOOR
49-60103 49-60103 GE PM GUIDE OWNERS
31-51355 31-51355 GE PM MINI MANUAL WIRING
WR23X0108 WR23X0108 GE POWER CORD
WR23X10300 WR23X10300 GE POWER CORD
WR71X10321 WR71X10321 GE RACK BEVERAGE
WR60X10185 WR60X10185 GE REFER DC EVAPORATOR FAN MOTOR
WR02X10887 WR02X10887 GE REFLECTOR FZ LIGHT
WR01X2048 WR01X2048 GE REFRIGERATOR BEARING SLIDE
WR2X8203 WR2X8203 GE REFRIGERATOR CLIP
WR2X9000 WR2X9000 GE REFRIGERATOR CONDENSER CLIP
WR87X28948 WR87X28948 GE REFRIGERATOR EVAPORATOR
WR55X10942C WR55X10942C GE REFRIGERATOR MAIN CONTROL BOARD
WR07X0240 WR07X0240 GE RELAY (PTCR)
WR07X10055 WR07X10055 GE RELAY PTCR (8EA16C3)
WR02X12149 WR02X12149 GE RING COMPRESSION
WR01X21263 WR01X21263 GE RVSBL DOOR CAPS BISQUE
WR01X1591 WR01X1591 GE SCR 1/4-14 X 3/4
WR01X1726 WR01X1726 GE SCR 10-16 AB 3/4 SS
WR01X10610 WR01X10610 GE SCR 10-32 GX PNT20 1 S L
WR01X2134 WR01X2134 GE SCR 10-32 PNT 1.0 S LW
WR01X10631 WR01X10631 GE SCR 12-24 TT OVT .900 S
WR01X1804 WR01X1804 GE SCR 8-18 AB HXW 3/4 WH
WR01X1554 WR01X1554 GE SCR 8-18 AB IHXW 1/2 S
WR01X2084 WR01X2084 GE SCR 8-18 FZ
WR01X1757 WR01X1757 GE SCR 8-18 HXW 1 1/4S
WR01X10633 WR01X10633 GE SCR 8-18 PL FLP 5/16 S
WR01X1763 WR01X1763 GE SCR 8-18 T WAFER 5/8
WR1X1466 WR1X1466 GE SCR 8-32 T HXW 3/8 S
WZ5X158D WZ5X158D GE SCR 8-32 T HXW 3/8 S
WR01X10626 WR01X10626 GE SCR HXW 11/4
WR01X2022 WR01X2022 GE SCREW
WR1X1591 WR1X1591 GE SCREW
WR1X1753 WR1X1753 GE SCREW
WR1X1786 WR1X1786 GE SCREW
WR01X10606 WR01X10606 GE SCREW
WR02X10993 WR02X10993 GE SCREW & COVER BISQUE
WR02X10994 WR02X10994 GE SCREW & COVER BLACK
WR02X10992 WR02X10992 GE SCREW & COVER WHITE
WR01X10036 WR01X10036 GE SCREW 10-14 PL PNP 3/4 SZ
WR01X10287 WR01X10287 GE SCREW 10-32 HXW 9/16 SS
WR01X10654 WR01X10654 GE SCREW 10-32 TT HXW 5/16 S
WR01X10194 WR01X10194 GE SCREW 10-32 TT HXW 5/16 S
WR01X1753 WR01X1753 GE SCREW 12-24
WR1X2136 WR1X2136 GE SCREW 12-24
WR01X2136 WR01X2136 GE SCREW 12-24 .9 WH
WR01X10628 WR01X10628 GE SCREW 8-18 AB HXWP 2 500
WB01T10047 WB01T10047 GE SCREW 8-32 X 625 M HXW S
WR01X10625 WR01X10625 GE SCREW AB 8-18 1 1/4 HXW W
WR01X10210 WR01X10210 GE SCREW MOBILITY
WR1X1763D WR1X1763D GE SCREW-PKG 12
WR1X1726D WR1X1726D GE SCREW-PKG 12
WR55X10025 WR55X10025 GE SENSOR TEMPERATURE
WR17X10984 WR17X10984 GE SEPARATOR AIR HI SIDE
WR32X10584 WR32X10584 GE SHELF CANT FF ENCAP
WR32X10588 WR32X10588 GE SHELF CANT GLASS
WR32X10582 WR32X10582 GE SHELF CANT SP
WR30X10025 WR30X10025 GE SHELF ICE TRAY TOP
WR71X10311 WR71X10311 GE SHELF WIRE & TRIM ASSEMBLY F
WR02X10888 WR02X10888 GE SHIELD FF LIGHT
WR02X10889 WR02X10889 GE SHIELD FF LIGHT
WR01X10623 WR01X10623 GE SHOULDER SCR
WR17X11970 WR17X11970 GE SLIDE ASSEMBLY CENTER
WR02X10890 WR02X10890 GE SLIDE BEARING PAN
WR17X10986 WR17X10986 GE SLIDE CONTROL VP
WR17X10985 WR17X10985 GE SLIDE CONTROL VP
WR72X10078 WR72X10078 GE SLIDE PAN
WR72X10073 WR72X10073 GE SLIDE PAN LH
WR72X10072 WR72X10072 GE SLIDE PAN RH
WR02X9391 WR02X9391 GE SOCKET & TERMINAL ASM
WR2X9391 WR2X9391 GE SOCKET AND TERM
WR02X30348 WR02X30348 GE SOCKET LAMP
WR02X10892 WR02X10892 GE SPACER TRACK
WR02X10663 WR02X10663 GE STAND OFF
WR01X10249 WR01X10249 GE STOP DOOR FF/FZ BISQUE
WR02X10930 WR02X10930 GE STOP DOOR FF/FZ BLACK
WR01X10248 WR01X10248 GE STOP DOOR FF/FZ WHITE
WR1X1779 WR1X1779 GE STUD MTGCOMP
WR02X10894 WR02X10894 GE SUPPORT TWIST VP CVR
WR2X7973 WR2X7973 GE SUPT SHELF
WR23X10244 WR23X10244 GE SWITCH LIGHT FF
WR23X10725 WR23X10725 GE SWITCH LIGHT FF
WR12X10487 WR12X10487 GE TAIL & BRACKET ASSEMBLY FF
WR50X10068 WR50X10068 GE THERMOSTAT DEFROST
WR02X10896 WR02X10896 GE THIMBLE DOOR BTM WHITE
WR02X10905 WR02X10905 GE THIMBLE DOOR PLASTIC BISQUE
WR02X10906 WR02X10906 GE THIMBLE DOOR PLASTIC BISQUE
WR02X10931 WR02X10931 GE THIMBLE DOOR PLASTIC BLACK
WR02X10932 WR02X10932 GE THIMBLE DOOR PLASTIC BLACK
WR02X10895 WR02X10895 GE THIMBLE DOOR TOP WHITE
WR17X11848 WR17X11848 GE TOWER AIR FZ ASSEMBLY
WR72X10074 WR72X10074 GE TRACK CENTER FF
WR72X10076 WR72X10076 GE TRACK SIDE FF
WR30X10026 WR30X10026 GE TRAY ICE
WR12X10495 WR12X10495 GE TRIM HANDLE FF
WR12X10470 WR12X10470 GE TRIM HANDLE FZ
WR17X10988 WR17X10988 GE TROUGH DRAIN ASSEMBLY
WR02X11426 WR02X11426 GE TUBE DRAIN
GSWF GSWF GE WATER FILTER
WR02X10695 WR02X10695 GE WHEEL MOBILITY
Main Menu x
