Model Number

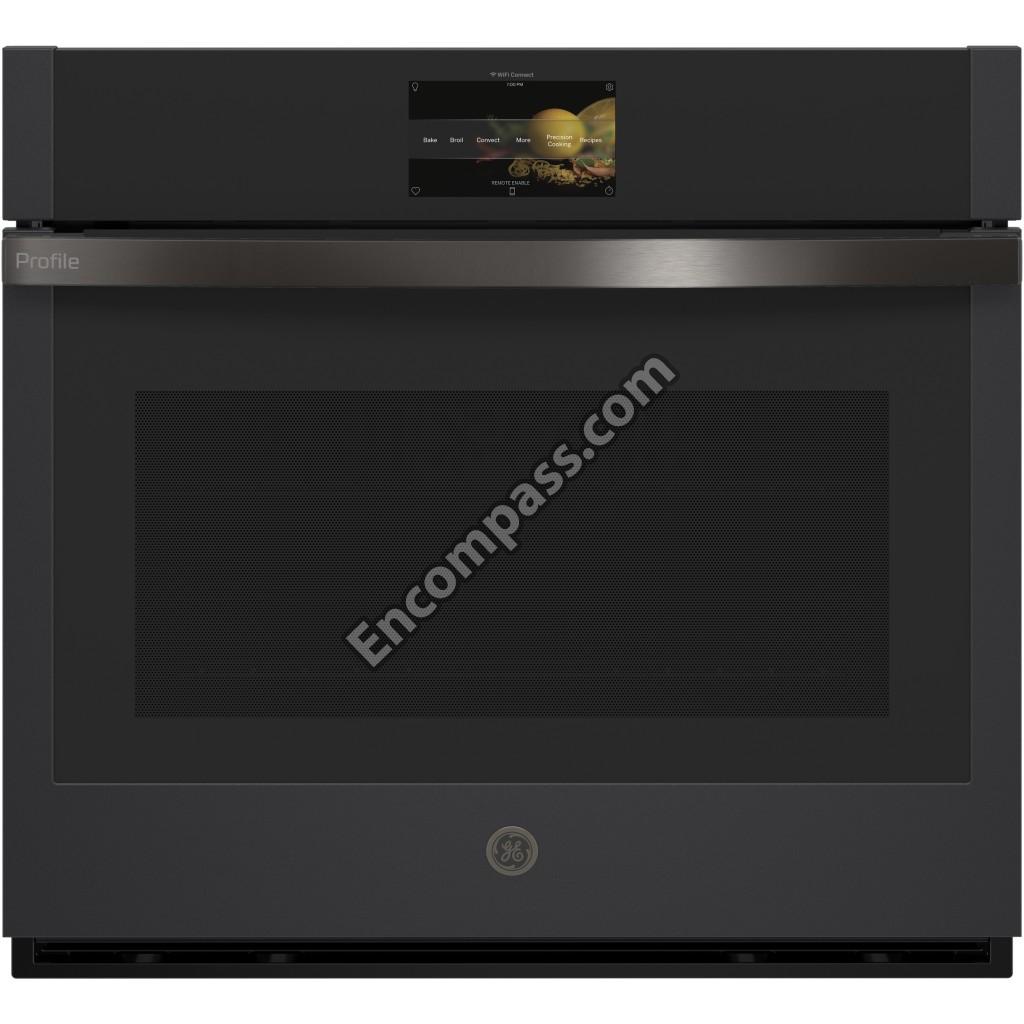

PTS7000FN1DS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part WB02X29637
GE
WB02X29637
BADGE ASSEMBLY
Checking…
View Product
Part WB56X40078
GE
WB56X40078
BLACK SLATE CONTROL PANEL
Checking…
View Product
Part WB15X32927
GE
WB15X32927
BLACK STAINLESS HANDLE AND ENDCAP
Checking…
View Product
Part WB02T10598
GE
WB02T10598
BLADE FAN CONVECTION
Checking…
View Product
Part WB17K10001
GE
WB17K10001
BLOCK TERMINAL
Checking…
View Product
Part WB27T11463
GE
WB27T11463
BOARD FAN SENSOR
Checking…
View Product
Part WB02X29179
GE
WB02X29179
BOARD FRAME
Checking…
View Product
Part WB07X35692
GE
WB07X35692
BRACE VERTICAL LEFT
Checking…
View Product
Part WB07T10754
GE
WB07T10754
BRACE VERTICAL RIGHT BLK
Checking…
View Product
Part WB37T10026
GE
WB37T10026
BRACKET UPPER FAN MOUNT
Checking…
View Product
Part WB03T10341
GE
WB03T10341
BUMPER DOOR
Checking…
View Product
Part WB27T10662
GE
WB27T10662
CAPACITOR MOTOR
Checking…
View Product
Part WB55X10971
GE
WB55X10971
CHANNEL REAR
Checking…
View Product
Part WB34X21910
GE
WB34X21910
CHANNEL REAR LEFT
Checking…
View Product
Part WB34T10150
GE
WB34T10150
CHANNEL UPPER AIR VENT
Checking…
View Product
Part WB18X32919
GE
WB18X32919
COM HARNESS WIRE
Checking…
View Product
Part WB18X35246
GE
WB18X35246
CONDUIT WIRE ASSEMBLY
Checking…
View Product
Part WB27X32922
GE
WB27X32922
CONTROL BOARD ASSEMBLY
Checking…
View Product
Part WB07X32471
GE
WB07X32471
CONTROL PANEL MOUNTING BRACKET
Checking…
View Product
Part WB34T10136
GE
WB34T10136
COVER - UPPER REAR DUCT
Checking…
View Product
Part WB56X43352
GE
WB56X43352
COVER BOTTOM AIR DUCT
Checking…
View Product
Part WB37T10023
GE
WB37T10023
COVER CONVECTION FAN
Checking…
View Product
Part WB55T10197
GE
WB55T10197
COVER HIDDEN BAKE
Checking…
View Product
Part WB34X28390
GE
WB34X28390
COVER HOUSING FRT
Checking…
View Product
Part WB34T10161
GE
WB34T10161
COVER LATCH ACCESS
Checking…
View Product
Part WB34T10151
GE
WB34T10151
COVER LOWER RT AIR DUCT
Checking…
View Product
Part WB44T10126
GE
WB44T10126
COVER TOP LEFT EDGE
Checking…
View Product
Part WB24X32772
GE
WB24X32772
COVER TOP REAR
Checking…
View Product
Part WB34T10164
GE
WB34T10164
COVER TOP RIGHT EDGE
Checking…
View Product
Part WB35T10273
GE
WB35T10273
COVER WIRE REAR
Checking…
View Product
Part WB56X35477
GE
WB56X35477
DARK SLATE OUTER DOOR ASM
Checking…
View Product
Part WB56X46568
GE
WB56X46568
DARK SLATE OUTER DOOR ASSEMBLY
Checking…
View Product
Part WD02X10129
GE
WD02X10129
DISHWASHER 6-19X1/4 TORX PAN HEAD SCREW
Checking…
View Product
Part WB34T10134
GE
WB34T10134
DIVIDER AIR CENTER
Checking…
View Product
Part WB34X31516
GE
WB34X31516
DOOR INSULATION RETAINER
Checking…
View Product
Part WB02X32816
GE
WB02X32816
DOOR LINER PLUG
Checking…
View Product
Part WB35X31513
GE
WB35X31513
DOOR SIDE INSULATION
Checking…
View Product
Part WB37T10022
GE
WB37T10022
DUCT CONVECTION FAN
Checking…
View Product
Part WB44X40787
GE
WB44X40787
ELEMENT BROIL
Checking…
View Product
Part WB44X23640
GE
WB44X23640
ELEMENT BROIL ASSEMBLY
Checking…
View Product
Part WB44X48668
GE
WB44X48668
ELEMENT CONVX
Checking…
View Product
Part WB26X31060
GE
WB26X31060
FAN BLOWER
Checking…
View Product
Part WB35X21972
GE
WB35X21972
GASKET BROIL ELEMENT
Checking…
View Product
Part WB01T10079
GE
WB01T10079
GASKET CONV FAN
Checking…
View Product
Part WB01T10128
GE
WB01T10128
GROMMET
Checking…
View Product
Part WB25X31221
GE
WB25X31221
HALOGEN LAMP ASSEMBLY
Checking…
View Product
Part WB25X31222
GE
WB25X31222
HALOGEN LAMP ASSEMBLY
Checking…
View Product
Part WB01X1259
GE
WB01X1259
HEX NUT
Checking…
View Product
Part WB1X1259
GE
WB1X1259
HEX NUT
Checking…
View Product
Part WB44X21667
GE
WB44X21667
HIDDEN BAKE ELEMENT KIT
Checking…
View Product
Part WB49X21652
GE
WB49X21652
HINGE BRACKET ASSEMBLY KIT
Checking…
View Product
Part WB10X35066
GE
WB10X35066
HINGE DOOR LEFT
Checking…
View Product
Part WB10X35065
GE
WB10X35065
HINGE DOOR RT
Checking…
View Product
Part 31-10882
GE
31-10882
INSTRUCTION INSTALL
Checking…
View Product
Part WB35T10259
GE
WB35T10259
INSULATION CONVECT FAN
Checking…
View Product
Part WB35X33245
GE
WB35X33245
INSULATION DOOR TOP 30-INCH
Checking…
View Product
Part WB35X21737
GE
WB35X21737
INSULATION DR TOP
Checking…
View Product
Part WB18X30704
GE
WB18X30704
JUMPER
Checking…
View Product
Part WB25T10102
GE
WB25T10102
LAMP HALOGEN BULB G9
Checking…
View Product
Part WB10X28391
GE
WB10X28391
LATCH ASSEMBLY
Checking…
View Product
Part WB18X32872
GE
WB18X32872
LATCH COM HARNESS WIRE
Checking…
View Product
Part WB34X46746
GE
WB34X46746
LINER SUPPORT
Checking…
View Product
Part WB01T10127
GE
WB01T10127
LOCK NUT
Checking…
View Product
Part WB02T10303
GE
WB02T10303
LUBRICANT CLEANER
Checking…
View Product
Part WB18X32920
GE
WB18X32920
MAIN HARNESS WIRE
Checking…
View Product
Part 49-80597
GE
49-80597
MANUAL U&C TIP SHEET
Checking…
View Product
Part WB18X23585
GE
WB18X23585
MEAT PROBE AND HARNESS
Checking…
View Product
Part WB26X44167
GE
WB26X44167
MOTOR CONVX
Checking…
View Product
Part WB1X5572
GE
WB1X5572
NUT
Checking…
View Product
Part WB02X35585
GE
WB02X35585
NUT HEX
Checking…
View Product
Part WB01X5572
GE
WB01X5572
NUT MEAT PROBE
Checking…
View Product
Part WB18T10578
GE
WB18T10578
OPTIONAL 6 FT CONDUIT
Checking…
View Product
Part WB35X32825
GE
WB35X32825
OVEN DOOR GASKET
Checking…
View Product
Part WB63X32569
GE
WB63X32569
OVEN DOOR LINER ASSEMBLY
Checking…
View Product
Part WB34X31317
GE
WB34X31317
OVEN LIGHT LENS
Checking…
View Product
Part WB48X31582
GE
WB48X31582
OVEN RACK
Checking…
View Product
Part WB37T10024
GE
WB37T10024
PLATE - TOP OVEN
Checking…
View Product
Part 31-10957
GE
31-10957
PM INSTALL INSTRUCTIONS
Checking…
View Product
Part 31-11161
GE
31-11161
PM INSTALL INSTRUCTIONS
Checking…
View Product
Part 31-11129
GE
31-11129
PM INSTALL INSTRUCTIONS
Checking…
View Product
Part 31-2000263
GE
31-2000263
PM MINI MANUAL AND WIRING
Checking…
View Product
Part 49-2000375
GE
49-2000375
PM OWNERS MANUAL
Checking…
View Product
Part WB2X8309
GE
WB2X8309
PR0BE COVER
Checking…
View Product
Part WB20T10024
GE
WB20T10024
PROBE THERMISTOR
Checking…
View Product
Part WB02X32826
GE
WB02X32826
REINFORCEMENT SPACER ASSEMBLY
Checking…
View Product
Part WB24X33028
GE
WB24X33028
RJ45 BRACKET
Checking…
View Product
Part WB01K5072
GE
WB01K5072
SCREW
Checking…
View Product
Part WH2X930
GE
WH2X930
SCREW
Checking…
View Product
Part WB01X21742
GE
WB01X21742
SCREW
Checking…
View Product
Part WB1M1
GE
WB1M1
SCREW
Checking…
View Product
Part WB1K5072
GE
WB1K5072
SCREW
Checking…
View Product
Part WB01T10008
GE
WB01T10008
SCREW 10-32 TR T
Checking…
View Product
Part WB01T10130
GE
WB01T10130
SCREW 7-19 1/4HEX 1/2IN
Checking…
View Product
Part WB01T10134
GE
WB01T10134
SCREW 8-18 T20 3/8 IN
Checking…
View Product
Part WB01K5150
GE
WB01K5150
SCREW ST10-16 X 7/16""
Checking…
View Product
Part WB1K5165
GE
WB1K5165
SCREW-BLACK
Checking…
View Product
Part WB01K5165
GE
WB01K5165
SCREW-BLK
Checking…
View Product
Part WB21X10165
GE
WB21X10165
SENSOR ASSEMBLY
Checking…
View Product
Part WB48X38086
GE
WB48X38086
SLIDING OVEN RACK ASSEMBLY
Checking…
View Product
Part WB27X33354
GE
WB27X33354
SPEAKER 70C 3W
Checking…
View Product
Part WB24X46906
GE
WB24X46906
SWITCH HIGH LIMIT
Checking…
View Product
Part WB07T10761
GE
WB07T10761
TRIM BOTTOM CABINET-SMALL
Checking…
View Product
Part WB07T10787
GE
WB07T10787
TRIM BROIL ELEMENT (BLACK)
Checking…
View Product
Part WB07X21187
GE
WB07X21187
TRIM VENT LWR
Checking…
View Product
Part WB07T10732
GE
WB07T10732
TRIM VERT SIDE (BLACK)
Checking…
View Product
Part WB07X32831
GE
WB07X32831
UPPER VENT TRIM
Checking…
View Product
Part WB01X5573
GE
WB01X5573
WASHER
Checking…
View Product
Part WB1X5573
GE
WB1X5573
WASHER
Checking…
View Product
Part WB56X27480
GE
WB56X27480
WINDOW PACK ASSEMBLY
Checking…
View Product
