Model Image
Manufacturer

GE

Model Number

PVM1790SR1SS

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB26X10247 WB26X10247 AC FAN MOTOR
WB26X10226 WB26X10226 AC SYNCHRONOUS MOTOR
WB26X10248 WB26X10248 AC SYNCHRONOUS MOTOR
WB02X33930 WB02X33930 AIR TUNNEL
WB02X11240 WB02X11240 AIR TUNNEL
WB02X11239 WB02X11239 AIR TUNNEL
WB56X10641 WB56X10641 BASE PLATE
WB02X32593 WB02X32593 BRACKET CAPACITOR
WB02X32716 WB02X32716 BRACKET LAMP
WB27X10808 WB27X10808 CAPACITOR
WB27X11031 WB27X11031 CAPACITOR H.V.
WB06X10865 WB06X10865 CHAMBER
WB56X10642 WB56X10642 COVER ASSEMBLY BACK
WB56X32728 WB56X32728 COVER REAR ASSEMBLY
WB34X35371 WB34X35371 DAMPER BRACKET

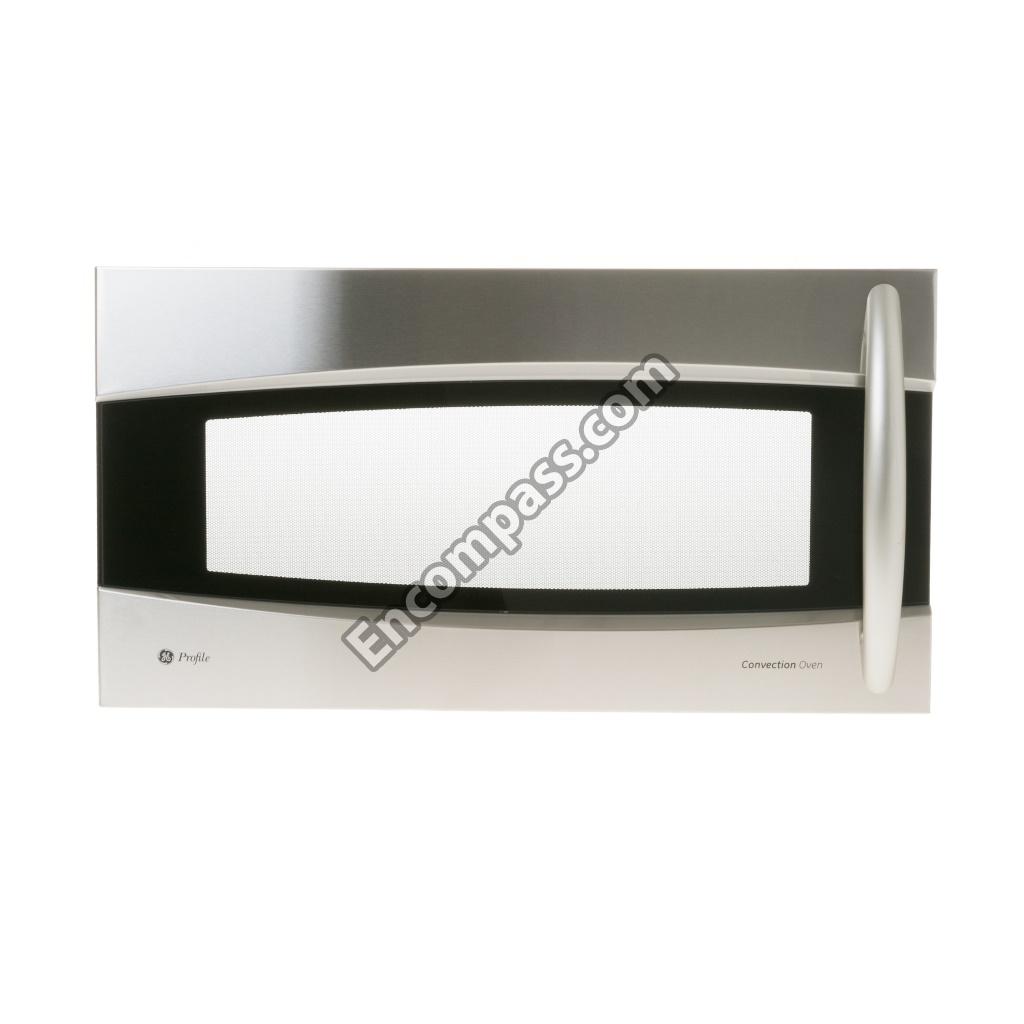

WB55X10970 WB55X10970 DOOR ASSEMBLY STAINLESS STEEL
WB06X10568 WB06X10568 EXHAUST ADAPTER
WB02X32715 WB02X32715 EXHAUST ADAPTER
WB02X32727 WB02X32727 FAN
WB38X10099 WB38X10099 FAN ASSEMBLY
WB27X10519 WB27X10519 FILTER ASSEMBLY NOISE
WB56X10855 WB56X10855 FLAT CASE
WB36X10345 WB36X10345 GLASS
WB34X32729 WB34X32729 GUIDE AIR
WB38X10096 WB38X10096 GUIDE AIR
WB38X10097 WB38X10097 GUIDE AIR
WB08X10057 WB08X10057 HALOGEN BULB 130V/50W
WB25X10019 WB25X10019 HALOGEN LAMP

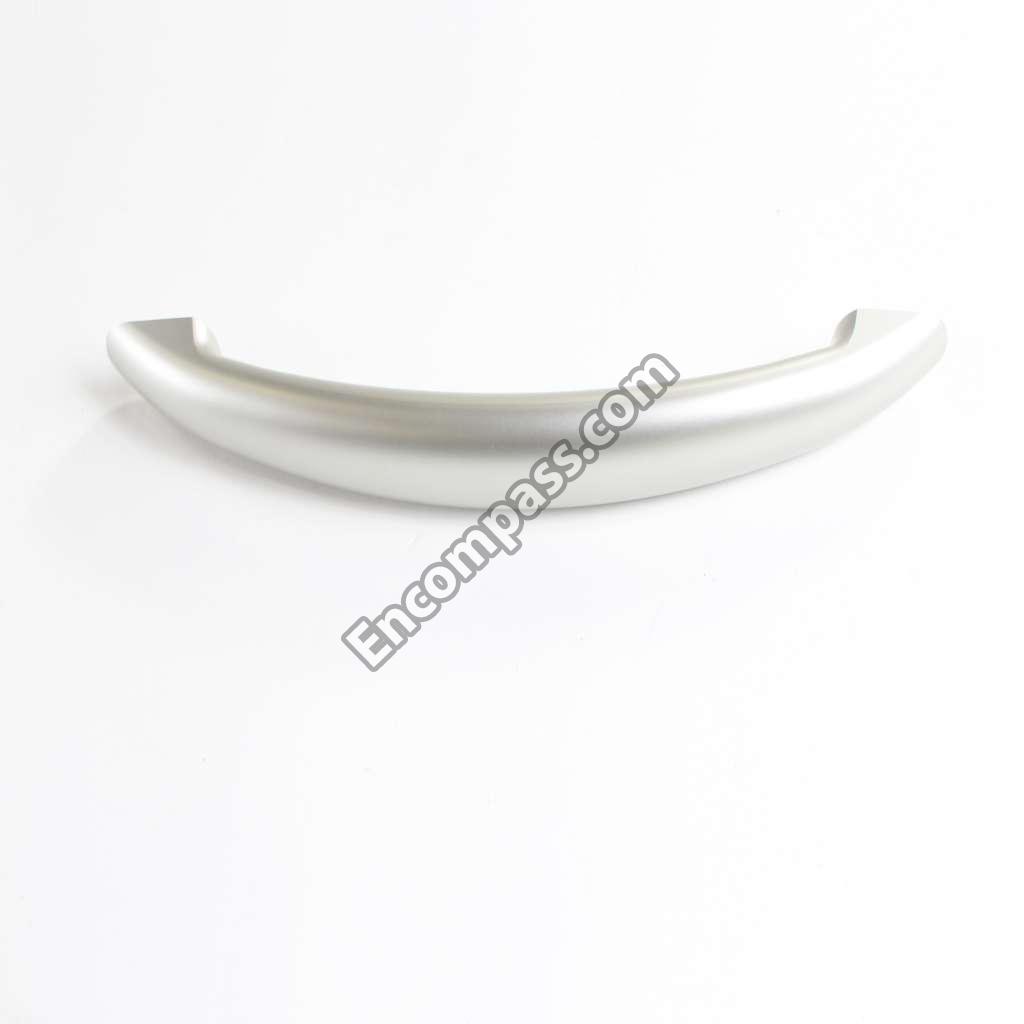

WB15X10270 WB15X10270 HANDLE DOOR STAINLESS STEEL
WB18X10294 WB18X10294 HARNESS
WB44X10046 WB44X10046 HEATER SHEATH
WB06X10264 WB06X10264 HOLDER - HEATER
WB10X21789 WB10X21789 HOLDER ASM,LOCKER
WB06X10554 WB06X10554 HOLDER ASSEMBLY
WB02X32720 WB02X32720 HOLDER LOCKER
WB01X10414 WB01X10414 HOUSING SUPPORTER
WB01X22141 WB01X22141 INSTALLATION H/W BAG
WB01X22142 WB01X22142 INSTALLATION H/W BAG
WB06X10661 WB06X10661 INSULATOR
WB06X10663 WB06X10663 INSULATOR ASSEMBLY
WB06X10662 WB06X10662 INSULATOR ASSEMBLY
WB03X10131 WB03X10131 KNOB BLACK
WB10X35397 WB10X35397 LOCKER HOLDER ASSEMBLY
WB02X35607 WB02X35607 MICROWAVE CHARCOAL FILTER
WB07X10930 WB07X10930 MICROWAVE CONTROL PANEL BRACKET
WB02X11235 WB02X11235 MICROWAVE DAMPER BRACKET
WB02X11236 WB02X11236 MICROWAVE DAMPER BRACKET
WB27X10037 WB27X10037 MICROWAVE DIODE CABLE
WB06X10565 WB06X10565 MICROWAVE EXHAUST DAMPER
WB02X32719 WB02X32719 MICROWAVE FAN COVER
WB06X10359 WB06X10359 MICROWAVE GREASE FILTER
WB02X32722 WB02X32722 MICROWAVE INSTALLATION HARDWARE
WB06X10559 WB06X10559 MICROWAVE LEVER
WB27X10928 WB27X10928 MICROWAVE LINE FUSE
WB27X32766 WB27X32766 MICROWAVE MAGNETRON
WB27X44106 WB27X44106 MICROWAVE MAGNETRON
WB27X10866 WB27X10866 MICROWAVE MAIN CONTROL BOARD
WB06X10308 WB06X10308 MICROWAVE POWER CORD COVER
WB02X10750 WB02X10750 MICROWAVE SHELF SUPPORT CLIP
WB21X10148 WB21X10148 MICROWAVE THERMOSTAT
WB26X21108 WB26X21108 MICROWAVE TRANSFORMER
WB06X10705 WB06X10705 MICROWAVE TRAY ROLLER ASSEMBLY
WB26X36106 WB26X36106 MICROWAVE VENTILATION MOTOR
WB26X10269 WB26X10269 MOTOR VENT
WB26X10270 WB26X10270 MOTOR(CIRC) CIRCULATION
WB26X10185 WB26X10185 MOTOR(CIRC) SYNCHRONOUS
WB06X10313 WB06X10313 MOUNT VENT MOTOR COVER
WB56X10669 WB56X10669 MOUNTING PLATE ASSEMBLY
WB01X10124 WB01X10124 NUT ASSEMBLY
WB01X1520 WB01X1520 NUT COMMON
WB1X1520 WB1X1520 NUT HEXAGON
WB01X10411 WB01X10411 NUT HEXAGON
WB56X32812 WB56X32812 OUTER CASE
WB56X10640 WB56X10640 PLATE BOTTOM
WB56X35363 WB56X35363 PLATE MOUNTING
WB56X32723 WB56X32723 PLATE SIDE HEATER
WB56X10639 WB56X10639 PLATE SIDE HEATER
49-40628 49-40628 PM INSTALL INSTRUCTIONS
31-41036 31-41036 PM MINI MANUAL
49-40627 49-40627 PM OWNERS MANUAL
WB18X10465 WB18X10465 POWER CORD ASSEMBLY
WB06X10657 WB06X10657 PROTECTOR (MECH)
WB38X10005 WB38X10005 RANGE BLOWER FAN
WB10X35346 WB10X35346 RANGE DOOR LATCH
WB06X10859 WB06X10859 RANGE REFLECTOR
WB39X32800 WB39X32800 RANGE SUCTION GUIDE
WB1X1514 WB1X1514 SCREW
WB1X1515 WB1X1515 SCREW
WB01X10121 WB01X10121 SCREW
WB02X10720 WB02X10720 SCREW
WB02X10728 WB02X10728 SCREW
WB02X10745 WB02X10745 SCREW - BINDING HEAD
WB01X10130 WB01X10130 SCREW - FUSE
WB01X10216 WB01X10216 SCREW MACHINE,PAN HEAD
WB01X1515 WB01X1515 SCREW TAPPING
WB01X1514 WB01X1514 SCREW TAPPING
WB01X10134 WB01X10134 SCREW TAPPING PAN HEAD
WB27X10857 WB27X10857 SENSOR ASSEMBLY
WB06X45595 WB06X45595 SHAFT TURN TABLE
WB48X10064 WB48X10064 SHELF
WB18X10466 WB18X10466 SINGLE HARNESS
WB09X10017 WB09X10017 SPRING LATCH DOOR

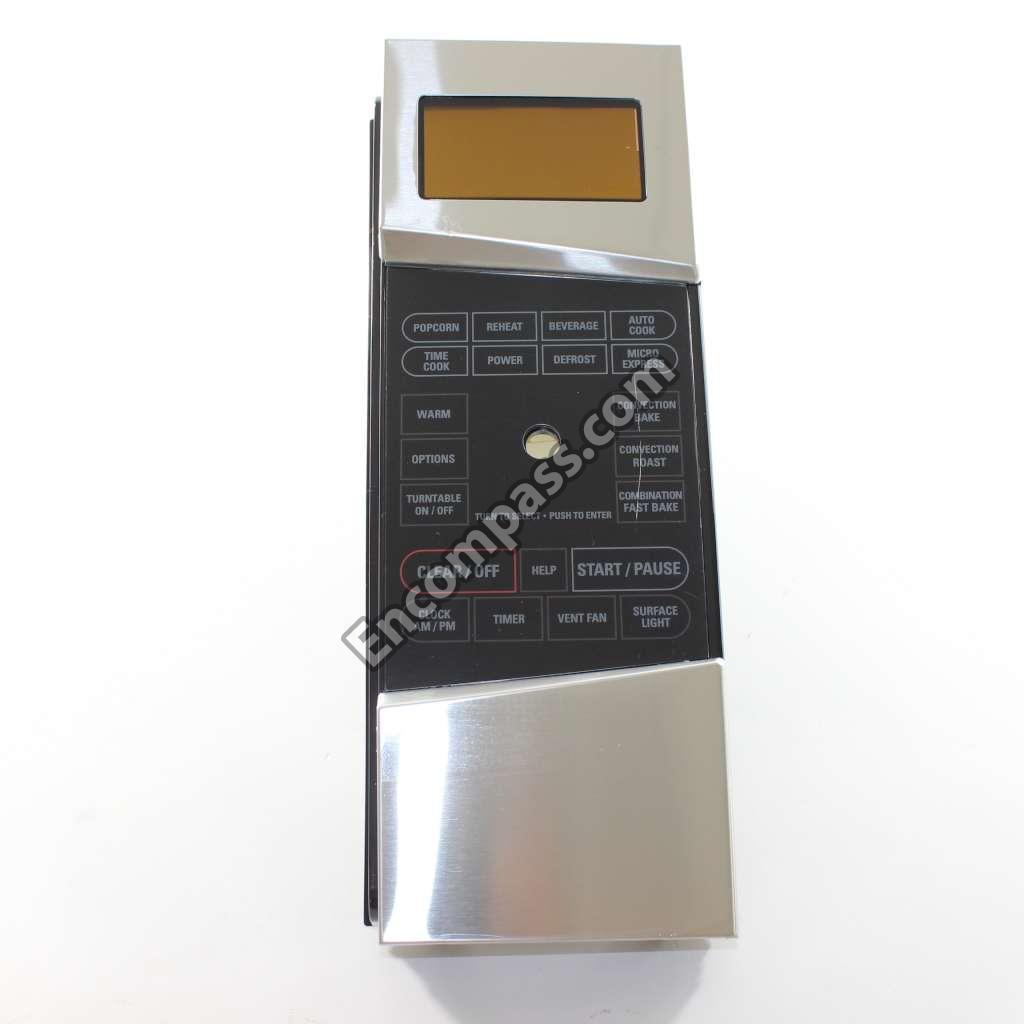

WB07X11345 WB07X11345 SS CONTROL PANEL
WB07X11346 WB07X11346 SS GRILLE
WB24X0817 WB24X0817 SWITCH MICRO
WB24X0815 WB24X0815 SWITCH MICRO
WB24X10047 WB24X10047 SWITCH MICRO
WB24X25397 WB24X25397 SWITCH MONITOR INTERLOCK
WB01X10127 WB01X10127 TAPPING SCREW - TRUSS HEAD
WB18X10126 WB18X10126 THERMISTOR
WB20X10052 WB20X10052 THERMOSTAT
WB20X10048 WB20X10048 THERMOSTAT
WB27X11034 WB27X11034 THERMOSTAT(PLATE)
WB49X10176 WB49X10176 TRAY GLASS.
WB01X1522 WB01X1522 WASHER COMMON
WB1X1522 WB1X1522 WASHER SPLK
