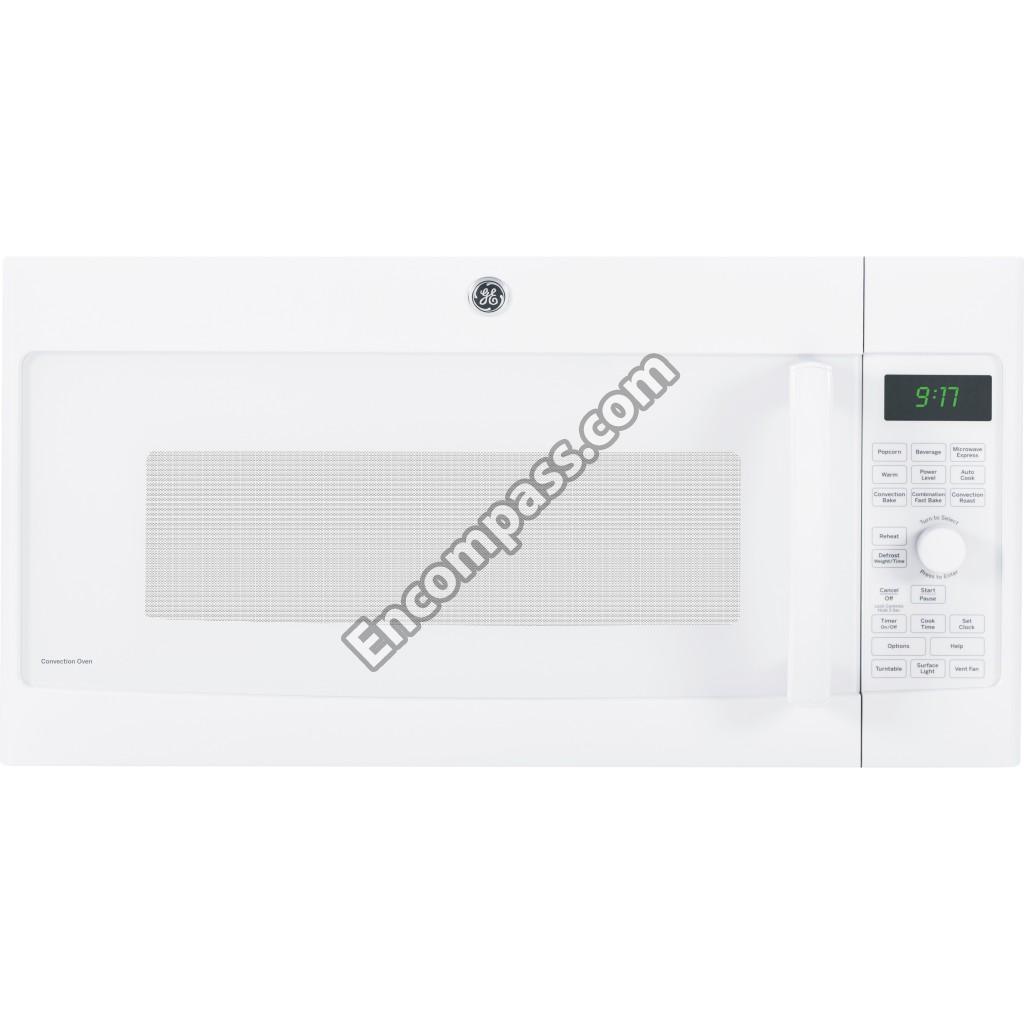

Model Image
Manufacturer

GE

Model Number

PVM9179DF2WW

Description

Microwave

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB10X21789 WB10X21789 GE "HOLDER ASM,LOCKER"
WB26X10247 WB26X10247 GE AC FAN MOTOR
WB26X10248 WB26X10248 GE AC SYNCHRONOUS MOTOR
WB26X10226 WB26X10226 GE AC SYNCHRONOUS MOTOR
WB02X11239 WB02X11239 GE AIR TUNNEL
WB02X33930 WB02X33930 GE AIR TUNNEL
WB56X10641 WB56X10641 GE BASE PLATE
WB02X32593 WB02X32593 GE BRACKET CAPACITOR
WB02X32716 WB02X32716 GE BRACKET LAMP
WB27X10329 WB27X10329 GE CAPACITOR
WB27X11031 WB27X11031 GE CAPACITOR H.V.
WB06X10865 WB06X10865 GE CHAMBER
WB02X35607 WB02X35607 GE CHARCOAL FILTER
WB55X10790 WB55X10790 GE CHOKE COVER
WB34X21094 WB34X21094 GE CONTROL PANEL BRACKET
WB56X32728 WB56X32728 GE COVER ASSEMBLY BACK
WB34X35371 WB34X35371 GE DAMPER BRACKET
WB56X21097 WB56X21097 GE DOOR FRAME ASSEMBLY
WB15X21124 WB15X21124 GE DOOR H AND LE
WB15X21125 WB15X21125 GE DOOR HANDLE COVER
WB02X32715 WB02X32715 GE EXHAUST ADAPTER
WB02X32727 WB02X32727 GE FAN
WB38X10099 WB38X10099 GE FAN ASSEMBLY
WB56X10856 WB56X10856 GE FLAT CASE
WB36X10345 WB36X10345 GE GLASS
WB34X32729 WB34X32729 GE GUIDE AIR
WB38X10096 WB38X10096 GE GUIDE AIR
WB02X35488 WB02X35488 GE HALOGEN BULB 130V/50W
WB25X10019 WB25X10019 GE HALOGEN LAMP
WB44X10046 WB44X10046 GE HEATER SHEATH
WB02X32605 WB02X32605 GE HOLDER - HEATER
WB06X10554 WB06X10554 GE HOLDER ASSEMBLY
WB02X32720 WB02X32720 GE HOLDER LOCKER
WB01X10414 WB01X10414 GE HOUSING SUPPORTER
WB01X22142 WB01X22142 GE INSTALLATION H/W BAG
WB06X10661 WB06X10661 GE INSULATOR
WB06X10662 WB06X10662 GE INSULATOR ASSEMBLY
WB06X10663 WB06X10663 GE INSULATOR ASSEMBLY
WB03X32639 WB03X32639 GE KNOB
WB10X21107 WB10X21107 GE LATCH DOOR SPRING
WB10X35397 WB10X35397 GE LOCKER HOLDER ASSEMBLY
WB27X32766 WB27X32766 GE MAGNETRON
WB27X44106 WB27X44106 GE MAGNETRON
WB02X11235 WB02X11235 GE MICROWAVE DAMPER BRACKET
WB27X10037 WB27X10037 GE MICROWAVE DIODE CABLE
WB06X10565 WB06X10565 GE MICROWAVE EXHAUST DAMPER
WB02X32719 WB02X32719 GE MICROWAVE FAN COVER
WB06X10359 WB06X10359 GE MICROWAVE GREASE FILTER
WB02X32722 WB02X32722 GE MICROWAVE INSTALLATION HARDWARE
WB06X10559 WB06X10559 GE MICROWAVE LEVER
WB27X10928 WB27X10928 GE MICROWAVE LINE FUSE
WB27X10866 WB27X10866 GE MICROWAVE MAIN CONTROL BOARD
WB02X35865 WB02X35865 GE MICROWAVE NOISE FILTER
WB06X10308 WB06X10308 GE MICROWAVE POWER CORD COVER
WB02X10750 WB02X10750 GE MICROWAVE SHELF SUPPORT CLIP
WB21X10148 WB21X10148 GE MICROWAVE THERMOSTAT
WB06X10705 WB06X10705 GE MICROWAVE TRAY ROLLER ASSEMBLY
WB26X36106 WB26X36106 GE MICROWAVE VENTILATION MOTOR
WB26X10270 WB26X10270 GE MOTOR(CIRC) CIRCULATION
WB26X10185 WB26X10185 GE MOTOR(CIRC) SYNCHRONOUS
WB02X32725 WB02X32725 GE MOUNT VENT MOTOR COVER
WB56X35363 WB56X35363 GE MOUNTING PLATE ASSEMBLY
WB01X10124 WB01X10124 GE NUT ASSEMBLY
WB01X1520 WB01X1520 GE NUT COMMON
WB02X32755 WB02X32755 GE NUT HEXAGON
WB1X1520 WB1X1520 GE NUT HEXAGON
WB56X10640 WB56X10640 GE PLATE BOTTOM
WB56X32723 WB56X32723 GE PLATE SIDE HEATER
49-40679 49-40679 GE PM INSTALL INSTRUCTIONS
31-30658 31-30658 GE PM MINI MANUAL
49-40729 49-40729 GE PM QUICK REF OTR CONV
49-40177 49-40177 GE PM TEMPLATE
WB27X43189 WB27X43189 GE POWER CORD ASSEMBLY
WB06X10657 WB06X10657 GE PROTECTOR (MECH)
WB38X10005 WB38X10005 GE RANGE BLOWER FAN
WB10X35346 WB10X35346 GE RANGE DOOR LATCH
WB39X32800 WB39X32800 GE RANGE SUCTION GUIDE
WB02X10728 WB02X10728 GE SCREW
WB02X10720 WB02X10720 GE SCREW
WB01X10121 WB01X10121 GE SCREW
WB1X1514 WB1X1514 GE SCREW
WB1X1515 WB1X1515 GE SCREW
WB02X10745 WB02X10745 GE SCREW - BINDING HEAD
WB01X10130 WB01X10130 GE SCREW - FUSE
WB01X1515 WB01X1515 GE SCREW TAPPING
WB01X1514 WB01X1514 GE SCREW TAPPING
WB01X10134 WB01X10134 GE SCREW TAPPING PAN HEAD
WB27X10857 WB27X10857 GE SENSOR ASSEMBLY
WB06X45595 WB06X45595 GE SHAFT TURN TABLE
WB48X10064 WB48X10064 GE SHELF
WB18X21102 WB18X21102 GE SINGLE HARNESS
WB18X21103 WB18X21103 GE SINGLE HARNESS
WB24X25397 WB24X25397 GE SWITCH MICRO
WB24X10047 WB24X10047 GE SWITCH MICRO
WB01X23440 WB01X23440 GE TAPPING SCREW - TRUSS HEAD
49-40464 49-40464 GE TEMPLATE TOP
WB18X10126 WB18X10126 GE THERMISTOR
WB20X10048 WB20X10048 GE THERMOSTAT
WB20X10052 WB20X10052 GE THERMOSTAT
WB27X11034 WB27X11034 GE THERMOSTAT(PLATE)
WB26X21108 WB26X21108 GE TRANSFORMER H.V.
WB49X10176 WB49X10176 GE TRAY GLASS.
WB01X1522 WB01X1522 GE WASHER COMMON
WB1X1522 WB1X1522 GE WASHER SPLK
WB56X21122 WB56X21122 GE WW CONTROL PANEL
WB56X25702 WB56X25702 GE WW DOOR ASSEMBLY
WB56X25703 WB56X25703 GE WW DOOR PANEL ASSEMBLY
WB07X21127 WB07X21127 GE WW GRILLE
