Model Image
Manufacturer

GE

Model Number

PVM9179DK4WW

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB06X10920 WB06X10920 ASSEMBLY HOOD DAMPER
WB24X10193 WB24X10193 ASSEMBLY PCB SUB ENCODER
WB48X27110 WB48X27110 ASSEMBLY WIRE RACK-MIDDLE
WB27X10939 WB27X10939 ASSEMBLY-MAGNETRON
WB63X10073 WB63X10073 BASE BOTTOM
WB63X27020 WB63X27020 BASE PLATE
WB34X26805 WB34X26805 BRACKET-BOTTOM LAMP
WB34X27022 WB34X27022 BRACKET-DUCT UPPER REAR
WB34X27023 WB34X27023 BRACKET-HVC
WB34X27024 WB34X27024 BRACKET-OVEN
WB34X27047 WB34X27047 BRACKET-REAR ASSEMBLY
WB36X10213 WB36X10213 BULB HALOGEN (120V 20W)
WB25X10019 WB25X10019 BULB HALOGEN (120V 20W)
WB01X26804 WB01X26804 CABLE CLAMP
WR62X51 WR62X51 CAPACITOR
WB27X10240 WB27X10240 CAPACITOR 2100V/0.86 MICROF
WB27X10170 WB27X10170 CAPACITOR- MOTOR
WB24X29270 WB24X29270 CAVITY TCO
WB02X11544 WB02X11544 CHARCOAL FILTER

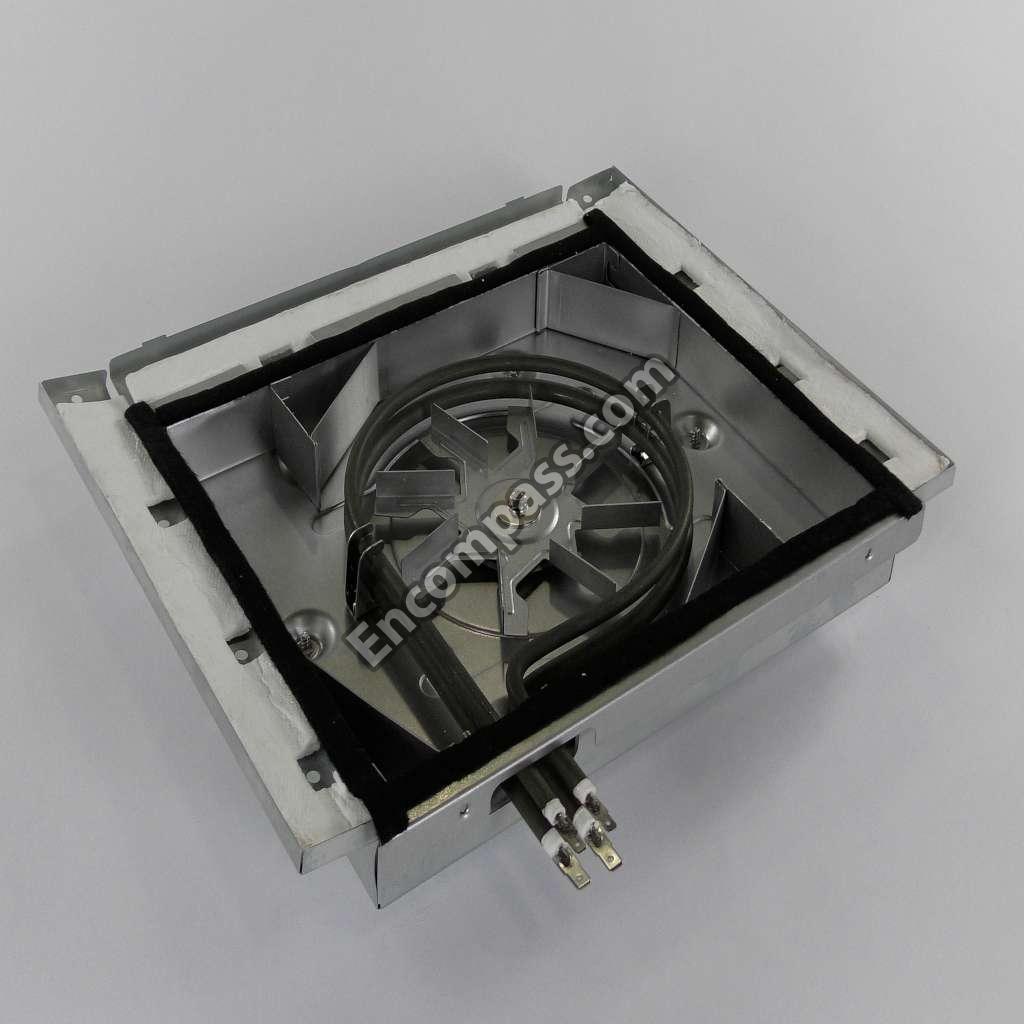

WB56X27048 WB56X27048 CONVECTION ASSEMBLY
WB24X29271 WB24X29271 CONVECTION TCO
WB26X27057 WB26X27057 CONVENTION MOTOR-AIR GUI
WB06X27025 WB06X27025 COUPLER
WB34X27026 WB34X27026 COVER MOTOR
WB34X27027 WB34X27027 COVER STIRRER
WB36X10217 WB36X10217 COVER-GLASS
WB06X10947 WB06X10947 DOOR(BLACK) END CAP
WB34X27049 WB34X27049 DUCT EXHAUST
WB26X10262 WB26X10262 FAN MOTOR
WB27X10928 WB27X10928 FUSE
WB02X27050 WB02X27050 GLASS-OVEN LAMP
WB07X27060 WB07X27060 GRILLE VENT WW
WB02X27451 WB02X27451 HOLDER-SENSOR
WB02X27037 WB02X27037 HOOD DAMPER ASSEMBLY
WB25X27053 WB25X27053 LAMP SOCKET-HALOGEN
WB10X27044 WB10X27044 LATCH BODY
WB06X10128 WB06X10128 LEVER-S/W
WB24X26784 WB24X26784 MAGNETRON TCO

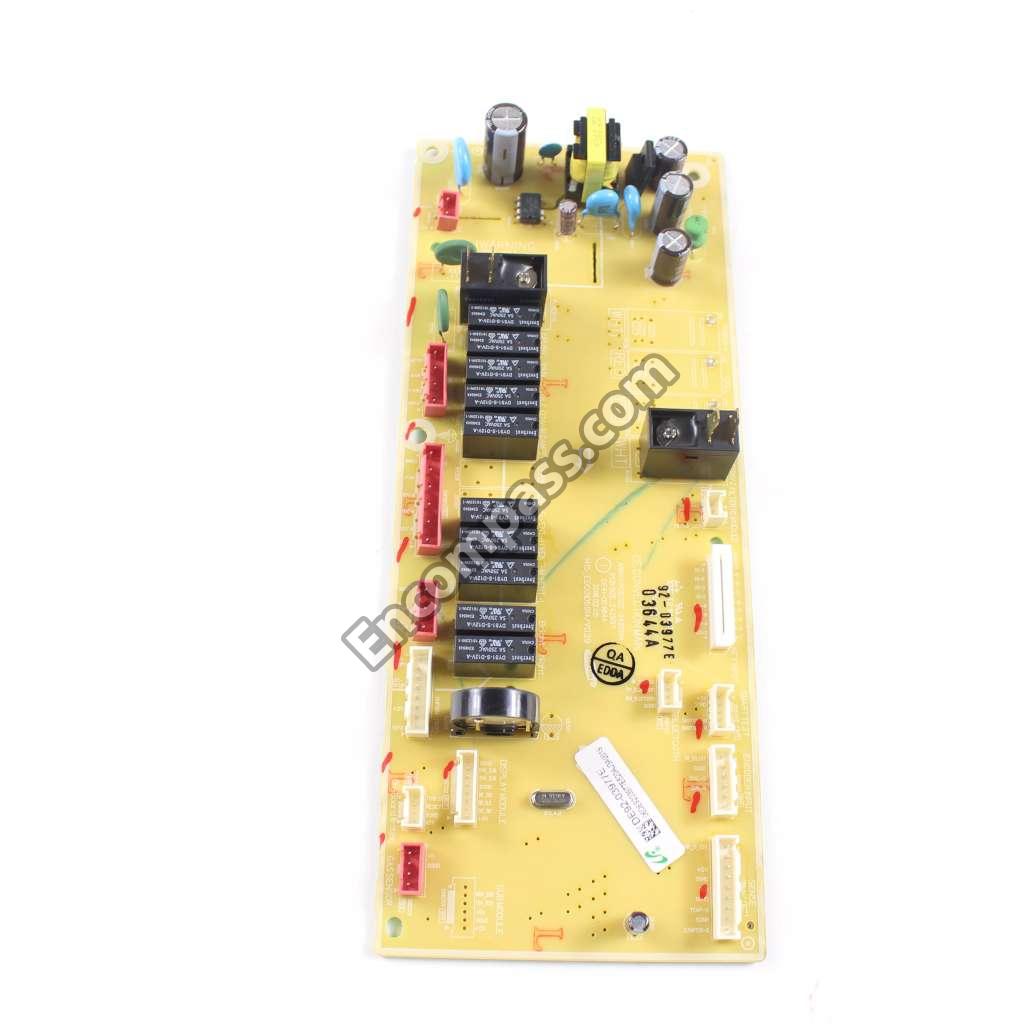

WB27X27054 WB27X27054 MAIN BOARD
WB18X27039 WB18X27039 MAIN WIRE HARNESS ASSEMBLY
WB27X1160 WB27X1160 MICROWAVE DIODE
WB02X20626 WB02X20626 MICROWAVE FAN BLADE
WB39X10003 WB39X10003 MICROWAVE GLASS TRAY

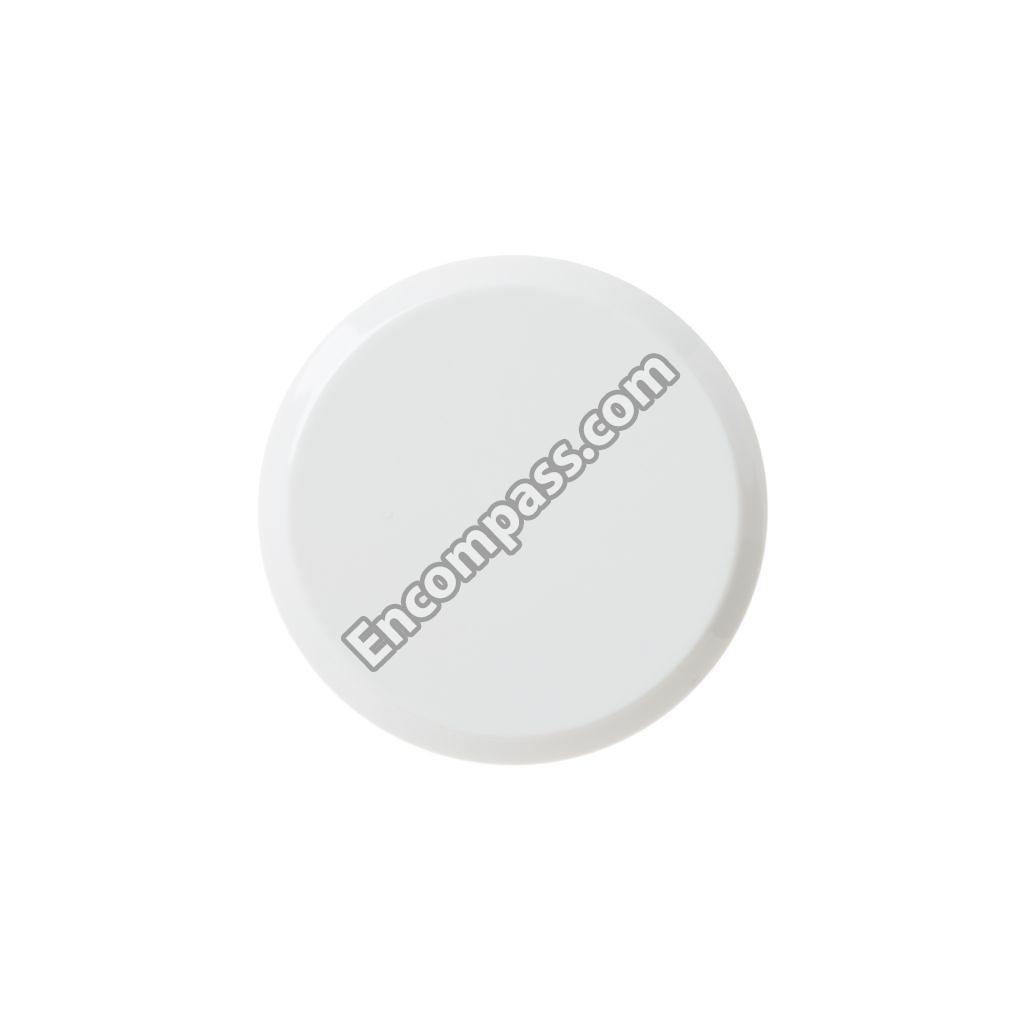

WB03X20776 WB03X20776 MICROWAVE KNOB - WHITE
WB02X26814 WB02X26814 MICROWAVE LED BOARD
WB36X10071 WB36X10071 MICROWAVE LIGHT LENS
WB06X10889 WB06X10889 MICROWAVE MOUNTING HARDWARE KIT
WB02X27056 WB02X27056 MICROWAVE NOISE FILTER
WB02X27051 WB02X27051 MICROWAVE RACK SUPPORT
WB02X27043 WB02X27043 MICROWAVE ROTATING RING
WB24X799 WB24X799 MICROWAVE STEAM SENSOR
WB02X27021 WB02X27021 MICROWAVE TIMING BELT
WB01X10071 WB01X10071 MICROWAVE TOP MOUNTING NUT
WB27X10910 WB27X10910 MICROWAVE TRANSFORMER
WB26X10233 WB26X10233 MICROWAVE TURNTABLE MOTOR
WB02X11534 WB02X11534 MICROWAVE/HOOD GREASE FILTER
WB26X27040 WB26X27040 MOTOR VENTILATION
WB01X27055 WB01X27055 NUT-MOUNTING
WB56X27061 WB56X27061 OUTER CASE WW
WB56X10446 WB56X10446 PLATE MOUNTING ASSEMBLY
49-40769 49-40769 PM INSTALLATION INSTRUCTION
31-30799 31-30799 PM INSTALLATION TEMPLATE
31-30858 31-30858 PM MINI MANUAL
49-40774 49-40774 PM OWNERS MANUAL
49-40771 49-40771 PM QUICK GUIDE ADDITION
49-40772 49-40772 PM QUICK REF OTR CONV
WB18X10442 WB18X10442 POWER CORD ASSEMBLY

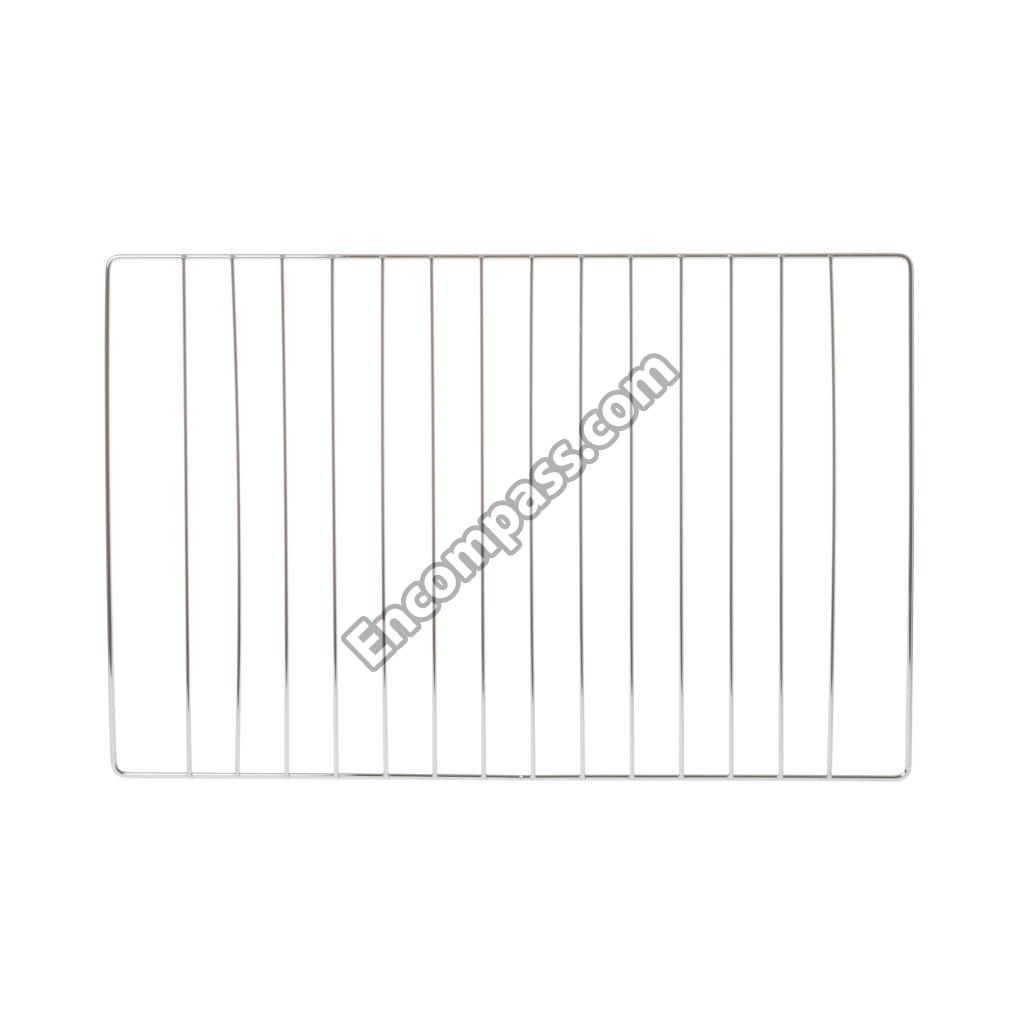

WB48X27041 WB48X27041 RACK-WIRE
WB02X27042 WB02X27042 RANGE MOUNTING COVER
49-40336 49-40336 REAR WALL TEMPLATE
WB02X27046 WB02X27046 SENSOR TEMP
WB09X10042 WB09X10042 SPRING-BLADE
WB24X830 WB24X830 SW-MONITOR
WB24X829 WB24X829 SW-SECONDARY
WB21X10162 WB21X10162 TCO - BOTTOM
WB27X709 WB27X709 THERMO SWTCH
WB24X26785 WB24X26785 THERMOSTAT ASSEMBLY W/ BRACKET
WB56X30173 WB56X30173 WHITE CONTROL PANEL WHITE LED
WB56X34797 WB56X34797 WHITE DOOR WITH FLAT GE LOGO
WB18X10122 WB18X10122 WIRE GND PCB
WB18X21435 WB18X21435 WIRE HARNESS B
