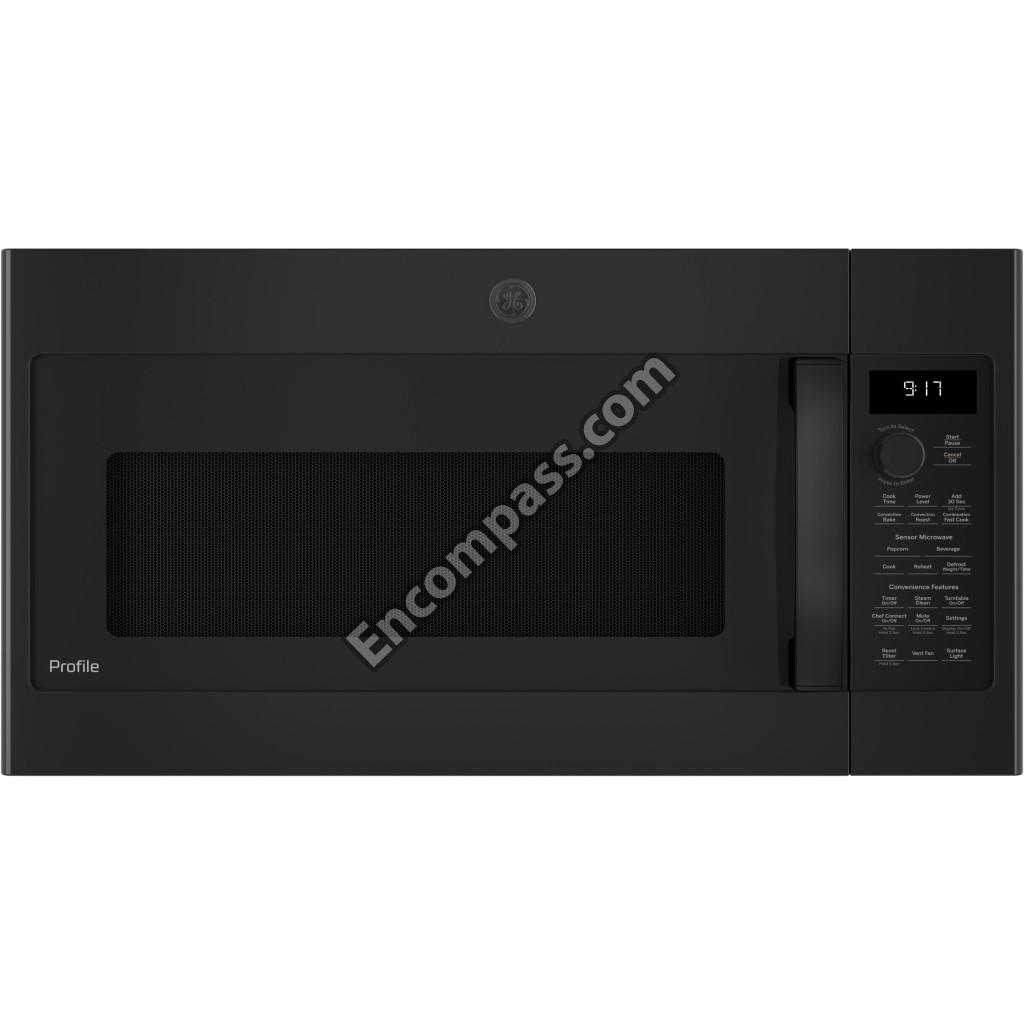

Model Image
Manufacturer

GE

Model Number

PVM9179DK6BB

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB26X10247 WB26X10247 AC FAN MOTOR
WB26X10248 WB26X10248 AC SYNCHRONOUS MOTOR
WB26X10226 WB26X10226 AC SYNCHRONOUS MOTOR
WB56X35366 WB56X35366 BASE PLATE
WB56X35590 WB56X35590 BLACK CONTROL PANEL ASSEMBLY
WB56X35593 WB56X35593 BLACK DOOR ASSEMBLY
WB02X35598 WB02X35598 BLACK KNOB
WB56X35601 WB56X35601 BLACK OUTER CASE
WB34X35604 WB34X35604 BLACK VENT GRILLE
WB06X10710 WB06X10710 BRACKET ASSEMBLY
WB02X33933 WB02X33933 BRACKET DAMPER
WB02X32716 WB02X32716 BRACKET LAMP
WB01X36208 WB01X36208 BRACKET LAMP
WB27X10808 WB27X10808 CAPACITOR
WB02X32593 WB02X32593 CAPACITOR BRACKET
WB02X35367 WB02X35367 CHAMBER
WB02X35607 WB02X35607 CHARCOAL FILTER
WB02X32719 WB02X32719 COVER ASSEMBLY STIRRER FAN
WB06X10680 WB06X10680 COVER POWER CORD
WB06X10686 WB06X10686 DAMPER
WB34X35371 WB34X35371 DAMPER BRACKET
WB27X35382 WB27X35382 DIODE-CABLE ASSEMBLY
WB10X35346 WB10X35346 DOOR LATCH
WB27X32632 WB27X32632 ENCODER BOARD
WB38X35383 WB38X35383 FAN ASSEMBLY
WB26X32609 WB26X32609 FAN MOTOR
WB27X10928 WB27X10928 FUSE
WB02X35377 WB02X35377 FUSE ASSEMBLY
WB27X43766 WB27X43766 GLASS TRAY
WB36X10350 WB36X10350 GLASS WINDOW
WB34X32729 WB34X32729 GUIDE AIR
WB34X32721 WB34X32721 GUIDE AIR
WB39X32800 WB39X32800 GUIDE SUCTION
WB25X35368 WB25X35368 HALOGEN LAMP

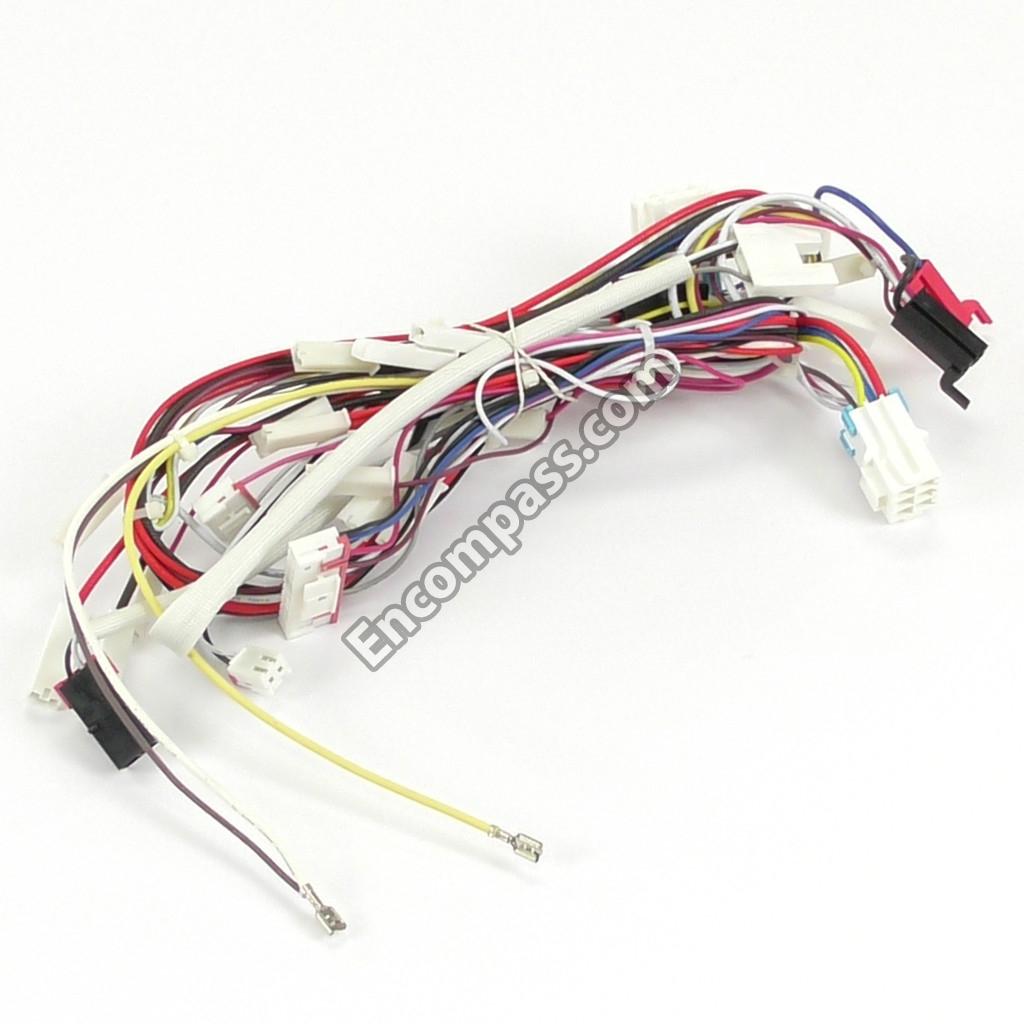

WB18X35379 WB18X35379 HARNESS
WB18X35381 WB18X35381 HARNESS
WB18X35385 WB18X35385 HARNESS
WB18X35387 WB18X35387 HARNESS
WB18X35389 WB18X35389 HARNESS
WB18X35391 WB18X35391 HARNESS
WB18X35393 WB18X35393 HARNESS
WB44X10046 WB44X10046 HEATER SHEATH
WB26X35402 WB26X35402 HIGH VOLTAGE TRANSFORMER
WB06X35376 WB06X35376 HOLDER - HEATER
WB06X10554 WB06X10554 HOLDER ASSEMBLY
WB02X32720 WB02X32720 HOLDER LOCKER
WB01X10414 WB01X10414 HOUSING SUPPORTER
WB01X35373 WB01X35373 INSTALLATION H/W BAG
WB35X35372 WB35X35372 INSULATION ASSEMBLY
WB35X34794 WB35X34794 INSULATOR
WB25X35394 WB25X35394 LAMP AND HOLDER ASSEMBLY
WB34X35400 WB34X35400 LAMP COVER
WB01X36209 WB01X36209 LARGE BRACKET HEATER
WB18X35388 WB18X35388 LED ASSEMBLY
WB27X42606 WB27X42606 LED DISPLAY
WB02X32760 WB02X32760 LEVER
WB10X35397 WB10X35397 LOCKER HOLDER ASSEMBLY
WB27X44106 WB27X44106 MAGNETRON
WB27X35398 WB27X35398 MAIN BOARD
WB27X11033 WB27X11033 MICROWAVE CAPACITOR
WB02X32715 WB02X32715 MICROWAVE EXHAUST ADAPTER
WB06X10664 WB06X10664 MICROWAVE GLASS WOOL

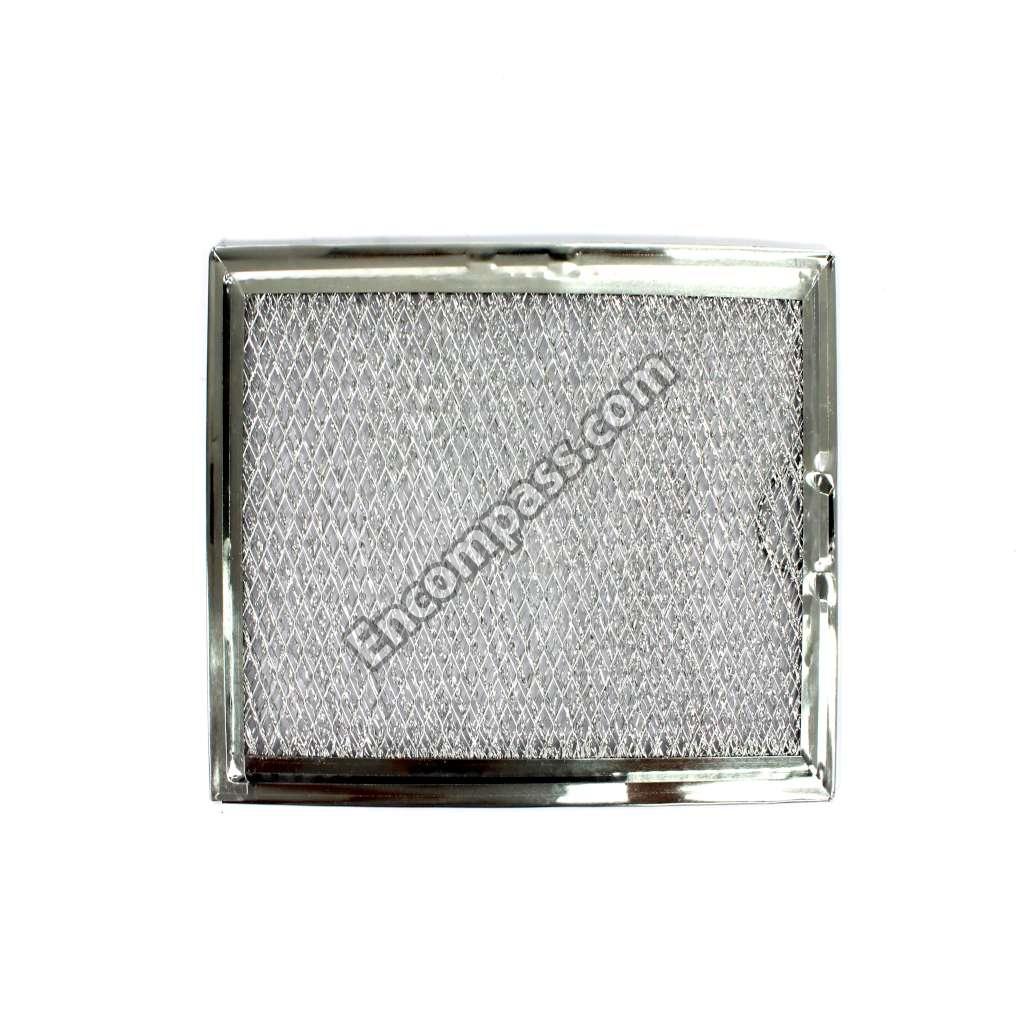

WB02X32793 WB02X32793 MICROWAVE GREASE FILTER
WB24X10047 WB24X10047 MICROWAVE INTERLOCK SWITCH
WB02X10750 WB02X10750 MICROWAVE SHELF SUPPORT CLIP
WB26X36106 WB26X36106 MICROWAVE VENTILATION MOTOR
WB26X35380 WB26X35380 MOTOR
WB26X35370 WB26X35370 MOTOR CIRCULATION
WB02X32725 WB02X32725 MOUNT VENT MOTOR COVER
WB56X35363 WB56X35363 MOUNTING PLATE ASSEMBLY
WB02X35396 WB02X35396 NOISE FILTER BOARD
WB02X32755 WB02X32755 NUT HEXAGON
WB1X1520 WB1X1520 NUT HEXAGON
WB27X35569 WB27X35569 PCB ASSEMBLY
WB27X43166 WB27X43166 PCB SUB ASSEMBLY
WB56X35364 WB56X35364 PLATE BOTTOM
WB56X32723 WB56X32723 PLATE SIDE HEATER
31-7000092 31-7000092 PM INSTALL INSTRUCTIONS
31-7000100 31-7000100 PM MINI MANUAL AND WIRING
49-7000089 49-7000089 PM OWNERS MANUAL
49-7000088 49-7000088 PM QUICK OWNERS MANUAL
31-7000108 31-7000108 PM TEMPLATE
31-7000096 31-7000096 PM TEMPLATE
WB27X43189 WB27X43189 POWER CORD ASSEMBLY
WB38X10005 WB38X10005 RANGE BLOWER FAN
WB06X35395 WB06X35395 SAFETY COVER
WB01X35374 WB01X35374 SCREW
WB02X10745 WB02X10745 SCREW - BINDING HEAD
WB27X10857 WB27X10857 SENSOR ASSEMBLY
WB06X45595 WB06X45595 SHAFT TURN TABLE
WB48X10064 WB48X10064 SHELF
WB48X35378 WB48X35378 SHELF
WB01X36210 WB01X36210 SMALL BRACKET HEATER
WB09X10017 WB09X10017 SPRING LATCH DOOR
WB24X25397 WB24X25397 SWITCH MONITOR INTERLOCK
WB18X10126 WB18X10126 THERMISTOR

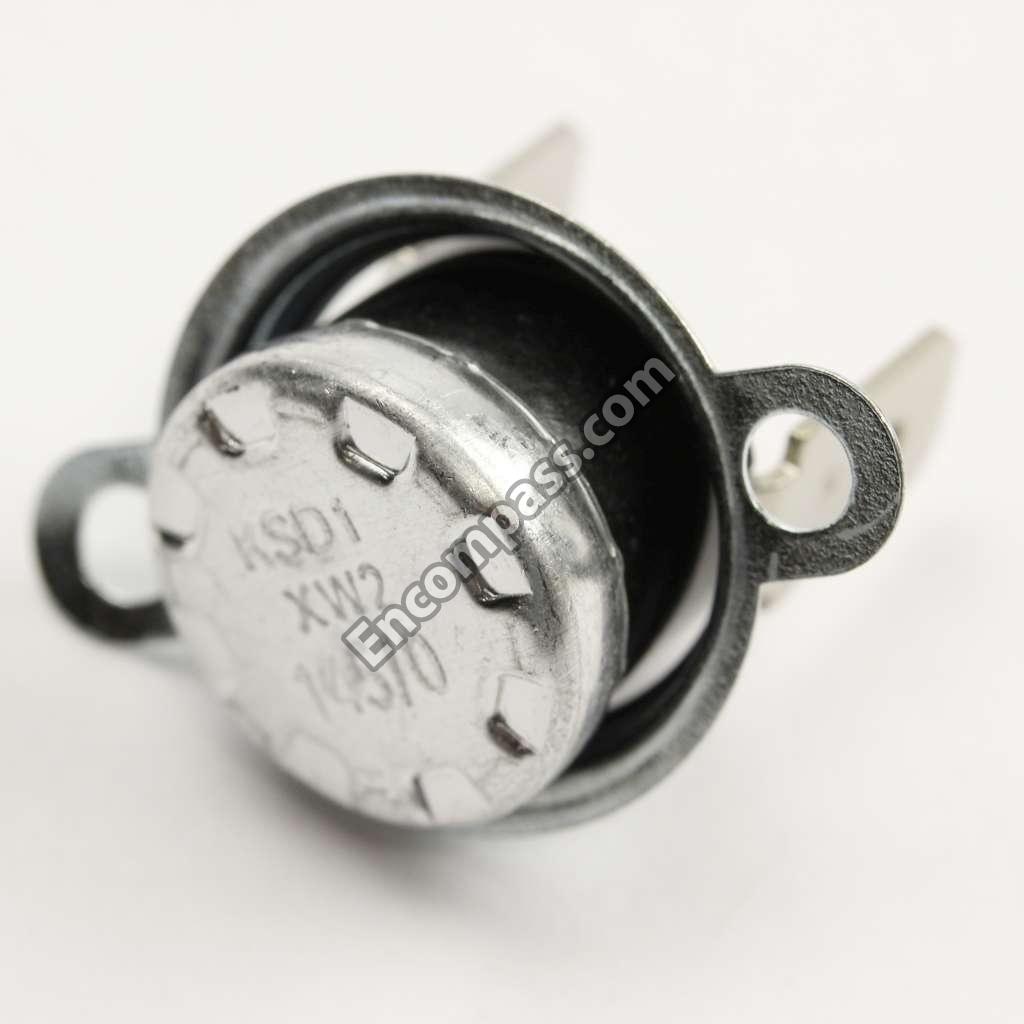

WB20X10052 WB20X10052 THERMOSTAT
WB26X35390 WB26X35390 THERMOSTAT
WB34X35401 WB34X35401 THERMOSTAT BRACKET
WB06X45708 WB06X45708 TURNTABLE ASSEMBLY
WB1X1521 WB1X1521 WASHER PLAIN
WB1X1522 WB1X1522 WASHER SPLK
