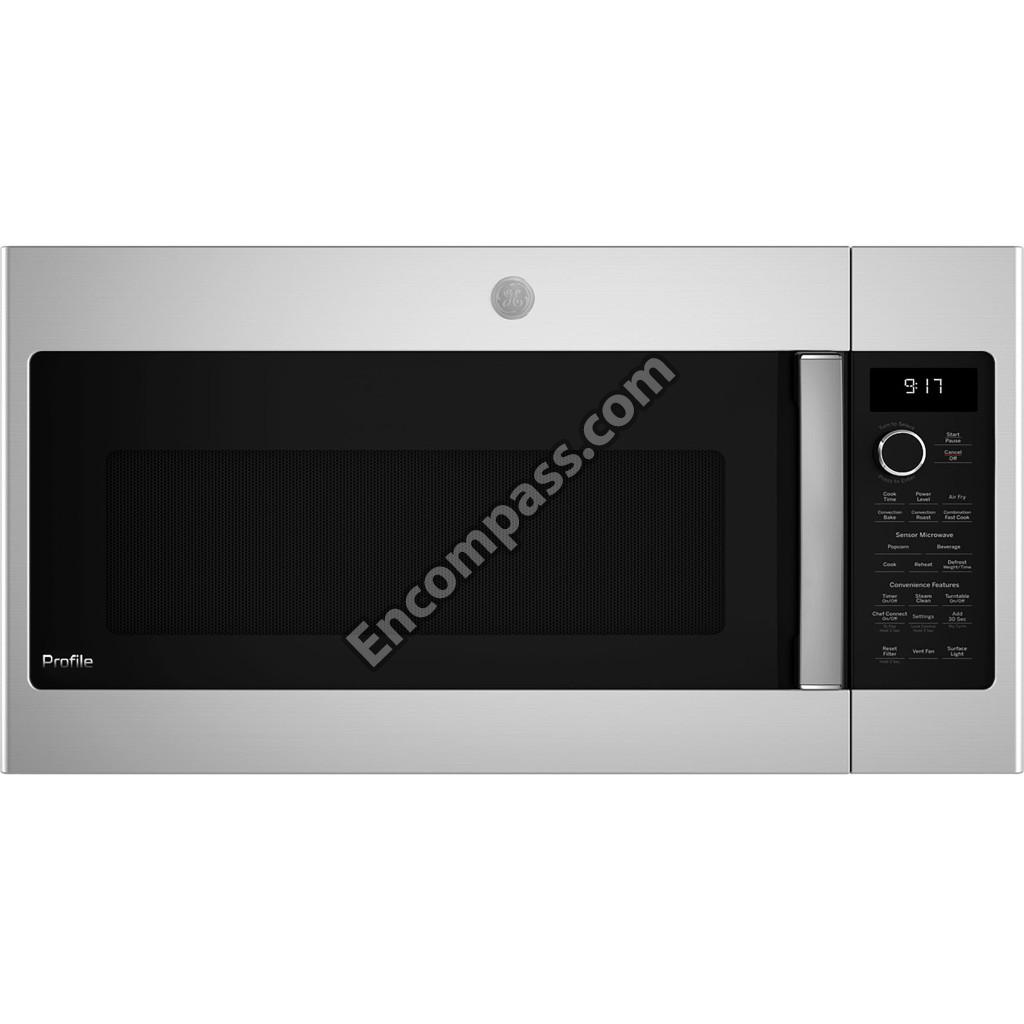

Model Image
Manufacturer

GE

Model Number

PVM9179RY1SS

Description

Ge Profile 1.7 Cu. Ft. Convection Over-the-range M

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB02X33930 WB02X33930 AIR TUNNEL
WB56X35366 WB56X35366 BASE PLATE
WB56X35601 WB56X35601 BLACK OUTER CASE
WB34X35604 WB34X35604 BLACK VENT GRILLE
WB06X10710 WB06X10710 BRACKET ASM
WB02X33933 WB02X33933 BRACKET DAMPER
WB01X36208 WB01X36208 BRACKET LAMP
WB02X32716 WB02X32716 BRACKET LAMP
WB02X32715 WB02X32715 BRACKET,MISC
WB27X36065 WB27X36065 CAPACITOR
WB02X32593 WB02X32593 CAPACITOR BRACKET
WB27X11033 WB27X11033 CAPACITOR, H.V
WB02X35367 WB02X35367 CHAMBER
WB02X35607 WB02X35607 CHARCOAL FILTER
WB27X50669 WB27X50669 CONTROLLER ASSEMBLY KEYPAD
WB27X50667 WB27X50667 CONTROLLER ASSEMBLY SUB
WB02X32719 WB02X32719 COVER ASM STIRRER FAN
WB06X10686 WB06X10686 DAMPER
WB34X35371 WB34X35371 DAMPER BRACKET
WB27X35382 WB27X35382 DIODE-CABLE ASM
WB27X50668 WB27X50668 DOOR ASSEMBLY
WB10X35346 WB10X35346 DOOR LATCH
WB27X32632 WB27X32632 ENCODER BOARD
WB38X35383 WB38X35383 FAN ASM
WB38X10005 WB38X10005 FAN BLADE
WB26X32609 WB26X32609 FAN MOTOR
WB02X32793 WB02X32793 FILTER GREASE
WB27X10928 WB27X10928 FUSE
WB02X35377 WB02X35377 FUSE ASM
WB27X43766 WB27X43766 GLASS TRAY
WB34X32729 WB34X32729 GUIDE AIR
WB34X32721 WB34X32721 GUIDE AIR
WB39X32800 WB39X32800 GUIDE SUCTION
WB18X35385 WB18X35385 HARNESS
WB18X35379 WB18X35379 HARNESS
WB18X35381 WB18X35381 HARNESS
WB18X35389 WB18X35389 HARNESS FROM MAIN BOARD TO PCB ASM
WB18X35391 WB18X35391 HARNESS FROM MAIN PCB TO ENCODER BOARD
WB18X35393 WB18X35393 HARNESS FROM MAIN PCB TO LED DISPLAY
WB18X35387 WB18X35387 HARNESS FROM MAIN PCB TO SUB PBC
WB44X10046 WB44X10046 HEATER SHEATH
WB26X35402 WB26X35402 HIGH VOLTAGE TRANSFORMER
WB06X10554 WB06X10554 HOLDER ASSEMBLY
WB02X32720 WB02X32720 HOLDER LOCKER
WB01X35373 WB01X35373 INSTALLATION H/W BAG
WB35X35372 WB35X35372 INSULATION ASM
WB35X35375 WB35X35375 INSULATION ASM
WB27X50666 WB27X50666 KNOB ASSEMBLY
WB25X35394 WB25X35394 LAMP AND HOLDER ASM
WB25X35368 WB25X35368 LAMP,HALOGEN
WB27X42408 WB27X42408 LED ASSEMBLY
WB02X35682 WB02X35682 LED DISPLAY HOLDER
WB27X42606 WB27X42606 LEDDISPLAY
WB02X32760 WB02X32760 LEVER
WB10X35397 WB10X35397 LOCKER HOLDER ASM
WB27X44106 WB27X44106 MAGNETRON
WB27X42489 WB27X42489 METAL TRAY
WB26X35380 WB26X35380 MOTOR
WB26X35370 WB26X35370 MOTOR CIRCULATION
WB26X10248 WB26X10248 MOTOR, AC SYNCHRONOUS
WB26X10226 WB26X10226 MOTOR, AC SYNCHRONOUS
WB26X36106 WB26X36106 MOTOR, VENTILATION
WB26X10247 WB26X10247 MOTOR,AC FAN
WB02X32725 WB02X32725 MOUNT VENT MOTOR COVER
WB56X35363 WB56X35363 MOUNTING PLATE ASM
WB02X35396 WB02X35396 NOISE FILTER BOARD
WB01X35369 WB01X35369 NUT COMMON
WB02X32755 WB02X32755 NUT HEXAGON
WB1X1520 WB1X1520 NUT,HEXAGON
WB27X35569 WB27X35569 PCB ASM
WB27X42747 WB27X42747 PCB ASSEMBLY,MAIN
WB27X43166 WB27X43166 PCB SUB ASM
WB56X35364 WB56X35364 PLATE BOTTOM
WB56X32723 WB56X32723 PLATE SIDE HEATER
31-7000092 31-7000092 PM INSTALL INSTRUCTIONS
31-7000108 31-7000108 PM TEMPLATE
31-7000096 31-7000096 PM TEMPLATE
WB27X43189 WB27X43189 POWER CORD ASM
31-7000325 31-7000325 PRINTED AND ONLINEMINI MANUAL AND WIRING
49-7000321 49-7000321 PRINTED ONLYQUICK OWNERS MANUAL
WB02X10750 WB02X10750 RACK HOLDER
WB06X35395 WB06X35395 SAFETY COVER
WB01X10121 WB01X10121 SCREW
WB01X35374 WB01X35374 SCREW
WB02X10745 WB02X10745 SCREW - BINDING HEAD
WB27X10857 WB27X10857 SENSOR ASM
WB06X45595 WB06X45595 SHAFT TURN TABLE
WB48X35378 WB48X35378 SHELF
WB48X10064 WB48X10064 SHELF
WB09X10017 WB09X10017 SPRING LATCH DOOR
WB24X10047 WB24X10047 SW PRIM INTERLOCK & DOOR
WB24X25397 WB24X25397 SWITCH MONITOR INTERLOCK
WB18X10126 WB18X10126 THERMISTOR
WB20X10052 WB20X10052 THERMOSTAT
WB26X35390 WB26X35390 THERMOSTAT
WB34X35401 WB34X35401 THERMOSTAT BRACKET
WB06X45708 WB06X45708 TURNTABLE ASM
WB1X1522 WB1X1522 WASHER, SPLK
WB1X1521 WB1X1521 WASHER,PLAIN
WB36X10350 WB36X10350 WINDOW,GLASS
