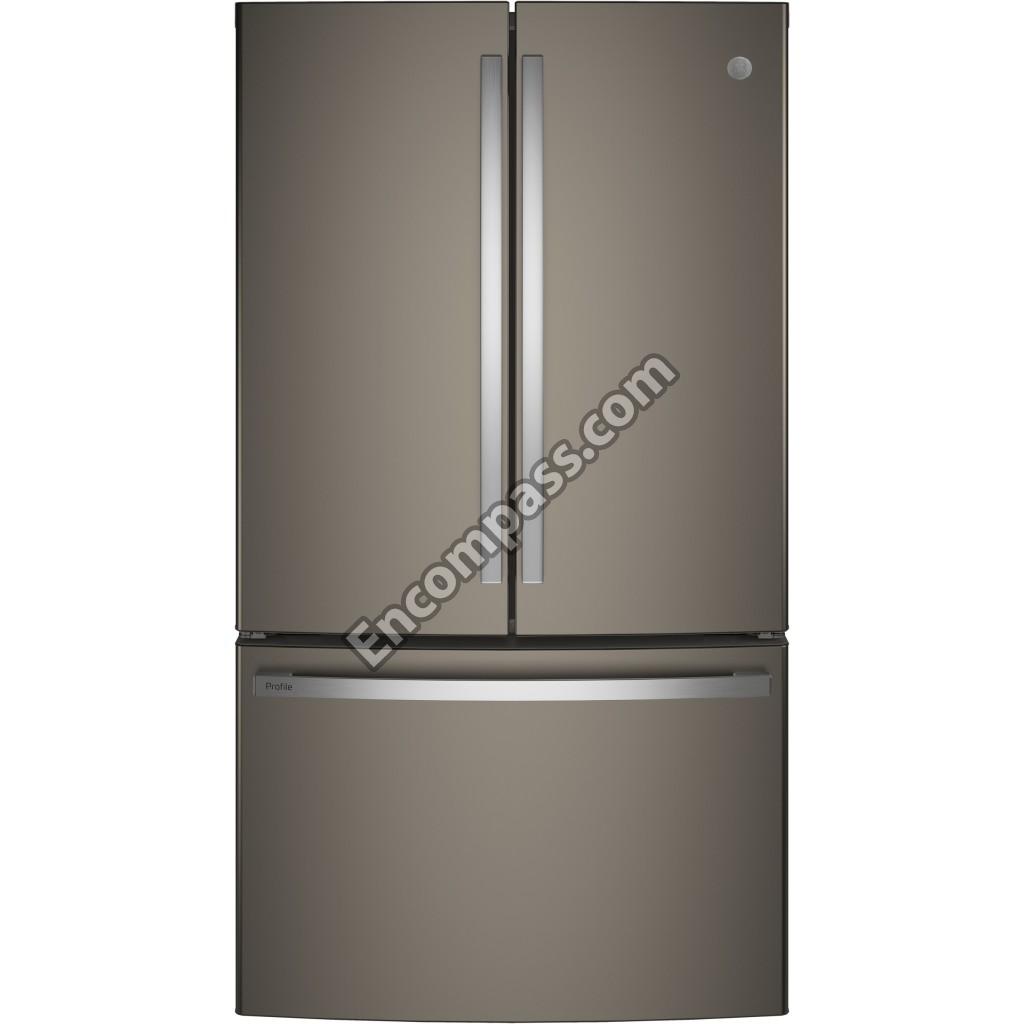

Model Image
Manufacturer

GE

Model Number

PWE23KMKEES

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WZ5X158D WZ5X158D GE 13.4 SCREW 8-32 D HXW 3/8 S
WR12X23647 WR12X23647 GE ARC HANDLE ASSEMBLY FF
WR12X23646 WR12X23646 GE ARC HANDLE ASSEMBLY FZ
WR32X10910 WR32X10910 GE ART FRAME VP ASSEMBLY
WR01X11008 WR01X11008 GE AXLE WHEEL
WR02X27469 WR02X27469 GE BADGE PROFILE
WR17X13045 WR17X13045 GE BAFFLE COND AIR
WR02X21803 WR02X21803 GE BAR REINFORCEMENT
WR21X10254 WR21X10254 GE BASKET BOTTOM ASSEMBLY
WR32X26450 WR32X26450 GE BASKET UPPER ASM
WR71X11068 WR71X11068 GE BIN COND LH FF ASSEMBLY
WR71X11040 WR71X11040 GE BIN COND RH FF ASSEMBLY
WR71X11063 WR71X11063 GE BIN DAIRY RH FF ASSEMBLY
WR71X11038 WR71X11038 GE BIN FREEZER
WR71X11067 WR71X11067 GE BIN GAL LH FF ASSEMBLY
WR71X11044 WR71X11044 GE BIN GAL RH FF ASSEMBLY
WR02X13725 WR02X13725 GE BLOCK EVAPORATOR SEAL
WR02X13622 WR02X13622 GE BRACKET CONDENSER
WR02X36886 WR02X36886 GE BRACKET DOOR FZ LH
WR02X25185 WR02X25185 GE BRACKET DOOR FZ RH
WR17X13069 WR17X13069 GE BRACKET FILTER MANIFOLD
WR17X13195 WR17X13195 GE BRACKET SLIDE FZ LH
WR17X13194 WR17X13194 GE BRACKET SLIDE FZ RH
WR30X23327 WR30X23327 GE BUCKET ICE ASSEMBLY
WR02X13627 WR02X13627 GE CAM VERT ADJUSTMENT
WR02X13759 WR02X13759 GE CAP CASE CORNER ASSEMBLY DGY
WR02X10522 WR02X10522 GE CLAMP TUBE
WR02X10879 WR02X10879 GE CLIP EVAPORATOR THERMISTOR
WR01X11064 WR01X11064 GE CLIP PHGL
WR11X23034 WR11X23034 GE CLOSURE DOOR ASSEMBLY LH
WR11X23035 WR11X23035 GE CLOSURE DOOR ASSEMBLY RH
WR17X27628 WR17X27628 GE COILED COLD WATER TANK
WR84X23630 WR84X23630 GE COMPRESSOR DISCHARGE JUMPER TUBE
WR87X29409 WR87X29409 GE COMPRESSOR INVERTER
WR84X10115 WR84X10115 GE CONDENSER ASSEMBLY FORMED
WR02X13737 WR02X13737 GE CONNECTOR 90 DEG 5/16
WR02X13631 WR02X13631 GE CONNNECTOR GEAR PINION
WR55X39248 WR55X39248 GE CONTROL LH DOOR SIDE ASSEMBLY
WR82X26577 WR82X26577 GE COVER ACCESS
WR17X13048 WR17X13048 GE COVER CONNECTOR FF FAN
WR17X35246 WR17X35246 GE COVER FAN FZ
WR02X13730 WR02X13730 GE COVER HARNESS
WR02X11614 WR02X11614 GE COVER HARNESS
WR55X30604 WR55X30604 GE COVER LED FZ ASSEMBLY
WR02X25126 WR02X25126 GE COVER MAINBOARD
WR32X24044 WR32X24044 GE COVER MP FRONT ASSEMBLY
WR02X26526 WR02X26526 GE COVER WATER FILTER ASSEMBLY
WR02X13765 WR02X13765 GE CROSSBAR PINION
WR87X24135 WR87X24135 GE CU1 COMPRESSOR SERVICE K
WR30X25485 WR30X25485 GE CUP FILL FZ IM
WR17X24925 WR17X24925 GE DAMPER VEGETABLE PAN
WR72X31329 WR72X31329 GE DELI PAN TOP REAR COVER
WR55X10794 WR55X10794 GE DISPENSER ASSEMBLY
WR17X13243 WR17X13243 GE DIVERTER AND BADGE ASSEMBLY
WR02X13764 WR02X13764 GE DIVIDER BASKET BOTTOM
WR02X23046 WR02X23046 GE DIVIDER BASKET UPPER
WR17X13086 WR17X13086 GE DIVIDER GALLON BIN
WR17X13193 WR17X13193 GE DIVIDER MEAT PAN
WR78X37408 WR78X37408 GE DOOR FOAM ASM FZ BOWED S
WR78X37438 WR78X37438 GE DOOR FOAM FF ND ASM ES
WR78X26428 WR78X26428 GE DOOR FOAM FF RH ASM ES
WR17X13240 WR17X13240 GE DORIAN GRAY ARTICULATING MULLION
WR86X25269 WR86X25269 GE DRYER FILTER
WR17X22149 WR17X22149 GE DUCT TOWER ASSEMBLY FF
WR17X35667 WR17X35667 GE EVAP COVER ASM FZ
WR87X36103 WR87X36103 GE EVAPORATOR AND TUBE ASSEMBLY FF
WR87X36102 WR87X36102 GE EVAPORATOR AND TUBE ASSEMBLY FZ
WR60X35205 WR60X35205 GE FAN DC FF EVAP
WR60X23363 WR60X23363 GE FAN GASKET ASSEMBLY
WR60X25858 WR60X25858 GE FAN MOTOR DC FZ EVAP
WR55X11132 WR55X11132 GE FF COVER LED ASSEMBLY
WR02X13684 WR02X13684 GE FILTER MANIFOLD
WR55X48386 WR55X48386 GE FRESH FOOD LED CHROME
WR02X28554 WR02X28554 GE FRIDGE DEFROST DRAIN TUBE CHECK VALVE
WR49X10268 WR49X10268 GE FRONT/REAR WHEEL AND AXLE
WR60X10352 WR60X10352 GE FZ FAN AND FELT ASSEMBLY
WR14X29300 WR14X29300 GE GASKET FF DGY
WR02X13731 WR02X13731 GE GASKET FF FAN FRONT
WR14X36194 WR14X36194 GE GASKET FZ DGY ES
WR04X10181 WR04X10181 GE GE BADGE
WR02X13630 WR02X13630 GE GEAR LWR DRW LH
WR02X13629 WR02X13629 GE GEAR LWR DRW RH
WR32X10911 WR32X10911 GE GLASS VEGETABLE PAN
WR72X27074 WR72X27074 GE GLIDE SUPPORT LH AND RH BIS
WR02X13729 WR02X13729 GE GRILLE THERMISTOR
WR02X23082 WR02X23082 GE GROMMET
WR02X13719 WR02X13719 GE GROMMET COMPRESSOR
WR02X13760 WR02X13760 GE GROMMET FF LINER
WR14X10055 WR14X10055 GE GROMMET TUBING SLIT.
WR72X10447 WR72X10447 GE GUIDE ROLLER VEGETABLE PAN
WR23X10777 WR23X10777 GE HARNESS DOOR CASE
WR23X10778 WR23X10778 GE HARNESS DOOR SWITCH AC
WR23X10748 WR23X10748 GE HARNESS GROUND
WR23X24389 WR23X24389 GE HARNESS POWER CORD
WR51X10133 WR51X10133 GE HEATER CONDUCTION FF
WR51X10134 WR51X10134 GE HEATER CONDUCTION FZ
WR51X10132 WR51X10132 GE HEATER DEF ASSEMBLY FF
WR51X10131 WR51X10131 GE HEATER DEF ASSEMBLY FZ
WR23X23626 WR23X23626 GE HEATER HARNESS FF
WR23X10745 WR23X10745 GE HEATER HARNESS FZ W/TCO
WR02X13739 WR02X13739 GE HINGE CAP
WR13X10982 WR13X10982 GE HINGE CENTER ASSEMBLY LH
WR13X10976 WR13X10976 GE HINGE CENTER ASSEMBLY RH
WR13X10984 WR13X10984 GE HINGE CENTER MULLION
WR17X20164 WR17X20164 GE HINGE ENDCAP ASSEMBLY DGY (2PK)
WR13X10985 WR13X10985 GE HINGE MULLION
WR13X25911 WR13X25911 GE HINGE TOP PIN ASSEMBLY LH
WR13X25910 WR13X25910 GE HINGE TOP PIN ASSEMBLY RH
WR02X10518 WR02X10518 GE HOLDER ELEMENT
WR02X13678 WR02X13678 GE HOLDER ELEMENT ASSEMBLY
WR17X23054 WR17X23054 GE HOUSING WIRE IM FZ
WD1X1459 WD1X1459 GE HSNG INSUL.
WD01X1459 WD01X1459 GE INSULATOR HSNG TERM
WR02X13770 WR02X13770 GE KIT ANTI TIP ASSEMBLY
WR55X46805 WR55X46805 GE MAIN BOARD ASSEMBLY
WR02X13724 WR02X13724 GE MASTIC SOUND DEADENING
WR32X10884 WR32X10884 GE PAN MEAT ASSEMBLY
WR32X10912 WR32X10912 GE PAN VEGETABLE RH ASSEMBLY
WR55X24585 WR55X24585 GE PCB ASSEMBLY HUMIDITY BOARD
WR02X32130 WR02X32130 GE PEX WATER LINE
WR01X11023 WR01X11023 GE PIN CROSS BAR
WR2X8247 WR2X8247 GE PLUG BUTTON
WR02X8247 WR02X8247 GE PLUG BUTTON WATER FILL
WR02X20877 WR02X20877 GE PLUG CONDUIT WATER TANK
31-51932 31-51932 GE PM MINI MANUAL SERVICE
49-60714 49-60714 GE PM QUICK USE & CARE
WR01X11040 WR01X11040 GE QUICK CLIP CONN 5/16
WR01X11041 WR01X11041 GE QUICK CLIP CONNECTOR 1/4
WR01X11007 WR01X11007 GE REFRIGERATOR DOOR HANDLE FASTENER
WR17X27084 WR17X27084 GE REFRIGERATOR EVAPORATOR COVER
WR24X27948 WR24X27948 GE REFRIGERATOR FRESH FOOD FAN BOOT
WR30X28682 WR30X28682 GE REFRIGERATOR ICEMAKER
WR55X10025 WR55X10025 GE REFRIGERATOR TEMPERATURE SENSOR
WR02X13738 WR02X13738 GE REFRIGERATOR UNION CONNECTOR - 1/4-INCH
WR01X29059 WR01X29059 GE REFRIGERATOR WATER FILTER BYPASS PLUG
WR02X13658 WR02X13658 GE ROLLER ASSEMBLY
WR01X11010 WR01X11010 GE SCR 1/4-20 GX TRT 7/8 S
WR01X11049 WR01X11049 GE SCR 1/4-20 HXW 7/8 S
WR01X11013 WR01X11013 GE SCR 10-18 FLT20 3/4 S
WR01X11032 WR01X11032 GE SCR 10-24 AB RNT 20 5/8
WR01X23749 WR01X23749 GE SCR 10-32 AB HXW 1/2 S
WR01X11044 WR01X11044 GE SCR 10-32 B RNS .353 S
WR1X1786 WR1X1786 GE SCR 10-32 TR 1/2
WR01X10897 WR01X10897 GE SCR 12-24TT BHT20 .700 S
WR01X10605 WR01X10605 GE SCR 6-22 PL IHXW 3/8 S
WR01X10649 WR01X10649 GE SCR 8-10 PL PNP 1/2 S
WR01X11065 WR01X11065 GE SCR 8-18 AB FLP 3/4 S ZN
WR01X1804 WR01X1804 GE SCR 8-18 AB HXW 3/4 WH
WR01X10626 WR01X10626 GE SCR 8-18 AB HXW 5/4 S
WR01X11012 WR01X11012 GE SCR 8-18 AB HXW 9/16 S
WR01X11060 WR01X11060 GE SCR 8-18 AB HXWP 9/16S
WR01X10593 WR01X10593 GE SCR 8-18 AB IHXW 3/4 S
WR01X10623 WR01X10623 GE SCR 8-18 AB IHXW 9/16 S
WR01X10588 WR01X10588 GE SCR 8-18 AB IHXW 9/16 S
WR01X11054 WR01X11054 GE SCR 8-18 FLP 1/2 S
WR01X11029 WR01X11029 GE SCR 8-18 FLP 1/2 S
WR01X11061 WR01X11061 GE SCR 8-18 HI/LO HWX 3/4
WR01X1757 WR01X1757 GE SCR 8-18 HXW 1 1/4S
WR01X10618 WR01X10618 GE SCR 8-18 TPT 1/4
WR01X10602 WR01X10602 GE SCR 8-32 AB IHWS 3/8 S
WR01X10635 WR01X10635 GE SCR 8-32 CA IHXW .625 S
WR01X26257 WR01X26257 GE SCR 8-32 HXW 3/4 S
WR01X10606 WR01X10606 GE SCREW
WB01X5364 WB01X5364 GE SCREW (CR)
WR01X11011 WR01X11011 GE SCREW 1/4-20 HXW 3/4S
WR01X10196 WR01X10196 GE SCREW 8-18 HI/LO 5/8
WR01X11016 WR01X11016 GE SCREW HINGE CTR ADJ
WR01X11046 WR01X11046 GE SCREW LEVELING ASSEMBLY
WB1X5364 WB1X5364 GE SCREW MTG
WR01X11036 WR01X11036 GE SCREW SET DOOR FZ
WR01X11014 WR01X11014 GE SET SCREW
WR32X10916 WR32X10916 GE SHELF ASSEMBLY
WR32X10915 WR32X10915 GE SHELF ASSEMBLY TUCKAWAY
WR01X11066 WR01X11066 GE SHUNT SENSOR
WR01X11053 WR01X11053 GE SLEEVE SPRING MULLION
WR72X29093 WR72X29093 GE SLIDE ASSEMBLY MEAT PAN
WR72X10453 WR72X10453 GE SLIDE HOLDER FZ LH
WR72X10451 WR72X10451 GE SLIDE HOLDER FZ RH
WR72X10454 WR72X10454 GE SLIDE LOWER FZ LH
WR72X10452 WR72X10452 GE SLIDE LOWER FZ RH
WR02X13679 WR02X13679 GE SPACER TRACK
WR01X11052 WR01X11052 GE SPRING HINGE MULLION
WR02X13634 WR02X13634 GE STOP DOOR RH/LH ASSEMBLY
WR02X13706 WR02X13706 GE STOPPER DIVIDER FZ UPPER
WR01X31733 WR01X31733 GE STRIKER TOP MULLION
WR02X13628 WR02X13628 GE SUPPORT BIN FZ
WR02X13668 WR02X13668 GE SUPPORT CONDENSER
WR72X10450 WR72X10450 GE SUPPORT SIDE LH
WR72X10448 WR72X10448 GE SUPPORT SIDE RH
WR02X13674 WR02X13674 GE SUPPORT SLIDE FZ
WR23X10333 WR23X10333 GE SWITCH ACTUATOR
WR23X23883 WR23X23883 GE SWITCH LIGHT
WR23X29170 WR23X29170 GE SWITCH LIGHT FF
WR02X13734 WR02X13734 GE TAPE FELT
WR50X10108 WR50X10108 GE THERMOSTAT DEFROST FZ
WR17X13226 WR17X13226 GE TOP COVER MIDDLE DGY
WR72X10429 WR72X10429 GE TRACK CENTER FF
WR72X21071 WR72X21071 GE TRACK SIDE FF
WR17X13091 WR17X13091 GE TROUGH DRAIN FF
WR17X13080 WR17X13080 GE TROUGH DRAIN FZ
WR02X20621 WR02X20621 GE TUBE FZ IM FILL HTR ASSEMBLY
WR84X10113 WR84X10113 GE TUBE FZ REPAIR ASSEMBLY
WR02X13774 WR02X13774 GE TUBE LEAD
WR87X23634 WR87X23634 GE TUBE SUCTION JUMPER
WR02X20879 WR02X20879 GE TUBE WATER DISP
WR02X32126 WR02X32126 GE TUBING PEX 55.3 IN
WR02X48625 WR02X48625 GE TUBING PEX 55.3 IN
WR86X10094 WR86X10094 GE VALVE BODY ASSEMBLY
WR57X20873 WR57X20873 GE VALVE DOUBLE IW ASSEMBLY
RPWFE RPWFE GE WATER FILTER
WR02X13685 WR02X13685 GE WHEEL
WR02X13616 WR02X13616 GE WHEEL OVERMOLD ASM REAR
WZ4X416 WZ4X416 GE WZ04X0408
