Model Image
Manufacturer

GE

Model Number

RA524W5

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB32X107 WB32X107 6 INCH CHROME BURNER BOWL - EL
WB30X0254 WB30X0254 6"" SURFACE ELEMENT
WB32X106 WB32X106 8 INCH CHROME BURNER BOWL - EL
WB30X0253 WB30X0253 8"" SURFACE ELEMENT
WB01X10294 WB01X10294 ALUMINUM TERMINAL LUG KT
WB02X8579 WB02X8579 ANTI-TIP BRACKET
WB63X5246 WB63X5246 BACK MAIN
WB7X7358 WB7X7358 BACKGUARD
WB7X7359 WB7X7359 BACKGUARD
WB07X7358 WB07X7358 BACKGUARD SHELL AD
WB07X10912 WB07X10912 BACKGUARD SHELL BISQUE
WB07X7359 WB07X7359 BACKGUARD SHELL WH
WB7X7397 WB7X7397 BACKGUARD WH
WB44X5094 WB44X5094 BAKE ELEMENT
WB2X8533 WB2X8533 BASE GUSSET
WB2X8534 WB2X8534 BASE GUSSET
WB2X8532 WB2X8532 BASE GUSSET
WB02X8533 WB02X8533 BASE GUSSET ASM LF
WB02X8532 WB02X8532 BASE GUSSET ASM RR
WB02X8534 WB02X8534 BASE GUSSET ASM RT
WB2X8579 WB2X8579 BRACKET - ANTI-TIP A
WB02X7894 WB02X7894 BRACKET-SPRING
WB2X7894 WB2X7894 BRKT-SPRING
WB44X5093 WB44X5093 BROIL ELEMENT
WB48X10055 WB48X10055 BROILER PAN & RACK SMALL 8-3/4
WB49X5468 WB49X5468 BROILER PAN AND RACK SMALL 8-3/4 X 13-1/2
WB48X5095 WB48X5095 BROILER PAN RACK. SMALL 9-7/8 X 12-13/16
WB49X5587 WB49X5587 BURNER BOX
WB07X7356 WB07X7356 CONTROL PANEL AD
WB07X10913 WB07X10913 CONTROL PANEL BISQUE
WB07X7357 WB07X7357 CONTROL PANEL WH
WB7X7356 WB7X7356 CONTROL PNL
WB7X7357 WB7X7357 CONTROL PNL
WB62X5473 WB62X5473 COOKTOP 24 ALMOND
WB62X10045 WB62X10045 COOKTOP 24 BISQUE
WB62X5474 WB62X5474 COOKTOP 24 WHITE
WB2X8580 WB2X8580 COVER SWITCH
WB02X8580 WB02X8580 COVER, SWITCH
WB56X10081 WB56X10081 DRAWER PANEL ALMOND
WB56X10635 WB56X10635 DRAWER PANEL BISQUE
WB56X10082 WB56X10082 DRAWER PANEL WHITE
WB32X0107 WB32X0107 DRIP PAN-6""
WB32X0106 WB32X0106 DRIP PAN-8""
WB07X7041 WB07X7041 END CAP, LF
WB07X7040 WB07X7040 END CAP, RT
WB56X7094 WB56X7094 FRAME OVEN FRONT
WB15X10170 WB15X10170 HANDLE
WB01X5791 WB01X5791 HANDLE SPACER (WHITE)
WB10X5220 WB10X5220 HINGE OV DOOR LF
WB10X5221 WB10X5221 HINGE OV DOOR RT
WB2X8587 WB2X8587 INSULATION
WB2X8581 WB2X8581 INSULATION
WB02X8587 WB02X8587 INSULATION OV BACK
WB02X11115 WB02X11115 INSULATION RETAINER
WB02X8581 WB02X8581 INSULATION WRAPPER
WB17T10006 WB17T10006 KIT SURF TERM BLOCK
WB03X10276 WB03X10276 KNOB - TOP ELEMENT
WB03X5859 WB03X5859 KNOB SURFACE UNIT 6""
WB01X5789 WB01X5789 LEVELING LEG
WB1X5789 WB1X5789 LEVELING LEG
WB55X5410 WB55X5410 LINING OV DOOR
WB02X7966 WB02X7966 LITE-INDICATOR
WB2X7966 WB2X7966 LITE-INDICTR
WB56X10573 WB56X10573 OVEN DOOR AD PANEL
WB56X10630 WB56X10630 OVEN DOOR BISQUE PANEL
WB55X10780 WB55X10780 OVEN DOOR INSULATION
WB56X10572 WB56X10572 OVEN DOOR WH PANEL
WB53X5161 WB53X5161 OVEN SIDE LF
WB53X5362 WB53X5362 OVEN SIDE RT
WB24X10142 WB24X10142 OVEN THERMOSTAT
WB48X5112 WB48X5112 RACK OVEN

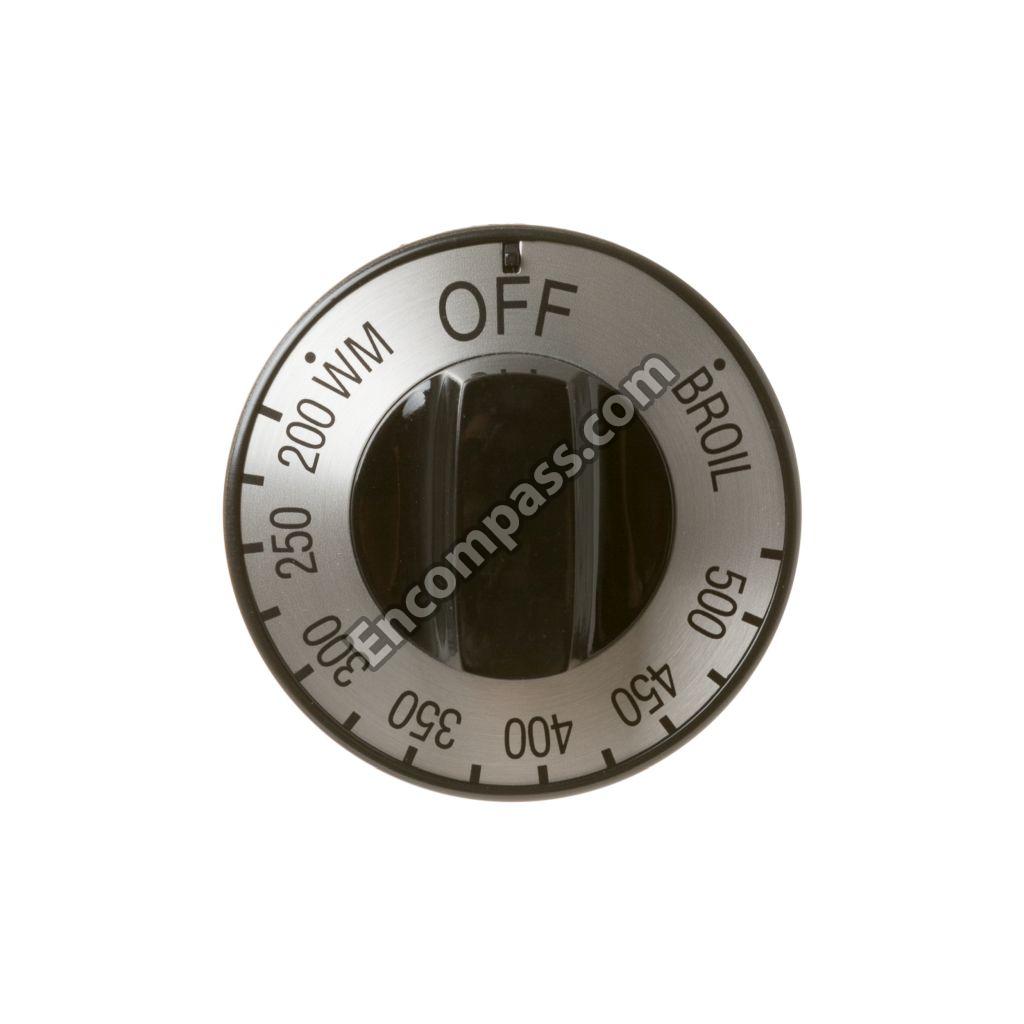

WB03X10262 WB03X10262 RANGE THERMOSTAT KNOB - BLACK
WB2X7891 WB2X7891 SEAL - OVEN SIDE
WB2X7892 WB2X7892 SEAL - OVEN TOP
WB02X7891 WB02X7891 SEAL-DOOR L/R
WB02X7892 WB02X7892 SEAL-HEAT
WB63X5211 WB63X5211 SIDE PANEL ALMOND
WB63X10052 WB63X10052 SIDE PANEL BISQUE
WB63X5210 WB63X5210 SIDE PANEL WHITE
WB1X5791 WB1X5791 SPACER
WB2X8583 WB2X8583 SPRING DOOR
WB02X8583 WB02X8583 SPRING,OVEN DOOR
WB21X5348 WB21X5348 SU SWITCH 1400W 6-INCH
WB21X5349 WB21X5349 SU SWITCH 2100W 8-INCH
WB30X254 WB30X254 SURF UNIT 6
WB30X253 WB30X253 SURF UNIT 8
WB17X5112 WB17X5112 TERMINAL BLOCK
49-8761 49-8761 UC/INSTALLATION JAS02 RA524
