Model Image
Manufacturer

GE

Model Number

RB525BH3CT

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB31T10010 WB31T10010 6 INCH CHROME BURNER BOWL - ELEC
WB31T10011 WB31T10011 8 INCH CHROME BURNER BOWL - ELEC

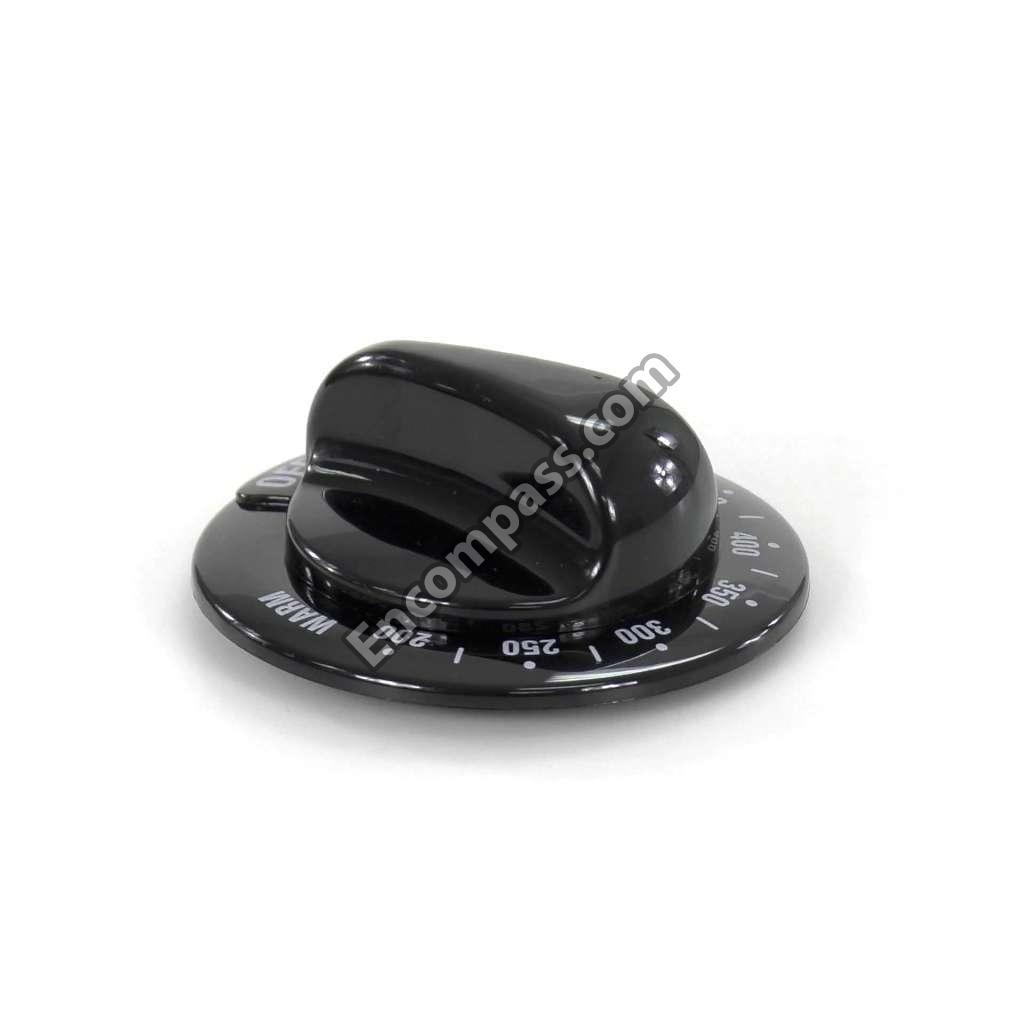

WB03K10185 WB03K10185 ASSEMBLY KNOB GE THERMOSTAT
WB63K10016 WB63K10016 BACK OVEN
WB30X46987 WB30X46987 BAKE ELEMENT
WB56X31457 WB56X31457 BISQUE DRAWER PANEL
WB64K10002 WB64K10002 BOX-COOKTOP
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASSEMBLY
WB02K0067 WB02K0067 BRACKET DOOR
WB2K67 WB2K67 BRACKET DOOR
WB02K10029 WB02K10029 BRACKET MTG TERMINAL
WB30X46986 WB30X46986 BROIL ELEMENT
WB25K0002 WB25K0002 CAMERA LENS
WB7K263 WB7K263 CAP END DR
WB7K264 WB7K264 CAP END DR
WB02K10070 WB02K10070 CARTON COVER THERMOSTAT
WB2X8228 WB2X8228 CLIP RECEPT
WB02X8228 WB02X8228 CLIP RECEPTACLE
WB02X8115 WB02X8115 CLIP WIRE
WB2X8115 WB2X8115 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB62K10081 WB62K10081 COOKTOP BISQUE
WB34K10031 WB34K10031 COVER BACK
WB34K10034 WB34K10034 COVER DRAWER
WB07K10023 WB07K10023 COVER END LEFT (BLACK)
WB07K10022 WB07K10022 COVER END RT (BLACK)
WB34K10032 WB34K10032 DIVIDER WIRING
WB58K10004 WB58K10004 DRAWER BODY
WB02K0043 WB02K0043 DRAWER SUPPORT
WB02K10158 WB02K10158 DRAWER SUPPORT
WB07K0264 WB07K0264 END CAP DOOR LFT (BK)
WB07K0263 WB07K0263 END CAP DOOR RT (BK)
WB07K10004 WB07K10004 END CAP LT (BLK)
WB07K10003 WB07K10003 END CAP RT (BLK)
WB63K10012 WB63K10012 FRONT FRAME ASSEMBLY
WB32K0003 WB32K0003 GASKET DOOR ASM
WB35X29720 WB35X29720 GASKET DOOR ASM
WB2K66 WB2K66 GD SUPT RGTP
WB56K31 WB56K31 GL DOOR BLK
WB56K0031 WB56K0031 GLASS DOOR (BLK)
WB02K10062 WB02K10062 GLIDER DRAWER LEFT
WB02K10061 WB02K10061 GLIDER DRAWER RIGHT
WB2K8 WB2K8 GROMMET
WB2X646 WB2X646 GROUND PLATE
WB63K10009 WB63K10009 GUARD INSULATION BOTTOM
WB34K10029 WB34K10029 GUARD TERMINAL
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15K1 WB15K1 HANDLE BROIL
WB15K0001 WB15K0001 HANDLE- DOOR (CR)
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB2X6195 WB2X6195 HINGE PIN
WB09K10001 WB09K10001 HOOK DOOR SPRING
WB03T10072 WB03T10072 INF KNOB (BLK)
WB24T10027 WB24T10027 INF SW CNTL 2100W RF LR
WB24T10022 WB24T10022 INF SWITCH CNTL 1250W
WB35K17 WB35K17 INSUL OV BCK
WB35K0004 WB35K0004 INSULATION DOOR
WB35K0017 WB35K0017 INSULATION OVEN BACK
WB35K0018 WB35K0018 INSULATION OVEN WRAP
WB35K10108 WB35K10108 INSULATION OVEN WRAP
WB17T10006 WB17T10006 KIT SURF TERM BLOCK
WB25K10002 WB25K10002 LAMP PILOT
WB02X10521 WB02X10521 LEG LEVELER
WB25T10041 WB25T10041 LENS
WB49X20801 WB49X20801 LINER ASM WD KIT
WB55K0002 WB55K0002 LINER ASM WELD DOOR
WB35K4 WB35K4 N/L/A 12/14/05
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB63K10006 WB63K10006 OVEN BOTTOM
WB63K10011 WB63K10011 OVEN SIDE LEFT
WB63K10010 WB63K10010 OVEN SIDE RIGHT
WB63K10021 WB63K10021 OVEN TOP
WB02K0062 WB02K0062 PAD FELT (2"")
WB2K62 WB2K62 PAD FELT 2
WB48X10056 WB48X10056 PAN BROILER
WB56K10011 WB56K10011 PANEL DRAWER (BISQUE)
WB63K10026 WB63K10026 PANEL SIDE (BISQUE)
WB63K10013 WB63K10013 PANEL SIDE (WHITE)
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB02X6195 WB02X6195 PIN HINGE DOOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
WB37K0018 WB37K0018 PLATE END LEFT
WB37K18 WB37K18 PLATE END LT
WB37K0017 WB37K0017 PLATE END RIGHT
WB37K17 WB37K17 PLATE END RT
WB02X0646 WB02X0646 PLATE-GROUND
31-21072 31-21072 PM MINIMANUAL/ELEC DIAG
49-88013 49-88013 PM USE AND CARE MANUAL
WB48T10095 WB48T10095 RACK OVEN
WB39K0016 WB39K0016 RAIL DRAWER
WB30K10002 WB30K10002 RANGE 6-INCH SURFACE ELEMENT
WB63K10005 WB63K10005 RANGE BACK
WB63K10233 WB63K10233 RANGE BASE SUPPORT
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB02K10025 WB02K10025 RANGE DRAWER MOUNTING BRACKET
WB39K16 WB39K16 RANGE DRAWER RAIL
WB01K10023 WB01K10023 RANGE HANDLE GROMMET
WB01K10020 WB01K10020 RANGE HANDLE SPACER
WB10K13 WB10K13 RANGE SUPPORT RIVET
WB04K10002 WB04K10002 RANGE VENT COVER
WB33K1 WB33K1 RET WIRE INS
WB2X1082 WB2X1082 RETAINER
WB33K0001 WB33K0001 RETAINER WIRE INSULATION
WB02X1082 WB02X1082 RING RETAINING
WB02K10026 WB02K10026 ROD SUPPORT
WB01K0063 WB01K0063 SCREW
WB01K0067 WB01K0067 SCREW
WB01K0021 WB01K0021 SCREW
WB01K0001 WB01K0001 SCREW
WB1K5119 WB1K5119 SCREW
WB1X536 WB1X536 SCREW
WB1X5716 WB1X5716 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5716 WB01X5716 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB1K63 WB1K63 SCREW 10-16 X 0.95 TYPE B
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB1K67 WB1K67 SCREW 8-22
WB01X23501 WB01X23501 SCREW 8-32 TT FLP .270
WB01X1261 WB01X1261 SCREW GROUND
WB01K10032 WB01K10032 SCREW HDL DOOR
WB1K62 WB1K62 SCREW HEAD PAINTED BLACK
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0062 WB01K0062 SCREW MTG END CAP (BK)
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01X0558 WB01X0558 SCREW NAIL POINT
WB01K10003 WB01K10003 SCREW-MTG END CAP (BLACK)
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB09K0001 WB09K0001 SPRING DOOR
WB9K1 WB9K1 SPRING DOOR
WB63K10232 WB63K10232 SUPPORT BASE
WB02K10028 WB02K10028 SUPPORT BROIL
WB10K10002 WB10K10002 SUPPORT HINGE CKTP LEFT
WB10K10001 WB10K10001 SUPPORT HINGE CKTP RT
WB10K0014 WB10K0014 SUPPORT RIVET LFT
WB10K0013 WB10K0013 SUPPORT RIVET RT
WB10K14 WB10K14 SUPT RIVET
WB30K10003 WB30K10003 SURFACE UNIT ASSEMBLY 8-INCH
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB20K10026 WB20K10026 THERMOSTAT TOP HEAT SP
WB36K10407 WB36K10407 TRIM AND BRACKET ASSEMBLY WELD
WB07K10232 WB07K10232 TRIM BOTTOM ASM
WB07K0379 WB07K0379 TRIM BOTTOM DOOR (BK)
WB07K10204 WB07K10204 TRIM POST BK
WB07K10203 WB07K10203 TRIM POST BK
WB07K10167 WB07K10167 TRIM TOP DOOR (BLACK)
WB38K10002 WB38K10002 TUBE-VENT
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
