Model Image
Manufacturer

GE

Model Number

RB526DP2CC

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB24T10022 WB24T10022 1250W RANGE SURFACE ELEMENT SWITCH
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB31T10010 WB31T10010 6 INCH CHROME BURNER BOWL - ELEC
WB31T10011 WB31T10011 8 INCH CHROME BURNER BOWL - ELEC
WB03K10186 WB03K10186 ASSEMBLY KNOB GE THERMOSTAT
WB02K0027 WB02K0027 BAIL
WB2K27 WB2K27 BAIL
WB56X31457 WB56X31457 BISQUE DRAWER PANEL
WB64K10009 WB64K10009 BOX COOKTOP
WB02K10384 WB02K10384 BRACKET ASSEMBLY ANTI-TIP
WB02K10077 WB02K10077 BRACKET CONTROL
WB37K10004 WB37K10004 BRACKET COOK TOP LF
WB37K10003 WB37K10003 BRACKET COOK TOP RG
WB02K10029 WB02K10029 BRACKET MTG TERMINAL
WB30X46986 WB30X46986 BROIL ELEMENT
WB02K10180 WB02K10180 BUMPER
WB25K0002 WB25K0002 CAMERA LENS
WB02K10070 WB02K10070 CARTON COVER THERMOSTAT
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB02K0050 WB02K0050 CLIP CRYSTAL
WB2K50 WB2K50 CLIP CRYSTAL
WB02K10133 WB02K10133 CLIP RECEPTICAL
WB02X8115 WB02X8115 CLIP WIRE
WB2X8115 WB2X8115 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB34K10066 WB34K10066 COVER BACK
WB56K5 WB56K5 CRYSTAL WIND
WB56K0005 WB56K0005 CRYSTAL WINDOW
WB56K0019 WB56K0019 CRYSTAL WINDOW
WB34K10083 WB34K10083 DIVIDER WIRING
WB35K10114 WB35K10114 DOOR INSULATION
WB58K10007 WB58K10007 DRAWER BODY
WB17T10006 WB17T10006 ELEC RANGE SURFACE BURNER TERMINAL BLOCK
WB07K10197 WB07K10197 END SUPPORT RT (BSQT)
WB27K10133 WB27K10133 FACEPLATE
WB63X21430 WB63X21430 FRAME WELD ASSEMBLY
WB32K0003 WB32K0003 GASKET DOOR ASM
WB35X29720 WB35X29720 GASKET DOOR ASM
WB2K66 WB2K66 GD SUPT RGTP
WB08K0005 WB08K0005 GLASS OVEN LAMP
WB02K10062 WB02K10062 GLIDER DRAWER LEFT
WB02K10061 WB02K10061 GLIDER DRAWER RIGHT
WB2K8 WB2K8 GROMMET
WB2X646 WB2X646 GROUND PLATE
WB56K10032 WB56K10032 GUARD INSULATION
WB63K10009 WB63K10009 GUARD INSULATION BOTTOM
WB34K0031 WB34K0031 GUARD RADIATION LFT
WB34K0030 WB34K0030 GUARD RADIATION RT
WB34K10029 WB34K10029 GUARD TERMINAL
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15T10036 WB15T10036 HANDLE DOOR (BISQUE)

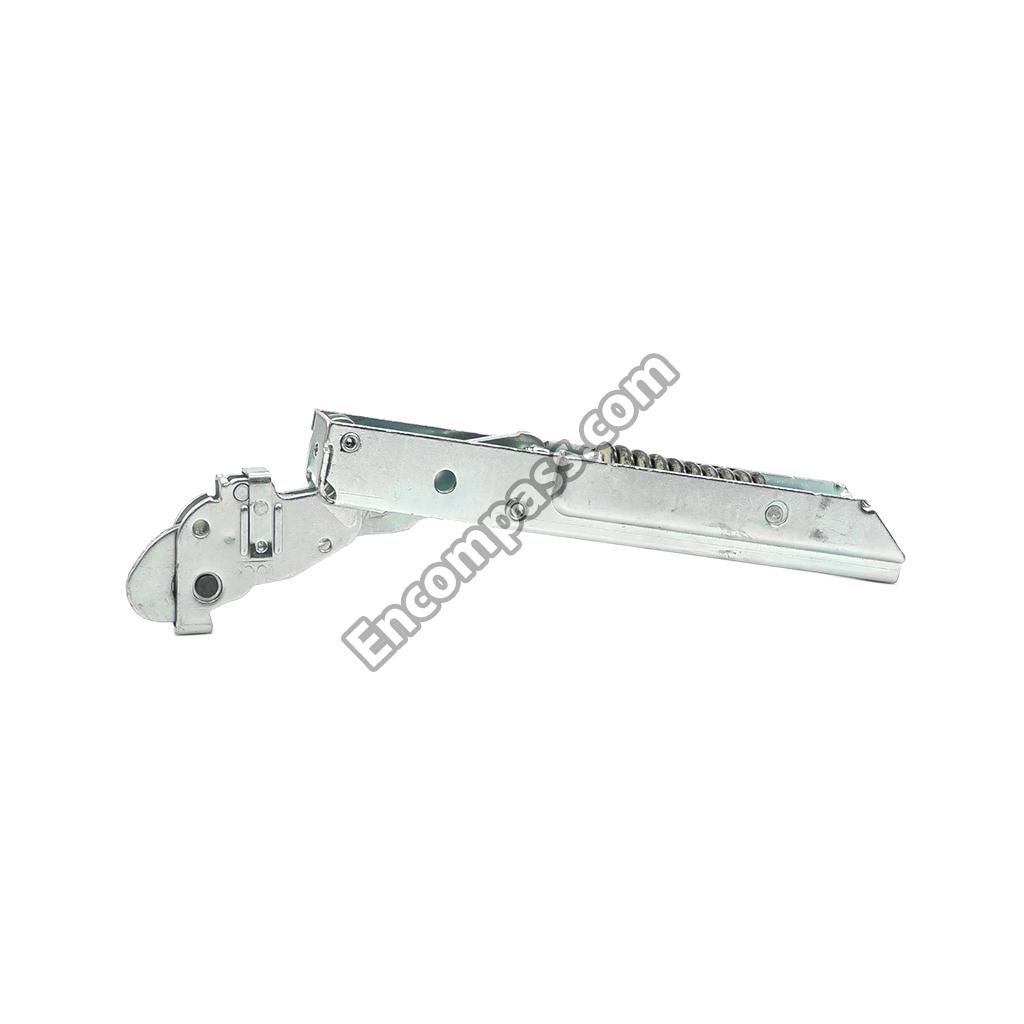

WB10X21978 WB10X21978 HINGE DOOR

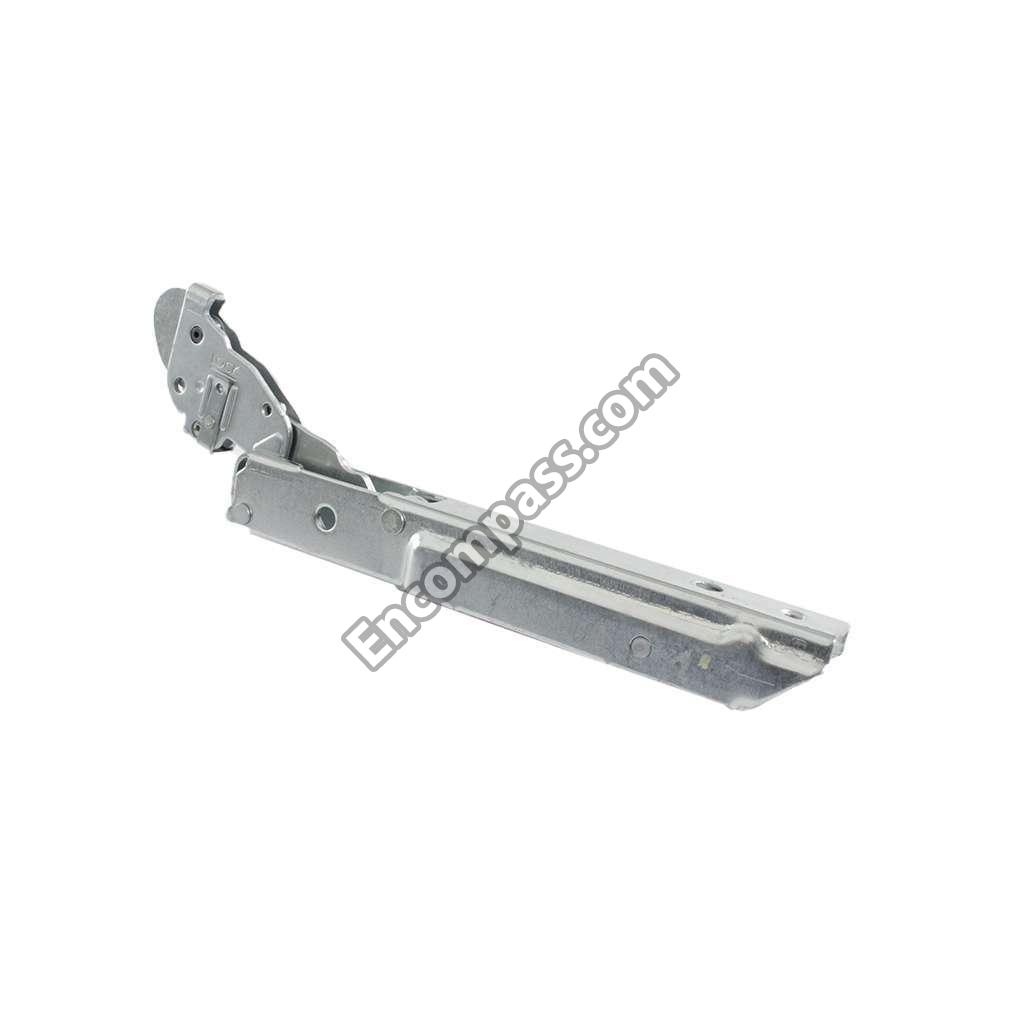

WB10X21363 WB10X21363 HINGE DOOR
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB03T10129 WB03T10129 INF KNOB (GE) BISQUE
WB24T10027 WB24T10027 INF SW CTN (2100W)
31-10831 31-10831 INSTALL INSTRUCTIONS
WB35K10107 WB35K10107 INSULATION OVEN BACK
WB35K10108 WB35K10108 INSULATION OVEN WRAP
WB25T10041 WB25T10041 LENS
WB56X21217 WB56X21217 LINER ASSEMBLY WELD DOOR
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB63K10007 WB63K10007 OVEN BACK
WB63K10006 WB63K10006 OVEN BOTTOM
WB63K10245 WB63K10245 OVEN SIDE LF
WB63K10146 WB63K10146 OVEN SIDE RT
WB63K10021 WB63K10021 OVEN TOP
WB56K10050 WB56K10050 PANEL DOOR
WB56K10011 WB56K10011 PANEL DRAWER (BISQUE)
WB63K10142 WB63K10142 PANEL SIDE
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
WB02K10075 WB02K10075 PLASTIC NAIL
WB02X0646 WB02X0646 PLATE-GROUND
31-10781 31-10781 PM INSTALL INSTRUCTIONS
31-21268 31-21268 PM MINI-MANUAL
49-88056 49-88056 PM OWNERS MANUAL
WB39K0016 WB39K0016 RAIL DRAWER
WB30K10002 WB30K10002 RANGE 6-INCH SURFACE ELEMENT
WB30K10021 WB30K10021 RANGE 8-INCH SURFACE ELEMENT
WB63K10005 WB63K10005 RANGE BACK
WB07X20288 WB07X20288 RANGE BARRIER DOOR
WB63K10233 WB63K10233 RANGE BASE SUPPORT
WB02K10025 WB02K10025 RANGE DRAWER MOUNTING BRACKET
WB39K16 WB39K16 RANGE DRAWER RAIL
WB02K10158 WB02K10158 RANGE DRAWER SUPPORT
WB07K10198 WB07K10198 RANGE END SUPPORT - LEFT - BISQUE
WB10X20220 WB10X20220 RANGE HINGE RECEIVER
WB49X21392 WB49X21392 RANGE HINGE SERVICE KIT
WB25K10002 WB25K10002 RANGE INDICATOR LIGHT
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB30X46987 WB30X46987 RANGE OVEN BAKE ELEMENT
WB36X192 WB36X192 RANGE OVEN BULB COVER
WB32K2 WB32K2 RANGE OVEN DOOR GASKET
WB48X20249 WB48X20249 RANGE OVEN RACK
WB34K31 WB34K31 RANGE RADIATION GUARD
WB34K30 WB34K30 RANGE RADIATION GUARD
WB62K10079 WB62K10079 RANGE TOP
WB04K10002 WB04K10002 RANGE VENT COVER
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB55K1 WB55K1 REFLECTOR
WB55K0001 WB55K0001 REFLECTOR LG
WB02K10026 WB02K10026 ROD SUPPORT
WB01K10073 WB01K10073 SCR 10-16PL PNT 2.22S
WB01K10042 WB01K10042 SCR 8-18 AB IHW 3/8 SN
WB01K0001 WB01K0001 SCREW
WB1K5119 WB1K5119 SCREW
WB1X536 WB1X536 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10091 WB01K10091 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01K0070 WB01K0070 SCREW 7-19
WB01K10018 WB01K10018 SCREW 8-18 (BISQUE)
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB1K67 WB1K67 SCREW 8-22
WB01X23501 WB01X23501 SCREW 8-32 TT FLP .270
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB63K10244 WB63K10244 SIDE OVEN
WB02K10156 WB02K10156 SPACER
WB02K10160 WB02K10160 SPACER DOOR
WB63K10232 WB63K10232 SUPPORT BASE
WB02K10028 WB02K10028 SUPPORT BROIL
WB24K10005 WB24K10005 SWITCH ROCKER (BISQUE)
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB20K10026 WB20K10026 THERMOSTAT ELECTRIC
WB27T10469 WB27T10469 TIMER TOD LED
WB36K10842 WB36K10842 TRIM CONTROL
WB38K10002 WB38K10002 TUBE-VENT
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB56K19 WB56K19 WIND PACK SM
