Model Image
Manufacturer

GE

Model Number

RB526WW4

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB32X5075 WB32X5075 6 INCH CHROME BURNER BOWL - EL
WB30M1 WB30M1 6 SURF ELEM
WB32X5076 WB32X5076 8 INCH CHROME BURNER BOWL - EL
WB30M2 WB30M2 8 SURF ELEM
WB02X1626 WB02X1626 BAFFLE
WB2X1626 WB2X1626 BAFFLE

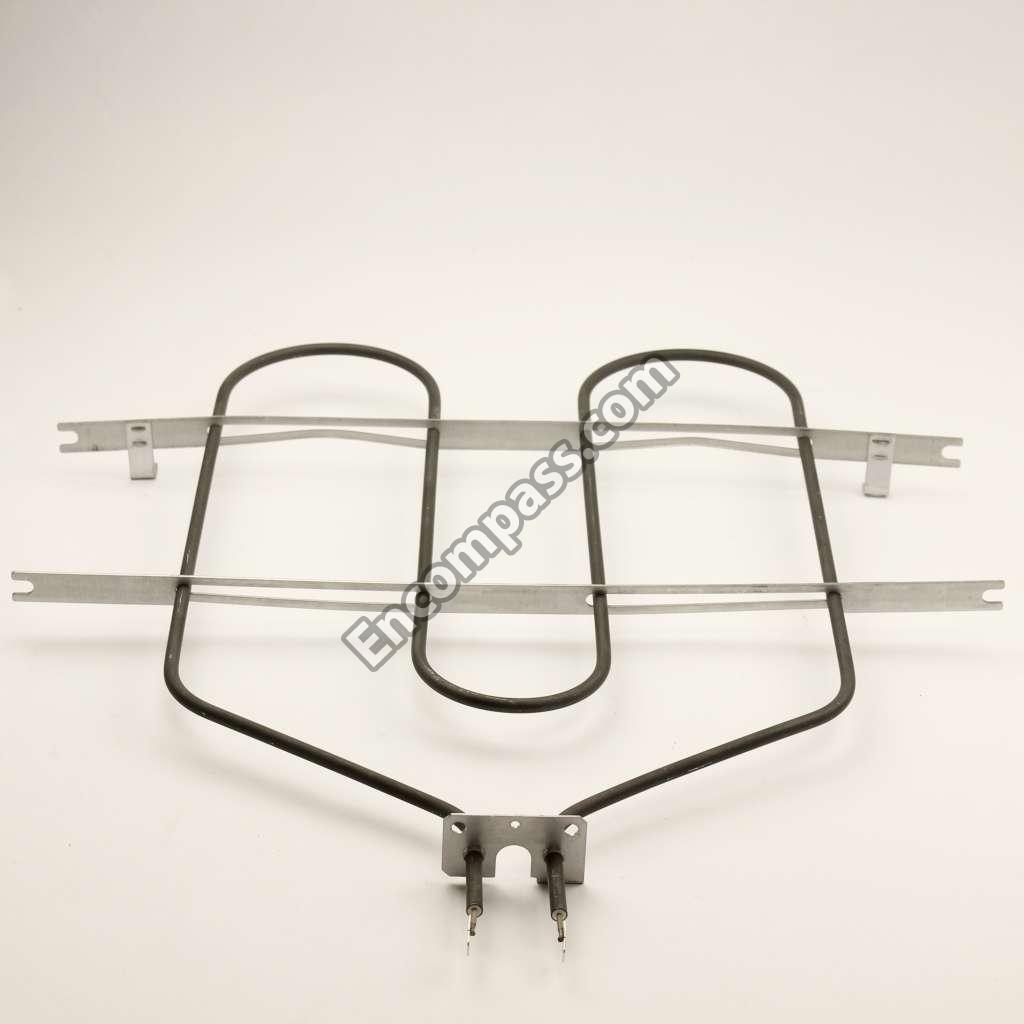

WB44X10009 WB44X10009 BAKE ELEMENT PUSH ON
WB17X5095 WB17X5095 BLOCK TERMINAL POWER
WB49X5566 WB49X5566 BOX COOKTOP
WB02T10415 WB02T10415 BRACKET ANTI-TIP ASM
WB44X10015 WB44X10015 BROIL PUSH/BUSHING
WB2X1452 WB2X1452 BROIL SUPPT
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB02X10522 WB02X10522 BUMPER RANGE
WB2X3394 WB2X3394 BUTTON
WB07X7145 WB07X7145 CAP END LEFT
WB7X7145 WB7X7145 CAP END LH
WB7X7146 WB7X7146 CAP END RH
WB07X7146 WB07X7146 CAP END RIGHT
WB02X1185 WB02X1185 CLIP
WB2X1185 WB2X1185 CLIP
WB2X8228 WB2X8228 CLIP RECEPT
WB02X8228 WB02X8228 CLIP RECEPTACLE
WB02X3193 WB02X3193 CLIP SHIM
WB2X8441 WB2X8441 CLIP THERMOS
WB02X8441 WB02X8441 CLIP THERMOSTAT
WB02X7226 WB02X7226 CLIP WIRE
WB2X7226 WB2X7226 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB62X5407 WB62X5407 COOKTOP
WB49X10011 WB49X10011 COVER BACK
WB55X5372 WB55X5372 DOOR LINER
WB58X5015 WB58X5015 DRAWER ASSEMBLY WELD
WB39X0051 WB39X0051 DRAWER GUIDE RH & LH
WB7X7344 WB7X7344 END CAP
WB07X7344 WB07X7344 END CAP DOOR LH WH
WB07X7343 WB07X7343 END CAP DOOR RH WH
WB7X7187 WB7X7187 END CAP-RH
WB02X10520 WB02X10520 FOOT EXTENSION
WB56X7075 WB56X7075 FRAME FRONT
WB02X8123 WB02X8123 GASKET
WB2X1522 WB2X1522 GASKET
WB57K11 WB57K11 GLASS DR WH
WB2X646 WB2X646 GROUND PLATE
WB02X8249 WB02X8249 GUARD TERMINAL
WB2X8249 WB2X8249 GUARD TERMNL
WB2X1460 WB2X1460 GUIDE
WB39X10004 WB39X10004 GUIDE DRAWER
WB02X6342 WB02X6342 GUIDE HINGE LEVER
WB15X10225 WB15X10225 HANDLE CHROME
WB10X5206 WB10X5206 HINGE LEVER
WB2X6195 WB2X6195 HINGE PIN
WB10X0149 WB10X0149 HINGE SPT LH
WB10X149 WB10X149 HINGE SPT LH
WB10X0148 WB10X0148 HINGE SPT RH
WB10X148 WB10X148 HINGE SPT RH
WB2X2506 WB2X2506 HOOK
WB09X5118 WB09X5118 HOOK ASM
WB9X5118 WB9X5118 HOOK ASM
WB02X2506 WB02X2506 HOOK DOOR SPRING
WB02X1608 WB02X1608 INDICATOR LAMP
WB21X36771 WB21X36771 INFINITE HEAT SWITCH KIT
49-8896 49-8896 INSTALLATION SHEET ANTI-TIP
WB2X8120 WB2X8120 INSUL BACK
WB2X8121 WB2X8121 INSUL WRAP
WB02X8125 WB02X8125 INSULATION
WB2X8125 WB2X8125 INSULATION
WB02X8120 WB02X8120 INSULATION BACK
WB02X8121 WB02X8121 INSULATION WRAP
WB25X0065 WB25X0065 JEWEL
WB25X65 WB25X65 JEWEL
WB3X5808 WB3X5808 KNOB INFINIT
WB03X5808 WB03X5808 KNOB INFINITE
WB3X5861 WB3X5861 KNOB SKIRT *NLA*
WB03X5861 WB03X5861 KNOB SKIRT ASM
WB02X8247 WB02X8247 KNOCKOUT PLATE
WB2X8247 WB2X8247 KNOCKOUT PLT
WB02X10521 WB02X10521 LEG LEVELER
WB53X5150 WB53X5150 LINER ASM WELD OVEN 23IN
WB09X0088 WB09X0088 LOCKWASHER
WB2X1608 WB2X1608 NEON LAMP
WB9X88 WB9X88 OVEN HOOK
WB02X3285 WB02X3285 PAD
WB2X3285 WB2X3285 PAD
WB56X10091 WB56X10091 PANEL DRAWER
WB49X10032 WB49X10032 PANEL FILLER ALMOND
WB02X6195 WB02X6195 PIN HINGE DOOR
WB07X10128 WB07X10128 PLATE END
WB07X10127 WB07X10127 PLATE END
WB07X7269 WB07X7269 PLATE END WH LH
WB07X7268 WB07X7268 PLATE END WH RH
WB02X0646 WB02X0646 PLATE-GROUND
WB02X3394 WB02X3394 PLUG BUTTON
49-8918 49-8918 PM MANUAL USE & CARE
WB48X5099 WB48X5099 RACK OVEN
WB2X1082 WB2X1082 RETAINER
WB02X1082 WB02X1082 RING RETAINING
WB1X5873 WB1X5873 SCR 10-16 B
WB01X5873 WB01X5873 SCR 10-16 B PNP 2.95 S
WB01X5906 WB01X5906 SCR 6-20 AB FHT 3/8 S WH
WR01X1850 WR01X1850 SCR 7-19 HXW 1/2
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB1X5906 WB1X5906 SCR WHITE
WB01X0537 WB01X0537 SCREW
WR1X1850 WR1X1850 SCREW
WB1X537 WB1X537 SCREW
WB1X5832 WB1X5832 SCREW SHOULD
WB01X5832 WB01X5832 SCREW SHOULDER
WB01X5874 WB01X5874 SCREW WH
WB01K10004 WB01K10004 SCREW-MTG END CAP (WHITE )
WB1X500D WB1X500D SCREW-PKG 12
WB2X3193 WB2X3193 SHIM-CLIP
WB02X10562 WB02X10562 SLIDE GUIDE
WB02X0840 WB02X0840 SLIDE TOP
WB2X840D WB2X840D SLIDE-PKG 12
WB38X5063 WB38X5063 SMOKE ELM & TUBE ASSEMBLY
WB02X8558 WB02X8558 SPACER
WB2X8558 WB2X8558 SPACER
WB02X8246 WB02X8246 SPACER HANDLE
WB2X8246 WB2X8246 SPCR HANDLE
WB09X0146 WB09X0146 SPRING DOOR
WB9X146 WB9X146 SPRING-DOOR
WB31X5021 WB31X5021 STAINLESS STEEL CENTER TRIM FO
WB2X8107 WB2X8107 STRIKE CKTOP
WB02X8107 WB02X8107 STRIKE COOKTOP
WB02X1452 WB02X1452 SUPPORT BROIL
WB21X5243 WB21X5243 SWITCH, INF SURFACE UNIT

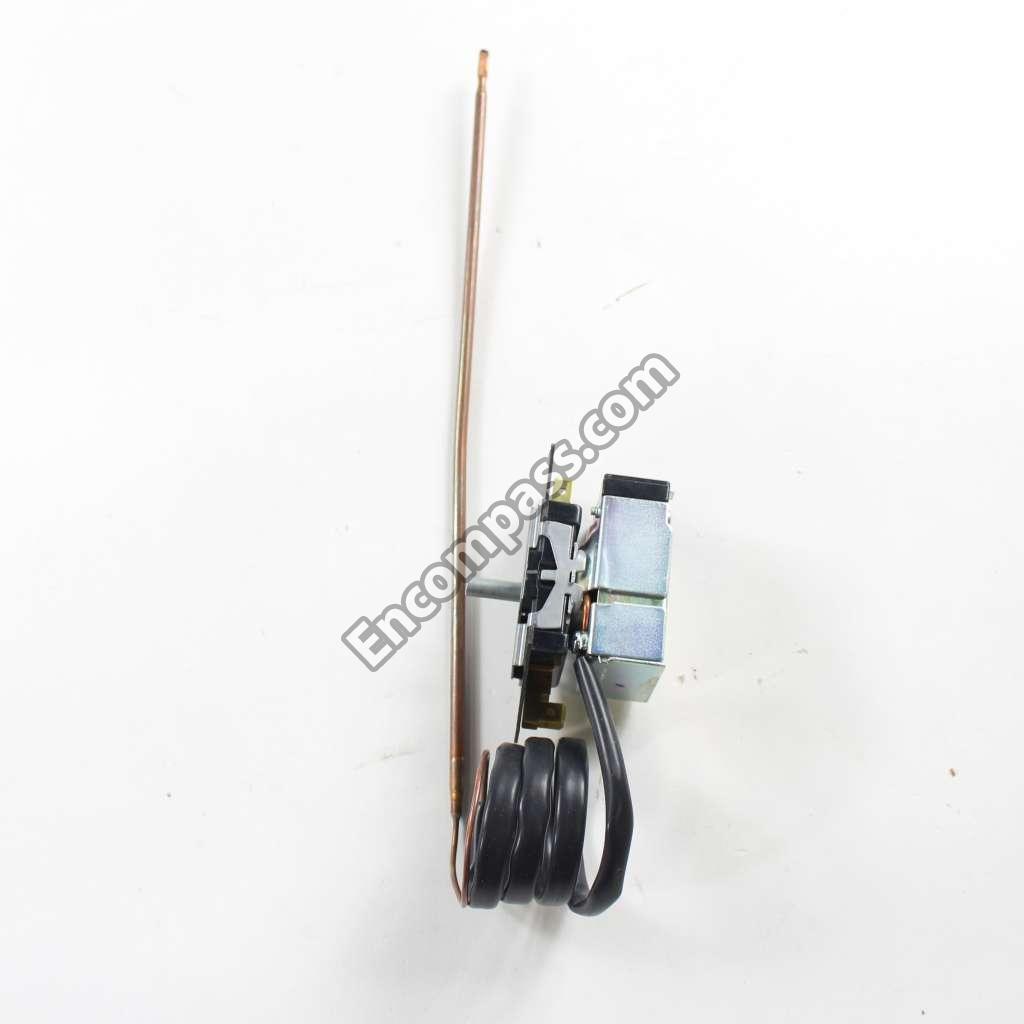

WB20X5071 WB20X5071 THERMOSTAT TOP HEAT SP
WB07X7198 WB07X7198 TRIM BOTTOM (WH)
WB07K10250 WB07K10250 TRIM BOTTOM ASM
WB36X5773 WB36X5773 TRIM CONTROL
WB7X7345 WB7X7345 TRIM DOOR LF
WB07X7345 WB07X7345 TRIM DOOR LH WH
WB07X7346 WB07X7346 TRIM DOOR RH WH
WB7X7346 WB7X7346 TRIM DOOR RT
WB07X10170 WB07X10170 TRIM VENT & CLIP
WB1X119D WB1X119D WASHR-PKG 12
WB62X5455 WB62X5455 WELD ASM RANGETOP WH
