Model Image
Manufacturer

GE

Model Number

RB636*A1

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB63X5096 WB63X5096 ""U"" FRAME ASSEMBLY
WB32X10012 WB32X10012 6 INCH CHROME BURNER PAN - ELE
WB31X5013 WB31X5013 6 INCH CHROME TRIM RING - ELEC
WB32X10013 WB32X10013 8 INCH CHROME BURNER PAN - ELE
WB31X5014 WB31X5014 8 INCH CHROME TRIM RING - ELEC
WB63X5191 WB63X5191 BACK COVER
WB63X5193 WB63X5193 BACK COVER
WB02X2885 WB02X2885 BAIL
WB2X2885 WB2X2885 BAIL

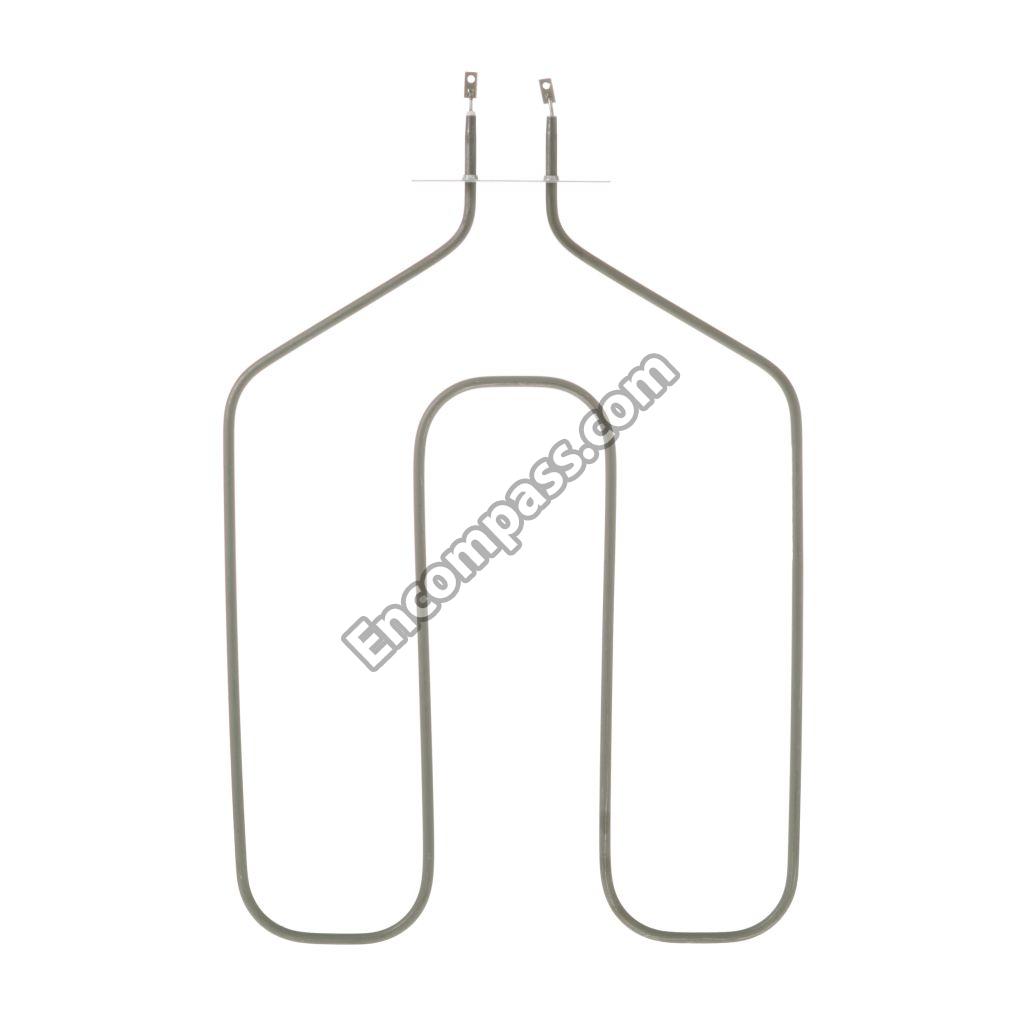

WB44X5099 WB44X5099 BAKE UNIT 236V L O
WB07X5607 WB07X5607 BEZEL
WB17X5095 WB17X5095 BLOCK TERMINAL POWER
WB2X3447 WB2X3447 BRACKET SUP **NLA*
WB02X3447 WB02X3447 BRACKET SUPPORT
WB02X6519 WB02X6519 BRACKET TERMINAL BLOCK
WB49X0088 WB49X0088 BROIL PAN
WB2X1452 WB2X1452 BROIL SUPPT
WB44X5074 WB44X5074 BROIL UNIT 208/240V L O
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB02X5521 WB02X5521 BUMPER
WB2X5521 WB2X5521 BUMPER
WB02X5410 WB02X5410 CAM
WB32X0052 WB32X0052 CENTER TRIM 6"" UNIT
WB32X0051 WB32X0051 CENTER TRIM 8"" UNIT
WB32X52 WB32X52 CENTER TRIM SAYS GENUINE CALRO
WB32X51 WB32X51 CENTER TRIM SAYS GENUINE CALRO
WB02X1185 WB02X1185 CLIP
WB2X3325 WB2X3325 CLIP
WB2X1185 WB2X1185 CLIP
WB02X5165 WB02X5165 CLIP CABLE

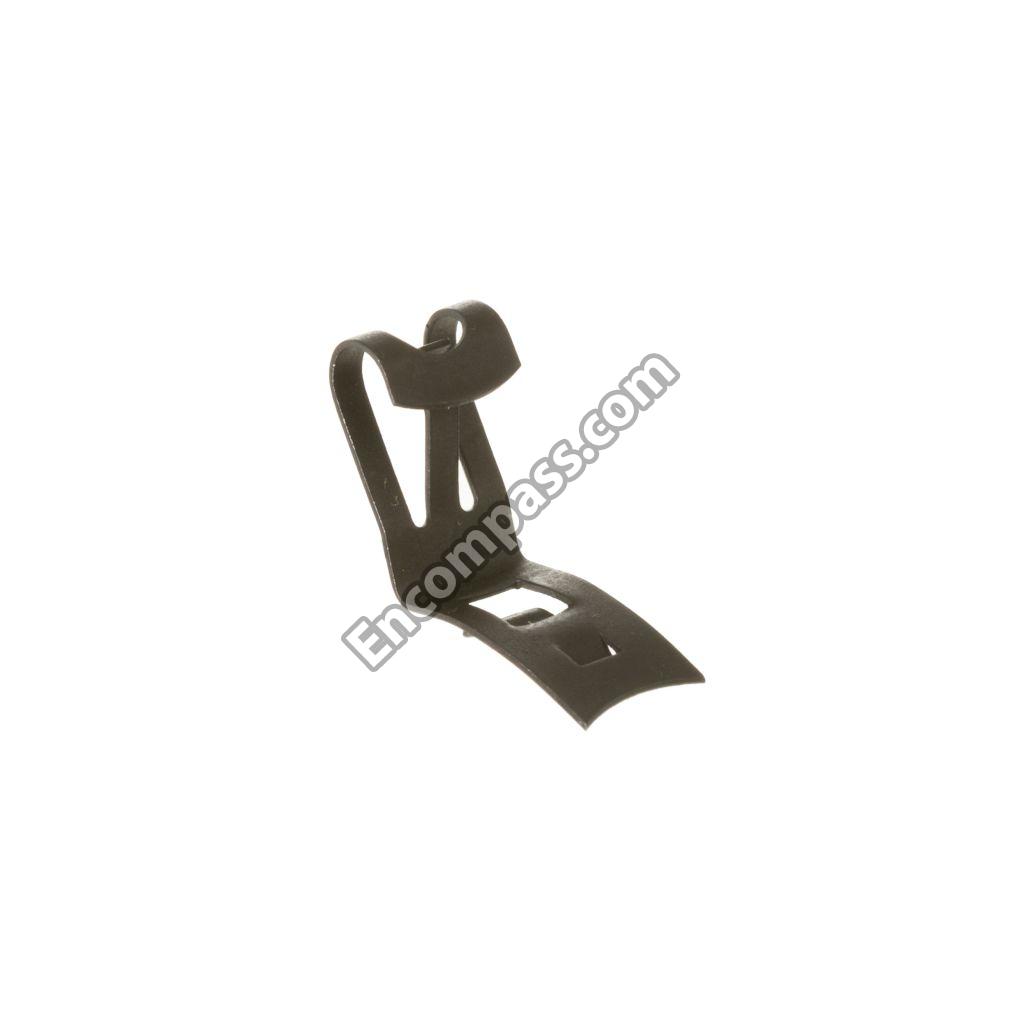

WB02X5041 WB02X5041 CLIP FOR THERMOSTAT TUBE
WB02X0574 WB02X0574 CLIP INSULATOR
WB02X3325 WB02X3325 CLIP MTG TIMER
WB2X574D WB2X574D CLIP-PKG 12
WB01X0119 WB01X0119 CONTOURED WASHER
WB61X5996 WB61X5996 CONTROL PANEL - AD
WB61X5993 WB61X5993 CONTROL PANEL - CF
WB61X5994 WB61X5994 CONTROL PANEL - FA
WB61X5995 WB61X5995 CONTROL PANEL - HA
WB61X5992 WB61X5992 CONTROL PANEL - WH
WB62X5230 WB62X5230 COOKTOP - AD
WB62X5227 WB62X5227 COOKTOP - CF
WB62X5228 WB62X5228 COOKTOP - FA
WB62X5229 WB62X5229 COOKTOP - HA
WB62X5226 WB62X5226 COOKTOP - WH
WB36X5321 WB36X5321 CRYSTAL TIMER
WB10X5109 WB10X5109 DOOR GUIDE ASM.-LH & RH
WB09X5018 WB09X5018 DOOR SPRING
WB10X5022 WB10X5022 DOOR SUPRT
WB58X5003 WB58X5003 DRAWER ASSEMBLY
WB39X5008 WB39X5008 DRAWER GUIDE **NLA*
WB02X5116 WB02X5116 DRAWER SLIDE - NYLON (AT REAR OF DRAWER)
WB07X6692 WB07X6692 END CASTING - LH
WB07X6691 WB07X6691 END CASTING - RH
WB01X0560 WB01X0560 FIBER WASHER
WB02X5729 WB02X5729 FOOT FOR BAKE UNIT
WB02X6528 WB02X6528 FRAME WINDOW
WB2X5103 WB2X5103 GASKET
WB02X5084 WB02X5084 GASKET - BOTTOM (1-1/2"")
WB02X5103 WB02X5103 GASKET - TOP & SIDES
WB01X5530 WB01X5530 GROMMET
WB2X646 WB2X646 GROUND PLATE
WB01X5272 WB01X5272 HANDLE MTG. SCREW
WB02X6036 WB02X6036 HANDLE SUPPORT
WB02X6821 WB02X6821 HEAT SHIELD
WB2X5682 WB2X5682 HINGE PIN
WB02X5682 WB02X5682 HINGE PIN FOR SERVICE 3/16"" DIA.
WB02X1608 WB02X1608 INDICATOR LAMP
WB21X36771 WB21X36771 INFINITE HEAT SWITCH KIT
WB55X5180 WB55X5180 INNER DOOR LINER
WB02X6530 WB02X6530 INSULATION
WB02X5208 WB02X5208 INSULATION BACK
WB2X5206 WB2X5206 INSULATIONN/L/A
WB2X2398 WB2X2398 INSULATOR
WB25X0065 WB25X0065 JEWEL
WB25X65 WB25X65 JEWEL
WB03X5503 WB03X5503 KNOB - SWITCH OVEN
WB3X5503 WB3X5503 KNOB OVEN
WB3X5479 WB3X5479 KNOB SURF
WB03X5479 WB03X5479 KNOB SURFACE UNIT
WB3X5481 WB3X5481 KNOB TEMP
WB03X5481 WB03X5481 KNOB THERMOSTAT
WB03X0459 WB03X0459 KNOB TIMER
WB3X459 WB3X459 KNOB TIMER
WB8X208 WB8X208 LAMP ASM
WB36X192 WB36X192 LAMP COV ASM
WB01X0450 WB01X0450 LEG LEVELING
WB1X5516 WB1X5516 LEVEL LEG
WB02X5206 WB02X5206 LINER INSULATION WRAP
WB02X5217 WB02X5217 LINK CAM
WB63X5190 WB63X5190 LOWER COVER ASSEMBLY
WB02X5522 WB02X5522 MOUNTING CLIP
WB01X5203 WB01X5203 MOUNTING SCREW
WB1X5065 WB1X5065 N.L.A.U NUT
WB2X5410 WB2X5410 N/L/A 01/19/09
WB2X5084 WB2X5084 N/L/A 01/20/00
WB2X5218 WB2X5218 N/L/A 02/10/03
WB2X5500 WB2X5500 N/L/A 05/17/99
WB1X5530D WB1X5530D N/L/A 05/19/02
WB2X5217 WB2X5217 N/L/A 10/29/09
WB2X1608 WB2X1608 NEON LAMP
WB15X5125 WB15X5125 NLA PART
WB01X5371 WB01X5371 NUT 700626A
WB63X5183 WB63X5183 OVEN FRONT
WB36X0389 WB36X0389 OVEN LAMP CAMERA LENS
WB53X5076 WB53X5076 OVEN LINER
WB38X5032 WB38X5032 OVEN VENT
WB07X5638 WB07X5638 OVERLAY
WB56X5824 WB56X5824 PANEL - AD
WB56X5717 WB56X5717 PANEL - AD
WB56X5821 WB56X5821 PANEL - CF
WB56X5714 WB56X5714 PANEL - CF
WB56X5822 WB56X5822 PANEL - FA
WB56X5715 WB56X5715 PANEL - FA
WB56X5823 WB56X5823 PANEL - HA
WB56X5716 WB56X5716 PANEL - HA
WB56X5820 WB56X5820 PANEL - WH
WB56X5713 WB56X5713 PANEL - WH
WB02X5218 WB02X5218 PEEK LIGHT SPRING
WB02X0646 WB02X0646 PLATE-GROUND
WB08X0191 WB08X0191 RECEPTACLE
WB8X191 WB8X191 RECEPTACLE
WB02X5681 WB02X5681 RETAINING RING FOR HINGE PIN
WB10X5042 WB10X5042 ROLL SUPT LH
WB10X5041 WB10X5041 ROLL SUPT RH
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WZ04X0319 WZ04X0319 SCR 8-18 BA OPR 1 7/16 S
WZ05X0250 WZ05X0250 SCR 8-32 T HXW 5/16 S
WB01X5136 WB01X5136 SCREW - INCL. WASHERS NO. 10-24X1/2""
WB01X5166 WB01X5166 SCREW MT. SUPPORT
WB01X5485 WB01X5485 SCREW MTG. - UNITS TO CO
WB01X5484 WB01X5484 SCREW MTG. - WINDOW TO L
WB04X0350 WB04X0350 SCREW MTG. COOKTOP FRONT
WB01X5218 WB01X5218 SCREW MTG. S.U. SWITCH
WB1X5439D WB1X5439D SCREW PKG 12
WZ4X319D WZ4X319D SCREW-PKG 12
WZ4X350D WZ4X350D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WZ05X0196 WZ05X0196 SCREWBOTTOM
WB22X5134 WB22X5134 SELECTOR SWITCH
WB48X5012 WB48X5012 SHELF STRAIGHT
WB56X5732 WB56X5732 SIDE PANEL - AD
WB56X5729 WB56X5729 SIDE PANEL - CF
WB56X5730 WB56X5730 SIDE PANEL - FA
WB56X5731 WB56X5731 SIDE PANEL - HA
WB56X5728 WB56X5728 SIDE PANEL - WH
WB02X5760 WB02X5760 SLEEVING
WB02X5828 WB02X5828 SLEEVING AT TERMINALS
WB2X5115 WB2X5115 SLIDE
WB02X5115 WB02X5115 SLIDE - NYLON (AT FRONT OF GUIDE)
WB01X5134 WB01X5134 SPEC. SCREW - TRIMMED HD. 1/2-28X3/8""
WB01X5493 WB01X5493 SPEEDNUT MTG. HEAT SHIEL
WB01X5065 WB01X5065 SPEEDNUT ON HANDLE SUPPORT
WB9X5018 WB9X5018 SPRING
WB09X5022 WB09X5022 SPRING FOR OVEN LINER
WB2X6036 WB2X6036 SUPPORT
WB02X1452 WB02X1452 SUPPORT BROIL
WB30X0342 WB30X0342 SURFACE UNIT, 6""
WB30X0348 WB30X0348 SURFACE UNIT, 8""
WB24K2 WB24K2 SWITCH
WB21X0242 WB21X0242 SWITCH, INF SURFACE UNIT
WB24X0105 WB24X0105 SWITCH, OVEN LIGHT
WB2X1351 WB2X1351 TERM BLOCK
WB02X1351 WB02X1351 TERM BLOCK DOUBLE COIL
WB02X2398 WB02X2398 TERM BLOCK SINGLE COIL
WB17X0168 WB17X0168 TERMINAL BLOCK, POWER
WB02X6521 WB02X6521 TERMINAL BOX COVER
WB21X5209 WB21X5209 THERMOSTAT L O
WB21X0177 WB21X0177 THERMOSTAT, OVEN L.O.
WB19X0148 WB19X0148 TIMER
WB19X10007 WB19X10007 TIMER
WB63X5132 WB63X5132 TOP INSULATION COVER
WB02X3448 WB02X3448 TRIM LAMP
WB7X5022 WB7X5022 TRIM PLATE
WB07X5022 WB07X5022 TRIM PLATE LOWER OVEN
WB07X5612 WB07X5612 TRIM SIDE - LH
WB07X5613 WB07X5613 TRIM SIDE - RH
WB30X342 WB30X342 UNIT 6 HR
WB30X348 WB30X348 UNIT 8 HR
WB32X0036 WB32X0036 UNIT PAN 6""
WB38X5037 WB38X5037 VENT TUBE
WB49X5005 WB49X5005 VENT TUBE BAFFLE
WB1X560D WB1X560D WASHR-PKG 12
WB1X119D WB1X119D WASHR-PKG 12
WB2X5041D WB2X5041D WB2X5041D
WB02X5505 WB02X5505 WINDOW BRACKET
WB02X5500 WB02X5500 WINDOW GASKET
WB36X5318 WB36X5318 WINDOW-DOOR **NLA*
