HOTRB787GY2BB
Model Image
Manufacturer

GE

Model Number

RB787GY2BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 GE 28 CERAMA BR
WB1K5200 WB1K5200 GE 340531
WB2X7909 WB2X7909 GE ANTI-TIP RANGE KIT
WB37M5 WB37M5 GE BACKGD BODY
WB37M0005 WB37M0005 GE BACKGUARD BODY
WB37K5032 WB37K5032 GE BACKGUARD PANEL FRONT
WB06X0128 WB06X0128 GE BACKGUARD SUPPORT LT
WB06X0127 WB06X0127 GE BACKGUARD SUPPORT-RT
WB34M0046 WB34M0046 GE BAFFLE-RIGHT
WB44K5012 WB44K5012 GE BAKE ELEMENT
WB2K5271 WB2K5271 GE BASE ASM
WB02K5274 WB02K5274 GE BASE ASM W/LEVELERS
WB34M0045 WB34M0045 GE BBB BAFFLE-LT
WB6X128 WB6X128 GE BKGD SUPP LT **NLA*
WB6X127 WB6X127 GE BKGD SUPP RT
WB17X5095 WB17X5095 GE BLOCK TERMINAL POWER
WB2X9148 WB2X9148 GE BLOCK-FRONT
WB2X9146 WB2X9146 GE BLOCK-REAR
WB02X9000 WB02X9000 GE BODY SIDE CLEAT
WB63K5189 WB63K5189 GE BODY SIDE-TEXTURED
WB63K5188 WB63K5188 GE BODY SIDE-TEXTURED
WB2X9882 WB2X9882 GE BRACKET
WB34M45 WB34M45 GE BRNR BOX BAF
WB34M46 WB34M46 GE BRNR BOX BAF
WB64K5075 WB64K5075 GE BRNR BOX BOT
WB44X0232 WB44X0232 GE BROIL ELEMENT 240V
WB02X9719 WB02X9719 GE BROIL ELEMENT SUPPORT
WB48X10056 WB48X10056 GE BROILER PAN
WB44X232 WB44X232 GE BROILUNT 240
WB7K87 WB7K87 GE CAP HANDLE L
WB07K0087 WB07K0087 GE CAP HANDLE LEFT (BK)
WB7K88 WB7K88 GE CAP HANDLE R
WB07K0088 WB07K0088 GE CAP HANDLE RIGHT (BK)
WB56X1907 WB56X1907 GE CENTER GLASS
WX10X302 WX10X302 GE CERAMA BRYTE COOKTOP SCRAPER
WB2X9000 WB2X9000 GE CLEAT
WB02X9443 WB02X9443 GE CLIP
WB2X9443 WB2X9443 GE CLIP-BACKSPL
WB2X9404 WB2X9404 GE CLIP-KNOB
WB27K5256 WB27K5256 GE CLOCK PLATE (BLACK)
WB27K5251 WB27K5251 GE CLOCK/OVEN CONTROL
WB36K5635 WB36K5635 GE CONTROL PANEL
WB02X9152 WB02X9152 GE COVER
WB2X9152 WB2X9152 GE COVER
WB06X0134 WB06X0134 GE COVER RACEWAY
WB34K5092 WB34K5092 GE DISCONNECT SHIELD
WB02X9037 WB02X9037 GE DOOR HANDLE SPACER-BLACK
WB02K5312 WB02K5312 GE DOOR HANDLE SPACER-WHITE
WB02X9434 WB02X9434 GE DOOR LATCH HANDLE
WB55T10005 WB55T10005 GE DOOR PLUG
WB2K5312 WB2K5312 GE DR HNDL SPCR
WB58X65 WB58X65 GE DRAWER
WB56M0003 WB56M0003 GE DRAWER SUPPORT
WB38K5033 WB38K5033 GE DUCT INSULATION COVER
WB23M24 WB23M24 GE EL CTL 1500W
WB23M23 WB23M23 GE ELE CTL 2000
WB23M0024 WB23M0024 GE ELEMENT CONTROL 1400W
WB23M0023 WB23M0023 GE ELEMENT CONTROL 2000W
WB30T10003 WB30T10003 GE ELEMENT SURF 1500W
WB36K5399 WB36K5399 GE END CAP-LT
WB36K5398 WB36K5398 GE END CAP-RT
WB56K5144 WB56K5144 GE FRAME OVEN DR (BLACK)
WB63T10030 WB63T10030 GE FRONT FRAME
WB64X0093 WB64X0093 GE GLASS CLEANER
WB57K5333 WB57K5333 GE GLASS MAINTOP ASSEMBLY-BLACK
WB02X9178 WB02X9178 GE GLASS MTG PLATE
WB2M1 WB2M1 GE GLASS RETNR
WB02X9877 WB02X9877 GE GLASS SUPPORT-LEFT
WB02X9876 WB02X9876 GE GLASS SUPPORT-RIGHT
WB01X1260 WB01X1260 GE GROUND WASHER
WB1X1260 WB1X1260 GE GRUND WASHER
WB2X9434 WB2X9434 GE HANDLE-LATCH
WB14X0103 WB14X0103 GE HINGE ASM-LT
WB14X0104 WB14X0104 GE HINGE ASM-RT
WB14X103 WB14X103 GE HINGE-LEFT
WB14X104 WB14X104 GE HINGE-RIGHT
WB35K5098 WB35K5098 GE HOT LIGHT INSULATION
WB25M8 WB25M8 GE IND LIGHT
WB25M9 WB25M9 GE IND LIGHT LE
WB2K5317 WB2K5317 GE IND LITE BKT
WB25M0008 WB25M0008 GE INDICATOR LIGHT
WB25K5020 WB25K5020 GE INDICATOR LIGHT
WB02K5317 WB02K5317 GE INDICATOR LIGHT BRACKET
WB25M0009 WB25M0009 GE INDICATOR LIGHT CAMERA LENS
WB3K5193 WB3K5193 GE INF KNOB BLK
WB03K5193 WB03K5193 GE INFINITE KNOB-BLACK
WB02K5097 WB02K5097 GE INS RETAINER-DR DOOR LATCH
WB02K5093 WB02K5093 GE INS RETAINER-LO
WB2K5097 WB2K5097 GE INS RETNR DR
WB02T10077 WB02T10077 GE INSLN RETAINER-LO
31-10059 31-10059 GE INSTALLATION INSTRUCTION
WB2M38 WB2M38 GE INSUL RETNR
WB2X9430 WB2X9430 GE INSULATION
WB35T10003 WB35T10003 GE INSULATION BACK & BTM
WB02M0038 WB02M0038 GE INSULATION RETAINER
WB35M0022 WB35M0022 GE INSULATION TOP &SIDES
WB02X9718 WB02X9718 GE INSULATION TOP SIDES
WB35K5027 WB35K5027 GE INSULATION-LOCK BOX
WB2X9880 WB2X9880 GE INSULATOR
WB02X9880 WB02X9880 GE INSULATOR-MICRO SWITCH
WB55T10134 WB55T10134 GE KIT-DR LINER DARK ENA
WB02X9404 WB02X9404 GE KNOB CUP
WB14T10004 WB14T10004 GE LATCH ASM
WB2X9188 WB2X9188 GE LEG-LEVELING
WB02X9188 WB02X9188 GE LEVELER LEG
WB2X9881 WB2X9881 GE LEVER-SWITCH
WB3K5154 WB3K5154 GE LOCK KNOB BL
WB03K5154 WB03K5154 GE LOCK KNOB-BLACK
WB01K5046 WB01K5046 GE LOCKWASHER
WB56K5060 WB56K5060 GE LOWER FRONT PANEL
WB63K5187 WB63K5187 GE MAIN BACK
WB02K5268 WB02K5268 GE MAIN TOP BRACKET
WB35K5111 WB35K5111 GE MAINTOP FRAME INSULATION
WB24K5092 WB24K5092 GE MICRO SWITCH
31-13256 31-13256 GE MINI MANUAL W/WIRE DIAG.
WB2K5268 WB2K5268 GE MTOP BRCKT
WB21X497 WB21X497 GE N/L/A 09/22/05
WB56X1910 WB56X1910 GE OV DOOR INS RETAINER
WB02M0001 WB02M0001 GE OV DR GLASS RETAINER
WB35K5026 WB35K5026 GE OV DR INSULATION
WB57K5141 WB57K5141 GE OV DR INTERMED GLASS
WB25M0010 WB25M0010 GE OV LAMP CAMERA LENS
WB25M10 WB25M10 GE OV LAMP LENS
WB2K5319 WB2K5319 GE OVDR GASKET
WB63T10002 WB63T10002 GE OVEN BODY
WB02K5319 WB02K5319 GE OVEN DOOR GASKET
WB57K5215 WB57K5215 GE OVEN DOOR GLASS-OUTER
WB55T10003 WB55T10003 GE OVEN DOOR LINING
WB09X0273 WB09X0273 GE OVEN DOOR SPRING
WB08K5042 WB08K5042 GE OVEN LAMP HOLDER
WB48X0208 WB48X0208 GE OVEN RACK
WB48M4 WB48M4 GE OVEN RACK
WB8K5042 WB8K5042 GE OVLAMP HLDR
WB01X1251 WB01X1251 GE PAL NUT
WB1X1251 WB1X1251 GE PAL NUT
WB2X9178 WB2X9178 GE PLATE
WB34K5199 WB34K5199 GE PLATE COVER
WB02T10054 WB02T10054 GE PLATE RANGE SERVICE M
WB17M0005 WB17M0005 GE POWER RING HOUSING
WB2X9415 WB2X9415 GE RACEWAY
WB2K5318 WB2K5318 GE RAD HTR BRKT
WB02K5318 WB02K5318 GE RADIANT HEATER BRACKET
WB02X9502 WB02X9502 GE RADIANT HEATER STUD
WB9K5014 WB9K5014 GE RADIANT SPRG
WB09K5014 WB09K5014 GE RADIANT SPRING
WB15X10225 WB15X10225 GE RANGE HANDLE
WB02X9427 WB02X9427 GE RANGE SERVICE MTG PLATE
WB06K5036 WB06K5036 GE RAZOR BLADE SCRAPER
39-4753 39-4753 GE RB 787 GT WT USE & CARE
WB2K5316 WB2K5316 GE REINF PLATE
WB02K5316 WB02K5316 GE REINFORCEMENT PLATE
WB24K5035 WB24K5035 GE ROCKER SWITCH
WB01X32746 WB01X32746 GE SCR ST 8A8 X .625 TR NI
WB01M0013 WB01M0013 GE SCREW
WB01X1346 WB01X1346 GE SCREW
WB01X1116 WB01X1116 GE SCREW
WB01X1258 WB01X1258 GE SCREW
WB01X1172 WB01X1172 GE SCREW
WB01X1253 WB01X1253 GE SCREW
WB01X1152 WB01X1152 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WB01X1137 WB01X1137 GE SCREW
WB01X1127 WB01X1127 GE SCREW
WB01K5123 WB01K5123 GE SCREW
WB01M0001 WB01M0001 GE SCREW
WB01K5138 WB01K5138 GE SCREW
WB1X1293 WB1X1293 GE SCREW
WB1X1258 WB1X1258 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1X1116 WB1X1116 GE SCREW
WB1X1346 WB1X1346 GE SCREW
WB1X681 WB1X681 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1X1172 WB1X1172 GE SCREW
WB1X1152 WB1X1152 GE SCREW
WB1X1149 WB1X1149 GE SCREW 10-16 X 3/8
WB1K5191 WB1K5191 GE SCREW FL ZNC 10-32
WB01K5191 WB01K5191 GE SCREW FLAT ZINC 10-32
WB01X1261 WB01X1261 GE SCREW GROUND
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 GE SCREW TC10-32X.250HEXNI
WB01X1424 WB01X1424 GE SCREW, TRANSFORMER
WB1X1130 WB1X1130 GE SCREW-10-32
WB1X1137 WB1X1137 GE SCREW-10AB
WB1X1118 WB1X1118 GE SCREW-6-32T 6-20 X 3/8
WB01K5160 WB01K5160 GE SCREW-BLACK
WB1K5160 WB1K5160 GE SCREW-BLACK
WB01X1149 WB01X1149 GE SCREW-BRIGHT NICKEL
WB01X1118 WB01X1118 GE SCREW-NICKEL
WB01X1174 WB01X1174 GE SCREW-NICKLE
WB1X1424D WB1X1424D GE SCREW-PKG 12
WB1K5123 WB1K5123 GE SCREWS, MOUNTING BRACKET
WB2X9168 WB2X9168 GE SEAL
WB02X9168 WB02X9168 GE SEAL GLASS OV DR INNER
WB21X5301 WB21X5301 GE SENSOR ASM
WB02X9148 WB02X9148 GE SLIDE BLOCK FRONT
WB02X9146 WB02X9146 GE SLIDE BLOCK-REAR
WB01X1177 WB01X1177 GE SPACER
WB1X1177 WB1X1177 GE SPACER
WB2X9037 WB2X9037 GE SPACER-HNDL
WB09X0251 WB09X0251 GE SPRING
WB9X251 WB9X251 GE SPRING
WB9X273 WB9X273 GE SPRING-DOOR
WB02X9400 WB02X9400 GE STABILITY BRACKET KIT
WB58X0065 WB58X0065 GE STORAGE DRAWER
WB2X9502 WB2X9502 GE STUD
WB2X9719 WB2X9719 GE SUPP-BROIL
WB56M3 WB56M3 GE SUPPORT DRWR
WB2X9877 WB2X9877 GE SUPPORT-LEFT
WB2X9876 WB2X9876 GE SUPPORT-RGHT

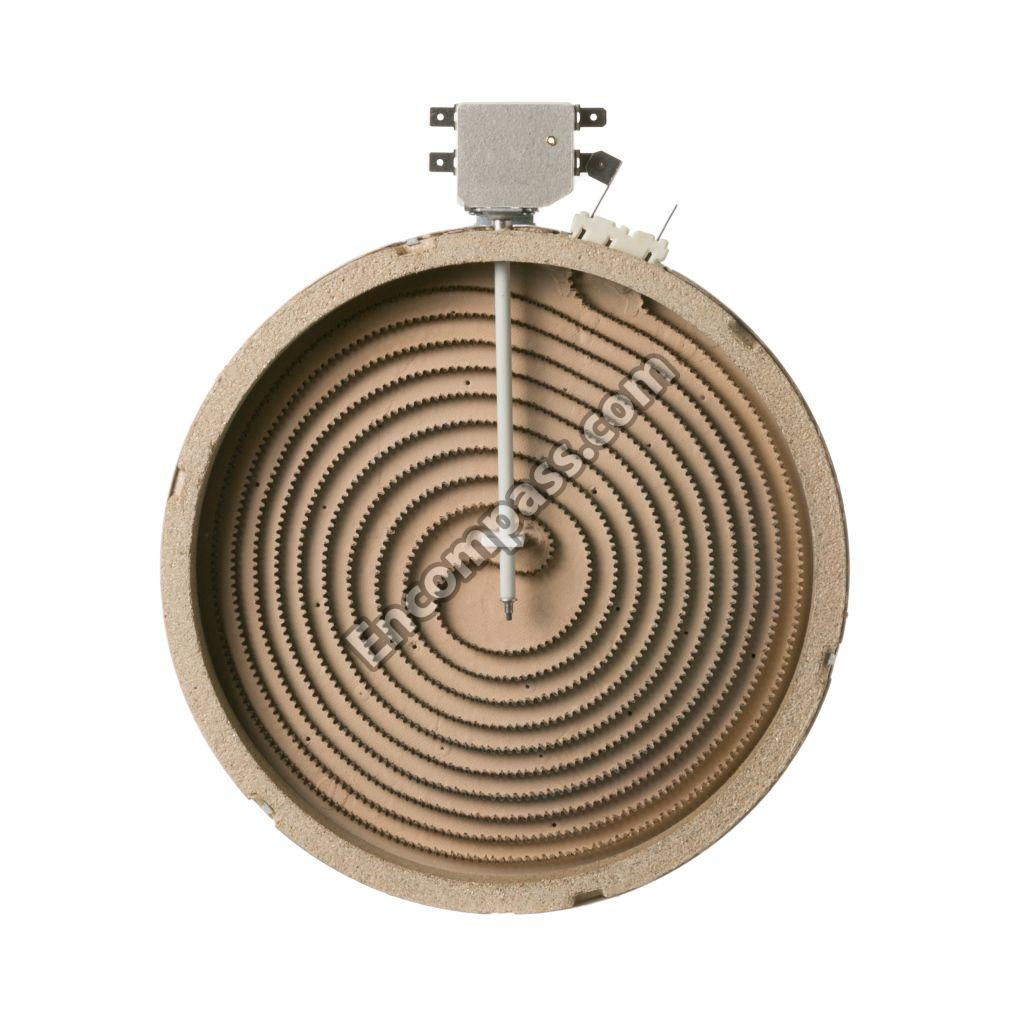

WB30X5111 WB30X5111 GE SURFACE ELEMENT-2000W
WB30X38926 WB30X38926 GE SURFACE ELEMENT-2000W
WB02X9882 WB02X9882 GE SWITCH BRACKET
WB02X9881 WB02X9881 GE SWITCH LEVER
WB24M16 WB24M16 GE THERM SWITCH
WB24K5114 WB24K5114 GE THERMAL SWITCH
WB24K5103 WB24K5103 GE THERMAL SWITCH 1900W
WB3K5194 WB3K5194 GE THERMOS KNOB
WB03K5194 WB03K5194 GE THERMOSTAT KNOB-BLACK
WB35M22 WB35M22 GE TOP&SD INSUL
WB1K5177 WB1K5177 GE TRIM SCREW 10-16 X 3/4 BLK
WB01K5177 WB01K5177 GE TRIM SCREW-BLACK
WB64K5068 WB64K5068 GE UNKNOWN
WB34M20 WB34M20 GE UP WIRE CVR
WB34K5093 WB34K5093 GE UPPER WIRE COVER
WB38K5049 WB38K5049 GE VENT BOX ASM
WB35K5052 WB35K5052 GE VENT DUCT INSULATION
WB38M0001 WB38M0001 GE VENT TUBE
WB38M1 WB38M1 GE VENT TUBE
WB38K5050 WB38K5050 GE VENT TUBE EXTENSION
WB01K5174 WB01K5174 GE WASHER
WB01K5054 WB01K5054 GE WASHER
WB1K5046 WB1K5046 GE WASHER
WB1K5174 WB1K5174 GE WASHER
WB1K5054 WB1K5054 GE WASHER
WB2X9416 WB2X9416 GE WB2X9416
WB34M0020 WB34M0020 GE WIRE COVER-UPPER
WB02X9415 WB02X9415 GE WIRE RACEWAY
