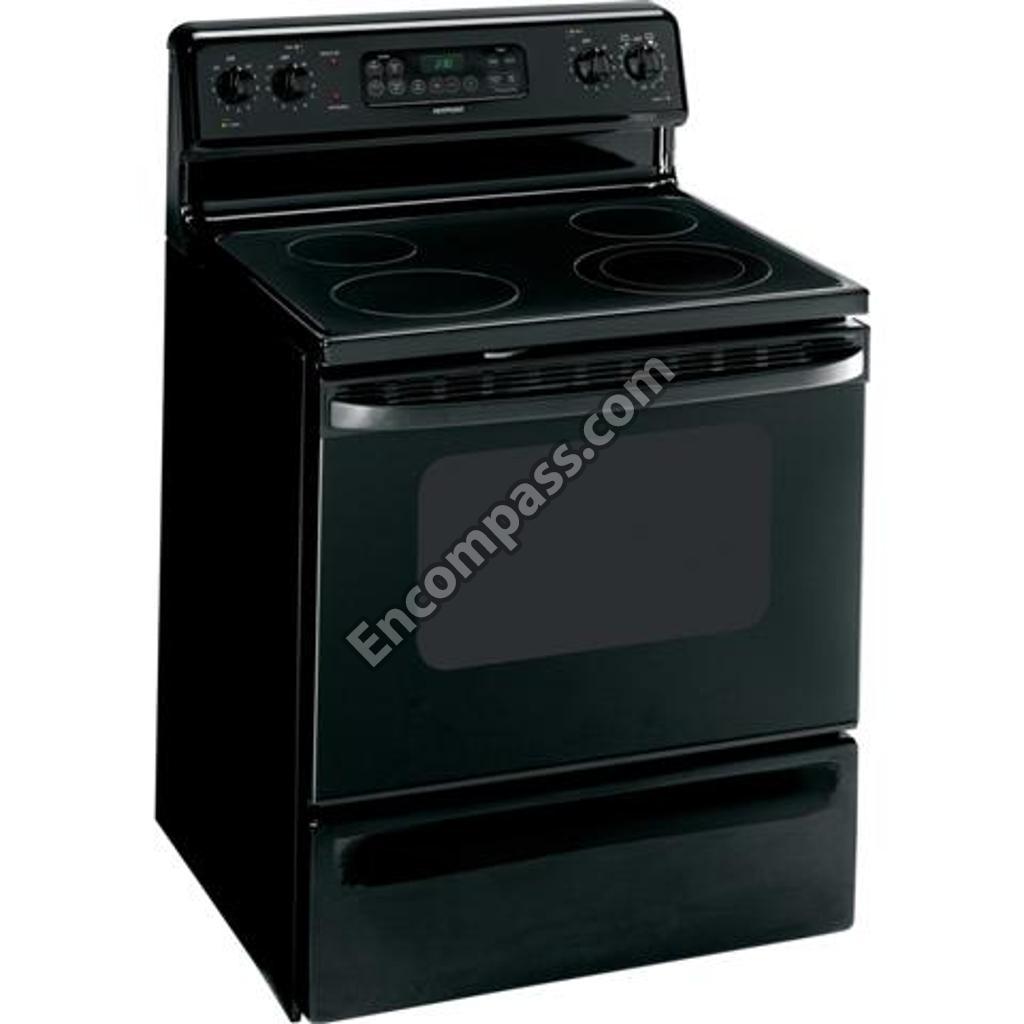

Model Image
Manufacturer

GE

Model Number

RB790DT1BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 GE 28 CERAMA BR
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB02K0027 WB02K0027 GE BAIL
WB2K27 WB2K27 GE BAIL
WB07K10342 WB07K10342 GE BARRIER DOOR
WB56X31458 WB56X31458 GE BLACK DRAWER PANEL
WB63K10105 WB63K10105 GE BOTTOM OVEN
WB02K10077 WB02K10077 GE BRACKET CONTROL
WB02K10029 WB02K10029 GE BRACKET MTG TERMINAL
WB02K10292 WB02K10292 GE BRACKET RADIANT ELEMENT
WB02K10293 WB02K10293 GE BRACKET RADIANT ELEMENT
WB02K10040 WB02K10040 GE BRACKET VENT
WB02K10178 WB02K10178 GE BUMPER
WB25K0002 WB25K0002 GE CAMERA LENS
WB7K263 WB7K263 GE CAP END DR
WB7K264 WB7K264 GE CAP END DR
WB2K22 WB2K22 GE CLIP WIRE
WB02K0022 WB02K0022 GE CLIP WIRE
WB27K10348 WB27K10348 GE CONTROL OVEN TO9 (ELEC)
WB02K10038 WB02K10038 GE CORNER BRACE
WB34K10120 WB34K10120 GE COVER BACK
WB56K0020 WB56K0020 GE CRYSTAL WINDOW
WB58K10011 WB58K10011 GE DRAWER BODY
WB24T10153 WB24T10153 GE ELECTRIC RANGE SURFACE ELEMENT CONTROL
WB34K10119 WB34K10119 GE ENCLOSURE COOKTOP FRONT
WB07K0264 WB07K0264 GE END CAP DOOR LFT (BK)
WB07K0263 WB07K0263 GE END CAP DOOR RT (BK)
WB07K10212 WB07K10212 GE END SUPPORT
WB63K10202 WB63K10202 GE FRAME WELD ASM.
WB35X29722 WB35X29722 GE GASKET ASSEMBLY. DOOR
WB32K0005 WB32K0005 GE GASKET OVEN LIGHT
WB32K0002 WB32K0002 GE GASKET OVEN SEAL LG
WB35K10019 WB35K10019 GE GASKET VENT
WB64X0093 WB64X0093 GE GLASS CLEANER
WB57K0004 WB57K0004 GE GLASS DOOR (BLK)
WB57K4 WB57K4 GE GLASS DR BLK
WB08K0005 WB08K0005 GE GLASS OVEN LAMP
WB02K10062 WB02K10062 GE GLIDER DRAWER LEFT
WB02K10061 WB02K10061 GE GLIDER DRAWER RIGHT
WB2K8 WB2K8 GE GROMMET
WB2X646 WB2X646 GE GROUND PLATE
WB56K12 WB56K12 GE GUARD INSUL
WB56K0012 WB56K0012 GE GUARD INSULATION
WB34K10029 WB34K10029 GE GUARD TERMINAL
WB34K10054 WB34K10054 GE GUARD TERMINAL COMP
WB30X38928 WB30X38928 GE HALIANT ELEMENT 6-INCH CERSP
WB30T10045 WB30T10045 GE HALIANT ELEMENT 8-INCH
WB10K0012 WB10K0012 GE HINGE ASM GUIDE
WB34K0004 WB34K0004 GE HINGE GUARD LEFT
WB34K0003 WB34K0003 GE HINGE GUARD RIGHT
WB2X6195 WB2X6195 GE HINGE PIN
WB14K10003 WB14K10003 GE HINGE RANGE TOP
WB34K4 WB34K4 GE HNGE GRD LFT
WB34K3 WB34K3 GE HNGE GRD RGT
WB09K10001 WB09K10001 GE HOOK DOOR SPRING
WB8K1 WB8K1 GE HOUS RECEPTL
WB08K0001 WB08K0001 GE HOUSING RECEPTACLE
WB24T10027 WB24T10027 GE INF SW CTN (2100W)
WB35K10102 WB35K10102 GE INSULATION BOTTOM DOOR
WB35K10104 WB35K10104 GE INSULATION OVEN BACK
WB35K10103 WB35K10103 GE INSULATION OVEN WRAP
WB35K10101 WB35K10101 GE INSULATION SIDE DOOR
WB35K10018 WB35K10018 GE INSULATION-VENT
WB02K10144 WB02K10144 GE LATCH ASSEMBLY
WB25T10041 WB25T10041 GE LENS
WB55K10042 WB55K10042 GE LINER ASSEMBLY WELD DOOR
WB01K0003 WB01K0003 GE NUT SPEED
WB1K3 WB1K3 GE NUT SPEED
WB53K10029 WB53K10029 GE OVEN BACK
WB63K10106 WB63K10106 GE OVEN BOTTOM FALSE
WB63K10245 WB63K10245 GE OVEN SIDE LF
WB63K10146 WB63K10146 GE OVEN SIDE RT
WB63K10023 WB63K10023 GE OVEN TOP
WB27K10314 WB27K10314 GE OVERLAY T09-B HP
WB02K0062 WB02K0062 GE PAD FELT (2"")
WB2K62 WB2K62 GE PAD FELT 2
WB55K0013 WB55K0013 GE PANEL ASM WELD INNER
WB56K10006 WB56K10006 GE PANEL DRAWER (BLACK)
WB63K10141 WB63K10141 GE PANEL SIDE
WB02X6195 WB02X6195 GE PIN HINGE DOOR
WB2K17 WB2K17 GE PIN LOCATOR
WB02K0017 WB02K0017 GE PIN LOCATOR FRONT
WB02X0646 WB02X0646 GE PLATE-GROUND
31-21416 31-21416 GE PM INSTALL. INSTRUCTIONS
31-14892 31-14892 GE PM MINI MANUAL
49-88045 49-88045 GE PM OWNERS & INSTALL
WB55K13 WB55K13 GE PNL ASM WELD
WB09T10002 WB09T10002 GE RADIANT SPRING ELEMENT
WB39K0016 WB39K0016 GE RAIL DRAWER
WB02K10256 WB02K10256 GE RANGE ANTI-TIP BRACKET
WB63K10005 WB63K10005 GE RANGE BACK
WB44K10031 WB44K10031 GE RANGE BAKE ELEMENT
WB63K10241 WB63K10241 GE RANGE BOTTOM INSULATION GUARD
WB03K10172 WB03K10172 GE RANGE CONTROL KNOB - BLACK
WB02K10245 WB02K10245 GE RANGE DOOR BRACKET
WB15X10047 WB15X10047 GE RANGE DOOR HANDLE - BLACK
WB10K12 WB10K12 GE RANGE DOOR HINGE ASSEMBLY
WB02K10025 WB02K10025 GE RANGE DRAWER MOUNTING BRACKET
WB39K16 WB39K16 GE RANGE DRAWER RAIL
WB02K10158 WB02K10158 GE RANGE DRAWER SUPPORT
WB30T10133 WB30T10133 GE RANGE DUAL RADIANT ELEMENT - 9-INCH
WB07K10211 WB07K10211 GE RANGE END SUPPORT - RIGHT - BLACK
WB25K10002 WB25K10002 GE RANGE INDICATOR LIGHT
WB02K10182 WB02K10182 GE RANGE LEVELING LEG
WB36X192 WB36X192 GE RANGE OVEN BULB COVER
WB32K2 WB32K2 GE RANGE OVEN DOOR GASKET
WB32K5 WB32K5 GE RANGE OVEN GASKET
WB48X20249 WB48X20249 GE RANGE OVEN RACK
WB02T10041 WB02T10041 GE RANGE RADIANT ELEMENT BRACKET
WB63K10199 WB63K10199 GE RANGE SIDE BRACE
WB24T10029 WB24T10029 GE RANGE SURFACE BURNER CONTROL SWITCH
WB57K10145 WB57K10145 GE RANGE TOP AND GLASS ASSEMBLY
WB08T10026 WB08T10026 GE RECEPTACLE PUSH-IN
WB35K33 WB35K33 GE REFLECTOR
WB35K0022 WB35K0022 GE REFLECTOR 9.5 INCH
WB2X1082 WB2X1082 GE RETAINER
WB2X2030 WB2X2030 GE RETAINER
WB02K0030 WB02K0030 GE RETAINER-INSULATION VENT
WB02X1082 WB02X1082 GE RING RETAINING
WB02K10039 WB02K10039 GE RING VENT
WB1K44 WB1K44 GE SCEW LATCH
WB1X536 WB1X536 GE SCREW
WB1X5716 WB1X5716 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WB01K10091 WB01K10091 GE SCREW
WB01K0042 WB01K0042 GE SCREW (BLK)
WB01X5364 WB01X5364 GE SCREW (CR)
WB01X0593 WB01X0593 GE SCREW - DOOR ASM (4 PER)
WB01K0065 WB01K0065 GE SCREW 10-16
WZ04X0345 WZ04X0345 GE SCREW 8-18X5/8 HXW
WB01K10012 WB01K10012 GE SCREW 8-22 PL 1HX 71
WB01X23501 WB01X23501 GE SCREW 8-32 TT FLP .270
WB01K0044 WB01K0044 GE SCREW DOOR LATCH
WB01X1261 WB01X1261 GE SCREW GROUND
WB1K62 WB1K62 GE SCREW HEAD PAINTED BLACK
WB1K53 WB1K53 GE SCREW HINGE
WB1X5364 WB1X5364 GE SCREW MTG
WB01K0062 WB01K0062 GE SCREW MTG END CAP (BK)
WB01K0053 WB01K0053 GE SCREW MTG HINGE (TORX)
WB01X0558 WB01X0558 GE SCREW NAIL POINT
WZ4X423D WZ4X423D GE SCREW-PKG 12
WB1X558D WB1X558D GE SCREW-PKG 12
WZ4X345D WZ4X345D GE SCREWS - 12 PACK
WB23X5340 WB23X5340 GE SENSOR-OVEN
WB63K10244 WB63K10244 GE SIDE OVEN
WB01K10093 WB01K10093 GE SPEEDNUT
WB09K0005 WB09K0005 GE SPRING DOOR
WB9K5 WB9K5 GE SPRING DOOR
WB10K10009 WB10K10009 GE SUPPORT ASSEMBLY RIVET LF
WB10K10010 WB10K10010 GE SUPPORT ASSEMBLY RIVET RT
WB63K10232 WB63K10232 GE SUPPORT BASE
WB63K10233 WB63K10233 GE SUPPORT BASE
WB35K10028 WB35K10028 GE SUPPORT CATALYST
WB17T10011 WB17T10011 GE TERMINAL BLOCK ASSEMBLY
WB07K10232 WB07K10232 GE TRIM BOTTOM ASSEMBLY
WB36K10950 WB36K10950 GE TRIM CONTROL
WB07K0265 WB07K0265 GE TRIM DOOR (BLK)
WB7K265 WB7K265 GE TRIM DR (BLK
WB07K10200 WB07K10200 GE TRIM VENT ASSEMBLY
WB44K10032 WB44K10032 GE UNIT BROIL
WB38K10023 WB38K10023 GE VENT ASSEMBLY
WB56K20 WB56K20 GE WIND PACK LG
WB34K10087 WB34K10087 GE WINDOW SPACER ASSEMBLY
