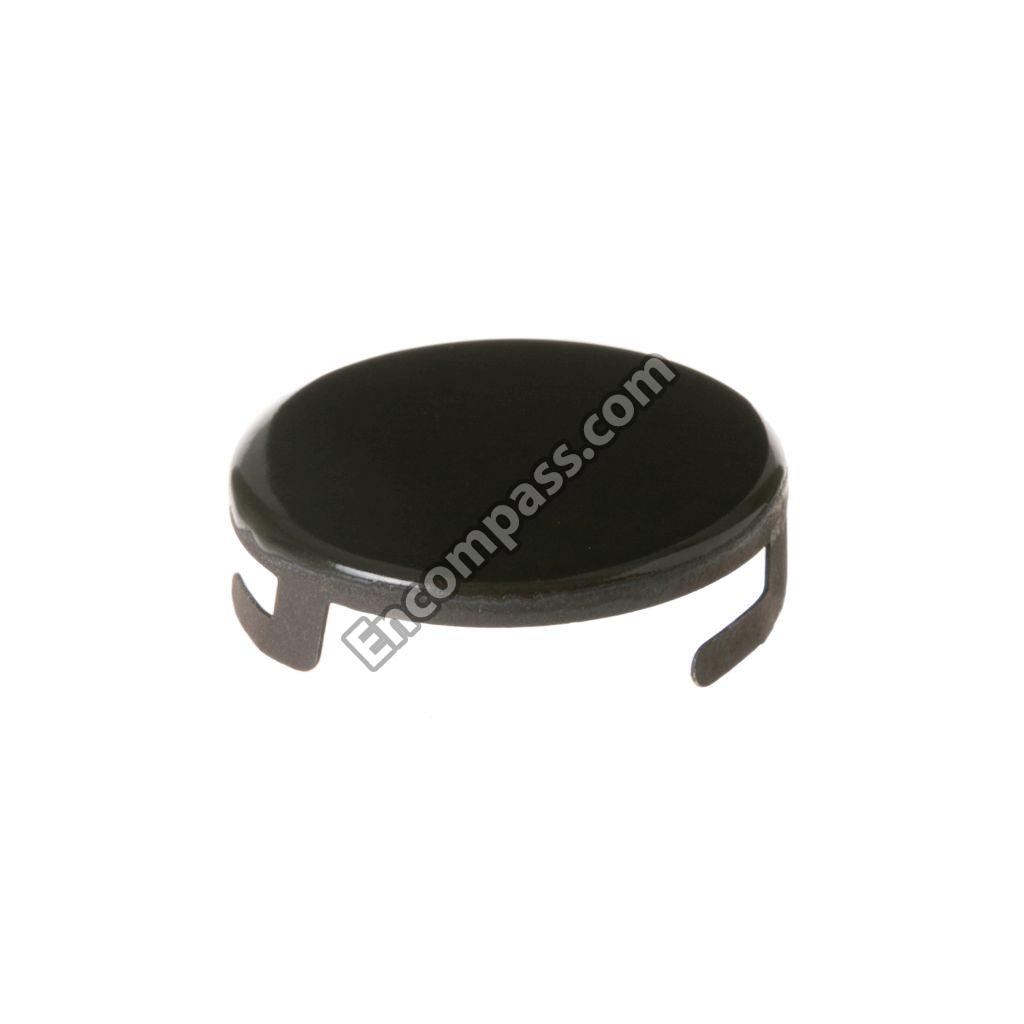

Model Image
Manufacturer

GE

Model Number

RF512GL3

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB31M1 WB31M1 6 INCH CHROME BURNER BOWL - EL
WB31M0001 WB31M0001 6"" BOWL BURNER
WB32X106 WB32X106 8 INCH CHROME BURNER BOWL - EL
WB31M0002 WB31M0002 8"" BOWL BURNER
WB30X0255 WB30X0255 8"" SURFACE ELEMENT
WB1M24 WB1M24 ACCORD RIVET
WB44M0001 WB44M0001 BAKE ELEMENT
WB44K5012 WB44K5012 BAKE ELEMENT
WB37K5018 WB37K5018 BRACKET CAP PNL MTG RT
WB2X9568 WB2X9568 BRACKET-HNGE
WB02M0086 WB02M0086 BRIDGE SPACER
WB2M86 WB2M86 BRIDGE SPACR
WB44M0005 WB44M0005 BROIL ELEMENT 3400W-240V
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB44M5 WB44M5 BROIL ELEMNT
WB49X0628 WB49X0628 BROILER PAN
WB49X0627 WB49X0627 BROILER PAN GRID
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB02X9888 WB02X9888 BURN BOX EXT INSULATION
WB02X9574 WB02X9574 BURNER BOX SCREEN
WB02X9573 WB02X9573 CLIP
WB2X9105 WB2X9105 CLIP
WB2X9573 WB2X9573 CLIP
WB17X211 WB17X211 CLIP-TERM BK
WB19X0248 WB19X0248 CLOCK ASM
WB36X0755 WB36X0755 CLOCK CAMERA LENS
WB03X0770 WB03X0770 CLOCK KNOB
WB37K5019 WB37K5019 CNT PANEL MTG BRACKET-LT
WB18K5368 WB18K5368 COND W HARN **NLA*
WB18X0369 WB18X0369 CONDUIT HARNESS ASM
WB07X1677 WB07X1677 CONTROL PANEL
WB2X9563 WB2X9563 COVER-LEFT
WB2X9564 WB2X9564 COVER-RIGHT
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB23M0014 WB23M0014 ELEMENT CONTROL 2600W
WB07X1675 WB07X1675 END CAP LT CHROME
WB07X1676 WB07X1676 END CAP RT CHROME
WB7X1675 WB7X1675 END CAP-LEFT
WB7X1676 WB7X1676 END CAP-RGHT
WB1X1138 WB1X1138 FIBER WASHER
WB63X0423 WB63X0423 FRONT FRAME
WB63X423 WB63X423 FRONT FRAME
WB02X9039 WB02X9039 GLASS SPACER
WB56X1902 WB56X1902 GLASS-OVEN DOOR-OUTER
WB10K5017 WB10K5017 HINGE ASSEMBLY-RT
WB02X9568 WB02X9568 HINGE MTG BRACKET
WB14X0136 WB14X0136 HINGE-COOKTOP
WB14X136 WB14X136 HINGE-COOKTP
WB14X0134 WB14X0134 HINGE-OVEN DOOR-LEFT
WB14X0135 WB14X0135 HINGE-OVEN DOOR-RIGHT
WB25X0093 WB25X0093 IND LHT OVN HOT SURFACE
WB25X0092 WB25X0092 INDICATOR LIGHT
WB25X0094 WB25X0094 INDICATOR LIGHT CAMERA LENS
WB18M58 WB18M58 INF W HARN
WB23X0088 WB23X0088 INFINITE HEAT SWITCH
WB21X36771 WB21X36771 INFINITE HEAT SWITCH KIT

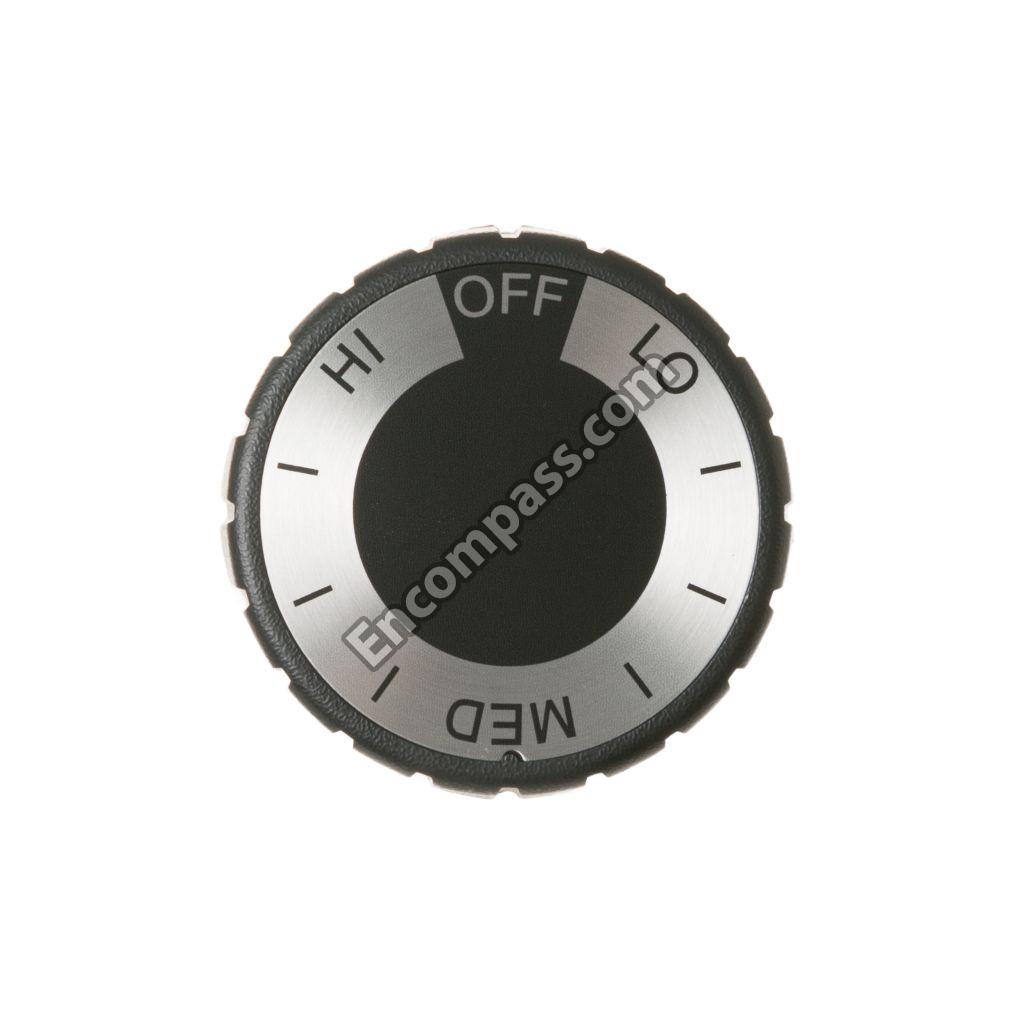

WB03X0806 WB03X0806 INFINITE KNOB
WB18M0058 WB18M0058 INFINITE WIRE HARNESS
31-0917 31-0917 INSTALLATION INSTRUCTION
WB6X6 WB6X6 INSUL CTL CV
WB2K5122 WB2K5122 INSUL RET LO
WB06X0006 WB06X0006 INSULATION
WB2X9888 WB2X9888 INSULATION
WB2X9430 WB2X9430 INSULATION
WB2X9123 WB2X9123 INSULATION D
WB02K5122 WB02K5122 INSULATION RETAINER-LO
WB35K5073 WB35K5073 INSULATION-OV BACK
WB35K5074 WB35K5074 INSULATION-OV BODY
WB17X213 WB17X213 JUNCTION BLK
WB17X0213 WB17X0213 JUNCTION BLOCK
WB3X770 WB3X770 KNOB-CLOCK
WB3X806 WB3X806 KNOB-SURFACE
WB25T10042 WB25T10042 LENS
WB25T10039 WB25T10039 LIGHT INDICATOR
WB25T10040 WB25T10040 LIGHT INDICATOR
WB63X0365 WB63X0365 MAIN BOTTOM
WB63K5123 WB63K5123 MAIN BOTTOM
WB62X1700 WB62X1700 MAIN TOP
WB18M0060 WB18M0060 MAIN WIRE HARNESS
WB04X0122 WB04X0122 MEDALLION
WB4X122 WB4X122 MEDALLION
31-0717A 31-0717A MINI MANUAL/WIRE DIAGRAM
WB02M0084 WB02M0084 MT SUPPORT ROD
WB3X807 WB3X807 N/L/A 01/08/07
WB56K5061 WB56K5061 N/L/A 04/20/06
WB19X248 WB19X248 N/L/A 11/23/96
WB02X9031 WB02X9031 OV BODY INSULATION
WB56X1910 WB56X1910 OV DOOR INS RETAINER
WB02X9384 WB02X9384 OV DR GLASS RETAINER
WB15X0272 WB15X0272 OV DR HANDLE
WB57K5025 WB57K5025 OV DR HANDLE
WB56X1901 WB56X1901 OV DR INNER GLASS
WB02X9123 WB02X9123 OV DR INSULATION
WB56M0002 WB56M0002 OV DR LINING
WB56M2 WB56M2 OV DR LINING
WB08M0003 WB08M0003 OV LAMP HOLDER
WB2X9384 WB2X9384 OVDR GL RET
WB02X9021 WB02X9021 OVEN BACK INSULATION
WB63M0040 WB63M0040 OVEN BODY
WB07X1585 WB07X1585 OVEN DOOR FRAME
WB48X0210 WB48X0210 OVEN RACK
WB48M4 WB48M4 OVEN RACK
WB21X0500 WB21X0500 OVEN THERMOSTAT
WB8K5042 WB8K5042 OVLAMP HLDR
WB02X9158 WB02X9158 PCB SPACER
WB2X9189 WB2X9189 PLUG BUT REC
WB02X9189 WB02X9189 PLUG BUTTON-RECTANGULAR
WB2X9570 WB2X9570 REAR SHIELD
WB02X9105 WB02X9105 RETAINER CLIP
WB01M0024 WB01M0024 RIVET
WB01X1173 WB01X1173 RIVET
WB1X1173 WB1X1173 RIVET
WB01X32746 WB01X32746 SCR ST 8A8 X .625 TR NI
WB2X9574 WB2X9574 SCREEN-BB
WB01X1162 WB01X1162 SCREW
WB01X1178 WB01X1178 SCREW
WB01X1258 WB01X1258 SCREW
WB01X1315 WB01X1315 SCREW
WB01M0019 WB01M0019 SCREW
WB01X1135 WB01X1135 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB01X1184 WB01X1184 SCREW
WB01X1167 WB01X1167 SCREW
WB01X1250 WB01X1250 SCREW
WB01X1127 WB01X1127 SCREW
WB01X1265 WB01X1265 SCREW
WB1K5122 WB1K5122 SCREW
WB1X1162 WB1X1162 SCREW
WB1X1258 WB1X1258 SCREW
WB1M1 WB1M1 SCREW
WB1X1178 WB1X1178 SCREW
WB1X681 WB1X681 SCREW
WB1X1184 WB1X1184 SCREW
WB1X1328 WB1X1328 SCREW
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1158 WB01X1158 SCREW-NICKEL
WB1X1250D WB1X1250D SCREW-PKG 12
WB1X1424D WB1X1424D SCREW-PKG 12
WB02X9570 WB02X9570 SHIELD REAR
WB2K5198 WB2K5198 SIDE INS RET
WB02X9575 WB02X9575 SPACER
WB2X9158 WB2X9158 SPACER
WB2X9575 WB2X9575 SPACER
WB2X9039 WB2X9039 SPACER-GLASS
WB2X9037 WB2X9037 SPACER-HNDL
WB01X1311 WB01X1311 SPEED NUT
WB1X1311 WB1X1311 SPEED NUT
WB9X277 WB9X277 SPRING-DOOR
WB09X0277 WB09X0277 SPRING-OVEN DOOR
WB2M87 WB2M87 SUP ROD CLMP
WB2X9719 WB2X9719 SUPP-BROIL
WB02M0087 WB02M0087 SUPPORT ROD CLAMP
WB30X256 WB30X256 SURF UNIT-6
WB30X255 WB30X255 SURF UNIT-8
WB30X0256 WB30X0256 SURFACE ELEMENT-6""
WB24X415 WB24X415 SWITCH-LITE
WB24X0415 WB24X0415 SWITCH-OVEN LIGHT
WB17X210 WB17X210 TERM BLK
WB17X0218 WB17X0218 TERMINAL BLOCK CLIP
WB17X0217 WB17X0217 TERMINAL BLOCK W/WIRES
WB21X500 WB21X500 THERMOSTAT
WB63X373 WB63X373 TOP-BB **NLA*
WB7X1680 WB7X1680 TRIM
WB7X1678 WB7X1678 TRIM-LEFT
WB7X1679 WB7X1679 TRIM-RIGHT
WB07X1679 WB07X1679 TRIM-SIDE-RIGHT
WB63X0373 WB63X0373 UNKNOWN
WB64M0009 WB64M0009 UNKNOWN
WB02X9889 WB02X9889 UNKNOWN
WB02X9577 WB02X9577 UNKNOWN
WB07X1680 WB07X1680 UNKNOWN
WB07X1678 WB07X1678 UNKNOWN
WB63X0368 WB63X0368 UNKNOWN
WB63X0367 WB63X0367 UNKNOWN
WB63M0059 WB63M0059 UNKNOWN
WB03K5057 WB03K5057 UNKNOWN
WB02X9566 WB02X9566 UNKNOWN
WB02X9565 WB02X9565 UNKNOWN
39-4679 39-4679 USE AND CARE MANUAL
WB02X9895 WB02X9895 VENT SEAL
WB38M0006 WB38M0006 VENT TUBE ASM
WB38M6 WB38M6 VNT TUBE ASM
WB01X1201 WB01X1201 WASHER
WB01X1310 WB01X1310 WASHER
WB01X1138 WB01X1138 WASHER
WB01X1159 WB01X1159 WASHER
WB1X1201 WB1X1201 WASHER
WB1X1159D WB1X1159D WASHR-PKG 12
WB02X9567 WB02X9567 WIRE BAFFLE
WB2X9569 WB2X9569 WIRE COVER
WB2X9572 WB2X9572 WIRE COVER (((NLA)))
WB02X9572 WB02X9572 WIRE COVER REAR
WB02X9564 WB02X9564 WIRE COVER RT
WB02X9569 WB02X9569 WIRE COVER UPPER
WB02X9563 WB02X9563 WIRE COVER-LT
WB63K5109 WB63K5109 WRAPPER OV CAV ASSEMBLY
