Model Image
Manufacturer

GE

Model Number

RGA520EW8

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB06X0103 WB06X0103 ANTI TIP KIT
WB07X10908 WB07X10908 BACKGUARD SHELL BISQUE
WB07X7397 WB07X7397 BACKGUARD SHELL WH
WB7X7397 WB7X7397 BACKGUARD WH
WB2X8533 WB2X8533 BASE GUSSET
WB2X8532 WB2X8532 BASE GUSSET
WB2X8534 WB2X8534 BASE GUSSET
WB02X8533 WB02X8533 BASE GUSSET ASM LF
WB02X8532 WB02X8532 BASE GUSSET ASM RR
WB02X8534 WB02X8534 BASE GUSSET ASM RT
WB2X8579 WB2X8579 BRACKET - ANTI-TIP A
WB02X7894 WB02X7894 BRACKET-SPRING
WB2X7894 WB2X7894 BRKT-SPRING
WB49X5582 WB49X5582 BROILER BOTTOM
WB56X10631 WB56X10631 BROILER DR BISQUE PANEL
WB56X10632 WB56X10632 BROILER DR WHITE PANEL
WB49X5584 WB49X5584 BROILER PAN 17 1/2-INCH X 13 3/4-INCH X 1/2-INCH
WB49X5583 WB49X5583 BROILER PAN COVER FOR 3 X 12 FRONT AREA
WB48X5110 WB48X5110 BROILER PAN RACK TO HOLD BROILER PAN
WB49X5472 WB49X5472 BURNER BOX
WB28X5047 WB28X5047 BURNER FRONT
WB28X10022 WB28X10022 BURNER OVEN
WB28X5049 WB28X5049 BURNER REAR
WB2X8536 WB2X8536 BURNER SUPT
WB62X10043 WB62X10043 COOKTOP MAIN BISQUE
WB62X5461 WB62X5461 COOKTOP MAIN WHITE
WB02X7897 WB02X7897 COVER-SPRING
WB2X7897 WB2X7897 COVER-SPRING
WB56X10618 WB56X10618 DOOR PANEL BQ
WB56X10575 WB56X10575 DOOR PANEL WH
WB07X7330 WB07X7330 END CAP LF
WB07X7331 WB07X7331 END CAP RT
WB28X10023 WB28X10023 FLAME SPREADER
WB39X10007 WB39X10007 FLOOR ASSEMBLY OVEN
WB56X7004 WB56X7004 FRONT-FRAME
WB32X5110 WB32X5110 GRATE TOP BURNER
WB15X5185 WB15X5185 HANDLE
WB15X10180 WB15X10180 HANDLE 9-INCH BROILER DRAWER
WB01X5791 WB01X5791 HANDLE SPACER (WHITE)
WB10X5198 WB10X5198 HINGE ASSEMBLY OVEN DOOR
WB10X5211 WB10X5211 HINGE LF BROILER DOOR
WB10X5212 WB10X5212 HINGE RT BROILER DOOR
WB10X5213 WB10X5213 HINGE, OVEN BODY
WB10X5197 WB10X5197 HINGE-PLATE ASSEMBLY
WB21X5352 WB21X5352 IGNITER BURNER LF
WB21X5351 WB21X5351 IGNITER OVEN
WB2X8539 WB2X8539 INSULATION
WB2X8537 WB2X8537 INSULATION
WB2X8538 WB2X8538 INSULATION
WB02X11116 WB02X11116 INSULATION RETAINER
WB02X8537 WB02X8537 INSULATION, BACK
WB02X8538 WB02X8538 INSULATION, BODY
WB02X8539 WB02X8539 INSULATION, BROILER DOOR
WB3X5856 WB3X5856 KNOB OVEN
WB03X5856 WB03X5856 KNOB, OVEN
WB01X5789 WB01X5789 LEVELING LEG
WB1X5789 WB1X5789 LEVELING LEG
WB55X5402 WB55X5402 LINING BROILER DOOR
WB55X5345 WB55X5345 LINING OVEN DOOR
WB63X5209 WB63X5209 MAIN BACK
WB07X10909 WB07X10909 MANIFOLD BISQUE PANEL
49-8760 49-8760 MANUAL USERS
WB20X10010 WB20X10010 MODULE SPARK
WB02X8483 WB02X8483 NYLON SPACER
WB2X8483 WB2X8483 NYLON SPACER
WB02X8536 WB02X8536 OV BURNER SUPPORT
WB02X8542 WB02X8542 OVEN BACK
WB2X8542 WB2X8542 OVEN BACK
WB55X10781 WB55X10781 OVEN DOOR INSULATION
WB48X5094 WB48X5094 OVEN RACK
WB53X5161 WB53X5161 OVEN SIDE LF
WB53X5362 WB53X5362 OVEN SIDE RT
WB53X5163 WB53X5163 OVEN TOP
WB7X7348 WB7X7348 PANEL MANIFO
WB07X7348 WB07X7348 PANEL, MANIFOLD WH
WB2X8544 WB2X8544 PILOT ASM
WB02X8544 WB02X8544 PILOT ASM, OVEN
WB2X8545 WB2X8545 PIPE MANIFOL
WB02X8545 WB02X8545 PIPE, MANIFOLD
WB18X10254 WB18X10254 POWER CORD

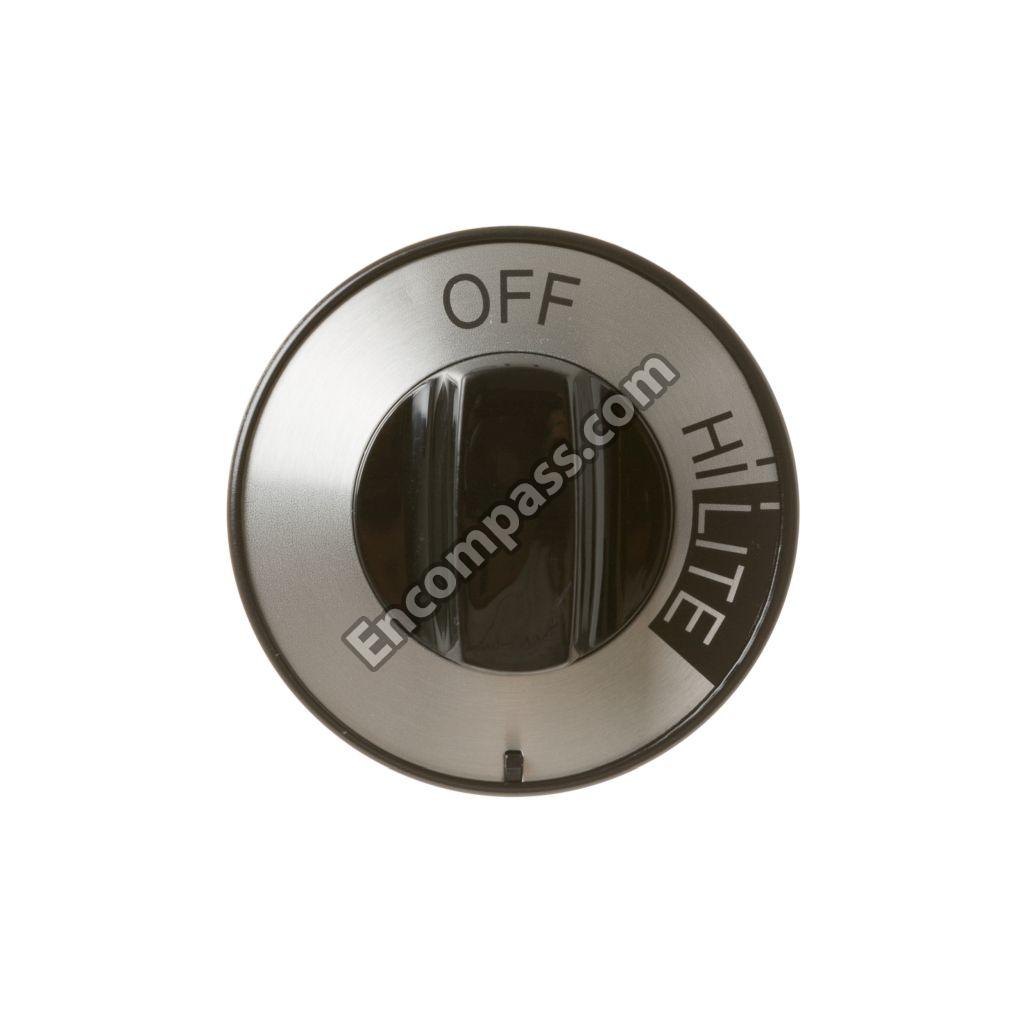

WB03X10271 WB03X10271 RANGE KNOB - BLACK
WB21X5339 WB21X5339 REGULATOR PRESS NAT
WB2X7891 WB2X7891 SEAL - OVEN SIDE
WB2X7892 WB2X7892 SEAL - OVEN TOP
WB02X7891 WB02X7891 SEAL-DOOR L/R
WB02X7892 WB02X7892 SEAL-HEAT
WB63X10053 WB63X10053 SIDE PANEL BISQUE
WB63X10052 WB63X10052 SIDE PANEL BISQUE
WB63X5210 WB63X5210 SIDE PANEL WHITE
WB1X5791 WB1X5791 SPACER
WB23X10016 WB23X10016 SPARK IGNITION SWITCH
WB2X7893 WB2X7893 SPRING OV DR
WB02X7893 WB02X7893 SPRING-OVEN DOOR
WB21X5340 WB21X5340 SWITCH, OVEN IGNITOR
WB21X5343 WB21X5343 THERMOSTAT, OVEN
WB06X10635 WB06X10635 TOP BURNER VALVE NAT
WB2X8547 WB2X8547 TUBE 3/16
WB02X8547 WB02X8547 TUBE 3/16"" OVEN PILOT
WB2X8546 WB2X8546 TUBE 3/8
WB02X8546 WB02X8546 TUBE, 3/8"" OVEN SUPPLY
WB21X5345 WB21X5345 VALVE OVEN SAFETY NAT
WB01X10314 WB01X10314 VALVE SCREW
WB02X8548 WB02X8548 VENT BOX
WB2X8548 WB2X8548 VENT BOX
WB02X8549 WB02X8549 VENT BOX GASKET
WB2X8549 WB2X8549 VENT BOX GSK
