GE

Model Number

RGA524EW6

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB02X8579 WB02X8579 ANTI-TIP BRACKET
WB63X5246 WB63X5246 BACK MAIN
WB7X7361 WB7X7361 BACKGUARD
WB07X10910 WB07X10910 BACKGUARD SHELL BISQUE
WB07X7361 WB07X7361 BACKGUARD SHELL WH
WB7X7397 WB7X7397 BACKGUARD WH
WB2X8534 WB2X8534 BASE GUSSET
WB2X8532 WB2X8532 BASE GUSSET
WB2X8533 WB2X8533 BASE GUSSET
WB02X8533 WB02X8533 BASE GUSSET ASM LF
WB02X8532 WB02X8532 BASE GUSSET ASM RR
WB02X8534 WB02X8534 BASE GUSSET ASM RT
WB2X8579 WB2X8579 BRACKET - ANTI-TIP A
WB02X7894 WB02X7894 BRACKET-SPRING
WB2X7894 WB2X7894 BRKT-SPRING
WB49X10009 WB49X10009 BROILER BOTTOM
WB49X5584 WB49X5584 BROILER PAN 17 1/2-INCH X 13 3/4-INCH X 1/2-INCH
WB49X5583 WB49X5583 BROILER PAN COVER FOR 3 X 12 FRONT AREA
WB49X5587 WB49X5587 BURNER BOX
WB28X5047 WB28X5047 BURNER FRONT
WB28X10022 WB28X10022 BURNER OVEN
WB28X5049 WB28X5049 BURNER REAR
WB2X8536 WB2X8536 BURNER SUPT
WB62X10044 WB62X10044 COOKTOP BISQUE
WB62X5476 WB62X5476 COOKTOP WHITE
WB02X7897 WB02X7897 COVER-SPRING
WB2X7897 WB2X7897 COVER-SPRING
WB56X7093 WB56X7093 DRAWER PANEL WHITE
WB07X7041 WB07X7041 END CAP, LF
WB07X7040 WB07X7040 END CAP, RT
WB28X10023 WB28X10023 FLAME SPREADER
WB39X10008 WB39X10008 FLOOR OVEN
WB56X7094 WB56X7094 FRAME OVEN FRONT
WB32X5110 WB32X5110 GRATE TOP BURNER
WB15X10170 WB15X10170 HANDLE
WB15X10180 WB15X10180 HANDLE 9-INCH BROILER DRAWER
WB01X5791 WB01X5791 HANDLE SPACER (WHITE)
WB10X5222 WB10X5222 HINGE LF BROILER DOOR
WB10X5220 WB10X5220 HINGE OV DOOR LF
WB10X5221 WB10X5221 HINGE OV DOOR RT
WB10X5223 WB10X5223 HINGE RT BROILER DOOR
WB21X5352 WB21X5352 IGNITER BURNER LF
WB21X5351 WB21X5351 IGNITER OVEN
WB2X8584 WB2X8584 INSULATION
WB02X10367 WB02X10367 INSULATION BACK
WB02X10369 WB02X10369 INSULATION BODY
WB02X8584 WB02X8584 INSULATION BROILER DR
WB02X11115 WB02X11115 INSULATION RETAINER
WB3X5856 WB3X5856 KNOB OVEN
WB03X10272 WB03X10272 KNOB TOP BURNER
WB03X5856 WB03X5856 KNOB, OVEN
WB03X5857 WB03X5857 KNOB, SURFACE
WB01X5789 WB01X5789 LEVELING LEG
WB1X5789 WB1X5789 LEVELING LEG
WB55X5412 WB55X5412 LINING BROILER DR
WB55X5410 WB55X5410 LINING OV DOOR
WB07X10911 WB07X10911 MANIFOLD BISQUE PANEL
WB7X7363 WB7X7363 MANIFOLD PNL
49-8760 49-8760 MANUAL USERS

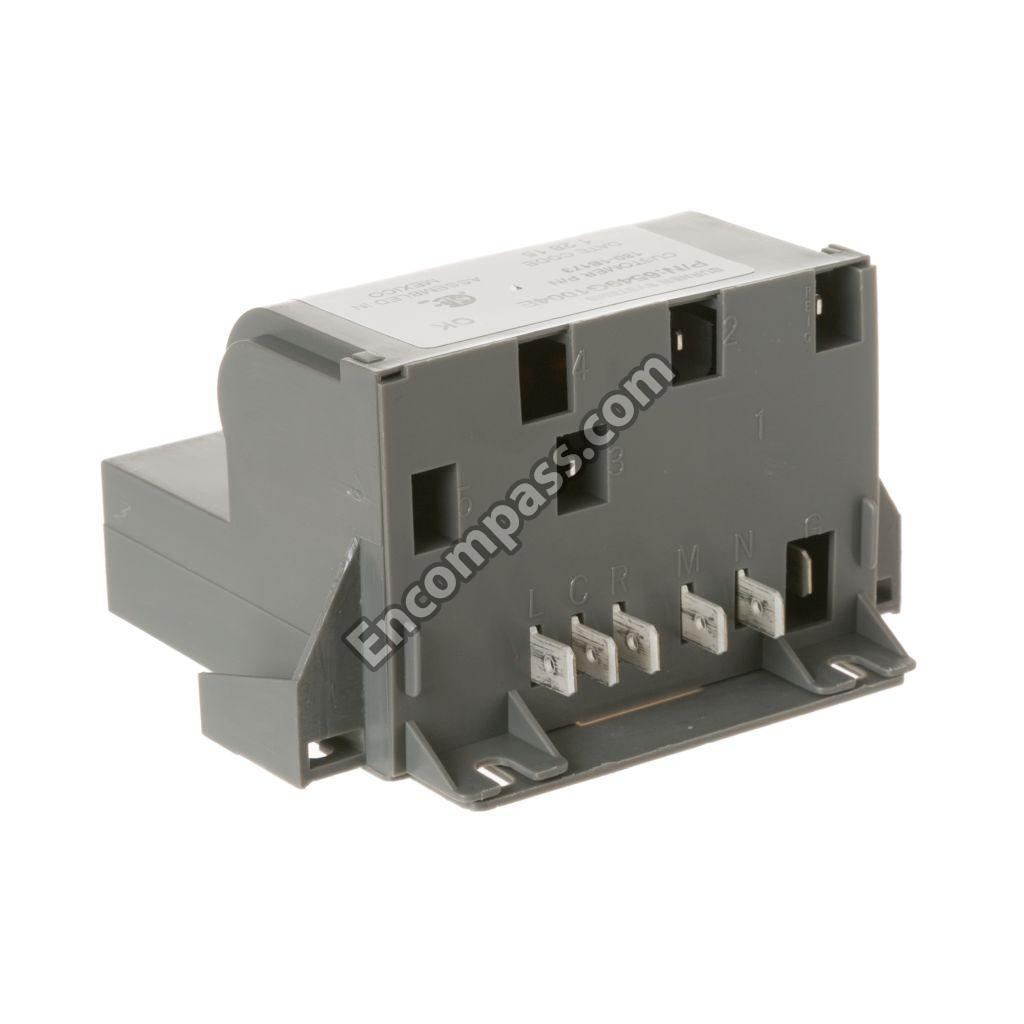

WB20X10010 WB20X10010 MODULE SPARK
WB02X8483 WB02X8483 NYLON SPACER
WB2X8483 WB2X8483 NYLON SPACER
WB02X8536 WB02X8536 OV BURNER SUPPORT
WB02X10368 WB02X10368 OVEN BACK
WB56X10630 WB56X10630 OVEN DOOR BISQUE PANEL
WB55X10780 WB55X10780 OVEN DOOR INSULATION
WB56X10572 WB56X10572 OVEN DOOR WH PANEL
WB48X5113 WB48X5113 OVEN RACK MADE TO HOLD BROILER PAN
WB53X5161 WB53X5161 OVEN SIDE LF
WB53X5362 WB53X5362 OVEN SIDE RT
WB53X10002 WB53X10002 OVEN TOP
WB07X7363 WB07X7363 PANEL, MANIFOLD WH
WB2X8544 WB2X8544 PILOT ASM
WB02X8544 WB02X8544 PILOT ASM, OVEN
WB2X8545 WB2X8545 PIPE MANIFOL
WB02X8545 WB02X8545 PIPE, MANIFOLD
WB18X10254 WB18X10254 POWER CORD
WB48X5112 WB48X5112 RACK OVEN
WB21X5339 WB21X5339 REGULATOR PRESS NAT
WB2X7891 WB2X7891 SEAL - OVEN SIDE
WB02X7891 WB02X7891 SEAL-DOOR L/R
WB02X10574 WB02X10574 SEAL-OVEN DOOR TOP
WB63X10053 WB63X10053 SIDE PANEL BISQUE
WB63X10052 WB63X10052 SIDE PANEL BISQUE
WB63X5210 WB63X5210 SIDE PANEL WHITE
WB1X5791 WB1X5791 SPACER
WB2X8583 WB2X8583 SPRING DOOR
WB02X8583 WB02X8583 SPRING,OVEN DOOR
WB21X5341 WB21X5341 SWITCH SPARK IGN
WB21X5340 WB21X5340 SWITCH, OVEN IGNITOR
WB21X5343 WB21X5343 THERMOSTAT, OVEN
WB2X8547 WB2X8547 TUBE 3/16
WB02X8547 WB02X8547 TUBE 3/16"" OVEN PILOT
WB2X8586 WB2X8586 TUBING OV
WB02X8586 WB02X8586 TUBING, OV SUPPLY
WB2X5346 WB2X5346 VALVE
WB21X5345 WB21X5345 VALVE OVEN SAFETY NAT
WB01X10314 WB01X10314 VALVE SCREW
WB02X5346 WB02X5346 VALVE, TOP BURNER
WB02X8548 WB02X8548 VENT BOX
WB2X8548 WB2X8548 VENT BOX
WB02X8549 WB02X8549 VENT BOX GASKET
WB2X8549 WB2X8549 VENT BOX GSK
