GE

Model Number

RGA720EK5WH

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB35K10081 WB35K10081 ALUMINUM FOIL PANEL
WB02K10124 WB02K10124 ARM ANTI TIP
WB35K10066 WB35K10066 BACK INSULATION
WB36K10568 WB36K10568 BACKGUARD 20 ASSEMBLY
WB34K10074 WB34K10074 BACKGUARD COVER 20
WB35K10077 WB35K10077 BACKGUARD DEFLECTOR
WB63X29132 WB63X29132 BASE SUPPORT
WB63K10099 WB63K10099 BASE SUPPORT
WB63K10089 WB63K10089 BODY BROILER
WB35X37974 WB35X37974 BOTTOM OVEN AND DEFLECTOR ASM
WB63K10090 WB63K10090 BOTTOM OVEN ASM.
WB01K0005 WB01K0005 BOTTOM OVEN SCREW

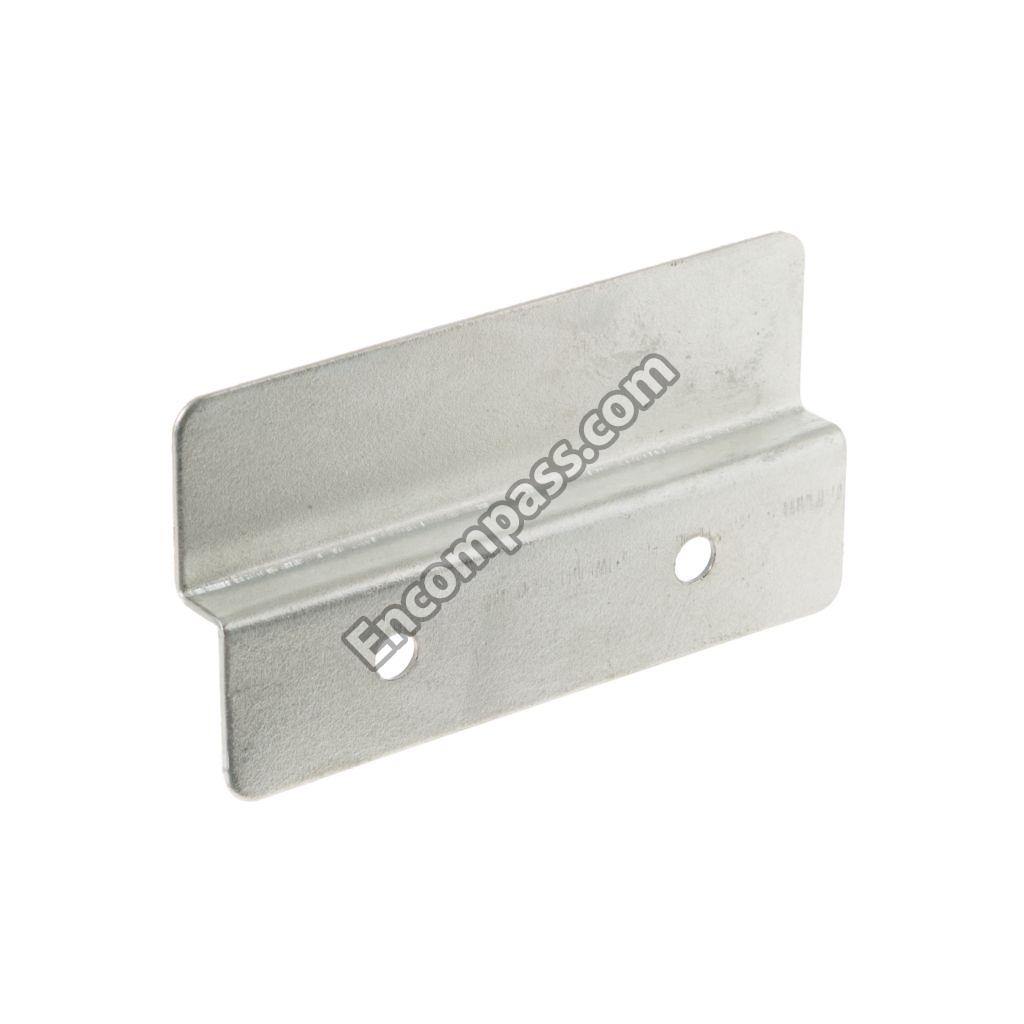

WB02K0020 WB02K0020 BRACKET ASM ANTI-TIP
WB09K10003 WB09K10003 BROIL DOOR SPRING
WB48K10016 WB48K10016 BROIL PAN GRID (ONLY) SM 8-3/4-INCHX13-3/4-INCH
WB10K10006 WB10K10006 BROILER HINGE ASSEMBLY
WB10K10005 WB10K10005 BROILER HINGE ASSEMBLY

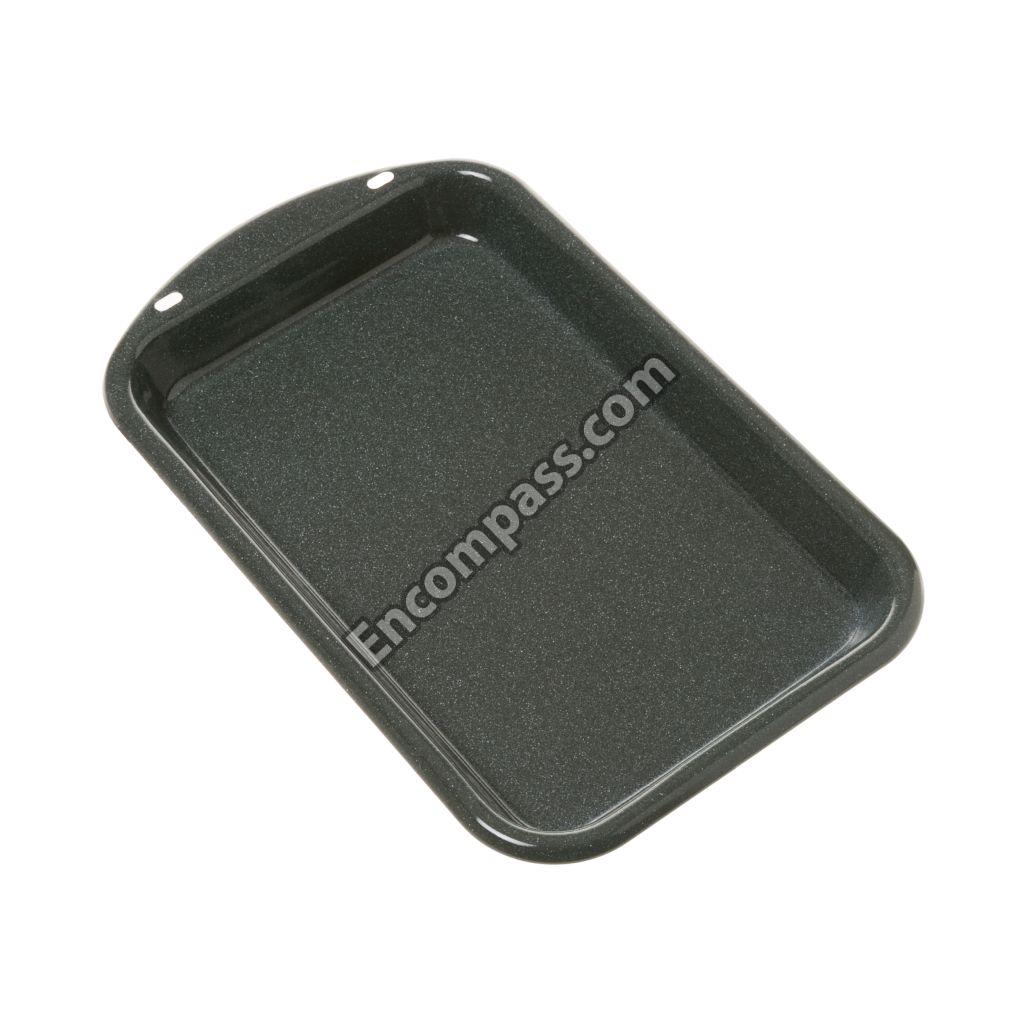

WB48K10015 WB48K10015 BROILER PAN (ONLY)SMALL 8-3/4-INCH X 13-1/2-INCH
WB2K15 WB2K15 BUMPER BLACK
WB02K0015 WB02K0015 BUMPER, BLACK

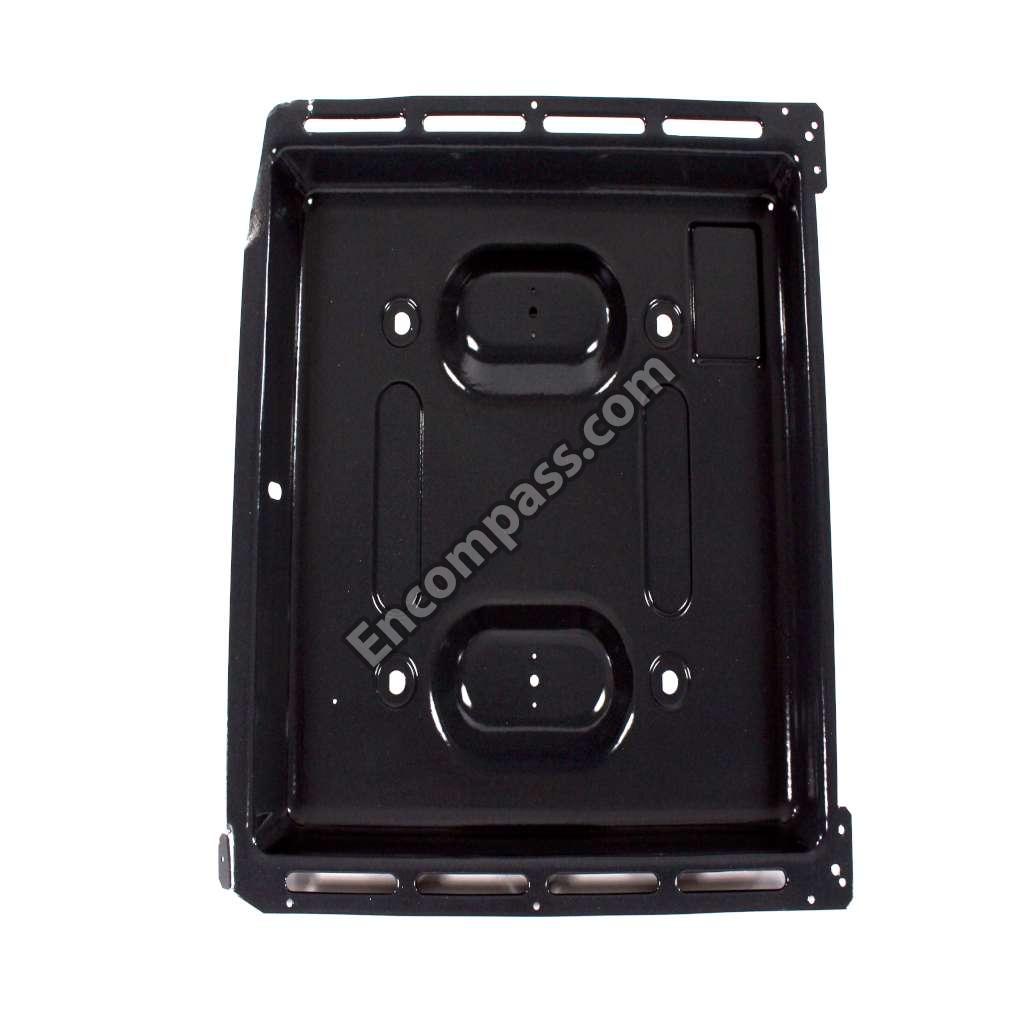

WB64K10017 WB64K10017 BURNER BOX
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE

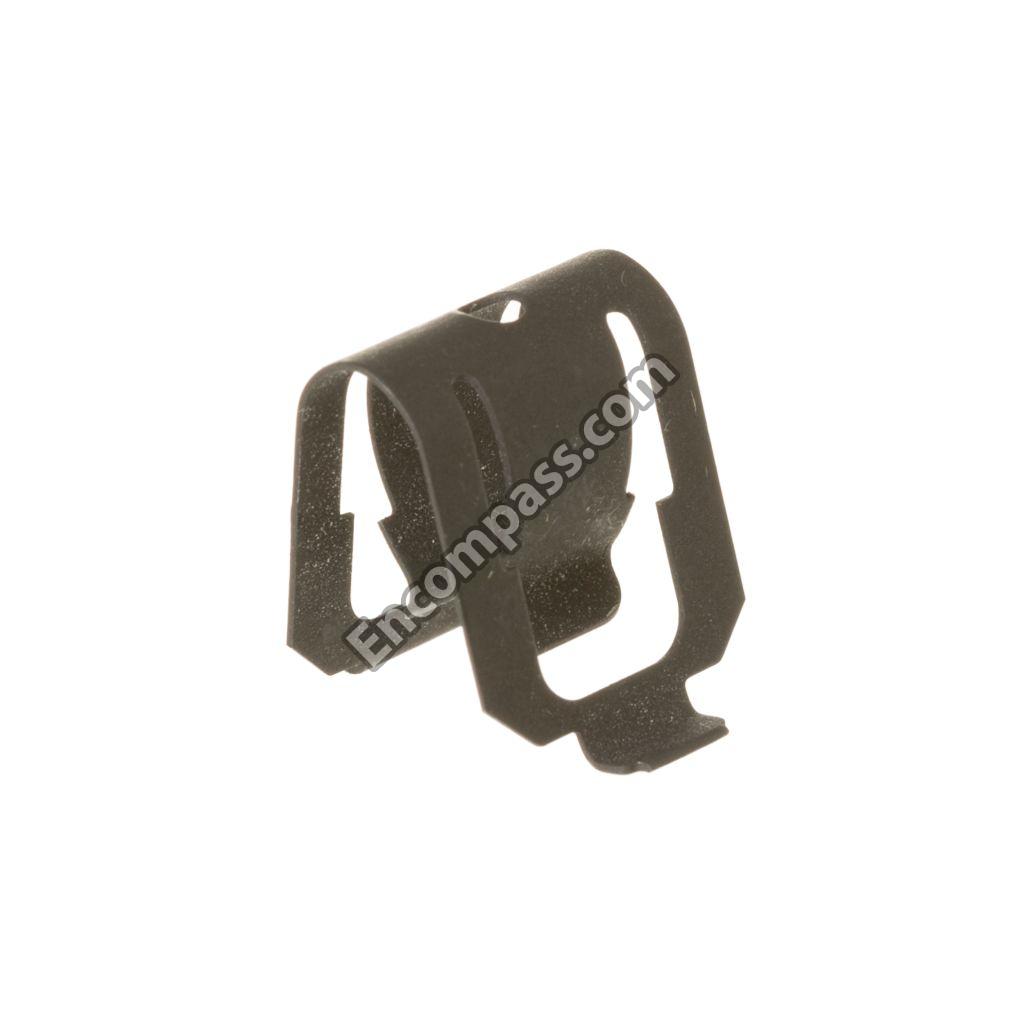

WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB02X7066 WB02X7066 CLIP WIRE
WB36K10557 WB36K10557 COOKTOP COMPLEMENT
WB02K10129 WB02K10129 COOKTOP GUIDE
WB2K6 WB2K6 COVER THERMO
WB02K0006 WB02K0006 COVER THERMOSTAT
WB02K0024 WB02K0024 COVER VALVE
WB49K10037 WB49K10037 DEFLECTOR OVEN
WB35K10172 WB35K10172 DRAWER PANEL INSULATION
WB07X7189 WB07X7189 END CAP HANDLE (WH)
WB7X7189 WB7X7189 END CAP HNDL
WB35K10080 WB35K10080 FIBERGLASS PANEL
WB49K0044 WB49K0044 FLAME SPREADER
WB35K10067 WB35K10067 FOIL CAVITY WRAP
WB63K10276 WB63K10276 FRONT FRAME 20
WB28K10376 WB28K10376 GAS RANGE ORIFICE
WB32K10054 WB32K10054 GASKET DOOR ASSEMBLY
WB13K10052 WB13K10052 GLOWBAR BRACKET

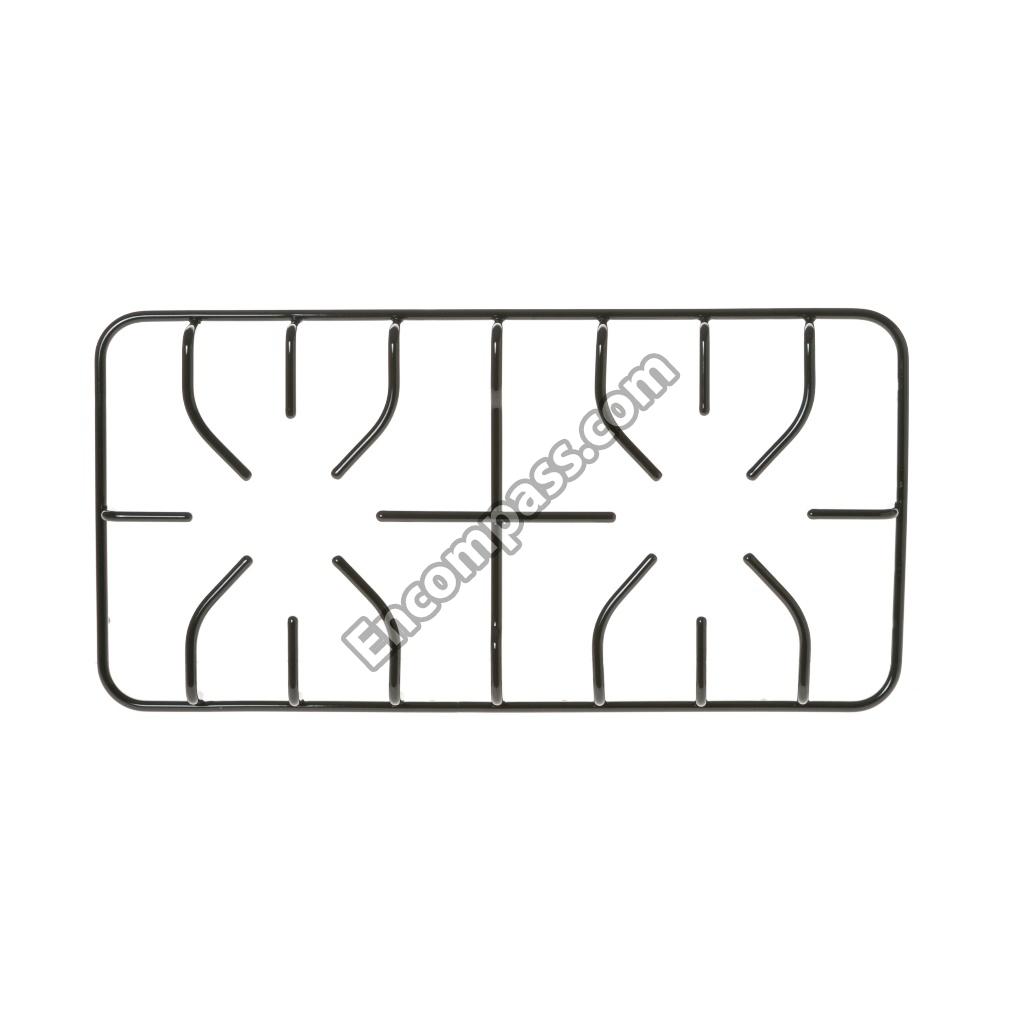

WB31K10263 WB31K10263 GRATE ASSEMBLY.
WB18X31211 WB18X31211 HARNESS BURNER BOX
WB01K10048 WB01K10048 HEX LOCK NUT
WB01K10041 WB01K10041 HEX LOCK NUT
WB01K10051 WB01K10051 HEX NUT 1/4

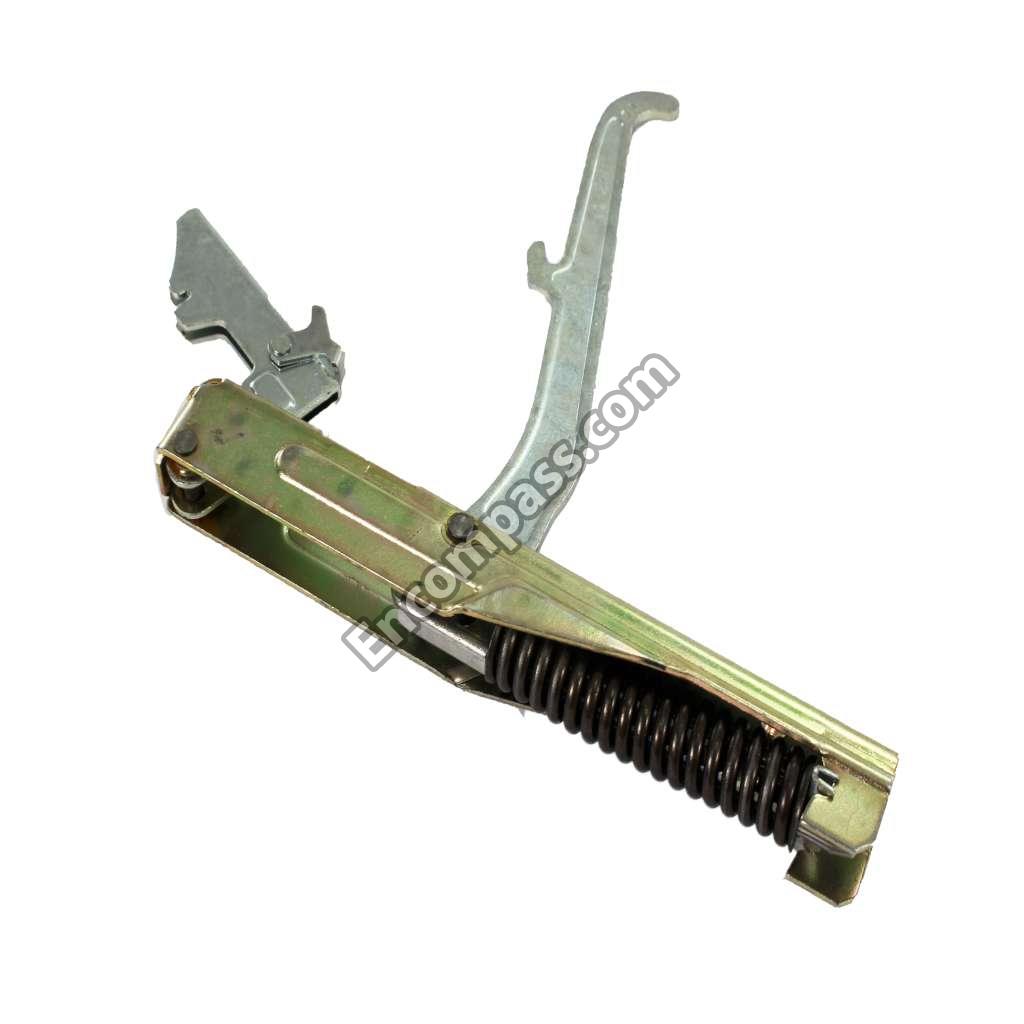

WB10K10038 WB10K10038 HINGE DOOR OVEN ASSEMBLY

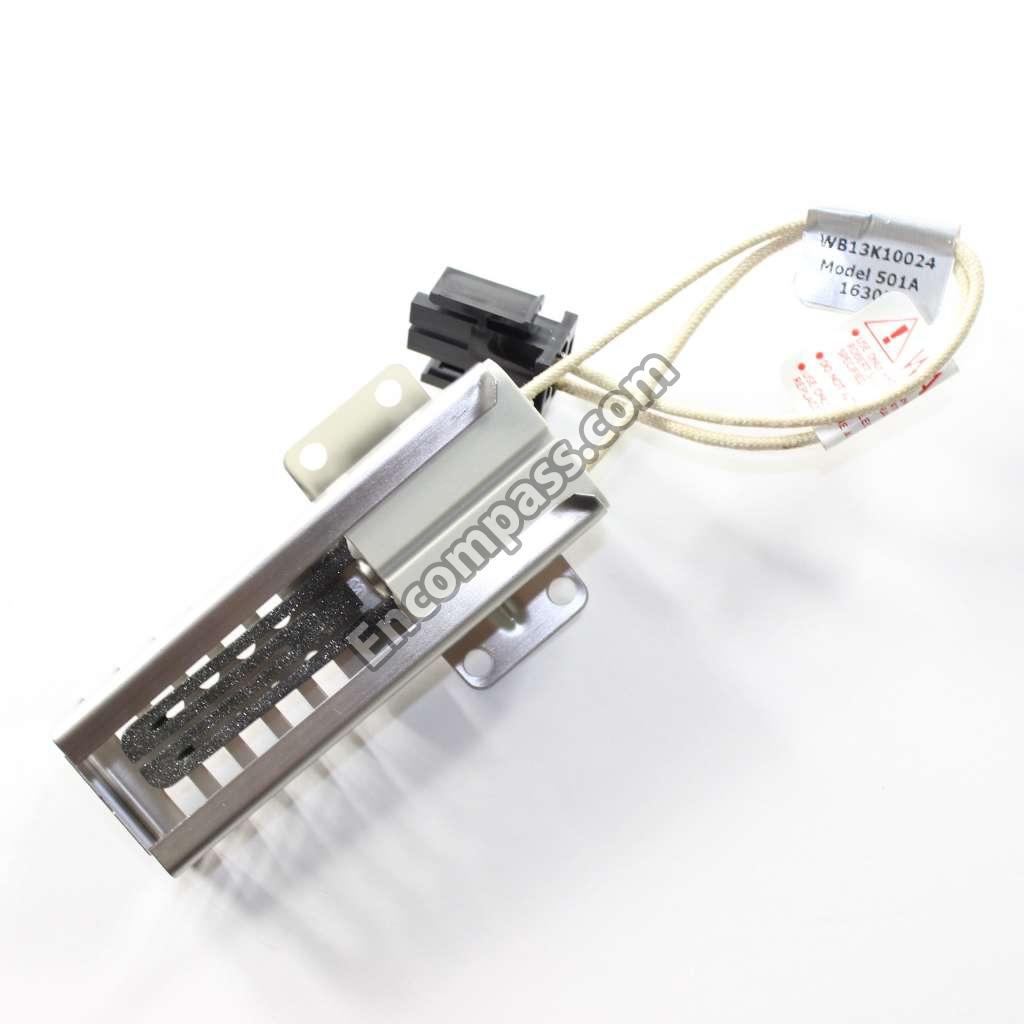

WB13K10024 WB13K10024 IGNITER GLOWBAR
WB35K10228 WB35K10228 INSULATION DOOR
WB35K10170 WB35K10170 INSULATION OVEN WRAP
WB56K10028 WB56K10028 KICK PANEL 20

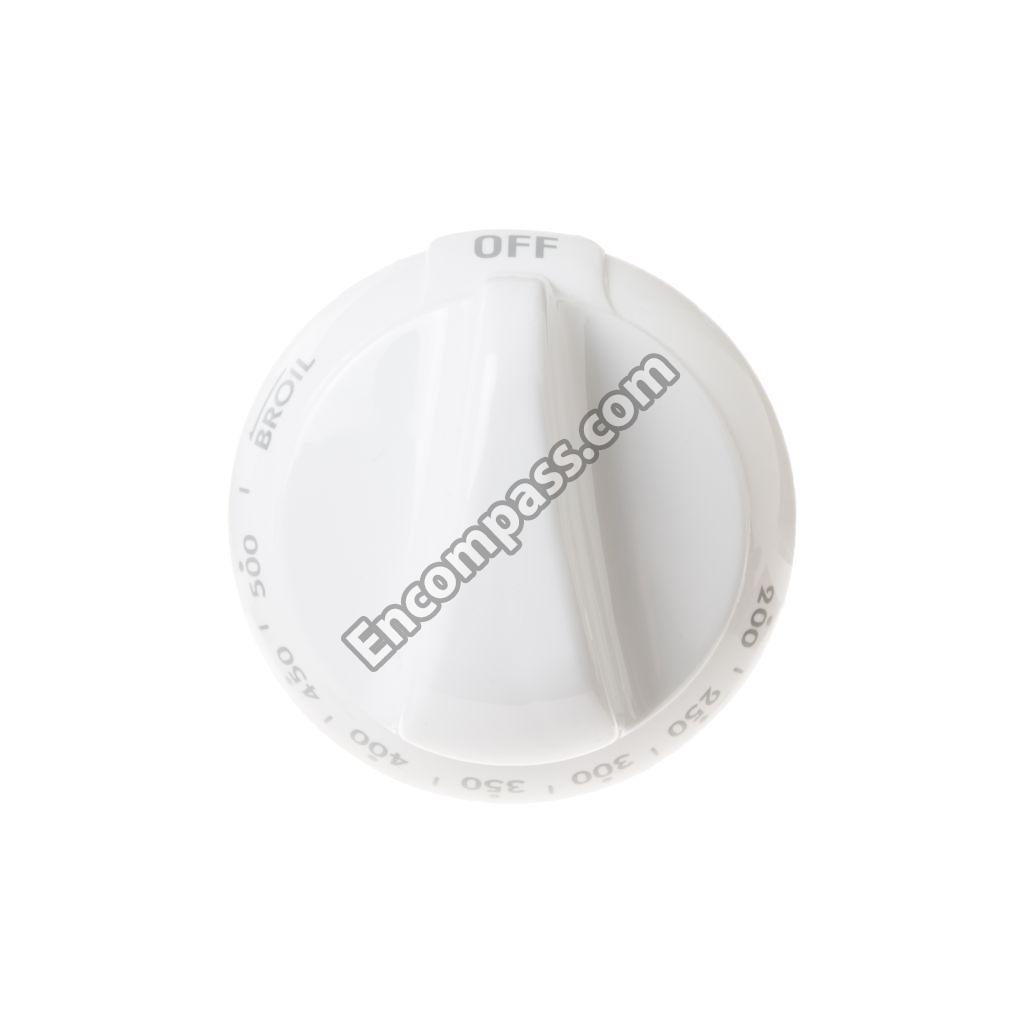

WB03K10203 WB03K10203 KNOB THERMOSTAT ASSEMBLY. GE
WB28K10313 WB28K10313 LEFT FRONT TUBE ASSEMBLY
WB28K10314 WB28K10314 LEFT REAR TUBE ASSEMBLY.

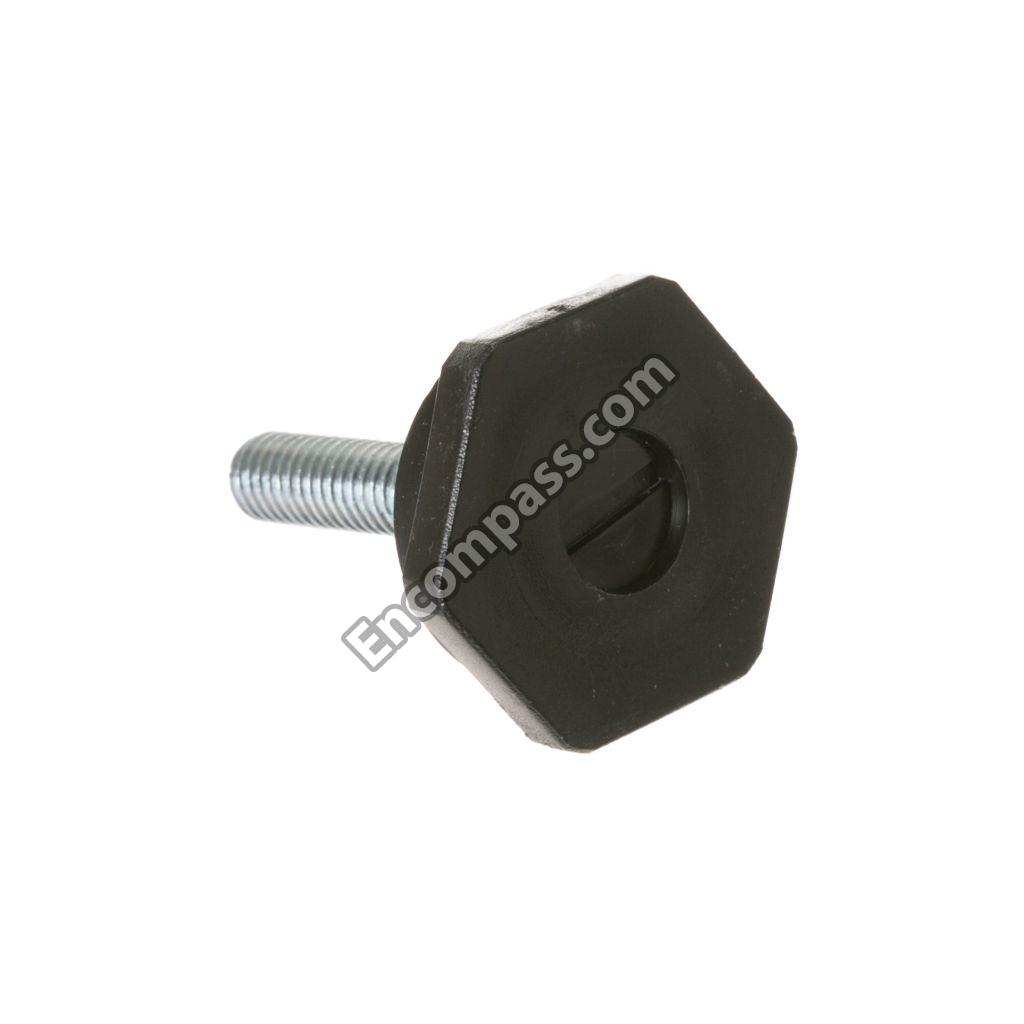

WB02K10126 WB02K10126 LEVEL SCREW
WB18K0007 WB18K0007 LINE CORD
WB18K10036 WB18K10036 LINE CORD
WB55K10086 WB55K10086 LINER DOOR
WB55K10089 WB55K10089 LINER DRAWER
WB07K10459 WB07K10459 LOWER PROTECTOR
WB28K10312 WB28K10312 MANIFOLD PIPE ASSEMBLY
WB34K10084 WB34K10084 MODULE COVER ASSEMBLY.
WB01K0004 WB01K0004 NUT
WB1K4 WB1K4 NUT
WB01K0006 WB01K0006 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB28K0008 WB28K0008 ORIFICE LP GAS

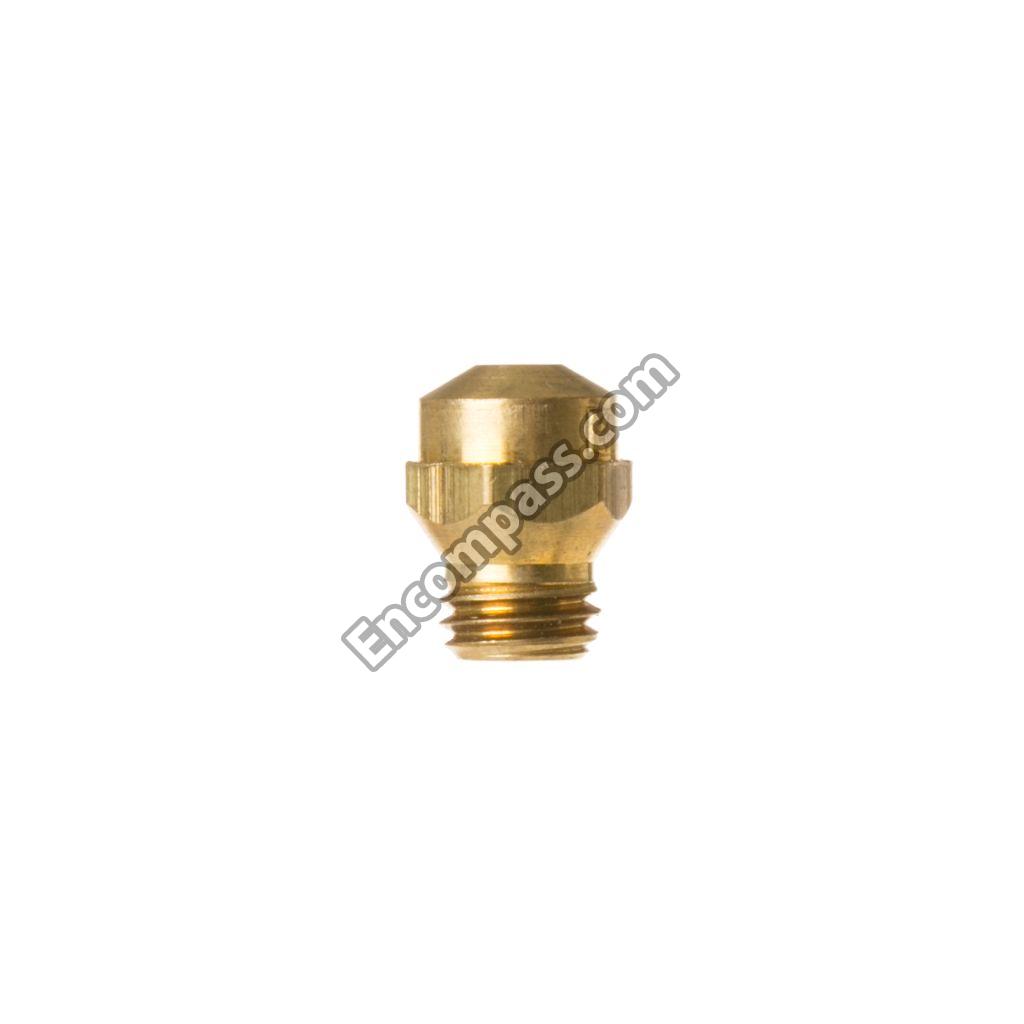

WB28K10319 WB28K10319 ORIFICE SPUD
WB63K10095 WB63K10095 OVEN BACK
WB16K10057 WB16K10057 OVEN BURNER ASSEMBLY
WB63K10075 WB63K10075 OVEN SIDE
WB36K10570 WB36K10570 PANEL MANIFOLD ASSEMBLY 20
WB63K10278 WB63K10278 PANEL SIDE
WB01K10035 WB01K10035 PIN BROILER
31-21206 31-21206 PM MINI - MANUAL
49-85104 49-85104 PM USE & CARE MANUAL
WB15K10098 WB15K10098 POCKET H AND LE
WB48K10014 WB48K10014 RACK BROILER PAN

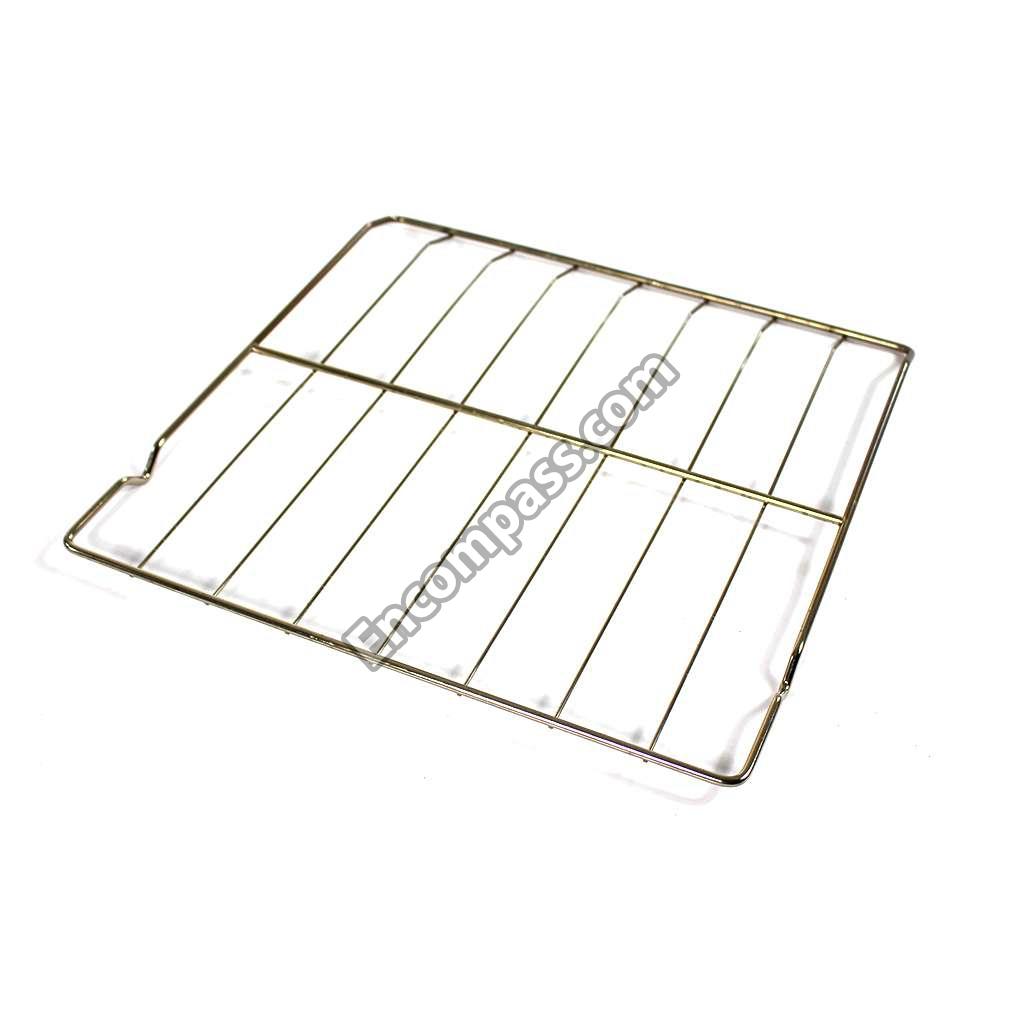

WB48X26060 WB48X26060 RACK OVEN 20
WB2K20 WB2K20 RANGE ANTI-TIP BRACKET
WB63K10096 WB63K10096 RANGE BACK
WB02K10091 WB02K10091 RANGE DOOR STRIKE CATCH

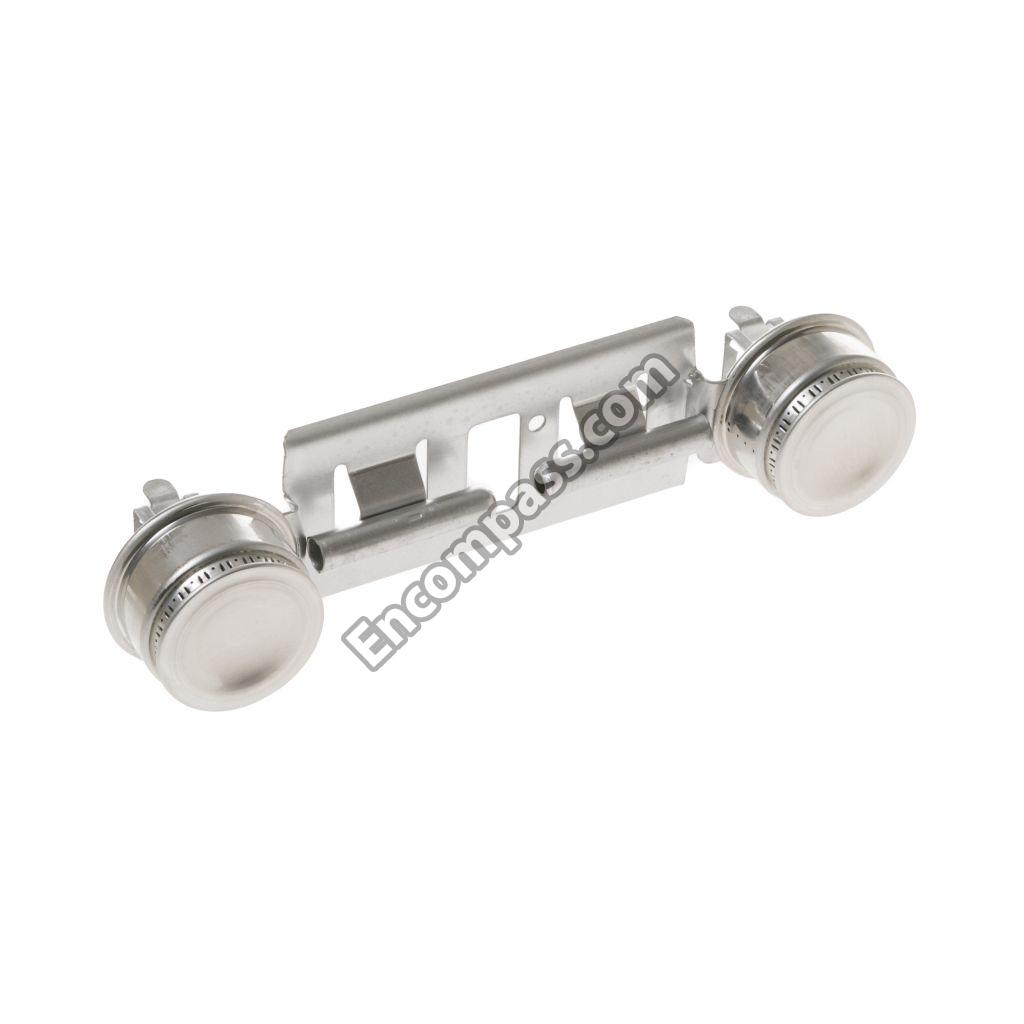

WB16K10058 WB16K10058 RANGE DOUBLE BURNER ASSEMBLY
WB01K10023 WB01K10023 RANGE HANDLE GROMMET
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB02K10088 WB02K10088 RANGE MAIN TOP SUPPORT ROD
WB02K10128 WB02K10128 RANGE MAINTOP STRIKE

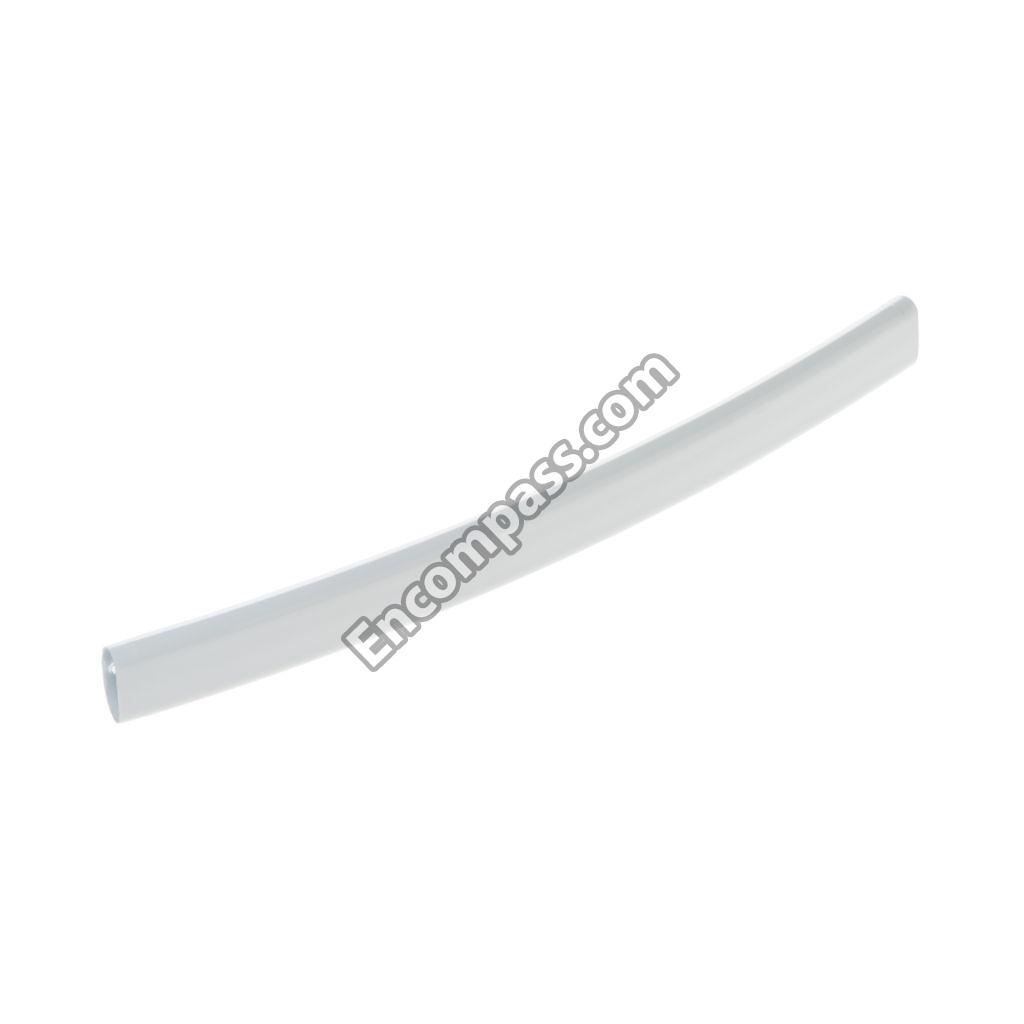

WB15K10065 WB15K10065 RANGE OVEN DOOR HANDLE - WHITE
WB02K10131 WB02K10131 RANGE SIDE PANEL GUIDE
WB19K10029 WB19K10029 RANGE SINGLE SAFETY VALVE
WB02K10089 WB02K10089 RANGE SUPPORT ROD CLAMP
WB20K8 WB20K8 RANGE THERMOSTAT ASSEMBLY
WB36K10571 WB36K10571 RANGE TOP 20
WB03K10034 WB03K10034 RANGE WHITE BURNER KNOB
WB10K10003 WB10K10003 RECEPTACLE HINGE
WB19K28 WB19K28 REG PRESSURE
WB19K0028 WB19K0028 REGULATOR PRESSURE
WB28K10326 WB28K10326 RIGHT FRONT TUBE ASSEMBLY.
WB28K10325 WB28K10325 RIGHT REAR TUBE ASSEMBLY.
WB63K10093 WB63K10093 SAFETY VALVE COVER
WB35K10079 WB35K10079 SAFETY VALVE INSULATION
WB19K10087 WB19K10087 SAFETY VALVE TUBE
WB01K10062 WB01K10062 SCR 8-18 X 3/8
WB01K0084 WB01K0084 SCREW
WB01K10057 WB01K10057 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10092 WB01K10092 SCREW
WB01K10052 WB01K10052 SCREW
WB01K10091 WB01K10091 SCREW
WB1K84 WB1K84 SCREW & WASH
WB01K0042 WB01K0042 SCREW (BLK)
WB01K10050 WB01K10050 SCREW 1/4-20 X 2 3/16-INCH HEX
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WB01K10083 WB01K10083 SCREW 8-32
WB01X1261 WB01X1261 SCREW GROUND
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB1K8 WB1K8 SCREW THERMO
WB01K0008 WB01K0008 SCREW THERMOSTAT
WB01K0083 WB01K0083 SCREW-MTG VALVE BURNER
WB1K83 WB1K83 SCREW-MTG VALVE BURNER 10-32
WB34K0010 WB34K0010 SHIELD BROIL
WB34K10 WB34K10 SHIELD BROIL
WB63K10074 WB63K10074 SIDE PANEL COMPLEMENT
WB63K10091 WB63K10091 SIDE PANEL COMPLEMENT
WB56K10082 WB56K10082 SOLID DOOR 20
WB18X26989 WB18X26989 SPARK ELECTRODE TOP
WB13K10047 WB13K10047 SPARK ELECTRODE TOP
WB20K5037 WB20K5037 SPARK MODULE
WB1X5743D WB1X5743D SPDNUT-PKQ12
WB01X5743 WB01X5743 SPEEDNUT
WB28K10318 WB28K10318 TUBE SUPPLY
WB21K0038 WB21K0038 VALVE BURNER 140
WB2K24 WB2K24 VALVE COVER
WB21K38 WB21K38 VALVE-BURNER
WB38K10015 WB38K10015 VENT ASSEMBLY
WB35K10078 WB35K10078 VENT DEFLECTOR
WB01K10055 WB01K10055 WASHER
WB01K0039 WB01K0039 WASHER SPRINT
WB1K39 WB1K39 WASHER SPRNT
