Model Image
Manufacturer

GE

Model Number

RGB524PPT1WH

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description

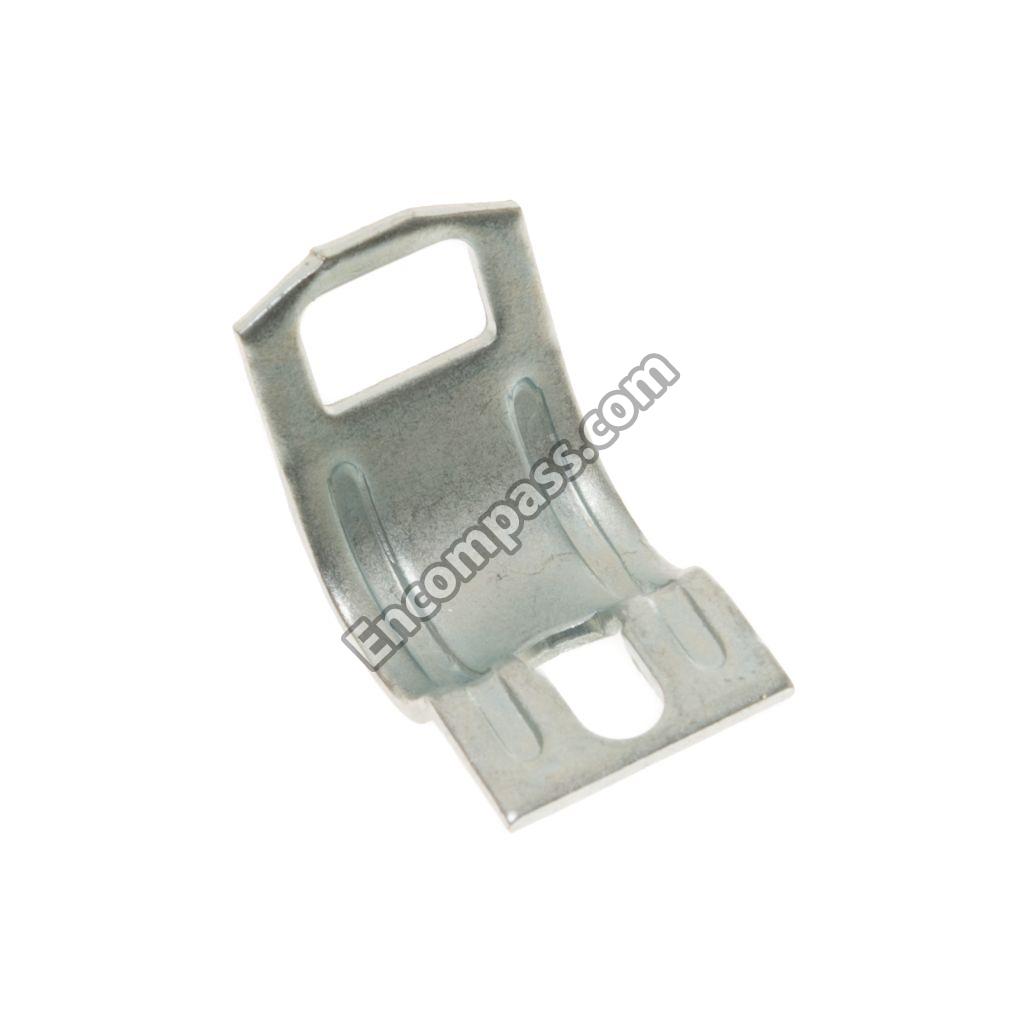

WB02K0003 WB02K0003 ANGLE SUPPORT
WB2K3 WB2K3 ANGLE SUPPRT
WB02K0012 WB02K0012 ARM ANTI TIP
WB2K12 WB2K12 ARM ANTI TIP
WB07K10342 WB07K10342 BARRIER DOOR
WB35X37973 WB35X37973 BOTTOM OVEN AND DEFLECTOR ASSEMBLY
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10029 WB63K10029 BOTTOM RANGE
WB2K95 WB2K95 BRACE (LT &
WB02K0095 WB02K0095 BRACE (LT & RT)
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB38K0003 WB38K0003 BRACE VENT
WB38K3 WB38K3 BRACE VENT
WB02K0020 WB02K0020 BRACKET ASM ANTI-TIP
WB02K0065 WB02K0065 BRACKET SAFETY VALVE
WB02K10264 WB02K10264 BRACKET THERMOSTAT
WB2K65 WB2K65 BRKT SAF VLV
WB39K35 WB39K35 BROIL SUP LH
WB02K10179 WB02K10179 BUMPER
WB2K15 WB2K15 BUMPER BLACK
WB02K0015 WB02K0015 BUMPER, BLACK
WB64K10001 WB64K10001 BURNER BOX
WB16K10066 WB16K10066 BURNER OVEN ASSEMBLY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB01X0119 WB01X0119 CONTOURED WASHER
WB36K10402 WB36K10402 CONTROL TRIM
31-21460 31-21460 CONVERSION STEPS SHEET
WB62K10001 WB62K10001 COOKTOP (WHITE)
WB6K2 WB6K2 COUNTERWEIGH
WB06K0002 WB06K0002 COUNTERWEIGHT
WB34K0016 WB34K0016 COVER BACK
WB34K16 WB34K16 COVER BACK
WB7K381 WB7K381 COVER END LE
WB07K0381 WB07K0381 COVER END LEFT (BLK)
WB7K380 WB7K380 COVER END RI
WB07K0380 WB07K0380 COVER END RIGHT (BLK)
WB49K10037 WB49K10037 DEFLECTOR OVEN
WB16K10026 WB16K10026 DOUBLE BURNER ASSEMBLY
WB01X0560 WB01X0560 FIBER WASHER
WB49K0044 WB49K0044 FLAME SPREADER
WB63K10236 WB63K10236 FRAME WELD ASSEMBLY
WB63K10235 WB63K10235 FRAME WELD ASSEMBLY
WB28K10010 WB28K10010 FRONT TUBE ASSEMBLY
WB28K10009 WB28K10009 FRONT TUBE ASSEMBLY
WB31K10015 WB31K10015 GAS RANGE GRATE - BLACK
WB28K10593 WB28K10593 GAS RANGE LP CONVERSION KIT
WB28K10376 WB28K10376 GAS RANGE ORIFICE
WB28K10033 WB28K10033 GAS RANGE ORIFICE SPUD - NATURAL GAS
WB32K0003 WB32K0003 GASKET DOOR ASM
WB35X29720 WB35X29720 GASKET DOOR ASM
WB32K0002 WB32K0002 GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB2K66 WB2K66 GD SUPT RGTP
WB31K10012 WB31K10012 GRATE-8 FINGER (BLACK)
WB02K0009 WB02K0009 GROMMET
WB2K8 WB2K8 GROMMET
WB10K18 WB10K18 GUIDE HINGE
WB10K19 WB10K19 GUIDE HINGE
WB10K0019 WB10K0019 GUIDE HINGE LEFT
WB10K0018 WB10K0018 GUIDE HINGE RIGHT
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15K10008 WB15K10008 H AND LE-BROILER (WHITE)
WB15K0017 WB15K0017 HANDLE DOOR (WH)
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB10K0011 WB10K0011 HINGE BRIOLER LEFT
WB10K0010 WB10K0010 HINGE BRIOLER RIGHT
WB10K11 WB10K11 HINGE BRO LT
WB10K10 WB10K10 HINGE BRO RT
WB34K0004 WB34K0004 HINGE GUARD LEFT
WB34K0003 WB34K0003 HINGE GUARD RIGHT
WB2X6195 WB2X6195 HINGE PIN
WB15K17 WB15K17 HNDL
WB34K4 WB34K4 HNGE GRD LFT
WB34K3 WB34K3 HNGE GRD RGT
WB02K0011 WB02K0011 HOOK DOOR SPRING
WB2K11 WB2K11 HOOK DR SPRG
WB35K3 WB35K3 INS DRAWER
WB35K10152 WB35K10152 INSULATION DOOR
WB35K0003 WB35K0003 INSULATION DRAWER
WB35K10162 WB35K10162 INSULATION OVEN BACK
WB35K10155 WB35K10155 INSULATION OVEN WRAP
WB03K10035 WB03K10035 KNOB-TOP BURNERS (BLACK)
WB55K10044 WB55K10044 LINER ASSEMBLY WELD DOOR
WB39K10042 WB39K10042 LINER DRAWER
WB36K10760 WB36K10760 MANIFOLD PANEL

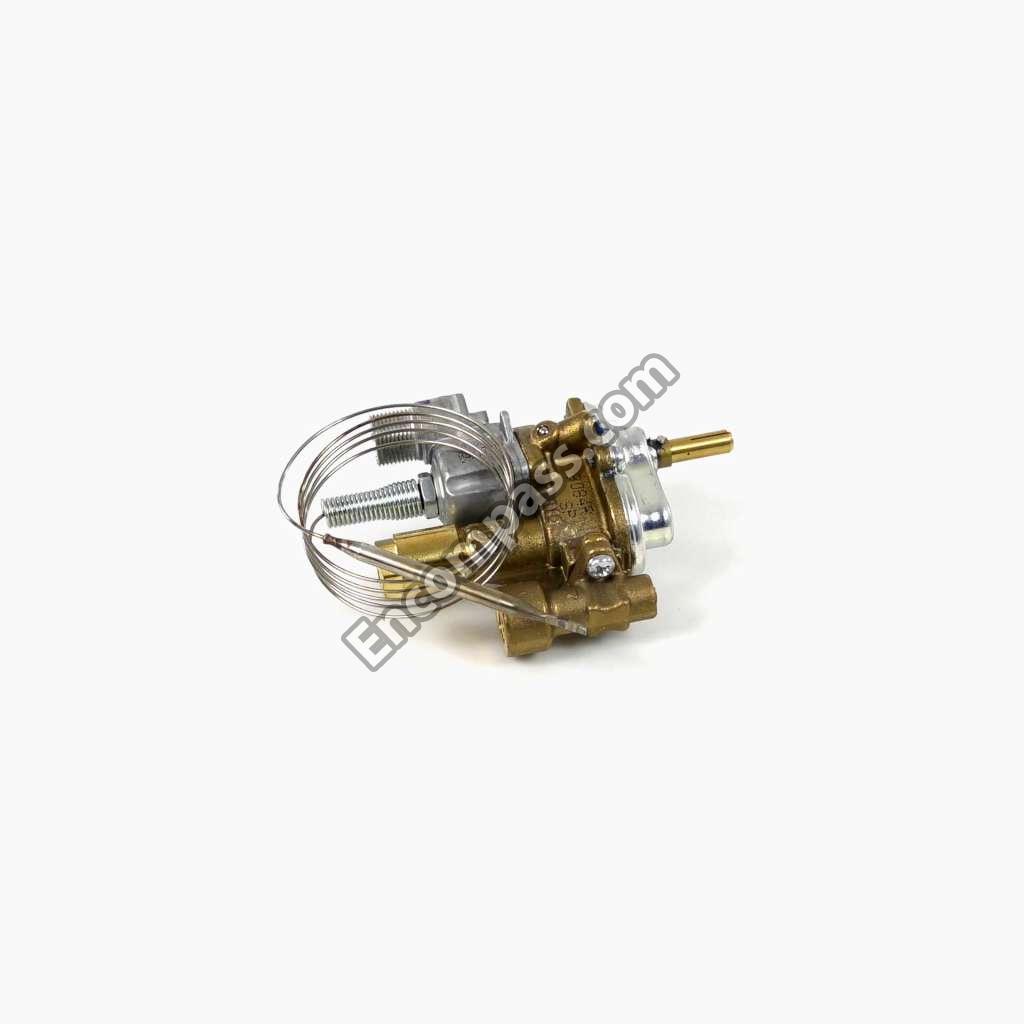

WB20K10033 WB20K10033 MODULATING THERMOSTAT
WB01K0004 WB01K0004 NUT
WB1K4 WB1K4 NUT
WB01K0006 WB01K0006 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K0008 WB28K0008 ORIFICE LP GAS
WB53K10016 WB53K10016 OVEN BACK
WB16K10061 WB16K10061 OVEN BURNER AND PILOT ASSEMBLY
WB19K10028 WB19K10028 OVEN PILOT
WB53K10035 WB53K10035 OVEN SIDE LEFT
WB53K10034 WB53K10034 OVEN SIDE RIGHT
WB53K0001 WB53K0001 OVEN TOP
WB53K1 WB53K1 OVEN TOP
WB63X26890 WB63X26890 PANEL BROILER
WB56K10045 WB56K10045 PANEL DOOR
WB56X21199 WB56X21199 PANEL DRAWER
WB39K0003 WB39K0003 PANEL DRAWER WHITE
WB63K0001 WB63K0001 PANEL REAR BROIL
WB63K10122 WB63K10122 PANEL SIDE
WB02K0021 WB02K0021 PILOT CAP
WB2K21 WB2K21 PILOT CAP
WB18X31862 WB18X31862 PILOT HARNESS ASSEMBLY
WB1K7 WB1K7 PIN BROILER
WB01K10035 WB01K10035 PIN BROILER
WB01K0007 WB01K0007 PIN BROILER RT
WB02X6195 WB02X6195 PIN HINGE DOOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
31-21442 31-21442 PM MINI-MANUAL
49-85199 49-85199 PM OWNERS AND INSTALL
49-85154 49-85154 PM USE & CARE MANUAL
WB63K1 WB63K1 PNL REAR BRO
WB19K10054 WB19K10054 PRESSURE REGULATOR
WB48X10056 WB48X10056 RACK BROILER PAN
WB48T10095 WB48T10095 RACK OVEN
WB2K20 WB2K20 RANGE ANTI-TIP BRACKET
WB63K0020 WB63K0020 RANGE BACK
WB63K20 WB63K20 RANGE BACK
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB01K10020 WB01K10020 RANGE HANDLE SPACER
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB32K2 WB32K2 RANGE OVEN DOOR GASKET

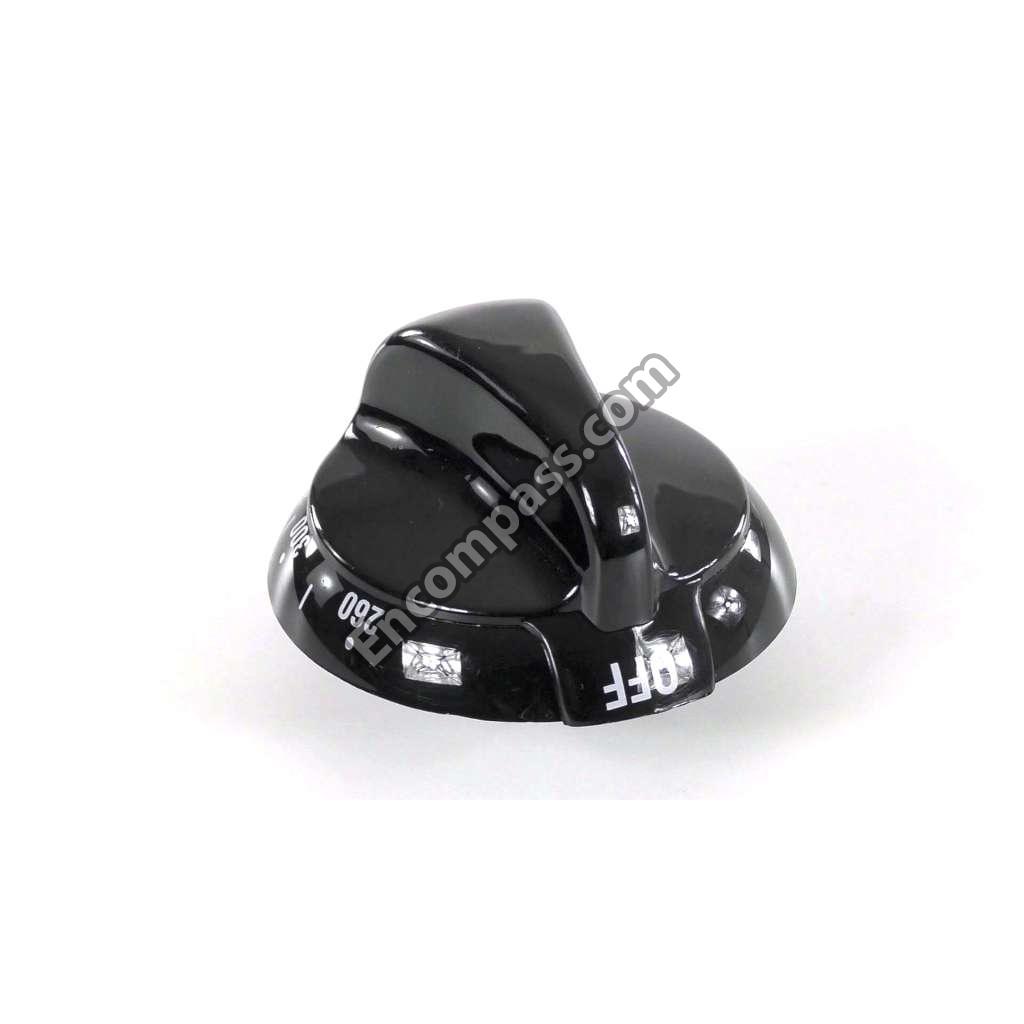

WB03K10159 WB03K10159 RANGE OVEN KNOB - BLACK
WB48X20249 WB48X20249 RANGE OVEN RACK

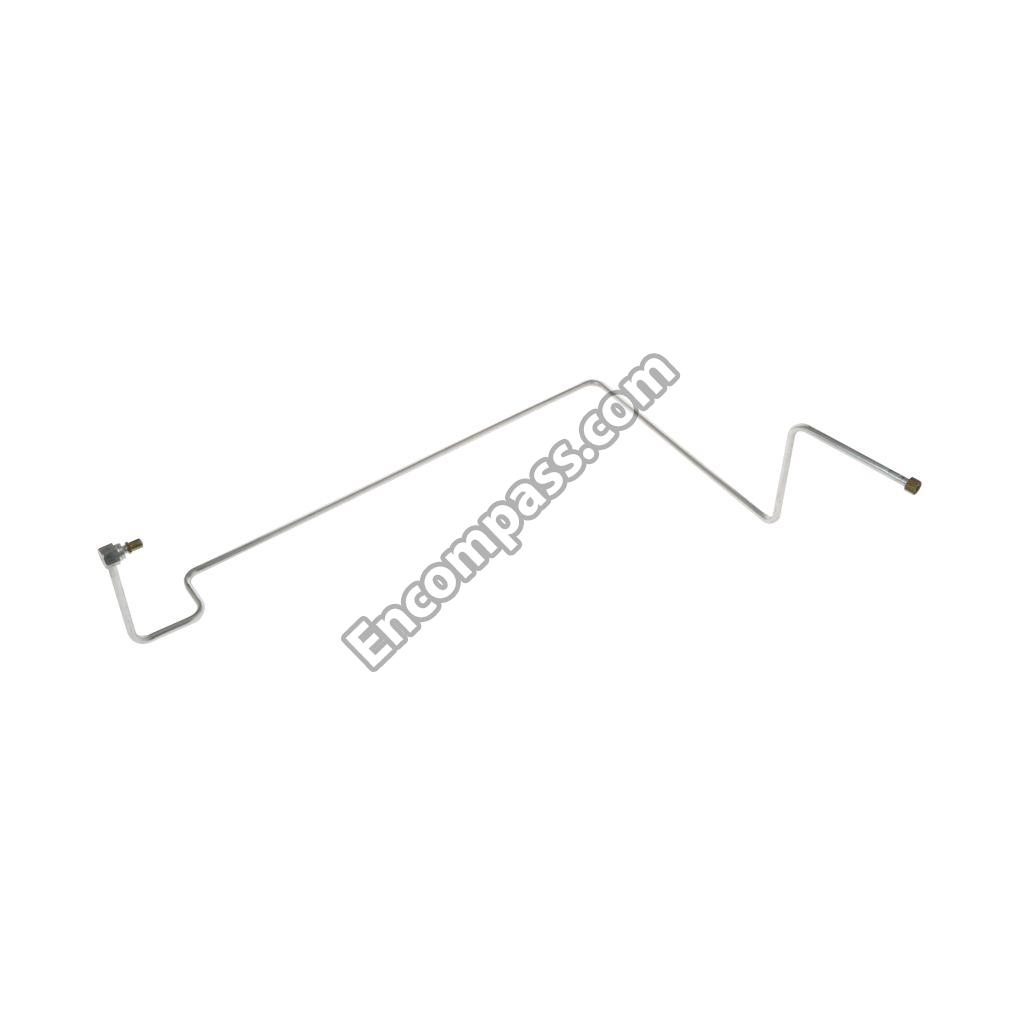

WB28K10171 WB28K10171 RANGE OVEN TUBE SUPPLY
WB6K8 WB6K8 RANGE SUPPORT BRACKET
WB19K10025 WB19K10025 RANGE THERMOCOUPLE
WB01K10080 WB01K10080 RANGE THERMOSTAT SCREW
WB01K10097 WB01K10097 RANGE THERMOSTAT SCREW
WB33K1 WB33K1 RET WIRE INS
WB2X1082 WB2X1082 RETAINER
WB33K0001 WB33K0001 RETAINER WIRE INSULATION
WB02X1082 WB02X1082 RING RETAINING
WB28K10580 WB28K10580 ROUND MANIFOLD PIPE
WB02K10263 WB02K10263 ROUND VALVE BRACKET
WB28K10578 WB28K10578 ROUND VALVE BURNER 140
WB1K45 WB1K45 SCR AND WSHR ASSEMBLY
WB01K0037 WB01K0037 SCREW
WB1K37 WB1K37 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10043 WB01K10043 SCREW
WB01K10091 WB01K10091 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01K10078 WB01K10078 SCREW 10-16 X 2 3/4
WB1K78 WB1K78 SCREW 12-14
WB01K0078 WB01K0078 SCREW 12-14, 5/8S
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB01K10002 WB01K10002 SCREW 8-32
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X0558 WB01X0558 SCREW NAIL POINT
WB01K0045 WB01K0045 SCREW WASHER ASM
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB02K0014 WB02K0014 SPACER
WB2K14 WB2K14 SPACER
WB02K10156 WB02K10156 SPACER
WB1X5743D WB1X5743D SPDNUT-PKQ12
WB01X5743 WB01X5743 SPEEDNUT
WB01K10093 WB01K10093 SPEEDNUT
WB09K0001 WB09K0001 SPRING DOOR
WB9K1 WB9K1 SPRING DOOR
WB01K10036 WB01K10036 SPRING WASHER
WB39K34 WB39K34 SUP BROIL RT
WB39K0033 WB39K0033 SUPPORT
WB39K33 WB39K33 SUPPORT
WB10K10009 WB10K10009 SUPPORT ASSEMBLY RIVET LF
WB10K10010 WB10K10010 SUPPORT ASSEMBLY RIVET RT
WB63K10231 WB63K10231 SUPPORT BASE
WB63K10230 WB63K10230 SUPPORT BASE
WB39K0035 WB39K0035 SUPPORT BRIOLER LEFT
WB39K0034 WB39K0034 SUPPORT BRIOLER RIGHT
WB06K0008 WB06K0008 SUPPORT RANGE TOP
WB28K10172 WB28K10172 TUBE PILOT SUPPLY
WB28K10011 WB28K10011 TUBE-BURNER LEFT REAR
WB28K10012 WB28K10012 TUBE-BURNER RT REAR
WB38K0004 WB38K0004 VENT ASM
WB38K4 WB38K4 VENT ASM
WB01K0038 WB01K0038 WASHER
WB1K38 WB1K38 WASHER
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB1X560D WB1X560D WASHR-PKG 12
