Model Image
Manufacturer

GE

Model Number

RGB524PV2WH

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB02K0003 WB02K0003 ANGLE SUPPORT
WB2K3 WB2K3 ANGLE SUPPRT
WB02K0012 WB02K0012 ARM ANTI TIP
WB2K12 WB2K12 ARM ANTI TIP
WB63K7 WB63K7 BASE SUPP LF
WB63K6 WB63K6 BASE SUPP RT
WB63K0007 WB63K0007 BASE SUPPORT LEFT
WB63K0006 WB63K0006 BASE SUPPORT RIGHT
WB53K0005 WB53K0005 BOTTOM OVEN
WB53K5 WB53K5 BOTTOM OVEN
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K0009 WB63K0009 BOX BURNER
WB63K9 WB63K9 BOX BURNER
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB7K139 WB7K139 BRACE SIDE
WB07K0139 WB07K0139 BRACE SIDE (LFT&RGT)
WB38K0003 WB38K0003 BRACE VENT
WB38K3 WB38K3 BRACE VENT
WB02K0020 WB02K0020 BRACKET ASM ANTI-TIP
WB02K0001 WB02K0001 BRACKET GLIDER
WB02K0007 WB02K0007 BRACKET VALVE
WB2K20 WB2K20 BRKT ASM A-T
WB2K1 WB2K1 BRKT GLIDER
WB2K7 WB2K7 BRKT VALVE
WB49K2 WB49K2 BROIL PAN 16X16 3/4 FITS RACK
WB48K2 WB48K2 BROIL PAN RACK 15 1/2X16 3/4 F
WB39K6 WB39K6 BROIL WELD A
WB02K0005 WB02K0005 BROILER STOP
WB2K5 WB2K5 BROILER STOP
WB39K0006 WB39K0006 BROILER WELD ASM
WB2K15 WB2K15 BUMPER BLACK
WB02K0015 WB02K0015 BUMPER, BLACK
WB16K0009 WB16K0009 BURNER OVEN
WB16K9 WB16K9 BURNER OVEN
WB7K137 WB7K137 CAP END LEFT
WB7K136 WB7K136 CAP END RGHT
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB01X0119 WB01X0119 CONTOURED WASHER
WB62K10001 WB62K10001 COOKTOP (WH)
WB6K2 WB6K2 COUNTERWEIGH
WB06K0002 WB06K0002 COUNTERWEIGHT
WB02K0004 WB02K0004 COVER ACCESS SPRING
WB34K0016 WB34K0016 COVER BACK
WB34K16 WB34K16 COVER BACK
WB2K4 WB2K4 CVR ACC SPRG
WB34K1 WB34K1 DEFLECT ASM
WB34K0001 WB34K0001 DEFLECTOR ASM
WB29K0017 WB29K0017 DOUBLE BURNER ASSEMBLY
WB16K10026 WB16K10026 DOUBLE BURNER ASSEMBLY
WB01X0560 WB01X0560 FIBER WASHER
WB63K31 WB63K31 FRAME WELD
WB63K0031 WB63K0031 FRAME WELD ASM
WB28K0032 WB28K0032 FRONT TUBE ASM LEFT
WB28K0031 WB28K0031 FRONT TUBE ASM RIGHT
WB32K0003 WB32K0003 GASKET DOOR ASM
WB35X29720 WB35X29720 GASKET DOOR ASM
WB32K0002 WB32K0002 GASKET OVEN SEAL LG
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB2K66 WB2K66 GD SUPT RGTP
WB02X7701 WB02X7701 GLIDER
WB2X8248 WB2X8248 GLIDER ADJ
WB31K7 WB31K7 GRATE
WB1K10 WB1K10 GROM HNDLE
WB02K0009 WB02K0009 GROMMET
WB2K8 WB2K8 GROMMET
WB01K0010 WB01K0010 GROMMET HANDLE
WB32K2 WB32K2 GSKT OV SEAL
WB10K18 WB10K18 GUIDE HINGE
WB10K19 WB10K19 GUIDE HINGE
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15K3 WB15K3 HANDLE
WB15K0003 WB15K0003 HANDLE BROIL
WB15K1 WB15K1 HANDLE BROIL
WB15K0001 WB15K0001 HANDLE- DOOR (CR)
WB10K12 WB10K12 HINGE ASM GD
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB10K0006 WB10K0006 HINGE BROILER LEFT
WB10K0005 WB10K0005 HINGE BROILER RIGHT
WB34K0004 WB34K0004 HINGE GUARD LEFT
WB34K0003 WB34K0003 HINGE GUARD RIGHT
WB14K0007 WB14K0007 HINGE GUIDE LEFT
WB14K0006 WB14K0006 HINGE GUIDE RIGHT
WB2X6195 WB2X6195 HINGE PIN
WB10K6 WB10K6 HNGE BROIL L
WB10K5 WB10K5 HNGE BROIL R
WB34K4 WB34K4 HNGE GRD LFT
WB34K3 WB34K3 HNGE GRD RGT
WB02K0011 WB02K0011 HOOK DOOR SPRING
WB2K11 WB2K11 HOOK DR SPRG
WB35K3 WB35K3 INS DRAWER
WB35K1 WB35K1 INS OV WRAP
WB35K16 WB35K16 INSUL OVBACK
WB35K0004 WB35K0004 INSULATION DOOR
WB35K0003 WB35K0003 INSULATION DRAWER
WB35K0016 WB35K0016 INSULATION OVEN BACK
WB35K0001 WB35K0001 INSULATION OVEN WRAP
WB49X20801 WB49X20801 LINER ASM WD KIT
WB55K0002 WB55K0002 LINER ASM WELD DOOR
WB39K0005 WB39K0005 LINER DRAWER
WB39K5 WB39K5 LINER DRAWER
WB28K0067 WB28K0067 MANIFOLD
WB28K67 WB28K67 MANIFOLD
WB28K32 WB28K32 N/L/A 09/29/05
WB28K31 WB28K31 N/L/A 09/29/05
WB35K4 WB35K4 N/L/A 12/14/05
WB01K0004 WB01K0004 NUT
WB1K4 WB1K4 NUT
WB01K0006 WB01K0006 NUT LOCK
WB1K6 WB1K6 NUT LOCK
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K0008 WB28K0008 ORIFICE LP GAS
WB28K10376 WB28K10376 ORIFICE SPUD
WB28K7 WB28K7 ORIFICE SPUD
WB28K0007 WB28K0007 ORIFICE SPUD NATURAL GAS
WB53K10 WB53K10 OV BACK 24
WB53K0010 WB53K0010 OVEN BACK 24 INCH
WB53K0003 WB53K0003 OVEN SIDE LEFT
WB53K3 WB53K3 OVEN SIDE LF
WB53K0002 WB53K0002 OVEN SIDE RIGHT
WB53K2 WB53K2 OVEN SIDE RT
WB53K0001 WB53K0001 OVEN TOP
WB53K1 WB53K1 OVEN TOP
WB49K0002 WB49K0002 PAN BROILER
WB56K0002 WB56K0002 PANEL DOOR WHITE
WB39K0013 WB39K0013 PANEL DRAWER WHITE
WB07K0141 WB07K0141 PANEL MANIFOLD
WB63K0001 WB63K0001 PANEL REAR BROIL
WB63K0033 WB63K0033 PANEL SIDE (WH)
WB63K0003 WB63K0003 PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 PANEL SIDE BROIL RT
WB02K0021 WB02K0021 PILOT CAP
WB2K21 WB2K21 PILOT CAP
WB19K5 WB19K5 PILOT HARN A
WB19K0005 WB19K0005 PILOT HARNESS ASM
WB19K6 WB19K6 PILOT OV BUR
WB19K0006 WB19K0006 PILOT OVEN BURNER
WB01K0011 WB01K0011 PILOT SCREW
WB1K11 WB1K11 PILOT SCREW
WB1K7 WB1K7 PIN BROILER
WB01K0007 WB01K0007 PIN BROILER RT
WB02X6195 WB02X6195 PIN HINGE DOOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
31-1382 31-1382 PM MINI MANUAL
WB56K2 WB56K2 PNL DOOR WH
WB39K13 WB39K13 PNL DRWR WH
WB7K134 WB7K134 PNL MANIFOLD
WB63K1 WB63K1 PNL REAR BRO
WB63K3 WB63K3 PNL SD BRO L
WB63K2 WB63K2 PNL SD BRO R
WB48K0002 WB48K0002 RACK BROILER PAN
WB48K0004 WB48K0004 RACK OVEN
WB48T10095 WB48T10095 RACK OVEN
WB63K0020 WB63K0020 RANGE BACK
WB63K20 WB63K20 RANGE BACK
WB63K0004 WB63K0004 RANGE BOTTOM
WB63K4 WB63K4 RANGE BOTTOM
WB28K0047 WB28K0047 REAR TUBE ASM LFT
WB28K0048 WB28K0048 REAR TUBE ASM RIGHT
WB19K4 WB19K4 REG PRESSURE
WB19K0004 WB19K0004 REGULATOR PRESSURE
WB33K1 WB33K1 RET WIRE INS
WB2X1082 WB2X1082 RETAINER
WB33K0001 WB33K0001 RETAINER WIRE INSULATION
39-4759-B 39-4759-B RGB501-628 UC/INSTALLATION
WB02X1082 WB02X1082 RING RETAINING
WB28K47 WB28K47 RR TUBE ASM
WB1K45 WB1K45 SCR&WSHR ASM
WB01K0016 WB01K0016 SCREW
WB01K0037 WB01K0037 SCREW
WB04X0366 WB04X0366 SCREW
WB01K0021 WB01K0021 SCREW
WB1K37 WB1K37 SCREW
WB4X366 WB4X366 SCREW
WZ4X426 WZ4X426 SCREW
WB1X1293 WB1X1293 SCREW
WB1K5062 WB1K5062 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WB1K5 WB1K5 SCREW 8-18 X 1/2
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X0558 WB01X0558 SCREW NAIL POINT
WB01K0045 WB01K0045 SCREW WASHER ASM
WZ04X0423 WZ04X0423 SCREW-MTG HDL DOOR
WZ4X423D WZ4X423D SCREW-PKG 12
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WB34K0002 WB34K0002 SHIELD VALVE
WB34K2 WB34K2 SHIELD VALVE
WB39K2 WB39K2 SLIDE BOT LF
WB39K1 WB39K1 SLIDE BOT RT
WB39K7 WB39K7 SLIDE BRLR P
WB39K8 WB39K8 SLIDE BRLR P
WB39K0009 WB39K0009 SLIDE BROILER
WB39K0008 WB39K0008 SLIDE BROILER PAN LEFT
WB39K0007 WB39K0007 SLIDE BROILER PAN RIGHT
WB39K9 WB39K9 SLIDE BROILR
WB39K0002 WB39K0002 SLIDE RANGE BOTTOM LEFT
WB39K0001 WB39K0001 SLIDE RANGE BOTTOM RIGHT
WB02K0002 WB02K0002 SPACER
WB02K0014 WB02K0014 SPACER
WB2K14 WB2K14 SPACER
WB2K2 WB2K2 SPACER
WB02K0013 WB02K0013 SPACER DOOR
WB2K13 WB2K13 SPACER DOOR
WB02K0051 WB02K0051 SPACER TUBE
WB2K51 WB2K51 SPACER TUBE
WB1X5743D WB1X5743D SPDNUT-PKQ12
WB01X5743 WB01X5743 SPEEDNUT
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB9K3 WB9K3 SPRG BROIL L
WB9K2 WB9K2 SPRG BROIL R
WB09K0003 WB09K0003 SPRING BROILER LEFT
WB09K0002 WB09K0002 SPRING BROILER RIGHT
WB09K0001 WB09K0001 SPRING DOOR
WB9K1 WB9K1 SPRING DOOR
WB06K0008 WB06K0008 SUPPORT RANGE TOP
WB10K0014 WB10K0014 SUPPORT RIVET LFT
WB10K0013 WB10K0013 SUPPORT RIVET RT
WB6K8 WB6K8 SUPT RGE TOP
WB10K13 WB10K13 SUPT RIVET
WB10K14 WB10K14 SUPT RIVET
WB3K100 WB3K100 SUR BNR KNOB
WB03K0100 WB03K0100 SURFACE BURNER KNOB (BK)
WB3K23 WB3K23 THERMOS KNOB
WB20K2 WB20K2 THERMOSTAT

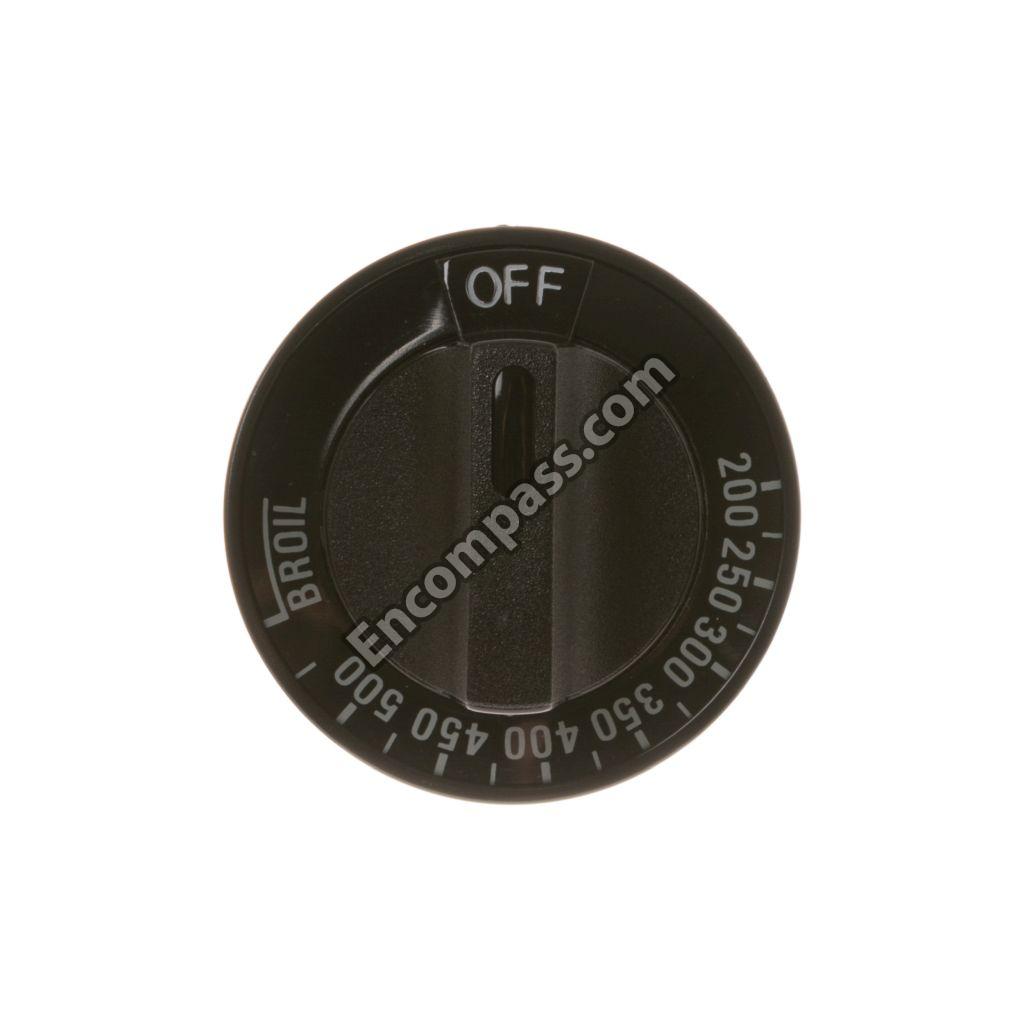

WB03K0023 WB03K0023 THERMOSTAT KNOB
WB20K0002 WB20K0002 THERMOSTAT STNG PILOT
WB7K140 WB7K140 TRIM CONTROL
WB28K48 WB28K48 TUBE BRN RTR
WB28K50 WB28K50 TUBE PIL SUP
WB28K0050 WB28K0050 TUBE PILOT SUPPLY
WB28K0051 WB28K0051 TUBE VALVE SUPPLY
WB28K51 WB28K51 TUBE VLV SUP
WB62K0029 WB62K0029 UNKNOWN
WB31K0007 WB31K0007 UNKNOWN
WB07K0140 WB07K0140 UNKNOWN
WB07K0137 WB07K0137 UNKNOWN
WB07K0136 WB07K0136 UNKNOWN

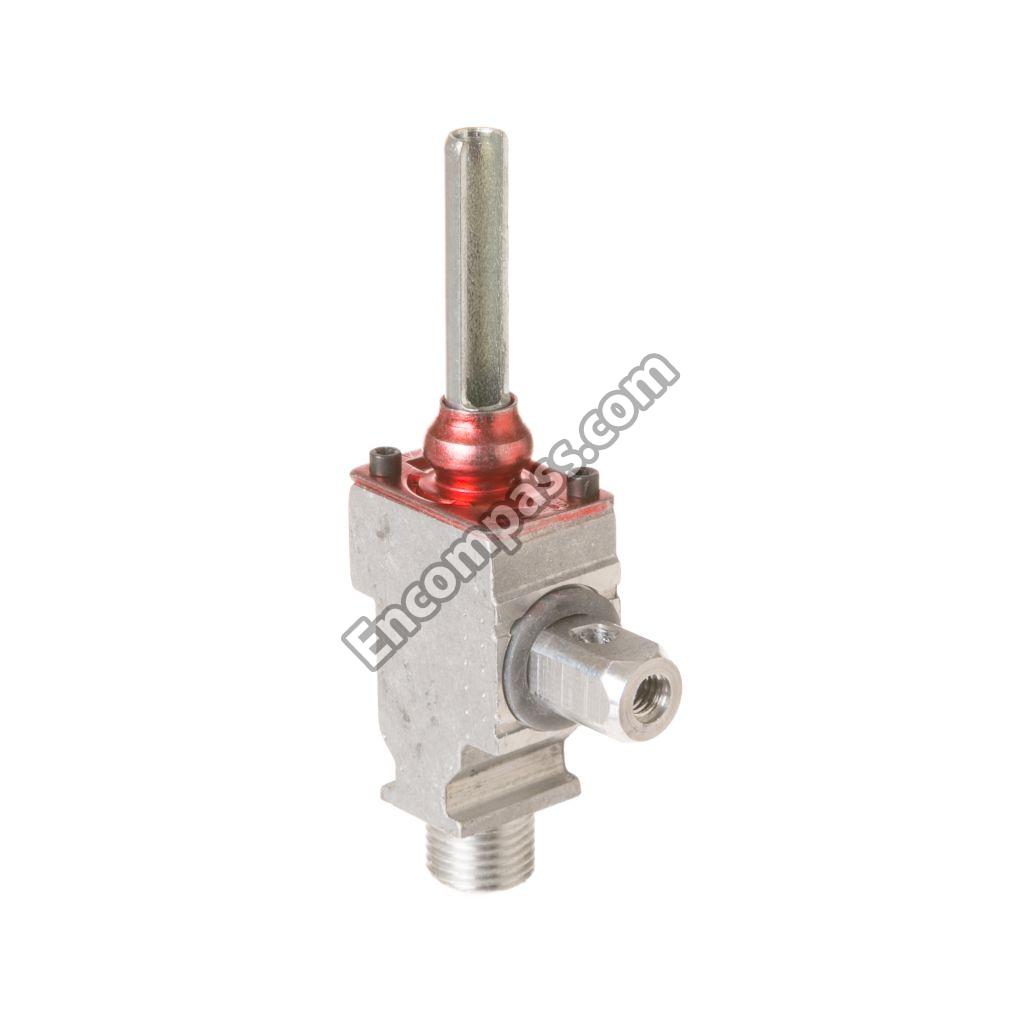

WB21K0019 WB21K0019 VALVE BURNER CONTROL
WB19K0012 WB19K0012 VALVE SAFETY ASM
WB38K0004 WB38K0004 VENT ASM
WB38K4 WB38K4 VENT ASM
WB21K19 WB21K19 VLV BRNR CTL
WB19K12 WB19K12 VLV SAFE ASM
WB1X560D WB1X560D WASHR-PKG 12
WB1X119D WB1X119D WASHR-PKG 12
WB63K33 WB63K33 WB63K33
