Model Image
Manufacturer

GE

Model Number

RGB740BEHECT

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB16T10046 WB16T10046 12 GAS COOKTOP LARGE BURNER 000 BTUS
40A15 40A15 40WATT 15AMP
WB28K10023 WB28K10023 89MM RANGE ORIFICE SPUD - NG TO LP
WB16K10055 WB16K10055 9 RANGE SURFACE BURNER BASE-MEDIUM 500
WB02K0012 WB02K0012 ARM ANTI TIP
WB2K12 WB2K12 ARM ANTI TIP
WB02K0027 WB02K0027 BAIL
WB2K27 WB2K27 BAIL
WB29K10006 WB29K10006 BLACK RANGE BURNER CAP - LARGE
WB63K17 WB63K17 BOTTOM INNER GUARD
WB35X37973 WB35X37973 BOTTOM OVEN AND DEFLECTOR ASSEMBLY
WB02K0032 WB02K0032 BOTTOM OVEN BRACKT SUPPO
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10037 WB63K10037 BOX BURNER SP
WB63K0015 WB63K0015 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB02K10360 WB02K10360 BRACKET
WB02K0020 WB02K0020 BRACKET ASM ANTI-TIP
WB39K0020 WB39K0020 BRACKET MOUNTING DRAWER
WB02K0041 WB02K0041 BRACKET OVEN CORNER
WB02K10180 WB02K10180 BUMPER
WB16K10035 WB16K10035 BURNER BAKE
WB16K10004 WB16K10004 BURNER BROIL
WB16K10070 WB16K10070 BURNER-SMALL

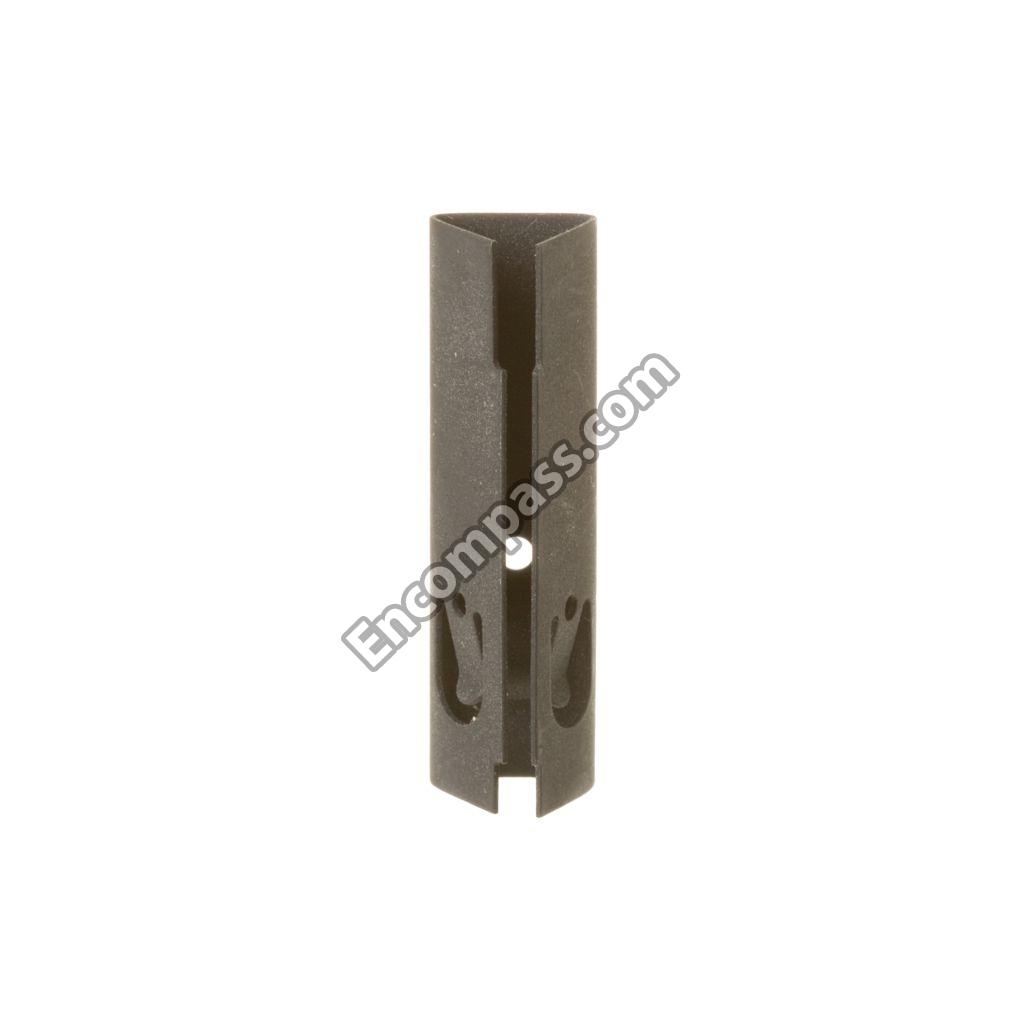

WB7K263 WB7K263 CAP END DR
WB7K264 WB7K264 CAP END DR
WB02K10362 WB02K10362 CKT BRACKET MDM LGE
WB02K10361 WB02K10361 CKT BRACKET MEDIUM
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB01K10112 WB01K10112 CLIP ELECTRODE
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02K0038 WB02K0038 CLIP WIRE
WB02X7066 WB02X7066 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
31-21391 31-21391 CONVERSION STEPS SHEET
WB28K10556 WB28K10556 CONVERTION KIT ASSEMBLY
WB34K0006 WB34K0006 COVER BACK PANEL
WB34K10003 WB34K10003 COVER BACK UPPER
WB07K10116 WB07K10116 COVER END LEFT (BISQUE)
WB07K10115 WB07K10115 COVER END RIGHT (BISQUE)
WB34K10007 WB34K10007 COVER LOWER BACK
WB63K10040 WB63K10040 COVER TERMINAL
WB02K0024 WB02K0024 COVER VALVE
WB34K0005 WB34K0005 COVER WIRE
WB34K5 WB34K5 COVER WIRE
WB34K13 WB34K13 CVR B PNL SP
WB34K6 WB34K6 CVR BACK PNL
WB34K14 WB34K14 CVR IGNITOR
WB49K10003 WB49K10003 DEFLECTOR
WB35K0023 WB35K0023 DEFLECTOR HEAT
WB35K23 WB35K23 DEFLECTOR HT
WB49K10037 WB49K10037 DEFLECTOR OVEN
WB58K10004 WB58K10004 DRAWER BODY
WB01K10037 WB01K10037 ECONOMIC NUT
WB28K10310 WB28K10310 ELBOW HI BROIL
WB07K0264 WB07K0264 END CAP DOOR LFT (BK)
WB07K0263 WB07K0263 END CAP DOOR RT (BK)
WB49K0044 WB49K0044 FLAME SPREADER
WB63K10177 WB63K10177 FRAME WELD ASM
WB27K10355 WB27K10355 GAS OVEN CONTROL BOARD
WB31K10016 WB31K10016 GAS RANGE GRATE - BLACK
WB29K10009 WB29K10009 GAS RANGE SMALL BURNER CAP (BLACK)
WB29K10001 WB29K10001 GAS RANGE SURFACE BURNER CAP (BLACK)
WB28K10189 WB28K10189 GAS RANGE SURFACE BURNER TUBE
WB04K10029 WB04K10029 GASKET ASSEMBLY. DOOR
WB32K0005 WB32K0005 GASKET OVEN LIGHT
WB32K10037 WB32K10037 GASKET OVEN SEAL
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB2K66 WB2K66 GD SUPT RGTP
WB56K31 WB56K31 GL DOOR BLK
WB56K0031 WB56K0031 GLASS DOOR (BLK)
WB08K0005 WB08K0005 GLASS OVEN LAMP
WB02K10062 WB02K10062 GLIDER DRAWER LEFT
WB02K10061 WB02K10061 GLIDER DRAWER RIGHT
WB2K8 WB2K8 GROMMET
WB63K0016 WB63K0016 GUARD BOTTOM
WB63K0018 WB63K0018 GUARD BOTTOM MIDDLE
WB56K7 WB56K7 GUARD INSUL
WB56K0007 WB56K0007 GUARD INSULATION
WB34K0031 WB34K0031 GUARD RADIATION LFT
WB34K0030 WB34K0030 GUARD RADIATION RT
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB18K10039 WB18K10039 HARNESS HV
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB34K0004 WB34K0004 HINGE GUARD LEFT
WB34K0003 WB34K0003 HINGE GUARD RIGHT
WB2X6195 WB2X6195 HINGE PIN
WB34K4 WB34K4 HNGE GRD LFT
WB34K3 WB34K3 HNGE GRD RGT
WB02K0011 WB02K0011 HOOK DOOR SPRING
WB2K11 WB2K11 HOOK DR SPRG
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB34K0014 WB34K0014 IGNITER COVER
WB13K0021 WB13K0021 IGNITER-OVEN BAKE
WB35K26 WB35K26 INSUL DOOR
WB35K10040 WB35K10040 INSULATION CONTROL
WB35K0026 WB35K0026 INSULATION DOOR
WB35K10154 WB35K10154 INSULATION DOOR
WB35K10161 WB35K10161 INSULATION OVEN BACK
WB35K10160 WB35K10160 INSULATION OVEN WRAP
WB03K10035 WB03K10035 KNOB-TOP BURNERS (BLACK)
WB10X33060 WB10X33060 LATCH ASSEMBLY
WB18K0007 WB18K0007 LINE CORD
WB18K10036 WB18K10036 LINE CORD
WB55K10042 WB55K10042 LINER ASSEMBLY WELD DOOR
WB55K22 WB55K22 LINER DR INN
WB36K10766 WB36K10766 MANIFOLD PANEL
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K10032 WB28K10032 ORIFICE-LP LG 99MM
WB53K10024 WB53K10024 OVEN BACK
WB53K10035 WB53K10035 OVEN SIDE LEFT
WB53K10034 WB53K10034 OVEN SIDE RIGHT
WB53K10004 WB53K10004 OVEN TOP
WB27K10118 WB27K10118 OVERLAY T09-B HP (BLK)
WB02K0062 WB02K0062 PAD FELT (2"")
WB02K0064 WB02K0064 PAD FELT (BK)
WB2K62 WB2K62 PAD FELT 2
WB2K64 WB2K64 PAD FELT BK
WB55K0022 WB55K0022 PANEL ASM WELD INNER
WB36K10164 WB36K10164 PANEL DRAWER (BISQUE)
WB63K10203 WB63K10203 PANEL REAR BROIL
WB63K10124 WB63K10124 PANEL SIDE
WB63K10122 WB63K10122 PANEL SIDE
WB63K0003 WB63K0003 PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 PANEL SIDE BROIL RT
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB02X6195 WB02X6195 PIN HINGE DOOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
WB37K0018 WB37K0018 PLATE END LEFT
WB37K18 WB37K18 PLATE END LT
WB37K0017 WB37K0017 PLATE END RIGHT
WB37K17 WB37K17 PLATE END RT
31-21257 31-21257 PM MINI-MANUAL ELECT
49-85132 49-85132 PM USE & CARE MANUAL
WB63K3 WB63K3 PNL SD BRO L
WB63K2 WB63K2 PNL SD BRO R
WB48T10095 WB48T10095 RACK OVEN
WB39K0016 WB39K0016 RAIL DRAWER
WB01K10008 WB01K10008 RANGE 6-32X12-INCH COOKTOP SCREW
WB2K20 WB2K20 RANGE ANTI-TIP BRACKET
WB63K10180 WB63K10180 RANGE BACK
WB2K32 WB2K32 RANGE BRACKET SUPPORT
WB28K10188 WB28K10188 RANGE BURNER SUPPLY TUBE, LEFT REAR, 9,5
WB02K10245 WB02K10245 RANGE DOOR BRACKET
WB15X10047 WB15X10047 RANGE DOOR HANDLE - BLACK
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB02K10162 WB02K10162 RANGE DOOR SPACER
WB34K10010 WB34K10010 RANGE DOUBLE DRIP PAN-LEFT-BLACK PORCLN
WB34K10009 WB34K10009 RANGE DOUBLE DRIP PAN-RIGHT - BLK PORC
WB39K20 WB39K20 RANGE DRAWER MOUNTING BRACKET
WB39K16 WB39K16 RANGE DRAWER RAIL
WB02K10158 WB02K10158 RANGE DRAWER SUPPORT
WB04K10021 WB04K10021 RANGE FRONT FRAME GASKET
WB28K10190 WB28K10190 RANGE FRONT ORIFICE HOLDER
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB24K10024 WB24K10024 RANGE IGNITER SWITCH
WB07K10004 WB07K10004 RANGE LEFT END CAP - BLACK
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB34K10086 WB34K10086 RANGE LOWER HEAT SHIELD
WB2K41 WB2K41 RANGE OVEN BRACKET
WB36X192 WB36X192 RANGE OVEN BULB COVER
WB32K5 WB32K5 RANGE OVEN GASKET
WB13K21 WB13K21 RANGE OVEN IGNITER
WB63K16 WB63K16 RANGE PANEL
WB34K31 WB34K31 RANGE RADIATION GUARD
WB34K30 WB34K30 RANGE RADIATION GUARD
WB07K10003 WB07K10003 RANGE RIGHT END CAP - BLACK
WB13K10014 WB13K10014 RANGE SURFACE BURNER SPARK IGNITER
WB21K10100 WB21K10100 RANGE SURFACE BURNER VALVE
WB20K10015 WB20K10015 RANGE TEMPERATURE SENSOR
WB01K10080 WB01K10080 RANGE THERMOSTAT SCREW
WB02K10005 WB02K10005 RANGE TIMER BRACKET
WB62K10044 WB62K10044 RANGE TOP S B
WB02K10297 WB02K10297 RANGE VALVE BRACKET
WB63K15 WB63K15 RANGE VENT BRACE
WB38K2 WB38K2 RANGE VENT BRACE
WB28K10187 WB28K10187 REAR ORIFICE HOLDER
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB35K10041 WB35K10041 REFLECTOR
WB35K33 WB35K33 REFLECTOR
WB35K0022 WB35K0022 REFLECTOR 9.5 INCH
WB2X1082 WB2X1082 RETAINER
WB2X2030 WB2X2030 RETAINER
WB08K0004 WB08K0004 RETAINER INSULATION LAMP
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB28K10031 WB28K10031 RIGHT REAR - NG TO L RANGE ORIFICE SPUD
WB02X1082 WB02X1082 RING RETAINING
WB28K10572 WB28K10572 ROUND MANIFOLD PIPE
WB1K44 WB1K44 SCEW LATCH
WB1K45 WB1K45 SCR AND WSHR ASSEMBLY
WB01K0001 WB01K0001 SCREW
WB1K5119 WB1K5119 SCREW
WB1X536 WB1X536 SCREW
WB1X5716 WB1X5716 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10043 WB01K10043 SCREW
WB01K10091 WB01K10091 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5716 WB01X5716 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB01K0065 WB01K0065 SCREW 10-16
WB01K0070 WB01K0070 SCREW 7-19
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB1K67 WB1K67 SCREW 8-22
WB01K10012 WB01K10012 SCREW 8-22 PL 1HX 71
WB01K10002 WB01K10002 SCREW 8-32
WB01K0044 WB01K0044 SCREW DOOR LATCH
WB01X1261 WB01X1261 SCREW GROUND
WB1K62 WB1K62 SCREW HEAD PAINTED BLACK
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0062 WB01K0062 SCREW MTG END CAP (BK)
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X0558 WB01X0558 SCREW NAIL POINT
WB01K0045 WB01K0045 SCREW WASHER ASM
WB01K10003 WB01K10003 SCREW-MTG END CAP (BLACK)
WZ4X423D WZ4X423D SCREW-PKG 12
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB34K0010 WB34K0010 SHIELD BROIL
WB34K10 WB34K10 SHIELD BROIL
WB34K0013 WB34K0013 SHIELD HEAT INNER
WB34K12 WB34K12 SHIELD RADIA
WB34K0012 WB34K0012 SHIELD RADIATION
WB13K10029 WB13K10029 SPARK MODULE 4+0
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB01K10093 WB01K10093 SPEEDNUT
WB09K0005 WB09K0005 SPRING DOOR
WB9K5 WB9K5 SPRING DOOR
WB10K10009 WB10K10009 SUPPORT ASSEMBLY RIVET LF
WB10K10010 WB10K10010 SUPPORT ASSEMBLY RIVET RT
WB63K10233 WB63K10233 SUPPORT BASE
WB63K10232 WB63K10232 SUPPORT BASE
WB02K0091 WB02K0091 SUPPORT RANGETOP
WB2K91 WB2K91 SUPPORT TOP
WB24K10023 WB24K10023 SW VALVE SERVICE 270 2WI
WB36K10394 WB36K10394 TRIM AND BRACKET ASSEMBLY WELD
WB07K10232 WB07K10232 TRIM BOTTOM ASSEMBLY
WB07K0265 WB07K0265 TRIM DOOR (BLK)
WB7K265 WB7K265 TRIM DR (BLK
WB07K10200 WB07K10200 TRIM VENT ASSEMBLY
WB28K10168 WB28K10168 TUBE BURNER SUPPLY
WB28X24772 WB28X24772 TUBE MANIFOLD SUPPLY
WB21K10101 WB21K10101 VALVE BURNER 270
WB21K10099 WB21K10099 VALVE BURNER 270
WB19K10041 WB19K10041 VALVE CONTROL ASSEMBLY NOR. D
WB2K24 WB2K24 VALVE COVER
WB38K10001 WB38K10001 VENT ASSEMBLY
WB35K10003 WB35K10003 VENT INSULATION
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
