Model Image
Manufacturer

GE

Model Number

RGJ616GEL1

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB49X657 WB49X657 *NLA*BROIL PAN
WB10X276 WB10X276 *NLA*HINGE RGT OD
WB02X9622 WB02X9622 AIR SHUTTER
WB07X1824 WB07X1824 BACKGUARD FRAME
WB63X0400 WB63X0400 BAFFLE-MAIN BOTTOM
WB02X9711 WB02X9711 BLOCK-HINGE ARM GUIDE-L
WB02X9710 WB02X9710 BLOCK-HINGE ARM GUIDE-R
WB63X0410 WB63X0410 BODY SIDE-LEFT
WB63X0399 WB63X0399 BODY SIDE-RIGHT
WB63X400 WB63X400 BOTT BAFFLE **NLA*
WB02X9634 WB02X9634 BOTTOM CHANNEL
WB06X0108 WB06X0108 BRACKET-CONTROL PANEL
WB02X9699 WB02X9699 BRACKET-CONTROL VALVE
WB02X9600 WB02X9600 BRACKET-DOOR SPRING
WB02X9700 WB02X9700 BRACKET-IGNITER SUPPORT
WB2X9695 WB2X9695 BRNR SUPPORT
WB07X1809 WB07X1809 BROILER DR FRAME
WB49X0657 WB49X0657 BROILER PAN
WB49X0650 WB49X0650 BROILER PAN RACK
WB02X9709 WB02X9709 BROILER RACK GUIDE-LEFT
WB02X9708 WB02X9708 BROILER RACK GUIDE-RIGHT
WB2X9634 WB2X9634 CHANNEL
WB02X9573 WB02X9573 CLIP
WB2X9020 WB2X9020 CLIP
WB2X9573 WB2X9573 CLIP
WB02X9020 WB02X9020 CLIP CABLE NYLON
WB03X0770 WB03X0770 CLOCK KNOB
WB19X0266 WB19X0266 CLOCK/OVEN CONTROL W/LEN
WB20X129 WB20X129 CNTRL VALVE
WB02X9698 WB02X9698 CONNECTOR
WB07X1822 WB07X1822 CONTROL PANEL
WB36M14 WB36M14 CONTROL PNL **NLA*
WB02X9716 WB02X9716 COVER PLATE-LT
WB02X9704 WB02X9704 COVER PLATE-RIGHT
WB17X0207 WB17X0207 DISCONNECT
WB17X207 WB17X207 DISCONNECT
WB10X265 WB10X265 DOOR ARM-LT
WB10X266 WB10X266 DOOR ARM-RT
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB15X0286 WB15X0286 DOOR HANDLE-UPPER/LOWER
WB55X711 WB55X711 DOOR LINER
WB55X0713 WB55X0713 DOOR LINER-LOWER DOOR
WB55X0711 WB55X0711 DOOR LINER-UPPER DOOR
WB9X263 WB9X263 DOOR SPRING **NLA*
WB02X9712 WB02X9712 DR HINGE STOP-LT
WB02X9713 WB02X9713 DR HINGE STOP-RT
WB1X1138 WB1X1138 FIBER WASHER
WB63X0407 WB63X0407 FRONT FRAME
WB36X0772 WB36X0772 GLASS DOOR INNER-UP/LOW
WB36X0786 WB36X0786 GLASS DOOR-OUTER-LOWER
WB36X0771 WB36X0771 GLASS DOOR-OUTER-UPPER
WB02X9039 WB02X9039 GLASS SPACER
WB01X1259 WB01X1259 HEX NUT
WB1X1259 WB1X1259 HEX NUT
WB10X0261 WB10X0261 HINGE ARM GUIDE-LEFT
WB10X0262 WB10X0262 HINGE ARM GUIDE-RIGHT
WB10X0265 WB10X0265 HINGE ARM-BROILER-LEFT
WB10X0266 WB10X0266 HINGE ARM-BROILER-RIGHT
WB10X0263 WB10X0263 HINGE DOOR LATCH-BROILER-LEFT
WB10X0264 WB10X0264 HINGE DOOR LATCH-BROILER-RIGHT
WB02X9548 WB02X9548 HINGE PILOT SLEEVE
WB2X9712 WB2X9712 HINGE STOP-L
WB2X9713 WB2X9713 HINGE STOP-R
WB2X9705 WB2X9705 HINGE SUPP-L
WB2X9706 WB2X9706 HINGE SUPP-R **NLA*
WB02X9705 WB02X9705 HINGE SUPPORT-LEFT
WB02X9706 WB02X9706 HINGE SUPPORT-RIGHT
WB14X0138 WB14X0138 HINGE-BROILER DOOR-LEFT
323553 323553 HINGE-DR LT
WB14X138 WB14X138 HINGE-LEFT
WB10X0275 WB10X0275 HINGE-OVEN DOOR-LEFT
WB10X261 WB10X261 HNGE GUIDE L
WB10X262 WB10X262 HNGE GUIDE-R

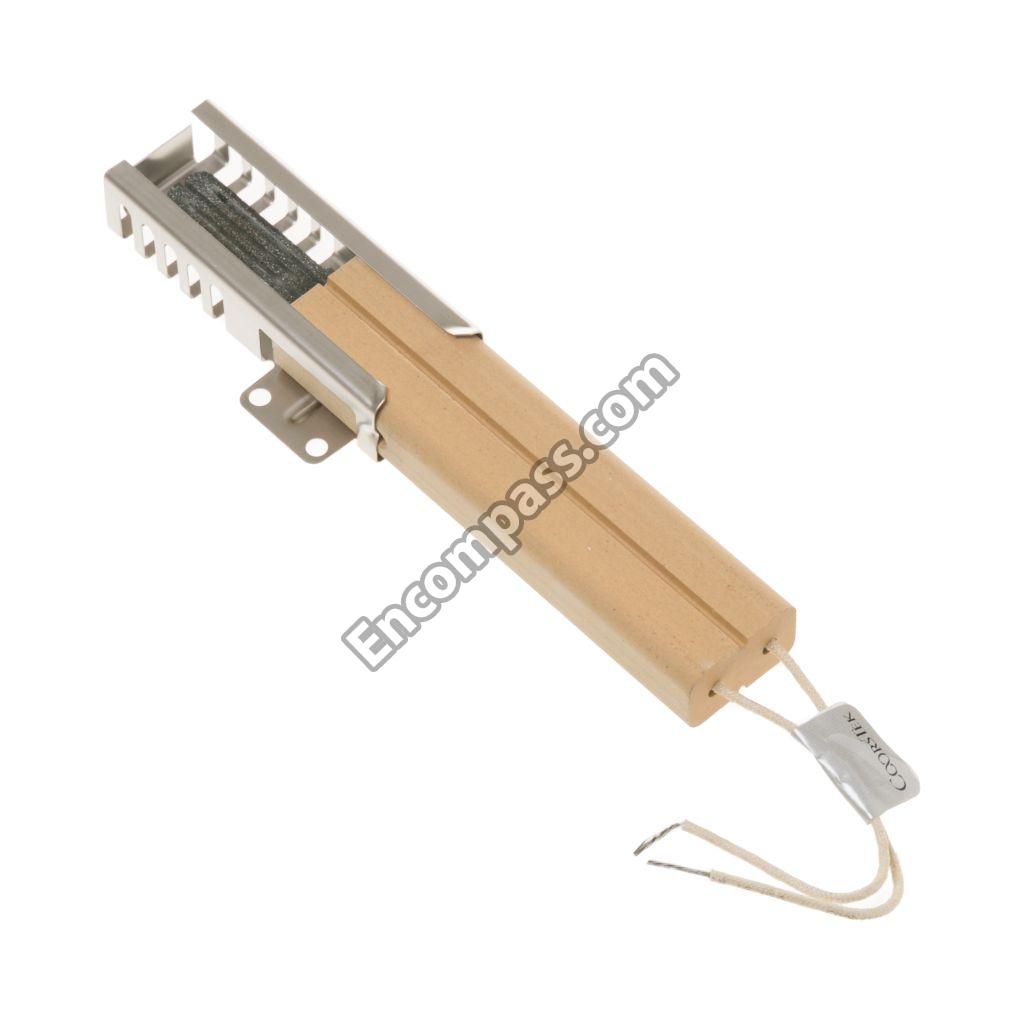

WB02X9697 WB02X9697 IGNITER
WB2X9697 WB2X9697 IGNITER
WB02X9696 WB02X9696 IGNITER BRACKET
WB2X9631 WB2X9631 INSULATION
WB2X9652 WB2X9652 INSULATION
WB56X2012 WB56X2012 INSULATION BAFFLE-LOWER
WB02X9579 WB02X9579 INSULATION RETAINER TOP
WB06X0109 WB06X0109 INSULATION SHIELD ASM
WB02X9652 WB02X9652 INSULATION-DOOR-UPPER
WB02X9701 WB02X9701 INSULATION-OVEN BACK
WB02X9631 WB02X9631 INSULATION-TOP & SIDES
WB01X1117 WB01X1117 INVERTED NUT 3/8""
WB3X770 WB3X770 KNOB-CLOCK
WB10X263 WB10X263 LATCH-LEFT
WB10X264 WB10X264 LATCH-RIGHT
WB10X267 WB10X267 LINK-SPRING
WB63X0401 WB63X0401 MAIN BOTTOM
WB2X9622 WB2X9622 N.L.A.AIR SHUTTER
WB15X286 WB15X286 N.L.A.HANDLE
WB10M5 WB10M5 N.L.A.OV DR ARM AS
WB10M4 WB10M4 N.L.A.OV DR ARM AS
WB2X9698 WB2X9698 N/L/A 01/29/02
WB20X123 WB20X123 N/L/A 01/29/02
WB48X217 WB48X217 N/L/A 03/15/02
WB36X772 WB36X772 N/L/A 05/18/06
WB14X139 WB14X139 N/L/A 05/31/03
WB36X771 WB36X771 N/L/A 06/02/03
WB36X786 WB36X786 N/L/A 07/15/03
WB28X110 WB28X110 N/L/A 09/03/03
WB53X293 WB53X293 N/L/A 12/12/03
WB1X1316 WB1X1316 N/L/A 12/20/05
WB2X9709 WB2X9709 NLA PART
WB1X1117 WB1X1117 NUT-INVERTED
WB02X9715 WB02X9715 ORIFICE TUBING-W/NUT
WB07X1767 WB07X1767 OV DR FRAME
WB02X9384 WB02X9384 OV DR GLASS RETAINER
WB8K5029 WB8K5029 OV LAMP HLDR
WB08X0294 WB08X0294 OV LAMP HOLDER
WB2X9384 WB2X9384 OVDR GL RET
WB28X0110 WB28X0110 OVEN BURNER
WB63X0406 WB63X0406 OVEN CABINET TOP
WB10X0269 WB10X0269 OVEN DOOR ARM-LEFT
WB10X0270 WB10X0270 OVEN DOOR ARM-RIGHT
WB02X9596 WB02X9596 OVEN DOOR GASKET-R/L
WB48X0217 WB48X0217 OVEN RACK
WB02X9707 WB02X9707 OVEN RACK GUIDE-R/L
WB20X0106 WB20X0106 OVEN SENSOR
WB2X9548 WB2X9548 PILOT SLEEVE
WB02X9703 WB02X9703 PLATE-DISCONNECT
WB18X0370 WB18X0370 POWER CORD
WB18X370 WB18X370 POWER CORD
WB20X0123 WB20X0123 PRESSURE REGULATOR
WB2X9707 WB2X9707 RACK GUIDE
WB49X650 WB49X650 RACK-BROIL
WB56X1994 WB56X1994 RETAINER-UPPER
39-4630 39-4630 RGJ616GEL/RGK515GEL USE & CARE
WB01X1173 WB01X1173 RIVET
WB1X1318 WB1X1318 RIVET
WB1X1326 WB1X1326 RIVET
WB1X1173 WB1X1173 RIVET
WB1X1343 WB1X1343 RIVET **NLA*
WB02X9626 WB02X9626 RIVET SLEEVE
WB24X0479 WB24X0479 ROCKER SWITCH
WB02X9583 WB02X9583 ROLLER
WB2X9583 WB2X9583 ROLLER **NLA*
WB20X0129 WB20X0129 SAFETY/CONTROL VALVE
WB01X1316 WB01X1316 SCREW
WB01X1135 WB01X1135 SCREW
WB01X1127 WB01X1127 SCREW
WB01X1141 WB01X1141 SCREW
WB01X1115 WB01X1115 SCREW
WB01X1178 WB01X1178 SCREW
WB01X1137 WB01X1137 SCREW
WB1X1317 WB1X1317 SCREW
WB1M1 WB1M1 SCREW
WB1X1293 WB1X1293 SCREW
WB1X1004 WB1X1004 SCREW
WB1X681 WB1X681 SCREW
WB1X1178 WB1X1178 SCREW
WB1X1171 WB1X1171 SCREW
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB01X1171 WB01X1171 SCREW TC6-32X.312RD CAD
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1141 WB1X1141 SCREW-8-32
WB01X1317 WB01X1317 SCREW-BLACK
WB2X9596 WB2X9596 SEAL-SIDES
WB2X9595 WB2X9595 SEAL-TOP/BOT
WB21X5301 WB21X5301 SENSOR ASM
WB21X520 WB21X520 SHUT-OFF
97717 97717 SLEEVE-PIVOT
WB02X9624 WB02X9624 SPACER
WB2X9039 WB2X9039 SPACER-GLASS
WB2X9037 WB2X9037 SPACER-HNDL
WB01X1311 WB01X1311 SPEED NUT
WB1X1311 WB1X1311 SPEED NUT
WB9X262 WB9X262 SPRING
WB10X0267 WB10X0267 SPRING LINK-BROILER DOOR
WB09X0263 WB09X0263 SPRING-BROILER DOOR
WB09X0262 WB09X0262 SPRING-OVEN DOOR
WB02X9601 WB02X9601 SUPPORT-BROIL DOOR HINGE
WB02X9695 WB02X9695 SUPPORT-OVEN BURNER
WB24X415 WB24X415 SWITCH-LITE
WB19X266 WB19X266 TIMER
WB06X0107 WB06X0107 TIMER SPACER
WB06X0110 WB06X0110 TOP FRONT COVER
WB7X1825 WB7X1825 TRIM FRT FRM
WB28K5014 WB28K5014 TUBE ASM
WB02X9157 WB02X9157 TUBING-W/NUTS
WB01X1343 WB01X1343 UNKNOWN
WB01X1342 WB01X1342 UNKNOWN
WB01X1323 WB01X1323 UNKNOWN
WB01X1322 WB01X1322 UNKNOWN
WB01X1320 WB01X1320 UNKNOWN
WB01X1319 WB01X1319 UNKNOWN
WB01X1318 WB01X1318 UNKNOWN
WB14X0139 WB14X0139 UNKNOWN
WB01X1326 WB01X1326 UNKNOWN
WB10X0276 WB10X0276 UNKNOWN
WB63X0436 WB63X0436 UNKNOWN
WB53X0293 WB53X0293 UNKNOWN
WB63X0435 WB63X0435 UNKNOWN
WB63X0434 WB63X0434 UNKNOWN
WB07X1828 WB07X1828 UNKNOWN
WB07X1827 WB07X1827 UNKNOWN
WB02X9595 WB02X9595 UNKNOWN
WB07X1826 WB07X1826 UNKNOWN
WB07X1825 WB07X1825 UNKNOWN
WB07X1829 WB07X1829 UNKNOWN
WB06X0111 WB06X0111 UNKNOWN
WB63X0433 WB63X0433 UNKNOWN
WB21X0520 WB21X0520 UNKNOWN
WB07X1823 WB07X1823 UNKNOWN
WB38X0120 WB38X0120 VENT BOX
WB01X1138 WB01X1138 WASHER
WB01X1303 WB01X1303 WASHER
WB01X1201 WB01X1201 WASHER
WB1K5117 WB1K5117 WASHER
WB1X1201 WB1X1201 WASHER
WB1X1303 WB1X1303 WASHER
WB02X9702 WB02X9702 WIRE COVER-OVEN BACK
