Model Image
Manufacturer

GE

Model Number

RJ745G*J1

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP
WB49X0329 WB49X0329 BACK ASM
WB44X0200 WB44X0200 BAKE UNIT 208/240V L.O.
WB44X200 WB44X200 BAKE UNIT 240V L O
WB02X3147 WB02X3147 BARRIER
WB2X2001 WB2X2001 BLADE FAN
WB02X2001 WB02X2001 BLADE FAN, UPPER
WB55X0306 WB55X0306 BOTTOM INNER
WB02X3407 WB02X3407 BRACE BOTTOM
WB02X1981 WB02X1981 BRACE DOOR LATCH
WB02X3339 WB02X3339 BRACE SIDE LH
WB02X3338 WB02X3338 BRACE SIDE RH
WB07X1222 WB07X1222 BRACE TOP
WB02X3148 WB02X3148 BRACKET CIRCUIT BOARD
WB02X2846 WB02X2846 BRACKET FAN
WB02X3454 WB02X3454 BRACKET INSTRUMENT
WB02X2407 WB02X2407 BRACKET MEAT THERMO
WB02X3405 WB02X3405 BRACKET TIMER
WB02X3291 WB02X3291 BRACKET TRIM
WB02X2082 WB02X2082 BRACKET TRIM
WB2X3148 WB2X3148 BRACKET-THER
WB2X1452 WB2X1452 BROIL SUPPT
WB44X173 WB44X173 BROIL UNIT
WB44X0185 WB44X0185 BROIL UNIT 208/240V L.O.
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB49X0223 WB49X0223 CAP TERMINAL GUARD
WB49X0331 WB49X0331 CASE TOP
WB59X0163 WB59X0163 CHANNEL BOTTOM
WB02X3157 WB02X3157 CHANNEL DOOR LATCH
WB02X3158 WB02X3158 CHANNEL LOCKING
WB2X3158 WB2X3158 CHANNEL LOCU **NLA*
WB02X2401 WB02X2401 CHANNEL SIDE
WB20X0052 WB20X0052 CIRCUIT BOARD ASM-THERMO
WB20X52 WB20X52 CIRCUIT BOARD ASSEMBLY THERMOS
WB2X1422 WB2X1422 CLAMP
WB2X3331 WB2X3331 CLAMP **NLA*
WB02X2843 WB02X2843 CLAMP CONDUIT
WB02X3331 WB02X3331 CLAMP CRYSTAL
WB02X2006 WB02X2006 CLAMP HARNESS
WB02X3471 WB02X3471 CLIP CAPILLARY TUBEOVEN
WB02X3166 WB02X3166 CLIP SHIM
WB02X7656 WB02X7656 CLIP TRIM
WB2X3471 WB2X3471 CLIP TUBE SU
WB2X1659D WB2X1659D CLIP-PKG 12
WR02X3198 WR02X3198 COMP. RING, EVAP. FAN
WB01X0119 WB01X0119 CONTOURED WASHER
WB02X2845 WB02X2845 COVER LIGHT
WB02X1925 WB02X1925 COVER ROTO OPENING
WB02X3173 WB02X3173 COVER VENT
WB2X3173 WB2X3173 COVER-VENT
WB36X0564 WB36X0564 CRYSTAL
WB36X564 WB36X564 CRYSTAL **NLA*
WB2X2845 WB2X2845 CVR LIGHT **NLA*
WB02X1973 WB02X1973 DEFLECTOR
WB2X1973 WB2X1973 DEFLECTOR
WB55X5301 WB55X5301 DOOR LINER
WB55X305 WB55X305 EXT SIDE LH
WB55X0304 WB55X0304 EXT. SIDE - RH
WB55X0305 WB55X0305 EXTENSION SIDE LH
WB07X0980 WB07X0980 FACEPLATE SHAFT ASM
WR60X114 WR60X114 FAN BLADE
WB56X1029 WB56X1029 FRAME
WB2X3147 WB2X3147 FUSE
WB02X3422 WB02X3422 GASKET
WB02X3292 WB02X3292 GASKET
WB02X3163 WB02X3163 GASKET
WB02X3191 WB02X3191 GASKET
WB2X3422 WB2X3422 GASKET
WB2X3163 WB2X3163 GASKET
WB02X2940 WB02X2940 GASKET DOOR
WB2X3138 WB2X3138 GASKET-DOOR
WB36X0563 WB36X0563 GLASS BLACK
WB07X0782 WB07X0782 GRILLE
WB15X158 WB15X158 GRIP
WB15X0158 WB15X0158 GRIP ASM HANDLE
WB02X3156 WB02X3156 GUARD ASM
WB02X3466 WB02X3466 GUARD LAMP
WB49X0268 WB49X0268 GUARD TERMINAL
WB02X2402 WB02X2402 GUARD WIRE
WB59X0165 WB59X0165 GUARD WIRE
WB2X1460 WB2X1460 GUIDE
WB02X1460 WB02X1460 GUIDE LEVER LOWER OVEN
WB02X2861 WB02X2861 GUSSET
WB15X80 WB15X80 HANDLE
WB15X0150 WB15X0150 HANDLE DOOR LATCH
WB15X0080 WB15X0080 HANDLE-BLADE
WB2X3165 WB2X3165 HANGER
WB02X3165 WB02X3165 HANGER-TLS
WB10X0157 WB10X0157 HINGE LEVER ASM LH
WB10X0156 WB10X0156 HINGE LEVER ASM RH
WB2X6195 WB2X6195 HINGE PIN
WB10X121 WB10X121 HINGE SPT LH
WB10X120 WB10X120 HINGE SPT RH
WB2X3466 WB2X3466 HOUS.LAMP
WB02X1608 WB02X1608 INDICATOR LAMP
31-0409 31-0409 INSTALL INSTRUCTIONS
WB2X8100 WB2X8100 INSUL-BACK
WB02X2116 WB02X2116 INSULATION
WBO2X2116 WBO2X2116 INSULATION
WB02X3251 WB02X3251 INSULATION
WB02X3408 WB02X3408 INSULATION
WB59X0170 WB59X0170 INSULATION GUARD LH
WB59X0134 WB59X0134 INSULATION GUARD RH
WB03X0434 WB03X0434 KNOB DOOR LATCH
WB03X0410 WB03X0410 KNOB OVEN SWITCH
WB03X0409 WB03X0409 KNOB THERMOSTAT
WB3X459 WB3X459 KNOB-TIMER
WB36X192 WB36X192 LAMP COV ASM
WB36X0192 WB36X0192 LAMP COVER ASM
WB14X5035 WB14X5035 LATCH ASSEMBLY
WB2X3289 WB2X3289 LINK
WB02X3289 WB02X3289 LINK DOOR SPRING
WB02X3159 WB02X3159 LOCKING PAWL ASM
WB09X0088 WB09X0088 LOCKWASHER
WB26X5053 WB26X5053 MOTOR ROTISSERIE
WB44X0206 WB44X0206 MULLION UNIT
WB3X410 WB3X410 N.L.A.KNOB OVEN
WB24X183 WB24X183 N/L/A 01/03/07
WB3X434 WB3X434 N/L/A 01/08/03
WB24X108 WB24X108 N/L/A 03/24/04
WB2X6212 WB2X6212 N/L/A 05/05/05
WB3X409 WB3X409 N/L/A 05/07/02
WB26X5052 WB26X5052 N/L/A 05/26/06
WB2X3425 WB2X3425 N/L/A 08/16/02
WB2X3294 WB2X3294 N/L/A 08/24/06
WZ4X219D WZ4X219D N/L/A 09/25/03
WB15X150 WB15X150 N/L/A 09/27/06
WB10X156 WB10X156 N/L/A 11/03/97
WB36X563 WB36X563 N/L/A 11/23/01
WB2X3388 WB2X3388 N/L/A 12/08/04
WB2X3468 WB2X3468 NEON LAMP
WB2X1608 WB2X1608 NEON LAMP
WB02X3468 WB02X3468 NEON LAMP 240V
WB2X3156 WB2X3156 NLA PART
WB24X5138 WB24X5138 NLA PART
WZ07X0035 WZ07X0035 NUT HEX
WB01X5220 WB01X5220 NUT MTG INSTRUMENT BRKTS
WB9X88 WB9X88 OVEN HOOK
WB36X0389 WB36X0389 OVEN LAMP CAMERA LENS
WB53X5105 WB53X5105 OVEN LINER
WB55X5300 WB55X5300 PANEL INNER
WB2X3159 WB2X3159 PAWLLOCKING
WB02X1081 WB02X1081 PIN HINGE
WB02X6212 WB02X6212 PIVOT STUD
WB02X3164 WB02X3164 PLATE
WB02X2842 WB02X2842 PLATE ADAPTER
WB02X1949 WB02X1949 PLATE INSTRUMENT
WB02X7301 WB02X7301 PLATE MOUNTING
WB2X3164 WB2X3164 PLATE MTG
WB2X7716 WB2X7716 PLATE MTG
WB02X1125 WB02X1125 PLUG BUTTON CAP TUBE
WB2X1125D WB2X1125D PLUG-PKG 12
31-0351 31-0351 PM MANUAL MINI
WB20X0054 WB20X0054 PROBE
WB20X54 WB20X54 PROBE

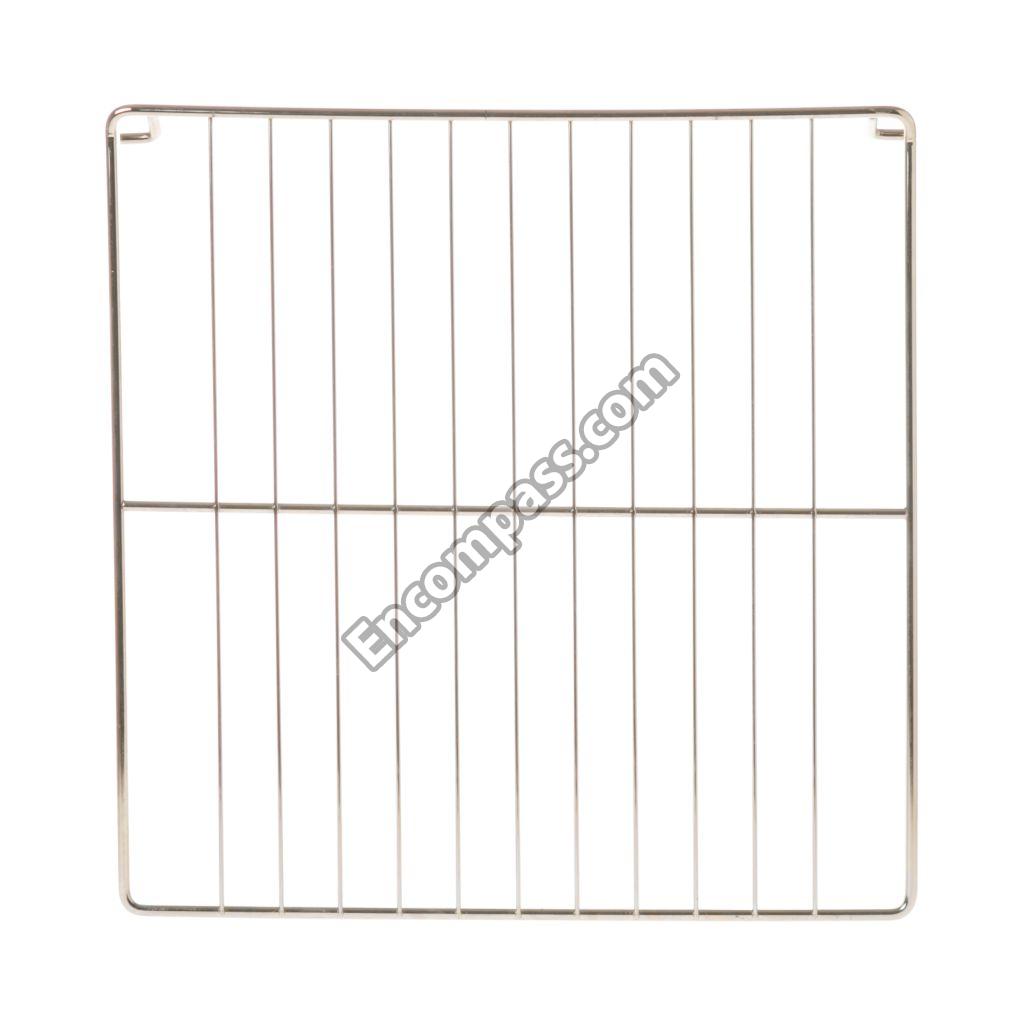

WB48X67 WB48X67 RACK - OVEN
WB48X0067 WB48X0067 RACK OVEN
WB08X0191 WB08X0191 RECEPTACLE
WB8X191 WB8X191 RECEPTACLE
WB20X55 WB20X55 RECEPTACLE
WB20X0055 WB20X0055 RECEPTACLE ASM
WBO2X1965 WBO2X1965 REFLECTOR FOIL
WB2X1800 WB2X1800 RETAIN RING
WB2X2030 WB2X2030 RETAINER
WB2X1082 WB2X1082 RETAINER
WB02X2030 WB02X2030 RETAINER KNOB
WB02X1800 WB02X1800 RETAINER RING
WB02X1082 WB02X1082 RING RETAINING
39-4554 39-4554 RJ742GJ+ UC
WB02X3294 WB02X3294 ROLLER
WZ04X0396 WZ04X0396 SCR 10-16 B HXW 1/4 S
WZ04X0372 WZ04X0372 SCR 6-20 AB HXW 3/8 S
WB01X0284 WB01X0284 SCR 6-20 BA IHW 3/8 S
WZ05X0184 WZ05X0184 SCR 6-20 BT PHR 3/8 S
WZ04X0397 WZ04X0397 SCR 6-32 C FLR 5/16 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WZ04X0228 WZ04X0228 SCR 8-18 B RDR 3/16 S
WB01X0422 WB01X0422 SCR 8-18 T IHW 1/2 S
WZ04X0255 WZ04X0255 SCR 8-18X1 AB OVR 1/2 S
WZ02X0528 WZ02X0528 SCR 8-32 M PHR 3/16 S
WZ05X0134 WZ05X0134 SCR 8-32 T HXW 3/8 S
WZ05X0132 WZ05X0132 SCR 8-32 T HXW 5/16 S
WB01X0600 WB01X0600 SCR SHOULDER
WB01X0524 WB01X0524 SCREW
WZ04X0413 WZ04X0413 SCREW
WZ04X0394 WZ04X0394 SCREW
WB01X0536 WB01X0536 SCREW
WB01X0537 WB01X0537 SCREW
WZ04X0425 WZ04X0425 SCREW
WB1X524 WB1X524 SCREW
WB1X536 WB1X536 SCREW
WZ4X425 WZ4X425 SCREW
WB1X5754 WB1X5754 SCREW
WB1X272 WB1X272 SCREW
WB1X537 WB1X537 SCREW
WB01X0438 WB01X0438 SCREW & WASHER ASM
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB01X5754 WB01X5754 SCREW 8-18 ABT 1/2 S
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WZ05X0234 WZ05X0234 SCREW MT SWITCH
WB01X0272 WB01X0272 SCREW THUMB
WB1X600D WB1X600D SCREW-PKG 12
WZ5X158D WZ5X158D SCREW-PKG 12
WZ2X528D WZ2X528D SCREW-PKG 12
WB1X438D WB1X438D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WZ5X234D WZ5X234D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WZ4X413D WZ4X413D SCREW-PKG 12
WZ5X132D WZ5X132D SCREW-PKG 12
WZ4X255D WZ4X255D SCREW-PKG 12 **NLA*
WZ4X362D WZ4X362D SCREW-PKG 12 **NLA*
WB55X0303 WB55X0303 SHIELD AIR
WB02X2847 WB02X2847 SHIELD WIRE
WB59X0164 WB59X0164 SIDE INNER
WB02X1167 WB02X1167 SKEWER ASM
WB2X1167 WB2X1167 SKEWER ASM
WB02X6937 WB02X6937 SLEEVE
WB29X0053 WB29X0053 SMOKE ELIMINATOR ASM
WB24X0197 WB24X0197 SOLENOID
WB02X2853 WB02X2853 SPACER
WB55X0420 WB55X0420 SPACER INSULATION
WB1X580D WB1X580D SPDNUT-PKG12
WB1X585D WB1X585D SPDNUT-PKG12
WB02X3341 WB02X3341 SPEED CLIP
WB02X1659 WB02X1659 SPEEDNUT
WB01X0585 WB01X0585 SPEEDNUT
WB01X0580 WB01X0580 SPEEDNUT
WB01X0589 WB01X0589 SPEEDNUT PANEL
WB2X1166 WB2X1166 SPIT SHAFT **NLA*
WB02X1166 WB02X1166 SPITBLADE
WB2X1983 WB2X1983 SPRING
WB9X148 WB9X148 SPRING
WB9X132 WB9X132 SPRING **NLA*
WB09X0132 WB09X0132 SPRING DOOR
WB02X1983 WB02X1983 SPRING HINGE LEVER
WB09X0148 WB09X0148 SPRING-PLUNGER
WB02X2269 WB02X2269 STOP INSULATION
WB09X0154 WB09X0154 STRIKE SPRING
WB9X154 WB9X154 STRK SPRING
WB02X1452 WB02X1452 SUPPORT BROIL
WB10X0121 WB10X0121 SUPPORT HINGE LH
WB10X0120 WB10X0120 SUPPORT HINGE RH
WB48X0062 WB48X0062 SUPPORT SPIT
WB02X3425 WB02X3425 SUPPORT TRIM
WB48X62 WB48X62 SUPT SPIT
WB24K2 WB24K2 SWITCH
WB24X0108 WB24X0108 SWITCH DOOR LATCH RELEASE
WB22X5124 WB22X5124 SWITCH OVEN
WB24X0199 WB24X0199 SWITCH THERMAL FAN
WB24X0183 WB24X0183 SWITCH, DOOR LATCH
WB22X5107 WB22X5107 SWITCH, OVEN
WB24X0105 WB24X0105 SWITCH, OVEN LIGHT
WB17X171 WB17X171 TERMINAL
WB02X3388 WB02X3388 TERMINAL BLOCK
WB02X3452 WB02X3452 TERMINAL INSULATOR
WB17X0171 WB17X0171 TERMINAL MALE & FEMALE
WB24X199 WB24X199 THERMAL SWTH
WB21X5320 WB21X5320 THERMOSTAT
WB24X0176 WB24X0176 THERMOSTAT, DUAL
WB19X10006 WB19X10006 TIMER
WB20X0057 WB20X0057 TRANSFORMER
WB20X57 WB20X57 TRANSFORMER
WB07X0596 WB07X0596 TRIM
WB7X596 WB7X596 TRIM
WB07X0783 WB07X0783 TRIM BOTTOM
WB2X3291 WB2X3291 TRIM BRACKET **NLA*
WB07X1221 WB07X1221 TRIM DOOR
WB2X3429 WB2X3429 TRIM SWI PKG
WB07X1220 WB07X1220 TRIM TOP DOOR
WB7X1220 WB7X1220 TRIM TP DOOR
WB24X5097 WB24X5097 UNKNOWN
WB38X0074 WB38X0074 VENT ASM
WZ10X0016 WZ10X0016 WASHER
WB01X0525 WB01X0525 WASHER
WB01X0448 WB01X0448 WASHER
WZ10X0017 WZ10X0017 WASHER
WB02X3429 WB02X3429 WASHER
WZ10X17D WZ10X17D WASHR PKG 12
WB1X119D WB1X119D WASHR-PKG 12
WZ10X16D WZ10X16D WASHR-PKG 12
