Model Image
Manufacturer

GE

Model Number

RS622GN1

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB03X5699 WB03X5699 ""TIMER-KNOB""
WB3X5699 WB3X5699 3-TIMER KNOB
WB30M1 WB30M1 6 SURF ELEM
WB31M0016 WB31M0016 6"" BURNER BOWL-CHROME
WB30M0001 WB30M0001 6"" SURF ELEM
WB31K10266 WB31K10266 8 INCH CHROME BURNER BOWL - EL
WB30M2 WB30M2 8 SURF ELEM
WB31M0015 WB31M0015 8"" BURNER BOWL-CHROME
WB30M0002 WB30M0002 8"" SURF ELEM
WB2X7909 WB2X7909 ANTI-TIP RANGE KIT
WB44M0001 WB44M0001 BAKE ELEMENT
WB44K5012 WB44K5012 BAKE ELEMENT
WB2M33 WB2M33 BASE ASM
WB02M0033 WB02M0033 BASE ASM W/LEVELERS
WB64M8 WB64M8 BBB SIDE EXT
WB64M0008 WB64M0008 BBB SIDE EXTENSION
WB17X5095 WB17X5095 BLOCK TERMINAL POWER
WB2X9148 WB2X9148 BLOCK-FRONT
WB2X9146 WB2X9146 BLOCK-REAR
WB63M21 WB63M21 BODY SD FILL
WB63M0024 WB63M0024 BODY SIDE-LT-SMOOTH
WB63M0058 WB63M0058 BODY SIDE-RT-SMOOTH
WB63K5195 WB63K5195 BODY SIDE-TEXTURED-LT
WB63K5192 WB63K5192 BODY SIDE-TEXTURED-RT
WB63M0021 WB63M0021 BODYSIDE FILLER-REAR
WB31K10265 WB31K10265 BOWL BURNER 6 CH
WB10X255 WB10X255 BRACKET-HNGE
WB2X9272 WB2X9272 BRKT-CLOCK
WB44X0232 WB44X0232 BROIL ELEMENT 240V
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB48M0003 WB48M0003 BROILER PAN
WB49X0627 WB49X0627 BROILER PAN GRID
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB44X232 WB44X232 BROILUNT 240
WB64K5023 WB64K5023 BURNER BOX BOTTOM
WB2X9105 WB2X9105 CLIP
WB2X9274 WB2X9274 CLIP-CLOCK
WB17X211 WB17X211 CLIP-TERM BK
WB02X9274 WB02X9274 CLOCK BEZEL CLIP
WB02X9272 WB02X9272 CLOCK BRACKET
WB36X0767 WB36X0767 CLOCK GLASS
WB36K5052 WB36K5052 CONTROL PANEL
WB35M0013 WB35M0013 CONTROL PANEL INSULATION
WB2X9749 WB2X9749 COVER PLATE
WB15M3 WB15M3 DOOR HANDLE
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB58X65 WB58X65 DRAWER
WB56M0003 WB56M0003 DRAWER SUPPORT
WB23M24 WB23M24 EL CTL 1500W
WB23M0024 WB23M0024 ELEMENT CONTROL 1400W
WB23K5027 WB23K5027 ELEMENT CONTROL 2350W
WB07X1581 WB07X1581 END CAP LT
WB07X1582 WB07X1582 END CAP RT
WB7X1581 WB7X1581 END CAP-LEFT
WB7X1582 WB7X1582 END CAP-RGHT
WB02X9749 WB02X9749 FLUE PLATE COVER
WB63K5061 WB63K5061 FRONT FRAME
WB36X767 WB36X767 GLASS-CLOCK
WB2X9725 WB2X9725 GROMET STRP
WB02X9725 WB02X9725 GROMMET STRIP
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15M0003 WB15M0003 HANDLE
WB14X0103 WB14X0103 HINGE ASM-LT
WB14X0104 WB14X0104 HINGE ASM-RT
WB14X103 WB14X103 HINGE-LEFT
WB14X110 WB14X110 HINGE-LEFT
WB14X109 WB14X109 HINGE-RIGHT
WB14X104 WB14X104 HINGE-RIGHT
WB2M45 WB2M45 HNDL SUPPORT
WB25X0093 WB25X0093 IND LHT OVN HOT SURFACE
WB25X0092 WB25X0092 INDICATOR LIGHT
WB25X0094 WB25X0094 INDICATOR LIGHT CAMERA LENS
WB03K5027 WB03K5027 INFINITE KNOB
WB02K5093 WB02K5093 INS RETAINER-LO
WB02T10077 WB02T10077 INSLN RETAINER-LO
31-0932 31-0932 INSTALLATION INSTRUCTION
31-0888 31-0888 INSTALLATION INSTRUCTION
WB2X9123 WB2X9123 INSULATION D
WB02X9030 WB02X9030 INSULATION RETAINER
WB35M0022 WB35M0022 INSULATION TOP &SIDES
WB35K5113 WB35K5113 INSULATION-BACK & BTM
WB25T10042 WB25T10042 LENS
WB1M18 WB1M18 LEVEL SCREW
WB01M0018 WB01M0018 LEVELING SCREW
WB25T10039 WB25T10039 LIGHT INDICATOR
WB25T10040 WB25T10040 LIGHT INDICATOR
WB34M0027 WB34M0027 LIGHT WIRE COVER
WB63M56 WB63M56 MAIN BACK
WB63M0056 WB63M0056 MAIN BACK ASM
WB62K5043 WB62K5043 MAIN TOP
WB18M0089 WB18M0089 MAIN TOP WIRE HARNESS
WB18K5102 WB18K5102 MAIN WIRE HARNESS
WB14X0110 WB14X0110 MAINTOP HINGE-LT
WB14X0109 WB14X0109 MAINTOP HINGE-RT
31-13043 31-13043 MINI MANUAL/WIRE DIAGRAM
WB10X0255 WB10X0255 MT HINGE BRACKET
WB02M0084 WB02M0084 MT SUPPORT ROD
WB15M4 WB15M4 N.L.A.OV DR HANDLE
WB56K5061 WB56K5061 N/L/A 04/20/06
WB2M44 WB2M44 N/L/A 12/15/05
WB3K5027 WB3K5027 NLA 10/16/09
WB56X1910 WB56X1910 OV DOOR INS RETAINER
WB09X0267 WB09X0267 OV DOOR SPRING
WB56X1901 WB56X1901 OV DR INNER GLASS
WB02X9439 WB02X9439 OV DR INSULATION

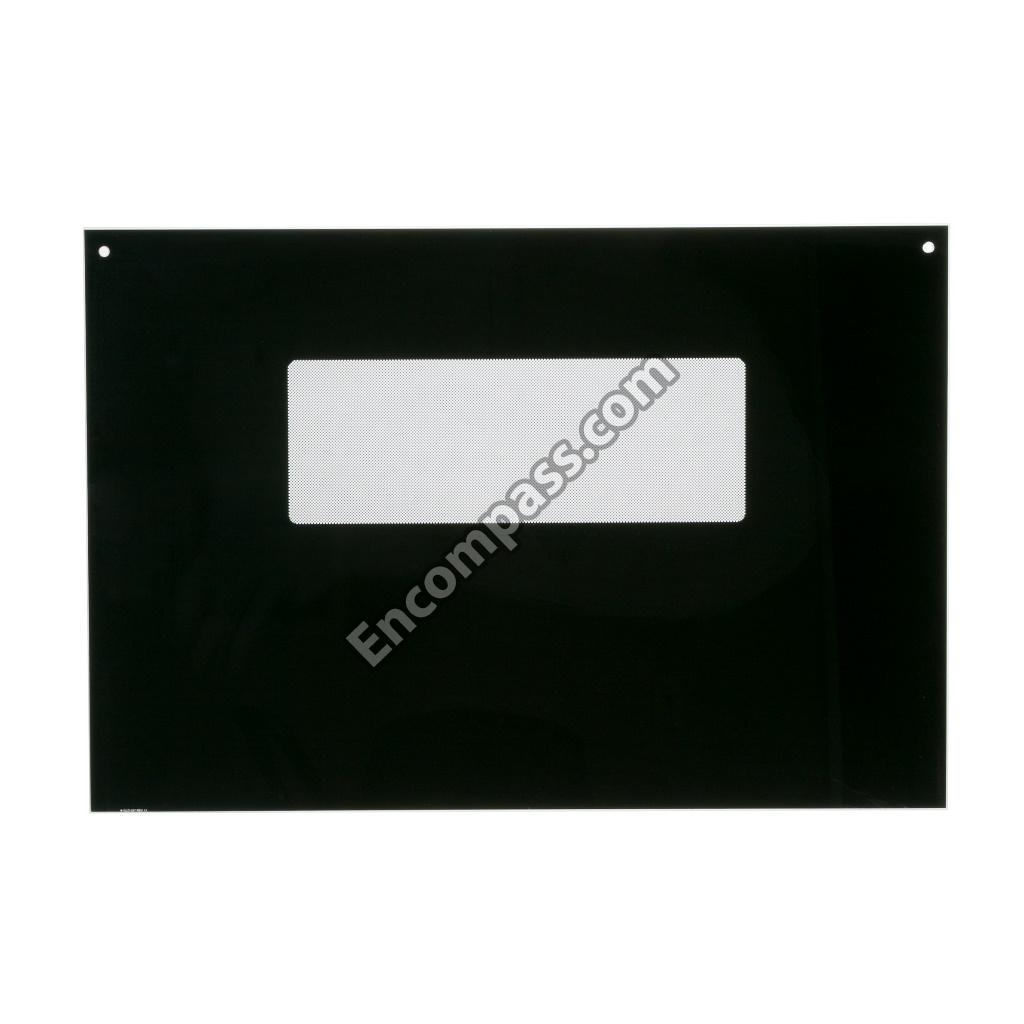

WB57M27 WB57M27 OV DR OUT GL
WB02X9437 WB02X9437 OV DR SEAL
WB08M0003 WB08M0003 OV LAMP HOLDER
WB63T10002 WB63T10002 OVEN BODY
WB07X1585 WB07X1585 OVEN DOOR FRAME
WB55K5012 WB55K5012 OVEN DOOR LINING
WB48X0210 WB48X0210 OVEN RACK
WB48M4 WB48M4 OVEN RACK
WB20M0006 WB20M0006 OVEN THERMOSTAT
WB8K5042 WB8K5042 OVLAMP HLDR
WB02T10054 WB02T10054 PLATE RANGE SERVICE M
WB2X9189 WB2X9189 PLUG BUT REC
WB02X9189 WB02X9189 PLUG BUTTON-RECTANGULAR
WB17M0005 WB17M0005 POWER RING HOUSING
WB02X9427 WB02X9427 RANGE SERVICE MTG PLATE
WB2X9030 WB2X9030 RETAIN-INSUL
WB02X9105 WB02X9105 RETAINER CLIP
39-4720 39-4720 RS504GP 622GP USE & CARE
WB01X32746 WB01X32746 SCR ST 8A8 X .625 TR NI
WB01X1167 WB01X1167 SCREW
WB01X1250 WB01X1250 SCREW
WB01M0019 WB01M0019 SCREW
WB01X1135 WB01X1135 SCREW
WB01X1141 WB01X1141 SCREW
WB01X1258 WB01X1258 SCREW
WB01X1172 WB01X1172 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1265 WB01X1265 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5045 WB01K5045 SCREW
WB1M1 WB1M1 SCREW
WB1X1172 WB1X1172 SCREW
WB1X1258 WB1X1258 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5122 WB1K5122 SCREW
WB1X1328 WB1X1328 SCREW
WB1X1149 WB1X1149 SCREW 10-16 X 3/8
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB01X1261 WB01X1261 SCREW GROUND
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1130 WB1X1130 SCREW-10-32
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB01X1149 WB01X1149 SCREW-BRIGHT NICKEL
WB01X1158 WB01X1158 SCREW-NICKEL
WB01X1174 WB01X1174 SCREW-NICKLE
WB1X1424D WB1X1424D SCREW-PKG 12
WB1X1250D WB1X1250D SCREW-PKG 12
WB32K5051 WB32K5051 SEAL OV DR
WB3K5031 WB3K5031 SELECT KNOB
WB03K5031 WB03K5031 SELECTOR KNOB
WB22X5134 WB22X5134 SELECTOR SWITCH
WB2X9426 WB2X9426 SHIELD-LOWER
WB07X1583 WB07X1583 SIDE TRIM-LT
WB07X1584 WB07X1584 SIDE TRIM-RT
WB02X9148 WB02X9148 SLIDE BLOCK FRONT
WB02X9146 WB02X9146 SLIDE BLOCK-REAR
WB02M0021 WB02M0021 SNAP BUSHING
WB2M21 WB2M21 SNAP BUSHING
WB02X9896 WB02X9896 SPACER
WB01X1177 WB01X1177 SPACER
WB2X9896 WB2X9896 SPACER
WB1X1177 WB1X1177 SPACER
WB2X9037 WB2X9037 SPACER-HNDL
WB9X267 WB9X267 SPRING-OV DR
WB06X0106 WB06X0106 STABILITY BRACKET KIT
WB58X0065 WB58X0065 STORAGE DRAWER
WB2X9719 WB2X9719 SUPP-BROIL
WB56M3 WB56M3 SUPPORT DRWR
WB24X415 WB24X415 SWITCH-LITE
WB24X0415 WB24X0415 SWITCH-OVEN LIGHT
WB17X210 WB17X210 TERM BLK
WB17X0218 WB17X0218 TERMINAL BLOCK CLIP
WB17X0217 WB17X0217 TERMINAL BLOCK W/WIRES
WB3K5032 WB3K5032 THERMO KNOB **NLA*
WB03K5032 WB03K5032 THERMOSTAT KNOB
WB21X5209 WB21X5209 THERMOSTAT L O
WB18K5103 WB18K5103 THERMOSTAT WIRE HARNESS
WB19X10005 WB19X10005 TIMER
WB35M22 WB35M22 TOP&SD INSUL
WB7X1583 WB7X1583 TRIM-LEFT
WB7X1584 WB7X1584 TRIM-RIGHT
WB38K5027 WB38K5027 TUBE VENT ASSEMBLY
WB38K5016 WB38K5016 TUBE VENT ASSEMBLY
WB02M0044 WB02M0044 UNKNOWN
WB15M0004 WB15M0004 UNKNOWN
WB57M0027 WB57M0027 UNKNOWN
WB02M0045 WB02M0045 UNKNOWN
WB35M0005 WB35M0005 UNKNOWN
WB56X2059 WB56X2059 UNKNOWN
WB63M0063 WB63M0063 UNKNOWN
WB34K5055 WB34K5055 UNKNOWN
WB01X1201 WB01X1201 WASHER
WB1X1201 WB1X1201 WASHER
WB34M27 WB34M27 WIRE LIT CVR
WB34K5052 WB34K5052 WIRE SHIELD
WB34M0006 WB34M0006 WIRE SHIELD
WB34M6 WB34M6 WIRE SHIELD
WB02X9426 WB02X9426 WIRE SHIELD-LOWER
WB02X9527 WB02X9527 WIRE SHIELD-UPPER
WB34M0044 WB34M0044 WIRE SHIELD-UPPER
WB2X9527 WB2X9527 WIRE SHLD-UP
