Model Image
Manufacturer

GE

Model Number

RVM1435WD002

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB01X10067 WB01X10067 GE ASSY-HARDWARE
WB56X10089 WB56X10089 GE BASE-BOTTOM-GRAY
WB56X10212 WB56X10212 GE BASE-PLATE
WB56X10228 WB56X10228 GE BASE-PLATE
WB06X10167 WB06X10167 GE BKT-FILTER
WB01X10064 WB01X10064 GE BOLT-FLANGE
WB06X10131 WB06X10131 GE BRACKET, COOKTOP GLASS
WB06X10136 WB06X10136 GE BRACKET,COOKTOP GLASS
WB06X10117 WB06X10117 GE BRACKET-BOTTOM LAMP
WB06X10118 WB06X10118 GE BRACKET-H V C
WB06X10165 WB06X10165 GE BRACKET-V/T MOTOR
WB06X10126 WB06X10126 GE BUTTON-LOCK
WB27X10011 WB27X10011 GE CAPACITOR
WB27X10240 WB27X10240 GE CAPACITOR HV
WB27X10170 WB27X10170 GE CAPACITOR-MOTOR
WB56X10269 WB56X10269 GE CASE OUTER
WB55X10532 WB55X10532 GE CHOKE COVER
WB07X10193 WB07X10193 GE CONTROL PANEL
WB07X10195 WB07X10195 GE CONTROL PANEL
39-40241 39-40241 GE COOKING GUIDE LABEL
WB06X10138 WB06X10138 GE COUPLER
WB06X10420 WB06X10420 GE COUPLER-TT
WB06X10148 WB06X10148 GE COVER LAMP ASM
WB06X10281 WB06X10281 GE COVER TCO-BOTTOM
WB06X10130 WB06X10130 GE COVER-STIRRER
WB06X10129 WB06X10129 GE DAMPER-COVER
WB06X10436 WB06X10436 GE DAMPER-MAIN
WB56X10359 WB56X10359 GE DOOR ASSEMBLY
WB55X10144 WB55X10144 GE DOOR LINER AND CHOKE BLACK
WB55X10612 WB55X10612 GE DOOR OUTER FRAME
WB36X10068 WB36X10068 GE FILM-DOOR
WB01X10065 WB01X10065 GE FLANGE NUT
WB55X10137 WB55X10137 GE FRAME-INNER DOOR
WB27X10388 WB27X10388 GE FUSE
WB27X10928 WB27X10928 GE FUSE
WB06X10034 WB06X10034 GE FUSE HOLDER
WB36X10071 WB36X10071 GE GLASS COOKTOP LAMP
WB36X10167 WB36X10167 GE GLASS-COOK TOP LAMP
WB07X10530 WB07X10530 GE GRILLE ASM BLK
WB07X10343 WB07X10343 GE GRILLE WHITE
WB27X1160 WB27X1160 GE H.V.D ASM
WB15X10023 WB15X10023 GE HANDLE
WB15X10022 WB15X10022 GE HANDLE
WB01X10181 WB01X10181 GE HARDWARE INSTALLATION
WB14X10014 WB14X10014 GE HINGE- LOWER
WB14X10015 WB14X10015 GE HINGE- UPPER
WB01X10071 WB01X10071 GE HOLDER NUT ASM
49-40247 49-40247 GE INSTALLATION INSTRUCTION
WB36X10003 WB36X10003 GE LAMP - CAVITY
WB08X10016 WB08X10016 GE LAMP SOCKET
WB06X10127 WB06X10127 GE LATCH BODY
WB10X10012 WB10X10012 GE LATCH, DOOR
WB06X10128 WB06X10128 GE LEVER SWITCH-LOWER
WB06X10147 WB06X10147 GE MICROWAVE AIR GUIDE BRACKET

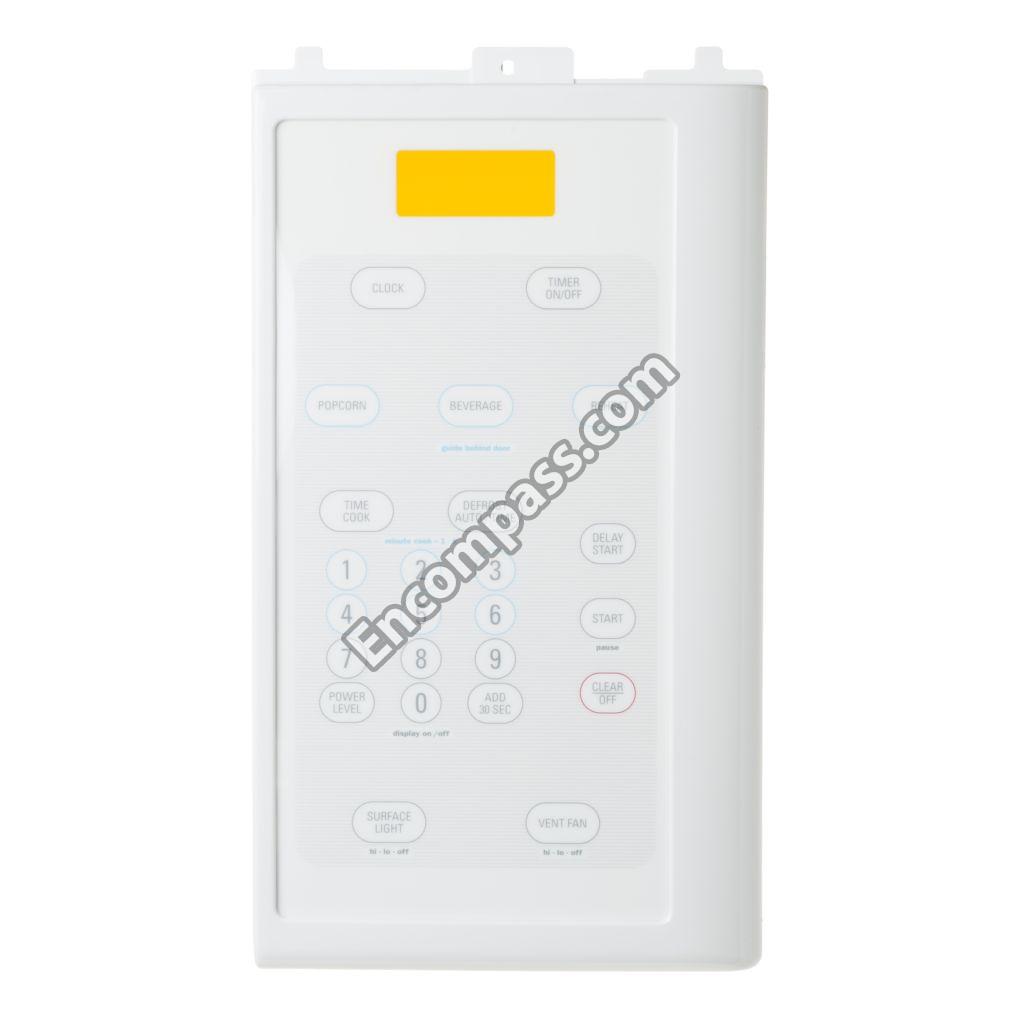

WB07X10558 WB07X10558 GE MICROWAVE CONTROL PANEL - WHITE
WB07X10532 WB07X10532 GE MICROWAVE CONTROL PANEL FRAME - WHITE
WB06X10134 WB06X10134 GE MICROWAVE FAN MOTER
WB06X10132 WB06X10132 GE MICROWAVE FRONT COVER
WB6X486 WB6X486 GE MICROWAVE GREASE FILTER
WB27X10017 WB27X10017 GE MICROWAVE MAGNETRON
WB01X10180 WB01X10180 GE MICROWAVE MOUNTING FLAT BOLT
WB24X830 WB24X830 GE MICROWAVE OVEN DOOR SWITCH
WB06X10122 WB06X10122 GE MICROWAVE POWER CORD BRACKET
31-40000 31-40000 GE MINI- MANUAL
WB26X10105 WB26X10105 GE MOTOR MAG FAN ASM
WB26X10045 WB26X10045 GE MOTOR MAG FAN ASM
WB26X10037 WB26X10037 GE MOTOR SYNCHRONOUS
WB26X10038 WB26X10038 GE MOTOR TURNTABLE
WB26X10042 WB26X10042 GE MOTOR-VENTILATION
WB56X10862 WB56X10862 GE MOUNTING PLATE ASM
WB56X10267 WB56X10267 GE PANEL-OUTER
WB27X10655 WB27X10655 GE PCB PARTS ASM
WB18X10053 WB18X10053 GE POWER CORD
49-40239 49-40239 GE REAR WALL TEMPLATE
WB06X10139 WB06X10139 GE ROLLER GUIDE RING
WB36X10206 WB36X10206 GE SCREEN-DOOR(B)
WB01X10063 WB01X10063 GE SCREW SPECIAL
WB01X10084 WB01X10084 GE SCREW WASHER
WB01X10062 WB01X10062 GE SCREW-GRILLE
WB01X10068 WB01X10068 GE SCREW-GRILLE-WHITE
WB09X10013 WB09X10013 GE SPRING-KEY
WB06X10416 WB06X10416 GE STIRRER ASM
WB24X829 WB24X829 GE SW-SECONDARY
WB24X0830 WB24X0830 GE SWITCH-MICRO
WB24X0829 WB24X0829 GE SWITCH-MICRO
WB21X0535 WB21X0535 GE TCO -BOTTOM
49-40166 49-40166 GE TEMPLATE TOP
WB27X1127 WB27X1127 GE THERMO SW-TCO SENSE TEMP
WB27X10194 WB27X10194 GE THERMOSTAT
WB27X10195 WB27X10195 GE THERMOSTAT
WB27X10166 WB27X10166 GE THERMOSTAT-160/60
WB27X10133 WB27X10133 GE TRANS-H.V
WB39X10003 WB39X10003 GE TRAY-COOKING
39-40232-1 39-40232-1 GE USE & CARE
WB36X10070 WB36X10070 GE WINDOW-DISPLAY
WB18X10139 WB18X10139 GE WIRE GND PCB
WB18X10176 WB18X10176 GE WIRE HARNESS-A
WB18X10055 WB18X10055 GE WIRE HARNESS-B
WB18X10123 WB18X10123 GE WIRE HARNESS-C
WB18X10177 WB18X10177 GE WIRE HARNESS-D.
WB01X10135 WB01X10135 GE WIRE SADDLE
