Model Image
Manufacturer

GE

Model Number

RVM1635BJ01

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB27X10827 WB27X10827 ASSEMBLY - MGT
WB27X10829 WB27X10829 ASSEMBLY P.C.B
WB06X10595 WB06X10595 BRACKET-HVC
WB27X10240 WB27X10240 CAPACITOR HV
WB27X10170 WB27X10170 CAPACITOR-MOTOR
WB55X10532 WB55X10532 CHOKE COVER
WB36X10216 WB36X10216 COVER-GLASS
WB06X10129 WB06X10129 DAMPER-COVER
WB06X10436 WB06X10436 DAMPER-MAIN
WB56X10617 WB56X10617 DOOR ASM
WB56X10615 WB56X10615 DOOR ASSEMBLY
WB06X10596 WB06X10596 FILTER-AIR
WB27X10388 WB27X10388 FUSE
WB27X10928 WB27X10928 FUSE
WB06X10034 WB06X10034 FUSE HOLDER
WB36X10071 WB36X10071 GLASS COOKTOP LAMP
WB06X10060 WB06X10060 HINGE PIN
WB01X10071 WB01X10071 HOLDER NUT ASM
39-40425 39-40425 INSTRUCTIONS INSTALL
WB36X10003 WB36X10003 LAMP - CAVITY
WB06X10128 WB06X10128 LEVER SWITCH-LOWER

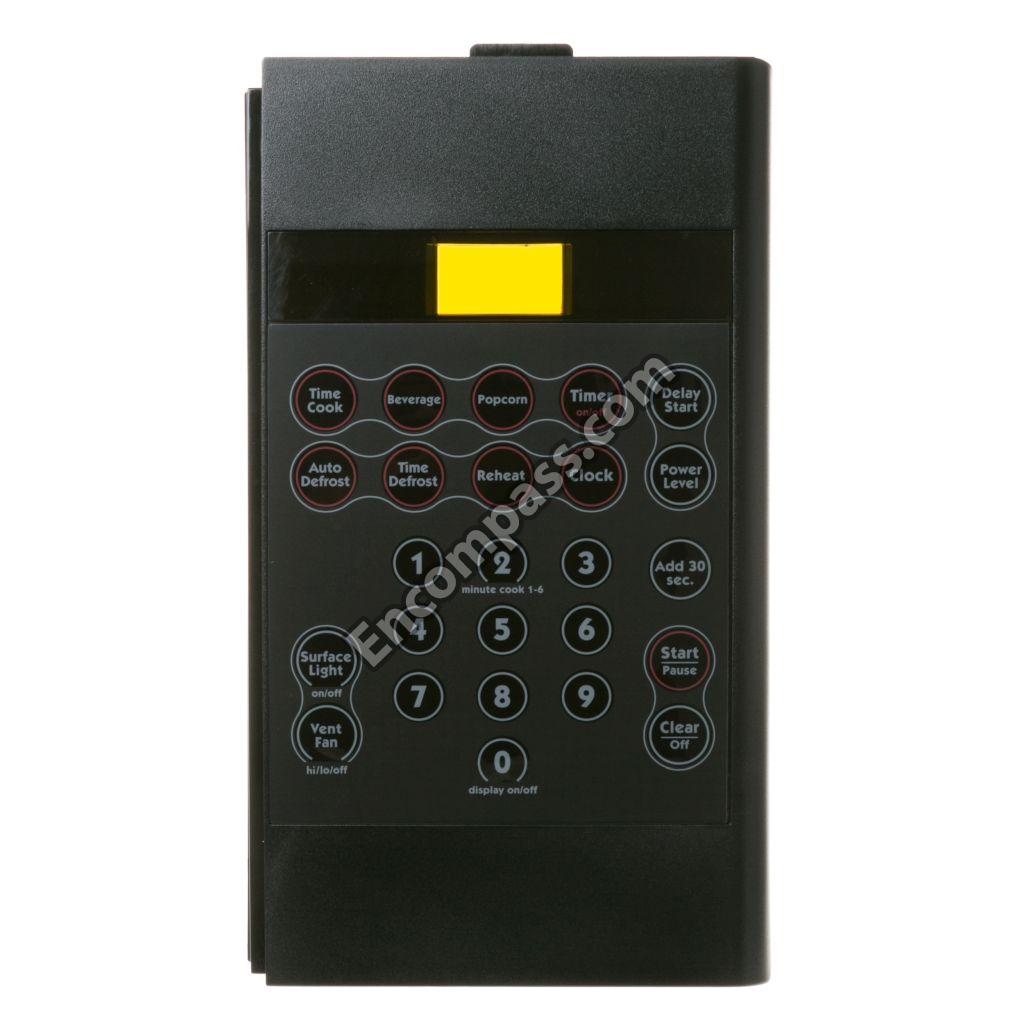

WB07X10877 WB07X10877 MICROWAVE CONTROL PANEL - BLACK
WB06X10597 WB06X10597 MICROWAVE COUPLER
WB27X10597 WB27X10597 MICROWAVE DIODE
WB05X10011 WB05X10011 MICROWAVE DOOR LATCH
WB39X10003 WB39X10003 MICROWAVE GLASS TRAY
WB01X10287 WB01X10287 MICROWAVE INSTALLATION HARDWARE
WB02X11147 WB02X11147 MICROWAVE MOUNTING COVER
WB01X10180 WB01X10180 MICROWAVE MOUNTING FLAT BOLT
WB06X10374 WB06X10374 MICROWAVE ROTATING RING
WB05X10006 WB05X10006 MICROWAVE SPRING HOOK
31-40026 31-40026 MINI MANUAL
WB26X10167 WB26X10167 MOTOR VENTILATION
WB56X10607 WB56X10607 PANEL-OUTER
WB56X10608 WB56X10608 PLATE-MOUNTING
WB18X10200 WB18X10200 POWER CORD ASSEMBLY
WB26X10168 WB26X10168 RANGE DRIVE MOTOR
WB08X10016 WB08X10016 SOCKET LAMP
WB24X830 WB24X830 SW-MONITOR
WB24X829 WB24X829 SW-SECONDARY
39-40432 39-40432 TEMPLATE REAR
39-40436 39-40436 TEMPLATE TOP
WB27X10195 WB27X10195 THERMOSTAT
WB27X10166 WB27X10166 THERMOSTAT-160/60
WB27X10826 WB27X10826 TRANS H.V
39-40427-1 39-40427-1 USE & CARE
WB18X10266 WB18X10266 WIRE HARNESS-A
