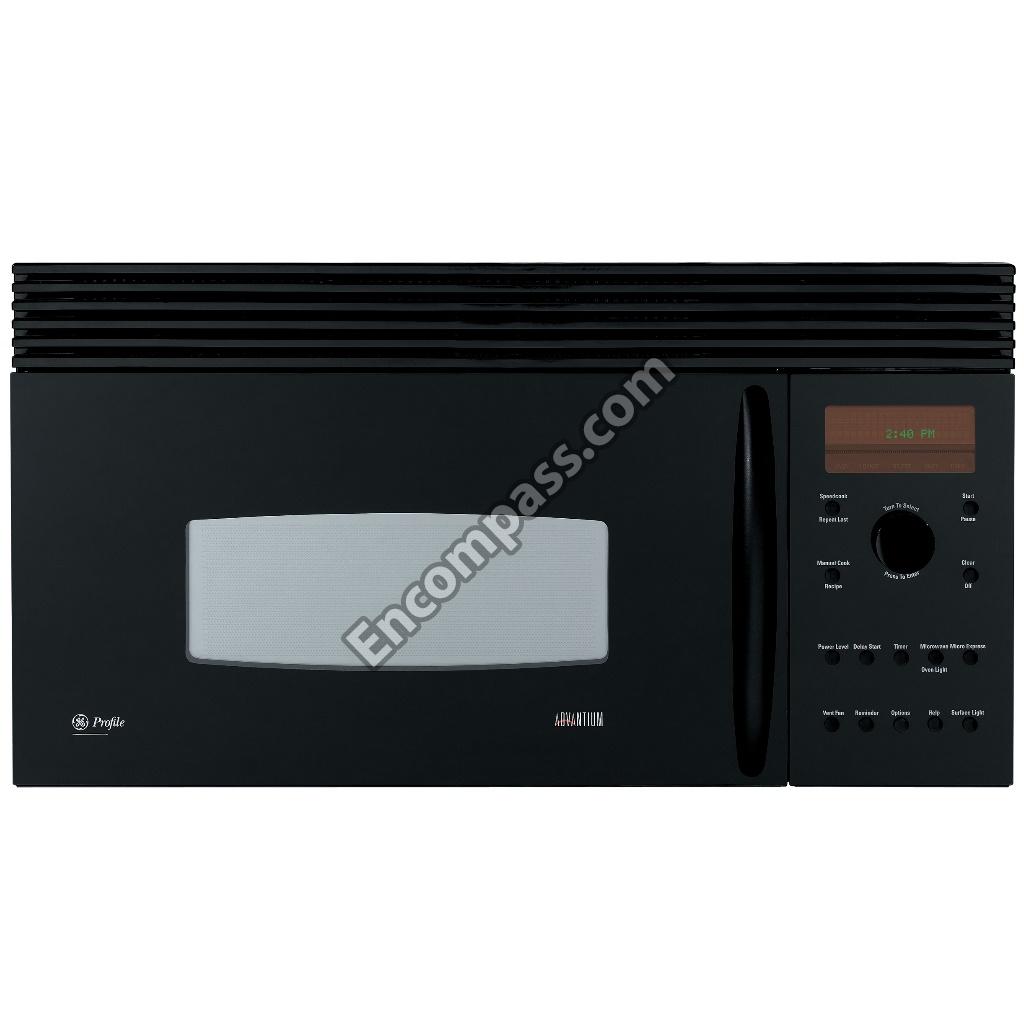

Model Image
Manufacturer

GE

Model Number

SCA2000FBB01

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB38X10027 WB38X10027 AIR TUNNEL INLET
WB38X10026 WB38X10026 AIR TUNNEL OUTLET
WB49X10056 WB49X10056 BASE PLATE SUB ASSEMBLY

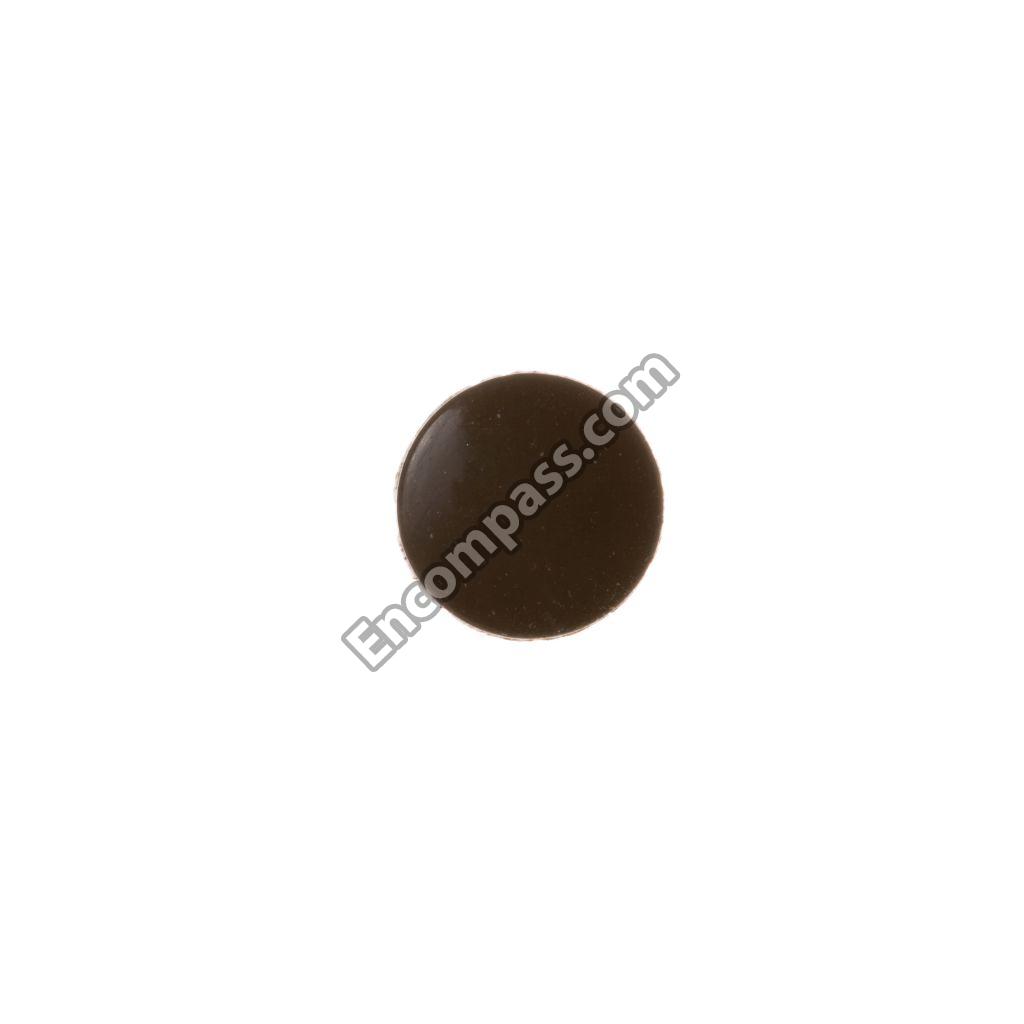

WB03X10076 WB03X10076 BUTTONS BK
WB27X10329 WB27X10329 CAPACITOR
WB27X10233 WB27X10233 CAPACITOR, H. V.
WB36X10131 WB36X10131 CAVITY LAMP
WB55X10297 WB55X10297 CHOKE COVER
WB07X10649 WB07X10649 CONTROL PANEL ASSEMBLY
49-40070 49-40070 COOK BOOK
WB36X10152 WB36X10152 COOKTOP GLASS ASSEMBLY (BLACK)
WB27X10037 WB27X10037 DIODE
WB55X10616 WB55X10616 DOOR ASSEMBLY
WB15X10107 WB15X10107 DOOR H AND LE
WB27X10388 WB27X10388 FUSE
WB27X10928 WB27X10928 FUSE
WB27X10335 WB27X10335 FUSE ASSEMBLY
WB06X10034 WB06X10034 FUSE HOLDER

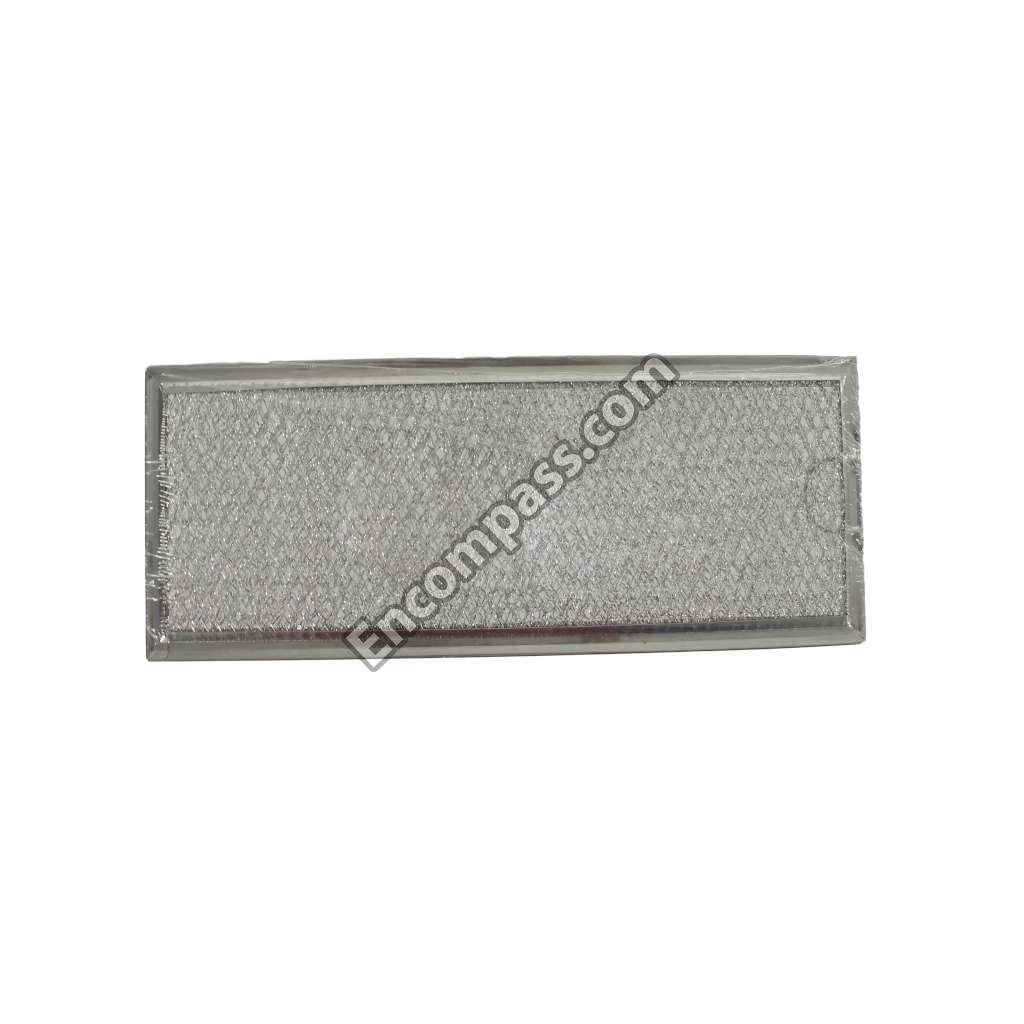

WB06X10218 WB06X10218 GREASE FILTER ASSEMBLY

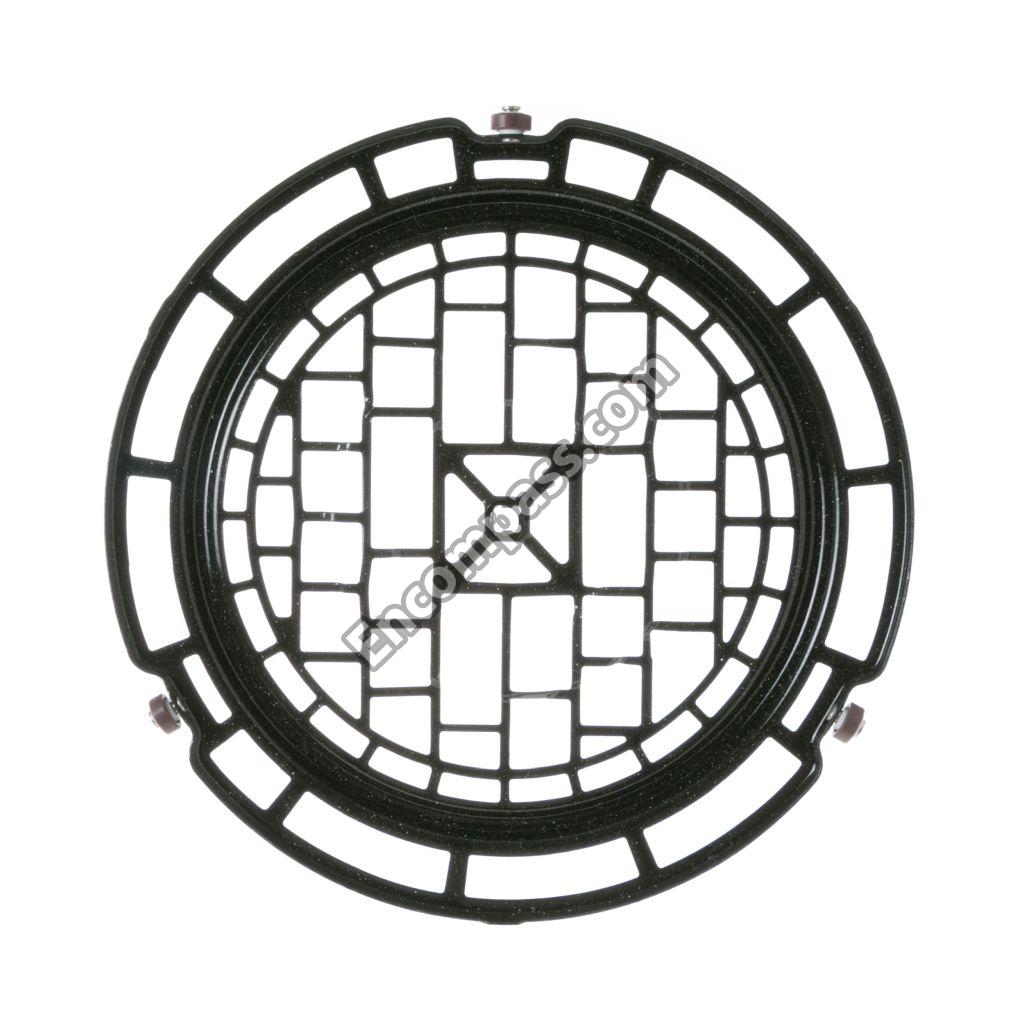

WB07X10266 WB07X10266 GRILLE ASSEMBLY
WB02X10625 WB02X10625 GRILLE CLIPS

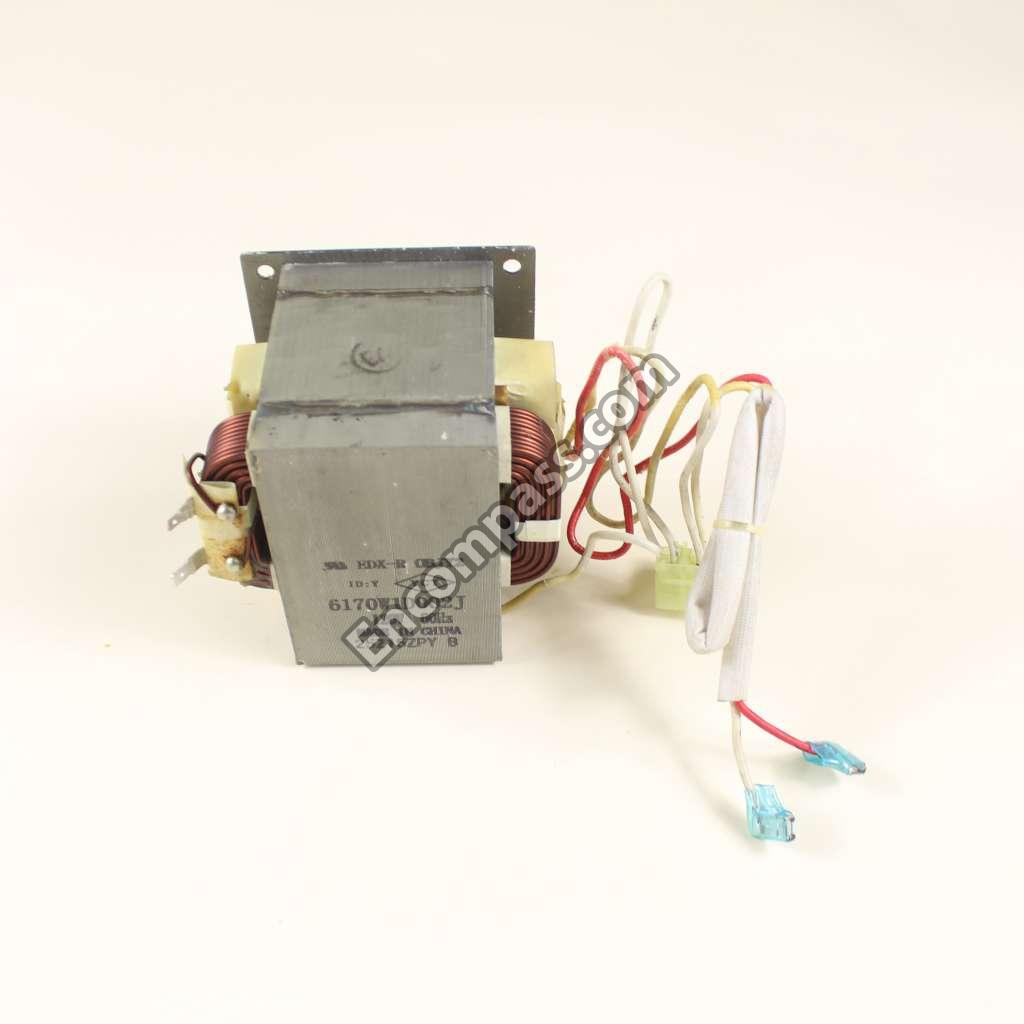

WB27X10923 WB27X10923 H.V. TRANFORMER
49-40068-1 49-40068-1 INSTALLATION INSTRUCTION
WB64X10003 WB64X10003 INSTALLATION KIT ASM
WB03X10077 WB03X10077 KNOB
WB06X10216 WB06X10216 LATCH BRACKET
WB10X10021 WB10X10021 LATCH/SPRING ASM
WB27X10328 WB27X10328 LED BOARD ASSEMBLY
WB26X10060 WB26X10060 LOWER BLOWER MOTOR
WB36X10128 WB36X10128 LOWER GLASS - HOLD DOWN
WB36X10130 WB36X10130 LWR HALOGEN GLASS CVR
WB36X10328 WB36X10328 M/W LIGHT BULB
WB26X10063 WB26X10063 MAG FAN ASSEMBLY

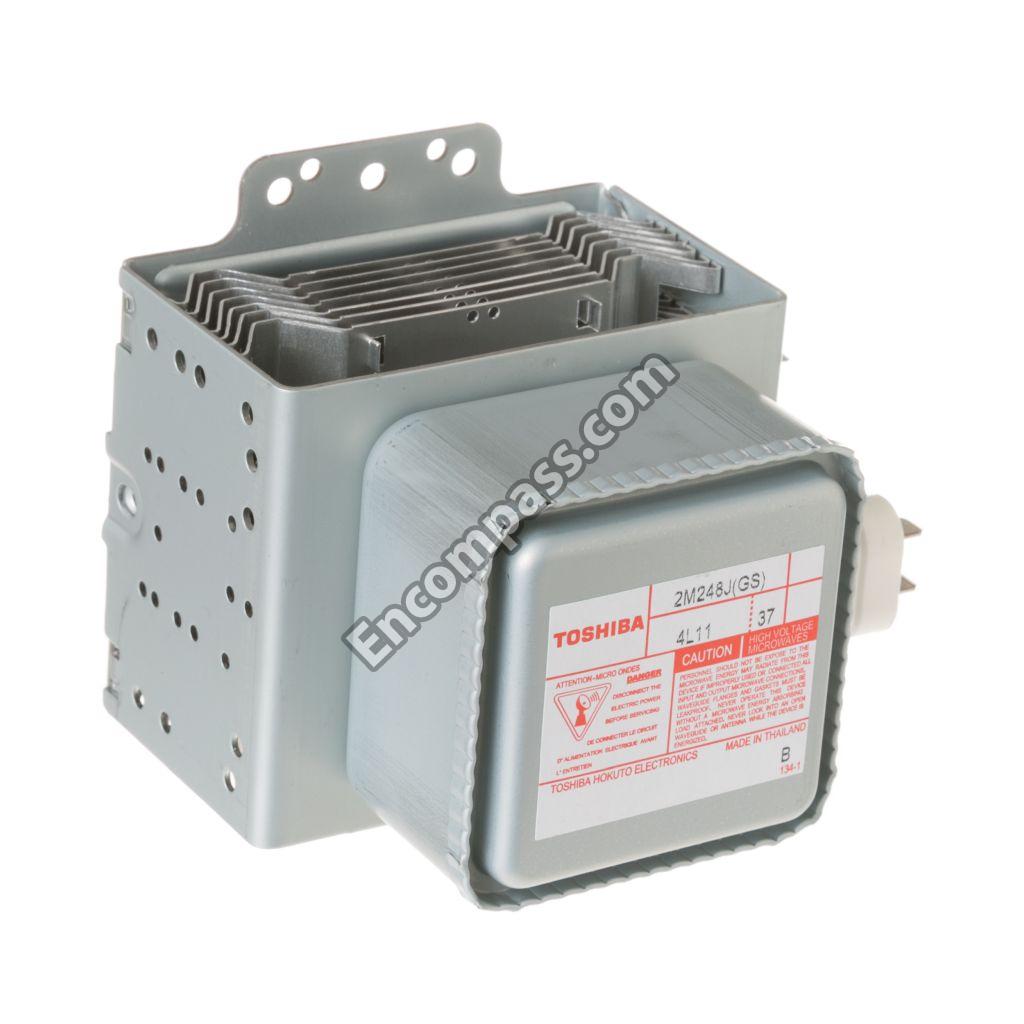

WB26X26222 WB26X26222 MAGNETRON ASS'Y
WB49X36965 WB49X36965 MAGNETRON KIT
WB06X10217 WB06X10217 MICROWAVE DOOR DAMPER
WB24X10047 WB24X10047 MICROWAVE INTERLOCK SWITCH

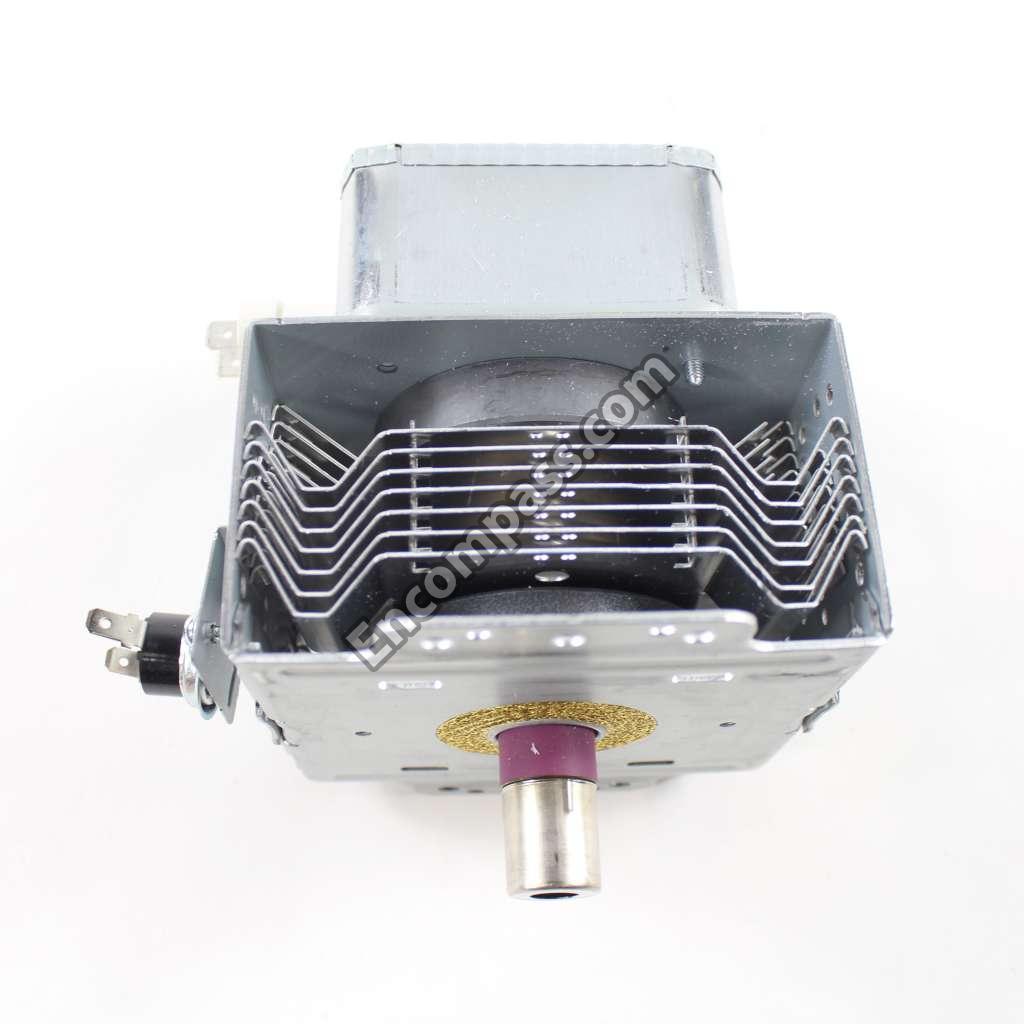

WB27X10327 WB27X10327 MICROWAVE MICROWAVE MAGNETRON
WB01X10093 WB01X10093 MICROWAVE MOUNTING NUT
31-20919 31-20919 MINI-MANUAL

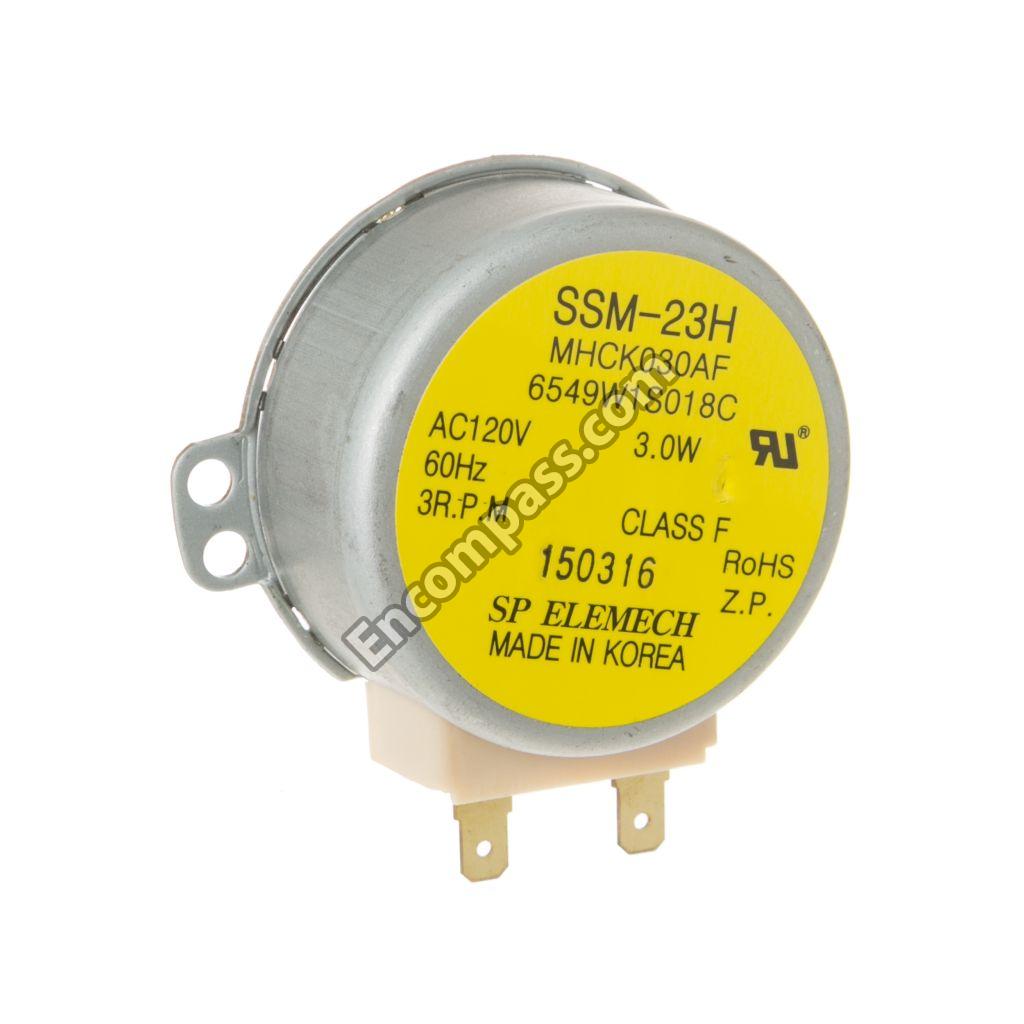

WB26X10073 WB26X10073 MOTOR ASSEMBLY
WB56X10135 WB56X10135 MOUNTING PLATE
WB56X10137 WB56X10137 OUTER CASE BLACK
WB02X10730 WB02X10730 PAN HEAD TAPPING SCREW
WB18X10419 WB18X10419 POWER CORD ASSEMBLY
WB36X10125 WB36X10125 REFLECTOR ASSEMBLY LOWER
WB27X10334 WB27X10334 RELAY BOARD
WB1X1515 WB1X1515 SCREW
WB1X1514 WB1X1514 SCREW
WB01X10201 WB01X10201 SCREW
WB02X10728 WB02X10728 SCREW
WB02X10745 WB02X10745 SCREW - BINDING HEAD
WB01X10130 WB01X10130 SCREW - FUSE
WB02X10729 WB02X10729 SCREW -PCB
WB01X1515 WB01X1515 SCREW TAPPING
WB01X1514 WB01X1514 SCREW TAPPING
WB01X10134 WB01X10134 SCREW TAPPING PAN HEAD
WB02X10760 WB02X10760 SCREW TAPPING TRUSS HEAD
WB01X1506 WB01X1506 SCREW, TAP TITE
WB24X10044 WB24X10044 SENSOR ASM

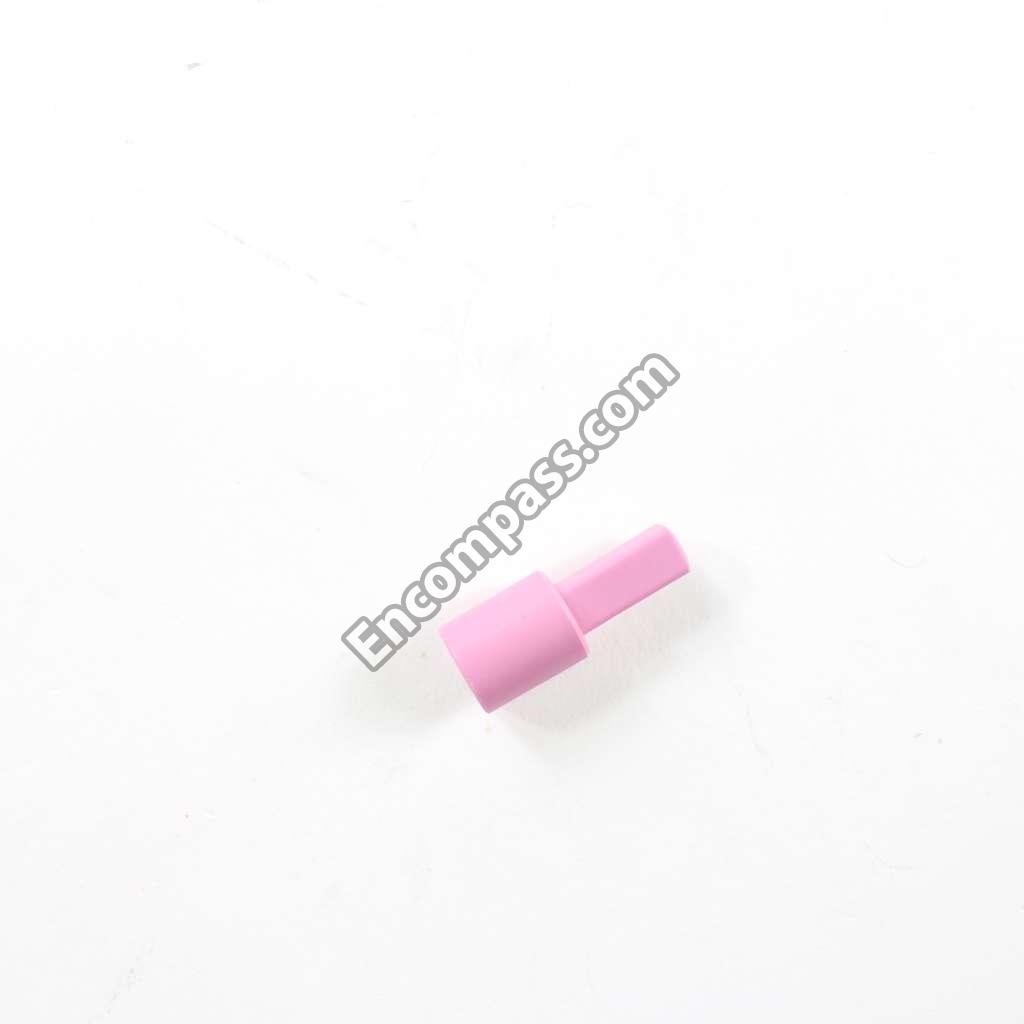

WB02X10624 WB02X10624 SHAFT - TURNTABLE

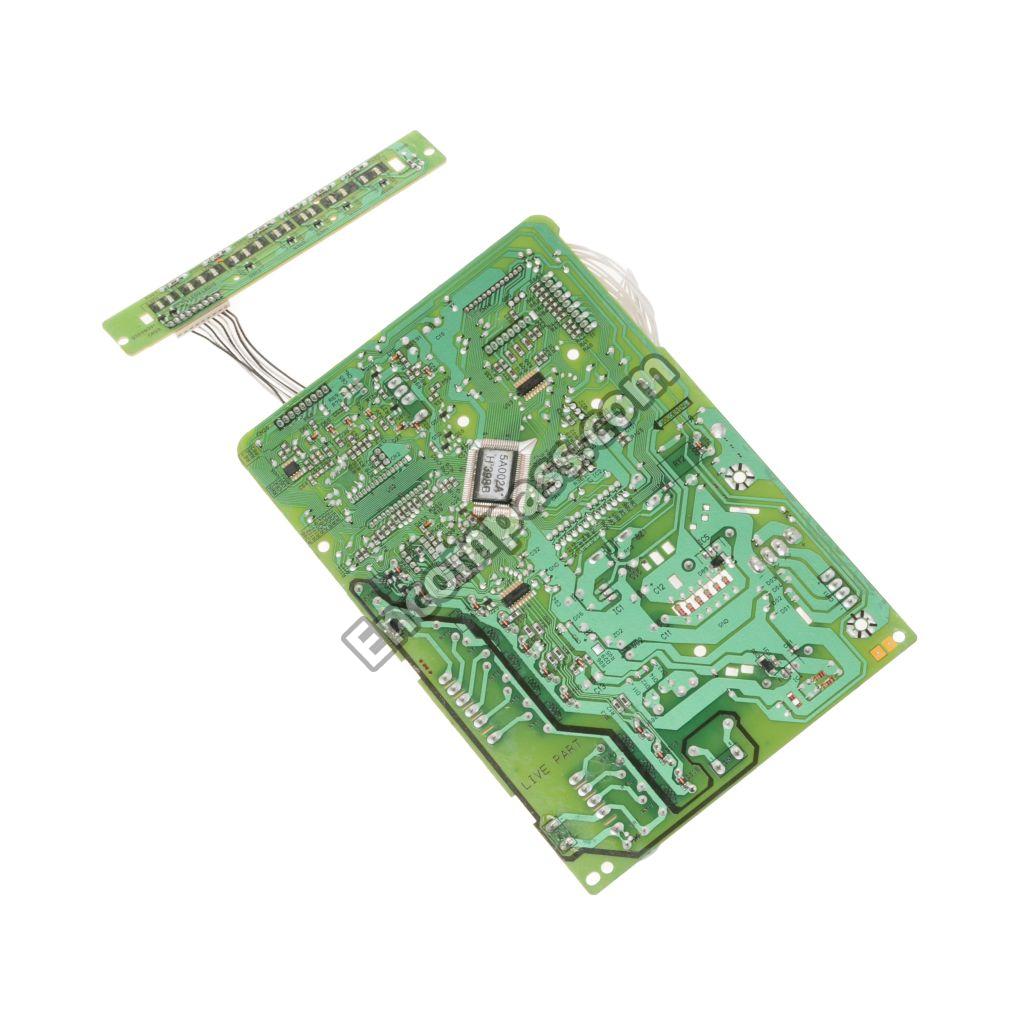

WB27X10358 WB27X10358 SMART BOARD, MAIN ASS'Y
4B70188B 4B70188B SPECIAL SCREW-D
WB24X0817 WB24X0817 SWITCH MICRO
WB24X25397 WB24X25397 SWITCH MONITOR INTERLOCK
WB01X10127 WB01X10127 TAPPING SCREW - TRUSS HEAD
WB24X31473 WB24X31473 TCO BASE HOOD
WB20X0167 WB20X0167 TCO, MAG
WB21X10046 WB21X10046 TCO, OVEN CAVITY
49-40069 49-40069 TEMPLATE TOP CAB
WB27X10326 WB27X10326 THERMISTOR
WB21X10149 WB21X10149 THERMOSTAT
WB20X10015 WB20X10015 TRANSFORMER LOW VOLTAGE

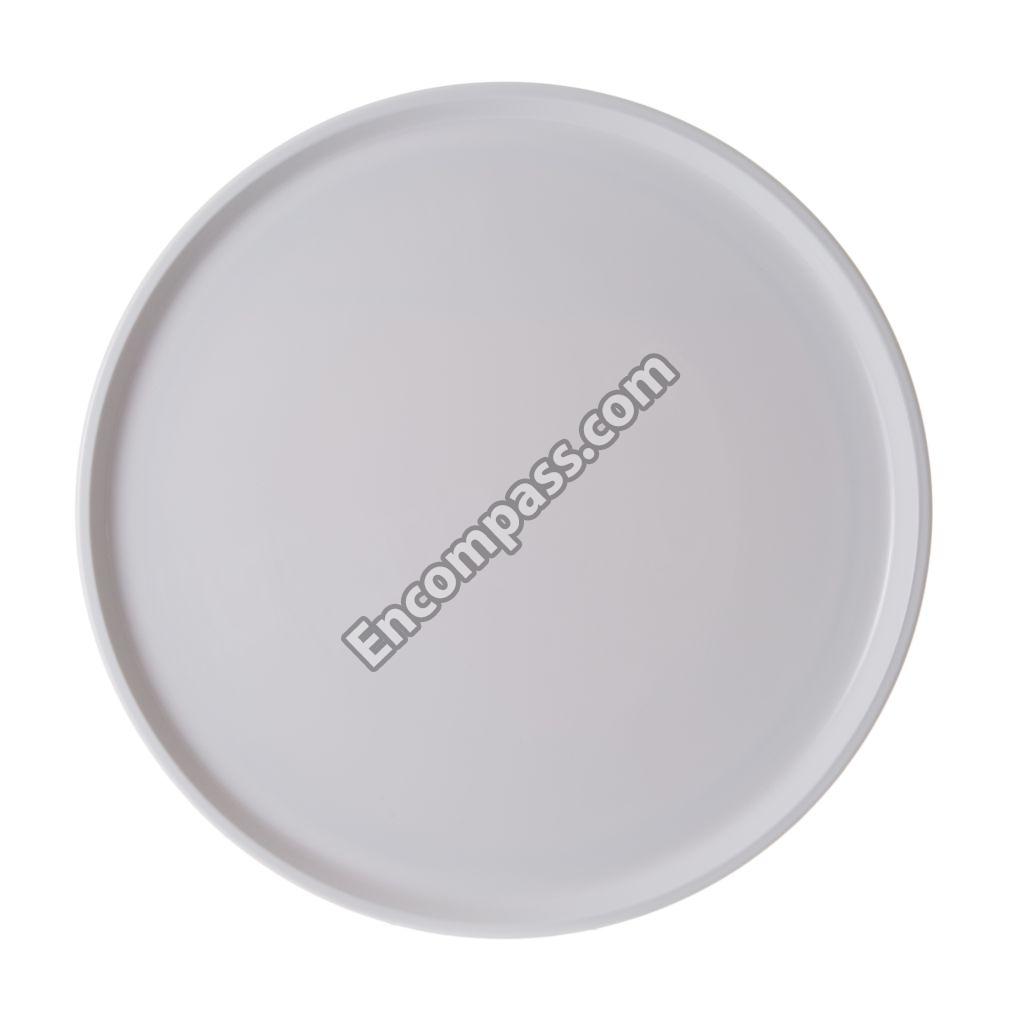

WB49X10246 WB49X10246 TRAY - CERAMIC

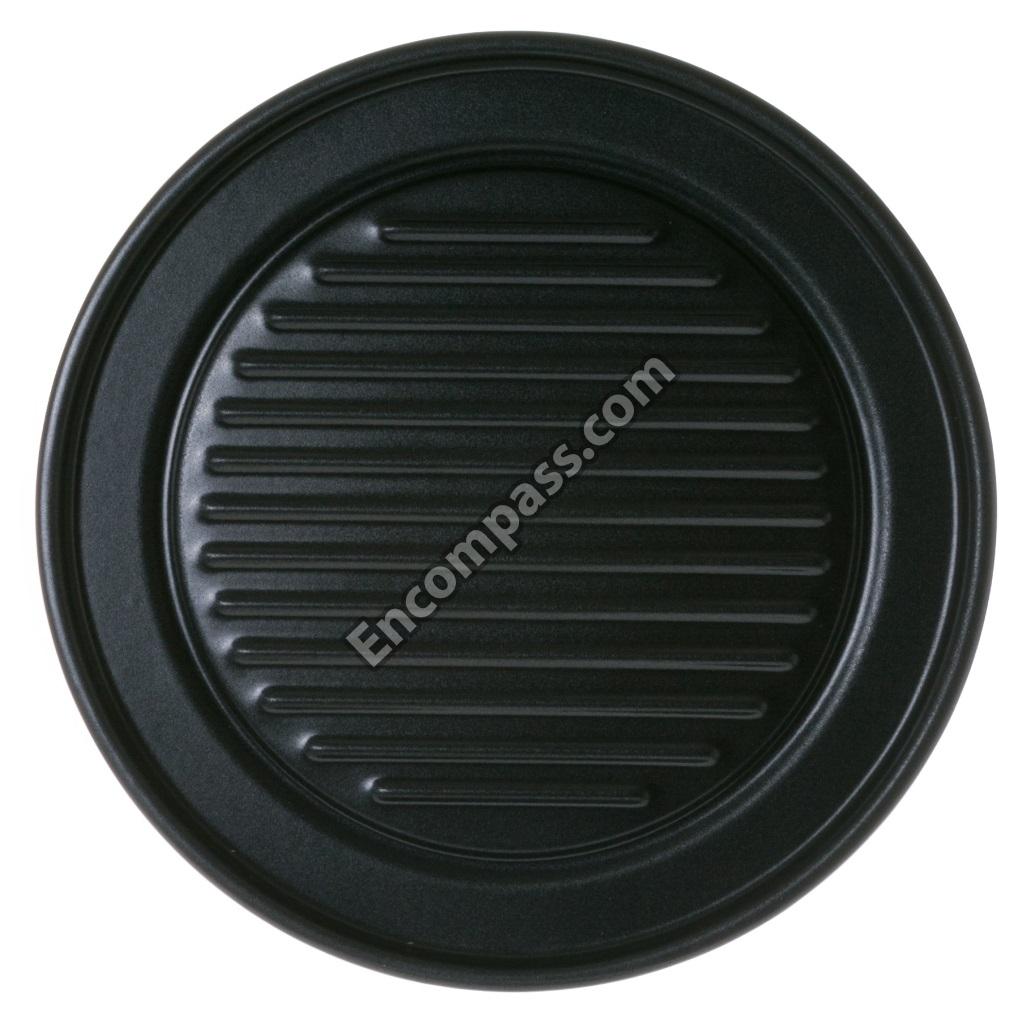

WB49X10241 WB49X10241 TRAY - GRILLE PAN
WB49X10240 WB49X10240 TRAY - METAL PAN
WB20X167 WB20X167 TSTAT MAG.
WB06X10219 WB06X10219 TURNTABLE
WB26X10061 WB26X10061 UPPER BLOWER
WB36X10127 WB36X10127 UPPER GLASS
WB36X10129 WB36X10129 UPPER GLASS COVER
WB36X10126 WB36X10126 UPPER HALOGE
49-40067-3 49-40067-3 USE & CARE
28-X129 28-X129 USE & CARE VIDEO
WB27X10336 WB27X10336 VACUUM FLOR DISPLAY
WB26X10064 WB26X10064 VENT MOTOR

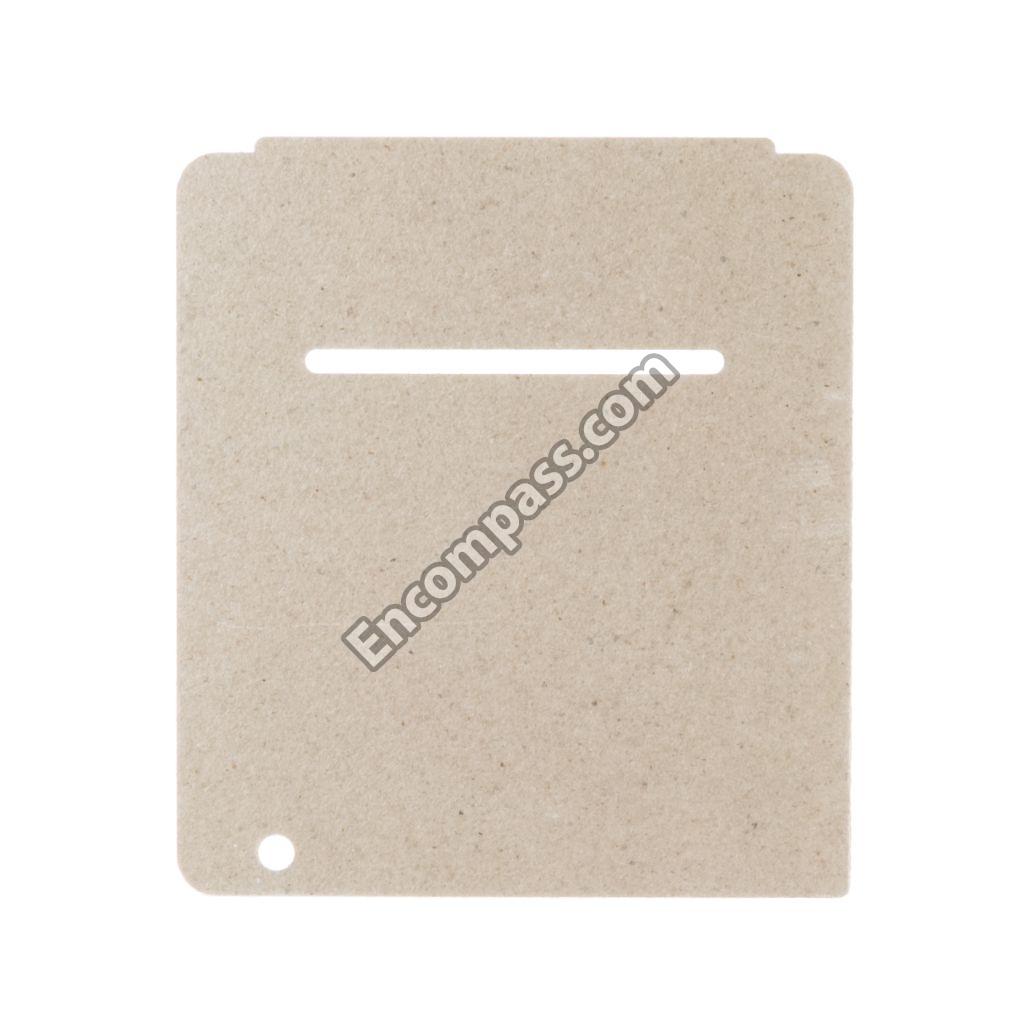

WB06X10215 WB06X10215 WAVE GUIDE-MICA COVER
WB18X10095 WB18X10095 WIRING HARNESS
