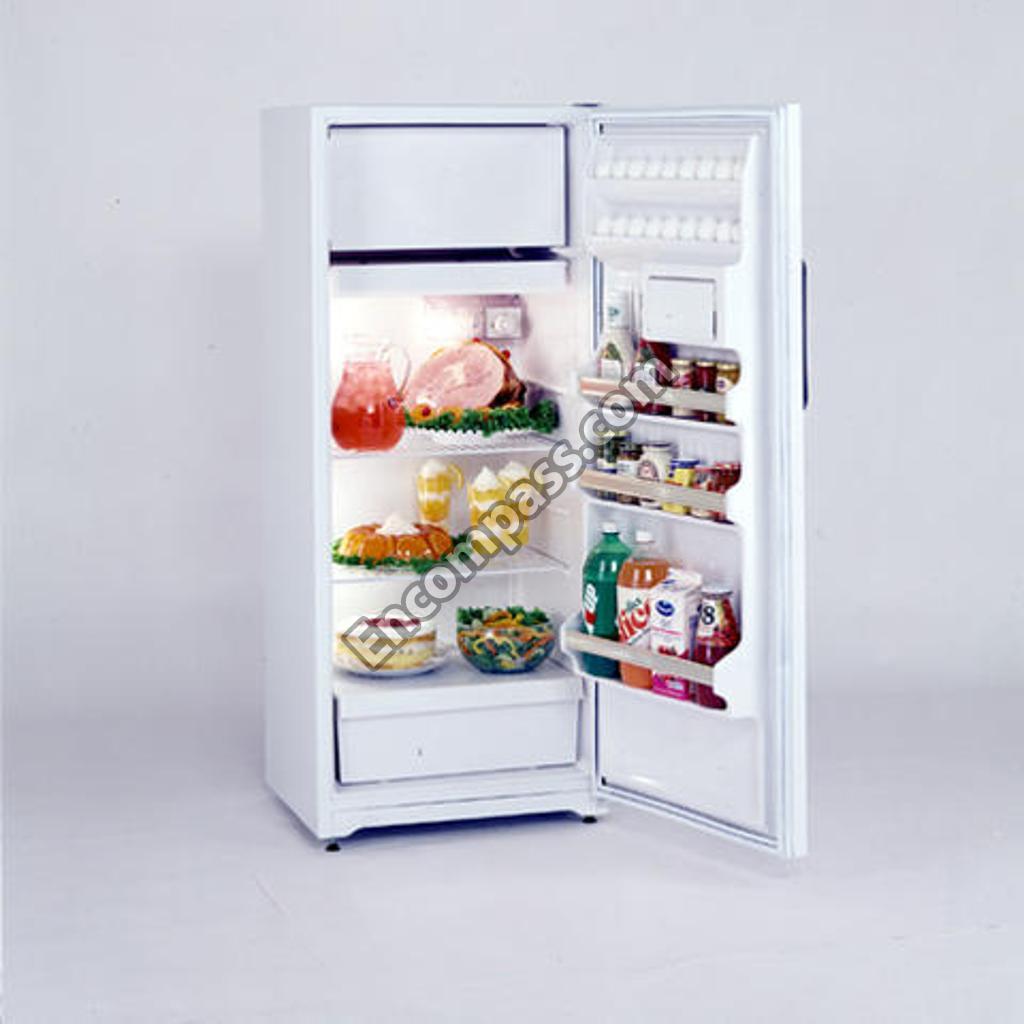

Model Image
Manufacturer

GE

Model Number

TAX10SNXALWH

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR8K2 WR8K2 *NLA*OVERLOAD
WR2X8282 WR2X8282 ACTIVATOR
WR02X8282 WR02X8282 ACTIVATOR-SWITCH
WR17X6465 WR17X6465 BARRIER
WR2X9123 WR2X9123 BUSHING
WR02X9123 WR02X9123 BUSHING DOOR
WR02K0026 WR02K0026 BUSHING HEYNCO
WR2X9125 WR2X9125 CAP CORNER
WR02X9125 WR02X9125 CAP CORNER WH
WR02X8272 WR02X8272 CLAMP
WR2X8272 WR2X8272 CLAMP
WR2X8274 WR2X8274 CLAMP SUPT
WR02X7903 WR02X7903 CLIP HANDLE
WR2X7903 WR2X7903 CLIP HDLE
WR2X9124 WR2X9124 CLIP HINGE
WR87K6 WR87K6 COMPRESSOR
WR87K0006 WR87K0006 COMPRESSOR ASM
WR02X8080 WR02X8080 COMPRESSOR BUSHING
WR84K0002 WR84K0002 CONDENSER
WR84K2 WR84K2 CONDENSER
WR9X527 WR9X527 CONTROL
WR01X2000 WR01X2000 CONTROL COVER SCREW
WR09X0527 WR09X0527 CONTROL TEMP
WR17X6464 WR17X6464 COVER CTL **NLA*
WR02K0028 WR02K0028 COVER RELAY
WR02X8710 WR02X8710 COVER TOP HINGE WH
WR32X5373 WR32X5373 COVER VEG PAN
WR17X6463 WR17X6463 COVER-EVAPORATOR
WR02X9227 WR02X9227 DIAL TEMP CONTROL
WR78K0013 WR78K0013 DOOR ASM
WR78K13 WR78K13 DOOR ASM
WR22X5100 WR22X5100 DOOR BUTTER
WR37X5044 WR37X5044 DOOR EVAP ASSEMBLY
WR13X5241 WR13X5241 DOOR EVAP HINGE TOP
WR2X8290 WR2X8290 DOOR STOP
WR1X5775 WR1X5775 DOOR STOP
WR02X8290 WR02X8290 DOOR STOP-LH
WR86K0001 WR86K0001 DRYER
WR86K1 WR86K1 DRYER
WR37X5046 WR37X5046 EVAP DOOR LH
WR85K2 WR85K2 EVAPORATOR
WR85K0002 WR85K0002 EVAPORATOR ASM
WR24K1 WR24K1 GASKET
WR24K0001 WR24K0001 GASKET DOOR
WR02K0038 WR02K0038 GROMMET COMP
WR12X0627 WR12X0627 HANDLE DOOR
WR23K0003 WR23K0003 HARNESS ASM
WR12X627 WR12X627 HDLE R
WR2X8710 WR2X8710 HGE CVR WH
WR13X0674 WR13X0674 HINGE BOTTOM LH
WR13X674 WR13X674 HINGE BTM LH
WR13X5236 WR13X5236 HINGE EVAP DOOR BTM
WR13X0652 WR13X0652 HINGE TOP
WR2K31 WR2K31 HOSE INSULAT
WR02K0031 WR02K0031 HOSE INSULATING
WR2X8080 WR2X8080 HOUSING
WR77K0001 WR77K0001 INNER DOOR
WR77K1 WR77K1 INNER DOOR
WR2X9227 WR2X9227 INSERT COVER
WR12K0001 WR12K0001 INSERT HANDLE
WR2X9226 WR2X9226 KNOB CONTROL
WR02X9226 WR02X9226 KNOB TEMP CONTROL
WR2X8054 WR2X8054 LEVEL SCREW
WR12K1 WR12K1 N/L/A 07/18/06
WR04X0221 WR04X0221 NAMEPLATE
WR4X221 WR4X221 NAMEPLATE
WR02X9124 WR02X9124 NUTSTRIP HINGE BTM
WR08K0002 WR08K0002 OVERLOAD
WR32X5372 WR32X5372 PAN VEG
31-51077 31-51077 PM MINIMANUAL WIRING
49-6799 49-6799 PM OWNERS GUIDE
WR23X0108 WR23X0108 POWER CORD
WR23X10300 WR23X10300 POWER CORD
WR07K0002 WR07K0002 PTC STARTER
WR7K2 WR7K2 PTC STARTER
WR01X5774 WR01X5774 SCREW
WR01X5701 WR01X5701 SCREW
WR01X1857 WR01X1857 SCREW
WR01X5759 WR01X5759 SCREW
WR01X5760 WR01X5760 SCREW
WR01X5757 WR01X5757 SCREW
WR1X5705 WR1X5705 SCREW
WR01K10013 WR01K10013 SCREW
WR1X1750 WR1X1750 SCREW
WR1X5773 WR1X5773 SCREW
WR1X5701 WR1X5701 SCREW
WR1X5759 WR1X5759 SCREW
WR1X5758 WR1X5758 SCREW
WR1X1814 WR1X1814 SCREW
WR01X5758 WR01X5758 SCREW & NUT
WR01X1999 WR01X1999 SCREW BOTTOM HINGE
WR01X5773 WR01X5773 SCREW DOOR STOP
WR02X8054 WR02X8054 SCREW LEVELING
WR71X6099 WR71X6099 SHELF
WR1X1974 WR1X1974 SHIM
WR01X1974 WR01X1974 SHIM HINGE BTM
WR2X8287 WR2X8287 SHIM T HINGE
WR02X8287 WR02X8287 SHIM TOP HINGE
WR23X5178 WR23X5178 SOCKET
WR01X5775 WR01X5775 STOP EVAP DOOR LH
WR02X8274 WR02X8274 SUPPORT CONTROL BULB
WR2X8273 WR2X8273 SUPPORT EVAP
WR2X8286 WR2X8286 SUPPORT SCKT
WR02X8273 WR02X8273 SUPPORT-EVAPORATOR
WR02X8286 WR02X8286 SUPPORT-SOCKET
WR23X5174 WR23X5174 SWITCH
WR13X652 WR13X652 TOP HINGE
WR31X5034 WR31X5034 TRAY CHILLER
WR30X5122 WR30X5122 TRAY ICE
WR01K0004 WR01K0004 WASHER
WR1K4 WR1K4 WASHER
