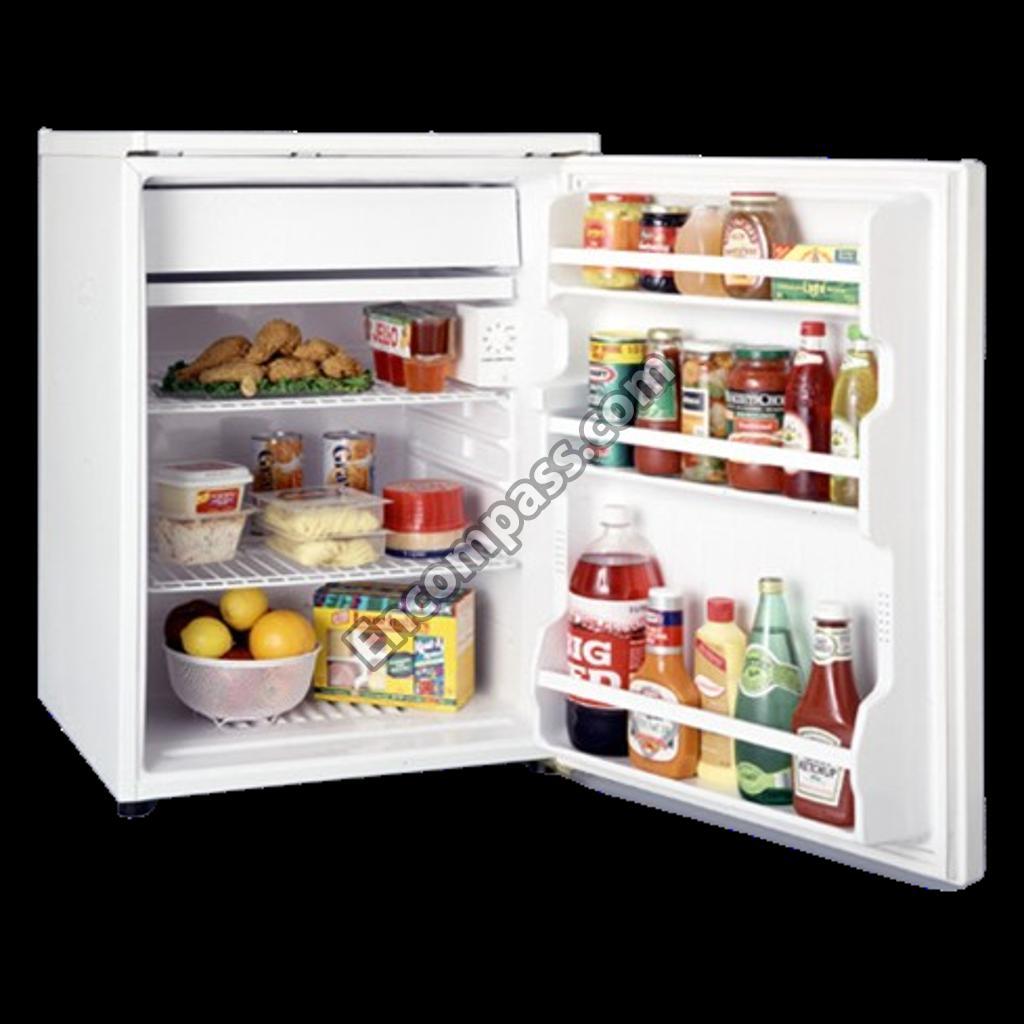

Model Image
Manufacturer

GE

Model Number

TAX6SNXARWH

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR17X4343 WR17X4343 BASE COMPRESSOR
WR01X5674 WR01X5674 BOLT
WR1X5671 WR1X5671 BOLT
WR1X5674 WR1X5674 BOLT
WR13X0781 WR13X0781 BOTTOM HINGE
WR1X5676 WR1X5676 BRACKET
WR02X8288 WR02X8288 BRACKET EVAP. W/PIN
WR01X5676 WR01X5676 BRACKET-CONDENSER
WR02X9557 WR02X9557 BUMPER EVAP. DOOR
WR02X8866 WR02X8866 CASE WIRE SPLICER
WR01X1812 WR01X1812 CLAMP
WR1X1812 WR1X1812 CLAMP
WR1X1818 WR1X1818 CLAMP
WR2X8076 WR2X8076 CLAMP
WR01X1818 WR01X1818 CLAMP NYLON 5/16""
WR02X8076 WR02X8076 CLAMP THERMO
WR84X0220 WR84X0220 CONDENSER
WR02X8492 WR02X8492 COVER RELAY
WR2X8491 WR2X8491 COVER RELAY
WR17X6391 WR17X6391 CVR CONTROL
WR71X2417 WR71X2417 DOOR SHELF BTM
WR2X8531 WR2X8531 DOOR STOP
WR37X5043 WR37X5043 DRIVE EVAPORATOR
WR85X0326 WR85X0326 EVAPORATOR ASM
WR12X838 WR12X838 FREEZER DOOR HANDLE
WR24X0583 WR24X0583 GASKET DOOR WH
WR74X0253 WR74X0253 GRILLE AIR
WR2X8528 WR2X8528 GROMMET
WR2X9562 WR2X9562 GROMMET
WR2X8073 WR2X8073 GROMMET
WR2X7800 WR2X7800 GROMMET
WR02X7800 WR02X7800 GROMMET COMPRESSOR MT
WR02X9562 WR02X9562 GROMMET HINGE
WR02X8528 WR02X8528 GROMMET TOP SLASH
WR12X0838 WR12X0838 HANDLE DOOR
WR87X0495 WR87X0495 HI-SIDE ASM
WR13X5227 WR13X5227 HINGE
WR13X10234 WR13X10234 HINGE
WR30X10009 WR30X10009 ICE TRAY
WR02X8887 WR02X8887 KNOB THERMOSTAT
PURCHLOC PURCHLOC LAMP
WR02X8874 WR02X8874 LEG
WR01X5692 WR01X5692 LEG SPACER
WR23X0488 WR23X0488 LIGHT SOCKET
WR04X0191 WR04X0191 NAMEPLATE
WR4X190 WR4X190 NAMEPLATE
WR4X191 WR4X191 NAMEPLATE
WR78X8423 WR78X8423 O/D PANEL WH
WR08X0190 WR08X0190 OVERLOAD
49-6723 49-6723 OWNER'S MANUAL
WR86X96 WR86X96 P/S DRYER KIT R134A
WR86X25269 WR86X25269 P/S DRYER KIT R134A
WR77X5681 WR77X5681 PANEL
WR02X8075 WR02X8075 PLATE
WR2X8075 WR2X8075 PLATE
WR23X0108 WR23X0108 POWER CORD
WR07X0270 WR07X0270 PTCR RELAY
WR74X253 WR74X253 REFRIGERATOR AIR GRILLE
WR2X8288 WR2X8288 REFRIGERATOR BRACKET
WR02X10119 WR02X10119 REFRIGERATOR CAP SCREW
WR87X495 WR87X495 REFRIGERATOR COMPRESSOR
WR84X220 WR84X220 REFRIGERATOR CONDENSER
WR17X4336 WR17X4336 REFRIGERATOR CONTROL COVER
WR2X8899 WR2X8899 REFRIGERATOR DOOR STOP
WR85X326 WR85X326 REFRIGERATOR EVAPORATOR
WR2X9557 WR2X9557 REFRIGERATOR EVAPORATOR DOOR BUMPER
WR31X5031 WR31X5031 REFRIGERATOR EVAPORATOR DRIP PAN
WR9X5233 WR9X5233 REFRIGERATOR FREEZER TEMPERATURE CONTROL
WR24X507 WR24X507 REFRIGERATOR GASKET
WR02X11131 WR02X11131 REFRIGERATOR LEG
WR23X412 WR23X412 REFRIGERATOR LIGHT SWITCH
WR8X190 WR8X190 REFRIGERATOR OVERLOAD
WR23X10300 WR23X10300 REFRIGERATOR POWER CORD
WR17X4339 WR17X4339 REFRIGERATOR SHELF
WR71X6083 WR71X6083 REFRIGERATOR SHELF
WR71X6084 WR71X6084 REFRIGERATOR SHELF
WR23X488 WR23X488 REFRIGERATOR SOCKET
WR17X4340 WR17X4340 REFRIGERATOR SUPPORT EVAPORATOR
WR17X4338 WR17X4338 REFRIGERATOR TABLE
WR2X8887 WR2X8887 REFRIGERATOR TEMPERATURE CONTROL KNOB
WR17X2936 WR17X2936 REFRIGERATOR TOP SHELF TRIM, LEFT
WR07X10022 WR07X10022 RELAY PTC
WR2X8492 WR2X8492 RELEASE COVER
WR02X8491 WR02X8491 RETAINER RELAY COVER
WR01X1820 WR01X1820 SCREW
WR01X1926 WR01X1926 SCREW
WR01X1817 WR01X1817 SCREW
WR1X1926 WR1X1926 SCREW
WR1X5668 WR1X5668 SCREW
WR1X1820 WR1X1820 SCREW
WR1X5189 WR1X5189 SCREW **NLA*
WR01X1925 WR01X1925 SCREW CAP
WR01X5668 WR01X5668 SCREW TAPPING
WR1X5692 WR1X5692 SPACER
WR02X8899 WR02X8899 STOP DOOR
WR02X8073 WR02X8073 SUPPORT
WR17X6374 WR17X6374 SUPPORT
WR23X0412 WR23X0412 SWITCH LIGHT
31-5182 31-5182 TECHNICAL DATA SHEET
WR09X5233 WR09X5233 THERMOSTAT ATB-3U192
WR17X4344 WR17X4344 TOP TABLE
WR17X2937 WR17X2937 TRIM R/S
WR2X8866 WR2X8866 WIRING COVER
31-51082 31-51082 WIRING DIAGRAM
