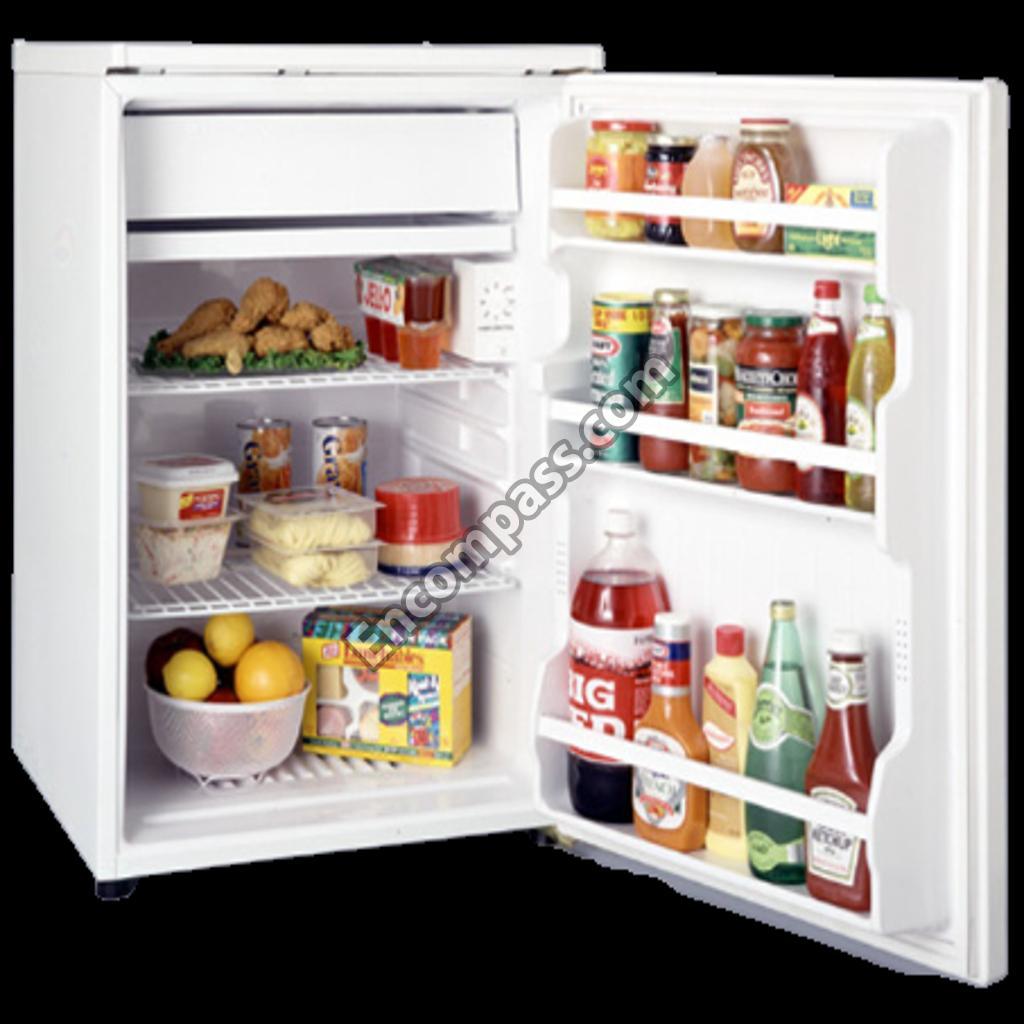

Model Image
Manufacturer

GE

Model Number

TAX6SNXBWH

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR01X5674 WR01X5674 BOLT
WR1X5674 WR1X5674 BOLT
WR1X5671 WR1X5671 BOLT
WR13X0781 WR13X0781 BOTTOM HINGE
WR2X8288 WR2X8288 BRACKET
WR1X5676 WR1X5676 BRACKET
WR02X8288 WR02X8288 BRACKET EVAP. W/PIN
WR01X5676 WR01X5676 BRACKET-CONDENSER
WR2X9557 WR2X9557 BUMPER EVAP
WR02X9557 WR02X9557 BUMPER EVAP. DOOR
WR02X10119 WR02X10119 CAP GROMMET WHITE
WR02X8866 WR02X8866 CASE WIRE SPLICER
WR01X1812 WR01X1812 CLAMP
WR1X1812 WR1X1812 CLAMP
WR1X1818 WR1X1818 CLAMP
WR2X8076 WR2X8076 CLAMP
WR01X1818 WR01X1818 CLAMP NYLON 5/16""
WR02X8076 WR02X8076 CLAMP THERMO
WR2X9177 WR2X9177 CLIP
WR02X9177 WR02X9177 CLIP RELAY COVER
WR84X0220 WR84X0220 CONDENSER
WR84X220 WR84X220 CONDENSER
WR9X5233 WR9X5233 CONTROL
WR2X9178 WR2X9178 COVER
WR02X9178 WR02X9178 COVER RELAY
WR2X8866 WR2X8866 COVER WIRE
WR17X6391 WR17X6391 CVR CONTROL
WR78X8177 WR78X8177 DOOR OUTER PANEL
WR78X8423 WR78X8423 DOOR OUTER WHITE
WR71X2417 WR71X2417 DOOR SHELF BTM
WR2X8531 WR2X8531 DOOR STOP
WR31X5031 WR31X5031 DRIP TRAY
WR85X326 WR85X326 EVAP ASM.
WR85X0326 WR85X0326 EVAPORATOR ASM
WR37X5043 WR37X5043 EVAPORATOR DOOR
WR86X25269 WR86X25269 FILTER AND DRYER ASSEMBLY
WR24X507 WR24X507 GASKET
WR24X0583 WR24X0583 GASKET DOOR WH
WR74X0253 WR74X0253 GRILLE AIR
WR74X253 WR74X253 GRILLE AIR
WR74X247 WR74X247 GRILLE AIR
WR2X8528 WR2X8528 GROMMET
WR2X7800 WR2X7800 GROMMET
WR02X7800 WR02X7800 GROMMET COMPRESSOR MT
WR2X9562 WR2X9562 GROMMET EVAP
WR02X9562 WR02X9562 GROMMET HINGE
WR02X8528 WR02X8528 GROMMET TOP SLASH
WR12X838 WR12X838 HANDLE
WR12X0838 WR12X0838 HANDLE DOOR
WR87X10040 WR87X10040 HI-SIDE ASM
WR13X10234 WR13X10234 HINGE BOTTOM
WR13X5227 WR13X5227 HINGE TOP
WR30X10009 WR30X10009 ICE CUBE TRAY
WR77X5681 WR77X5681 INNER DOOR PANEL
WR2X8887 WR2X8887 KNOB
WR02X8887 WR02X8887 KNOB THERMOSTAT
WR02X8072 WR02X8072 LEG
WR02X11131 WR02X11131 LEG
WR01X5692 WR01X5692 LEG SPACER
WR23X0488 WR23X0488 LIGHT SOCKET
WR04X0191 WR04X0191 NAMEPLATE
WR4X190 WR4X190 NAMEPLATE
49-6723 49-6723 OWNERS MANUAL
WR86X96 WR86X96 P/S DRYER KIT R134A
WR17X4336 WR17X4336 PANEL THERMOSTAT
WR02X8075 WR02X8075 PLATE
WR2X8075 WR2X8075 PLATE
WR23X0108 WR23X0108 POWER CORD
WR23X10300 WR23X10300 POWER CORD
WR01X1820 WR01X1820 SCREW
WR01X1926 WR01X1926 SCREW
WR01X1817 WR01X1817 SCREW
WR1X5668 WR1X5668 SCREW
WR1X1820 WR1X1820 SCREW
WR1X5189 WR1X5189 SCREW **NLA*
WR01X1925 WR01X1925 SCREW CAP
WR01X5668 WR01X5668 SCREW TAPPING
WR71X6083 WR71X6083 SHELF
WR17X4339 WR17X4339 SHELF FRONT
WR71X6084 WR71X6084 SHELF LOWER
WR23X488 WR23X488 SOCKET
WR1X5692 WR1X5692 SPACER
WR02X10121 WR02X10121 STOP DOOR
WR17X4340 WR17X4340 STUD EVAP
WR02X8073 WR02X8073 SUPPORT
WR17X6374 WR17X6374 SUPPORT TOP
WR23X0412 WR23X0412 SWITCH LIGHT
WR23X412 WR23X412 SWITCH LIGHT
WR09X5233 WR09X5233 THERMOSTAT ATB-3U192
WR17X4344 WR17X4344 TOP TABLE
WR17X4338 WR17X4338 TOP TABLE ASSEMBLY
WR17X2936 WR17X2936 TRIM L/S
WR17X2937 WR17X2937 TRIM R/S
WR2X8073 WR2X8073 WIRE SUPPORT
31-51082 31-51082 WIRING DIAGRAM
WR07X10022 WR07X10022 WR07X10022
