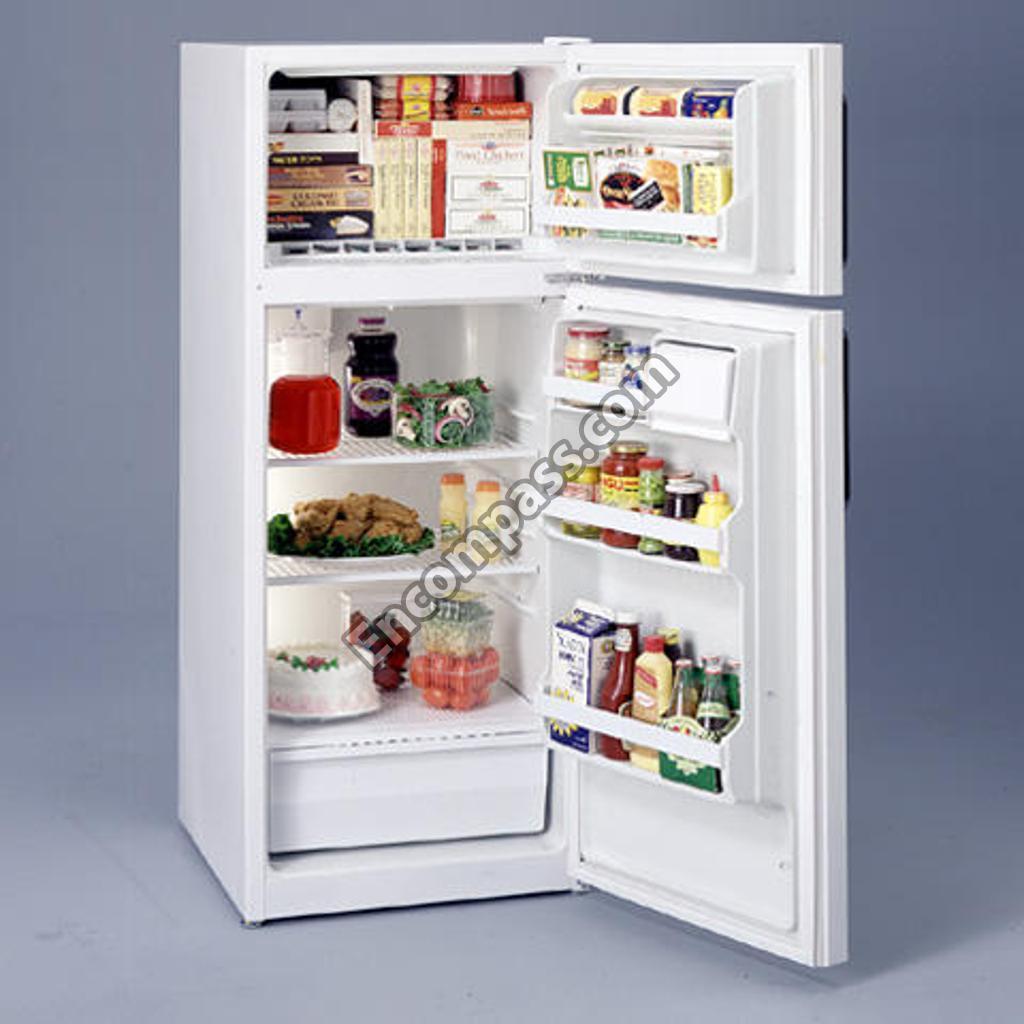

Model Image
Manufacturer

GE

Model Number

TBX12SAXCLAD

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR2X7226 WR2X7226 *NLA*CLIP COVER
WR02X9274 WR02X9274 BEARING
WR2X9274 WR2X9274 BEARING
WR02X10055 WR02X10055 BEZEL NAMEPLATE
WR60X239 WR60X239 BLADE FAN
WR60X0239 WR60X0239 BLADE, FAN
WR01X2156 WR01X2156 BOLT
WR1X2156 WR1X2156 BOLT COMP.
WR17X3862 WR17X3862 BOTTOM FREEZER
WR02X9255 WR02X9255 BRACKET
WR2X9255 WR2X9255 BRACKET
WR2X9252 WR2X9252 BRACKET MTR
WR02X9252 WR02X9252 BRACKET, MOTOR
WR02X9271 WR02X9271 BUMPER
WR2X9271 WR2X9271 BUMPER
WR62X0079 WR62X0079 CAPACITOR
WR55X24064 WR55X24064 CAPACITOR
WR02X9269 WR02X9269 CLAMP
WR2X9269 WR2X9269 CLAMP
WR02X7226 WR02X7226 CLAMP COVER
WR2X9268 WR2X9268 CLAMP HT EXC
WR02X9268 WR02X9268 CLAMP, HEAT EXCHANGER
WR02X9267 WR02X9267 CLIP
WR2X9267 WR2X9267 CLIP
WR02X10076 WR02X10076 CLIP CORD SET
WR87X0480 WR87X0480 COMPRESSOR
WR87X10224 WR87X10224 COMPRESSOR
WR84X0211 WR84X0211 CONDENSER ASM
WR84X211 WR84X211 CONDENSR ASM
WR09X10074 WR09X10074 CONTROL TEMPERATURE
WR09X0551 WR09X0551 CONTROL, TEMPERATURE
WR02X7834 WR02X7834 COVER
WR02X9388 WR02X9388 COVER IMK PLUG
WR32X1463 WR32X1463 COVER PAN
WR2X7834 WR2X7834 COVER RELAY
WR02X10060 WR02X10060 COVER TOP HINGE
WR2X9388 WR2X9388 CVR IMK PLUG
WR09X10012 WR09X10012 DEFROST CONTROL
WR2X9263 WR2X9263 DIVIDER PAN
WR02X9263 WR02X9263 DIVIDER, PAN
WR22X499 WR22X499 DOOR DAIRY
WR1X2153 WR1X2153 DOOR SCREW
WR22X0499 WR22X0499 DOOR, DAIRY
WR86X10018 WR86X10018 DRYER
WR2X9270 WR2X9270 ELBOW DRAIN
WR02X9270 WR02X9270 ELBOW, DRAIN
WR02X9273 WR02X9273 END CAP
WR2X5795 WR2X5795 END CAPS
WR60X0230 WR60X0230 EVAP FAN MOTOR
WR85X314 WR85X314 EVAPORAT ASM
WR85X0314 WR85X0314 EVAPORATOR
WR60X230 WR60X230 EVAPORATOR FAN MTR
WR78X8806 WR78X8806 FF O DR AD RVBL NOTE 2
WR17X3867 WR17X3867 FRONT SHELF
WR17X3868 WR17X3868 FRONT SHELF
WR78X8804 WR78X8804 FRZ O DR ALMOND RVBL NOTE 2
WR02X7640 WR02X7640 FUNNEL DRAIN
WR2X7640 WR2X7640 FUNNEL DRAIN
WR14X0467 WR14X0467 GASKET
WR14X467 WR14X467 GASKET
WR24X564 WR24X564 GASKET DR FF
WR24X563 WR24X563 GASKET DR FZ
WR24X0564 WR24X0564 GASKET, DOOR FF
WR24X0563 WR24X0563 GASKET, DOOR FRZ
WB2X8248 WB2X8248 GLIDER ADJ
WR02X9389 WR02X9389 GROMMET TUBE
WR2X9389 WR2X9389 GROMMET&TUBE
WR12X10061 WR12X10061 HANDLE
WR12M897 WR12M897 HANDLE WH
WR23X431 WR23X431 HARNESS WIR
WR23X0431 WR23X0431 HARNESS, WIRING
WR86X10002 WR86X10002 HEAT EXCHANGER
WR51X0419 WR51X0419 HEATER DEFROST
WR13X0749 WR13X0749 HINGE BRACKET CENTER
WR13X749 WR13X749 HINGE BRKT
WR13X706 WR13X706 HINGE BTM
WR13X711 WR13X711 HINGE TOP
WR13X0706 WR13X0706 HINGE, BOTTOM
WR13X0711 WR13X0711 HINGE, TOP
WR2X9284 WR2X9284 HOSE DRAIN
WR02X9284 WR02X9284 HOSE, DRAIN
WR17X3866 WR17X3866 HOUSING CONTROL
WR17X3869 WR17X3869 HOUSING EVAPORATOR
WR2X9285 WR2X9285 HOUSING FAN
WR02X9285 WR02X9285 HOUSING, FAN
WR51X419 WR51X419 HTR DEFROST
WR23X0450 WR23X0450 IMK HARNESS
WR23X450 WR23X450 IMK HARNESS
WR77X654 WR77X654 INNER LINER
WR77X653 WR77X653 INNER LINER
WR77X0654 WR77X0654 INNER LINER FF
WR77X0653 WR77X0653 INNER LINER FRZ
WR02X10059 WR02X10059 INSERT - COPPER
WR4X223 WR4X223 INSERT HOUSG
WR04X0223 WR04X0223 INSERT, HOUSING
WR2X9259 WR2X9259 INSUL HOUSNG
WR02X9259 WR02X9259 INSULATION, HOUSING
WR17X3864 WR17X3864 LINER-TOP
31-5797 31-5797 MINI-MANUAL
WR17X4109 WR17X4109 MULLION (ALMOND)
WR04X10017 WR04X10017 NAMEPLATE (GE-BLACK)
WR02X10079 WR02X10079 NOZZLE
WR01X2155 WR01X2155 NUT
WR02X9277 WR02X9277 NUT STRIP
WR2X9280 WR2X9280 NUT STRIP
WR2X9277 WR2X9277 NUT STRIP
WR02X9280 WR02X9280 NUT STRIP, CENTRE
WR08X0167 WR08X0167 OVERLOAD
WR8X167 WR8X167 OVERLOAD
WR32X1464 WR32X1464 PAN
WR2X9281 WR2X9281 PIN HINGE
WR02X9281 WR02X9281 PIN, HINGE
WR2X9253 WR2X9253 PLATE TIMER
WR02X10061 WR02X10061 PLATE, COMPRESSOR
WR02X9253 WR02X9253 PLATE, TIMER
WR2X9254 WR2X9254 PLUG BUTTON
WR02X9254 WR02X9254 PLUG BUTTON, TIMER
WR02X8697 WR02X8697 PLUG DOOR RVSBL AD
WR2X8697 WR2X8697 PLUG DOOR RVSBL ALMOND
WR02X10054 WR02X10054 PLUG HANDLE
WR02X9382 WR02X9382 PLUG TOP DOOR AD
WR2X9382 WR2X9382 PLUG TOP DR
WR07X0200 WR07X0200 RELAY (PTCR)
WR07X10055 WR07X10055 RELAY PTCR (8EA16C3)
WR2X9272 WR2X9272 RING COMPRES
WR02X9272 WR02X9272 RING COMPRESSION
WR01X2068 WR01X2068 SCR-MTNG/TMR
WR01X2069 WR01X2069 SCREW
WR02X9260 WR02X9260 SCREW
WR01X2054 WR01X2054 SCREW
WR01X2153 WR01X2153 SCREW
WR1X5705 WR1X5705 SCREW
WE2X394 WE2X394 SCREW
WR2X9260 WR2X9260 SCREW
WR1X1937 WR1X1937 SCREW
WR01X10029 WR01X10029 SCREW
WR01X2061 WR01X2061 SCREW (10-32 X 5/8)
WR01X2062 WR01X2062 SCREW (10-32 X 7/8)
WR01X10088 WR01X10088 SCREW (10-32 X 7/8)
WR01X2058 WR01X2058 SCREW (BTM)
WR01X2057 WR01X2057 SCREW (TOP)
WR01X10021 WR01X10021 SCREW H AND LE
WR1X2068 WR1X2068 SCREW MTG
WR1X2067 WR1X2067 SCREW MTR B
WR02X9264 WR02X9264 SCREW, LEVELING
WR01X2067 WR01X2067 SCREW, MOTOR BRACKET
WR01X2070 WR01X2070 SCREW, MULLION
WR1X2069 WR1X2069 SCREW/VIS
WR71X10068 WR71X10068 SHELF
WR17X3863 WR17X3863 SHIELD
WR02X9387 WR02X9387 SHIM
WR02X9275 WR02X9275 SHIM
WR2X9275 WR2X9275 SHIM
WR2X9276 WR2X9276 SHIM BOTTOM
WR2X9387 WR2X9387 SHIM CTR HNG
WR2X9282 WR2X9282 SHIM TOP HNG
WR02X9276 WR02X9276 SHIM, BOTTOM (.062)
WR02X9282 WR02X9282 SHIM, TOP HINGE
WR02X7270 WR02X7270 SOCKET TERMINAL ASM
WR2X9391 WR2X9391 SOCKET&TERM
WR13X707 WR13X707 STOP DOOR
WR13X0707 WR13X0707 STOP, DOOR
WR02X10078 WR02X10078 STRAP HEATER
WR02X9257 WR02X9257 SUPPORT
WR2X9257 WR2X9257 SUPPORT
WR02X9261 WR02X9261 SUPPORT, HOUSING
WR2X9261 WR2X9261 SUPT HOUSING
WR23X430 WR23X430 SW LIGHT
WR23X0430 WR23X0430 SWITCH, LIGHT (FZ)
WR50X133 WR50X133 THERMOST DEF
WR50X0133 WR50X0133 THERMOSTAT DEFROST
WR30X314 WR30X314 TRAY ICE
WR30X0314 WR30X0314 TRAY, ICE
WR02X10077 WR02X10077 TRIM
49-6864 49-6864 USE & CARE BOOKLET
WR01X2154 WR01X2154 WASHER
WR01X2060 WR01X2060 WASHER
WR01X2055 WR01X2055 WASHER
WR1X2060 WR1X2060 WASHER
WR01X2056 WR01X2056 WASHER (NYLON)
WR1X2056 WR1X2056 WASHER NYLON
WR2X9258 WR2X9258 WHEEL CONTRL
WR02X9258 WR02X9258 WHEEL, CONTROL
