Model Image
Manufacturer

GE

Model Number

TBX12SNTBRWH

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR02X9274 WR02X9274 BEARING
WR2X9274 WR2X9274 BEARING
WR60X239 WR60X239 BLADE FAN
WR60X0239 WR60X0239 BLADE, FAN
WR17X3862 WR17X3862 BOTTOM FREEZER
WR02X9255 WR02X9255 BRACKET
WR2X9255 WR2X9255 BRACKET
WR2X9252 WR2X9252 BRACKET MTR
WR02X9252 WR02X9252 BRACKET, MOTOR
WR02X9271 WR02X9271 BUMPER
WR2X9271 WR2X9271 BUMPER
WR62X0086 WR62X0086 CAPACITOR
WR62X86 WR62X86 CAPACITOR
WR02X9269 WR02X9269 CLAMP
WR2X9269 WR2X9269 CLAMP
WR2X9268 WR2X9268 CLAMP HT EXC
WR02X9268 WR02X9268 CLAMP, HEAT EXCHANGER
WR02X9267 WR02X9267 CLIP
WR01X2072 WR01X2072 CLIP
WR1X5615 WR1X5615 CLIP
WR2X9267 WR2X9267 CLIP
WR02X7903 WR02X7903 CLIP HANDLE
WR2X7903 WR2X7903 CLIP HDLE
WR1X2073 WR1X2073 CLIP OVRLOAD
WR01X2073 WR01X2073 CLIP, OVERLOAD
WR87X0466 WR87X0466 COMPRESSOR
WR87X466 WR87X466 COMPRESSOR
WR84X0208 WR84X0208 CONDENSER ASM
WR84X208 WR84X208 CONDENSR ASM
WR09X10074 WR09X10074 CONTROL TEMPERATURE
WR09X0551 WR09X0551 CONTROL, TEMPERATURE
WR02X9266 WR02X9266 COVER
WR2X9266 WR2X9266 COVER
WR32X1463 WR32X1463 COVER PAN
WR02X9377 WR02X9377 COVER, TOP HINGE WH
WR2X9377 WR2X9377 CVR TOP HNGE
WR9X502 WR9X502 DEF CONTROL
WR09X0413 WR09X0413 DEFROST CONTROL
WR51X417 WR51X417 DEFROST HTR
WR2X9263 WR2X9263 DIVIDER PAN
WR02X9263 WR02X9263 DIVIDER, PAN
WR22X499 WR22X499 DOOR DAIRY
WR22X0499 WR22X0499 DOOR, DAIRY
WR2X9270 WR2X9270 ELBOW DRAIN
WR02X9270 WR02X9270 ELBOW, DRAIN
WR02X9273 WR02X9273 END CAP
WR2X5795 WR2X5795 END CAPS
WR60X0230 WR60X0230 EVAP FAN MOTOR
WR60X230 WR60X230 EVAP FAN MTR
WR85X314 WR85X314 EVAPORAT ASM
WR85X0307 WR85X0307 EVAPORATOR ASM
WR78X8805 WR78X8805 FF O DR WH RVBL NOTE
WR78X8712 WR78X8712 FF O. DOOR WH (R)
WR17X3868 WR17X3868 FRONT SHELF
WR17X3867 WR17X3867 FRONT SHELF
WR78X8711 WR78X8711 FRZ O. DOOR WH (R)
WR02X7640 WR02X7640 FUNNEL DRAIN
WR2X7640 WR2X7640 FUNNEL DRAIN

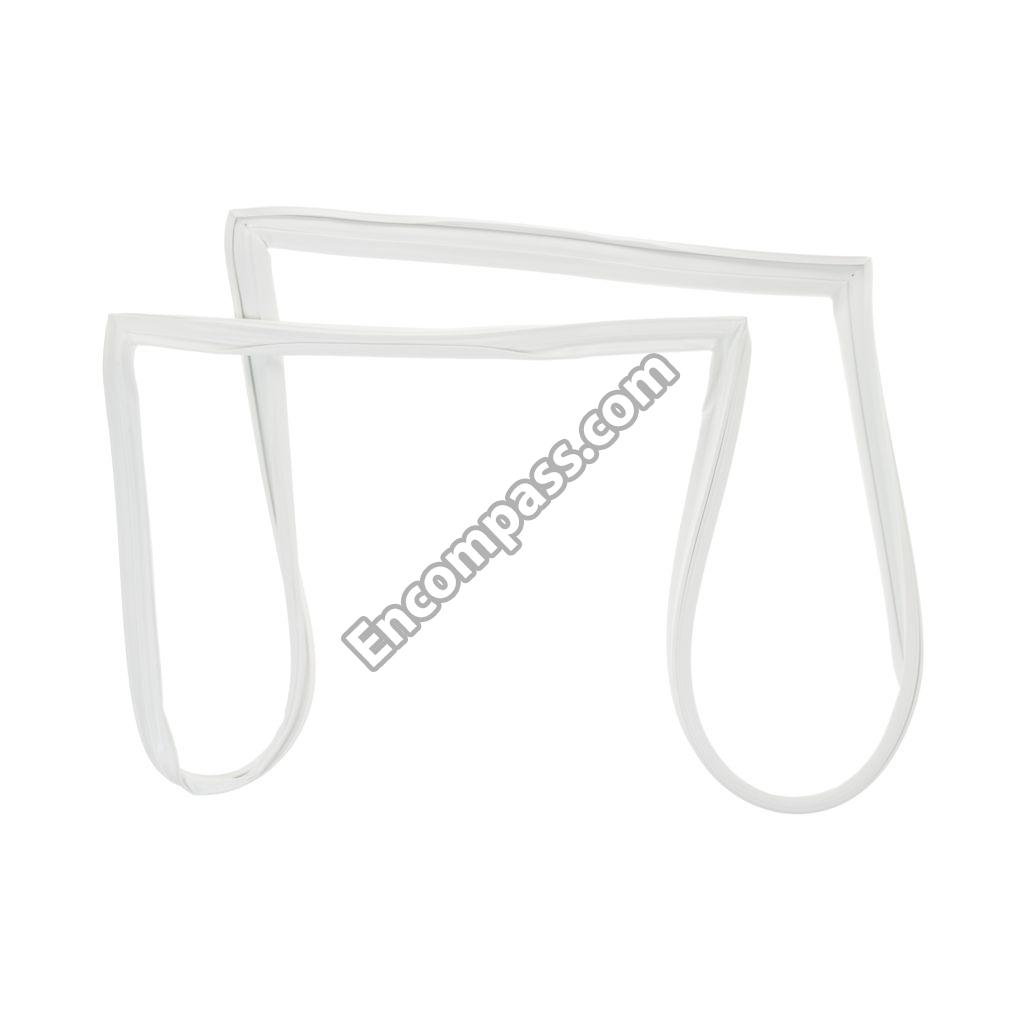

WR14X0467 WR14X0467 GASKET
WR14X467 WR14X467 GASKET
WR24X564 WR24X564 GASKET DR FF
WR24X563 WR24X563 GASKET DR FZ
WR24X0564 WR24X0564 GASKET, DOOR FF
WR24X0563 WR24X0563 GASKET, DOOR FRZ
WB2X8248 WB2X8248 GLIDER ADJ

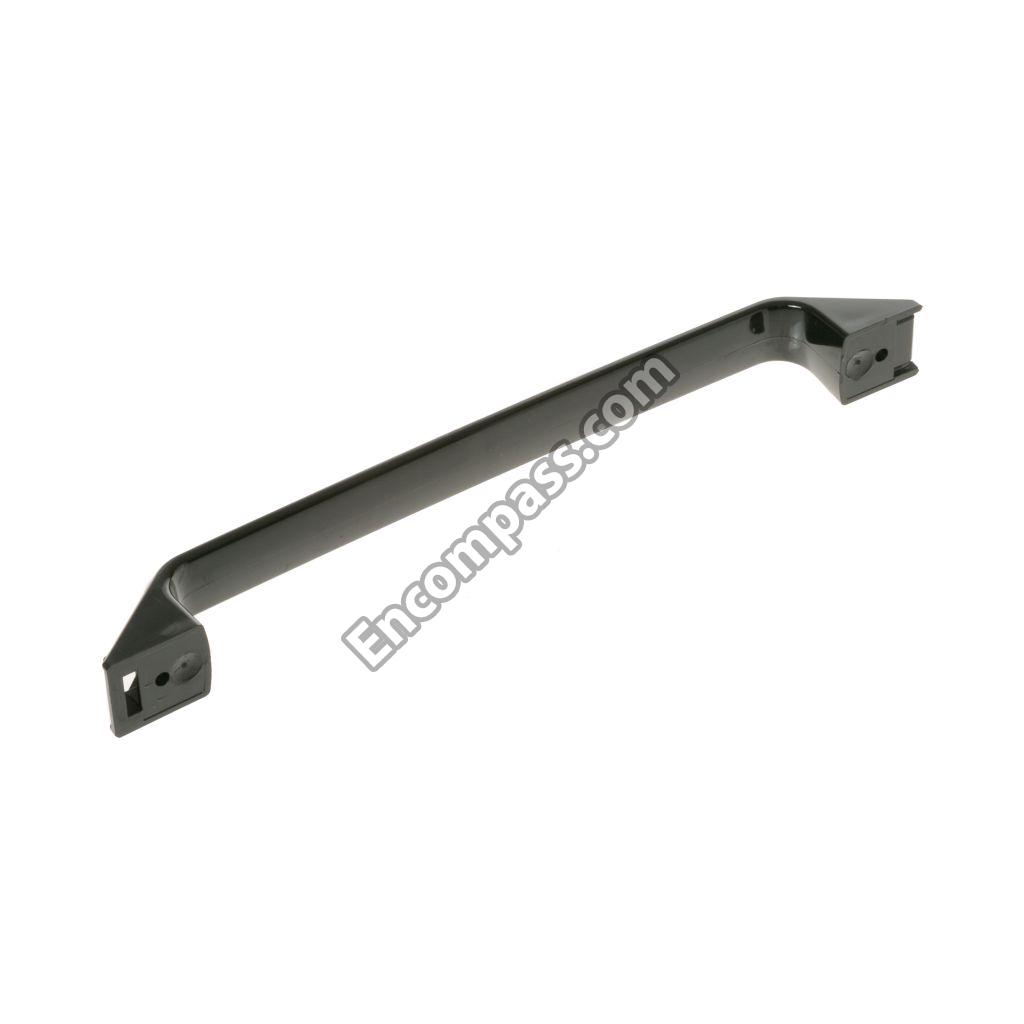

WR12X0627 WR12X0627 HANDLE DOOR
WR23X431 WR23X431 HARNESS WIR
WR23X0431 WR23X0431 HARNESS, WIRING
WR12X627 WR12X627 HDLE R
WR51X0417 WR51X0417 HEATER, DEFROST
WR13X706 WR13X706 HINGE BTM
WR13X708 WR13X708 HINGE CENTRE
WR13X711 WR13X711 HINGE TOP
WR13X0706 WR13X0706 HINGE, BOTTOM
WR13X0709 WR13X0709 HINGE, CENTRE-L.H.
WR13X0708 WR13X0708 HINGE, CENTRE-R.H.
WR13X0711 WR13X0711 HINGE, TOP
WR2X9284 WR2X9284 HOSE DRAIN
WR02X9284 WR02X9284 HOSE, DRAIN
WR17X3866 WR17X3866 HOUSING CONTROL
WR17X3869 WR17X3869 HOUSING EVAPORATOR
WR2X9285 WR2X9285 HOUSING FAN
WR02X9285 WR02X9285 HOUSING, FAN
WR77X653 WR77X653 INNER LINER
WR77X654 WR77X654 INNER LINER
WR77X0654 WR77X0654 INNER LINER FF
WR77X0653 WR77X0653 INNER LINER FRZ
WR12X0629 WR12X0629 INSERT HANDLE
WR12X629 WR12X629 INSERT HDLE
WR4X223 WR4X223 INSERT HOUSG
WR12X0997 WR12X0997 INSERT, HANDLE FRZ
WR04X0223 WR04X0223 INSERT, HOUSING
WR2X9259 WR2X9259 INSUL HOUSNG
WR02X9259 WR02X9259 INSULATION, HOUSING
WR17X3864 WR17X3864 LINER-TOP
31-5795 31-5795 MINI-MANUAL
WR17X3865 WR17X3865 MULLION (WHITE)
WR04X0222 WR04X0222 NAMEPLATE
WR4X222 WR4X222 NAMEPLATE
WR02X9256 WR02X9256 NOZZLE
WR2X9256 WR2X9256 NOZZLE
WR01X2066 WR01X2066 NUT
WR1X2066 WR1X2066 NUT
WR02X9277 WR02X9277 NUT STRIP
WR2X9277 WR2X9277 NUT STRIP
WR2X9280 WR2X9280 NUT STRIP
WR02X9280 WR02X9280 NUT STRIP, CENTRE
WR08X0140 WR08X0140 OVERLOAD
WR8X140 WR8X140 OVERLOAD
WR32X1464 WR32X1464 PAN
WR2X9281 WR2X9281 PIN HINGE
WR02X9281 WR02X9281 PIN, HINGE
WR2X9265 WR2X9265 PLATE COMPR
WR2X9253 WR2X9253 PLATE TIMER
WR02X9265 WR02X9265 PLATE, COMPRESSOR
WR02X9253 WR02X9253 PLATE, TIMER
WR2X9254 WR2X9254 PLUG BUTTON
WR02X9254 WR02X9254 PLUG BUTTON, TIMER
WR86X25269 WR86X25269 R134 DRIER
WR07X0200 WR07X0200 RELAY (PTCR)
WR07X10055 WR07X10055 RELAY PTCR (8EA16C3)
WR2X9272 WR2X9272 RING COMPRES
WR02X9272 WR02X9272 RING COMPRESSION
WR01X2068 WR01X2068 SCR-MTNG/TMR
WR01X2069 WR01X2069 SCREW
WR02X9260 WR02X9260 SCREW
WR01X2054 WR01X2054 SCREW
WR01X2065 WR01X2065 SCREW
WR01X2059 WR01X2059 SCREW
WR1X1937 WR1X1937 SCREW
WR1X2065 WR1X2065 SCREW
WR1X5705 WR1X5705 SCREW
WE2X394 WE2X394 SCREW
WR2X9260 WR2X9260 SCREW
WR1X1949 WR1X1949 SCREW
WE2M196 WE2M196 SCREW #8
WR01X2061 WR01X2061 SCREW (10-32 X 5/8)
WR01X2062 WR01X2062 SCREW (10-32 X 7/8)
WR01X10088 WR01X10088 SCREW (10-32 X 7/8)
WR01X2064 WR01X2064 SCREW (BLACK)
WR01X2058 WR01X2058 SCREW (BTM)
WR01X2057 WR01X2057 SCREW (TOP)
WR1X2068 WR1X2068 SCREW MTG
WR1X2067 WR1X2067 SCREW MTR B
WR02X9264 WR02X9264 SCREW, LEVELING
WR01X2067 WR01X2067 SCREW, MOTOR BRACKET
WR01X2070 WR01X2070 SCREW, MULLION
WR1X2069 WR1X2069 SCREW/VIS
WR71X2532 WR71X2532 SHELF
WR17X3863 WR17X3863 SHIELD
WR02X9278 WR02X9278 SHIM
WR02X9275 WR02X9275 SHIM
WR2X9275 WR2X9275 SHIM
WR2X9278 WR2X9278 SHIM
WR2X9276 WR2X9276 SHIM BOTTOM
WR2X9279 WR2X9279 SHIM MIDDLE
WR2X9282 WR2X9282 SHIM TOP HNG
WR02X9276 WR02X9276 SHIM, BOTTOM (.062)
WR02X9279 WR02X9279 SHIM, MIDDLE (.062)
WR02X9282 WR02X9282 SHIM, TOP HINGE
WR2X9262 WR2X9262 SOCKET LAMP
WR02X9262 WR02X9262 SOCKET, LAMP
WR13X707 WR13X707 STOP DOOR
WR13X0707 WR13X0707 STOP, DOOR
WR02X9257 WR02X9257 SUPPORT
WR2X9257 WR2X9257 SUPPORT
WR02X9261 WR02X9261 SUPPORT, HOUSING
WR2X9261 WR2X9261 SUPT HOUSING
WR23X430 WR23X430 SW LIGHT
WR23X0430 WR23X0430 SWITCH, LIGHT (FZ)
WR50X133 WR50X133 THERMOST DEF
WR50X0133 WR50X0133 THERMOSTAT DEFROST
WR30X314 WR30X314 TRAY ICE
WR30X0314 WR30X0314 TRAY, ICE
49-6791 49-6791 USE CARE BOOKLET
WR01X2071 WR01X2071 WASHER
WR01X2060 WR01X2060 WASHER
WR01X2055 WR01X2055 WASHER
WR1X2060 WR1X2060 WASHER
WR1X2071 WR1X2071 WASHER
WR01X2056 WR01X2056 WASHER (NYLON)
WR1X2056 WR1X2056 WASHER NYLON
WR2X9258 WR2X9258 WHEEL CONTRL
WR02X9258 WR02X9258 WHEEL, CONTROL
WR86X0093 WR86X0093 WR86X0093
