Model Image
Manufacturer

GE

Model Number

TBX14SMCRHA

Description

Refrigerators*

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP
WR2X8213 WR2X8213 AXLE WHEEL
WR2X8214 WR2X8214 AXLE WHEEL
WR17X2626 WR17X2626 BAFFL FAN AS **NLA*
WR60X220 WR60X220 BLADE COND F
WR2X8217 WR2X8217 BRACKET EVAP
WR2X8216 WR2X8216 BRACKET EVAP
WR2X8354 WR2X8354 BUTTON
WR1X5278 WR1X5278 CABLE CLAMP
WR2X8220 WR2X8220 CAP GRILLE
WR2X8345 WR2X8345 CAP SHEL FRT
WR2X9162 WR2X9162 CAP SHELF FR
WR2X7610 WR2X7610 CAP TRIM
WR2X7611 WR2X7611 CAP TRIM BTM
WR12X773 WR12X773 CHANNEL HNDL
WR12X774 WR12X774 CHANNEL HNDL
WR2X7915 WR2X7915 CLAMP RELAY
WR2X8203 WR2X8203 CLIP
WR2X7646 WR2X7646 CLIP GRILLE
WR2X7916 WR2X7916 CLIP GUARDTE
WR84X146 WR84X146 COND ASM
WR9X491 WR9X491 CONTROL
WR2X8225 WR2X8225 COVER
WR82X10111 WR82X10111 COVER ACCESS
WR17X2628 WR17X2628 COVER EVAP ASSEMBLY
WR32X10398 WR32X10398 COVER VEG PAN
WR2X7271 WR2X7271 CVR RELAY
WR2X8086 WR2X8086 CVR RELAY
WR9X502 WR9X502 DEF CONTROL
WR2X8249 WR2X8249 DEFLECTOR
WR2X8226 WR2X8226 DIFFUSER

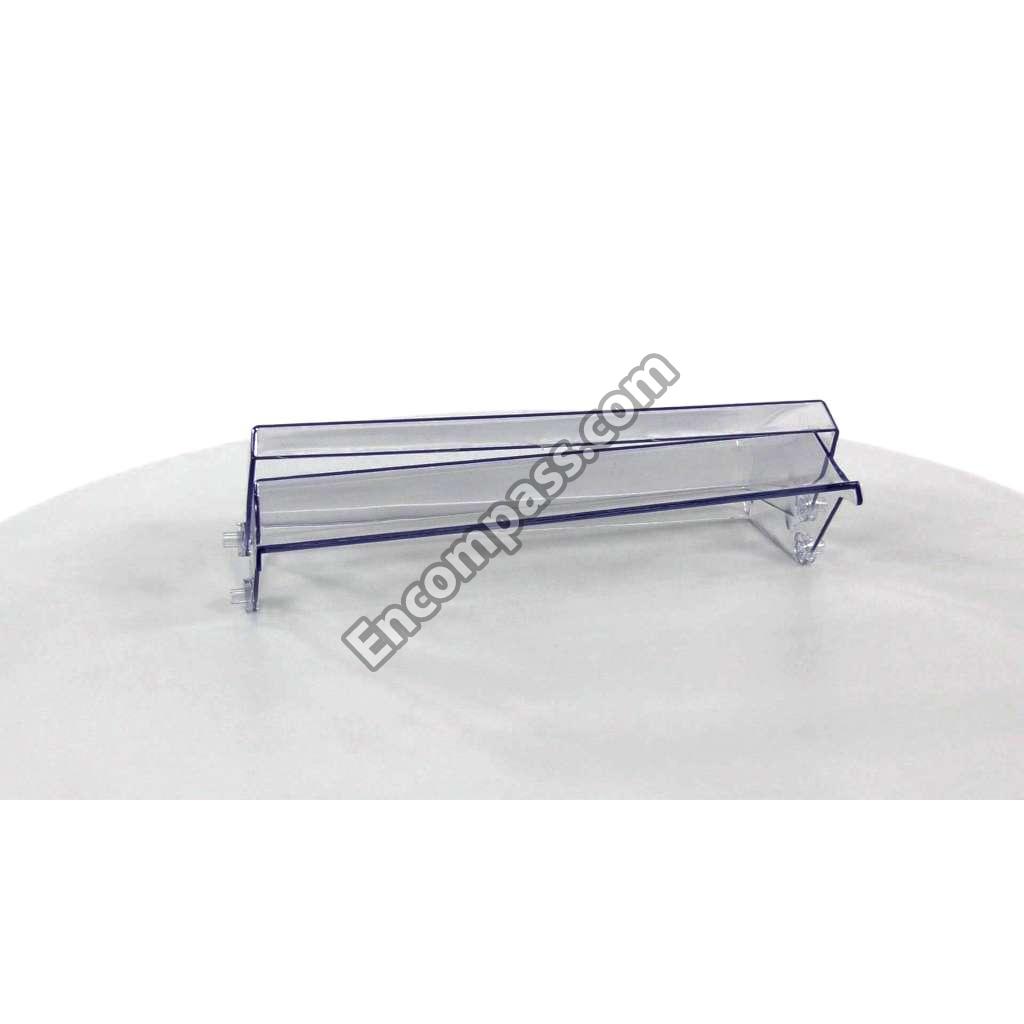

WR22X10068 WR22X10068 DOOR DAIRY
WR38X1386 WR38X1386 DOOR TRIM FR ALMOND
WR32X10455 WR32X10455 DPO DRAIN PAN
WR77X645 WR77X645 DR INNER FF
WR17X2647 WR17X2647 DRAIN TUBE
WR17X10666 WR17X10666 DUCT AIR FZ
WR60X30349 WR60X30349 EVAP FAN MOTOR KIT
WR60X114 WR60X114 FAN BLADE
WR60X187 WR60X187 FAN MOTOR
WR78X8675 WR78X8675 FF O DOOR (AD)
WR17X2630 WR17X2630 FLOOR FZ
WR2X8462 WR2X8462 FOAM DUCT
WR14X379 WR14X379 FOAM STRIP
WR17X3692 WR17X3692 FRONT DOOR SHELF FZ
WR17X2296 WR17X2296 FRONT DOOR SHELF GE SM
WR78X8669 WR78X8669 FRZ O DOOR (AD)
WR14X313 WR14X313 GASKET COVER

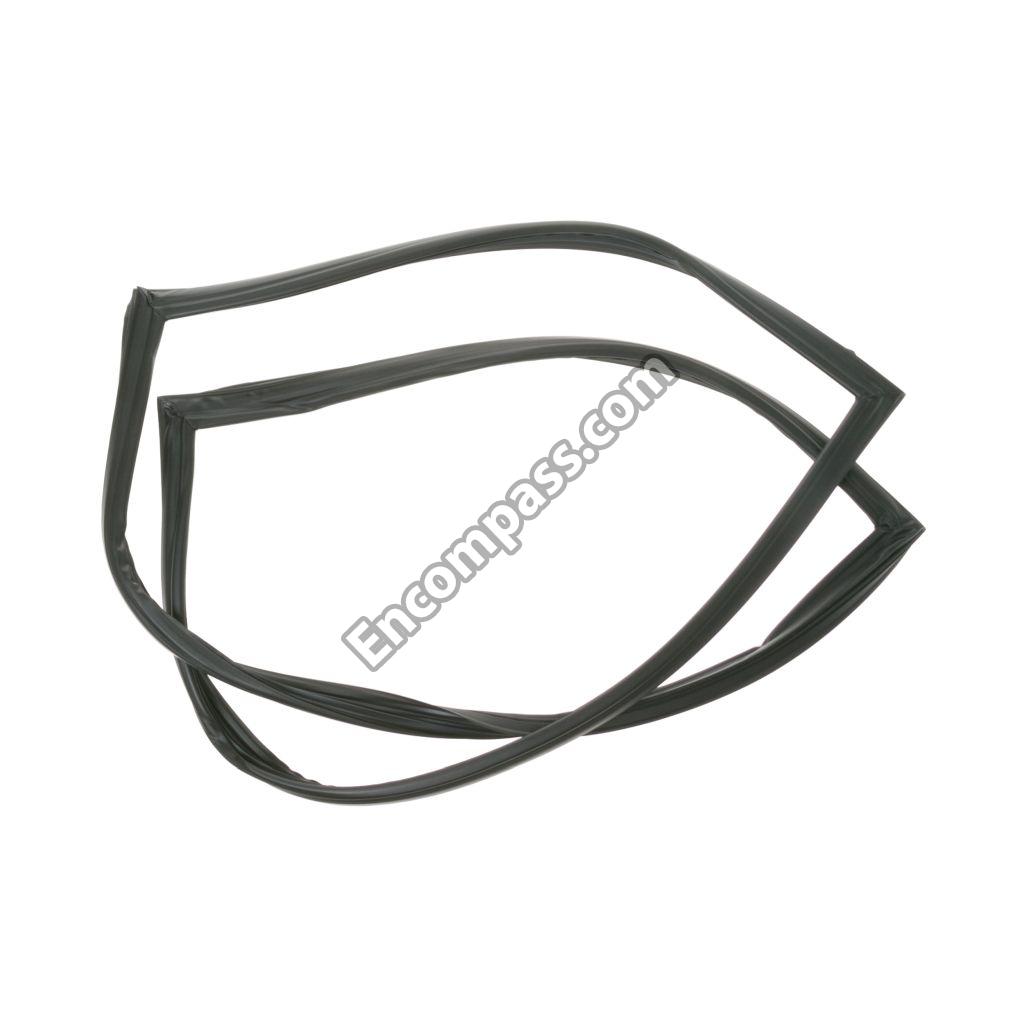

WR24X10230 WR24X10230 GASKET DOOR FF

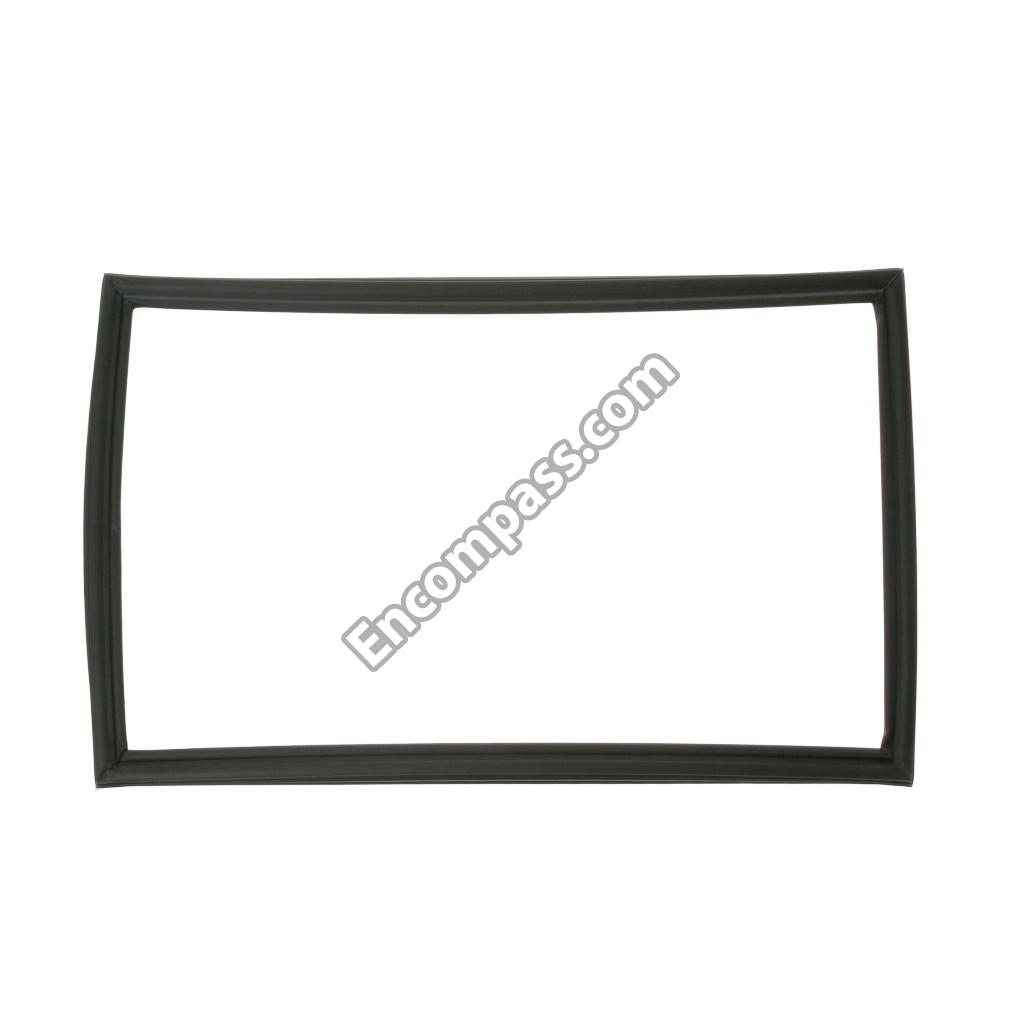

WR24X10227 WR24X10227 GASKET DOOR FZ
WR2X8246 WR2X8246 GASKET DUCT
WR74X197 WR74X197 GRILLE ASM
WR2X7391 WR2X7391 GROMMET
WR2X7238 WR2X7238 GROMMET MTG.
WR2X9156 WR2X9156 GROMMET WTR
WR8X105 WR8X105 GUARDETTE
WR2X8709 WR2X8709 GUSSET LH
WR2X8229 WR2X8229 GUSSET RH
WR12X764 WR12X764 HANDLE DOOR
WR12X762 WR12X762 HANDLE DOOR
WR12X553 WR12X553 HANDLE DOOR
WR23X358 WR23X358 HARN CTL MOD
WR13X10997 WR13X10997 HINGE
WR13X596 WR13X596 HINGE ASM
WR13X598 WR13X598 HINGE ASM
WR13X597 WR13X597 HNGASM CHRME
WR17X2632 WR17X2632 HOUSING COND FAN
WR17X3479 WR17X3479 HOUSING CONTROL
WR51X444 WR51X444 HTR ASM
WR12X768 WR12X768 INSERT DR HN
WR12X799 WR12X799 INSERT HNDLE
WR12X800 WR12X800 INSERT HNDLE
WR12X766 WR12X766 INSRT & NPLT
WR2X8248 WR2X8248 INSUL ELECT
WR2X8231 WR2X8231 KNOB CONTROL
WR4X193 WR4X193 LENS
WR2X7630 WR2X7630 N.L.A.SHIM HINGTOP
WR2X8212 WR2X8212 N/L/A 02/16/07
WR38X1411 WR38X1411 N/L/A 09/10/02
WR4X181 WR4X181 NAMEPLATE AD
WR4X182 WR4X182 NAMEPLATE HA
WR2X8239 WR2X8239 NLA PART
WR87X429 WR87X429 NLA PART
WR1X1715 WR1X1715 NUT
WR32X1104 WR32X1104 PAN VEG FULL
WR17X2648 WR17X2648 PLATE COMP MTG ASSEMBLY
WR12X722 WR12X722 PLUG BUTN AD
WR2X8234 WR2X8234 PLUG BUTN AD
WR2X7051 WR2X7051 PLUG BUTTON
WR2X8247 WR2X8247 PLUG BUTTON
WR12X559 WR12X559 PLUG BUTTON
WR02X11760 WR02X11760 PLUG BUTTON
WR23X10300 WR23X10300 POWER CORD
WR86X25269 WR86X25269 R134 DRIER
31-5036 31-5036 REF INSTALL INST
WR7X199 WR7X199 RELAY
WR07X10124 WR07X10124 RELAY ASM
WR2X8235 WR2X8235 RETAINER
WR2X8236 WR2X8236 RETAINER
WR2X8237 WR2X8237 RETAINER
WR2X8238 WR2X8238 ROD THERMAL
WR01X10590 WR01X10590 SCR 10-16 AB PNT20 1/2 S
WR1X1720 WR1X1720 SCR8-32 SPEC
WZ5X246 WZ5X246 SCREW
WR1X1746 WR1X1746 SCREW
WR1X1790 WR1X1790 SCREW
WR1X1753 WR1X1753 SCREW
WR1X1793 WR1X1793 SCREW
WD2X5166 WD2X5166 SCREW
WR1X1591 WR1X1591 SCREW
WR1X5744 WR1X5744 SCREW
WZ5X164 WZ5X164 SCREW - EACH
WR1X1791D WR1X1791D SCREW-PKG - 13 PACK
WR1X1754D WR1X1754D SCREW-PKG 12
WZ5X194D WZ5X194D SCREW-PKG 12
WR1X1726D WR1X1726D SCREW-PKG 12
WZ4X244D WZ4X244D SCREW-PKG 12
WZ4X254D WZ4X254D SCREW-PKG 12
WR1X1249D WR1X1249D SCREW-PKG 12
WR1X5475D WR1X5475D SCREW-PKG 12
WZ4X241D WZ4X241D SCREW-PKG 12
WR1X1724D WR1X1724D SCREW-PKG 12
WR71X10378 WR71X10378 SHELF ASM STATIONARY
WR17X11774 WR17X11774 SHELF FRONT WH 21.338
WR71X1989 WR71X1989 SHELF ICE TRAY
WR2X7616 WR2X7616 SHIM
WR2X7613 WR2X7613 SHIM
WR2X8090 WR2X8090 SHIM DR HDL
WR2X7851 WR2X7851 SHIM HDLE DR **NLA*
WR2X8240 WR2X8240 SHIM HINGE
WR2X8266 WR2X8266 SHIM HNDL DR
WR2X8267 WR2X8267 SHIM HNDL DR
WR2X8268 WR2X8268 SLEEVE VINYL
WR2X7877 WR2X7877 SLIDER ADJ
WR2X9391 WR2X9391 SOCKET&TERM
WR2X7018 WR2X7018 SPAC CT TRAC
WR1X1794 WR1X1794 SPACER DOOR
WR12X754 WR12X754 STIFFNER
WR12X755 WR12X755 STIFFNER
WR12X975 WR12X975 STIFFNER HND
WR12X775 WR12X775 STIFFNR HNDL
WR2X8241 WR2X8241 STOP DOOR
WR2X8264 WR2X8264 STOP DOOR FZ
WR2X8243 WR2X8243 SUPPORT
WR2X8242 WR2X8242 SUPPORT
WR2X8429 WR2X8429 SUPPORT
WR2X7015 WR2X7015 SUPT SHELF
WR2X7973 WR2X7973 SUPT SHELF
WR23X10725 WR23X10725 SWITCH LIGHT
WR50X112 WR50X112 THERMOSTAT
WR30X311 WR30X311 TRAY ICE
WR17X12656 WR17X12656 TROUGH DRAIN KIT
WR2X4990 WR2X4990 TUBULAR
WR1X1714 WR1X1714 WASHER
WR1X1748D WR1X1748D WASHR-PKG 12
WR2X8244 WR2X8244 WHEEL FRT
WR2X8245 WR2X8245 WHEEL REAR
WR1X1749 WR1X1749 WR1X1749
WZ4X416 WZ4X416 WZ04X0408
