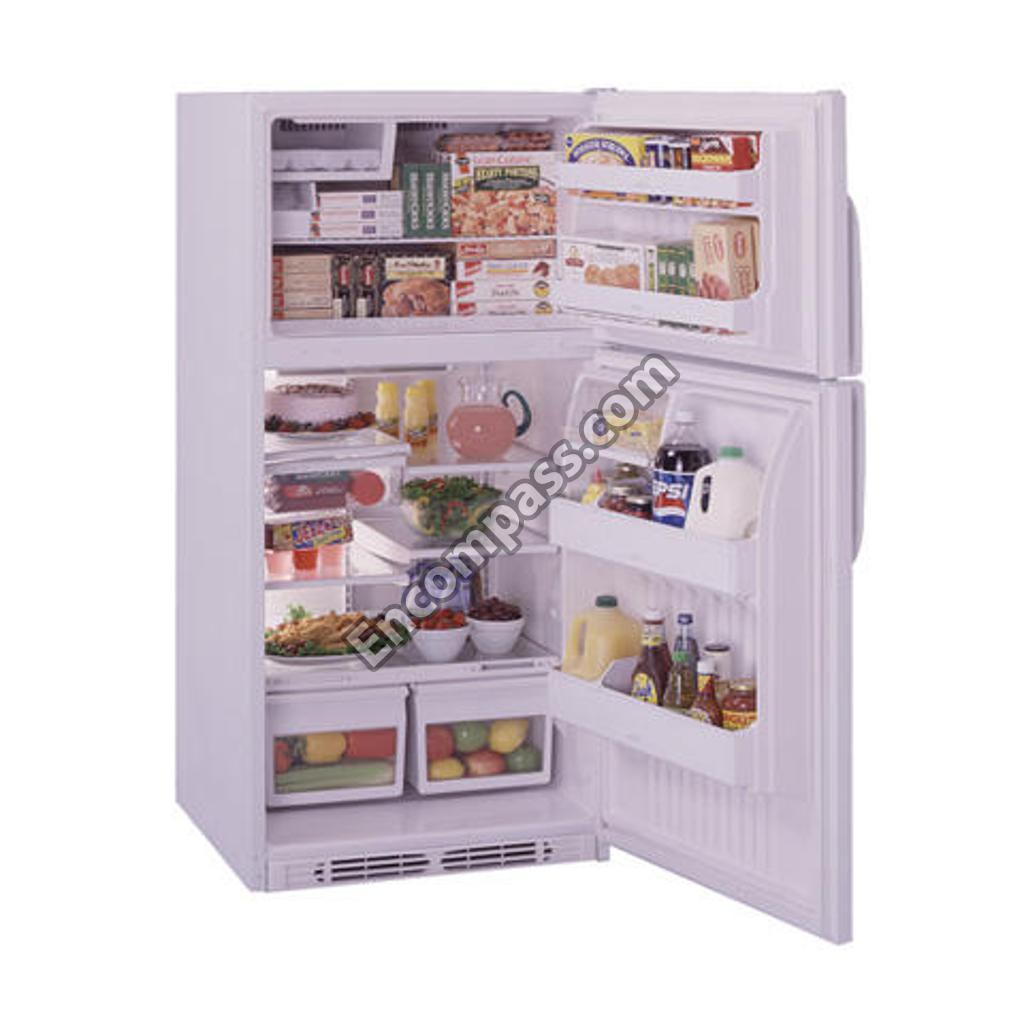

Model Image
Manufacturer

GE

Model Number

TBX21AABRRWW

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR2X7226 WR2X7226 GE *NLA*CLIP COVER
40A15 40A15 GE 40WATT 15AMP
WR01X10604 WR01X10604 GE AXLE WHEEL
WR17X10316 WR17X10316 GE BAFFLE ASSEMBLY LH
WR17X10319 WR17X10319 GE BAFFLE COND RH
WR02X8693 WR02X8693 GE BEAUTY BUTTON-WHT
WR60X10030 WR60X10030 GE BLADE COND FAN
WR02X7768 WR02X7768 GE BRACKET CONTROL HSG
WR02X7664 WR02X7664 GE BRACKET EVAP FAN
WR02X10100 WR02X10100 GE BRACKET EVAP FAN SM
WR02X7823 WR02X7823 GE BRACKET MULLION LH
WR02X7822 WR02X7822 GE BRACKET MULLION RH
WR2X7768 WR2X7768 GE BRKT CONTROL
WR2X7767 WR2X7767 GE BRKT CONTROL
WR02X7767 WR02X7767 GE BRKT CONTROL BACK
WR2X7664 WR2X7664 GE BRKT FAN
WR32X1560 WR32X1560 GE BUCKET UTILITY WHITE
WR02X7656 WR02X7656 GE CAP CORNER O.C. WH
WR2X7656 WR2X7656 GE CAP CORNR-WH
WR02X10322 WR02X10322 GE CAP DUST
WR02X7975 WR02X7975 GE CAP SHELF FRT
WR2X7975 WR2X7975 GE CAP SHF FRT
WR02X9296 WR02X9296 GE CAP SHLF FRNT RH
WR2X9295 WR2X9295 GE CAP SHLF LH
WR2X9296 WR2X9296 GE CAP SHLF RH
WR62X0079 WR62X0079 GE CAPACITOR
WR02X7226 WR02X7226 GE CLAMP COVER
WR02X8503 WR02X8503 GE CLAMP TUBE
WR2X8203 WR2X8203 GE CLIP
WR02X7646 WR02X7646 GE CLIP BASE GRILLE
WR02X8203 WR02X8203 GE CLIP COMPRESSOR MOUNT
WR02X9209 WR02X9209 GE CLIP COND (DL)
WR02X10135 WR02X10135 GE CLIP COND (DL)
WR2X9209 WR2X9209 GE CLIP COND DL
WR2X4516 WR2X4516 GE CLIP DRAIN
WR2X7646 WR2X7646 GE CLIP GRILLE
WB02X8115 WB02X8115 GE CLIP WIRE
WB2X8115 WB2X8115 GE CLIP WIRE
WR02X3198 WR02X3198 GE COMP. RING, EVAP. FAN
WR87X10224 WR87X10224 GE COMPRESSOR KIT EGYS60
WR84X10010 WR84X10010 GE COND ASSEMBLY FINAL RECIP
WR17X10425 WR17X10425 GE COND FAN HSG & BRACKET ASSEMBL
WR14X0313 WR14X0313 GE COND TOP BAFFLE FOAM
WR02X4495 WR02X4495 GE CONNECTOR W/LEAD
WR09X0520 WR09X0520 GE CONTROL DEFROST
WR09X0559 WR09X0559 GE CONTROL TEMP
WR9X559 WR9X559 GE CONTROL TEMP
WR02X7834 WR02X7834 GE COVER
WR82X10045 WR82X10045 GE COVER ACCESS ASM
WR82X10046 WR82X10046 GE COVER ACCESS ASSEMBLY
WR17X2228 WR17X2228 GE COVER EVAP ASSEMBLY
WR17X3910 WR17X3910 GE COVER FF SUPPLY
WR02X8444 WR02X8444 GE COVER PLUG I M
WR2X7834 WR2X7834 GE COVER RELAY
WR02X10172 WR02X10172 GE COVER SCREW ALMOND
WR02X10170 WR02X10170 GE COVER SCREW WHITE
WR17X3056 WR17X3056 GE COVER SUCT LINE
WR22X439 WR22X439 GE DAIRY DOOR
WR51X465 WR51X465 GE DEF HTR KIT
WR9X520 WR9X520 GE DEFROST CTRL
WR19X5003 WR19X5003 GE DISH BUTTER
WR02X9297 WR02X9297 GE DIVIDER SHELF
WR2X9297 WR2X9297 GE DIVIDER SHLF
WR77X0602 WR77X0602 GE DOOR INNER FF
WR77X0603 WR77X0603 GE DOOR INNER FZ
WR78X8734 WR78X8734 GE DOOR OUTER FF ALMOND
WR78X8736 WR78X8736 GE DOOR OUTER FF WHITE
WR78X8737 WR78X8737 GE DOOR OUTER FZ WHITE
WR02X7628 WR02X7628 GE DOOR STOP
WR22X0518 WR22X0518 GE DOOR UTILITY
WR02X9295 WR02X9295 GE END CAP - L. H (WIDE)
WR60X30349 WR60X30349 GE EVAP FAN MOTOR KIT
WR60X123 WR60X123 GE FAN BLADE
WR60X114 WR60X114 GE FAN BLADE
WR60X0123 WR60X0123 GE FAN BLADE EVAP MOTOR
WR2X6087 WR2X6087 GE FILL TUBE
WR82X360 WR82X360 GE FOAM PLUG
WR82X0360 WR82X0360 GE FOAM PLUG S.L.
WR14X0352 WR14X0352 GE FOAM STRIP MULLION
WR14X10008 WR14X10008 GE FOAM STRIP SE ADH
WR17X2401 WR17X2401 GE FRONT LINER FZ
WR71X10734 WR71X10734 GE FRONT SHELF FF FULL
WR14X384 WR14X384 GE GASKET
WR14X313 WR14X313 GE GASKET COVER
WR14X397 WR14X397 GE GASKET CVR
WR14X0358 WR14X0358 GE GASKET CVR PAN FRONT
WR14X0398 WR14X0398 GE GASKET CVR PAN REAR
WR24X0446 WR24X0446 GE GASKET DOOR FF WH
WR24X0445 WR24X0445 GE GASKET DOOR FZ WH
WR24X446 WR24X446 GE GASKET FF
WR24X445 WR24X445 GE GASKET FZ
WR14X0366 WR14X0366 GE GASKET SLIDE CTR VP
WR14X0348 WR14X0348 GE GASKET TROUGH
WR14X0384 WR14X0384 GE GASKET VEG PAN SLIDE
WR74X269 WR74X269 GE GRILL BASE
WR74X0269 WR74X0269 GE GRILLE BASE ASM WH
WR2X8629 WR2X8629 GE GRILLE I/S
WR02X8629 WR02X8629 GE GRILLE ICE SERV SNAP-IN
WR2X6261 WR2X6261 GE GROMMET
WR2X7391 WR2X7391 GE GROMMET
WR2X8474 WR2X8474 GE GROMMET
WR02X7238 WR02X7238 GE GROMMET COMP MTG
WR02X7391 WR02X7391 GE GROMMET EVAP FAN
WR02X6261 WR02X6261 GE GROMMET FZ SHELF
WR02X10098 WR02X10098 GE GROMMET MOTOR
WR2X7238 WR2X7238 GE GROMMET MTG.
WR02X9153 WR02X9153 GE GROMMET WATER FILL
WR14X358 WR14X358 GE GSKT CVR PAN
WR14X366 WR14X366 GE GSKT SLID VP
WR14X357 WR14X357 GE GSKT TROUGH
WR02X9168 WR02X9168 GE GUSSET
WR2X9168 WR2X9168 GE GUSSET
WR12X10142 WR12X10142 GE HANDLE / NP ASSEMBLY FZ WHITE
WR12X10124 WR12X10124 GE HANDLE DOOR ASSEMBLY FF A
WR12X10760 WR12X10760 GE HANDLE DOOR ASSEMBLY FF WHITE
WR38X10115 WR38X10115 GE HANDLE PAN MT
WR12X10139 WR12X10139 GE HANDLE PK ASSEMBLY ALMOND
WR12X10141 WR12X10141 GE HANDLE PK ASSEMBLY WHITE
WR38X10083 WR38X10083 GE HANDLE VEG PAN
WR51X0356 WR51X0356 GE HEATER MULLION
WR13X648 WR13X648 GE HGE B/P ASM
WR13X0648 WR13X0648 GE HINGE BTM ASM WH
WR13X0714 WR13X0714 GE HINGE CENTER ASM WH
WR13X714 WR13X714 GE HINGE CTR WH
WR13X0715 WR13X0715 GE HINGE TOP & PIN ASM WH
WR13X715 WR13X715 GE HINGE TOP WH
WR17X3196 WR17X3196 GE HOUSING CONTROL
WR51X356 WR51X356 GE HTR MULLION
WR77X602 WR77X602 GE I.D.PANEL FF
WR77X603 WR77X603 GE I.D.PANEL FZ
WR17X3495 WR17X3495 GE INSUL DIVIDER
WR01X1803 WR01X1803 GE KEY PIVOT
WR1X1733 WR1X1733 GE KEY PIVOT
WR55X24064 WR55X24064 GE KIT CAPACITOR 12 UF
WR2X8692 WR2X8692 GE KNOB TEMP CO
WR04X10028 WR04X10028 GE LENS NAMEPLATE
WR04X10029 WR04X10029 GE LENS NAMEPLATE
WR01X1815 WR01X1815 GE LEVELING NUT
WR1X1815 WR1X1815 GE LEVELING NUT
WR17X2234 WR17X2234 GE LINER BOTTOM FZ
WR17X10029 WR17X10029 GE LINER TOP FF
WR85X10005 WR85X10005 GE LOW SIDE ASM
WR2X8842 WR2X8842 GE MBLTY FT ASM
WR1X1816 WR1X1816 GE MOBIL- SCREW
WR02X8842 WR02X8842 GE MOBILITY FRONT ASM
WR60X10168 WR60X10168 GE MOTOR COND FAN
WR60X0190 WR60X0190 GE MOTOR EVAP FAN
WR17X4197 WR17X4197 GE MULLION CROSSPIECE ALMOND
WR17X4194 WR17X4194 GE MULLION CROSSPIECE WHITE
WR2X7823 WR2X7823 GE MULLION L H
WR2X7822 WR2X7822 GE MULLION RH
WR02X8363 WR02X8363 GE NOZZLE FOAM
WR2X8363 WR2X8363 GE NOZZLE FOAM
WR08X0168 WR08X0168 GE OVERLOAD
WR08X10025 WR08X10025 GE OVERLOAD
WR86X96 WR86X96 GE P/S DRYER KIT R134A
WR86X25269 WR86X25269 GE P/S DRYER KIT R134A
WR32X1312 WR32X1312 GE PAN 1/2
WR32X1022 WR32X1022 GE PAN MEAT
WR13X587 WR13X587 GE PIN HINGE
WR13X0587 WR13X0587 GE PIN HINGE CTR
WR17X3609 WR17X3609 GE PLENUM
WR17X2990 WR17X2990 GE PLENUM
WR2X8087 WR2X8087 GE PLUG BUT INS
WR02X7652 WR02X7652 GE PLUG BUTTON
WR02X7148 WR02X7148 GE PLUG BUTTON
WR2X8247 WR2X8247 GE PLUG BUTTON
WR2X7652 WR2X7652 GE PLUG BUTTON
WR02X11760 WR02X11760 GE PLUG BUTTON
WR2X7624 WR2X7624 GE PLUG BUTTON
WR12X10129 WR12X10129 GE PLUG BUTTON HANDLE WH
WR02X8087 WR02X8087 GE PLUG BUTTON INSERT WH
WR02X8247 WR02X8247 GE PLUG BUTTON WATER FILL
WR02X7624 WR02X7624 GE PLUG BUTTON WH
WR2X8444 WR2X8444 GE PLUG COVER
WR01X21159 WR01X21159 GE PLUG DOOR
31-5064 31-5064 GE PM ATTENTION INSTALLER
49-60012 49-60012 GE PM GUIDE OWNERS
31-51230 31-51230 GE PM MINI MANUAL WIRING
WR23X0108 WR23X0108 GE POWER CORD
WR23X10300 WR23X10300 GE POWER CORD
WR87X0475 WR87X0475 GE PRODUCT SERVICE KIT
WR17X3288 WR17X3288 GE RAIL VEG PAN FRONT
WR17X3161 WR17X3161 GE RAIL VEG PAN REAR
WR23X315 WR23X315 GE RECEPTACLE
WR23X0315 WR23X0315 GE RECEPTACLE ICEMAKER
WR07X0240 WR07X0240 GE RELAY (PTCR)
WR07X10055 WR07X10055 GE RELAY PTCR (8EA16C3)
WR17X2237 WR17X2237 GE RETAINER STRIP H
WR17X2239 WR17X2239 GE RETAINER STRIP V
WR17X2238 WR17X2238 GE RETAINER STRIP V
WR02X10323 WR02X10323 GE RING COMP COND FAN BLADE
WR01X1591 WR01X1591 GE SCR 1/4-14 X 3/4
WR01X1728 WR01X1728 GE SCR 10-16 1/2 PH
WR01X1726 WR01X1726 GE SCR 10-16 AB 3/4 SS
WZ04X0263 WZ04X0263 GE SCR 10-16 AB HXW 1/2
WR01X10590 WR01X10590 GE SCR 10-16 AB PNT20 1/2 S
WR01X1791 WR01X1791 GE SCR 8-15 SPEC
WR01X1804 WR01X1804 GE SCR 8-18 AB HXW 3/4 WH
WR01X10626 WR01X10626 GE SCR 8-18 AB HXW 5/4 S
WR01X10606 WR01X10606 GE SCR 8-18 CA HX 1/2 S
WR01X1757 WR01X1757 GE SCR 8-18 HXW 1 1/4S
WR01X1763 WR01X1763 GE SCR 8-18 T WAFER 5/8
WR01X1762 WR01X1762 GE SCREW
WZ5X246 WZ5X246 GE SCREW
WR1X1786 WR1X1786 GE SCREW
WR1X1591 WR1X1591 GE SCREW
WD2X5166 WD2X5166 GE SCREW
WR1X2138 WR1X2138 GE SCREW 12-24
WR1X2136 WR1X2136 GE SCREW 12-24
WR01X2138 WR01X2138 GE SCREW 12-24 .7 WH
WR01X2136 WR01X2136 GE SCREW 12-24 .9 WH
WR01X10060 WR01X10060 GE SCREW 12-24TT BHT 700 SC
WR01X10063 WR01X10063 GE SCREW 12-24TT BHT 900(AD)
WR01X10061 WR01X10061 GE SCREW 12-24TT BHT 900(WHITE)
WR01X10123 WR01X10123 GE SCREW 6-19 HI/LO HXW 1/2 S
WD02X0323 WD02X0323 GE SCREW 8-32 X 3/8 SPH
WZ06X0133 WZ06X0133 GE SCREW BRKT. EVAP. FAN
WR01X1816 WR01X1816 GE SCREW MOBILITY
WZ6X133 WZ6X133 GE SCREW&WASHER
WZ04X0244 WZ04X0244 GE SCREW-FRONT
WR1X1791D WR1X1791D GE SCREW-PKG - 13 PACK
WR1X1763D WR1X1763D GE SCREW-PKG 12
WZ4X244D WZ4X244D GE SCREW-PKG 12
WR1X1726D WR1X1726D GE SCREW-PKG 12
WZ5X158D WZ5X158D GE SCREW-PKG 12
WD2X323D WD2X323D GE SCREW-PKG 12
WR02X9303 WR02X9303 GE SHAFT KNOB DAMPER
WR2X9303 WR2X9303 GE SHAFT/KNOB
WR71X2312 WR71X2312 GE SHELF ASM FZ
WR32X10051 WR32X10051 GE SHELF ASSEMBLY GLASS SNAP ON
WR32X10052 WR32X10052 GE SHELF CANT GLASS VP CVR
WR71X10096 WR71X10096 GE SHELF FRONT FF FULL
WR71X10730 WR71X10730 GE SHELF FRONT NO GRAPHICS
WR30X300 WR30X300 GE SHELF ICE TR
WR30X0300 WR30X0300 GE SHELF ICE TRAY
WR02X8692 WR02X8692 GE SHIM HINGE TOP FZ
WR02X8344 WR02X8344 GE SLEEVE VINYL
WR2X8344 WR2X8344 GE SLEEVE VINYL
WR17X4011 WR17X4011 GE SLIDE ASSEMBLY VP CVR
WR17X10234 WR17X10234 GE SLIDE CONTROL VP
WR17X2768 WR17X2768 GE SLIDE COVER CENTER
WR72X0274 WR72X0274 GE SLIDE MEAT PAN LH WH
WR72X0273 WR72X0273 GE SLIDE MEAT PAN RH WH
WR72X274 WR72X274 GE SLIDE MP LH
WR72X273 WR72X273 GE SLIDE MP RH
WR17X2770 WR17X2770 GE SLIDE VEG PAN LH
WR17X2769 WR17X2769 GE SLIDE VEG PAN RH
WR02X9391 WR02X9391 GE SOCKET & TERMINAL ASM
WR2X9391 WR2X9391 GE SOCKET&TERM
WR2X7018 WR2X7018 GE SPAC CT TRAC
WR02X7018 WR02X7018 GE SPACER TRACK
WR2X4495 WR2X4495 GE SPADE CONN
WR1X1779 WR1X1779 GE STUD MTGCOMP
WR17X10317 WR17X10317 GE SUPPORT HIGH SIDE
WR02X10736 WR02X10736 GE SUPPORT TWIST VP
WR02X8695 WR02X8695 GE SUPPORT TWIST VP CVR
WR2X7973 WR2X7973 GE SUPT SHELF
WR23X309 WR23X309 GE SW POWER SAVER
WR23X10725 WR23X10725 GE SWITCH LIGHT
WR23X0193 WR23X0193 GE SWITCH LIGHT WH
WR23X0309 WR23X0309 GE SWITCH POWER SAVER
WR50X0131 WR50X0131 GE THERMOSTAT DEF
WR50X10010 WR50X10010 GE THERMOSTAT DEFROST
WR02X10111 WR02X10111 GE THIMBLE DOOR PLASTIC
WR72X0097 WR72X0097 GE TRACK CENTER FF
WR72X97 WR72X97 GE TRACK SHELF
WR72X96 WR72X96 GE TRACK SHELF
WR72X0096 WR72X0096 GE TRACK SHELF FF R/L
WR30X0311 WR30X0311 GE TRAY ICE
WR30X311 WR30X311 GE TRAY ICE
WR38X10114 WR38X10114 GE TRIM BRIGHT
WR17X10235 WR17X10235 GE TRIM FRAME VP
WR17X2243 WR17X2243 GE TROUGH DRAIN
WR02X10134 WR02X10134 GE TUBE DRAIN ASSEMBLY
WR02X6087 WR02X6087 GE TUBE WATER FILL
WR01X1797 WR01X1797 GE WASHER HINGE .495ID
WR1X1797D WR1X1797D GE WASHR-PKG 12
WR02X10480 WR02X10480 GE WHEEL MOBILITY
WR14X347 WR14X347 GE WR14X347
WR17X10512 WR17X10512 GE WR17X10512
WR2X9009 WR2X9009 GE WR2X9009
WZ4X416 WZ4X416 GE WZ04X0408
Main Menu x
