Model Image
Manufacturer

GE

Model Number

TBX22PIBRRCC

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR2X7226 WR2X7226 *NLA*CLIP COVER
40A15-2PK 40A15-2PK 60A - 2BULBS
40A15 40A15 60A - 2BULBS
WR02X4039 WR02X4039 ADHESIVE CLIP
WR29X5129 WR29X5129 ARM SHUT OFF
WR01X10604 WR01X10604 AXLE WHEEL
WR17X10316 WR17X10316 BAFFLE ASSEMBLY LH
WR17X10319 WR17X10319 BAFFLE COND RH
WR17X10512 WR17X10512 BASEPLATE HIGH SIDE
WR29X5111 WR29X5111 BC00173-1
WR29X5117 WR29X5117 BE03687-01
WR32X1140 WR32X1140 BIN QUICK STORE
WR60X10030 WR60X10030 BLADE COND FAN
WR02X7768 WR02X7768 BRACKET CONTROL HSG
WR02X7664 WR02X7664 BRACKET EVAP FAN
WR02X10100 WR02X10100 BRACKET EVAPORATOR FAN SM
WR02X7823 WR02X7823 BRACKET MULLION LH
WR02X7822 WR02X7822 BRACKET MULLION RH
WR2X7768 WR2X7768 BRKT CONTROL
WR2X7767 WR2X7767 BRKT CONTROL
WR02X7767 WR02X7767 BRKT CONTROL BACK
WR2X7664 WR2X7664 BRKT FAN
WR30X10154 WR30X10154 BUCKET ICE
WR2X7051 WR2X7051 BUTTON PLUG
WR1X5278 WR1X5278 CABLE CLAMP
WR02X10133 WR02X10133 CADDY CONDIMENT
WR02X10460 WR02X10460 CAP CORNER OC BISQUE
WR02X10322 WR02X10322 CAP DUST

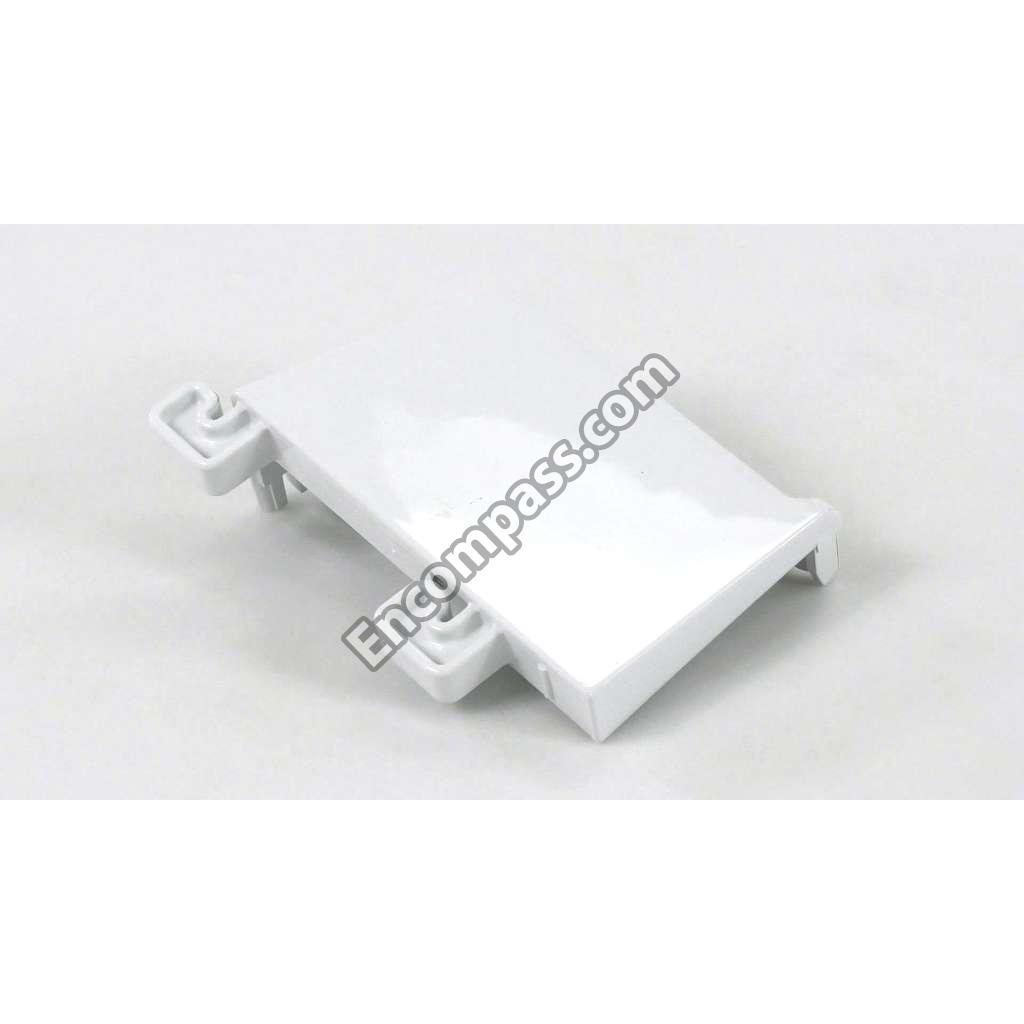

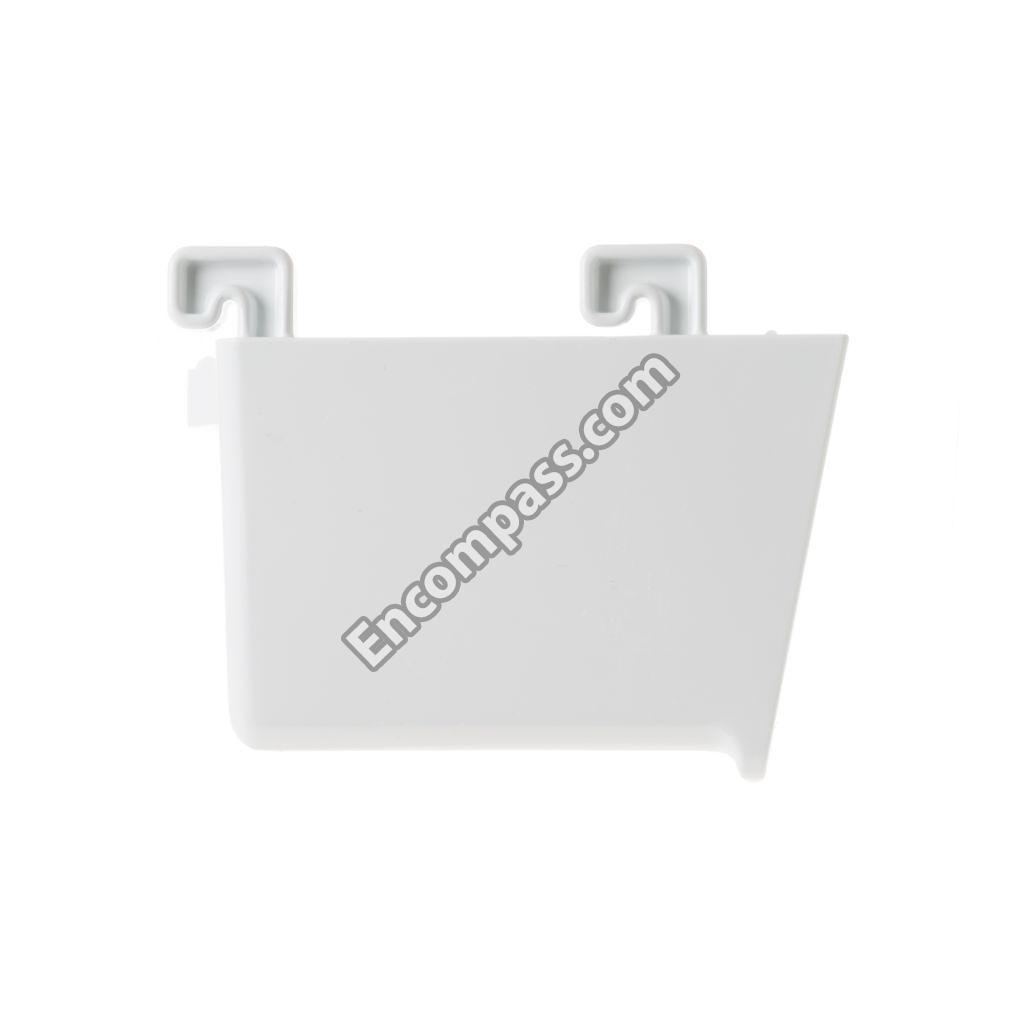

WR02X8699 WR02X8699 CAP SHELF FRONT LH
WR02X8700 WR02X8700 CAP SHELF FRONT RH
WR2X8699 WR2X8699 CAP SHLF FRT
WR2X8700 WR2X8700 CAP SHLF FRT
WR62X0079 WR62X0079 CAPACITOR
WR55X24064 WR55X24064 CAPACITOR
WR2X4039 WR2X4039 CLAMP
WR01X5278 WR01X5278 CLAMP CABLE
WR02X7226 WR02X7226 CLAMP COVER
WR01X5223 WR01X5223 CLAMP HOSE
WR29X0158 WR29X0158 CLAMP THERMOSTAT
WR02X8503 WR02X8503 CLAMP TUBE
WR2X4754 WR2X4754 CLAMP-FILL T
WR1X1360 WR1X1360 CLIP
WR02X7646 WR02X7646 CLIP BASE GRILLE
WR02X8203 WR02X8203 CLIP COMPRESSOR MOUNT
WR02X9209 WR02X9209 CLIP COND (DL)
WR2X9209 WR2X9209 CLIP COND DL
WR2X4516 WR2X4516 CLIP DRAIN
WR2X7646 WR2X7646 CLIP GRILLE
WR02X9501 WR02X9501 CLIP TUBE
WR2X9501 WR2X9501 CLIP TUBE
WR01X1360 WR01X1360 CLIP U
WR02X3198 WR02X3198 COMP. RING, EVAP. FAN
WR87X10224 WR87X10224 COMPRESSOR KIT EGYS60
WR84X10010 WR84X10010 COND ASSEMBLY FINAL RECIP
WR17X10425 WR17X10425 COND FAN HSG & BRACKET ASSEMBL
WR14X0313 WR14X0313 COND TOP BAFFLE FOAM
WR09X0520 WR09X0520 CONTROL DEFROST
WR02X7834 WR02X7834 COVER
WR82X10046 WR82X10046 COVER ACCESS ASSEMBLY
WR17X2471 WR17X2471 COVER EVAP ASSEMBLY
WR17X3910 WR17X3910 COVER FF SUPPLY
WR02X10467 WR02X10467 COVER HINGE
WR02X8444 WR02X8444 COVER PLUG I M
WR2X7834 WR2X7834 COVER RELAY
WR02X10458 WR02X10458 COVER SCREW BISQUE
WR17X10543 WR17X10543 COVER SUCTION LINE
WR29X0182 WR29X0182 COVER WH
WR29X182 WR29X182 CVR ICEMAKR
WR22X512 WR22X512 DAIRY DOOR
WR02X9440 WR02X9440 DECAL MEAT PAN
WR2X9440 WR2X9440 DECAL MP
WR51X465 WR51X465 DEF HTR KIT
WR9X520 WR9X520 DEFROST CTRL
WR19X5003 WR19X5003 DISH BUTTER
WR17X3328 WR17X3328 DISH SNACK TRAY
WR22X0512 WR22X0512 DOOR DAIRY (NO TRIM)
WR78X10306 WR78X10306 DOOR FOAM ASSEMBLY FF DP BISQUE
WR78X10307 WR78X10307 DOOR FOAM ASSEMBLY FZ DP BISQUE
WR77X0611 WR77X0611 DOOR INNER FF DP
WR77X0612 WR77X0612 DOOR INNER FZ DP
WR60X30349 WR60X30349 EVAP FAN MOTOR KIT
WR22X472 WR22X472 EXTENS DAIRY
WR22X0472 WR22X0472 EXTENSION DAIRY
WR60X123 WR60X123 FAN BLADE
WR60X114 WR60X114 FAN BLADE
WR60X0123 WR60X0123 FAN BLADE EVAP MOTOR
WR29X0153 WR29X0153 FILL CUP
WR29X10063 WR29X10063 FILL CUP
WR82X360 WR82X360 FOAM PLUG
WR82X0360 WR82X0360 FOAM PLUG S.L.
WR14X0352 WR14X0352 FOAM STRIP MULLION
WR14X10008 WR14X10008 FOAM STRIP SE ADH
WR17X2401 WR17X2401 FRONT LINER FZ
WR14X384 WR14X384 GASKET
WR14X397 WR14X397 GASKET CVR
WR14X0358 WR14X0358 GASKET CVR PAN FRONT
WR14X0398 WR14X0398 GASKET CVR PAN REAR
WR24X0446 WR24X0446 GASKET DOOR FF WH
WR24X0445 WR24X0445 GASKET DOOR FZ WH
WR24X446 WR24X446 GASKET FF
WR24X445 WR24X445 GASKET FZ
WR14X0471 WR14X0471 GASKET MEAT PAN
WR14X471 WR14X471 GASKET MP
WR14X0366 WR14X0366 GASKET SLIDE CTR VP
WR14X0348 WR14X0348 GASKET TROUGH
WR14X0384 WR14X0384 GASKET VEG PAN SLIDE
WR74X10044 WR74X10044 GRILLE BASE ASSEMBLY
WR2X8629 WR2X8629 GRILLE I/S
WR02X8629 WR02X8629 GRILLE ICE SERV SNAP-IN
WR2X7391 WR2X7391 GROMMET
WR2X6261 WR2X6261 GROMMET
WR2X8474 WR2X8474 GROMMET
WR02X7238 WR02X7238 GROMMET COMP MTG
WR02X7391 WR02X7391 GROMMET EVAP FAN
WR02X6261 WR02X6261 GROMMET FZ SHELF
WR02X10098 WR02X10098 GROMMET MOTOR
WR2X7238 WR2X7238 GROMMET MTG.
WR02X9153 WR02X9153 GROMMET WATER FILL
WR14X358 WR14X358 GSKT CVR PAN
WR14X366 WR14X366 GSKT SLID VP
WR02X9168 WR02X9168 GUSSET
WR2X9168 WR2X9168 GUSSET
WR12X10367 WR12X10367 HANDLE ASSEMBLY FZ
WR12X10362 WR12X10362 HANDLE DOOR ASSEMBLY FF
WR17X10174 WR17X10174 HANDLE PAN
WR17X10173 WR17X10173 HANDLE PAN
WR38X10083 WR38X10083 HANDLE VEGETABLE PAN
WR02X8816 WR02X8816 HEAT SHIELD
WR2X8816 WR2X8816 HEAT SHIELD
WR51X0356 WR51X0356 HEATER MULLION
WR13X10075 WR13X10075 HINGE BTM AND PIN ASSEMBLY BISQUE
WR13X712 WR13X712 HINGE CENTER ASSEMBLY BISQUE
WR13X626 WR13X626 HINGE TOP
WR13X0626 WR13X0626 HINGE TOP ASM
WR29X0183 WR29X0183 HOUSING
WR29X183 WR29X183 HOUSING
WR17X3196 WR17X3196 HOUSING CONTROL
WR51X356 WR51X356 HTR MULLION
WR77X611 WR77X611 I.D.PANEL FF
WR77X612 WR77X612 I.D.PANEL FZ
WR30X0291 WR30X0291 ICE BUCKET
WR30X30972 WR30X30972 ICEMAKER REPLACEMENT KIT
WR17X3495 WR17X3495 INSUL DIVIDER
WR01X1803 WR01X1803 KEY PIVOT
WR1X1733 WR1X1733 KEY PIVOT
WR2X8692 WR2X8692 KNOB TEMP CO
WR04X10075 WR04X10075 LENS NAMEPLATE
WR01X1815 WR01X1815 LEVELING NUT
WR1X1815 WR1X1815 LEVELING NUT
WR02X8446 WR02X8446 LEVER
WR2X8446 WR2X8446 LEVER
WR2X8537 WR2X8537 LID DISH SM
WR02X8537 WR02X8537 LID DISH SNACK SM
WR17X2234 WR17X2234 LINER BOTTOM FZ
WR17X10029 WR17X10029 LINER TOP FF
WR85X10005 WR85X10005 LOW SIDE ASSEMBLY
WR02X10095 WR02X10095 MAGNET PAD
WR2X8842 WR2X8842 MBLTY FT ASM
WR1X1816 WR1X1816 MOBIL- SCREW
WR02X8842 WR02X8842 MOBILITY FRONT ASM
WR71X2329 WR71X2329 MODULE QUICK SERVE
WR29X204 WR29X204 MOLD BODY AS
WR29X0204 WR29X0204 MOLD/HEATER ASM
WR29X10001 WR29X10001 MOTOR
WR60X10020 WR60X10020 MOTOR COND. FAN
WR60X0190 WR60X0190 MOTOR EVAP FAN
WR17X10639 WR17X10639 MULLION CROSSPIECE FIN
WR2X7823 WR2X7823 MULLION L H
WR2X7822 WR2X7822 MULLION RH
WR29X0160 WR29X0160 NO ITEM DESCRIPTION
WR30X0327 WR30X0327 NO MODEL DESCRIPTION
WR57X57 WR57X57 NUT
WR08X0168 WR08X0168 OVERLOAD
WR08X10025 WR08X10025 OVERLOAD
WR86X96 WR86X96 P/S DRYER KIT R134A
WR86X25269 WR86X25269 P/S DRYER KIT R134A
WR32X1312 WR32X1312 PAN ASSEMBLY VEG
WR32X1022 WR32X1022 PAN MEAT
WR13X587 WR13X587 PIN HINGE
WR13X0587 WR13X0587 PIN HINGE CTR
WR12X10366 WR12X10366 PK HANDLE LARGE ASSEMBLY
WR17X3609 WR17X3609 PLENUM
WR17X2990 WR17X2990 PLENUM
WR02X7652 WR02X7652 PLUG BUTTON
WR02X7069 WR02X7069 PLUG BUTTON
WR2X7652 WR2X7652 PLUG BUTTON
WR2X7069 WR2X7069 PLUG BUTTON
WR02X7051 WR02X7051 PLUG BUTTON
WR02X10462 WR02X10462 PLUG BUTTON FOAM BISQUE
WR02X10461 WR02X10461 PLUG BUTTON THIMBLE BISQUE
WR2X8444 WR2X8444 PLUG COVER
49-60012 49-60012 PM GUIDE OWNERS
31-51230 31-51230 PM MINI MANUAL WIRING
WR23X0108 WR23X0108 POWER CORD
WR23X10300 WR23X10300 POWER CORD
WR87X0475 WR87X0475 PRODUCT SERVICE KIT
WR71X10126 WR71X10126 RACK BEVERAGE
WR17X3288 WR17X3288 RAIL VEG PAN FRONT
WR17X3161 WR17X3161 RAIL VEG PAN REAR
WR23X315 WR23X315 RECEPTACLE
WR23X0315 WR23X0315 RECEPTACLE ICEMAKER
WR2X8203 WR2X8203 REFRIGERATOR CLIP
WR14X313 WR14X313 REFRIGERATOR GASKET COVER
WR2X8344 WR2X8344 REFRIGERATOR VINYL SLEEVE
WR07X0240 WR07X0240 RELAY (PTCR)
WR07X10055 WR07X10055 RELAY PTCR (8EA16C3)
WR17X2237 WR17X2237 RETAINER STRIP H
WR17X2238 WR17X2238 RETAINER STRIP V
WR17X2239 WR17X2239 RETAINER STRIP V
WR02X10323 WR02X10323 RING COMP COND FAN BLADE
WR01X21263 WR01X21263 RVSBL DOOR CAPS BISQUE
WR01X1591 WR01X1591 SCR 1/4-14 X 3/4
WR01X1728 WR01X1728 SCR 10-16 1/2 PH
WR01X1726 WR01X1726 SCR 10-16 AB 3/4 SS
WZ04X0263 WZ04X0263 SCR 10-16 AB HXW 1/2
WR01X10590 WR01X10590 SCR 10-16 AB PNT20 1/2 S
WR01X1791 WR01X1791 SCR 8-15 SPEC
WR01X1804 WR01X1804 SCR 8-18 AB HXW 3/4 WH
WR01X2084 WR01X2084 SCR 8-18 FZ
WR01X1757 WR01X1757 SCR 8-18 HXW 1 1/4S
WR01X10633 WR01X10633 SCR 8-18 PL FLP 5/16 S
WR01X1763 WR01X1763 SCR 8-18 T WAFER 5/8
WR01X10626 WR01X10626 SCR HXW 11/4
WR01X1762 WR01X1762 SCREW
WR1X1591 WR1X1591 SCREW
WZ5X246 WZ5X246 SCREW
WD2X5166 WD2X5166 SCREW
WR1X1786 WR1X1786 SCREW
WR01X10606 WR01X10606 SCREW
WR01X10036 WR01X10036 SCREW 10-14 PL PNP 3/4 SZ
WR01X10060 WR01X10060 SCREW 12-24TT BHT 700 SC
WR1X2138 WR1X2138 SCREW 12-24TT BHT 700 SCA
WR01X10170 WR01X10170 SCREW 12-24TT BHT 900 SC
WR01X10123 WR01X10123 SCREW 6-19 HI/LO HXW 1/2 S
WZ02X0503 WZ02X0503 SCREW 8-32 , 13-32
WD02X0323 WD02X0323 SCREW 8-32 X 3/8 SPH
WZ06X0133 WZ06X0133 SCREW BRKT. EVAP. FAN
WR01X1816 WR01X1816 SCREW MOBILITY
WZ6X133 WZ6X133 SCREW&WASHER
WZ04X0244 WZ04X0244 SCREW-FRONT
WR1X1791D WR1X1791D SCREW-PKG - 13 PACK
WZ2X464D WZ2X464D SCREW-PKG 12
WZ4X244D WZ4X244D SCREW-PKG 12
WZ5X158D WZ5X158D SCREW-PKG 12
WR1X1763D WR1X1763D SCREW-PKG 12
WR1X1726D WR1X1726D SCREW-PKG 12
WD2X323D WD2X323D SCREW-PKG 12
WR02X9303 WR02X9303 SHAFT KNOB DAMPER
WR2X9303 WR2X9303 SHAFT/KNOB
WR71X2312 WR71X2312 SHELF ASM FZ
WR32X10065 WR32X10065 SHELF CANT FF ENCAP
WR32X1581 WR32X1581 SHELF CANT FRAME ASSEMBLY
WR32X10066 WR32X10066 SHELF CANT GLASS VP CVR
WR32X10070 WR32X10070 SHELF ENCAP SLIDEOUT
WR71X2317 WR71X2317 SHELF FREEZER
WR71X10759 WR71X10759 SHELF FRONTS FF FULL
WR71X10124 WR71X10124 SHELF FRONTS FZ 1/2
WR71X10123 WR71X10123 SHELF FRONTS FZ FULL
WR71X10125 WR71X10125 SHELF MODULE ASSEMBLY
WR02X9010 WR02X9010 SHIELD LIGHT FZ
WR2X9010 WR2X9010 SHIELD LITE
WR02X8692 WR02X8692 SHIM HINGE TOP FZ
WR17X2843 WR17X2843 SHROUD ASM
WR02X8344 WR02X8344 SLEEVE VINYL
WR17X3905 WR17X3905 SLIDE ASSEMBLY CONTROL VP
WR17X4011 WR17X4011 SLIDE ASSEMBLY VP CVR
WR17X10234 WR17X10234 SLIDE CONTROL VP
WR17X2768 WR17X2768 SLIDE COVER CENTER
WR72X0288 WR72X0288 SLIDE MEAT PAN LH WH
WR72X0275 WR72X0275 SLIDE MEAT PAN LH WH
WR72X0286 WR72X0286 SLIDE MEAT PAN RH WH
WR72X0273 WR72X0273 SLIDE MEAT PAN RH WH
WR72X288 WR72X288 SLIDE MP LH
WR72X273 WR72X273 SLIDE MP RH
WR72X286 WR72X286 SLIDE PAN
WR72X287 WR72X287 SLIDE PAN
WR17X2770 WR17X2770 SLIDE VEG PAN LH
WR17X2769 WR17X2769 SLIDE VEG PAN RH
WR2X7971 WR2X7971 SNUG MODULE
WR02X7971 WR02X7971 SNUGGER MODULE
WR02X9391 WR02X9391 SOCKET & TERMINAL ASM
WR2X9391 WR2X9391 SOCKET AND TERM
WR02X8005 WR02X8005 SOCKET LAMP
WR2X8005 WR2X8005 SOCKET LAMP
WR2X7018 WR2X7018 SPAC CT TRAC
WR29X5118 WR29X5118 SPACER HOLDING SWITCH
WR02X7018 WR02X7018 SPACER TRACK
WR29X5181 WR29X5181 SPRING
WR29X10002 WR29X10002 SPRING BEAM
WR02X7681 WR02X7681 STOP DOOR
WR2X9016 WR2X9016 STOP DOOR
WR01X2080 WR01X2080 STOP SHELF
WR1X2080 WR1X2080 STOP SHELF
WR02X3736 WR02X3736 STR RELIEF
WR1X1779 WR1X1779 STUD MTGCOMP
WR02X10736 WR02X10736 SUP VP CVR
WR17X10317 WR17X10317 SUPPORT HIGH SIDE
WR02X8695 WR02X8695 SUPPORT TWIST VP CVR
WR2X7973 WR2X7973 SUPT SHELF
WR23X309 WR23X309 SW POWER SAVER
WR23X334 WR23X334 SWITCH
WR29X5171 WR29X5171 SWITCH IM
WR23X0334 WR23X0334 SWITCH LAMP REED
WR23X10725 WR23X10725 SWITCH LIGHT
WR23X0193 WR23X0193 SWITCH LIGHT WH
WR23X0309 WR23X0309 SWITCH POWER SAVER
WR12X10365 WR12X10365 TAIL AND BRACKET ASSEMBLY
WR29X0185 WR29X0185 THERMAL CUT-OFF
WR29X0157 WR29X0157 THERMOSTAT
WR50X10010 WR50X10010 THERMOSTAT DEFROST
WR02X10111 WR02X10111 THIMBLE DOOR PLASTIC
WR72X0097 WR72X0097 TRACK CENTER FF
WR72X97 WR72X97 TRACK SHELF
WR72X96 WR72X96 TRACK SHELF
WR72X0096 WR72X0096 TRACK SHELF FF R/L
WR38X10138 WR38X10138 TRIM BRIGHT
WR38X10117 WR38X10117 TRIM DAIRY DOOR
WR17X10235 WR17X10235 TRIM FRAME VP
WR12X10178 WR12X10178 TRIM HANDLE FF
WR38X10137 WR38X10137 TRIM SHELF
WR17X2243 WR17X2243 TROUGH DRAIN
WR02X10134 WR02X10134 TUBE DRAIN ASSEMBLY
WR02X10070 WR02X10070 TUBE WATER FILL
WR01X27364 WR01X27364 WASHER HINGE BROWN
WR17X1948 WR17X1948 WATER LINE 1/4
WR57X0110 WR57X0110 WATER VALVE ASM
WR57X10033 WR57X10033 WATER VALVE WITH GUARD
WR02X10480 WR02X10480 WHEEL MOBILITY
WR29X186 WR29X186 WIRE HARN
WR29X0186 WR29X0186 WIRE HARNESS
WR14X347 WR14X347 WR14X347
WR14X357 WR14X357 WR14X357
WR29X5128 WR29X5128 WR29X0191
WR30X10093 WR30X10093 WR29X5174
WR2X8363 WR2X8363 WR2X8363
WZ4X416 WZ4X416 WZ04X0408
WR32X1327 WR32X1327 YOKE QUICK SERVE
Main Menu x
