Model Image
Manufacturer

GE

Model Number

TCX18PADARAA

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR2X7226 WR2X7226 GE *NLA*CLIP COVER
WR02X10204 WR02X10204 GE AIR DIFFUSER ASSEMBLY
WR79X10016 WR79X10016 GE ANGLE
WR29X10015 WR29X10015 GE ARM EXTENSION
WR2X8213 WR2X8213 GE AXLE WHEEL
WR02X8213 WR02X8213 GE AXLE WHEEL FRT
WR02X10226 WR02X10226 GE BAFFLE CONDENSER FAN
WR71M962 WR71M962 GE BASKET LOWER
WR02X9274 WR02X9274 GE BEARING
WR2X9274 WR2X9274 GE BEARING
WR60X0275 WR60X0275 GE BLADE COND FAN ASM
WR01X2156 WR01X2156 GE BOLT
WR1X2156 WR1X2156 GE BOLT COMP.
WR02X10206 WR02X10206 GE BRACKET DAMPER
WR02X10196 WR02X10196 GE BRACKET FRONT - FAN
WR02X10195 WR02X10195 GE BRACKET REAR - FAN
WR02X10288 WR02X10288 GE BRIDGE EVAP HSGN
WR02X10194 WR02X10194 GE BRIDGE, EVAPORATOR HOUSI
WR32X1435 WR32X1435 GE BUCKET EGG
WR02X10207 WR02X10207 GE BUSHING DIFFUSER HOUS
WR02X10241 WR02X10241 GE CAP CORNER (ALMOND)
WR02X10246 WR02X10246 GE CAP CORNER (BLACK)
WR02X10209 WR02X10209 GE CAP CORNER - WHITE
WR2X8345 WR2X8345 GE CAP SHEL FRT
WR2X9162 WR2X9162 GE CAP SHELF FR
WR02X9162 WR02X9162 GE CAP SHLF FRNT NARROW
WR02X9296 WR02X9296 GE CAP SHLF FRNT RH
WR02X8345 WR02X8345 GE CAP SHLF FRT
WR2X9295 WR2X9295 GE CAP SHLF LH
WR2X9296 WR2X9296 GE CAP SHLF RH
WR62X10012 WR62X10012 GE CAPACITOR
WR72X10025 WR72X10025 GE CHANNEL
WR02X7226 WR02X7226 GE CLAMP COVER
WR2X9269 WR2X9269 GE CLAMP DRAIN TUBE
WR2X9000 WR2X9000 GE CLIP COND
WR02X10076 WR02X10076 GE CLIP CORD SET
WR01X10071 WR01X10071 GE CLIP RETAINER
WR87X20798 WR87X20798 GE COMPRESSOR W/OIL
WR84X10015 WR84X10015 GE CONDENSER ASSEMBLY
WR09X0483 WR09X0483 GE CONTROL DEFROST
WR09X10030 WR09X10030 GE CONTROL TEMPERATURE
WR02X7834 WR02X7834 GE COVER
WR02X10227 WR02X10227 GE COVER
WR02X10219 WR02X10219 GE COVER ACCESS
WR02X10225 WR02X10225 GE COVER CABINET HX
WR02X10187 WR02X10187 GE COVER EVAPORATOR
WR13X10041 WR13X10041 GE COVER HINGE (ALMOND)
WR13X10042 WR13X10042 GE COVER HINGE (BLACK)
WR02X9159 WR02X9159 GE COVER IM RECEPTACLE
WR2X7834 WR2X7834 GE COVER RELAY
WR02X10240 WR02X10240 GE CROSSPIECE (ALMOND)
WR02X10245 WR02X10245 GE CROSSPIECE (BLACK)
WR2X9159 WR2X9159 GE CVR UN RECEP
WR02X10208 WR02X10208 GE DAMPER
WR9X483 WR9X483 GE DEF. CONTROL
WR02X10193 WR02X10193 GE DEFLECTOR AIR - L H
WR02X10192 WR02X10192 GE DEFLECTOR AIR - R H
31-51221 31-51221 GE DIAGRAM, WIRING
WR19X10002 WR19X10002 GE DISH BUTTER
WR22X10008 WR22X10008 GE DOOR DAIRY
WR13M217 WR13M217 GE DOOR STOP
WR32X10455 WR32X10455 GE DPO DRAIN PAN
WR02X10223 WR02X10223 GE DRAIN GROMMET S
WR02X9295 WR02X9295 GE END CAP - L. H (WIDE)

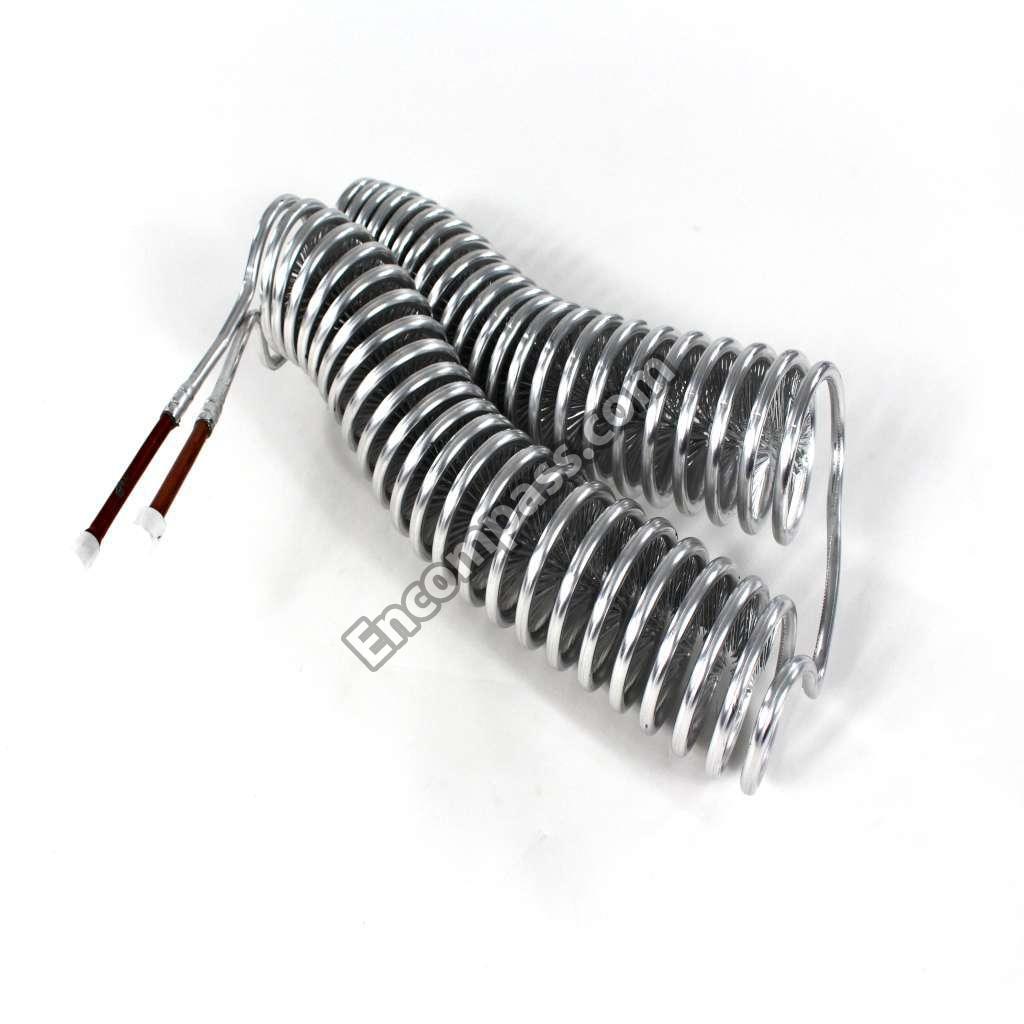

WR85X10010 WR85X10010 GE EVAPORATOR
WR17X10404 WR17X10404 GE EVAPORATOR HOUSING ASSEMBLY
WR60X123 WR60X123 GE FAN BLADE
WR60X275 WR60X275 GE FAN BLD CNDS
WR72X10026 WR72X10026 GE FRAME HALF SHELF
WR17X10412 WR17X10412 GE FRONT SHELF (NARROW)
WR17X10410 WR17X10410 GE FRONT SHELF (WIDE)
WR17X10411 WR17X10411 GE FRONT SHELF (WIDE)
WR14X10021 WR14X10021 GE GASKET
WR24X10024 WR24X10024 GE GASKET (BLACK)
WR24X10021 WR24X10021 GE GASKET (WHITE)
WR24X10022 WR24X10022 GE GASKET (WHITE)
WR14X10020 WR14X10020 GE GASKET CENTER
WR14X10019 WR14X10019 GE GASKET DIFFUSER HOUSING
WR14X10023 WR14X10023 GE GASKET FRONT
WR14X10017 WR14X10017 GE GASKET LINER REAR
WR14X10018 WR14X10018 GE GASKET LINER SIDE
WR14X10022 WR14X10022 GE GASKET REAR
WR32X10276 WR32X10276 GE GLASS CRISPER COVER
WB02X7701 WB02X7701 GE GLIDER
WB2X8248 WB2X8248 GE GLIDER ADJ
WR2X7391 WR2X7391 GE GROMMET
WR02X7391 WR02X7391 GE GROMMET EVAP FAN
WR02X10220 WR02X10220 GE GROMMET FAN MOTOR
WR12X10291 WR12X10291 GE HANDLE (FF) (ALMOND)
WR12X10289 WR12X10289 GE HANDLE (FF) (WHITE)
WR12X10292 WR12X10292 GE HANDLE LONG (ALMOND)
WR12X10294 WR12X10294 GE HANDLE LONG (BLACK)
WR12X10290 WR12X10290 GE HANDLE LONG (WHITE)
WR23X10087 WR23X10087 GE HARNESS CORD - COMPRE
WR23X10086 WR23X10086 GE HARNESS TEMPERATURE CON
WR02X10186 WR02X10186 GE HEAT SHIELD EVAPORATO
WR51X10027 WR51X10027 GE HEATER DEFROST
WR13X10040 WR13X10040 GE HINGE BOTTOM
WR13X10039 WR13X10039 GE HINGE CENTER
WR13X10043 WR13X10043 GE HINGE CENTER (BLACK)
WR13X10037 WR13X10037 GE HINGE TOP
WR17X10409 WR17X10409 GE HOUSING CONDENSER FAN
WR17X10406 WR17X10406 GE HOUSING CONTROL TEMPE
WR02X10205 WR02X10205 GE HOUSING DIFFUSER
WR17X10597 WR17X10597 GE HOUSING, CONTROL TEMPERA
WR32X10075 WR32X10075 GE ICE BUCKET
WR30X311 WR30X311 GE ICE TRAY WHITE
31-46002 31-46002 GE INSTRUCTION, INSTALLATIO
WR82X10056 WR82X10056 GE INSULATION
WR02X10228 WR02X10228 GE INSULATION COVER
WR02X10235 WR02X10235 GE KIT WASHER
WR02X10202 WR02X10202 GE KNOB DAMPER (FZ)
WR02X10203 WR02X10203 GE KNOB TEMPERATURE CONTROL
WR78X10241 WR78X10241 GE LINER
WR78X10243 WR78X10243 GE LINER
WR17X10403 WR17X10403 GE LINER BOTTOM (FF)(WHI
WR17X10405 WR17X10405 GE LINER TOP (FZ)
WR02X10222 WR02X10222 GE LINES SUCTION & CAP
WR60X10058 WR60X10058 GE MOTOR COND FAN
WR60M136 WR60M136 GE MOTOR EVAP FAN
WR02X10198 WR02X10198 GE MULLION
WR04X10058 WR04X10058 GE NAMEPLATE (GE)
WR04X10059 WR04X10059 GE NAMEPLATE (GE)
WR01X1715 WR01X1715 GE NUT
WR01X2155 WR01X2155 GE NUT
WR1X1715 WR1X1715 GE NUT
WR01X10075 WR01X10075 GE NUT MOUNTING
WR02X10201 WR02X10201 GE NUT STRIP MID-HINGE
WR02X10212 WR02X10212 GE NUT-STRIP BOTTOM HING
WR02X10211 WR02X10211 GE NUT-STRIP BOTTOM HING
WR08X0169 WR08X0169 GE OVERLOAD
WR8X169 WR8X169 GE OVERLOAD
WR32X10485 WR32X10485 GE PAN CRISPER
WR32X10084 WR32X10084 GE PAN DELI
WR78X10245 WR78X10245 GE PANEL DOOR **NLA*
WR78X10244 WR78X10244 GE PANEL DOOR FF ALMOND
WR78X10242 WR78X10242 GE PANEL DOOR FZ WHITE
WR79X10003 WR79X10003 GE PANEL KICK (ALMOND)
WR79X10002 WR79X10002 GE PANEL KICK (WHITE)
WR01X10073 WR01X10073 GE PIN COTTER (1/8 DIA )
WR2X9281 WR2X9281 GE PIN HINGE
WR02X9281 WR02X9281 GE PIN, HINGE
WR17X10408 WR17X10408 GE PLATE COMPRESSOR MTG
WR02X10242 WR02X10242 GE PLUG (ALMOND)
WR02X10213 WR02X10213 GE PLUG (WHITE)
WR02X8697 WR02X8697 GE PLUG DOOR RVSBL AD
WR2X8697 WR2X8697 GE PLUG DOOR RVSBL ALMOND
WR02X10188 WR02X10188 GE PLUG EVAPORATOR HOUSING
WR02X10191 WR02X10191 GE PLUG TEST
WR02X10243 WR02X10243 GE PLUG THIMBLE (ALMOND)
WR02X10234 WR02X10234 GE PLUG THIMBLE (WHITE)
WR02X10244 WR02X10244 GE PLUG TOP (BLACK)
WR02X10182 WR02X10182 GE PLUG TOP (WHITE)
WR71X10161 WR71X10161 GE PORTA BIN (WHITE)
WR30X10005 WR30X10005 GE RACK POP CAN
WR02X10216 WR02X10216 GE RAIL FRONT
WR02X10215 WR02X10215 GE RAIL REAR
WR17X10407 WR17X10407 GE RAIL REAR - COMPRESSO
WR07X0240 WR07X0240 GE RELAY (PTCR)
WR07X10055 WR07X10055 GE RELAY PTCR (8EA16C3)
WR2X9272 WR2X9272 GE RING COMPRES
WR02X9272 WR02X9272 GE RING COMPRESSION
WR01X5475 WR01X5475 GE SCR 8/10-16 AB PA 5/8
WR01X2068 WR01X2068 GE SCR-MTNG/TMR
WR01X2059 WR01X2059 GE SCREW
WR1X1949 WR1X1949 GE SCREW
WD2X5166 WD2X5166 GE SCREW
WD2X425 WD2X425 GE SCREW
WR1X5705 WR1X5705 GE SCREW
WR1X1716 WR1X1716 GE SCREW
WR01X10072 WR01X10072 GE SCREW
WR01X10083 WR01X10083 GE SCREW
WR01X10068 WR01X10068 GE SCREW
WR01X10077 WR01X10077 GE SCREW
WR01X10082 WR01X10082 GE SCREW
WR01X10088 WR01X10088 GE SCREW (10-32 X 7/8)
WR01X10092 WR01X10092 GE SCREW (ALMOND)
WR01X10094 WR01X10094 GE SCREW (BLACK)
WR01X2057 WR01X2057 GE SCREW (TOP)
WR01X10076 WR01X10076 GE SCREW (WHITE)
WR01X10086 WR01X10086 GE SCREW 7-19
WR01X10074 WR01X10074 GE SCREW ADJUSTING
WR01X10091 WR01X10091 GE SCREW BTM HINGE FZ
WR01X10078 WR01X10078 GE SCREW CHANNEL
WR01X10084 WR01X10084 GE SCREW CONDENSER
WR1M721 WR1M721 GE SCREW GLIDE
WR01X10093 WR01X10093 GE SCREW HANDLE (ALMOND)
WR01X10096 WR01X10096 GE SCREW HANDLE (BLACK)
WR1X2068 WR1X2068 GE SCREW MTG
WR01X10090 WR01X10090 GE SCREW RETAINER STRIPS
WR01X1716 WR01X1716 GE SCREW, FAN MOTOR
WR01X10067 WR01X10067 GE SCREW, LINER
WZ04X0244 WZ04X0244 GE SCREW-FRONT
WZ4X244D WZ4X244D GE SCREW-PKG 12
WR1X5475D WR1X5475D GE SCREW-PKG 12
WR71X10361 WR71X10361 GE SHELF FIXED SPILLPROOF
WR71M960 WR71M960 GE SHELF FZ MINI
WR71M961 WR71M961 GE SHELF STEP
WR71X10160 WR71X10160 GE SHELF, MINI (FZ)
WR02X10184 WR02X10184 GE SHIELD
WR02X10199 WR02X10199 GE SHIELD LAMP
WR02X10232 WR02X10232 GE SHIM (WHITE)
WR02X10237 WR02X10237 GE SHIM BOTTOM HINGE
WR02X10231 WR02X10231 GE SHIM TOP HINGE (WHITE
WR02X10221 WR02X10221 GE SLEEVE COMPRESSOR
WR72X10018 WR72X10018 GE SLIDE
WR72X10021 WR72X10021 GE SLIDE - L H BASKET
WR72X10023 WR72X10023 GE SLIDE - L H SMALL BASK
WR72X10019 WR72X10019 GE SLIDE - L.H.
WR72X10022 WR72X10022 GE SLIDE - R H BASKET
WR72X10024 WR72X10024 GE SLIDE - R H SMALL BASK
WR72X10020 WR72X10020 GE SLIDE - R.H.
WR72X10017 WR72X10017 GE SLIDE CENTER
WR04X10057 WR04X10057 GE SLIDE HUMIDITY
WR02X10233 WR02X10233 GE SNUGGER
WR02X9391 WR02X9391 GE SOCKET & TERMINAL ASM
WR02X10200 WR02X10200 GE SOCKET LIGHT
WR2X9391 WR2X9391 GE SOCKET&TERM
WR02X10217 WR02X10217 GE SPRING
WR40X10026 WR40X10026 GE STRIP BREAKER - L H
WR40X10025 WR40X10025 GE STRIP BREAKER - R H
WR40X10024 WR40X10024 GE STRIP BREAKER - TOP &
WR02X10236 WR02X10236 GE STRIP RETAINER - SIDE
WR02X10229 WR02X10229 GE STRIP RETAINER - SIDE
WR02X10230 WR02X10230 GE STRIP RETAINER - TOP
WR02X10183 WR02X10183 GE SUPPORT LINER
WR02X10190 WR02X10190 GE SUPPORT LINER FRONT
WR02X10189 WR02X10189 GE SUPPORT LINER REAR
WR02X10238 WR02X10238 GE SUPPORT SHELF (FZ)
WR02X10214 WR02X10214 GE SUPPORT SLIDES
WR23X334 WR23X334 GE SWITCH
WR23X0334 WR23X0334 GE SWITCH LAMP REED
WR23X10093 WR23X10093 GE SWITCH LIGHT FZ
WR50X133 WR50X133 GE THERMOST DEF
WR50X0133 WR50X0133 GE THERMOSTAT DEFROST
WR38X10151 WR38X10151 GE TRIM DAIRY DOOR (GRAY
WR38X10149 WR38X10149 GE TRIM DELI PAN (GRAY)
WR38X10152 WR38X10152 GE TRIM HALF SHELF
WR38X10259 WR38X10259 GE TRIM PAN COVER FRAME
WR38X10148 WR38X10148 GE TRIM VEGETABLE PAN (GRE
WR38X10150 WR38X10150 GE TRIM, FRONT
WR02X10185 WR02X10185 GE TUBE DRAIN
WR02X10224 WR02X10224 GE TUBE DRAIN EXTENSION
49-60059 49-60059 GE USE & CARE MANUAL
WR01X2154 WR01X2154 GE WASHER
WR1X1714 WR1X1714 GE WASHER
WR01X2056 WR01X2056 GE WASHER (NYLON)
WR1X2056 WR1X2056 GE WASHER NYLON
WR01X10070 WR01X10070 GE WASHER NYLON
WR01X1714 WR01X1714 GE WASHER,CUSION
WR02X10210 WR02X10210 GE WHEEL FRONT ASSEMBLY
WR2X8244 WR2X8244 GE WHEEL FRT
WR02X8244 WR02X8244 GE WHEEL, FRONT
WR02X10095 WR02X10095 GE WR02X10095
WR86X10018 WR86X10018 GE WR86X101
