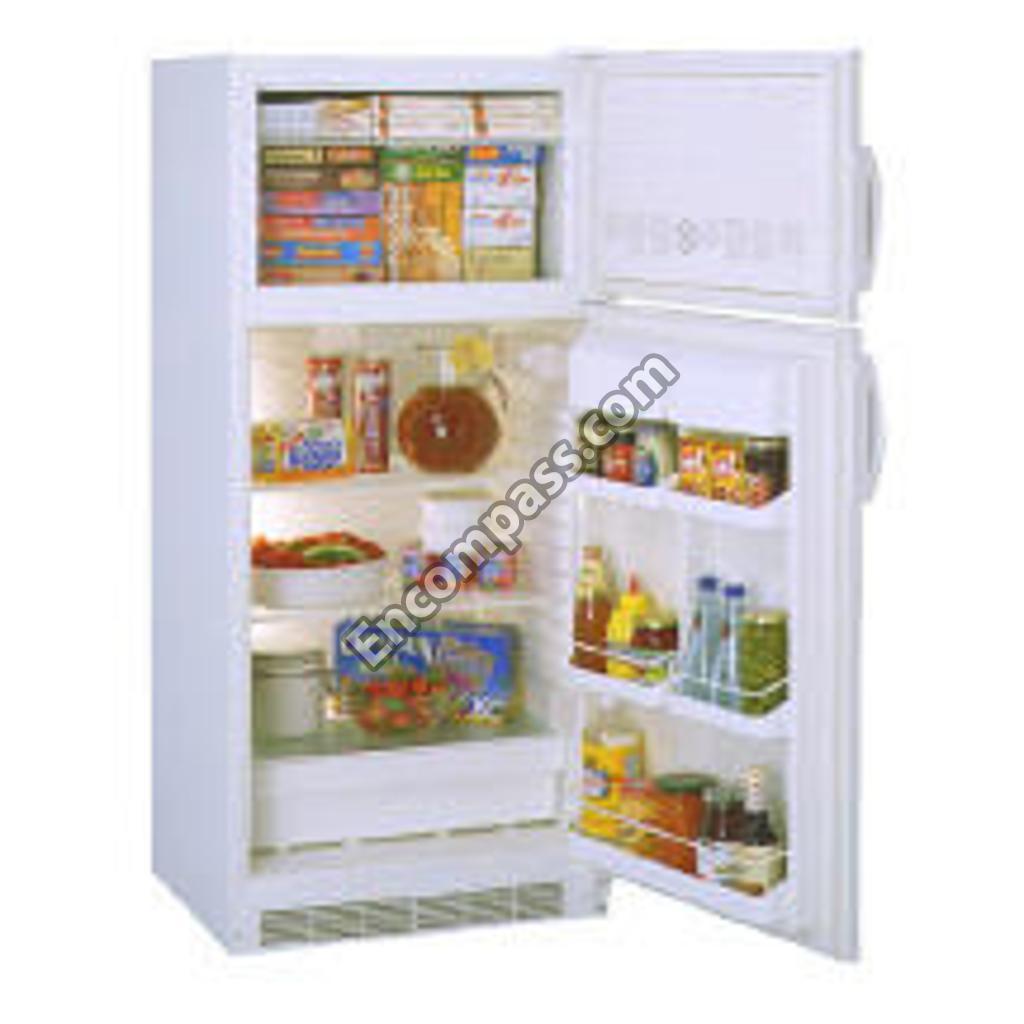

Model Image
Manufacturer

GE

Model Number

TDX9SNYARWH

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR2X8321 WR2X8321 BLENDE
WR02X10016 WR02X10016 BUSHING HINGE FF/FZ
WR2X8338 WR2X8338 CLIP COMP
WR87X0507 WR87X0507 COMPRESSOR
WR84X216 WR84X216 CONDENSER
WR84X0216 WR84X0216 CONDENSER ASM
WR17X10026 WR17X10026 COVER THERMOSTAT HSG
WR22X10001 WR22X10001 COVER TRAY
WR78X10012 WR78X10012 DOOR FF W LINER/GASKET
WR78X10013 WR78X10013 DOOR FZ W LINER/GASKET
WR02X8336 WR02X8336 DOOR STOP LH
WR2X8336 WR2X8336 DOOR STOP LH
WR02X8335 WR02X8335 DOOR STOP RH
WR2X8335 WR2X8335 DOOR STOP RH
WR17X6486 WR17X6486 DRAIN TUBE
WR02X8321 WR02X8321 EVAP COVER PLATE
WR02X8322 WR02X8322 EVAPORATOR SPACER
WR86X25269 WR86X25269 FILTER AND DRYER ASSEMBLY
WR2X8319 WR2X8319 FOOT
WR02X8317 WR02X8317 FOOT REAR
WR32X5376 WR32X5376 GLASS COVER VP
WR74X10006 WR74X10006 GRILLE
WR2X8339 WR2X8339 GROMMET
WR02X8339 WR02X8339 GROMMET COMP MTG

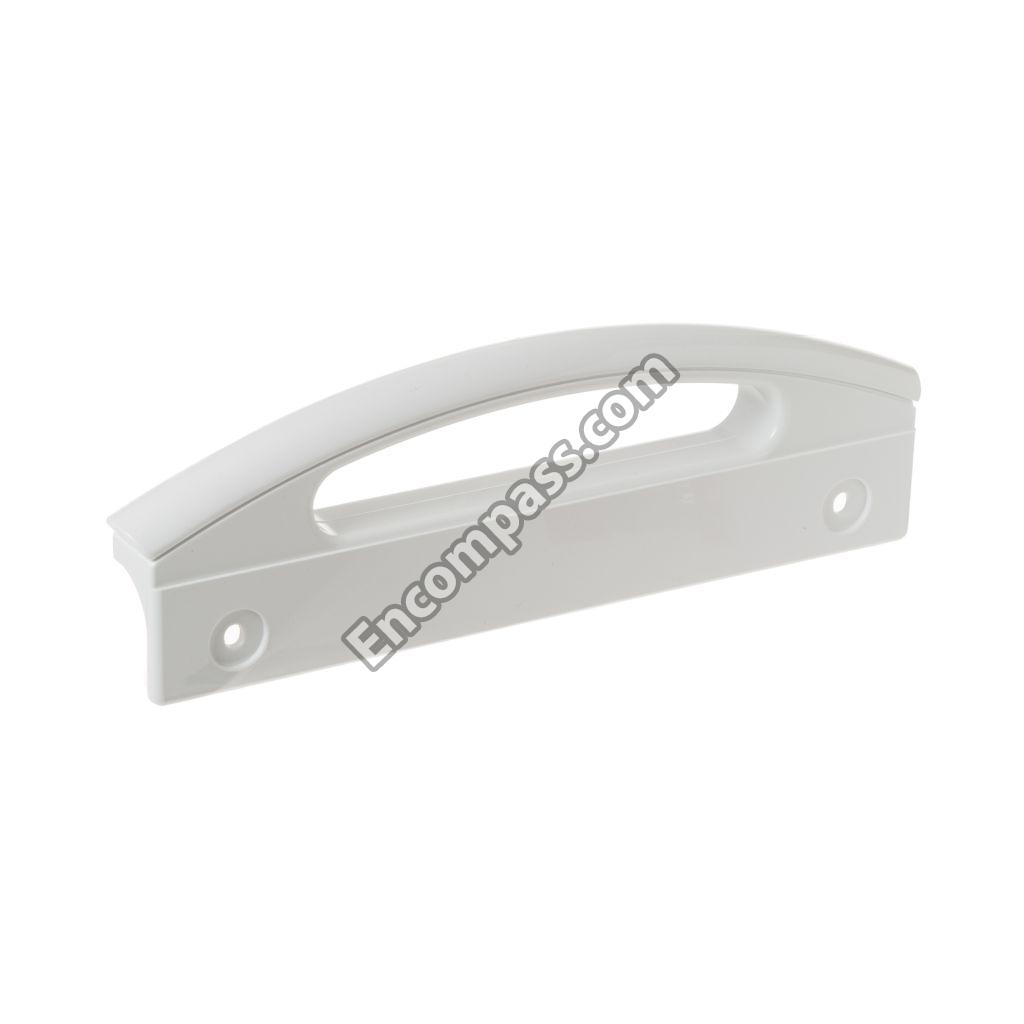

WR12X10007 WR12X10007 HANDLE FF/FZ
WR17X10374 WR17X10374 HI-SIDE ASSEMBLY
WR13X10002 WR13X10002 HINGE CENTER W/STOP
WR13X10001 WR13X10001 HINGE LOWER W/STOP
WR02X8328 WR02X8328 HOLDER LAMP
WR17X10027 WR17X10027 HOUSING THERMOSTAT
WR30X5125 WR30X5125 ICE TRAY
WR12X10006 WR12X10006 INSERT HANDLE FF/FZ
WR02X10017 WR02X10017 KNOB THERMOSTAT
WR23X10074 WR23X10074 LAMP
WR02X8302 WR02X8302 LEVELING LEG
WR2X8302 WR2X8302 LEVELING LEG
WR2X8317 WR2X8317 LEVELING LEG
WR02X8319 WR02X8319 LEVELING LEG SUPPORT
WR02X9544 WR02X9544 LOWER HINGE PIN
WR04X0215 WR04X0215 NAMEPLATE
WR4X215 WR4X215 NAMEPLATE
WR01X10012 WR01X10012 NUT LOWER HINGE MTG
WR08X0158 WR08X0158 O. L. PROT.
WR8X158 WR8X158 OVERLOAD
WR86X96 WR86X96 P/S DRYER KIT R134A
WR32X5375 WR32X5375 PAN VEG
WR2X9544 WR2X9544 PIN HINGE
WR02X8393 WR02X8393 PLATE
WR2X8393 WR2X8393 PLATE
WR01X10015 WR01X10015 PLATE ASSEMBLY THERMOSTAT
WR2X8314 WR2X8314 PLUG
WR02X8318 WR02X8318 PLUG BUTTON
WR02X8314 WR02X8314 PLUG BUTTON
WR2X8318 WR2X8318 PLUG BUTTON
WR02X10014 WR02X10014 PLUG BUTTON HANDLE MTG
WR02X10015 WR02X10015 PLUG BUTTON HINGE MTG
WR23X0108 WR23X0108 POWER CORD
WR23X10300 WR23X10300 POWER CORD
WR7X232 WR7X232 PTC RELAY
WR17X10025 WR17X10025 RAIL DOOR FF TRAY - BTM
WR07X0232 WR07X0232 RELAY START
WR17X10022 WR17X10022 SAFETY DOOR TRAY
WR01X10013 WR01X10013 SCREW BOTTOM MOUNT
WR01X10007 WR01X10007 SCREW DOOR STOP
WR01X10014 WR01X10014 SCREW GRILLE MTG
WR01X10006 WR01X10006 SCREW HANDLE DOOR
WR01X10011 WR01X10011 SCREW HINGE CENTER
WR01X10008 WR01X10008 SCREW TOP HINGE
WR17X10024 WR17X10024 SHIELD LAMP
WR02X8338 WR02X8338 SNAP PIN
WR23X5180 WR23X5180 SOCKET LAMP
WR02X9545 WR02X9545 SPACER
WR2X9545 WR2X9545 SPACER
WR2X8322 WR2X8322 SPACER
WR1X5772 WR1X5772 SPRING
WR01X5772 WR01X5772 SPRING KNOB
WR01X10002 WR01X10002 SPRING LIGHT SW
WR01X1796 WR01X1796 STUD
WR1X1796 WR1X1796 STUD
WR2X8328 WR2X8328 SUPPORT
WR23X10005 WR23X10005 SWITCH LIGHT

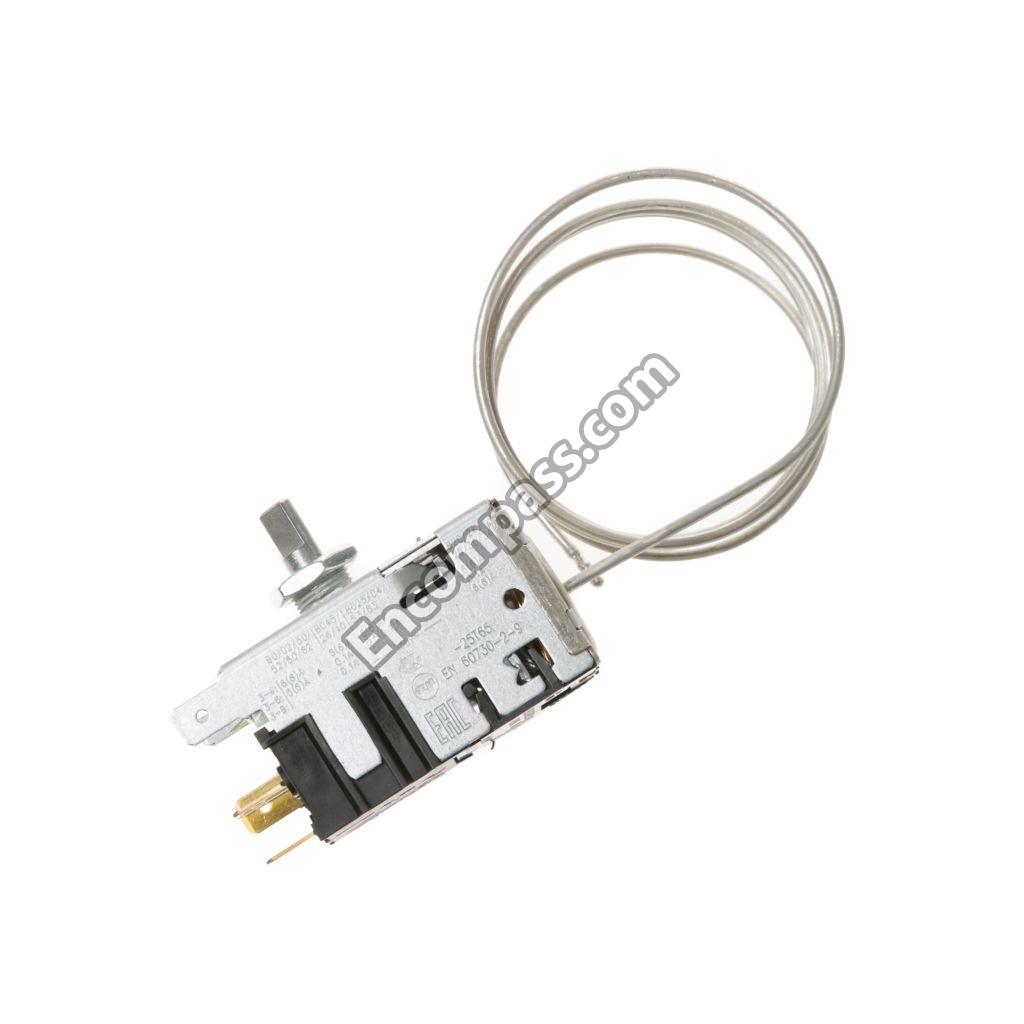

WR09X10040 WR09X10040 THERMOSTAT
WR17X4307 WR17X4307 TRAY DRIP
WR17X4303 WR17X4303 TRAY DRIP
WR17X10023 WR17X10023 TRAY FF DOOR BOTTOM
WR17X10020 WR17X10020 TRAY FF DOOR W/SAFETY
WR17X10021 WR17X10021 TRAY SMALL FF W/O SAFETY
WR38X5425 WR38X5425 TRIM VP COVER
WR13X0682 WR13X0682 UPPER HINGE
WR13X682 WR13X682 UPPER HINGE
WR13X0683 WR13X0683 UPPER HINGE COVER
WR13X683 WR13X683 UPR HINGE CV
49-6903 49-6903 USE AND CARE
WR01X10009 WR01X10009 WASHER HINGE TOP/BTM
WR01X10010 WR01X10010 WASHER-HINGE CENTER
WR71X6105 WR71X6105 WIRE SHELF FF
WR71X6104 WR71X6104 WIRE SHELF FZ
