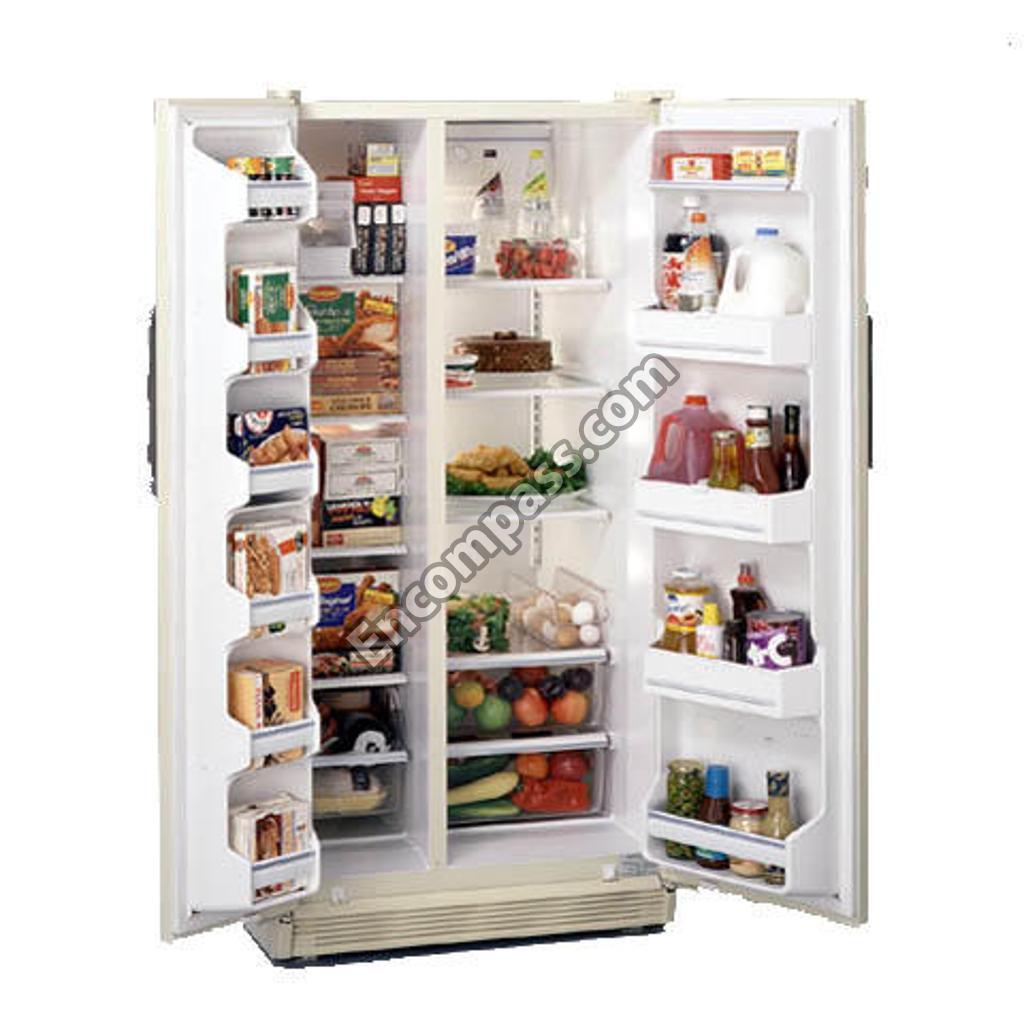

Model Image
Manufacturer

GE

Model Number

TFZ20JABAWW

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WR2X7226 WR2X7226 *NLA*CLIP COVER
WR02X3595 WR02X3595 AXLE
WR02X4742 WR02X4742 AXLE WHEEL
WR2X3595 WR2X3595 AXLE/PIN ASM
WR17X4347 WR17X4347 BAFFLE SIDE ASM
WR17X3988 WR17X3988 BAFFLE SIDE DISCH ASSEMBLY
WR21X180 WR21X180 BASKET
WR60X251 WR60X251 BLADE COND F
WR60X0231 WR60X0231 BLADE COND FAN ASM
WR60X255 WR60X255 BLADE EVAP F
WR60X0255 WR60X0255 BLADE EVAP FAN ASM
WR2X8721 WR2X8721 BRACKET
WR02X8909 WR02X8909 BRACKET CONTROL MOD
WR02X8671 WR02X8671 BRACKET DEF HTR
WR02X9319 WR02X9319 BRACKET EVAP FAN ECM
WR02X7033 WR02X7033 BRACKET MULLION BTM.
WR02X9376 WR02X9376 BRACKET MULLION TOP
WR14X0479 WR14X0479 BREAKER GASKET
WR40X1758 WR40X1758 BREAKER STRIP BTM FF
WR40X1743 WR40X1743 BREAKER STRIP BTM FZ
WR40X1748 WR40X1748 BREAKER STRIP L/S FF
WR40X1747 WR40X1747 BREAKER STRIP L/S FZ
WR40X1757 WR40X1757 BREAKER STRIP R/S FF
WR40X1741 WR40X1741 BREAKER STRIP R/S FZ
WR40X1759 WR40X1759 BREAKER STRIP TOP FF
WR40X1742 WR40X1742 BREAKER STRIP TOP FZ
WR2X7033 WR2X7033 BRKR MULL
WR2X8909 WR2X8909 BRKT CTL MOD
WR2X8671 WR2X8671 BRKT DEF HTR
WR2X9319 WR2X9319 BRKT EVAP FN
WR32X0897 WR32X0897 BUCKET UTILITY WH
WR32X1560 WR32X1560 BUCKET UTILITY WHITE
WR02X12207 WR02X12207 BULB LIGHT
WR2X8518 WR2X8518 C CAP OC WH
WR2X4901 WR2X4901 CAM RISER
WR02X8518 WR02X8518 CAP CORNER OC (WH)
WR2X9299 WR2X9299 CAP MULL DCT
WR02X9299 WR02X9299 CAP MULLION DUCT
WR62X0102 WR62X0102 CAPACITOR
WR62X10013 WR62X10013 CAPACITOR
WR02X7226 WR02X7226 CLAMP COVER
WR01X5042 WR01X5042 CLAMP HOSE
WR1X1843 WR1X1843 CLAMP TRI325006
WR2X8583 WR2X8583 CLIP
WR02X8583 WR02X8583 CLIP COMP MTNG
WR01X1985 WR01X1985 CLIP COND
WR2X9000 WR2X9000 CLIP COND
WR1X1972 WR1X1972 CLIP COND
WR2X7064 WR2X7064 CLIP COND
WR02X7064 WR02X7064 CLIP COND LOOP
WR01X2128 WR01X2128 CLIP EVAP COVER
WR01X10064 WR01X10064 CLIP EVAP COVER
WR2X7080 WR2X7080 CLIP GRILLE
WR02X7080 WR02X7080 CLIP-0. CASE-END CAP
WR87X10084 WR87X10084 COMP. REPL. KIT R134A
WR02X3198 WR02X3198 COMP. RING, EVAP. FAN
WR84X169 WR84X169 CONDENSER
WR84X0188 WR84X0188 CONDENSER ASM
WR84X188 WR84X188 CONDENSR ASM
WR09X0591 WR09X0591 CONTROL DEFROST
WR09X10182 WR09X10182 CONTROL DEFROST
WR02X10042 WR02X10042 CONTROL MEAT PAN ASSEMBLY
WR09X0530 WR09X0530 CONTROL TEMP FRZ
WR23X0487 WR23X0487 CORD POWER ASM
WR02X3598 WR02X3598 COTTER PIN
WR02X7834 WR02X7834 COVER
WR82X10023 WR82X10023 COVER ACCESS ASSEMBLY
WR17X4066 WR17X4066 COVER EVAP
WR17X3662 WR17X3662 COVER FAN
WR02X9004 WR02X9004 COVER IM RECEPTACLE
WR32X1105 WR32X1105 COVER PAN GLASS
WR32X1514 WR32X1514 COVER PAN GLASS
WR2X7834 WR2X7834 COVER RELAY
WR9X530 WR9X530 CTL TEMP FRZ
WR2X9004 WR2X9004 CVR IM RECEP
WR22X0438 WR22X0438 DAIRY DOOR
WR22X438 WR22X438 DAIRY DOOR
WR9X568 WR9X568 DAMPER CNTRL
WR09X0568 WR09X0568 DAMPER CONTROL
WR17X3666 WR17X3666 DEFLECTR AIR
WR19X5003 WR19X5003 DISH BUTTER
WR78X10122 WR78X10122 DOOR FOAM ASSEMBLY FF WHITE
WR78X10103 WR78X10103 DOOR FOAM ASSEMBLY FZ WHI
WR77X0598 WR77X0598 DOOR INNER FF
WR77X0597 WR77X0597 DOOR INNER FZ
WR71X2373 WR71X2373 DOOR MODULE
WR2X8654 WR2X8654 DUCK MULLION
WR2X9431 WR2X9431 DUCT AIR
WR02X8910 WR02X8910 DUCT AIR FRONT
WR2X8910 WR2X8910 DUCT AIR FRT
WR17X1382 WR17X1382 DUCT AIR GASKET ASSEMBLY
WR02X8911 WR02X8911 DUCT AIR REAR
WR02X9431 WR02X9431 DUCT AIR RETURN ASM FF
WR2X8911 WR2X8911 DUCT AIR RR
WR02X8654 WR02X8654 DUCT MULLION
WR17X4275 WR17X4275 EXTENSION SHIELD LIGH
WR60X114 WR60X114 FAN BLADE
WR1X1936 WR1X1936 FASTENER
WR01X1936 WR01X1936 FASTENER WATER TUBE
WR2X6087 WR2X6087 FILL TUBE
WR82X10031 WR82X10031 FLOOR COMPLETE ASM
WR14X0272 WR14X0272 FOAM STRIP
WR14X264 WR14X264 FOAM TAPE
WR17X10451 WR17X10451 FRONT DOOR SHELF
WR17X4348 WR17X4348 FRONT DOOR SHELF
WR2X4858 WR2X4858 FRONT WHEEL
WR21X0183 WR21X0183 FRZ BASKET
WR2X3899 WR2X3899 GASKET
WR14X0442 WR14X0442 GASKET AIR DUCT
WR14X0455 WR14X0455 GASKET COVER EVAP
WR24X0527 WR24X0527 GASKET DOOR
WR24X527 WR24X527 GASKET DOOR
WR24X0528 WR24X0528 GASKET DOOR FF WH
WR24X528 WR24X528 GASKET DR FF
WR14X0444 WR14X0444 GASKET PAN COVER FRT
WR14X10007 WR14X10007 GASKET SHIELD LOWER
WR14X481 WR14X481 GREAKER GASK
WR74X0225 WR74X0225 GRILLE BASE WH
WR74X225 WR74X225 GRL BASE WH
WR2X7391 WR2X7391 GROMMET
WR2X8657 WR2X8657 GROMMET
WR2X8474 WR2X8474 GROMMET
WR02X22869 WR02X22869 GROMMET
WR02X8657 WR02X8657 GROMMET DRAIN TUBE
WR02X7391 WR02X7391 GROMMET EVAP FAN
WR2X8349 WR2X8349 GROMMET SCR
WR02X4676 WR02X4676 GROMMET SHELF
WR02X8474 WR02X8474 GROMMET WATER FILL
WR14X442 WR14X442 GSKT AIRDUCT
WR14X456 WR14X456 GSKT.CVR.EVP
WR12X10332 WR12X10332 HANDLE SXS WHITE
WR17X4068 WR17X4068 HANDLE VEG PAN
WR17X4067 WR17X4067 HANDLE VEG PAN
WR23X316 WR23X316 HARNESS
WR23X0489 WR23X0489 HARNESS CONTROL MOD
WR51X0446 WR51X0446 HEATER HARNESS DEF ASM
WR51X10021 WR51X10021 HEATER HARNESS DEF ASSEMBLY
WR87X0506 WR87X0506 HIGH SIDE ASM
WR13X0742 WR13X0742 HINGE BTM PIN & CAM ASM
WR13X10020 WR13X10020 HINGE BTM PIN & CAM ASSEMBLY
WR13X0741 WR13X0741 HINGE BTM PIN CAM ASM
WR02X8262 WR02X8262 HINGE COVER WH
WR2X8262 WR2X8262 HINGE COVER WH
WR13X0743 WR13X0743 HINGE TOP ASM FF
WR13X0744 WR13X0744 HINGE TOP ASM FZ
WR13X10054 WR13X10054 HINGE TOP ASSEMBLY FF
WR13X10055 WR13X10055 HINGE TOP ASSEMBLY FZ
WB17X5062 WB17X5062 HOUSING
WR17X3416 WR17X3416 HOUSING CONTROL
WR17X4351 WR17X4351 HOUSING LEG ASSEMBLY
WR23X312 WR23X312 I M RECEPT
WR77X597 WR77X597 I.D.PANEL FZ **NLA*
WR23X0312 WR23X0312 IM RECEPACLE
WR82X338 WR82X338 INSUL BELLOW
WR82X0338 WR82X0338 INSULATION WASHER DOOR BELLOWS
WR2X9215 WR2X9215 KNOB DAMP CO
WR02X9215 WR02X9215 KNOB DAMP CONT
WR02X9216 WR02X9216 KNOB FRZ CONTROL
WR2X9216 WR2X9216 KNOB FRZ CTL
WR23X0442 WR23X0442 LAMP 40W 240 V
WR85X0282 WR85X0282 LOW SIDE ASM
WR60X0266 WR60X0266 MOTOR COND FAN 230V
WR60X0269 WR60X0269 MOTOR EVAP FAN 230V
WR60X266 WR60X266 MTR COND FAN
WR60X269 WR60X269 MTR EVAP FAN
WR40X1749 WR40X1749 MULLION WH
WZ6X105D WZ6X105D N.L.A. SCREW-PKG 12
WR1X1935 WR1X1935 N/L/A 05/03/06
WR1X1515 WR1X1515 NUT
WR01X1515 WR01X1515 NUT LOCKING
WR2X4599 WR2X4599 NUT STRIP
WR02X4739 WR02X4739 NUT U
WR02X4599 WR02X4599 NUTSTRIP
WR17X3483 WR17X3483 ORIFICE EVAP FAN
WR08X0198 WR08X0198 OVERLOAD
WR8X198 WR8X198 OVERLOAD
WR86X96 WR86X96 P/S DRYER KIT R134A
WR86X25269 WR86X25269 P/S DRYER KIT R134A
WR32X1177 WR32X1177 PAN LOWER
WR32X1427 WR32X1427 PAN WATER DISPOSAL
WR17X10202 WR17X10202 PLATE COMP MTG
WR02X7069 WR02X7069 PLUG BUTTON
WR2X3248 WR2X3248 PLUG BUTTON
WR2X7069 WR2X7069 PLUG BUTTON
WR02X3248 WR02X3248 PLUG BUTTON 1/4"" HOLE
WR02X4097 WR02X4097 PLUG BUTTON BQ
WR01X2110 WR01X2110 PLUG FASTENER
WR1X2110 WR1X2110 PLUG FASTNER
WR02X9002 WR02X9002 PLUG LINER FZ
WR2X9002 WR2X9002 PLUG LINERFZ
WR2X8659 WR2X8659 PLUG RECESS
WR02X8659 WR02X8659 PLUG RECESSED
49-6976 49-6976 PM GUIDE OWNERS
31-45544 31-45544 PM MINI MANUAL WIRING
WR23X487 WR23X487 POWER CORD
WR17X3117 WR17X3117 RAIL MACH MTG FRT
WR17X10059 WR17X10059 RAIL MACH MTG REAR
WR17X10448 WR17X10448 RAIL MACH MTG REAR
WR38X2170 WR38X2170 REFLECTOR GLASS SHELF
WR87X28949 WR87X28949 REFRIGERATOR EVAPORATOR
WR07X0263 WR07X0263 RELAY PTCR
WR07X10016 WR07X10016 RELAY PTCR
WR17X3119 WR17X3119 RETAINER STRIP
WR17X2092 WR17X2092 RETAINER STRIP
WR17X3120 WR17X3120 RETAINER STRIP
WR1X1987 WR1X1987 RIVET PLAST
WR01X1987 WR01X1987 RIVET PLASTIC WH
WZ04X0263 WZ04X0263 SCR 10-16 AB HXW 1/2
WR01X2141 WR01X2141 SCR 10-24 TR HXW I S
WR01X10601 WR01X10601 SCR 10-24 TT IHXW 1.000
WR01X10204 WR01X10204 SCR 12-24 C
WR01X10600 WR01X10600 SCR 12-24 TT IH .811 S
WR01X10596 WR01X10596 SCR 8-18 AB FLTR 5/8 S
WR01X10038 WR01X10038 SCR 8-18 AB FLTR 5/8 S
WZ06X0136 WZ06X0136 SCR 8-18 AB HXW 1/2 S
WR01X1554 WR01X1554 SCR 8-18 AB IHXW 1/2 S
WR01X10623 WR01X10623 SCR 8-18 AB IHXW 9/16 S
WR1X1466 WR1X1466 SCR 8-32 T HXW 3/8 S
WZ5X158D WZ5X158D SCR 8-32 T HXW 3/8 S
WR1K1 WR1K1 SCR 8-36 T
WR01X1194 WR01X1194 SCREW
WR01X2140 WR01X2140 SCREW
WB01K5052 WB01K5052 SCREW
WR01X1505 WR01X1505 SCREW
WZ6X136 WZ6X136 SCREW
WR1X1928 WR1X1928 SCREW
WB1K5052 WB1K5052 SCREW
WD2X5166 WD2X5166 SCREW
WH2X930 WH2X930 SCREW
WZ06X0105 WZ06X0105 SCREW
WR01X1928 WR01X1928 SCREW & WASHER ASM
WR01X5034 WR01X5034 SCREW 8-18 A HX 1/2 S
WZ02X0464 WZ02X0464 SCREW 8-32 X 3/8
WR01K0001 WR01K0001 SCREW 8-36 T IHW 3/8 SN
WR01X1825 WR01X1825 SCREW COND HSG
WZ04X0244 WZ04X0244 SCREW-FRONT
WZ4X244D WZ4X244D SCREW-PKG 12
WR1X1505D WR1X1505D SCREW-PKG 12
WZ4X241D WZ4X241D SCREW-PKG 12
WZ4X338D WZ4X338D SCREW-PKG 12
WZ2X464D WZ2X464D SCREW-PKG 12
WE2X186D WE2X186D SCREW-PKG 12
WR2X4097 WR2X4097 SEALER PLUG
WR71X2290 WR71X2290 SHELF CANT
WR32X1515 WR32X1515 SHELF CANT GLASS
WR71X10715 WR71X10715 SHELF FZ
WR17X4070 WR17X4070 SHIELD LIGHT FF
WR2X4194 WR2X4194 SHIM
WR2X7490 WR2X7490 SHIM CAM
WR02X7490 WR02X7490 SHIM CAM & DOOR STOP
WR02X9442 WR02X9442 SHIM HINGE
WR2X9442 WR2X9442 SHIM HINGE
WR02X4194 WR02X4194 SHIM HINGE TOP
WR02X8914 WR02X8914 SLEEVE VINYL
WR02X10031 WR02X10031 SLEEVE VINYL
WR72X10008 WR72X10008 SLIDE PAN LOWER LH
WR72X10007 WR72X10007 SLIDE PAN LOWER RH
WR72X10010 WR72X10010 SLIDE PAN UPPER LH
WR72X10009 WR72X10009 SLIDE PAN UPPER RH
WR2X7971 WR2X7971 SNUG MODULE
WR02X7971 WR02X7971 SNUGGER MODULE
WR02X9014 WR02X9014 SOCKET & TERMINAL ASM
WR2X9014 WR2X9014 SOCKET&TERM
WR01X1929 WR01X1929 SPACER SCREW
WR1X1929 WR1X1929 SPACER SCREW
WR02X9300 WR02X9300 STOP DOOR WH
WR2X9300 WR2X9300 STOP DOOR WH
WR2X4548 WR2X4548 SUPPORT
WR2X2880 WR2X2880 SUPPORT
WR02X7036 WR02X7036 SUPPORT BASKET-FRONT
WR02X4548 WR02X4548 SUPPORT BASKET-REAR
WR02X11561 WR02X11561 SUPPORT FZ
WR02X9217 WR02X9217 SUPPORT FZ SHELF
WR02X4845 WR02X4845 SUPPORT ORIFICE
WR02X4674 WR02X4674 SUPPORT SHELF
WR02X2880 WR02X2880 SUPPORT TWIST
WR02X8989 WR02X8989 SUPPORT TWIST BUMPER
WR2X4676 WR2X4676 SUPT
WR2X7036 WR2X7036 SUPT BSKT FZ
WR2X8989 WR2X8989 SUPT BUMPER
WR2X9217 WR2X9217 SUPT FZ SHLF
WR2X4845 WR2X4845 SUPT-ORIFICE
WR23X0359 WR23X0359 SWITCH LIGHT
WR23X10725 WR23X10725 SWITCH LIGHT
WR12X10106 WR12X10106 TAIL HANDLE SXS WH
WR12X10104 WR12X10104 TAIL HANDLE SXS WH
WR14X0264 WR14X0264 TAPE FOAM
WB17X5061 WB17X5061 TERMINAL BLACK ASSEMBLY (3 PIN
WB17X5060 WB17X5060 TERMINAL BLK ASM (2 PIN)
WR50X122 WR50X122 THERMO DEF
WR50X0122 WR50X0122 THERMOSTAT DEF
WR72X255 WR72X255 TRACK CAN SH
WR72X0255 WR72X0255 TRACK CANT SHELF
WR30X0311 WR30X0311 TRAY ICE
WR30X311 WR30X311 TRAY ICE
WR38X2171 WR38X2171 TRIM DAIRY DOOR
WR38X2149 WR38X2149 TRIM HANDLE BASKET FZ
WR38X2172 WR38X2172 TRIM SHELF GLASS
WR38X2151 WR38X2151 TRIM SHELF WIRE
WR84X0169 WR84X0169 TUBE COND LOOP ASM
WR02X8293 WR02X8293 TUBE DRAIN
WR02X10395 WR02X10395 TUBE DRAIN
WR02X6087 WR02X6087 TUBE WATER FILL
WR32X1178 WR32X1178 UPPER PAN
WR1X1714 WR1X1714 WASHER
WR01X1714 WR01X1714 WASHER,CUSION
WR2X3594 WR2X3594 WHEEL
WR02X4858 WR02X4858 WHEEL ASM FRT
WR02X3594 WR02X3594 WHEEL MOBILITY
WR14X451 WR14X451 WR14X451
Main Menu x
