Model Image
Manufacturer

GE

Model Number

UPVH890GJ0MG

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WE1M833 WE1M833 10 INCH STEAM HOSE
WE1M785 WE1M785 3 - BUTTON ASM MG
WD2M174 WD2M174 ABSORBER-FOAM
WE1M733 WE1M733 ARM & PIN LEFT ASM
WE1M734 WE1M734 ARM & PIN RIGHT ASM
WE1M768 WE1M768 BACK BUTTON - GOLD
WE1M727 WE1M727 BADGE - GE PROFILE
WE14M130 WE14M130 BAFFLE AND SCREEN ASM
WE14M128 WE14M128 BAFFLE DRUM
WE1M300 WE1M300 BEARING RETAINER
WE1M1067 WE1M1067 BEARING SLIDE
WE14M125 WE14M125 BLOWER HOUSING
WE17M45 WE17M45 BLOWER MOTOR (W/CONTROL)
WE16M15 WE16M15 BLOWER WHEEL
WE4M419 WE4M419 BOARD DISPLAY VFD
WE13M48 WE13M48 BRACKET GAS VALVE
WE5M51 WE5M51 CABLE COMUNICATE WSH-DRY

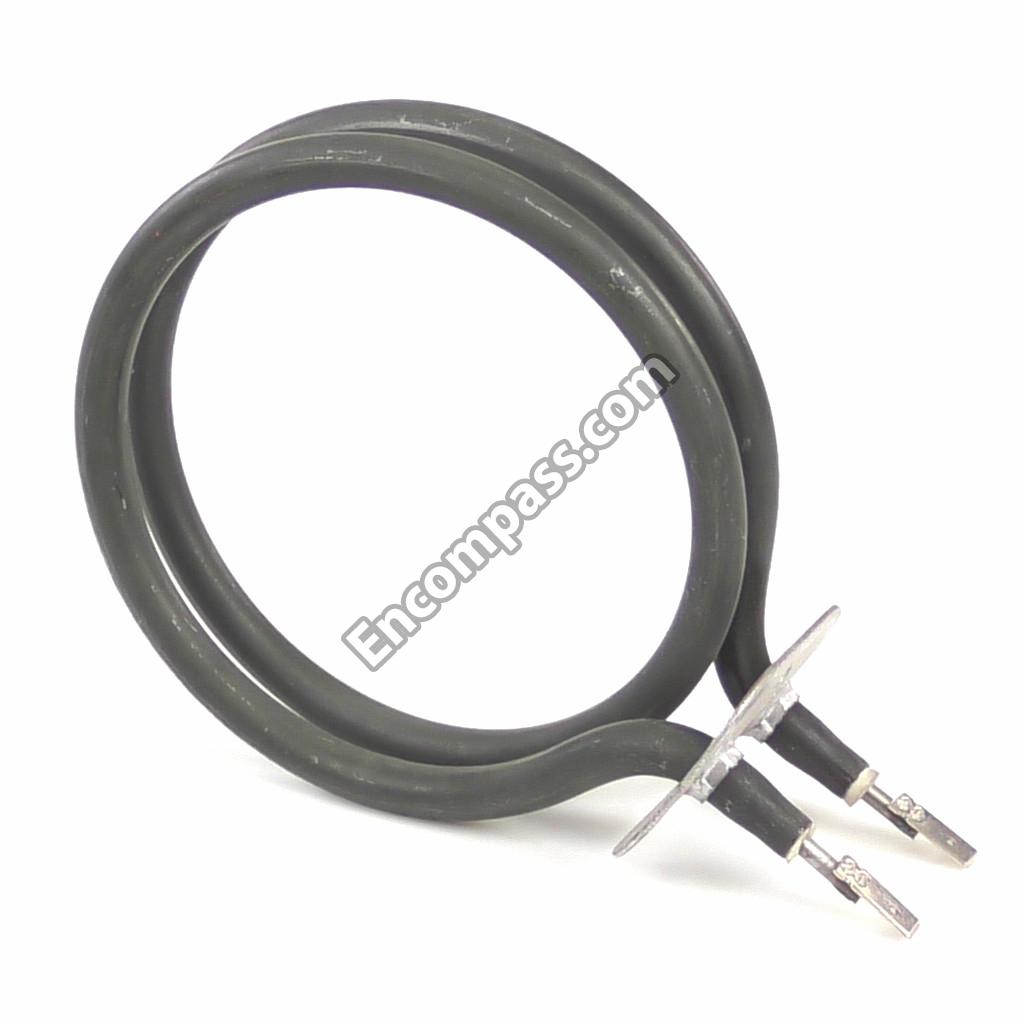

WE11M34 WE11M34 CALROD ELEMENT
WE1M750 WE1M750 CAPACITOR HOLDER
WE1M824 WE1M824 CHANNEL FOAM
WE1X1091 WE1X1091 CLIP CORDSET
WE1M765 WE1M765 CLUSTER BUTTON ASM GOLD
WE14M133 WE14M133 COMBUSTION CHAMBER
WE1M836 WE1M836 COUPLING HOSE - UNION
WE1M821 WE1M821 DAMPENING BAND - DRUM
WE1M508 WE1M508 DAMPENING PLATE TOP CV
WE1M817 WE1M817 DAMPENING PLATE TOP PNL
WE14M151 WE14M151 DEFLECTOR DRUM HEAT
WE1M745 WE1M745 DOOR CAP LEFT
WE1M746 WE1M746 DOOR CAP RIGHT
WE1M755 WE1M755 DOOR GUIDE
WE1M955 WE1M955 DOOR HANDLE COVER
WE1M751 WE1M751 DOOR HINGE ASM
WE1M736 WE1M736 DOOR OUTER RING
WE1M752 WE1M752 DOOR OUTER WINDOW
WE4M415 WE4M415 DOOR SWITCH
WE1M834 WE1M834 DRAIN HOSE
WE03X33648 WE03X33648 DRIVE BELT
WE1M758 WE1M758 ENCLOSED SCREW GROMMET
WE14M107 WE14M107 EXHAUST DUCT
WE1M587 WE1M587 EXHAUST PROTECTOR ASM
WE9M40 WE9M40 FELT ANTI-LEAKING 14INCH
WE9M31 WE9M31 FELT CLEANING
WE04X24814 WE04X24814 FELT TRAP DUCT
WE4X448 WE4X448 FLAME DETECTOR
WE1M737 WE1M737 FM GASKET AIR DUCT LONG
WE1M738 WE1M738 FM GSKT TRP DUCT CVR-TOP
WE1M739 WE1M739 FOAM BLOCK SPACER
WE1M823 WE1M823 FOAM BLOWER MOTOR
WE1M730 WE1M730 FRNT OPNG PLUG DSRT SLVR
WE1M816 WE1M816 FRONT INSULATION
WE1M724 WE1M724 FRONT SHIELD
WE09X20569 WE09X20569 GASKET (AIRDUCT)
WE9M39 WE9M39 GASKET- LID(STEAM GENR)
WE1X1172 WE1X1172 GR STRAP ASM
WE1M829 WE1M829 GROMMET
WE1M956 WE1M956 HANDLE BOTTOM
WE1M749 WE1M749 HANDLE CAP
WE14M129 WE14M129 HANG DRY BAFFLE ASM
WE5M54 WE5M54 HARNESS SENSORS
WE1M759 WE1M759 HINGE BRACKET LEFT
WE1M760 WE1M760 HINGE BRACKET RIGHT
WE1M961 WE1M961 HINGE CAP LEFT
WE1M748 WE1M748 HINGE CAP RIGHT
WE2M263 WE2M263 HOSE CLAMP (FRONT) BK
WE2M260 WE2M260 HOSE TIE (SNAP-IN)
WE4M425 WE4M425 IDLER MICROSWITCH
WE2M237 WE2M237 IDLER PIVOT SCREW
WE1M860 WE1M860 IDLER SWITCH WASHER

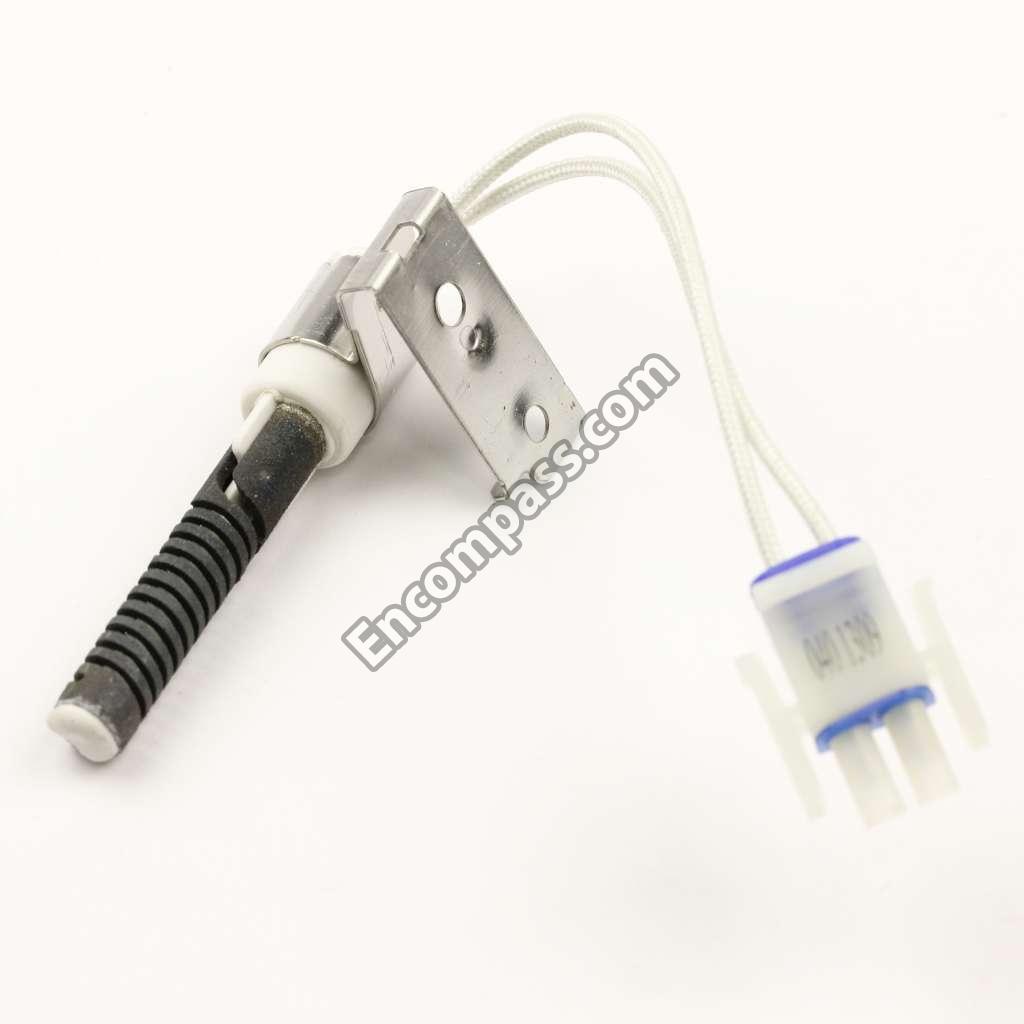

WE4M456 WE4M456 IGNITOR
WE1M761 WE1M761 INNER DOOR CAP LEFT
WE1M762 WE1M762 INNER DOOR CAP RIGHT
WE2M176 WE2M176 INSULATED WASHER
WE1M861 WE1M861 INSULATION FRNT TOP BRNG
WE1M859 WE1M859 INSULATION PAD HINGES
WE25M48 WE25M48 KIT - REVERSIBLE DOOR
WE1M953 WE1M953 KNOB ASM
WE05X20431 WE05X20431 LAMP
WE1M642 WE1M642 LEVELLING SCREW GRAY
WE1M828 WE1M828 LID (STEAM GENERATOR)

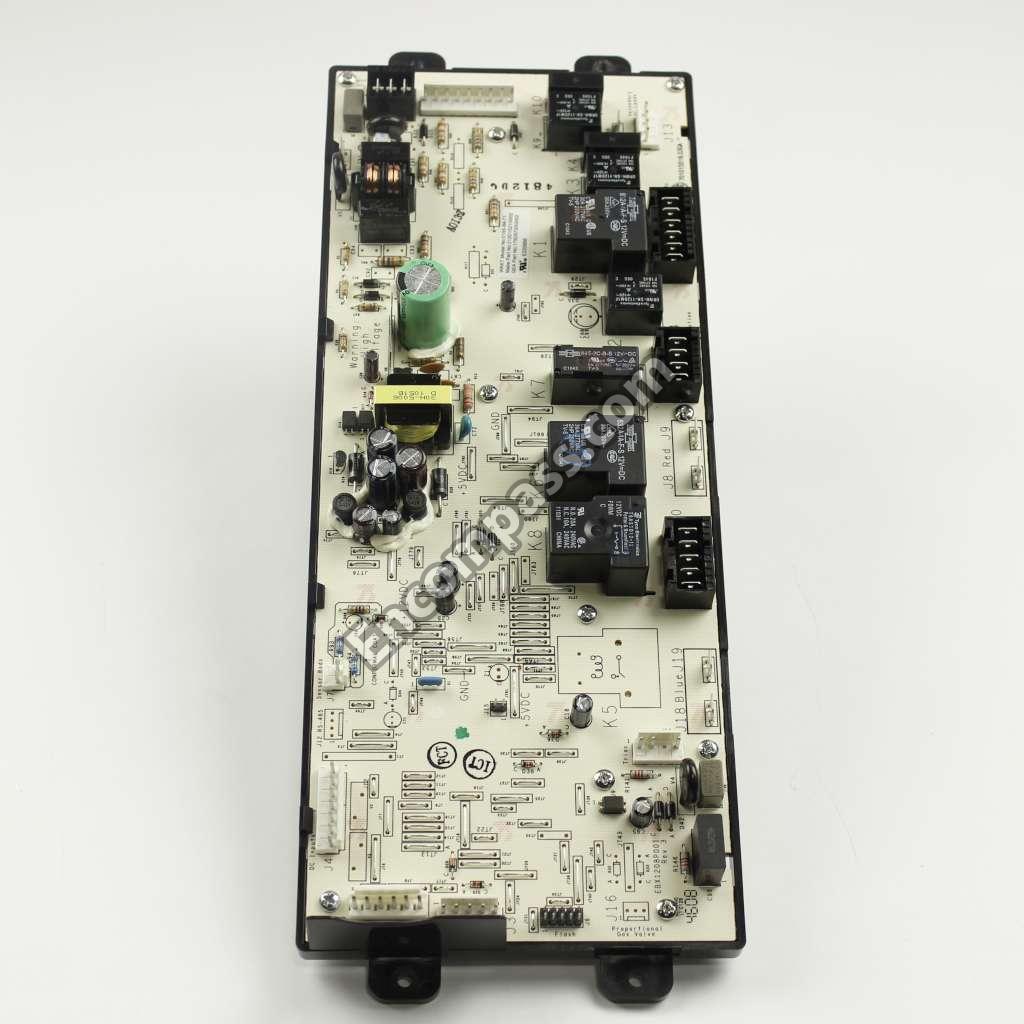

WE4M454 WE4M454 MAIN POWER BOARD ASM
WE17X20854 WE17X20854 MOTOR AND PULLEY
WE03X27285 WE03X27285 MOTOR PLATE NV
WE1X921 WE1X921 MOTOR STRAP
WE13M43 WE13M43 MOTOR SUPPORT
WE2M213 WE2M213 NUT-STRIP DOOR GUIDE
WE2M234 WE2M234 NYLON WASHER
WE1X617 WE1X617 PIPE CLAMP
WE1M822 WE1M822 PLATE DIFFUSER GAS

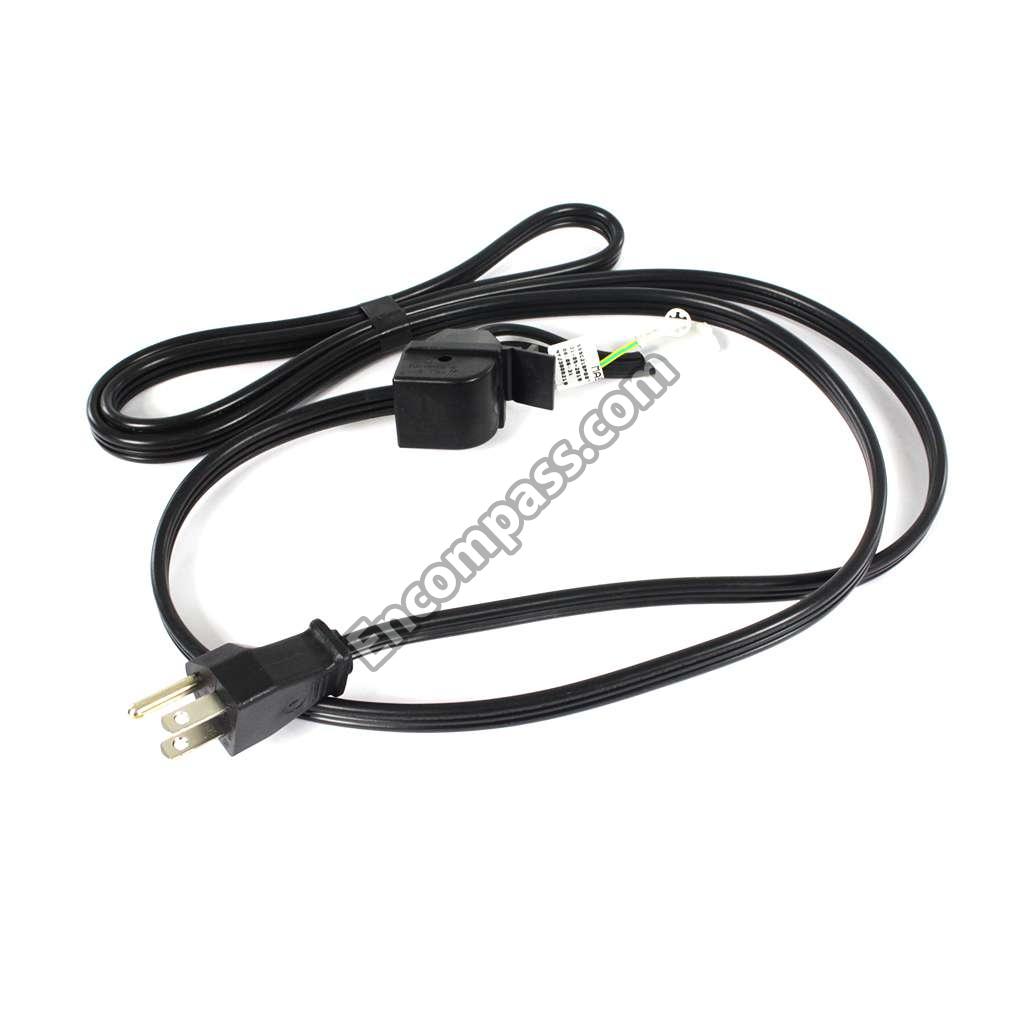

WE26M345 WE26M345 POWER CORD (120V GAS)
WE1M572 WE1M572 PRONGUED PLUG BUTTON
WE12X20395 WE12X20395 PULLEY BELT DRIVE
WE1M528 WE1M528 REAR BRACKET LEVEL LEG
WE20M381 WE20M381 REAR PANEL 7.5 C.F.
WE20M476 WE20M476 REAR PLATE
WE2M206 WE2M206 RUBBER GROMMET
WH12X10513 WH12X10513 RUN CAPACITOR
WE2M229 WE2M229 SCREW
WE2X343 WE2X343 SCREW
WE2M302 WE2M302 SCREW
WR2X9260 WR2X9260 SCREW
WE2M142 WE2M142 SCREW
WE2M236 WE2M236 SCREW
WD3M76 WD3M76 SCREW
WE2M173 WE2M173 SCREW
WE2M202 WE2M202 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M196 WE2M196 SCREW #8
WE1M583 WE1M583 SCREW #8-32 X 1/2 HINGE
WE2M259 WE2M259 SCREW - SPACER MC BOARD
WE2M261 WE2M261 SCREW - TIMER
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WE2M210 WE2M210 SCREW BACK HOUSING
WE2M264 WE2M264 SCREW CENTER KNOB AREA
WE2M211 WE2M211 SCREW FRONT
WE2M243 WE2M243 SCREW GOLD
WE2M200 WE2M200 SCREW GROUND
WE2M240 WE2M240 SCREW WHEEL MOUNTING
WZ5X158D WZ5X158D SCREW-PKG 12
WE1M575 WE1M575 SENSOR RODS
WE1M840 WE1M840 SHIELD IDLER SWITCH
WE1M841 WE1M841 SHIELD-DRUM MOTOR
WE1M842 WE1M842 SHIELD-GAS VALVE
WE1M843 WE1M843 SHIELD-WATER VALV/CALROD
WE20M401 WE20M401 SIDE PANEL GOLD
WE5M53 WE5M53 SOCKET ASM W WIRE HARNESS
WE1M831 WE1M831 SPACER - MC BOARD
WE1M735 WE1M735 SPRING IDLER
WE1X1192 WE1X1192 STRIKE DOOR
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WE1M779 WE1M779 SUPPORT CHANNEL
WE1M830 WE1M830 SUPPORT MAIN POWER BOARD
WE1M375 WE1M375 SUPT REAR
WE4M453 WE4M453 TIMER
WE14M152 WE14M152 TRANISITION DUCT
WE14M126 WE14M126 TRAP DUCT COMPLETE ASM
WE1M740 WE1M740 TRAP DUCT COVER
WE4M418 WE4M418 USER INTERFACE BOARD ASM
WE2M185 WE2M185 WASHER - DAMPENING BAND
WE1M832 WE1M832 WATER HOSE-VAL TO STM GN
WE1M757 WE1M757 WHEEL FRONT SHIELD
