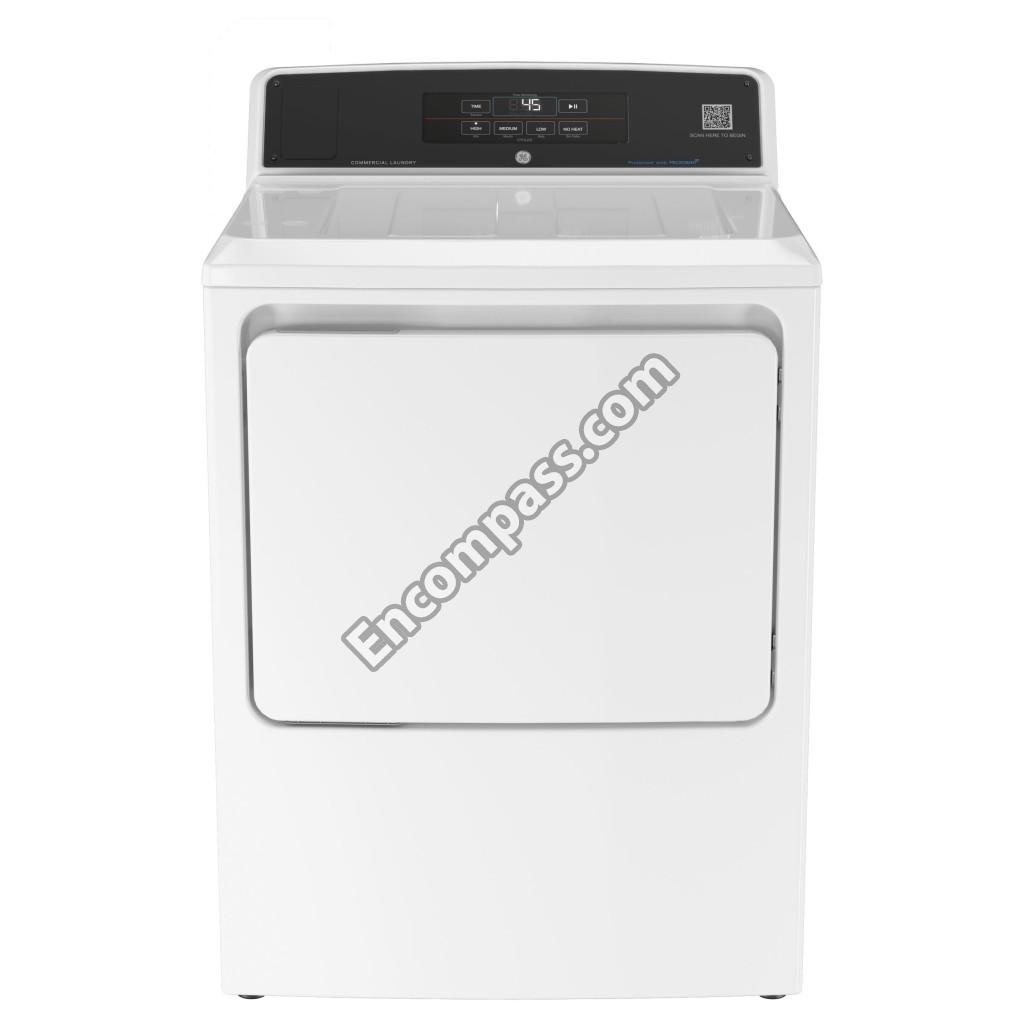

Model Image
Manufacturer

GE

Model Number

VTD56EASV1WB

Description

Dryer Electric

Interactive Exploded View
Exploded View

Parts List

Part Number Description
VKAUNICBT VKAUNICBT AASM BOX MONEY VKAUNICBT
VTA56SCDT VTA56SCDT AASM COIN DROP SINGLE VTA56SCDT
VTA56CHKT VTA56CHKT AASM KIT COIN HOUSING VTA56CHKT
WE14X20683 WE14X20683 BAFFLE
WE1M300 WE1M300 BEARING RETAINER
WE03X37319 WE03X37319 BEARING SLIDE
WE03X37320 WE03X37320 BEARING SLIDE
WE03X25314 WE03X25314 BEARING TOP ASM
WE03X23956 WE03X23956 BEARING TOP SLIDES
WE03X29897 WE03X29897 BELT DRIVE
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WH16X34317 WH16X34317 BLOWER WHEEL
WE01X25074 WE01X25074 BRACKET IDLER
WE01X32177 WE01X32177 CAP DOOR
WE2M96 WE2M96 CAP NUT
WE02X36005 WE02X36005 CAP NUT
WE04X25158 WE04X25158 CHASSIS AND LEG ASM
WH08X36081 WH08X36081 COIN BOX JUMPER HARNESS
WE13X36006 WE13X36006 CONTROL PANEL COMM TL DRYER WHITE
WE03X23884 WE03X23884 COVER BOTTOM
WE1M1007 WE1M1007 COVER FUSE TERMINAL
WE11X29438 WE11X29438 DIFFUSER
WE01X31004 WE01X31004 DOOR DOOR LATCH
WE01X31005 WE01X31005 DOOR HINGE
WE01X30999 WE01X30999 DOOR STRIKE
WE04X28977 WE04X28977 DOOR SWITCH
WE21X23869 WE21X23869 DRUM ASM
WE10X31003 WE10X31003 DRYER DOOR
WE16X36000 WE16X36000 DUCT TRAP
WE16X36001 WE16X36001 DUCT TRAP SLIDES
WE01X23893 WE01X23893 EXHAUST DUCT
WE09X27635 WE09X27635 FELT TOP BEARING
WE09X27634 WE09X27634 FELT TRAP DUCT
WE09X25276 WE09X25276 GASKET
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE13X29439 WE13X29439 GROUND STRAP ASM
WE15X26137 WE15X26137 HARNESS HIGH LIMIT ASM
WE01X29060 WE01X29060 HEAT SHIELD
WE11X21156 WE11X21156 HEATER AND HOUSING ASM
WE11M43 WE11M43 HEATER HOUSING
WE04X26139 WE04X26139 HIGH LIMIT THERMOSTAT
WE13X29560 WE13X29560 HOUSING BLOWER
WE03X35997 WE03X35997 IDLER ARM
WE03X20434 WE03X20434 IDLER ARM
WE4M398 WE4M398 INLET CONTROL THERMOSTAT
WE01X29357 WE01X29357 LEVELING LEG
WE16X36002 WE16X36002 LINT FILTER
WE22X36078 WE22X36078 MAIN CONTROL BOARD & CHASSIS W/INSTRUCTI
WE08X37099 WE08X37099 MAIN HARNESS ELECTRIC TL DRYER
WE11M10001 WE11M10001 MICA HEATER
WE17X23056 WE17X23056 MOTOR & BLOWER ASM
WE49X28295 WE49X28295 MOTOR AND PULLEY ASM
WE01X0921 WE01X0921 MOTOR BRACKET
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE4M448 WE4M448 OUTLET CNTRL THERMISTOR
WE20X25260 WE20X25260 PANEL FRONT
WE02X23955 WE02X23955 PANEL REAR
WE20X23867 WE20X23867 PANEL SIDE
WE13X29444 WE13X29444 PLATE BLOWER
WE03X23858 WE03X23858 PLATE MOTOR
WE1M934 WE1M934 PLUG BUTTON WHITE
31-3000305 31-3000305 PM INSTALL INSTRUCTIONS
31-3000306 31-3000306 PM MINI MANUAL AND WIRING
49-3000304 49-3000304 PM OWNERS MANUAL
WE1M780 WE1M780 PROTECTION BRACKET
WE03X35998 WE03X35998 PULLEY
WE1M723 WE1M723 REAR HEAT SHEILD
WE13X36007 WE13X36007 REAR PANEL
WZ4X241D WZ4X241D SCR
WH02X10381 WH02X10381 SCR 4-16 H/L PNT10 .315S
WE2M282 WE2M282 SCR 6-18 B B1Q1 3/4 S ZN
WR01X10634 WR01X10634 SCR 8-18 AB 13/4 S HXW
WE2M302 WE2M302 SCREW
WE2M202 WE2M202 SCREW
WE01X25535 WE01X25535 SCREW
WE01X25318 WE01X25318 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WR01X10196 WR01X10196 SCREW 8-18 HI/LO 5/8
WZ5X158D WZ5X158D SCREW 8-32X3/8 GRD SCR
WE00X181L WE00X181L SHAFT
WE3M33 WE3M33 SHAFT & BRACKET ASS'Y
WE01X23880 WE01X23880 SHIELD SWITCH
WE1M462 WE1M462 SLEEVE DRUM
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET EL
WE13X30697 WE13X30697 STRAP MOTOR
WE1M569 WE1M569 STRIKE PLATE
WE4M325 WE4M325 TERM BLK & GRND STRAP
WE04X25200 WE04X25200 THERMOSTAT
WE04X25198 WE04X25198 THERMOSTAT
WE13X36004 WE13X36004 TOP COVER COMM TL DRYER WHITE
WE08X36084 WE08X36084 UI TO MC JUMPER HARNESS
WE22X36083 WE22X36083 USER INTERFACE BOARD
WH22X33297 WH22X33297 WIFI BOARD W/INSTRUCTIONS
